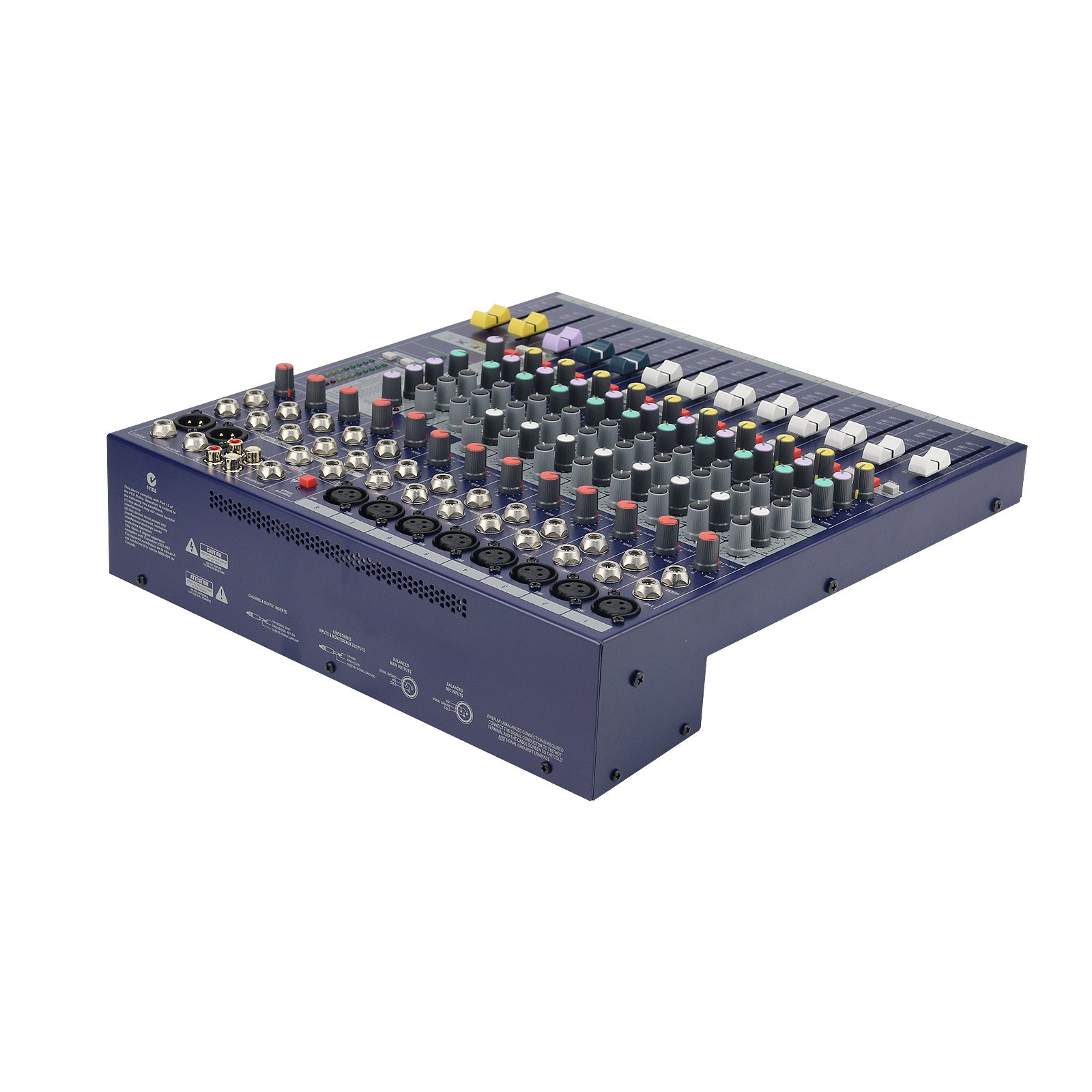

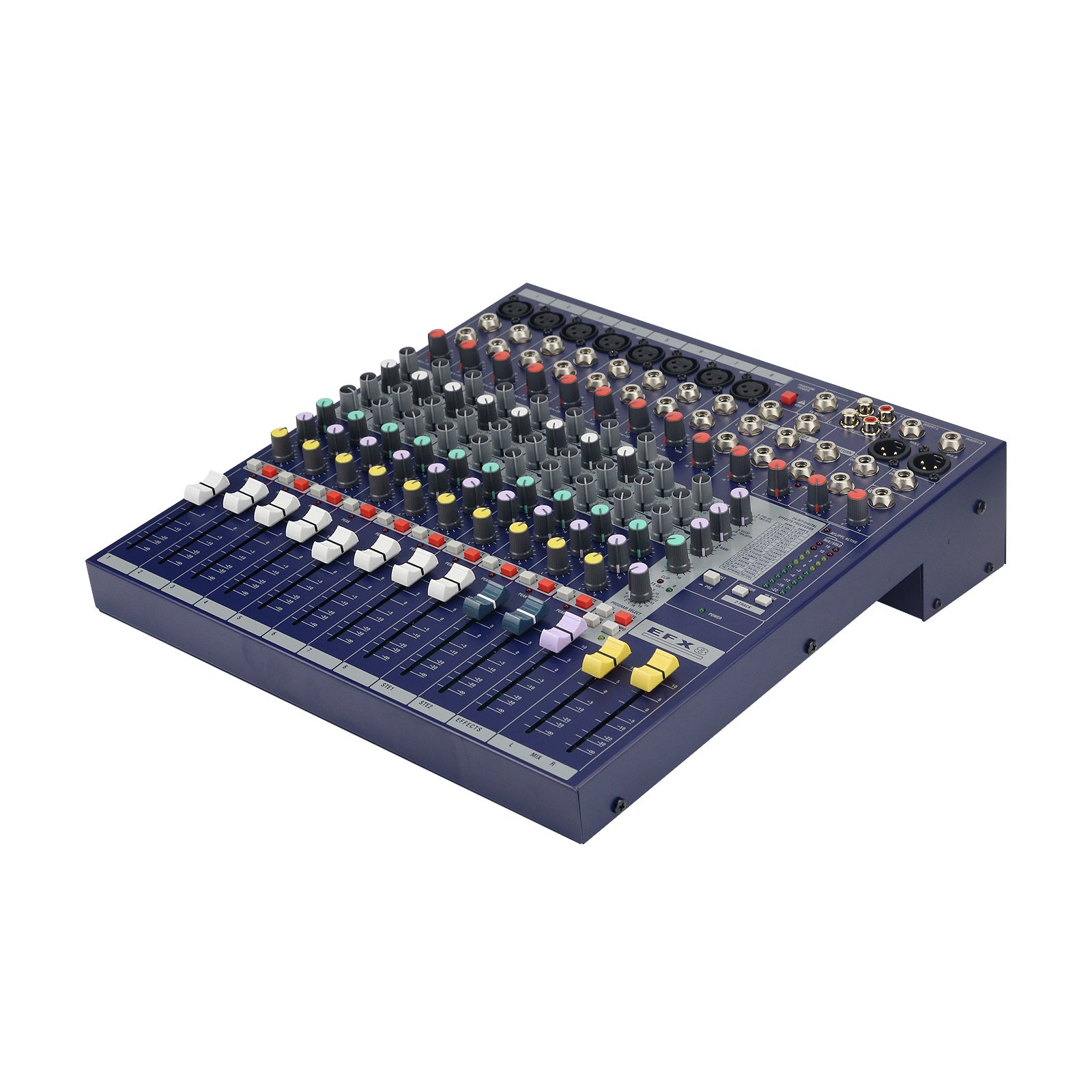

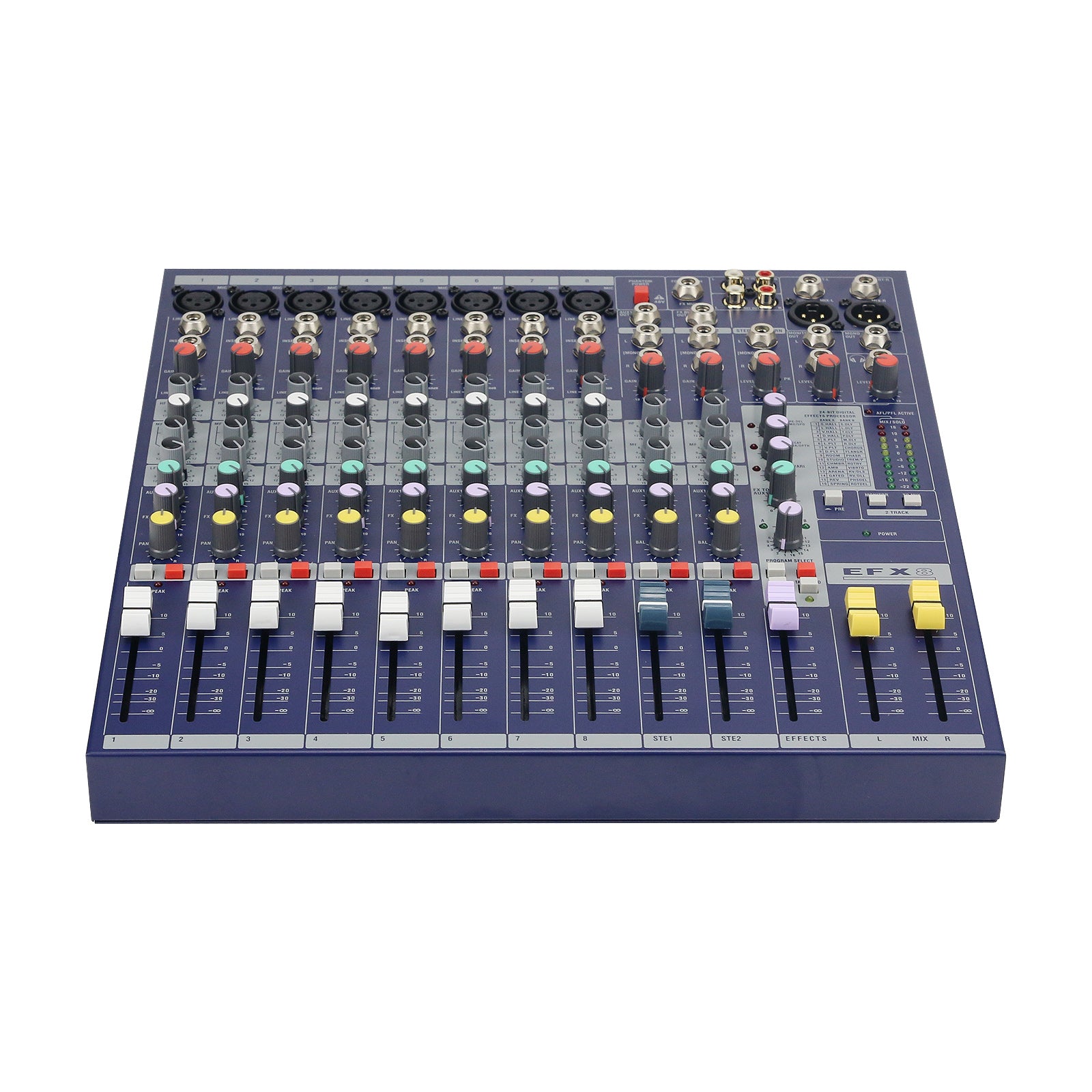

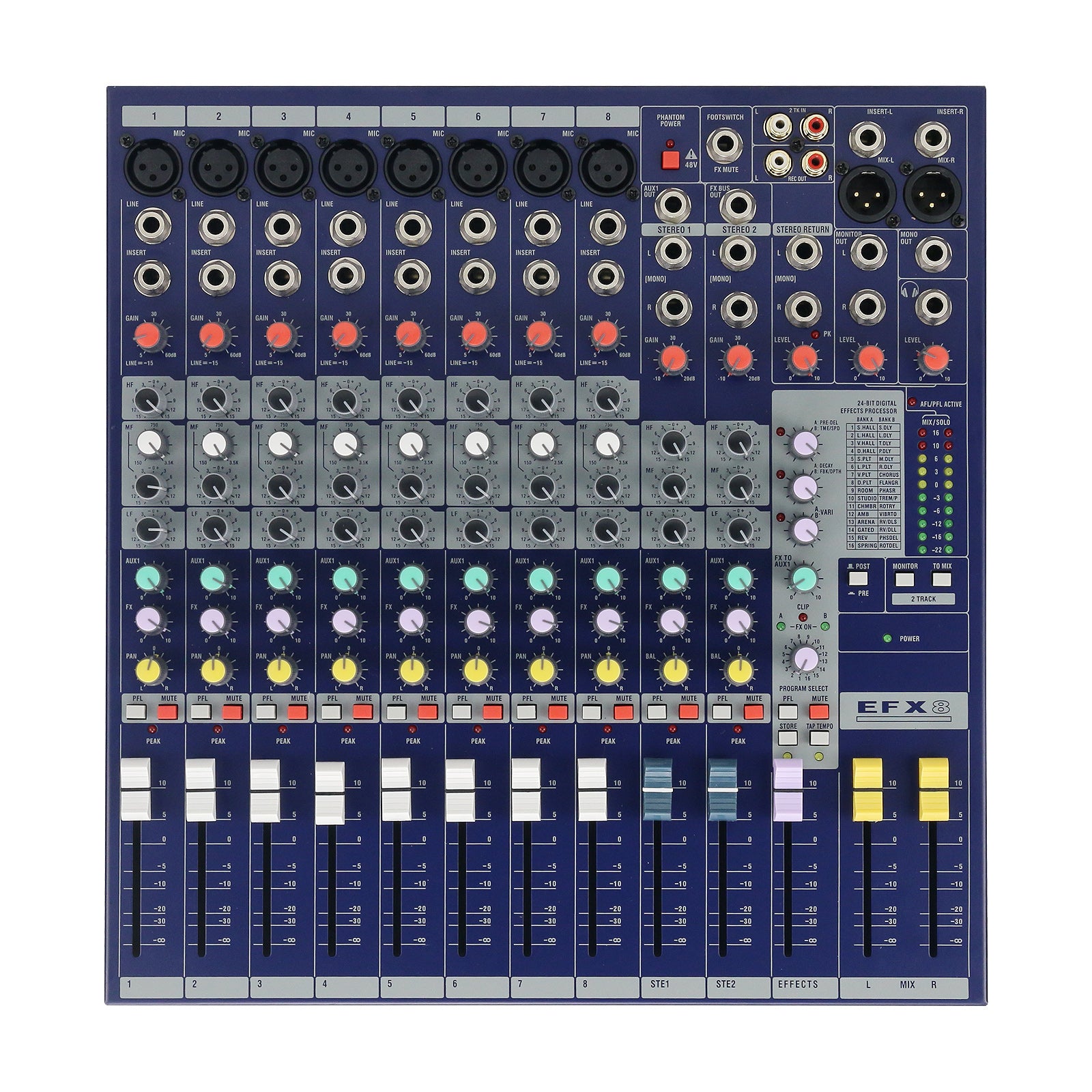

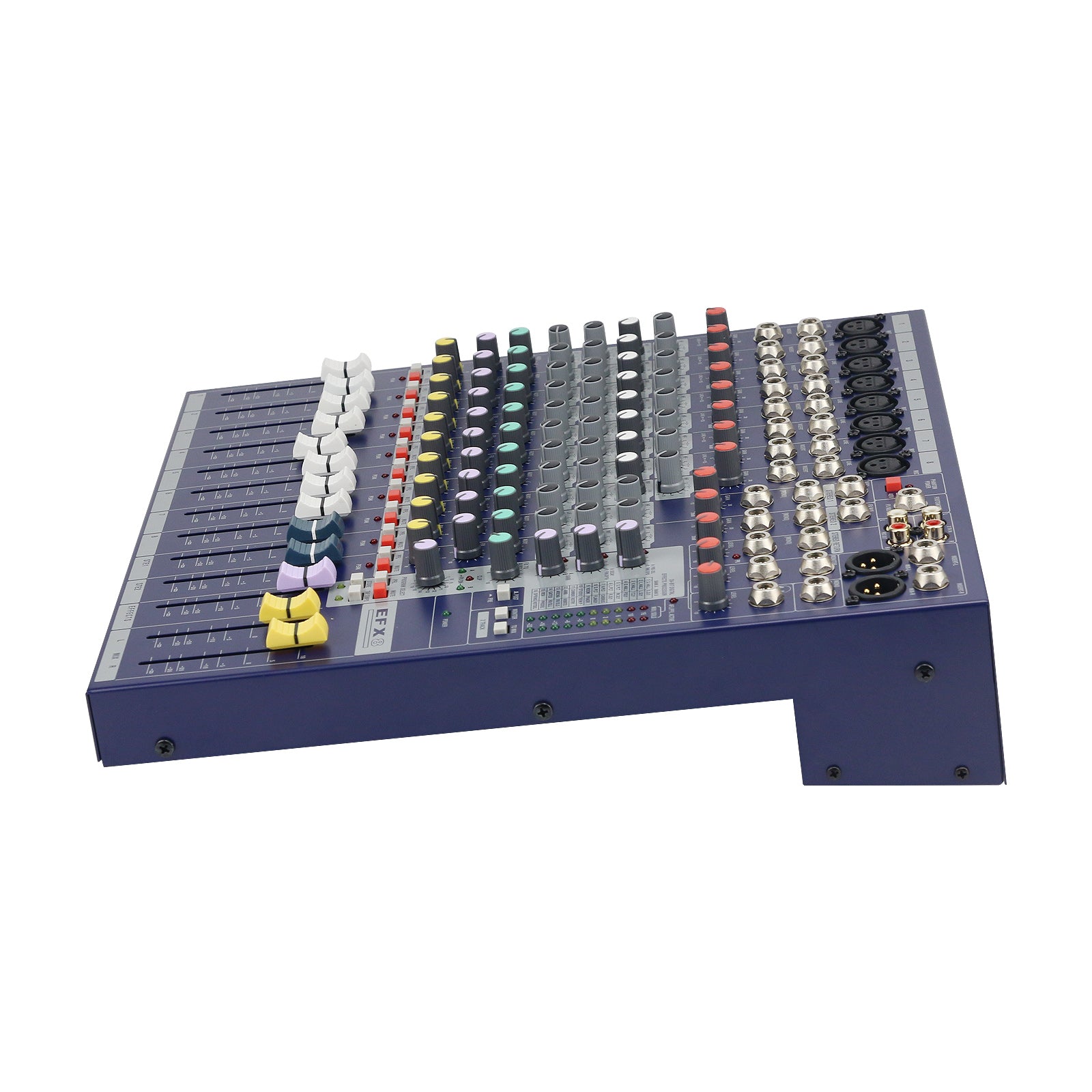

EFX8 8-channel Audio Mixer Mixing Console Quality Stage Effect for Professional Stage Performance

EFX8 8-channel Audio Mixer Mixing Console Quality Stage Effect for Professional Stage Performance

Specifications:
- Frequency response: microphone/line input to any output, ± 1.5dB, 20Hz-20kHz
- Total harmonic distortion + noise: microphone sensitivity -30dB, mix output +14dBu, <0.02% at 1kHz
- Noise: microphone EIN (greater gain), -127dB (primary impedance 150Ω)
- Crosstalk between channels (1kHz): channel mute, >90dB; slider off (reference sign +10), >90dB; The AUX transmit port is closed, >83dB
- EQ (Mono Input): HF, 12kHz ±15dB; MF (Sweep), 150Hz - 3.5kHz, ±15dB; LF, 80Hz ±15dB; Q (MF), 0.8
- Power consumption: AC power supply, less than 35W
- Operating condition: temperature 5°C to +40°C
- Input / Output Level: Microphone input, +15dBu; Line input, +30dBu; Stereo input, +30dBu; Mix output, 20dBu; Headphone output (150Ω), 300mW
- Input / output impedance: microphone input 2kΩ; Line input 10kΩ; Stereo input 65kΩ and 35kΩ; Output impedance 150Ω and 75Ω
- Dimensions: 330 x 362 x 91mm/13 x 14.3 x 3.6" (WxDxH)

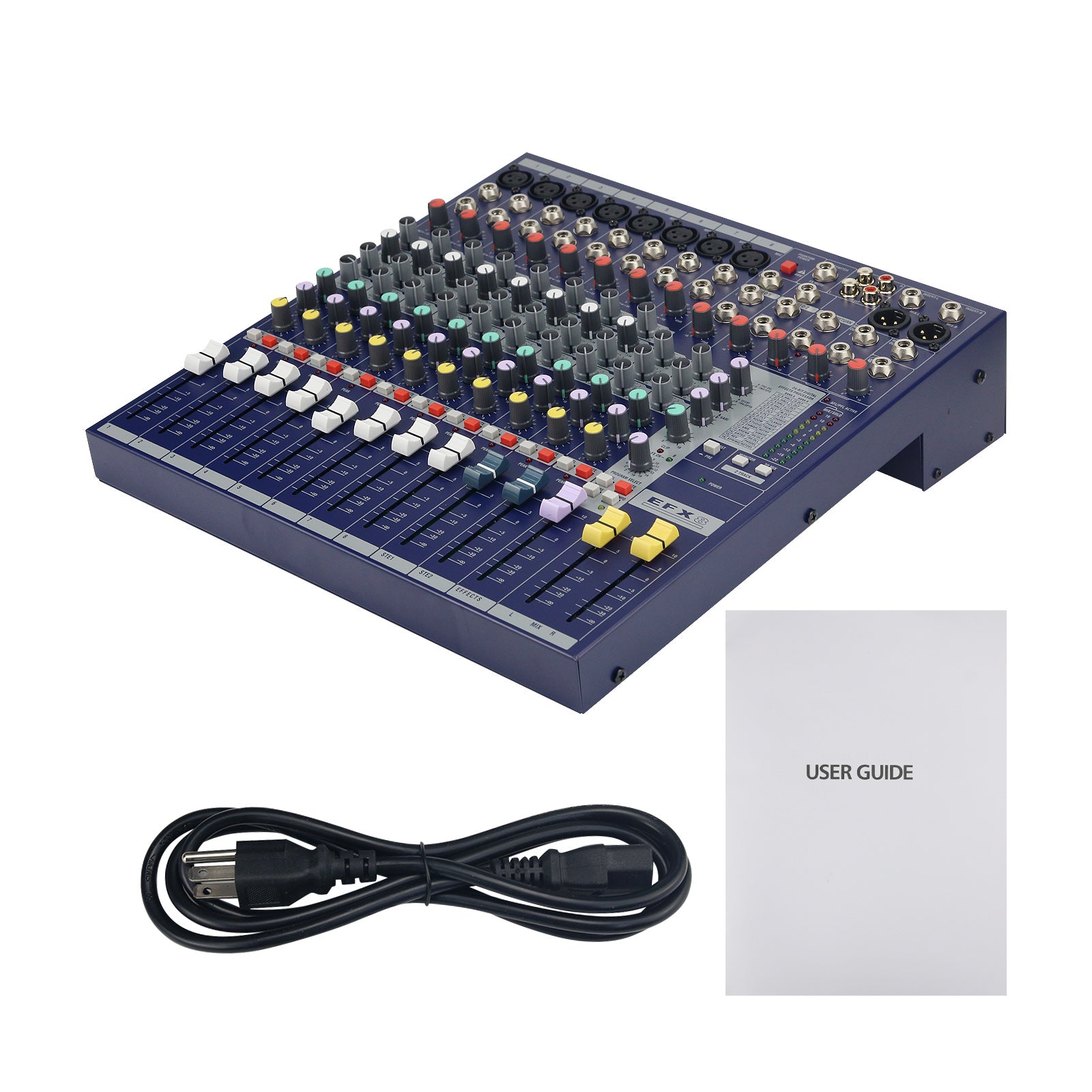

Package Included:
- 1 x Audio Mixer
- 1 x Power Cable
