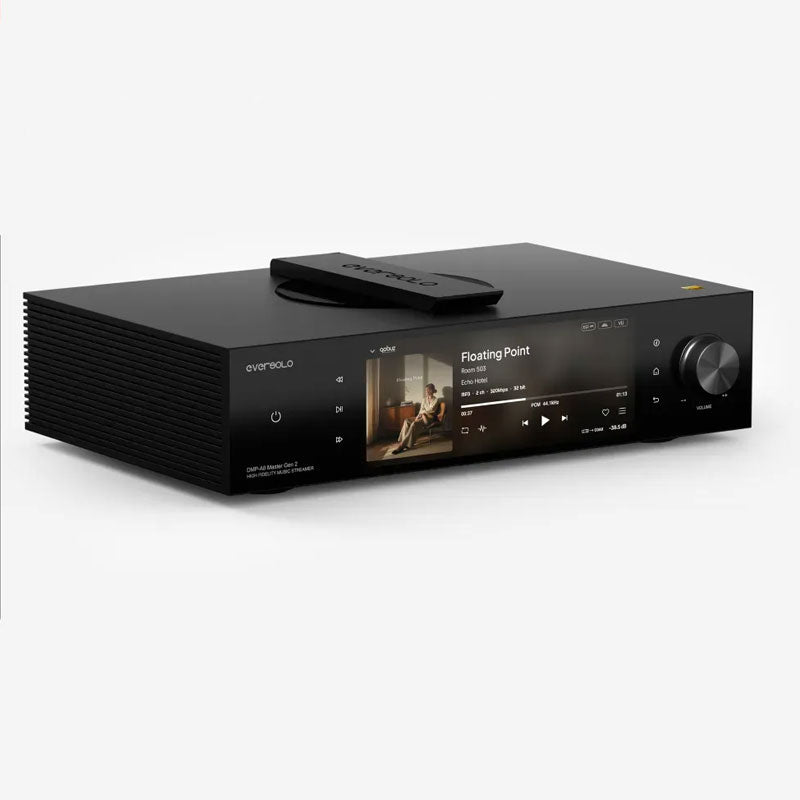

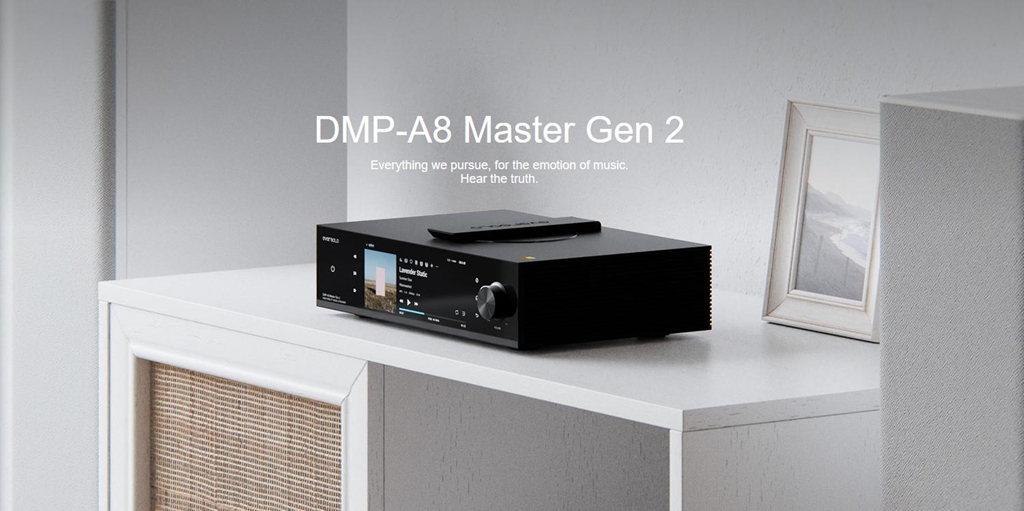

EVERSOLO DMP-A8 Master Gen2 Music Streamer AK4499EXEQ+AK4191EQ DAC CD Player Preamplifier All-in-One Machine

Basic Parameters:
- Model: DMP-A8 Master Gen 2

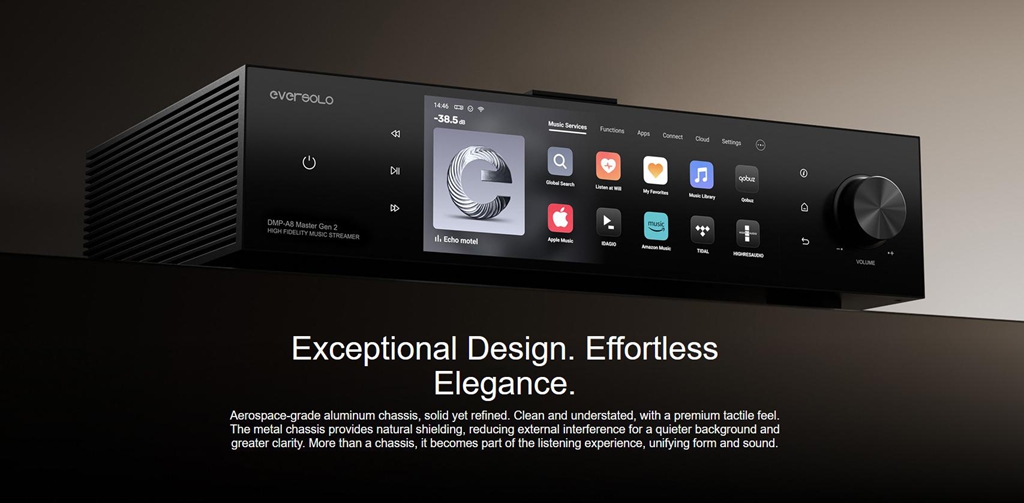

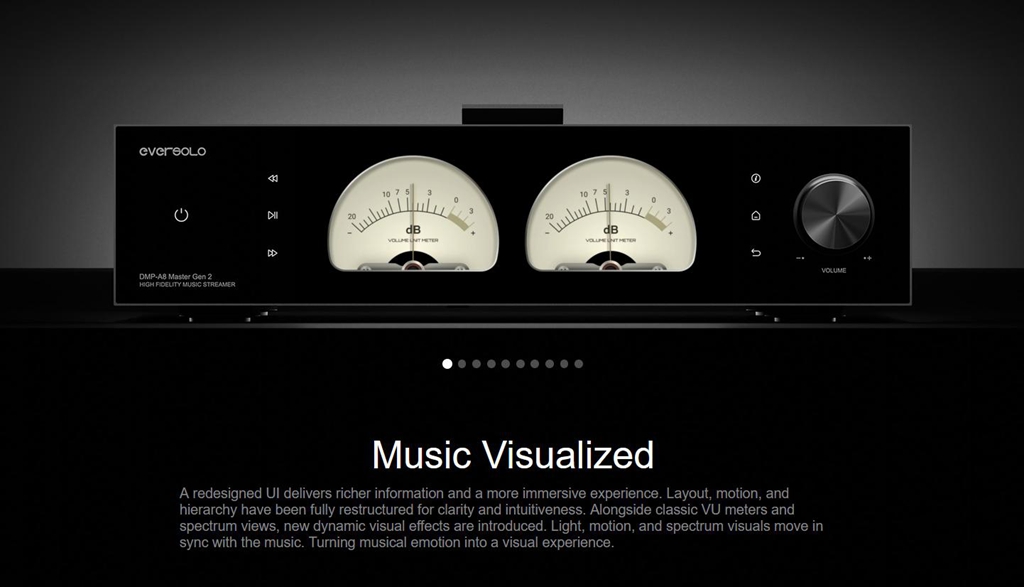

- Display: 8.6-inch LCD Touchscreen
- Storage: 8GB DDR5 + 64GB eMMC

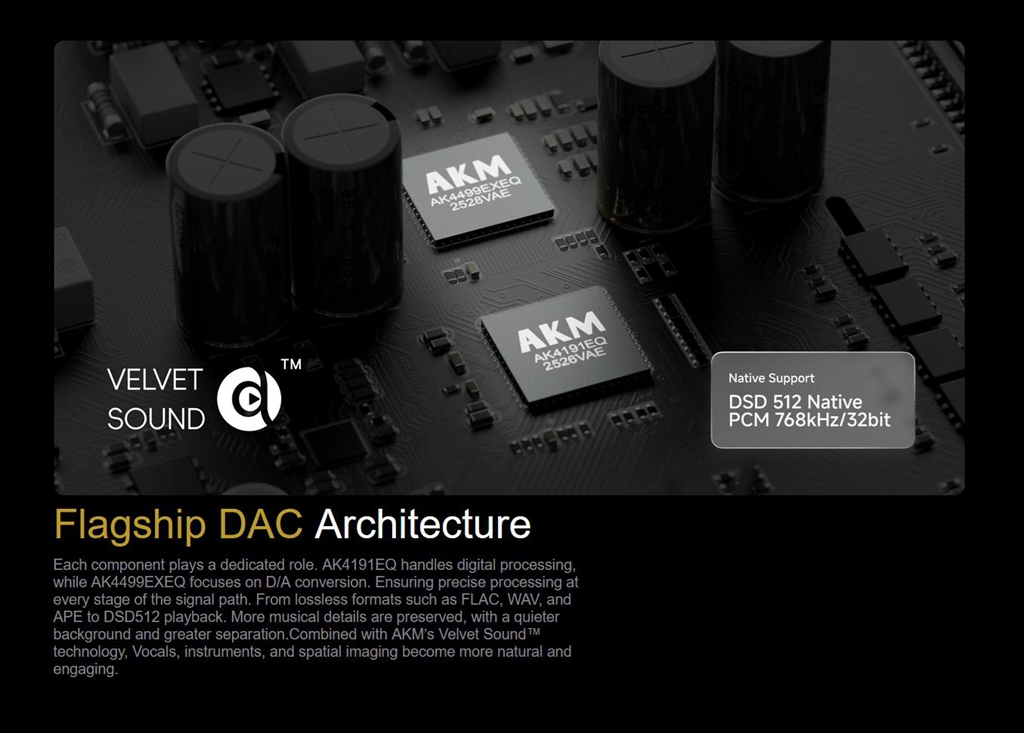

- DAC: AK4499EXEQ + AK4191EQ
- Audio Processor: Eversolo AuralEngine
- Operational Amplifiers: OPA1612
- Power Supply: High-quality, low-noise dual power supply with separate linear and digital power sections
- SSD Protocol: M.2 NVMe PCIe 3.0, 2280 form factor, supporting SSDs up to 8 TB
- Ethernet: RJ-45 (10/100/1000Mbps)
- WiFi: Dual-band Wi-Fi 6 (2.4G + 5G)
- Music Services: TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, Internet Radio, TuneIn, Radio, Paradise, Deezer, SoundCloud, Presto Music, Apple Music...

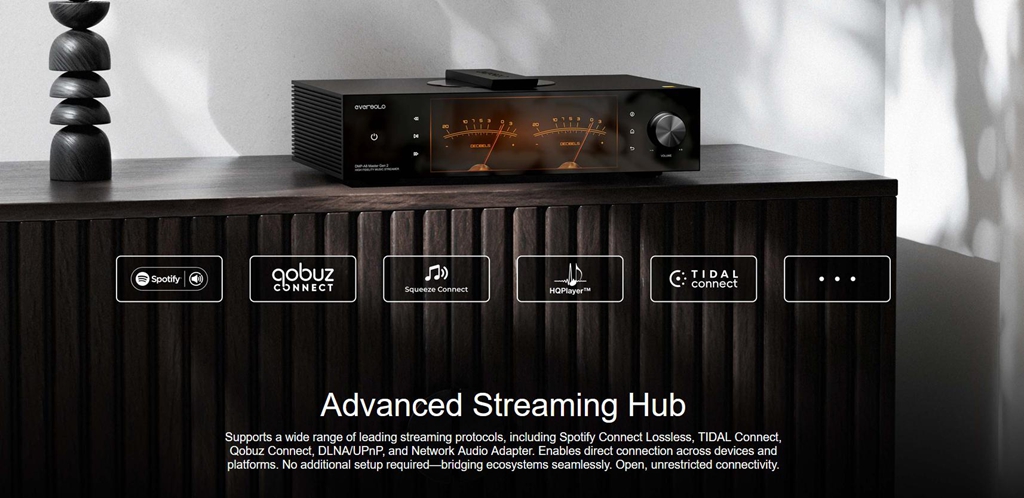

- Music Streaming: Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA, Network Audio Adapter, and more...

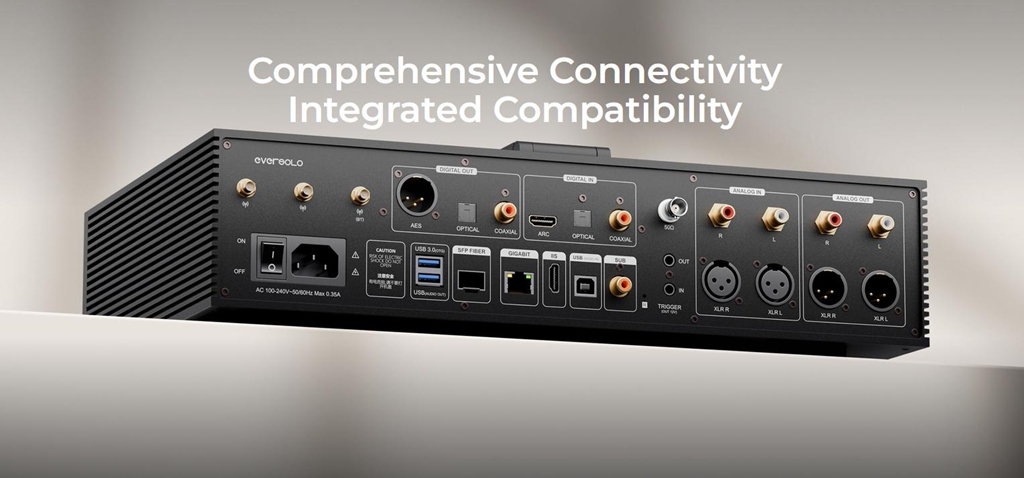

Audio Inputs and Outputs:
- USB-A Audio Input: USB3.0 * 2
- Bluetooth Input: Bluetooth 5.4
- USB-B Audio Input: USB compatibility: for Windows 10/11, macOS, Android, and iOS. Supports up to stereo DSD512 and PCM 768kHz/32bit.
- Optical/Coaxial Input: Supports up to stereo PCM 192kHz/24bit and DSD64 via DoP.

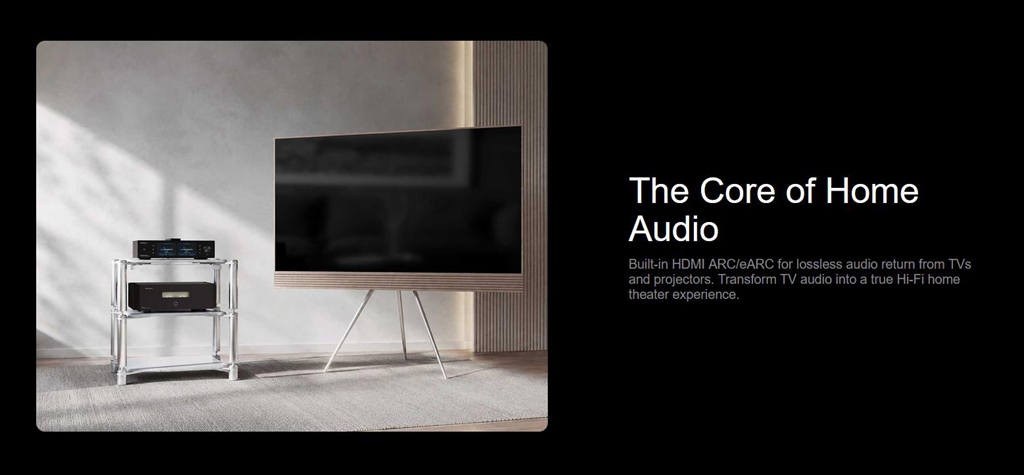

- ARC Input: Supports up to stereo PCM 192kHz/24bit.

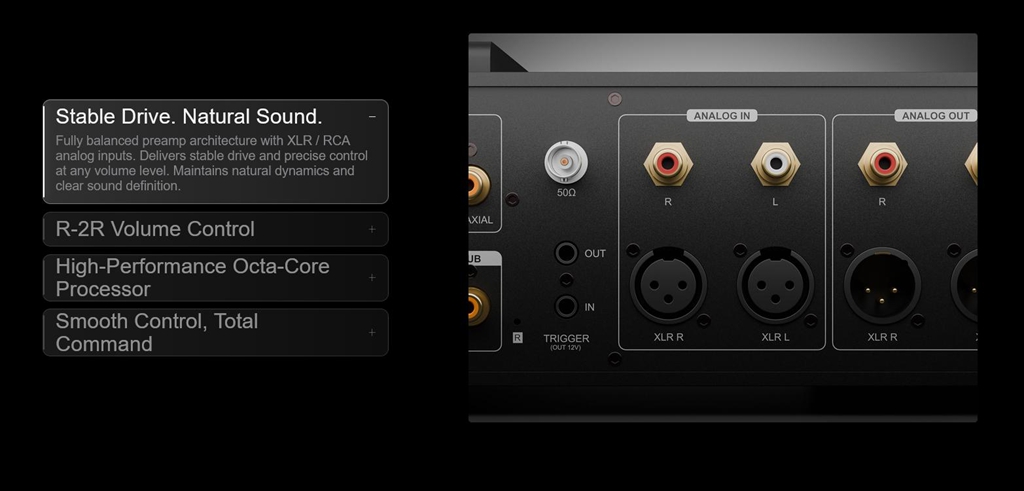

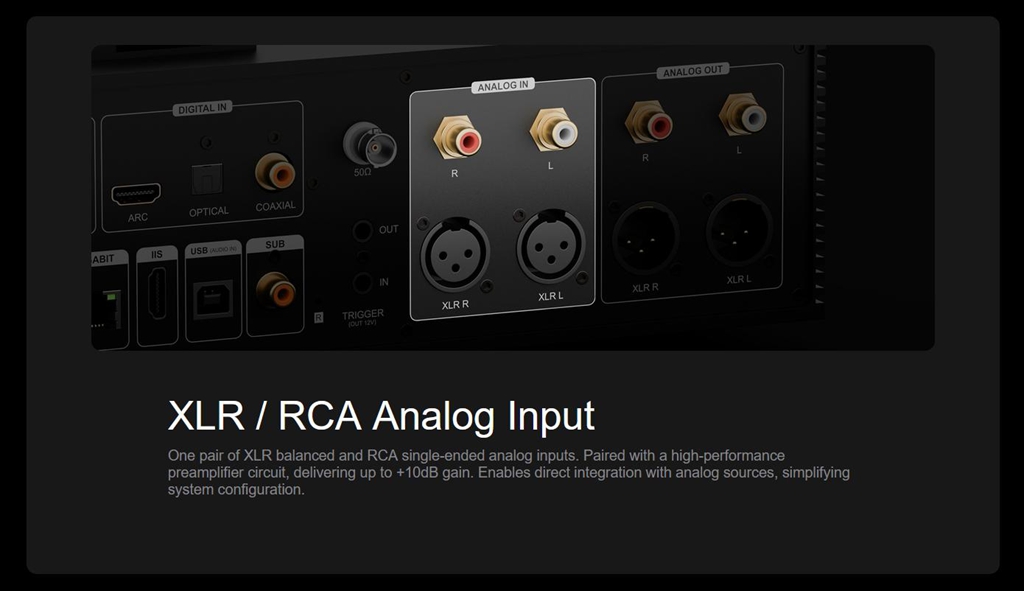

- Analog Audio Input: XLR balanced + RCA pre-input. Input range: RCA maximum 2.1 Vrms; XLR maximum 4.2 Vrms.
- USB Audio Output: Supports up to stereo Native DSD512 and PCM 768kHz/32bit. Compatible only with UAC-compliant USB DACs.

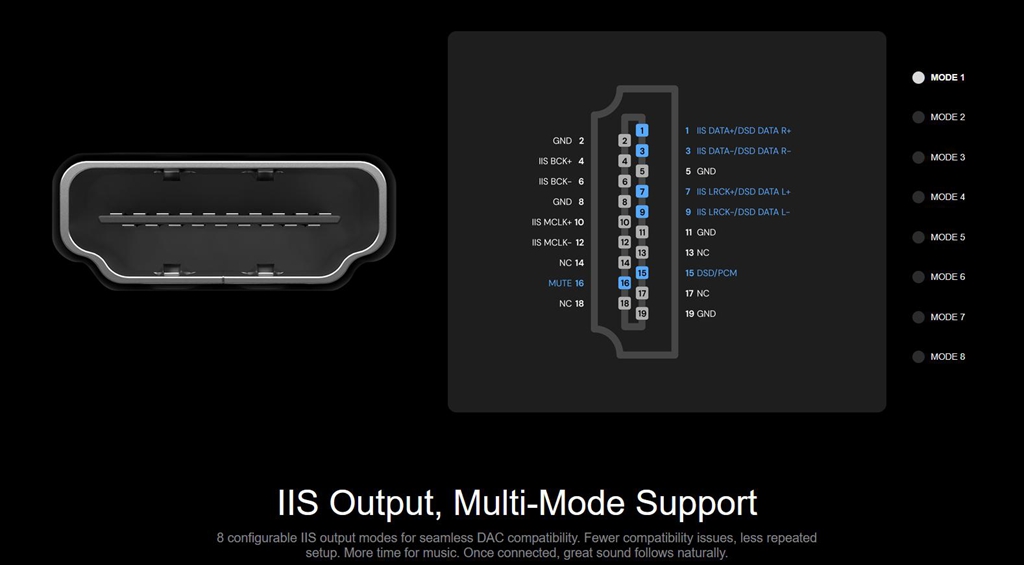

- IIS Audio Output: Supports up to stereo Native DSD512 and PCM 768kHz/32bit.
- Optical/Coaxial Output: Supports up to stereo PCM 192kHz/24bit and DSD64 via DoP.
- Analog Audio Output: XLR balanced + RCA pre-output.

Audio Characteristics:
XLR Output Audio Characteristics:
- Output Level: XLR 4.2 V
- Frequency Response: 20 Hz - 20 kHz, XLR/RCA ±0.25 dB

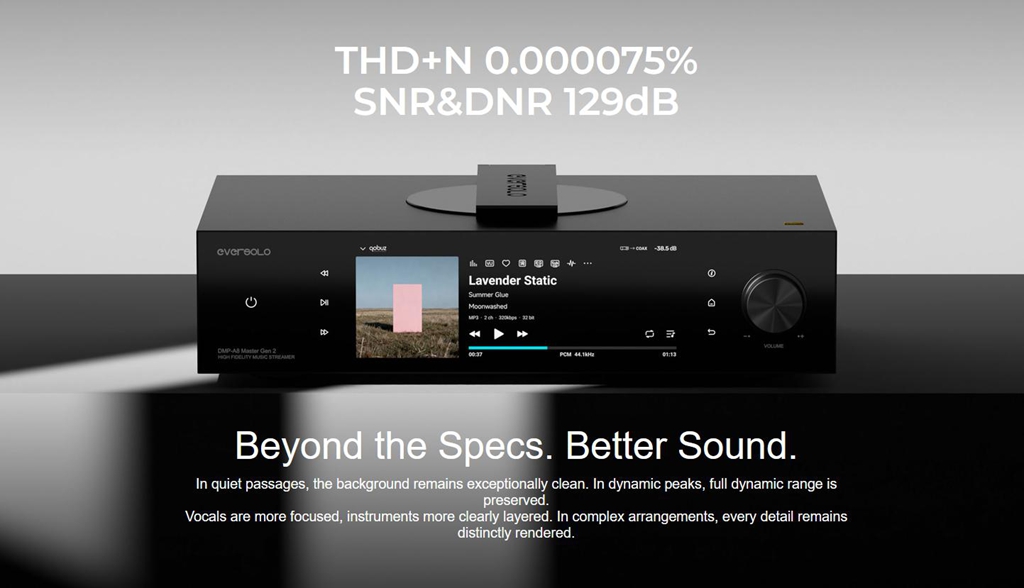

- THD+N: 0.000075% (-122 dB)
- Dynamic Range: XLR >129 dB
- SNR: XLR >129 dB
- Crosstalk: XLR >133 dB

RCA Output Audio Characteristics:
- Output Level: RCA 2.1 V
- Frequency Response: 20 Hz - 20 kHz, XLR/RCA ±0.25 dB
- THD+N: 0.000086% (-121 dB)
- Dynamic Range: RCA >127 dB
- SNR: RCA >127 dB
- Crosstalk: RCA >131 dB

Other Information:

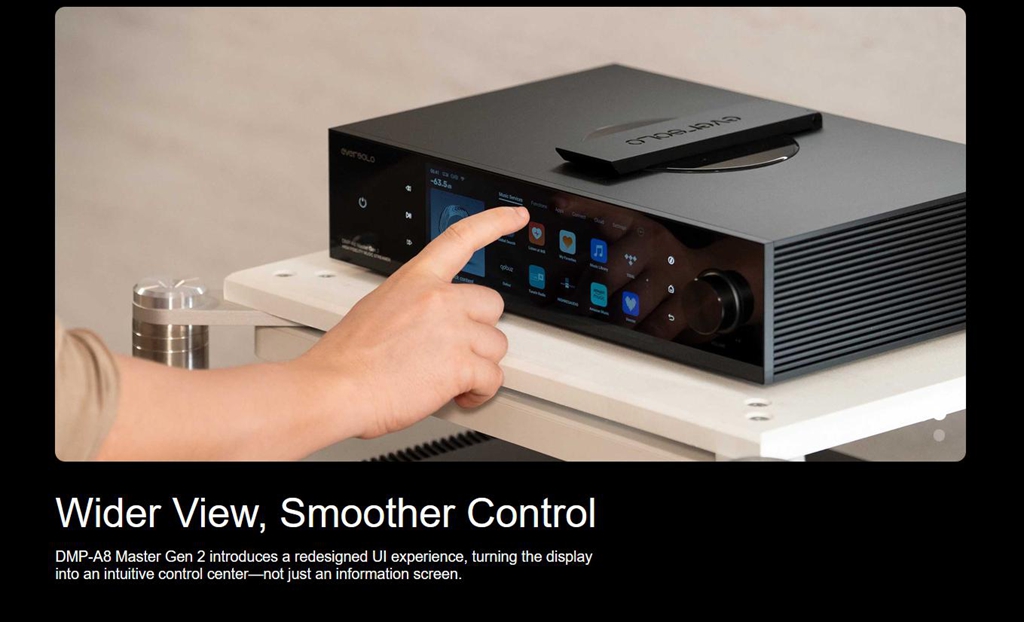

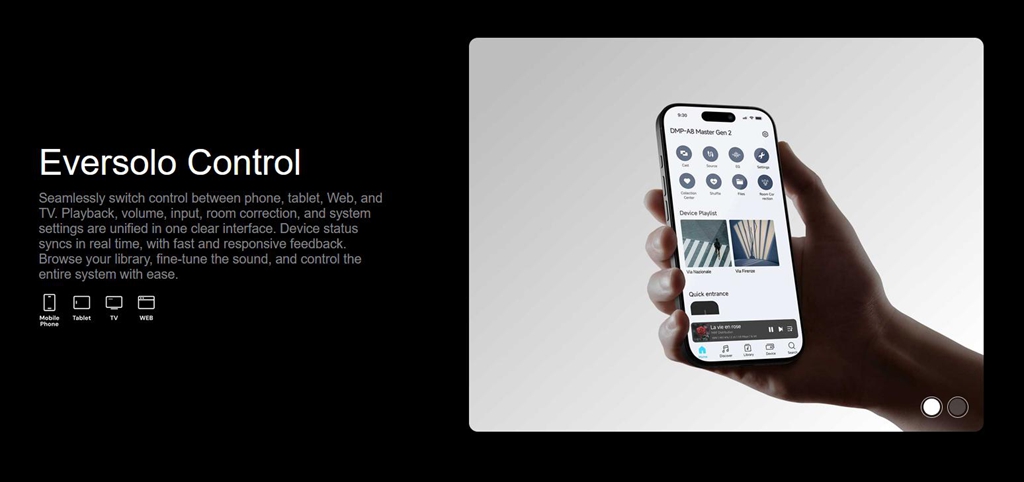

- Control Methods: On-screen Touch Control, Eversolo Control App, and Remote Control
- Power Supply: AC 100 - 240 V, 50/60Hz
- Rated Power: 30 W

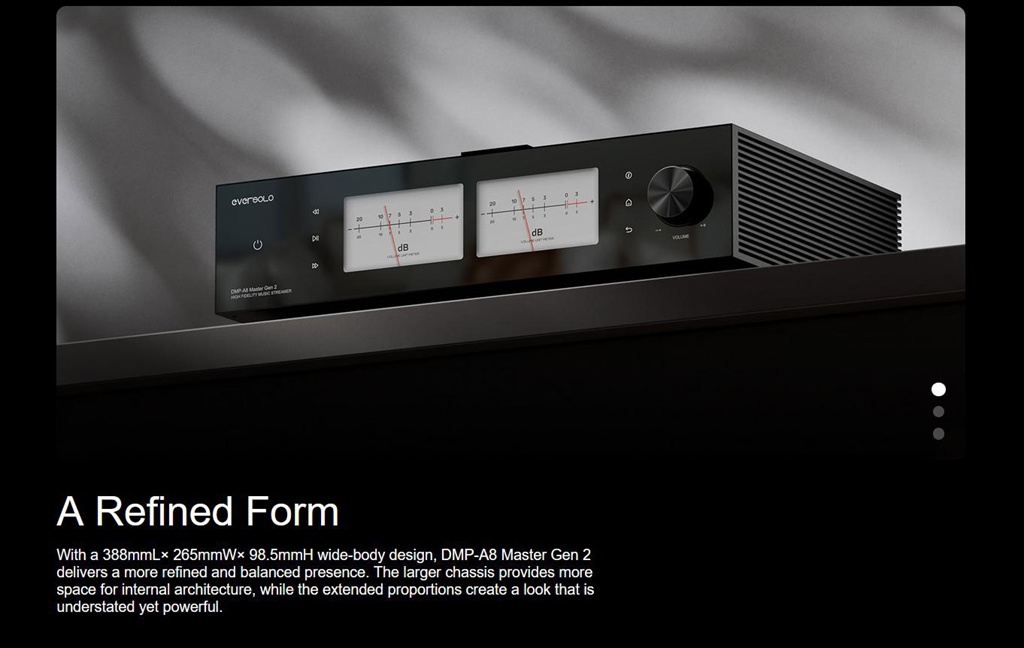

- Dimensions: 388 x 265 x 98.5 mm (L x W x H)
- Net Weight: 6kg

Package Included:
- 1 x Music Streamer

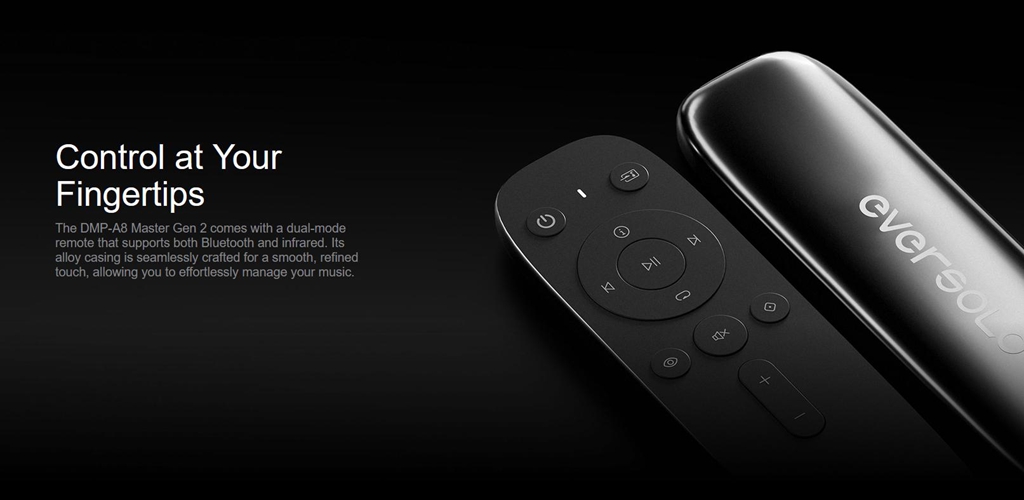

- 1 x Remote Control
- 1 x Power Cable
- 1 x Trigger Cable
- 1 x Polishing Cloth
- 1 x User Manual
