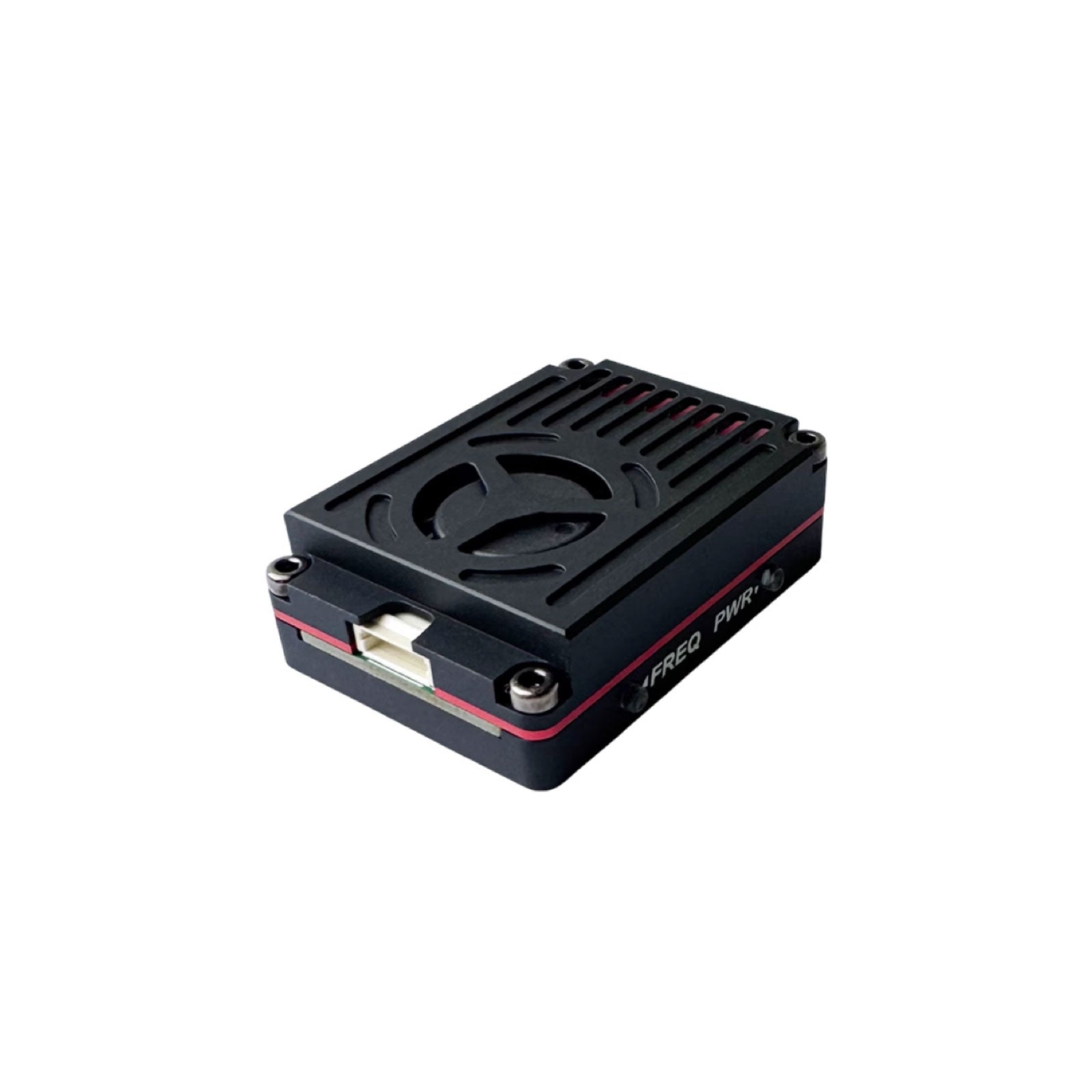

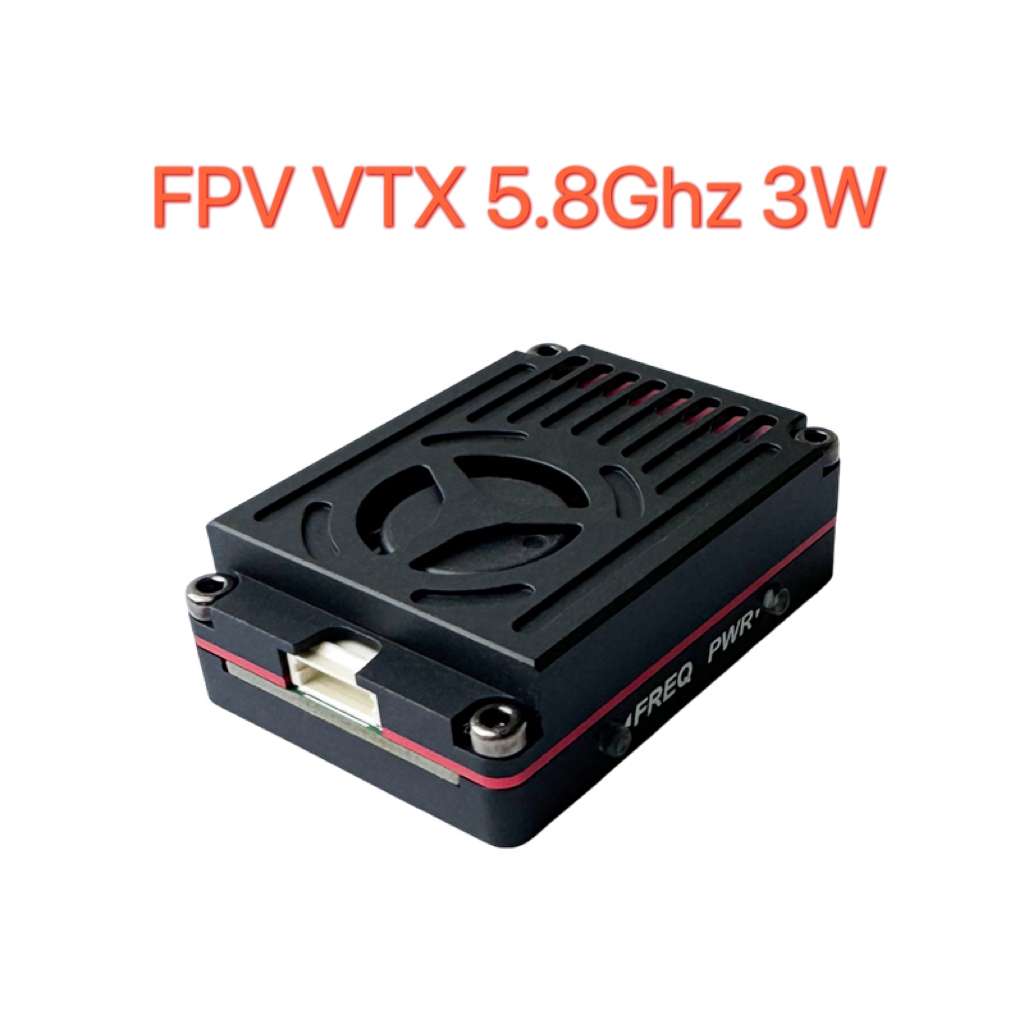

FPV VTX 5.8GHz 3W High Power 64-Channel Video Transmitter Module Compatible with PAL and NTSC

FPV VTX 5.8GHz 3W High Power 64-Channel Video Transmitter Module Compatible with PAL and NTSC

Basic Parameter:
- Net weight: 22g
- Product size: 41 x 30 x 13mm; fixing hole: 20x20mm space, M1.6 thread
- Working voltage: DC 7V - 36V (2S - 8S)
- Working current: 1100mA±100mA at 12V
- Maximum power consumption: 14W
- RF Transmitting power: > 34.8dBm (3W)

Features:
- 64 working channels, button selection settings.
- 4 power levels, button selection settings.
- 5.8GHz video transmission transmitter (compatible with PAL and NTSC) with compact structure, small size, and high transmission power.
- Adopting large-scale integrated circuits and automotive grade components for high reliability.
- Built-in frequency phase-locked loop, low harmonic radiation, high reliability, stability using digital phase-locked loop circuit, no temperature drift phenomenon.
- Support for TBS protocol OSD parameter tuning.

Package Included:

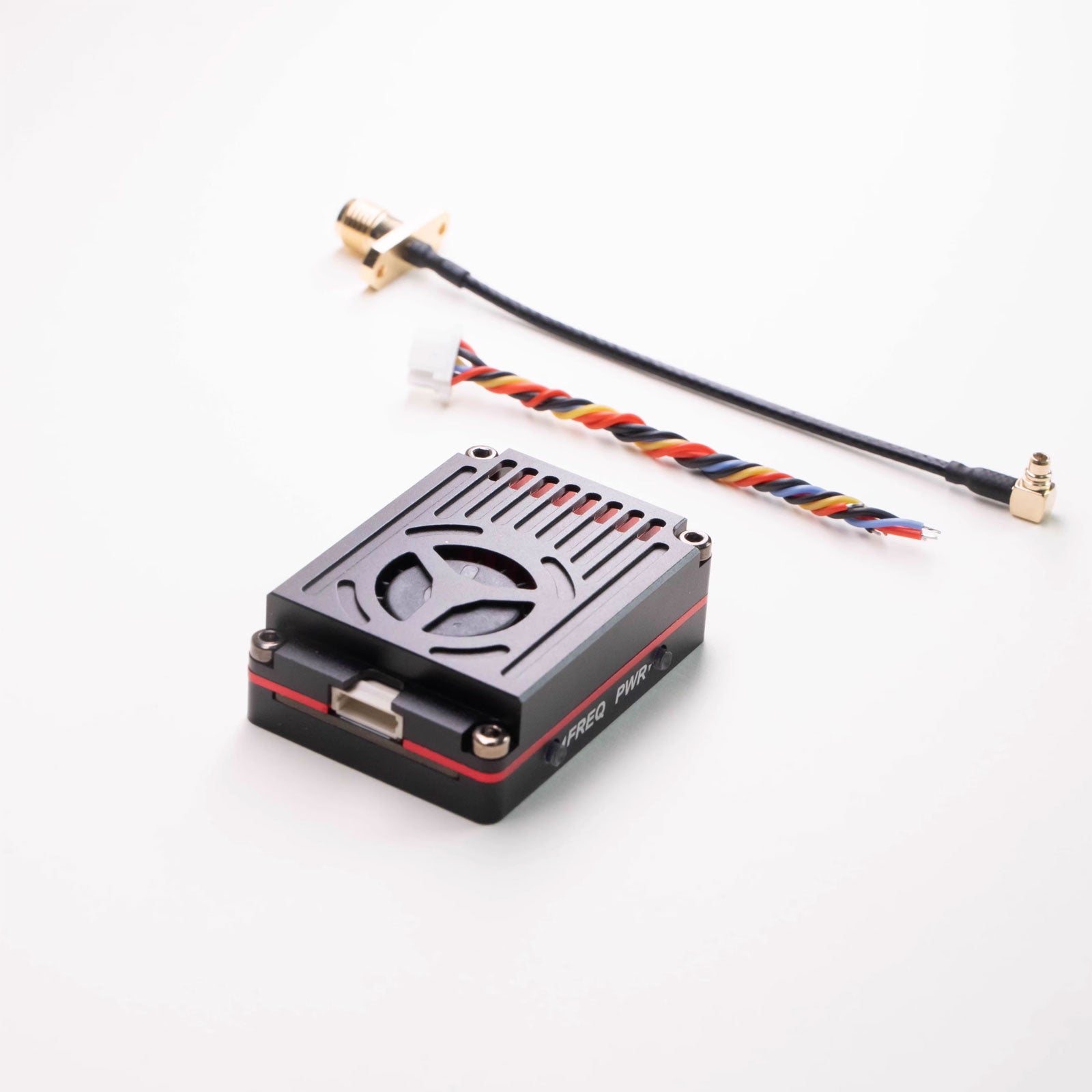

- 1 x VTX Module Kit
