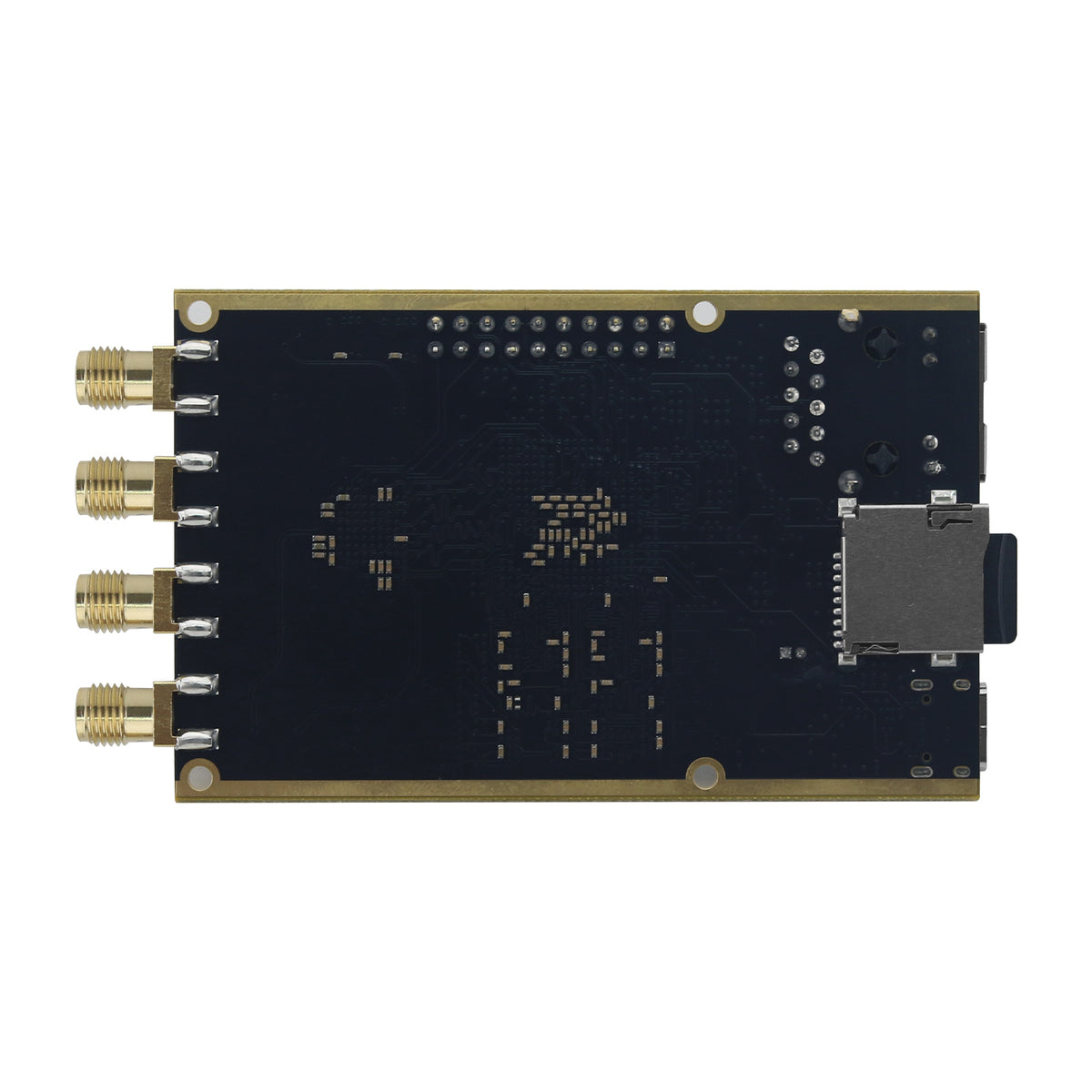

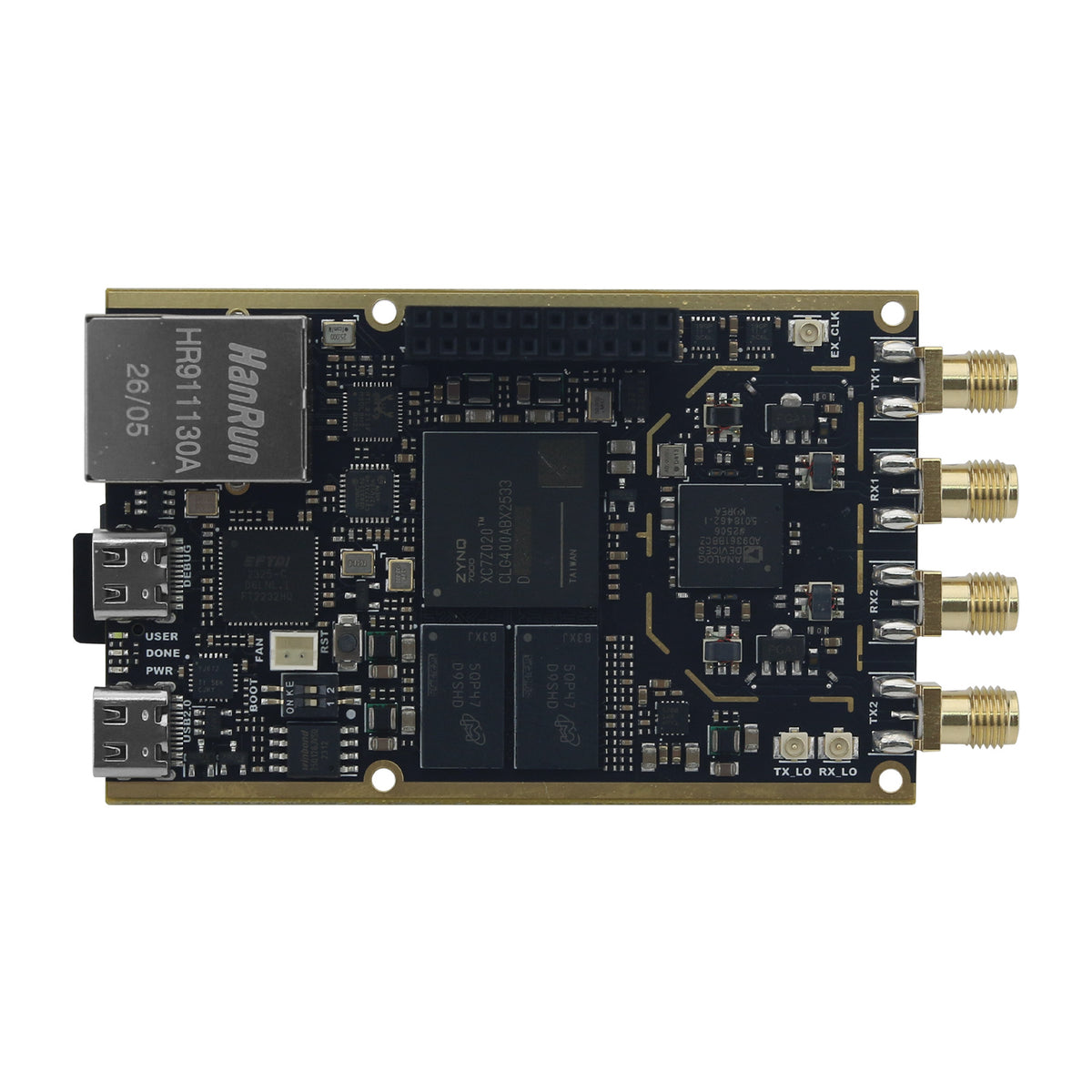

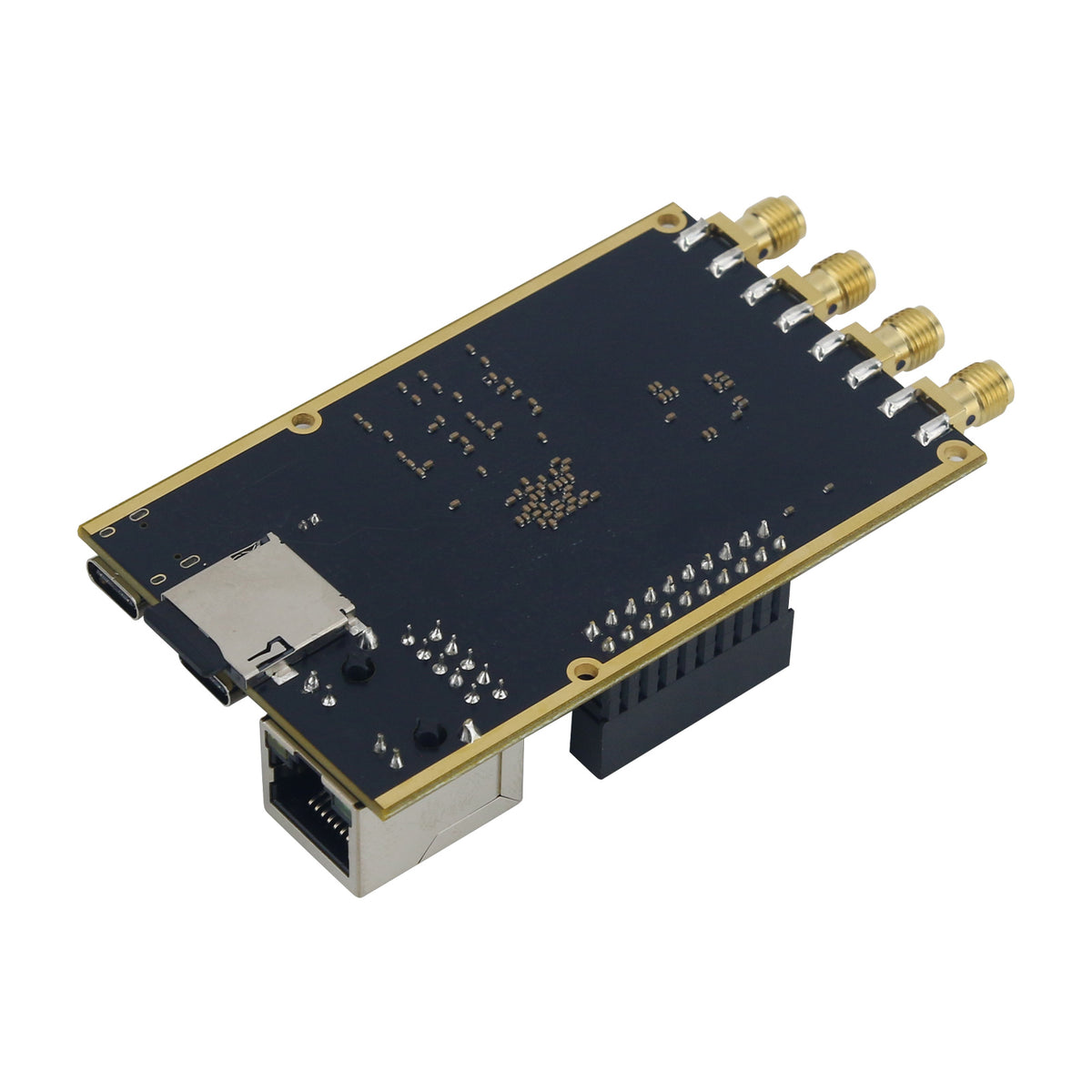

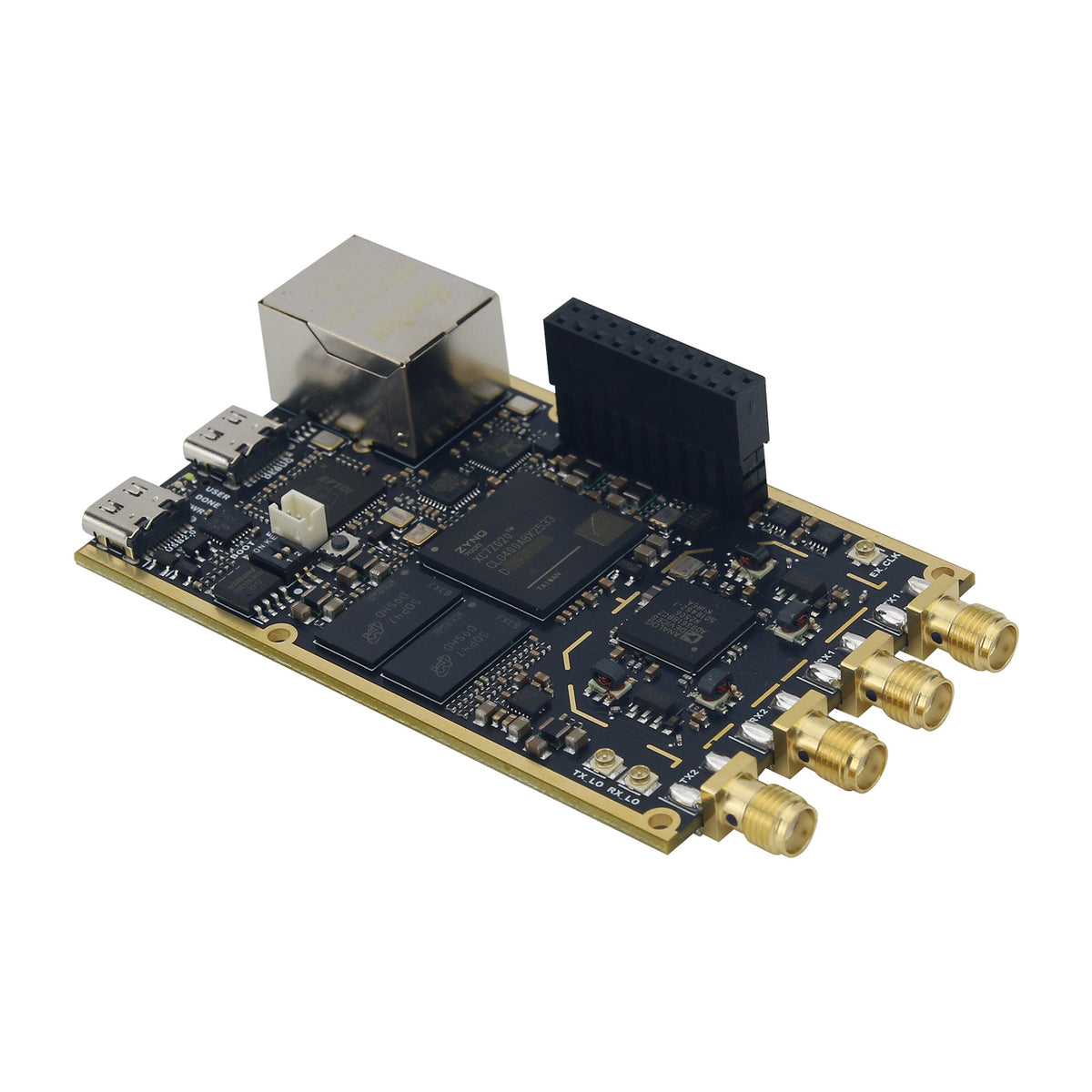

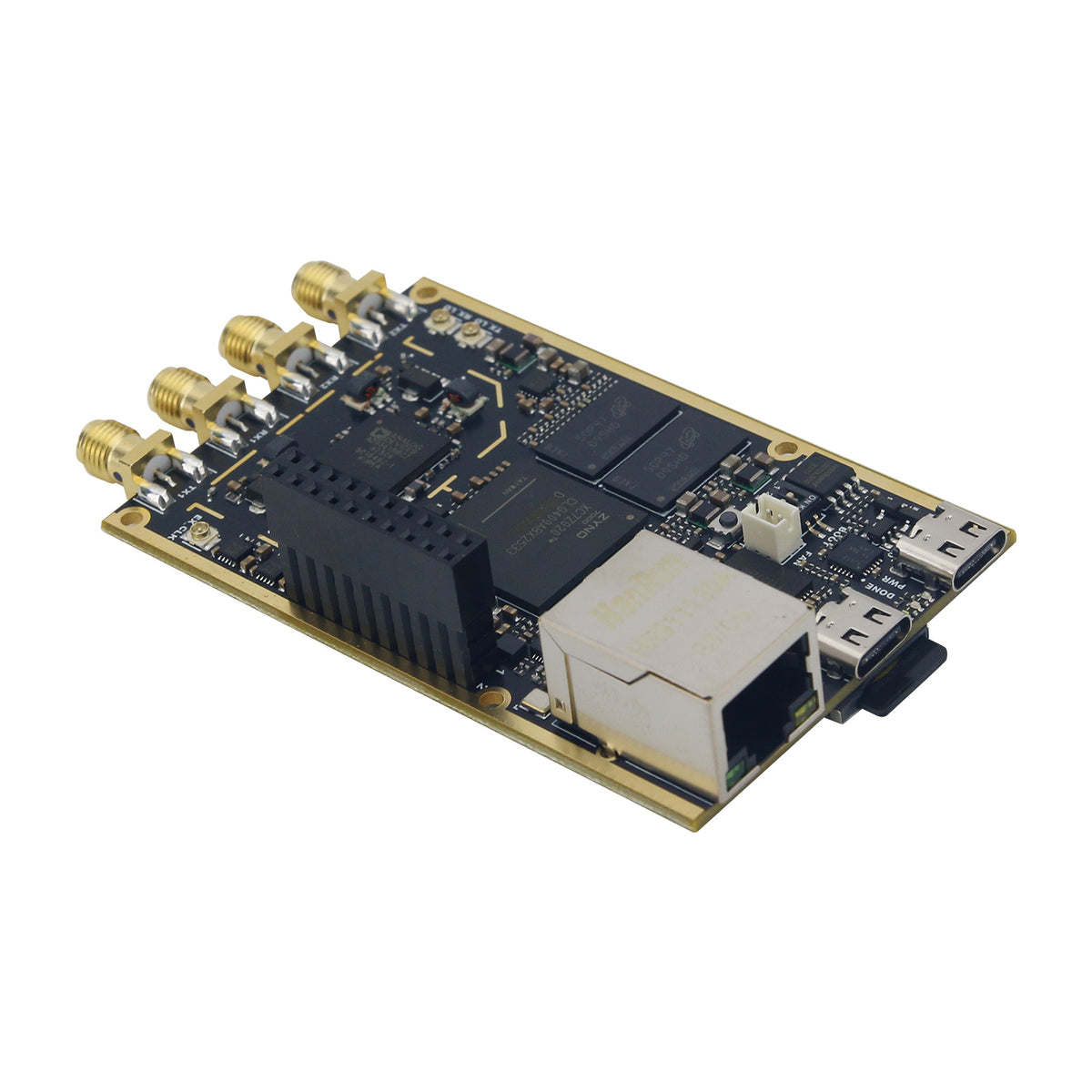

HamGeek 70MHz-6GHz AD9361 XA7Z020 SDR Development Board with Power Amplifier for Pluto SDR

- Strict simulation and impedance control of the RF part, adding PA to increase output power.

- Double 1GB DDR

- N25Q128 FLASH, can be used to start

- One channel SD card, can be used to start

- Integrated FT2232 debugger, with serial port

- PS side USB2.0

- PS side Gigabit Ethernet

- PL side with crystal oscillator, can drive AD9361 with pure PL

- Support external input of local oscillator

- With expansion GPIOs

- For IIO Oscilloscope, SDR Sharp, GNU Radio, MATLAB, and other software that support for libiio.

- RF Transceiver: AD9361BBCZ/AD80305BBCZ

- Processor: XA7Z020-1CLG400Q

- LO Frequency Range: 70MHz-6GHz

- Bandwidth: 200kHz-20MHz

- Power Amplifier: PGA102+, 10dB Gain, Bypassable

- RF Interface: 2T2R (2 Transmit, 2 Receive)

- DDR3 Memory: 1GB

- Flash Memory: 16MB

- Ethernet: 1 x 10/100/1000Mbps (PS)

- UART & JTAG: 1 x USB Type-C

- USB Interface: 1 x USB 2.0 Type-C

- SD Card Slot: 1

- Expansion I/O: 8 x 1.8V I/O, 4 x 3.3V I/O

- PTT Output: 1 x 5V Output

- RFIC Clock Source: 0.5ppm TCXO/FPGA/IPEX (Default: TCXO)

- Dimensions: 88 x 62 x 22mm

- Enclosure: CNC-Machined

- Power Supply Options: USB, JTAG, or XH2.54 Connector

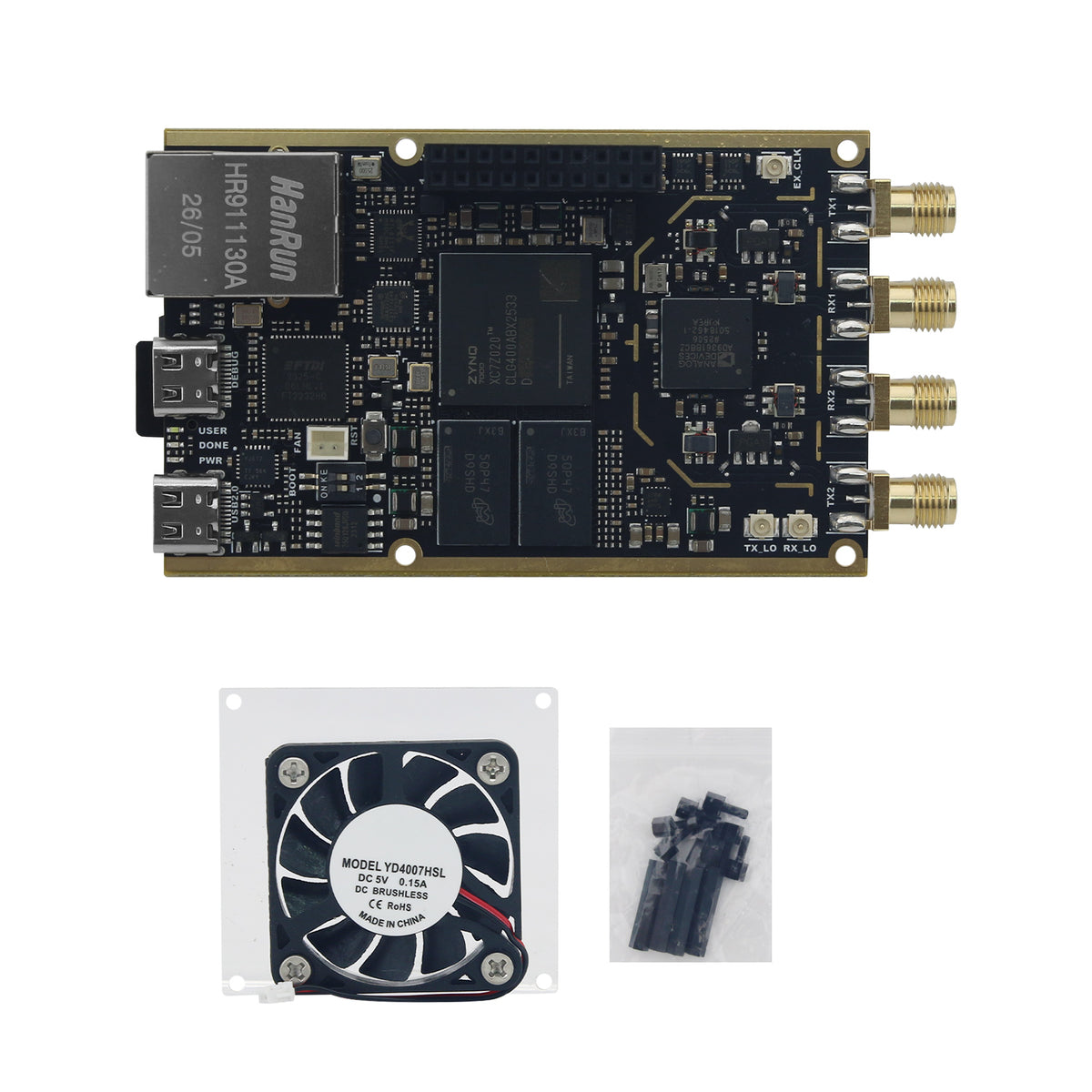

- 1 x HamGeek SDR Development Board

- 1 x Cooling Fan Kit

- 1 x Telescopic Antenna

- Package weight: 0.5kg

Click to Download:
1. HamGeek ZYNQ7020 SDR Unboxing and Inspection
2. CDM212364 Setup
3. PCB Interface Layout
4. PlutoSDR-M2k USB Drivers
5. SDRSharp
6. sdrsharp-x86-noskin
7. SecureCRT5.5
