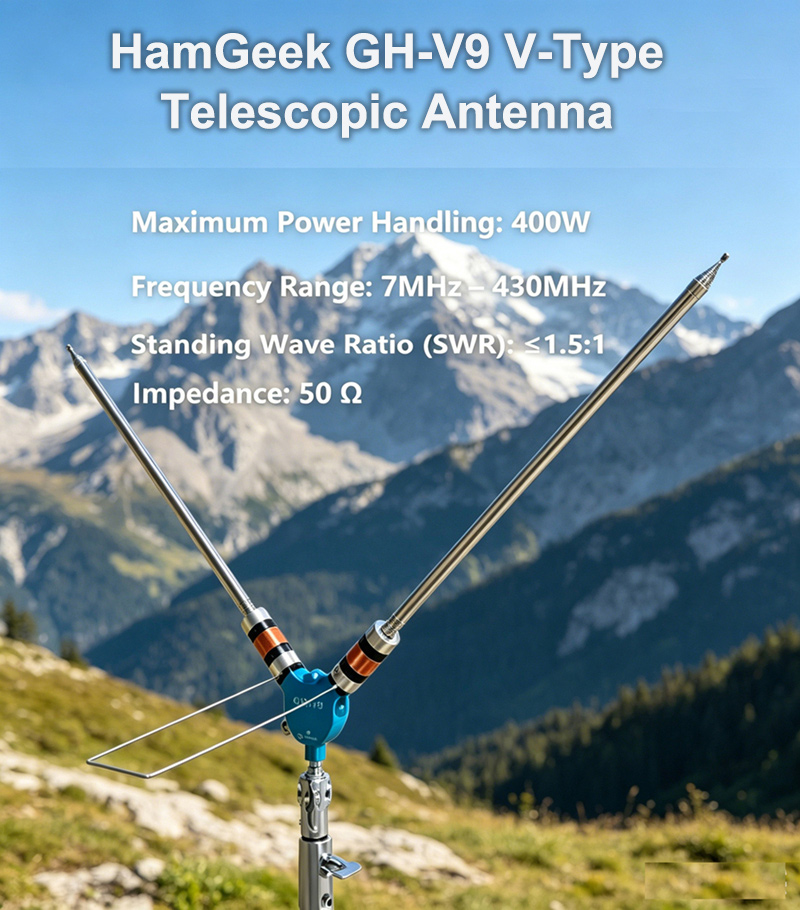

HamGeek GH-V9 V-Type Telescopic Shortwave Antenna 7–430MHz HF/VHF/UHF Portable Ham Radio Antenna

Description:

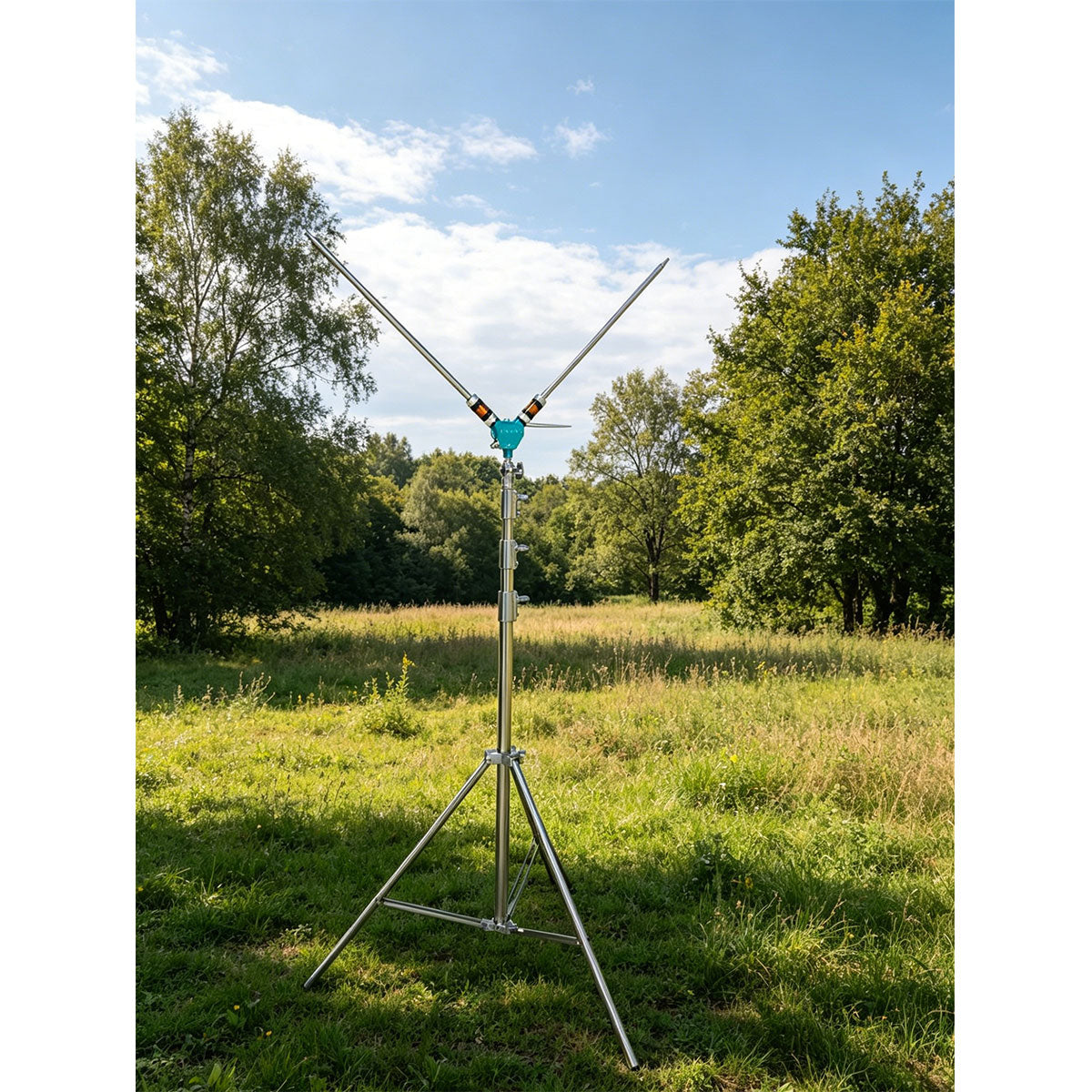

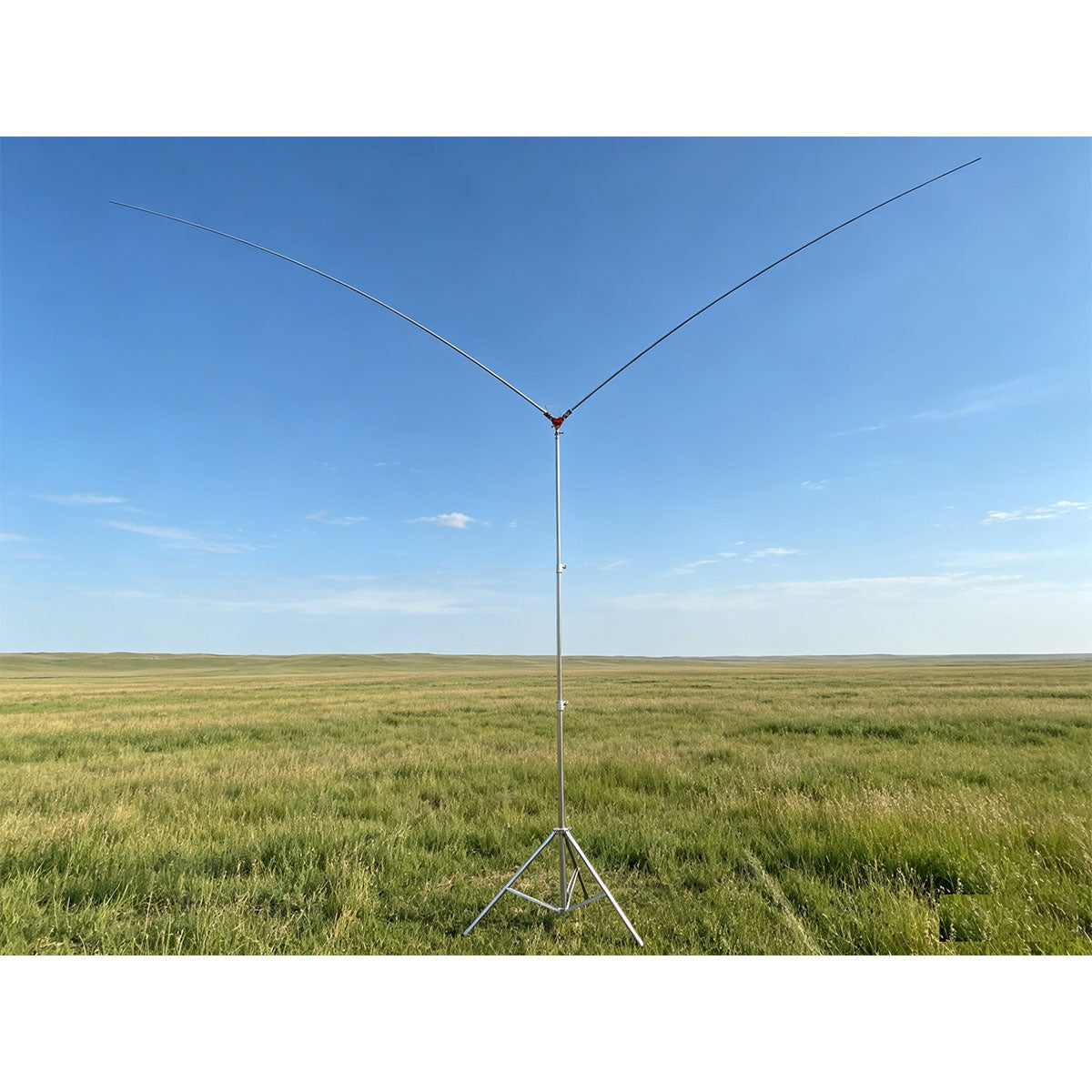

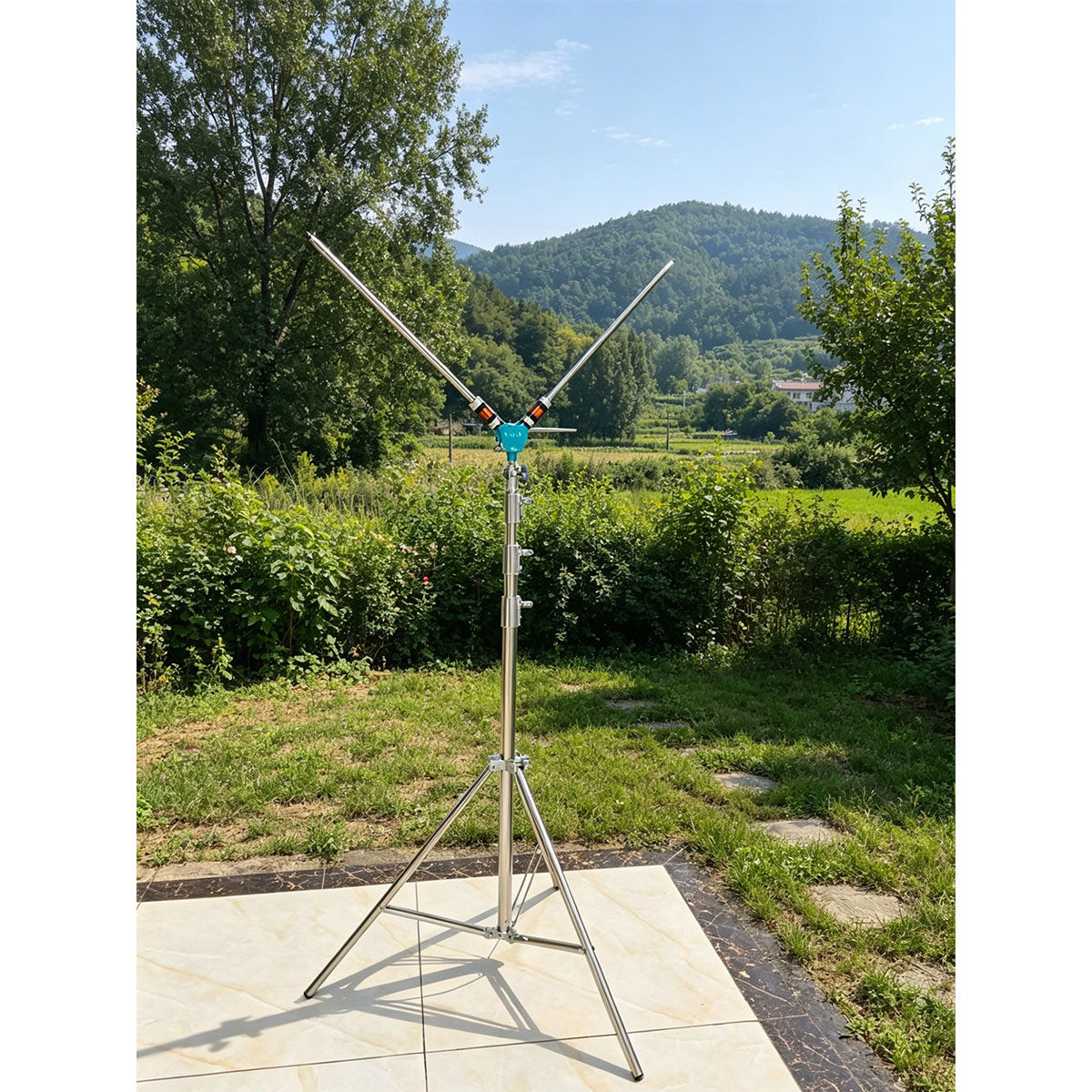

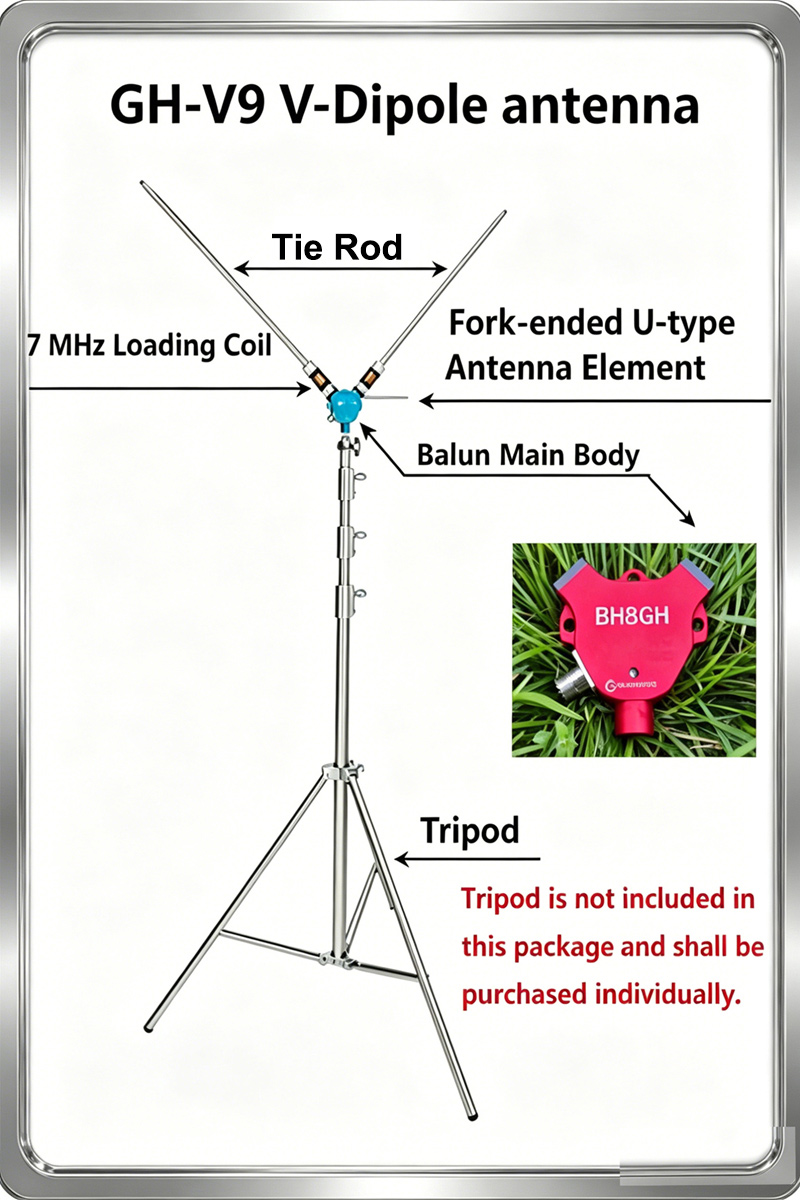

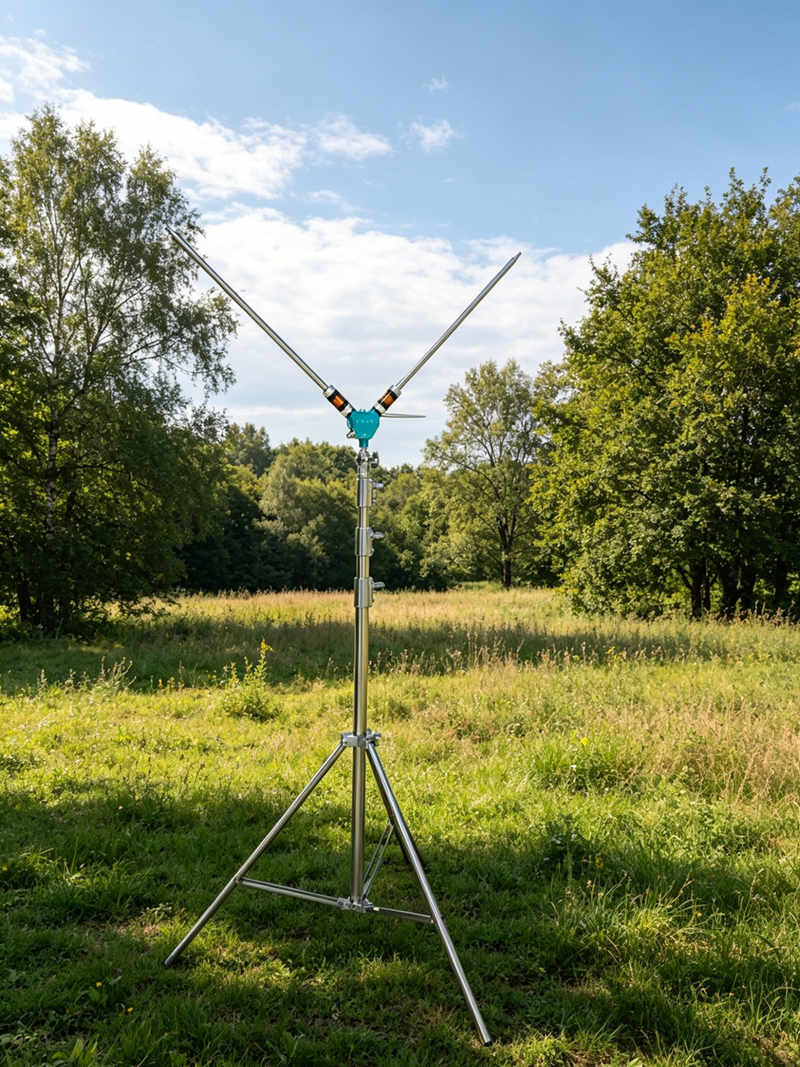

The HamGeek GH-V9 V-Type Telescopic Antenna is a portable HF/VHF/UHF antenna designed for shortwave communication. It adopts a classic symmetrical V-shaped structure, offering wide frequency coverage, easy installation, and stable signal performance. It is widely used in amateur radio communication, field operations, and emergency communication scenarios.

Features:
* High Power Capacity: Handles up to 400W maximum power.
* Ultra-Wideband Coverage: Frequency range from 7MHz to 430MHz.
* Excellent Efficiency: Low SWR of ≤ 1.5:1 after precise tuning with 50 Ω impedance.

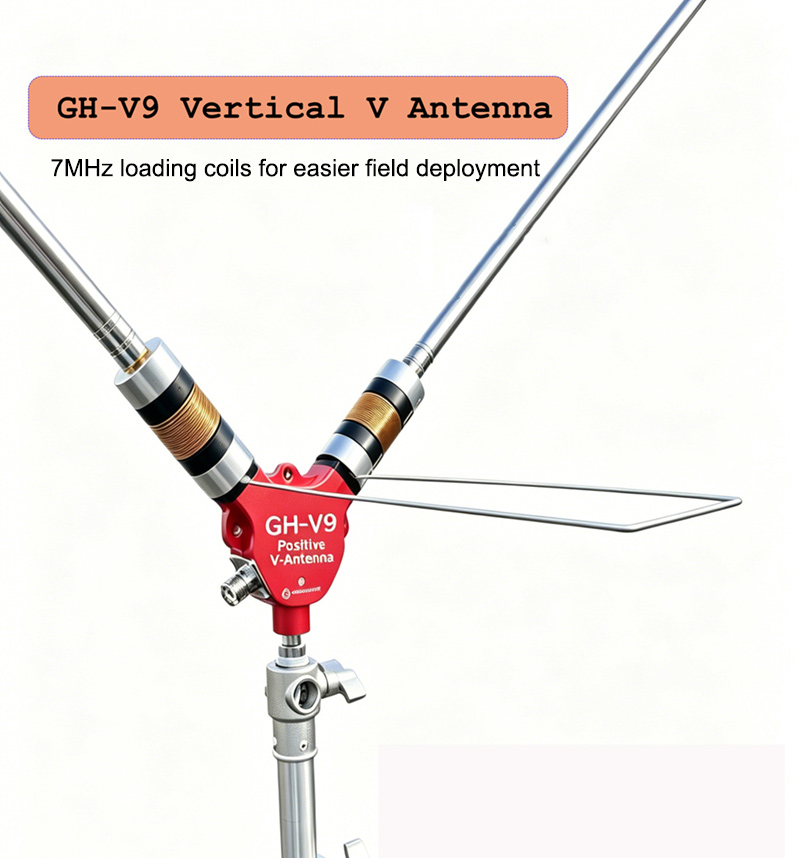

* Rapid Field Deployment: Equipped with 7MHz loading coils for quick and easy setup.

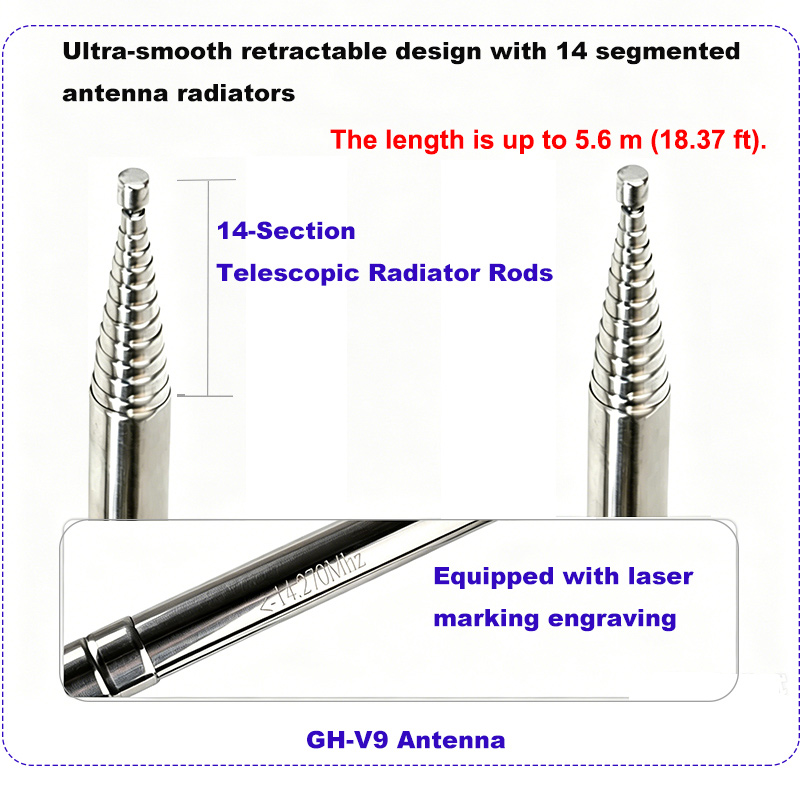

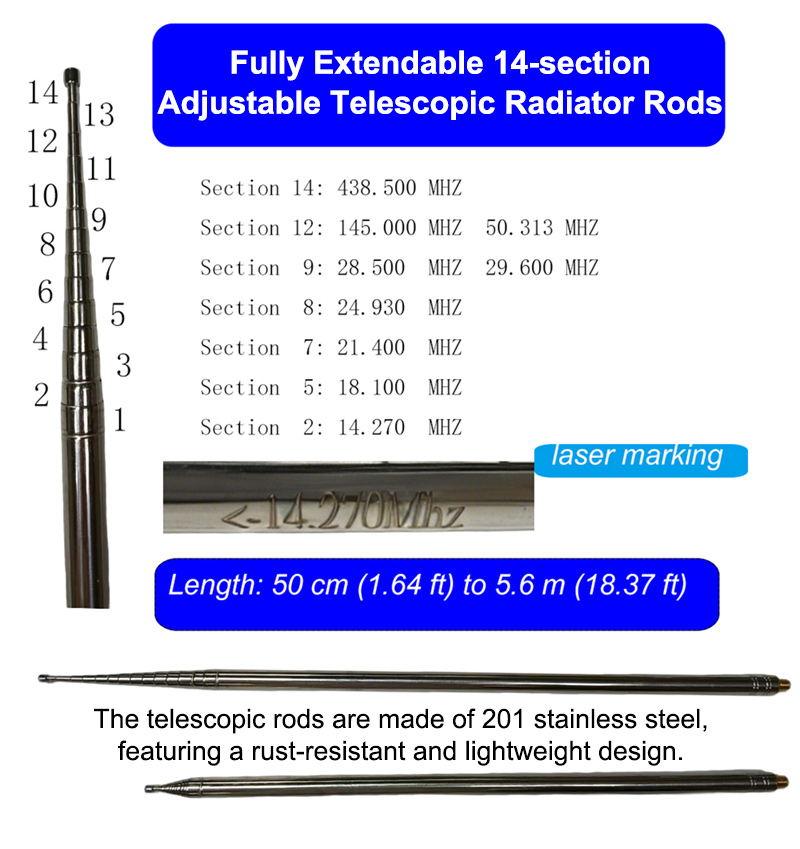

* 14-Section Telescopic Rods: Fully extendable up to an impressive 5.6m (18.37ft) for optimal performance.
* Rugged & Lightweight: Built from high-quality 201 stainless steel to resist rust while remaining highly portable.

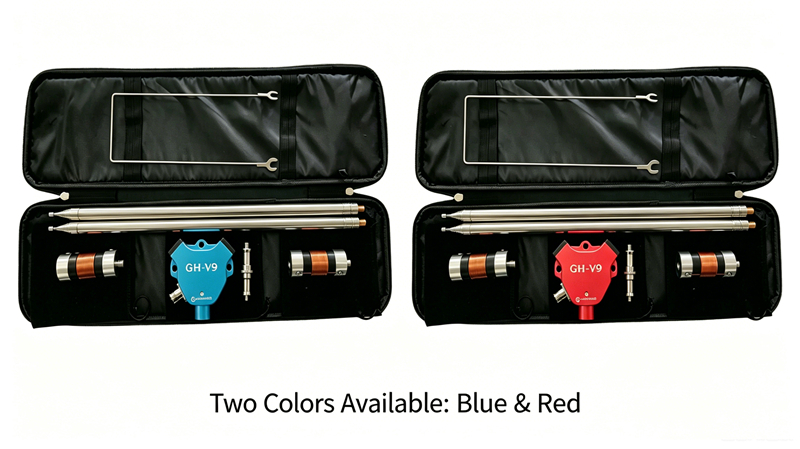

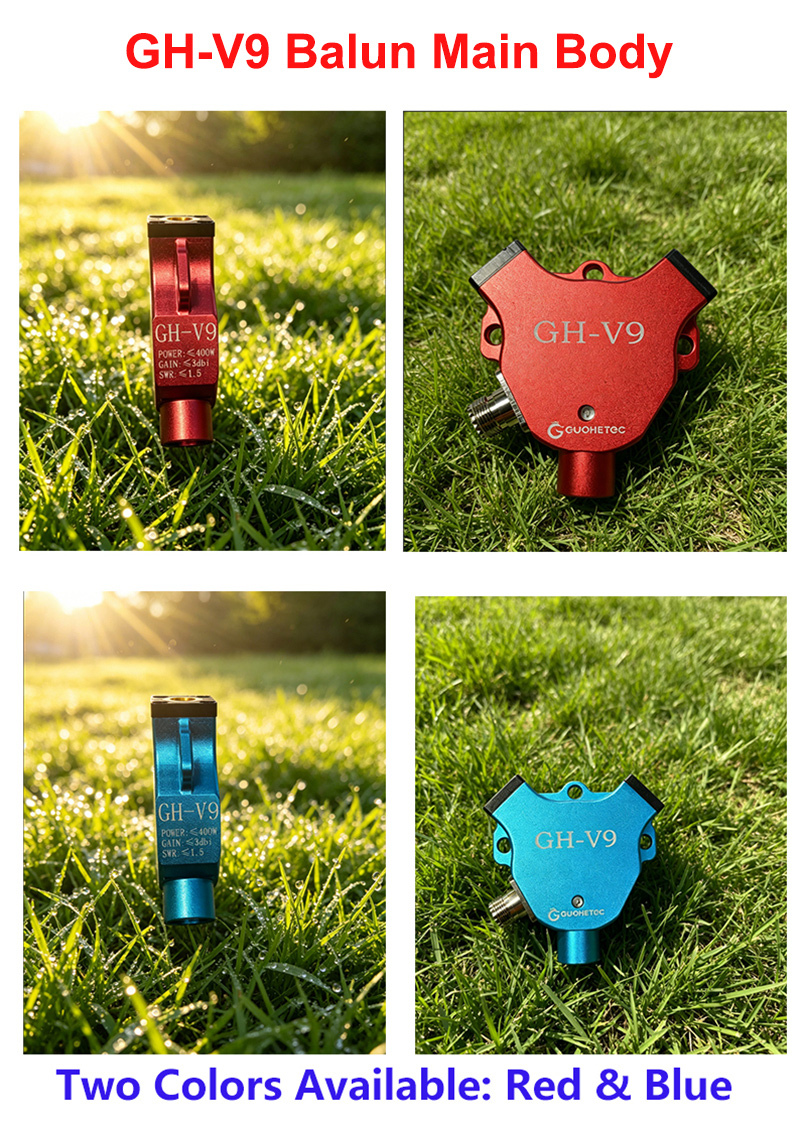

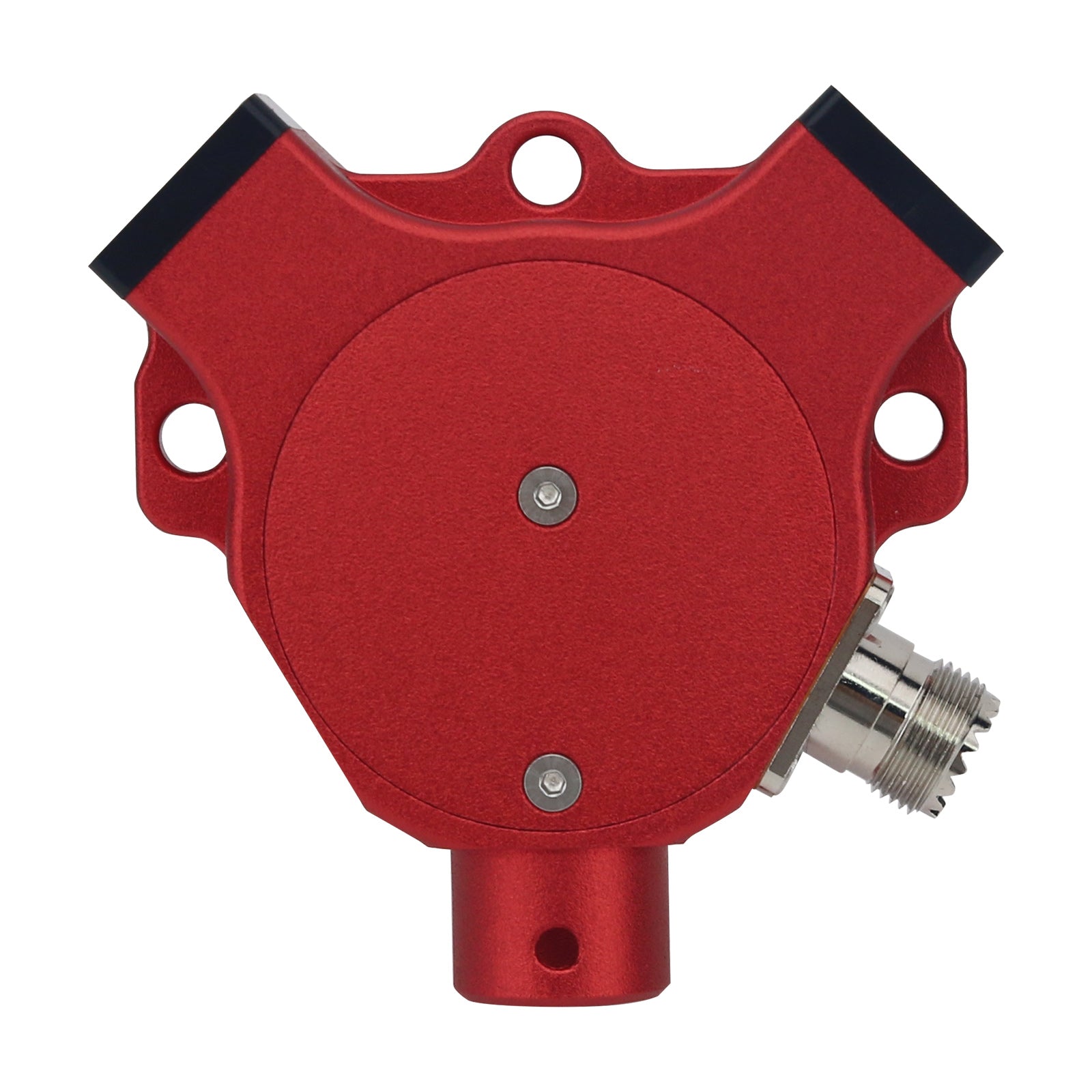

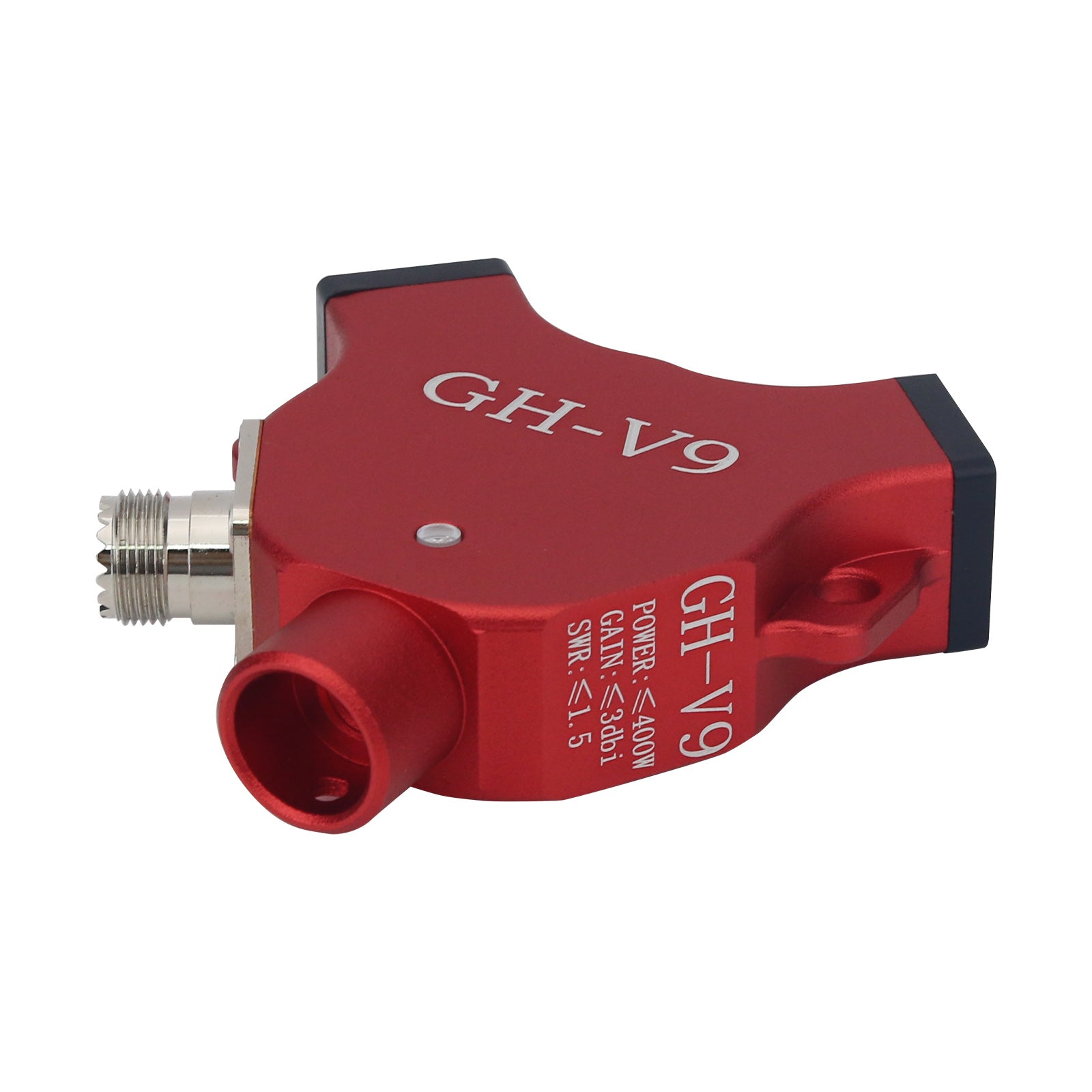

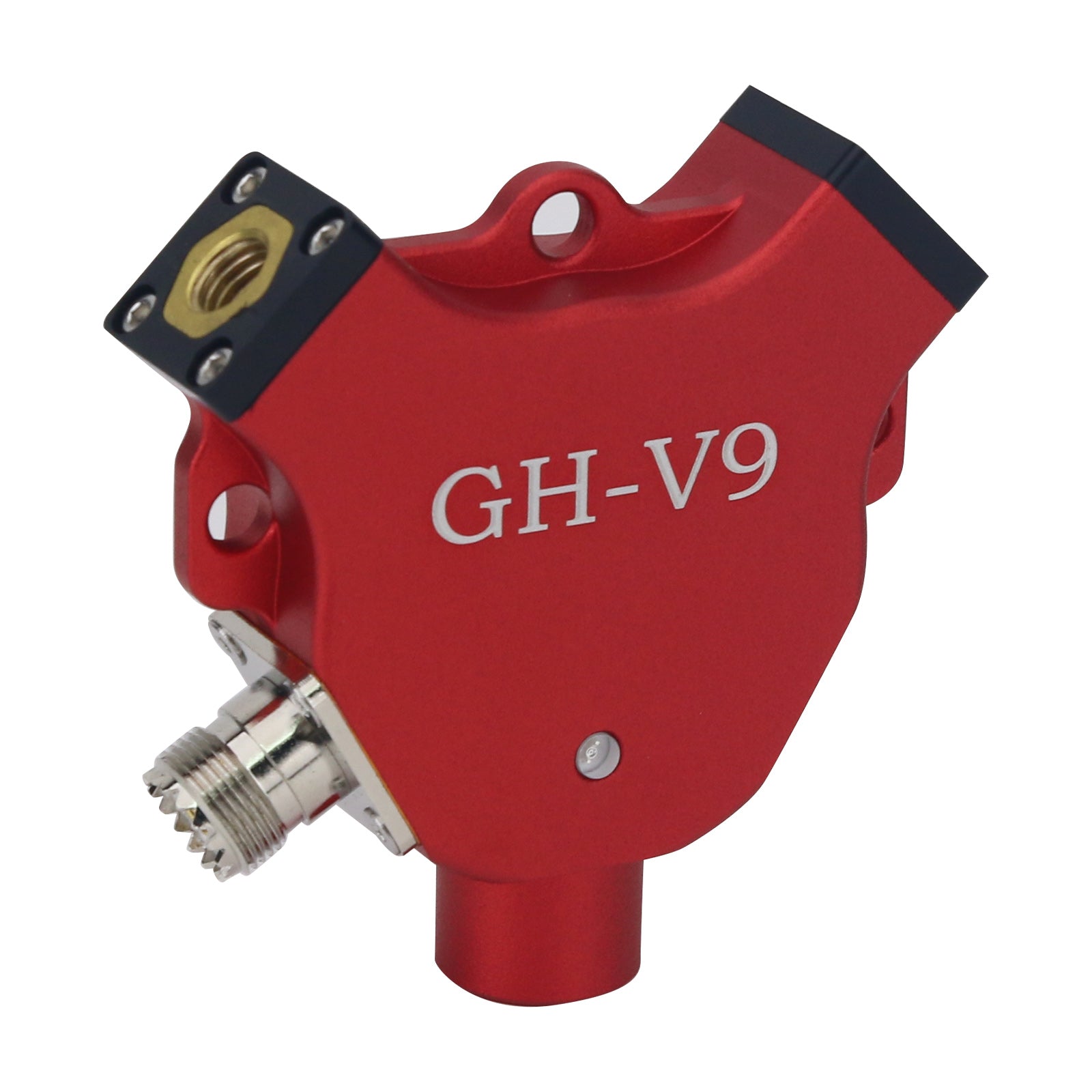

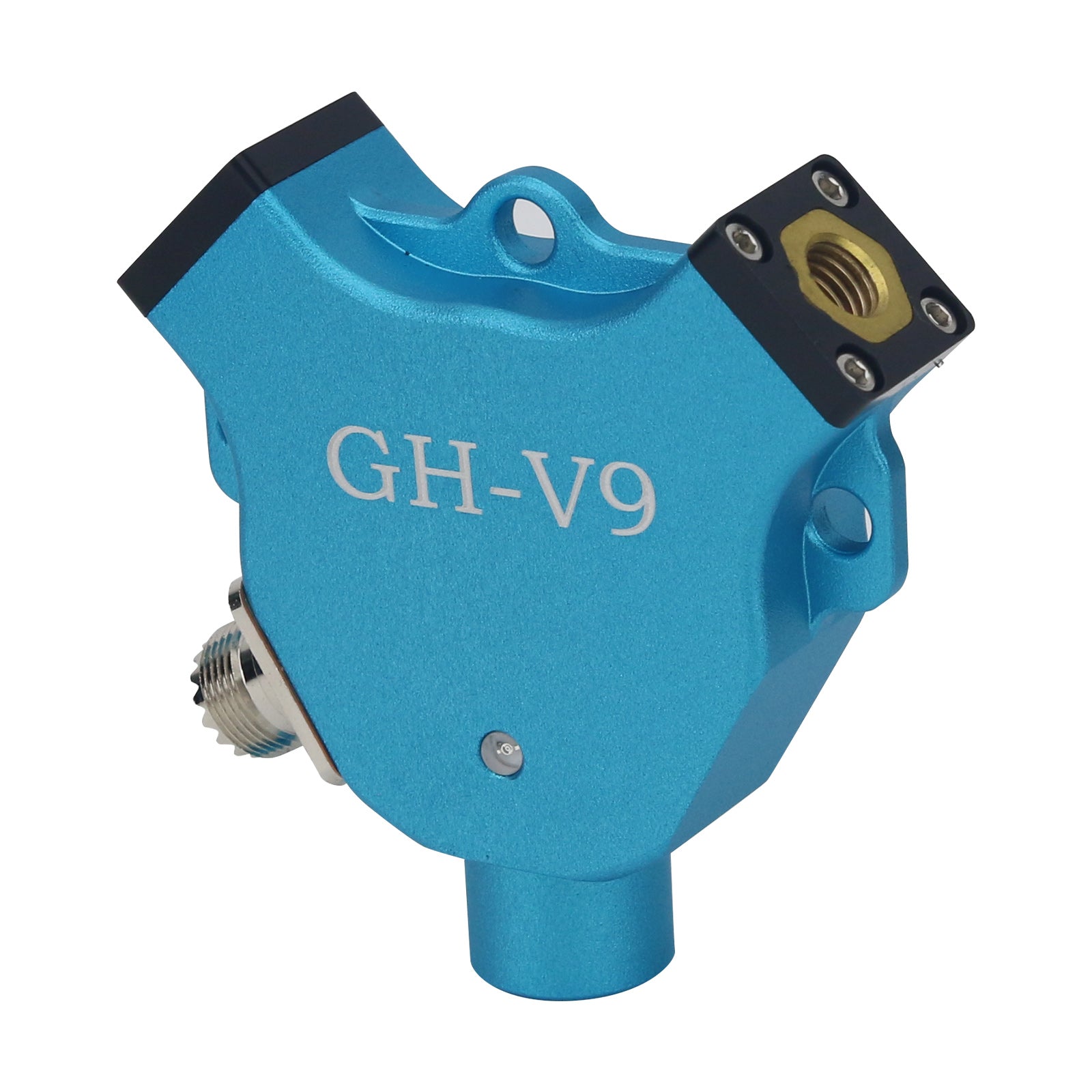

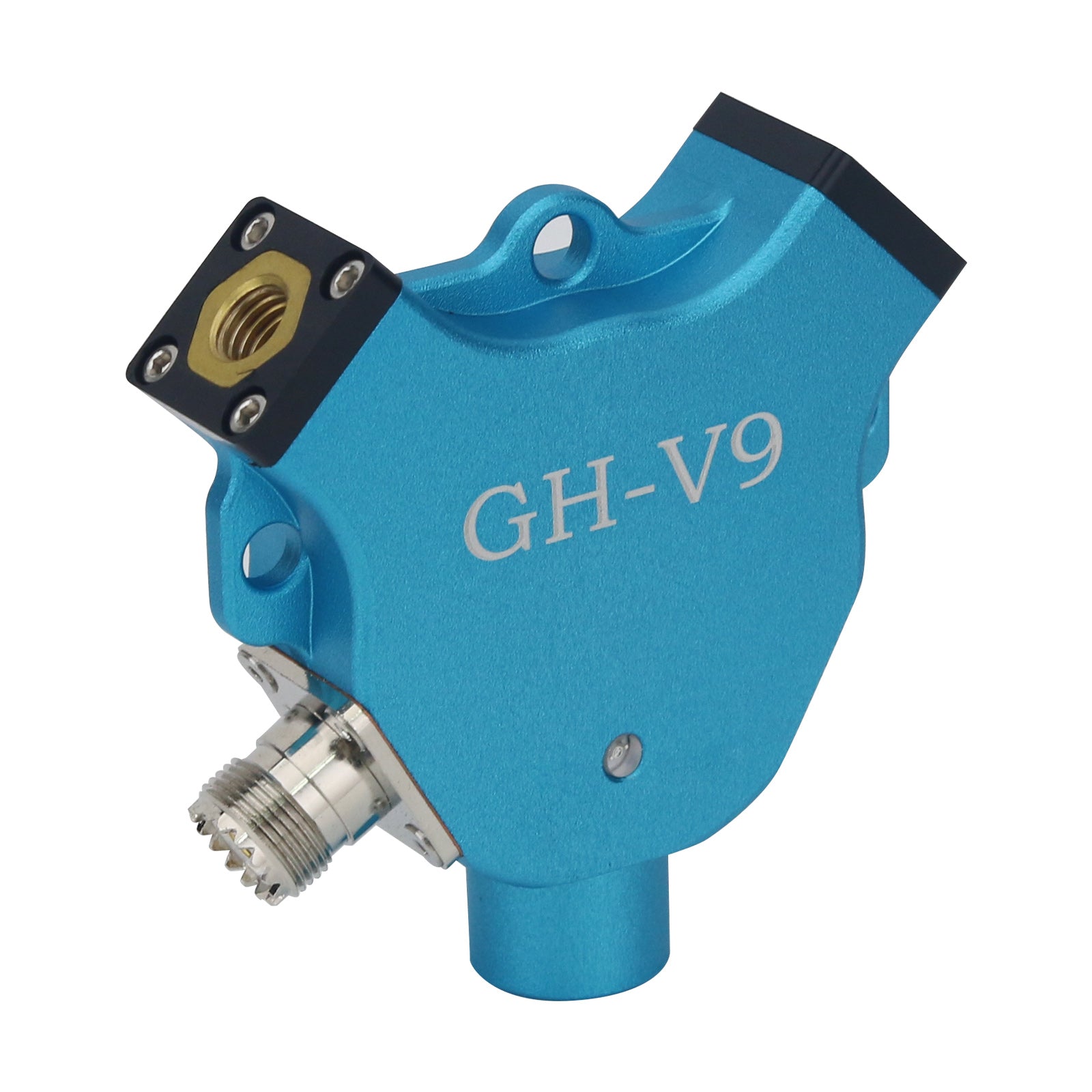

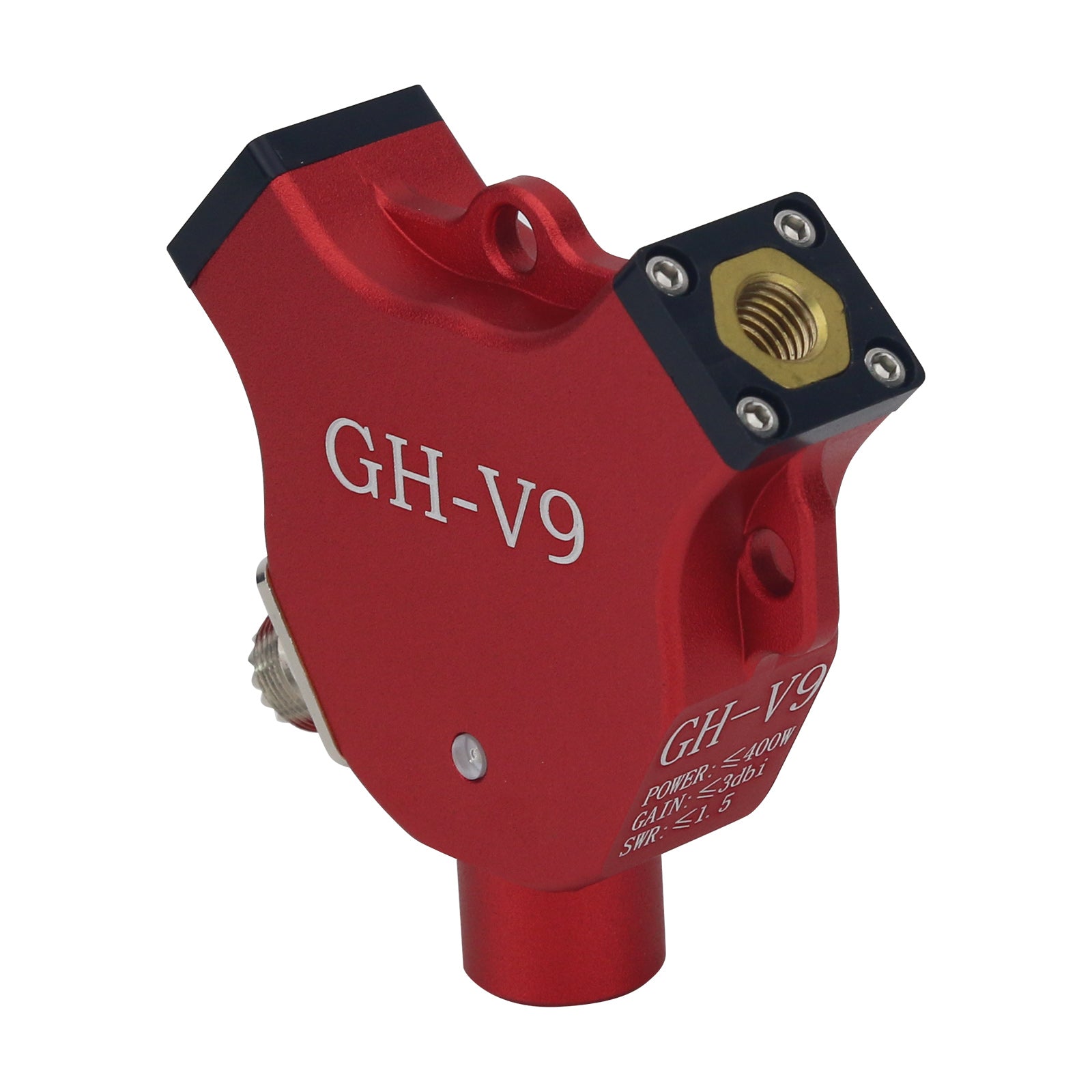

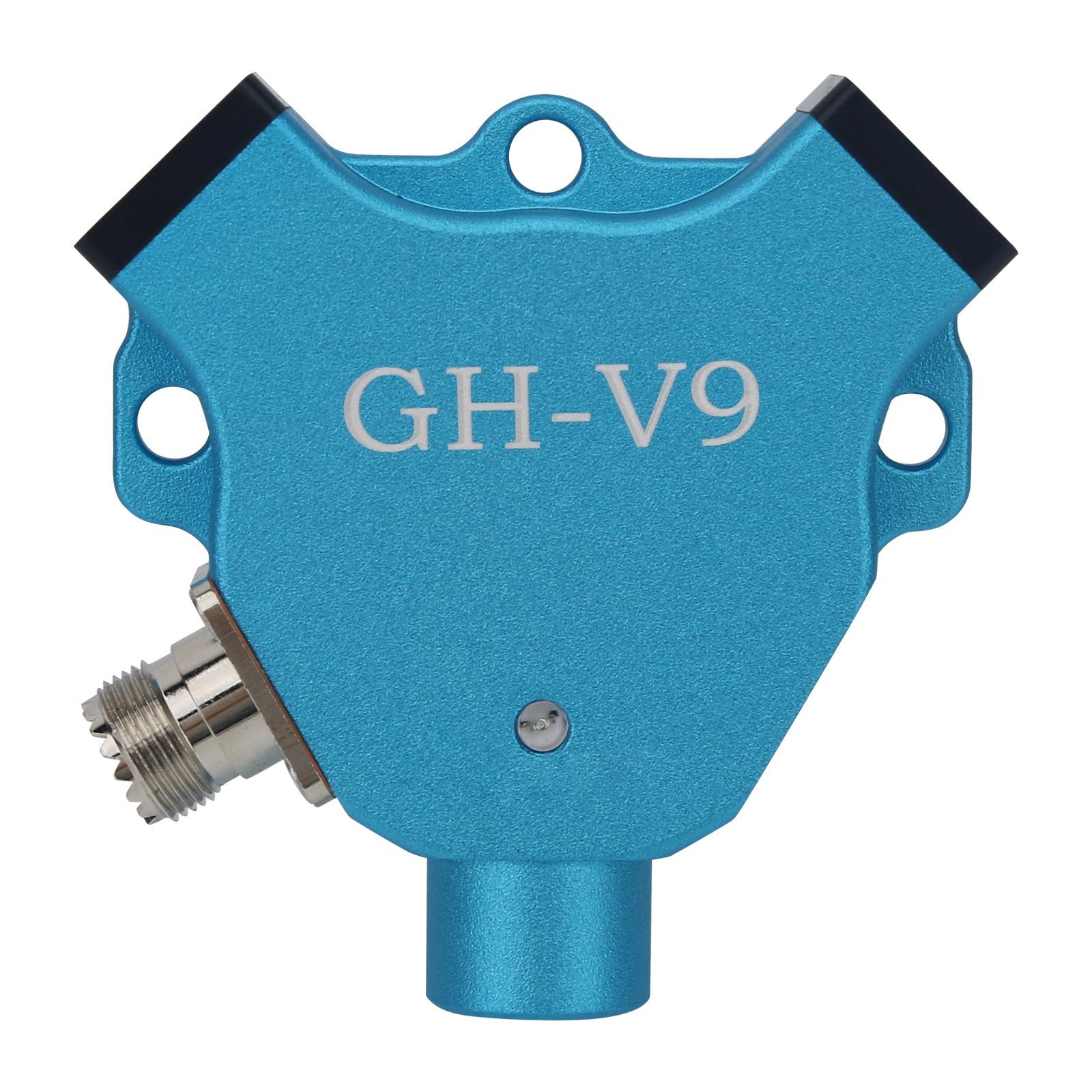

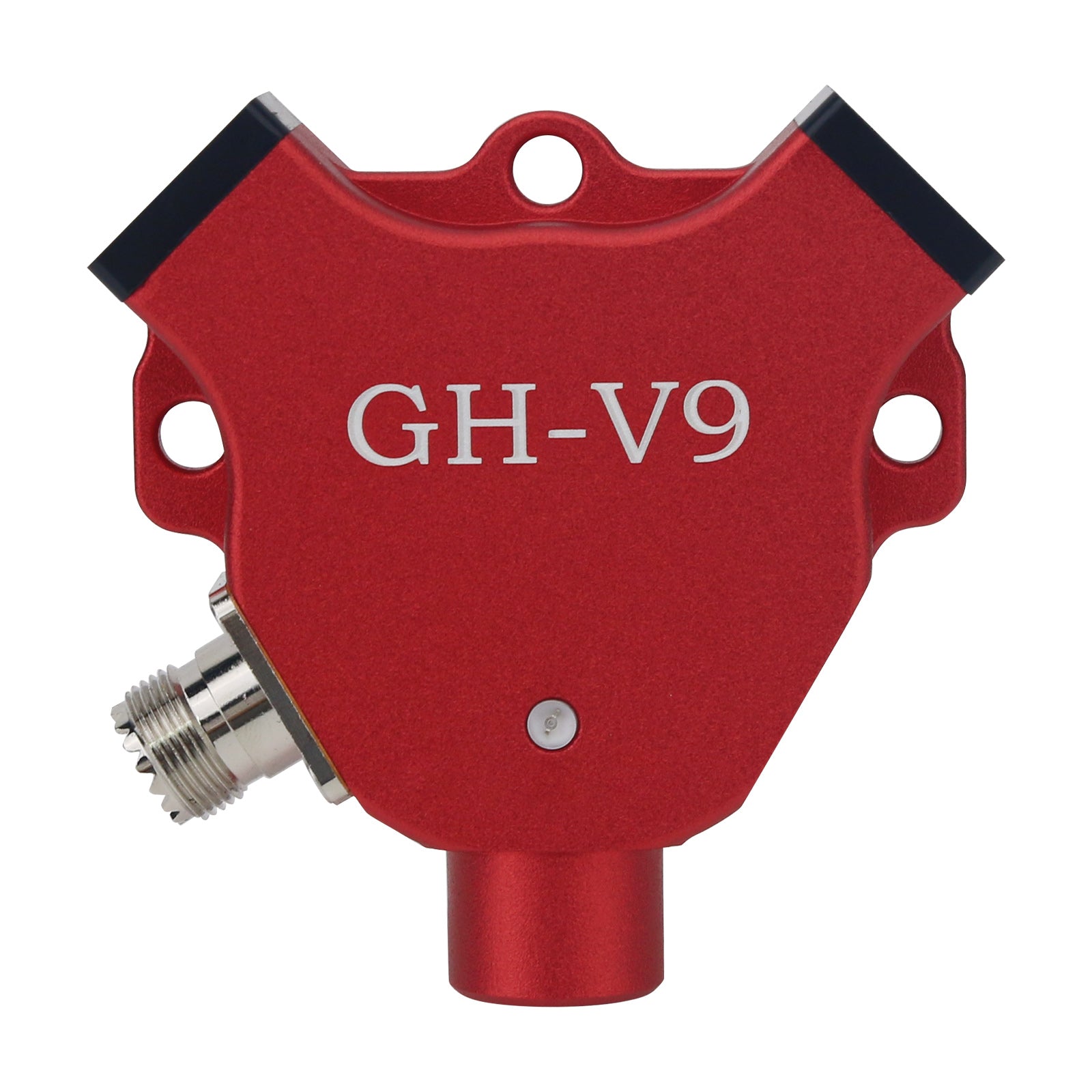

* Balun Color Options: Available in Red or Blue.

Specifications:
* Frequency Range: 7MHz – 430MHz (supports multiple bands including 7MHz, 14MHz, 18MHz, 21MHz, 24MHz, 28MHz, 29MHz, 50MHz, 144MHz, and 430MHz)
* Materials: High-strength 6061 aluminum alloy; telescopic rods made of 201 stainless steel (rust-resistant and lightweight)
* Impedance: 50Ω
* SWR: ≤ 1.5:1 (after tuning)
* Maximum Power Handling: 400W
* Adjustable Single Arm Length: 53cm – 560cm
* Operating V-Angle: 90°
* Balun Weight: 310g ±10g
* Total Antenna Weight: 1038g ±10g
* Operating Temperature: -30°C to 60°C
* Balun IP Rating: IP68 (waterproof and dustproof)
* Thread Standard: M10

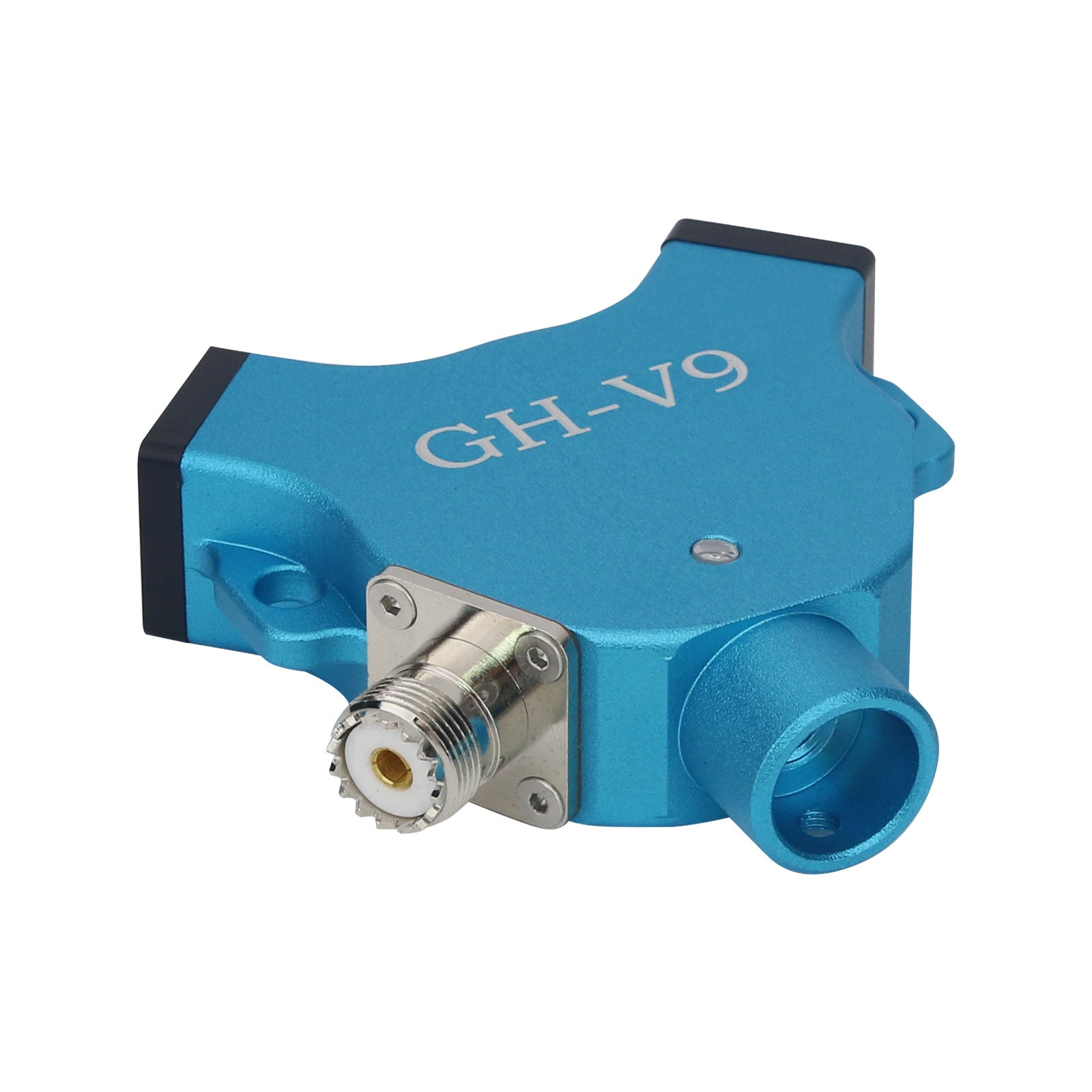

* Interface: M-type female connector; equipped with LED indicator light

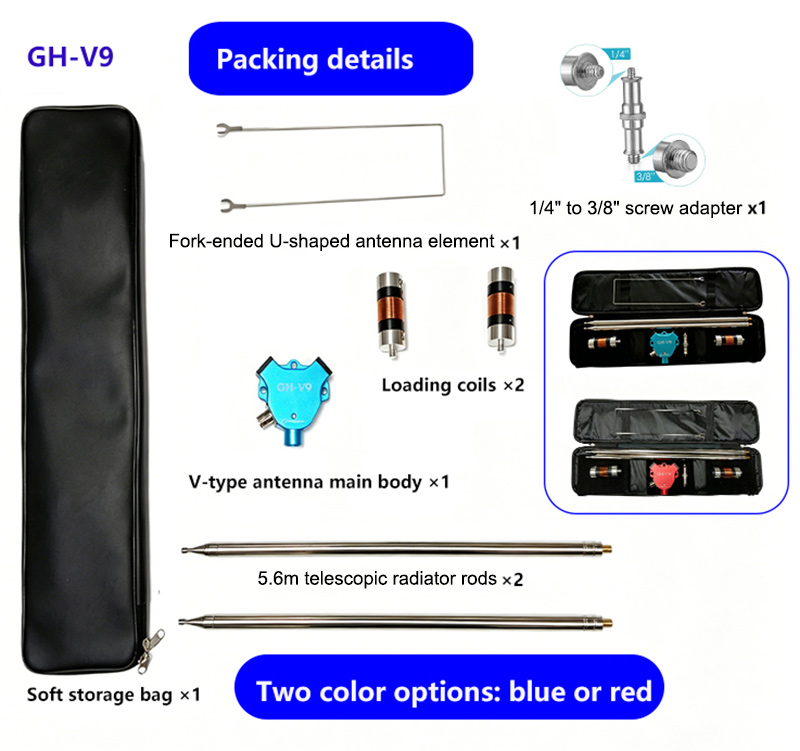

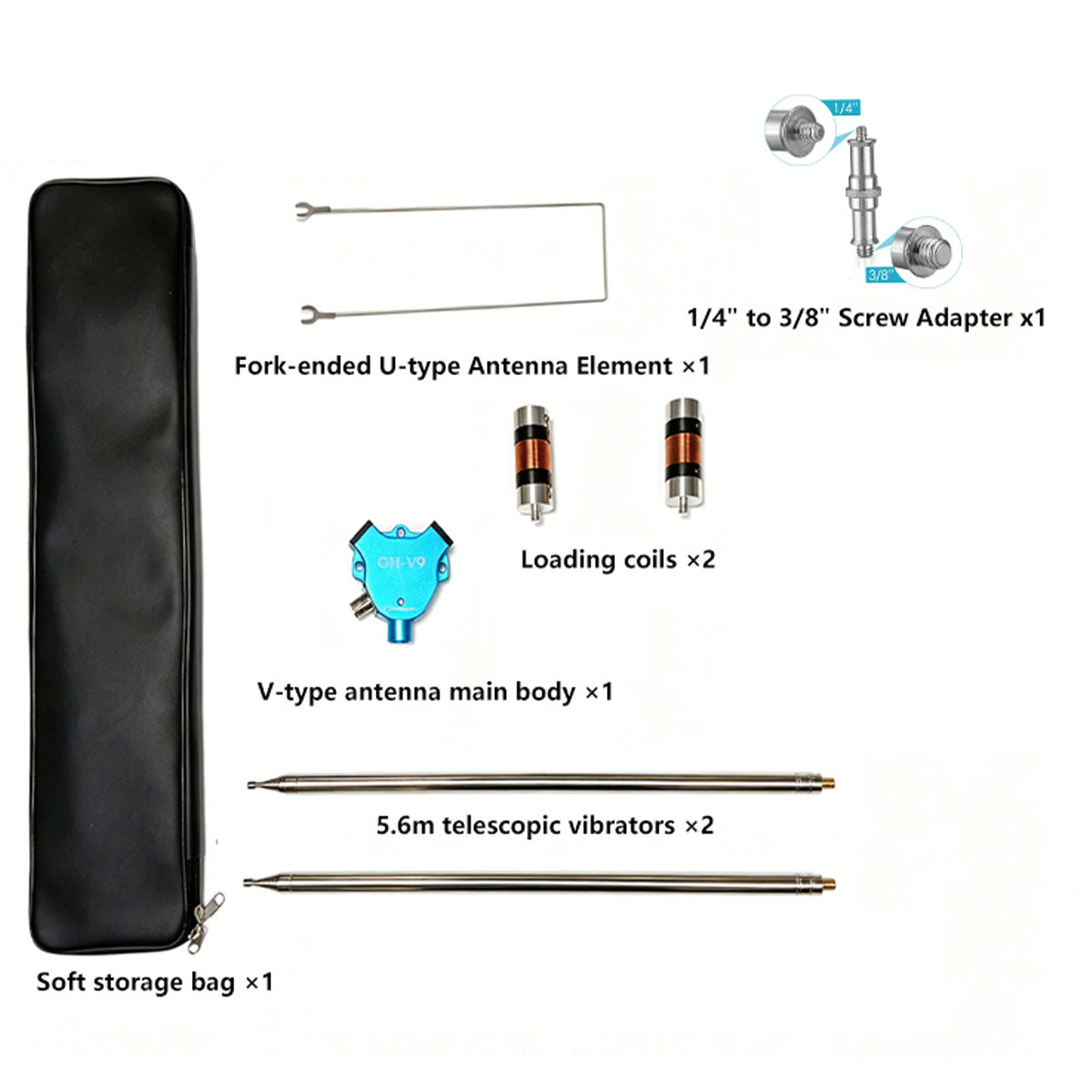

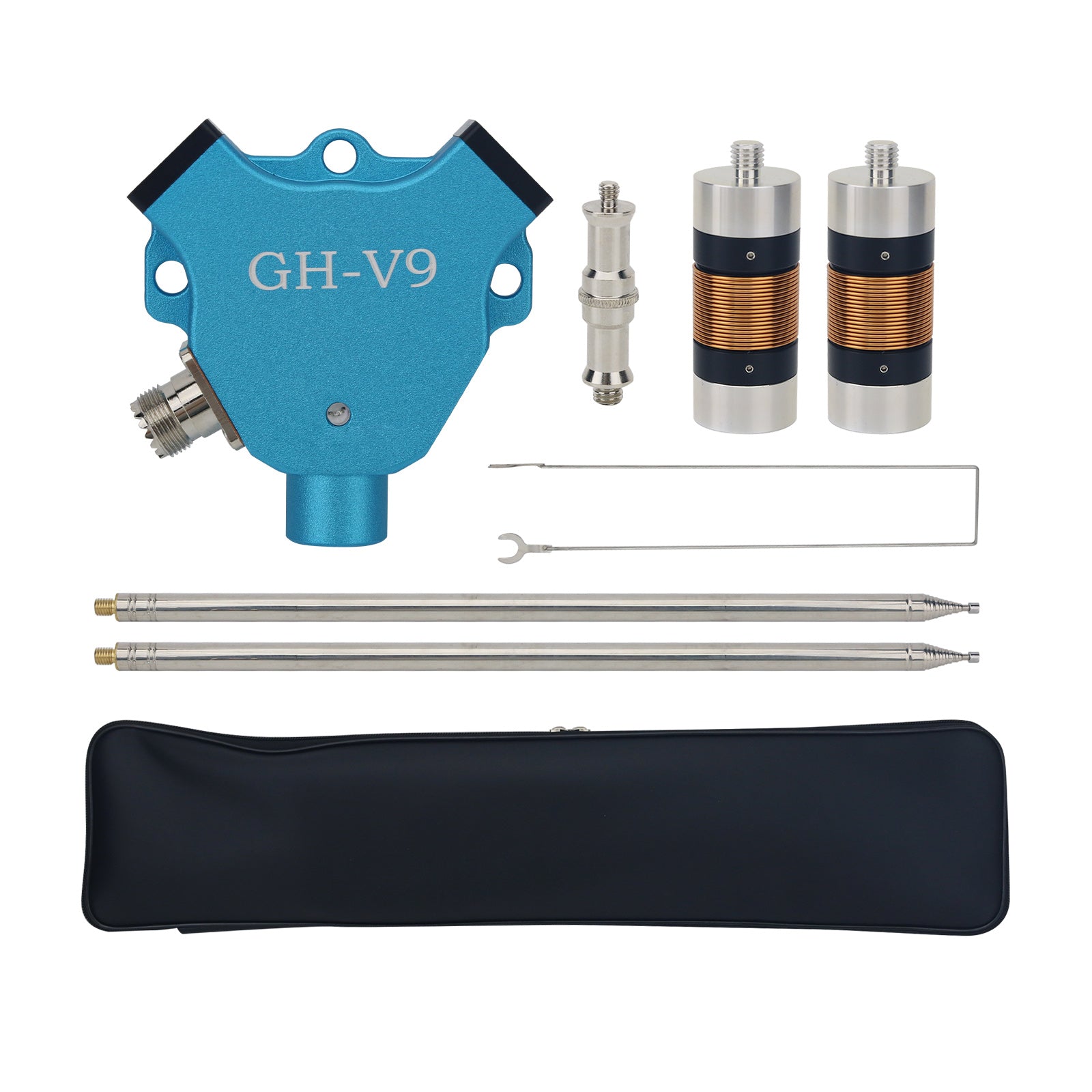

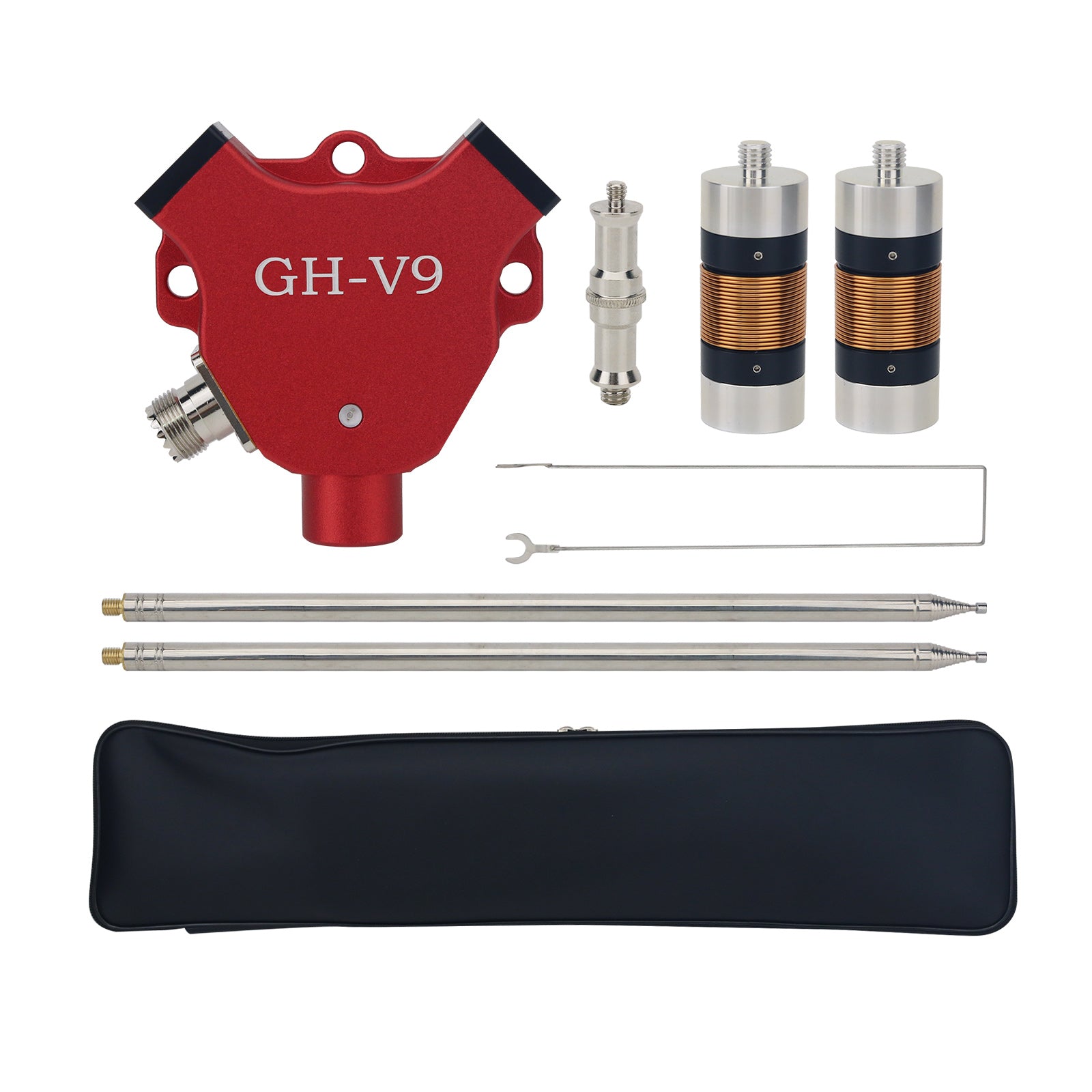

Packing List:
* 1 x HamGeek V-type antenna main unit
* 2 x 5.6m telescopic radiator rods
* 2 x Loading coils
* 1 x Fork-ended U-shaped antenna element
* 1 x 1/4" to 3/8" screw adapter
* 1 x Soft storage bag

Packaging Details:
* Package weight: 2.5kg
