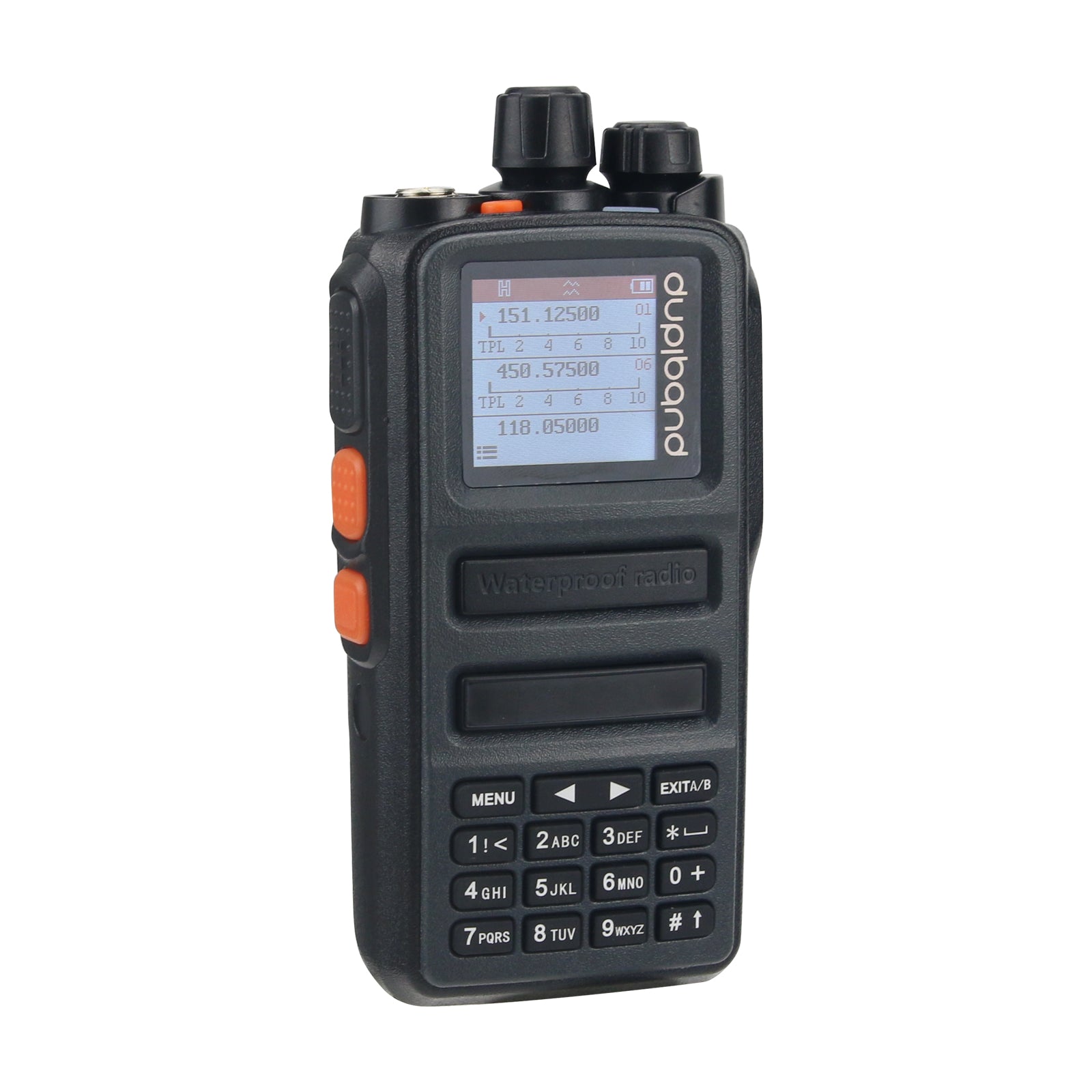

HamGeek HG3288 10W All Band Walkie Talkie IP68 Waterproof VHF UHF Radio Supports 199 Channels

HamGeek HG3288 10W All Band Transceiver Walkie Talkie IP68 VHF UHF Radio Supports 199 Channels

General Parameters:
- Frequency range: TX: 136-174MHz and 400-520MHz; RX: 76-108MHz, 136-180MHz, 230-250MHz, 350-400MHz, 400-520MHz and 800-870MHz; 108-136MHz (air ground)
- Power output: H 10W and L 5W
- Number of Channels: 199
- Channel Spacing: 25KHz (broadband) ; 12.5KHz (narrowband)
- Frequency Stability: ±2.5ppm
- Working voltage: 7.4VDC±20%
- Operating temperature: -20℃ to +60℃
- Antenna Impedance: 50Ω
- Dimensions: 138 x 62 x 40mm/5.4 x 2.4 x 1.6" (including battery)
- Net weight: 280G/0.6LB (with battery and antenna)
- Waterproof grade: IP68

Parameters of Transmitter:
For Broadband:
- Transmit power: high power
- Modulation method: 16KΦF3E
- Adjacent channel power: ≥ 65dB
- Signal-to-noise ratio: ≤ -40dB
- Spurious and harmonics: ≤ 65dB
- Spurious emission: ≤ -36dBm
- Audio Response: 300Hz-3KHz
- Audio Distortion: ≤ 5%

For Narrowband:
- Transmit power: high power
- Modulation method: 8KΦF3E
- Adjacent channel power: ≥ 60dB
- Signal-to-noise ratio: ≤ -40dB
- Spurious and harmonics: ≤ 60dB
- Spurious emission: ≤ -36dBm
- Audio Response: 300Hz-3KHz
- Audio Distortion: ≤ 5%

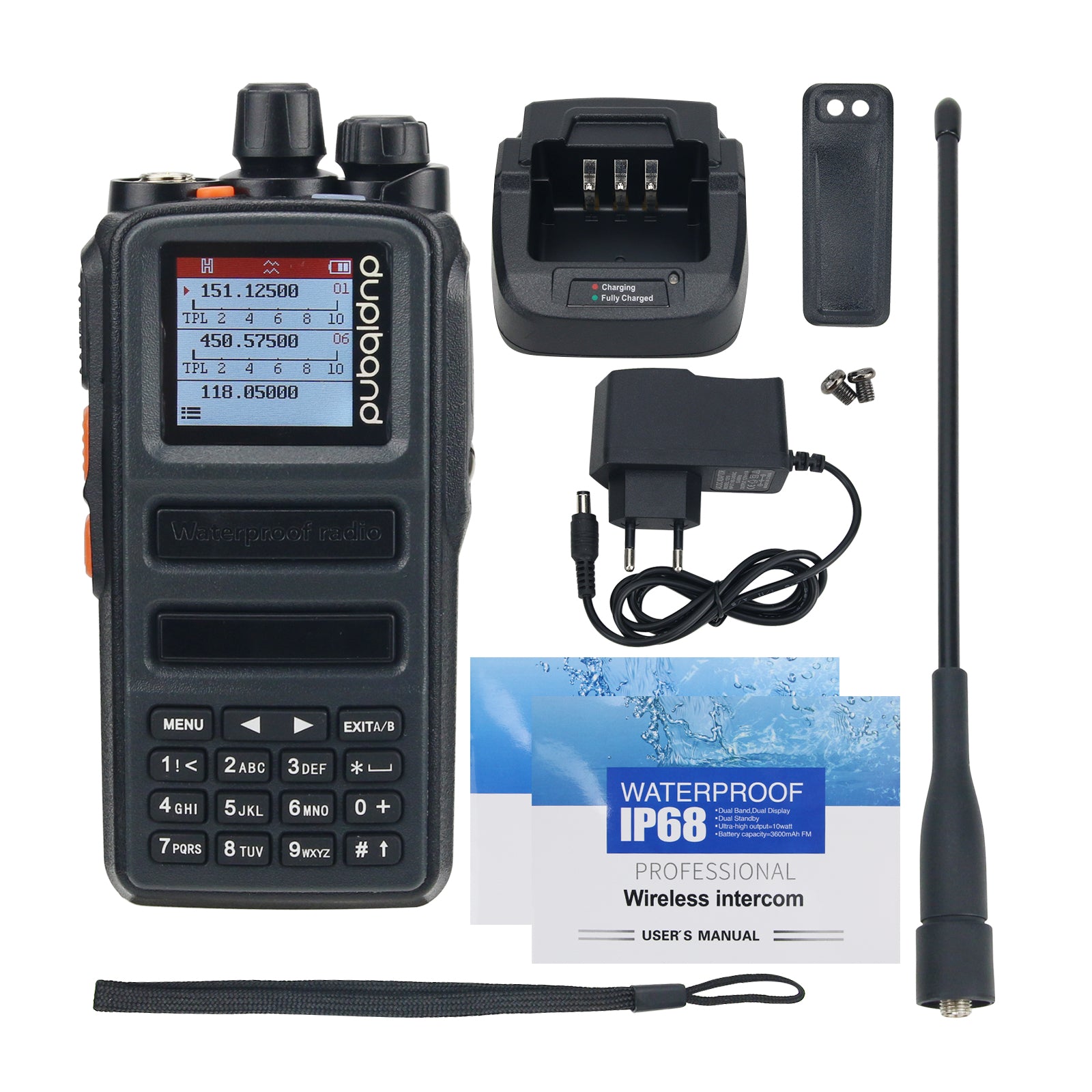

Package Included:
- 1 x Walkie Talkie
- 1 x Charger Dock
- 1 x Belt Clip
- 2 x Screws
- 1 x Power Adapter
- 1 x Antenna
- 1 x User Manual
- 1 x Hand Strap
