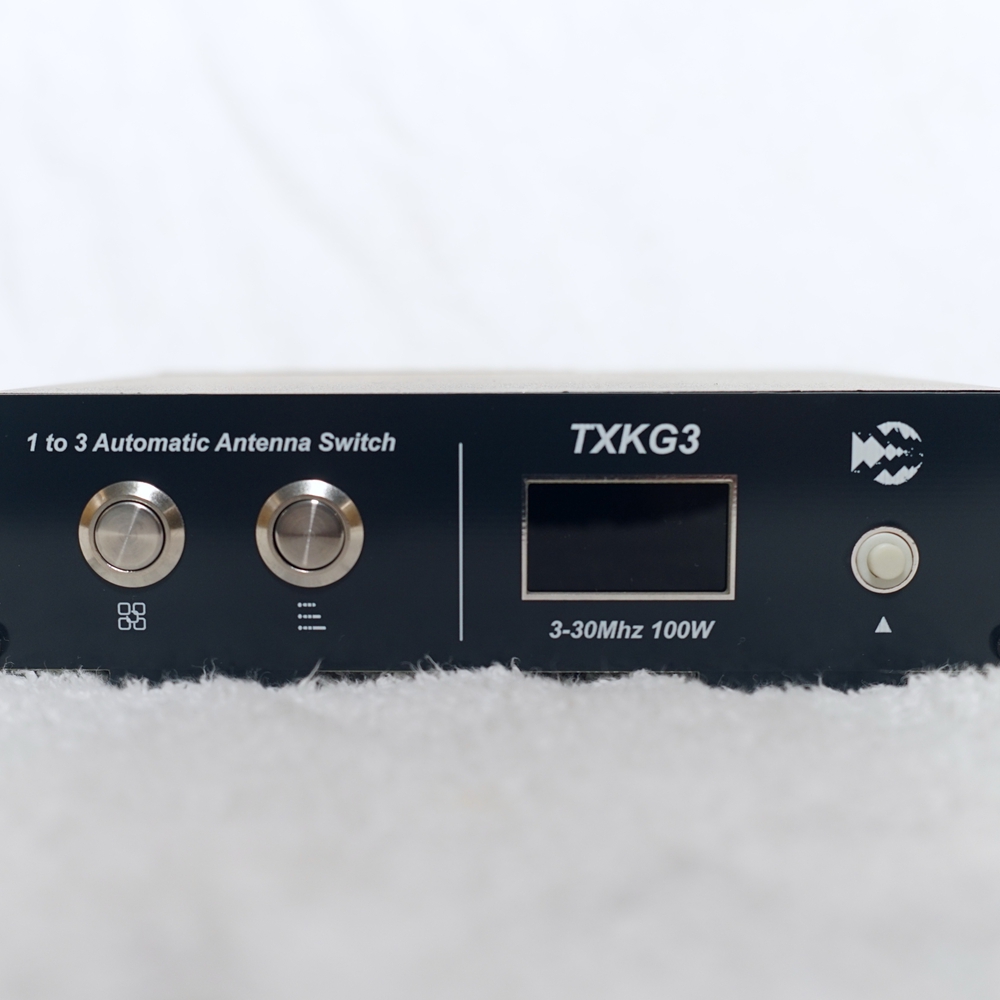

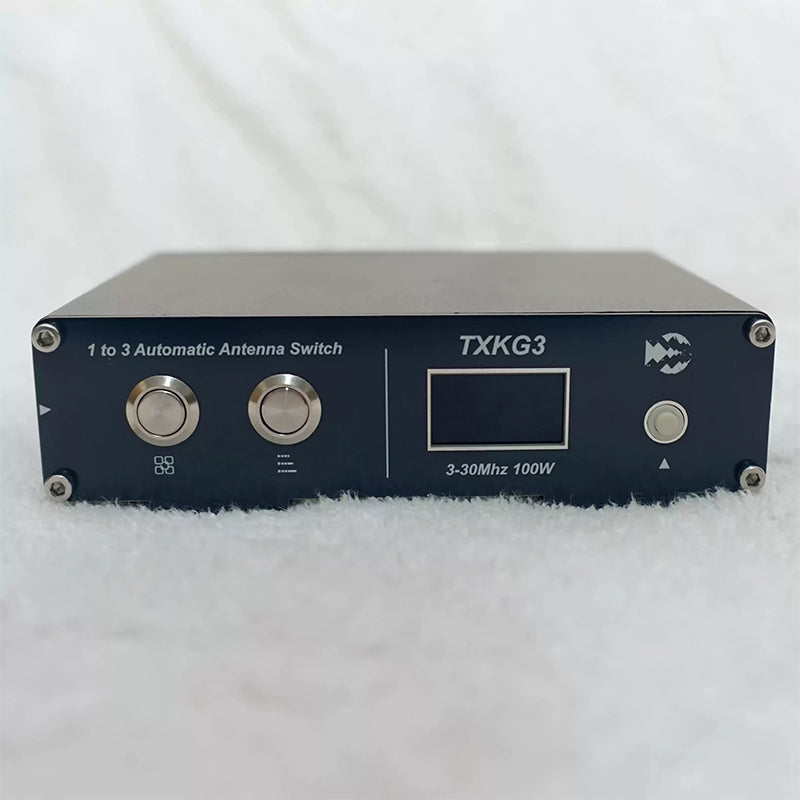

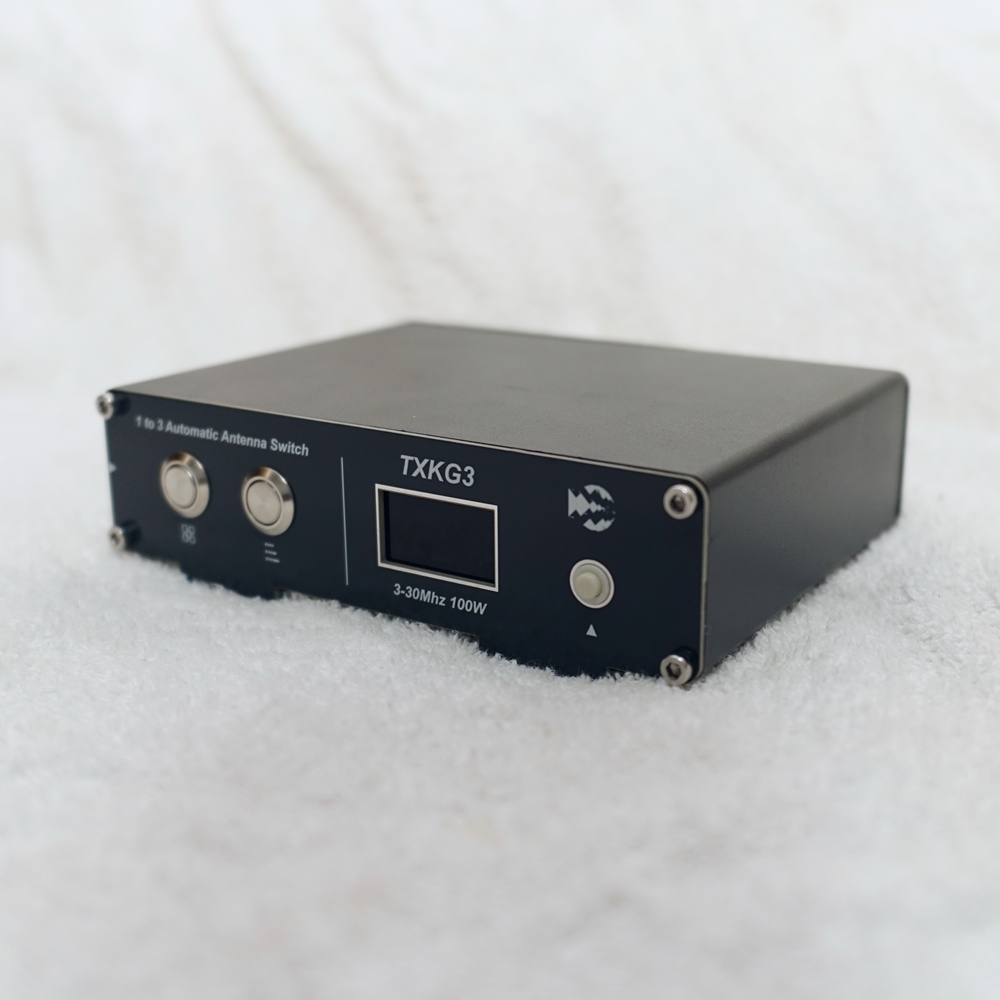

HamGeek TXKG3 3-30MHz 100W Shortwave 1 to 3 Automatic Antenna Switch DC9-15V with M-type Connector

Features:
- Convenient Automatic Switching: Eliminates the need for frequent manual antenna switching; automatically matches the appropriate antenna interface based on RF for frequency, improving efficiency.
- Wide Application: Compatible with single, dual, and triple antenna applications, meeting diverse needs.
- Comprehensive Safety Protection: Built-in VSWR protection mechanism with clearly defined power handling limits (≤100W) to prevent overload damage.
- Clear Parameter Display: Equipped with a display screen that shows real-time power values, VSWR values, interface for frequency band settings, and currently connected interfaces, providing a clear overview of the operating state.
- Stable and Reliable Connection: Employs for M-type connectors with isolation ≥45dB and insertion loss ≤0.3dB, stable transmission and reducing loss.

Specifications:
- Frequency range: 3MHz - 30MHz
- Power withstand: up to 100W
- Minimum input power: ≥15W
- Measuring accuracy: power±10
- Impedance: 50ohm
- Insertion loss: ≤0.3dB
- SWR: ≤1.1

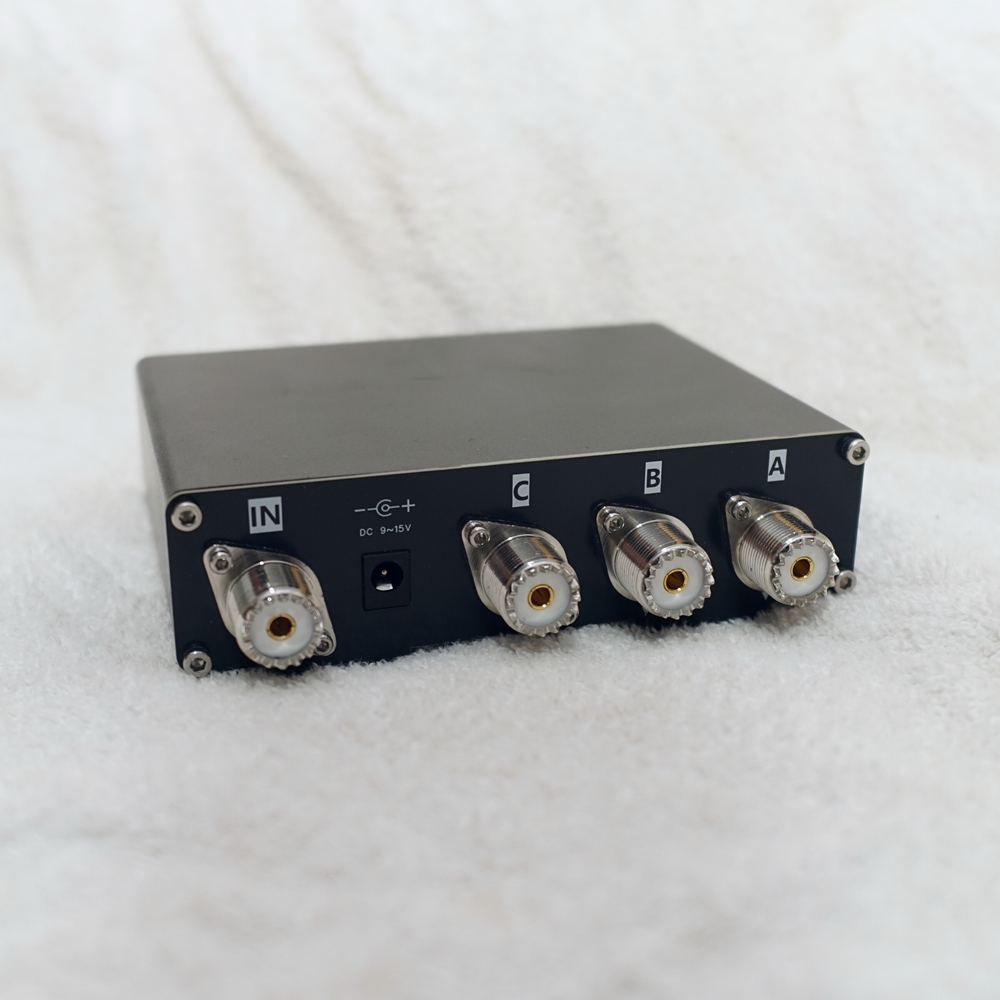

- Connector: M-type
- Built-in protection: 50ohm (protection time limit 15s)
- Power supply: DC 9 - 15V, 500mA

Package Included:
- 1 x Automatic Antenna Switch
