Happymodel EPW5 2.4GHz PWM 5CH RC Receiver for ExpressLRS ELRS Fixed-Wing Aeroplanes

Happymodel EPW5 2.4GHz PWM 5CH RC Receiver for ExpressLRS ELRS Fixed-Wing Aeroplanes

Specifications:
- Item: Happymodel EPW5 2.4GHz PWM receiver
- ESP8285 and SX1280/1281
- Antenna connector: IPEX MHF 1/U.FL
- 5x PWM outputs
- RF Frequency: 2.4GHz (2400~2480MHz)
- Telemetry power: 12dbm
- Receiver protocol: for PWM or CRSF
- Input voltage: +5V DC at "+" pad
- PCB size: 17mm x 14mm

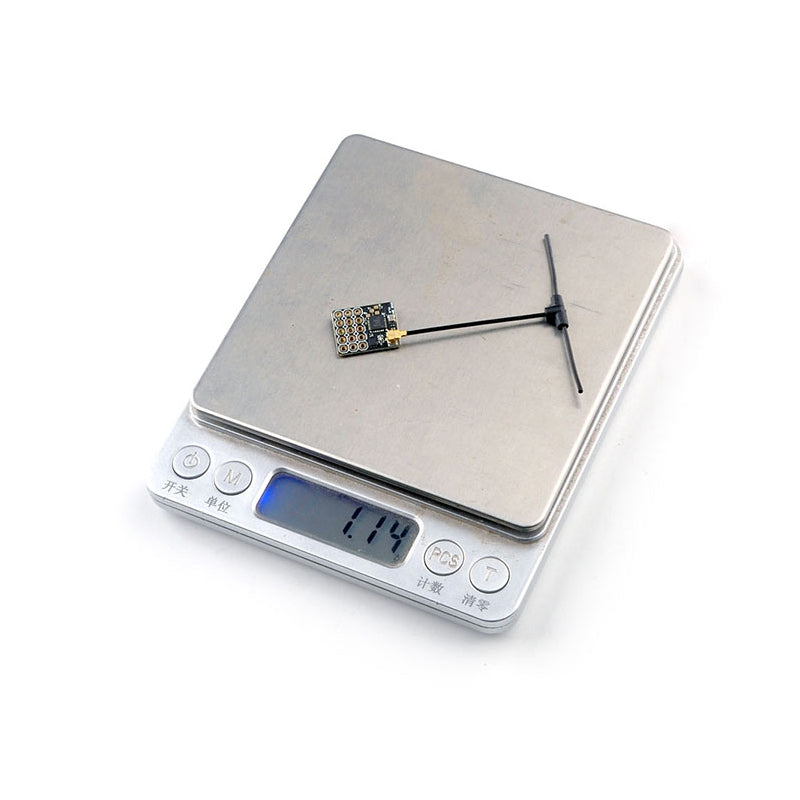

- Weight: 1.1g / antenna

Firmware:
- DIY_2400_RX_PWMP, PWM receiver via 1~5 PWM outputs
- HappyModel_EP_2400_RX, CRSF Serial receiver via TX and RX
- Firmware update via UART or WIFI

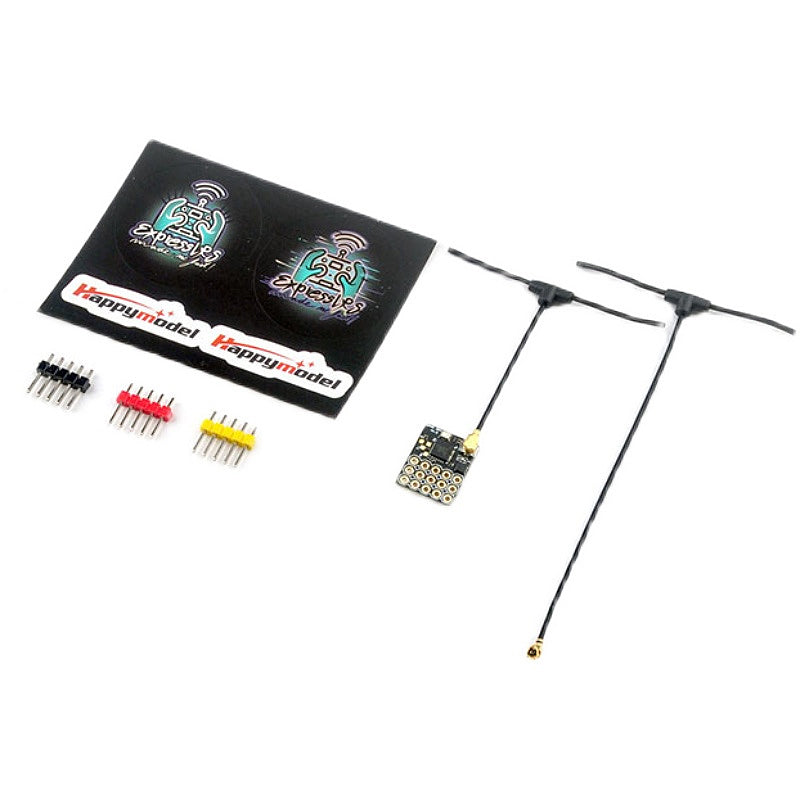

Package Included:
- 1 x Happymodel EPW5 2.4GHz PWM Receiver
- 2 x 2.4GHz antennas
- 3 x Pin headers 2.54mm
