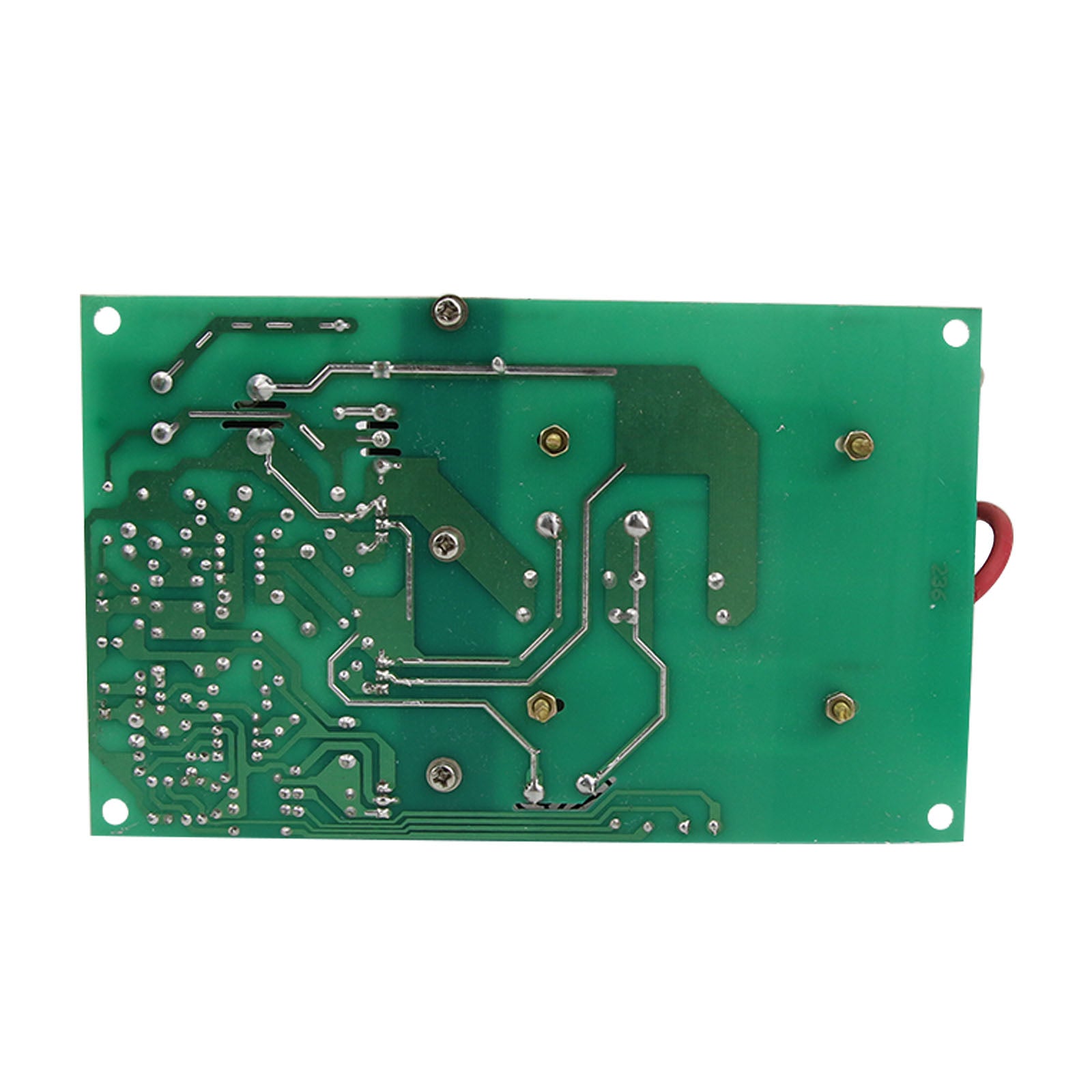

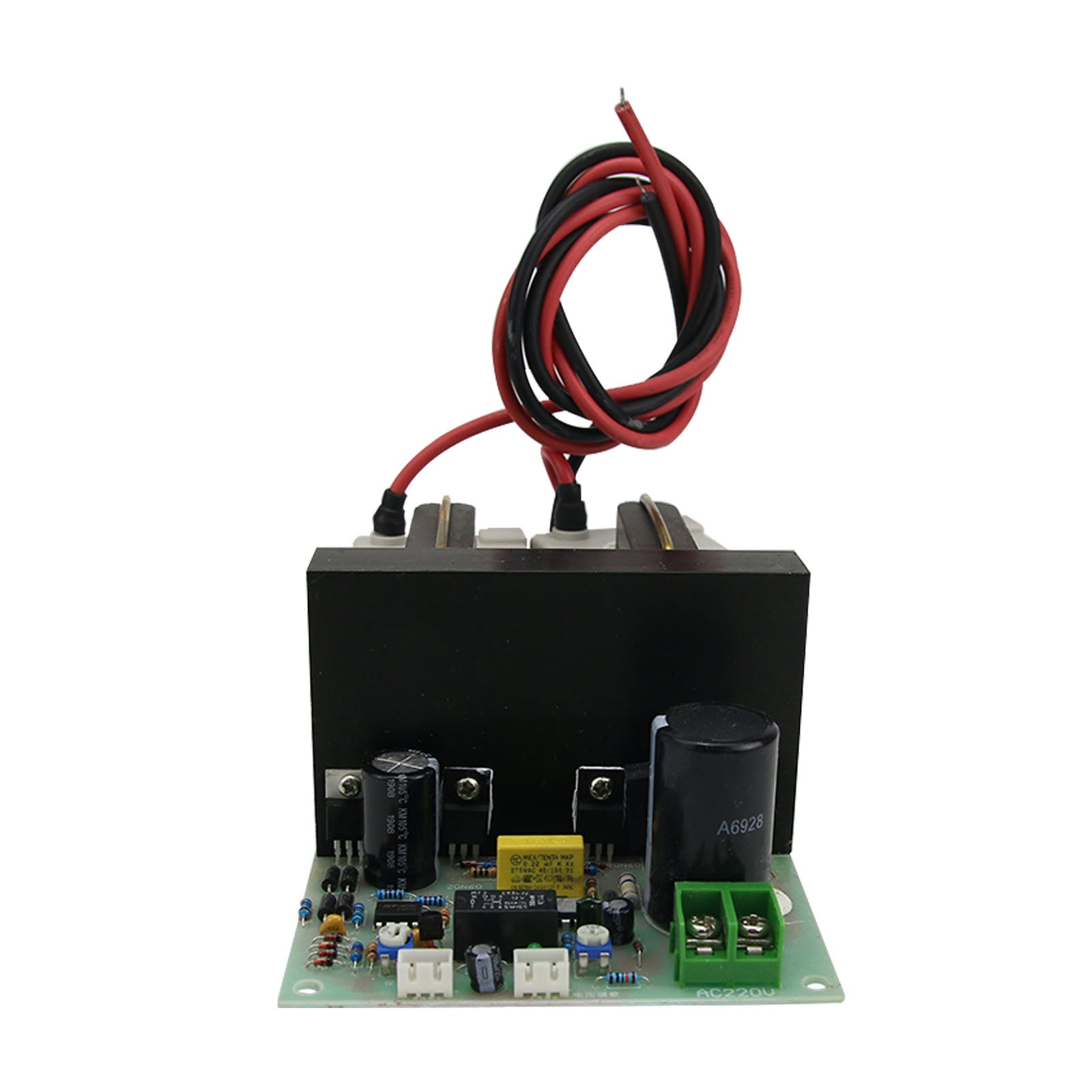

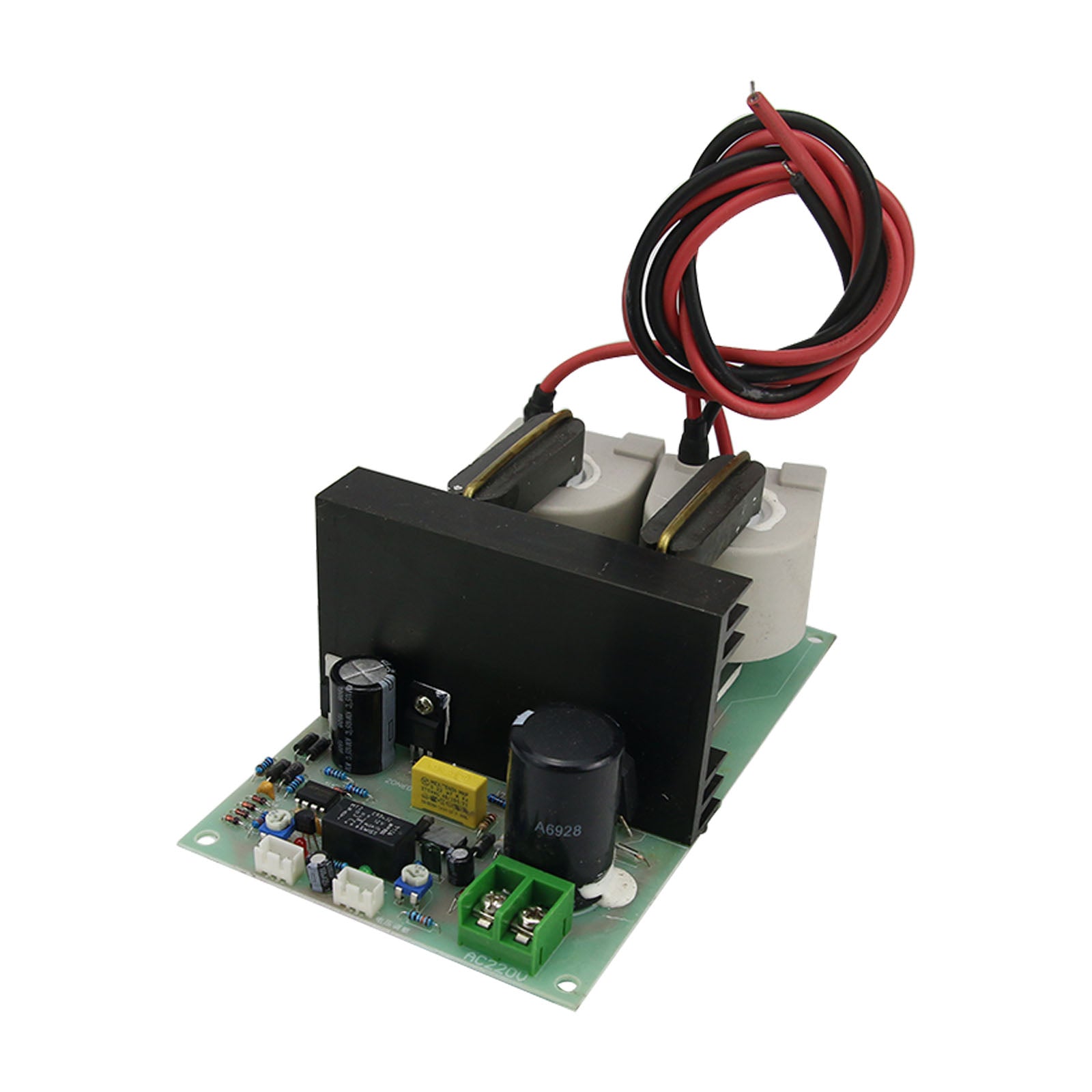

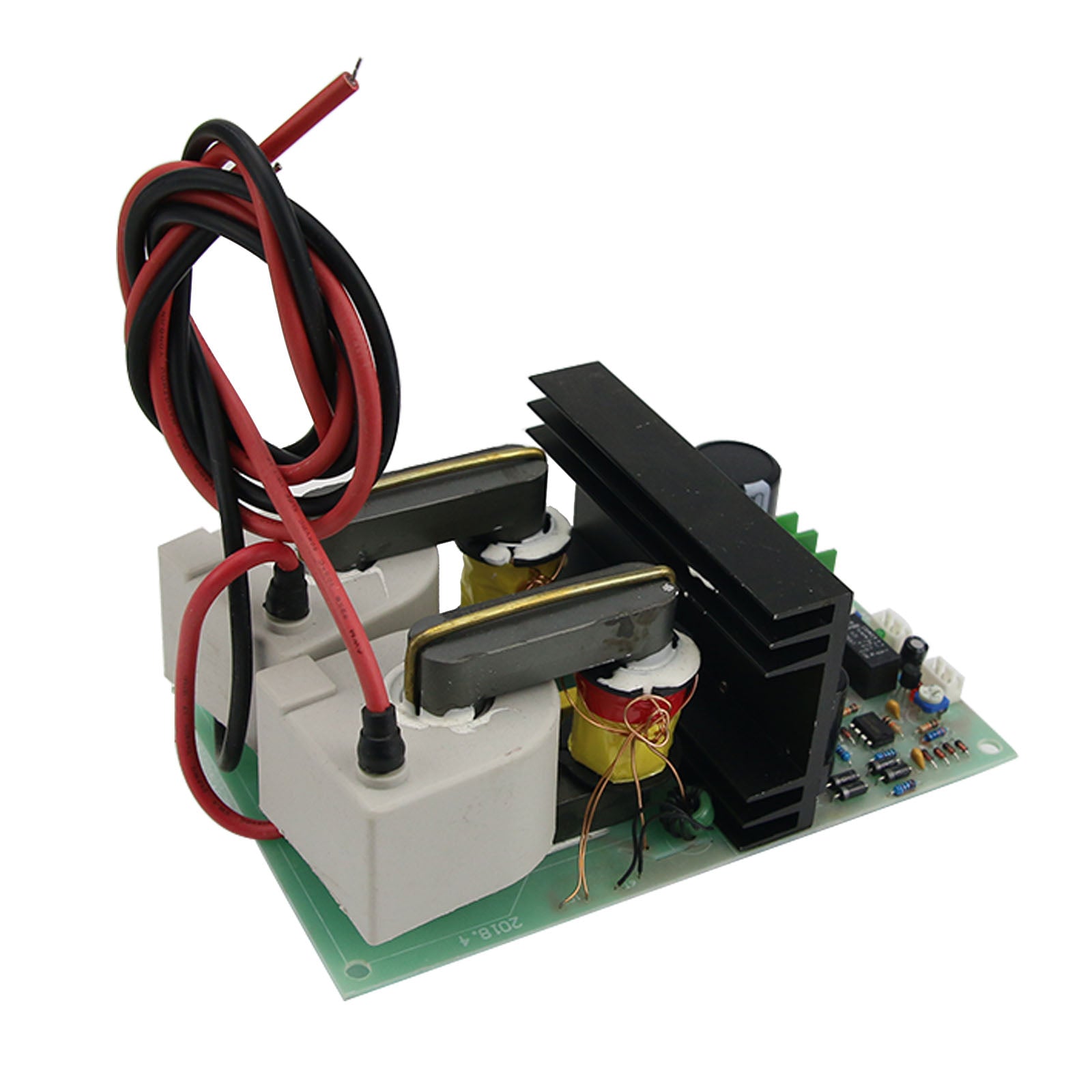

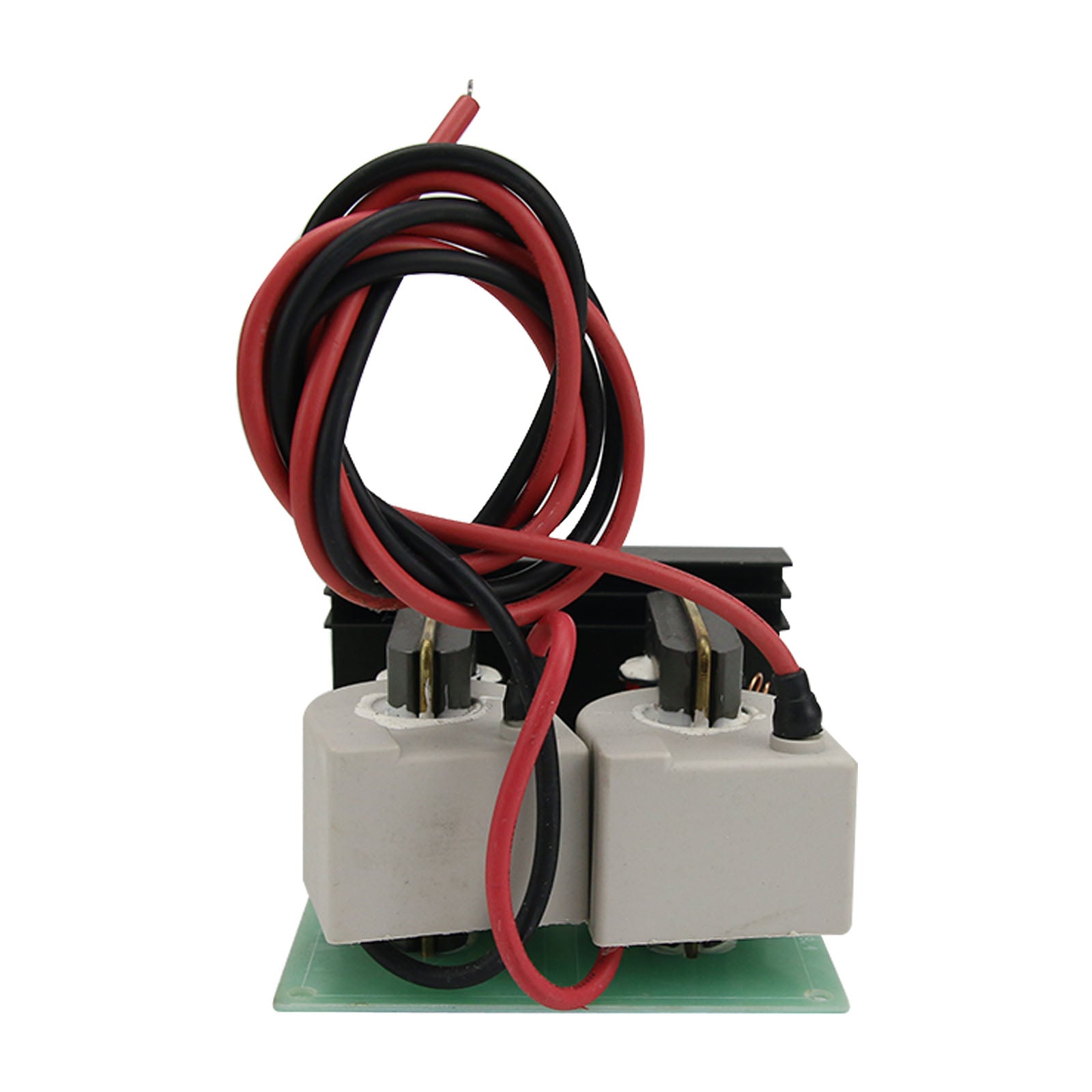

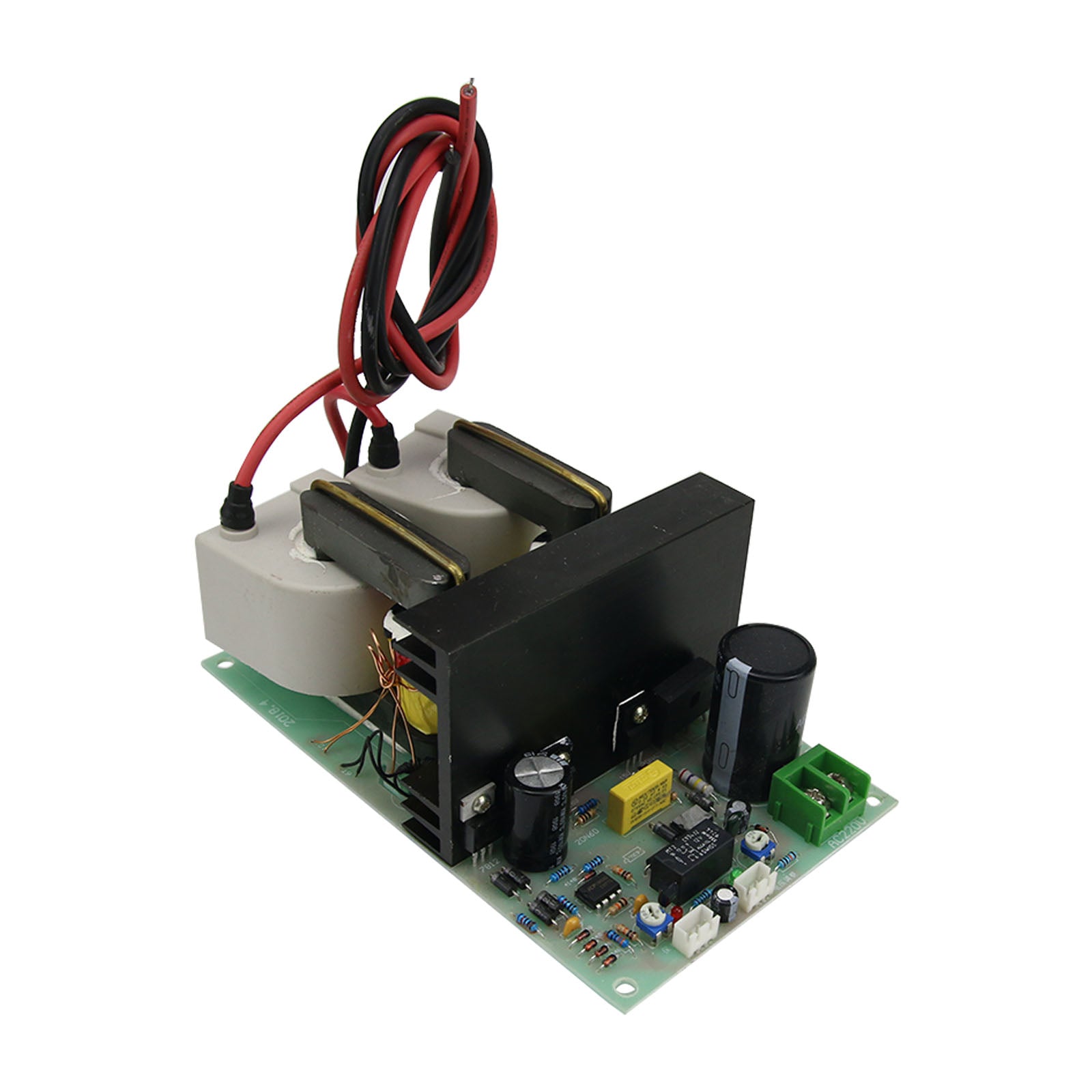

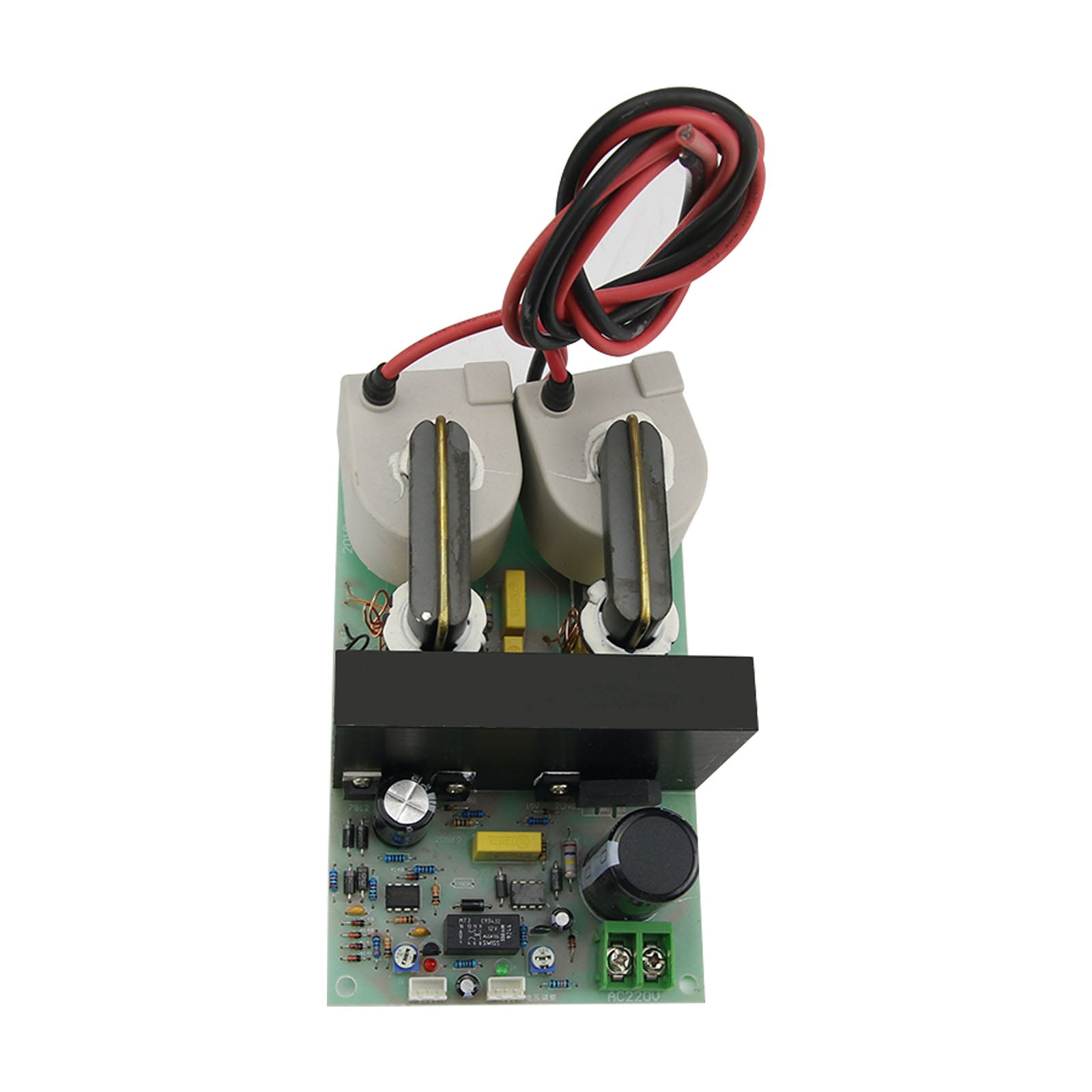

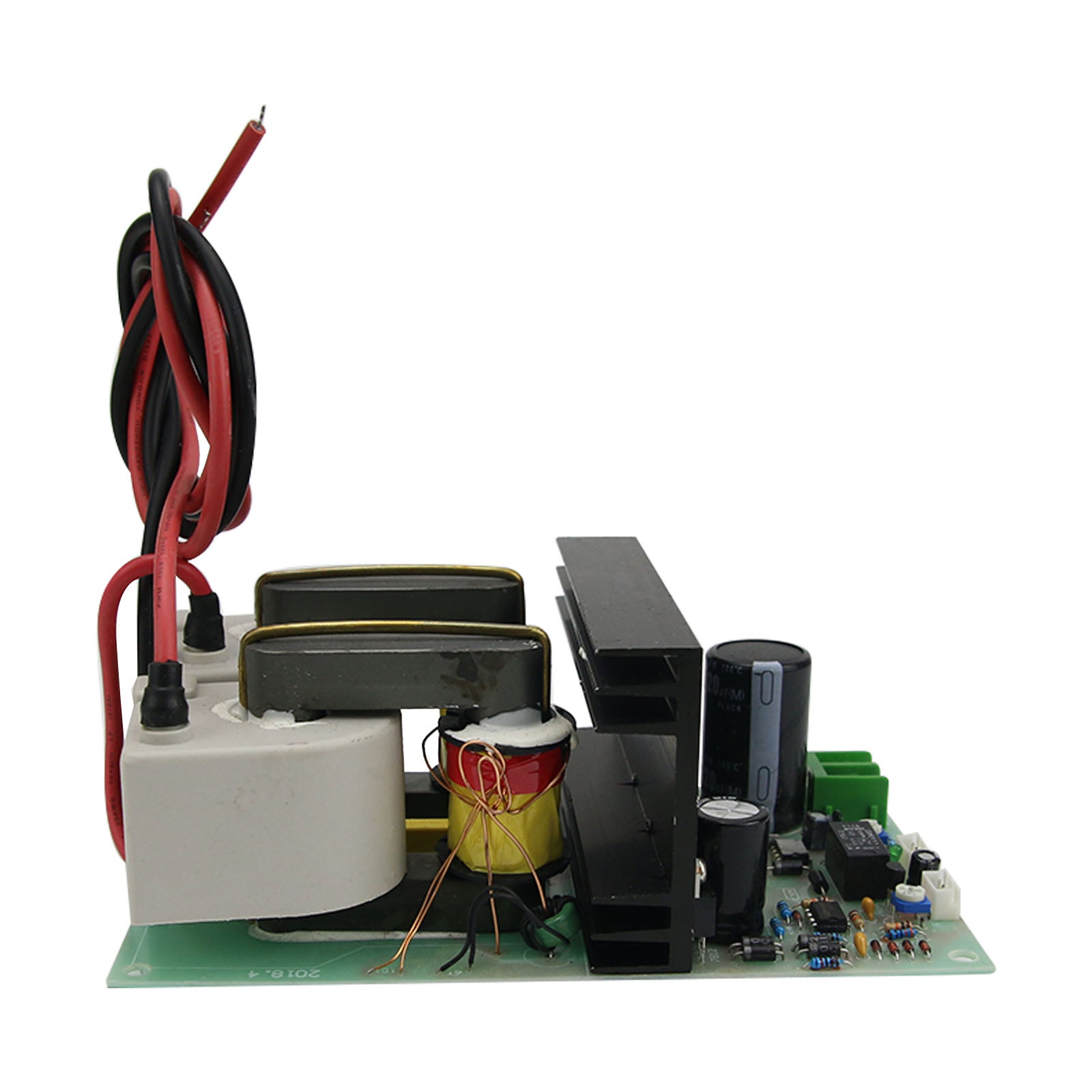

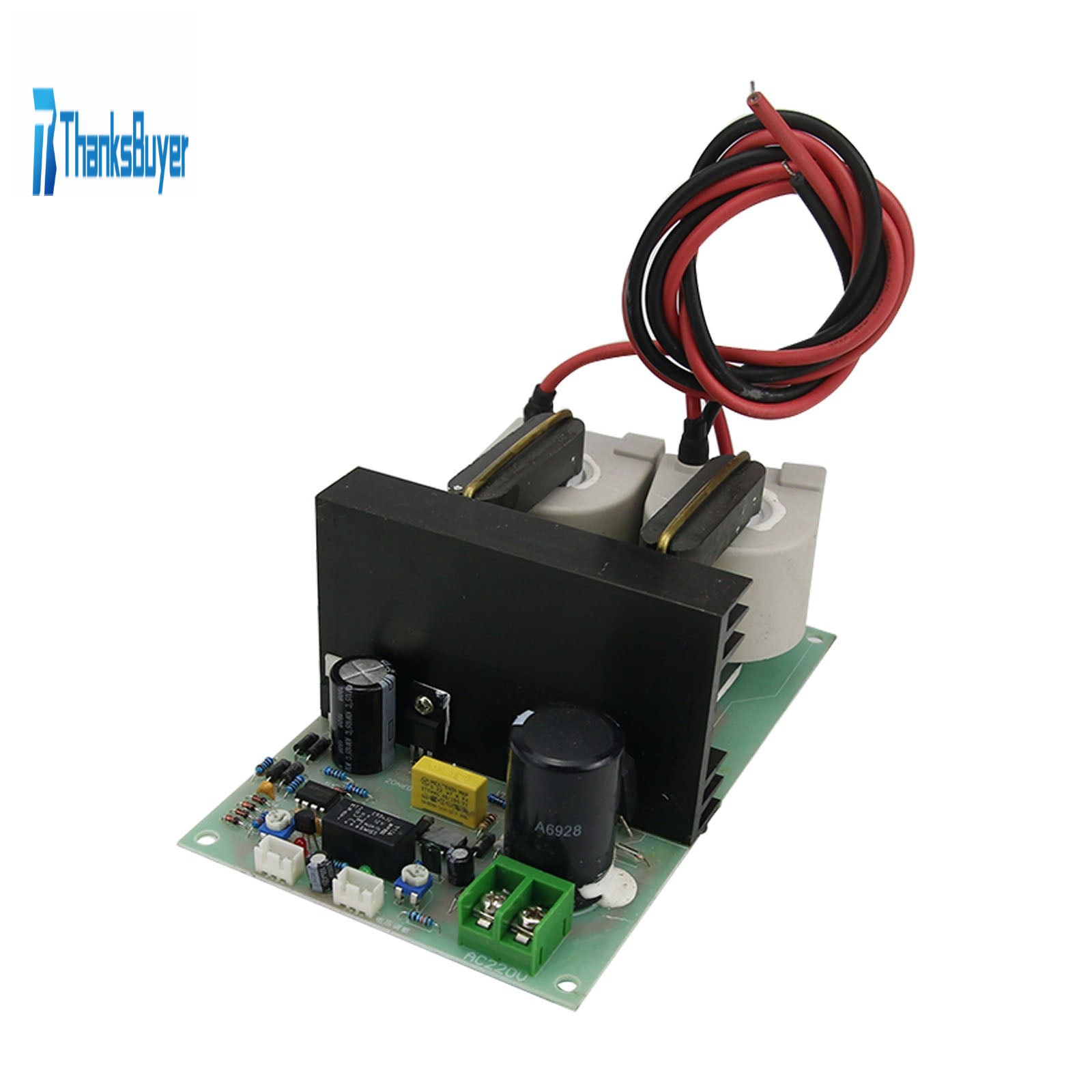

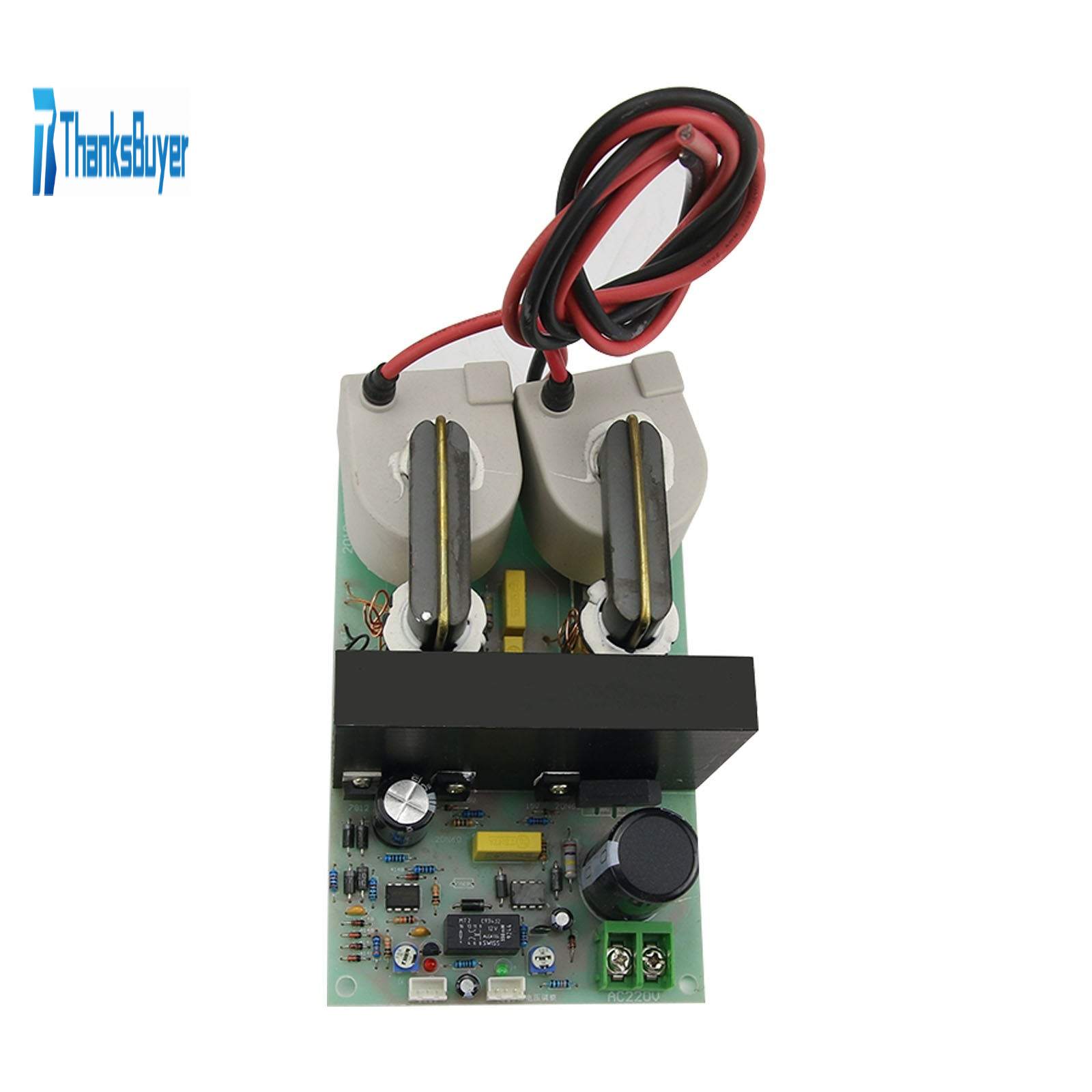

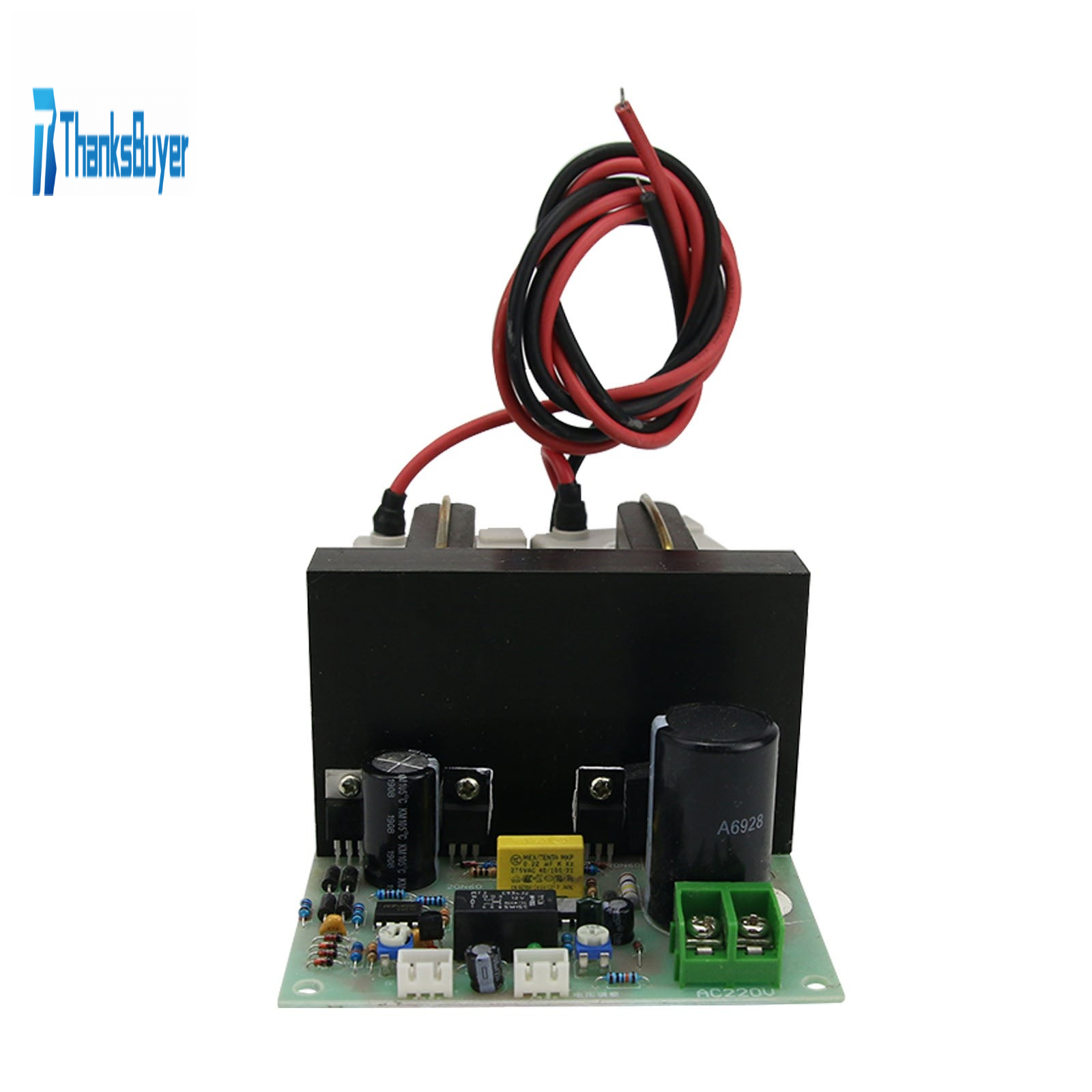

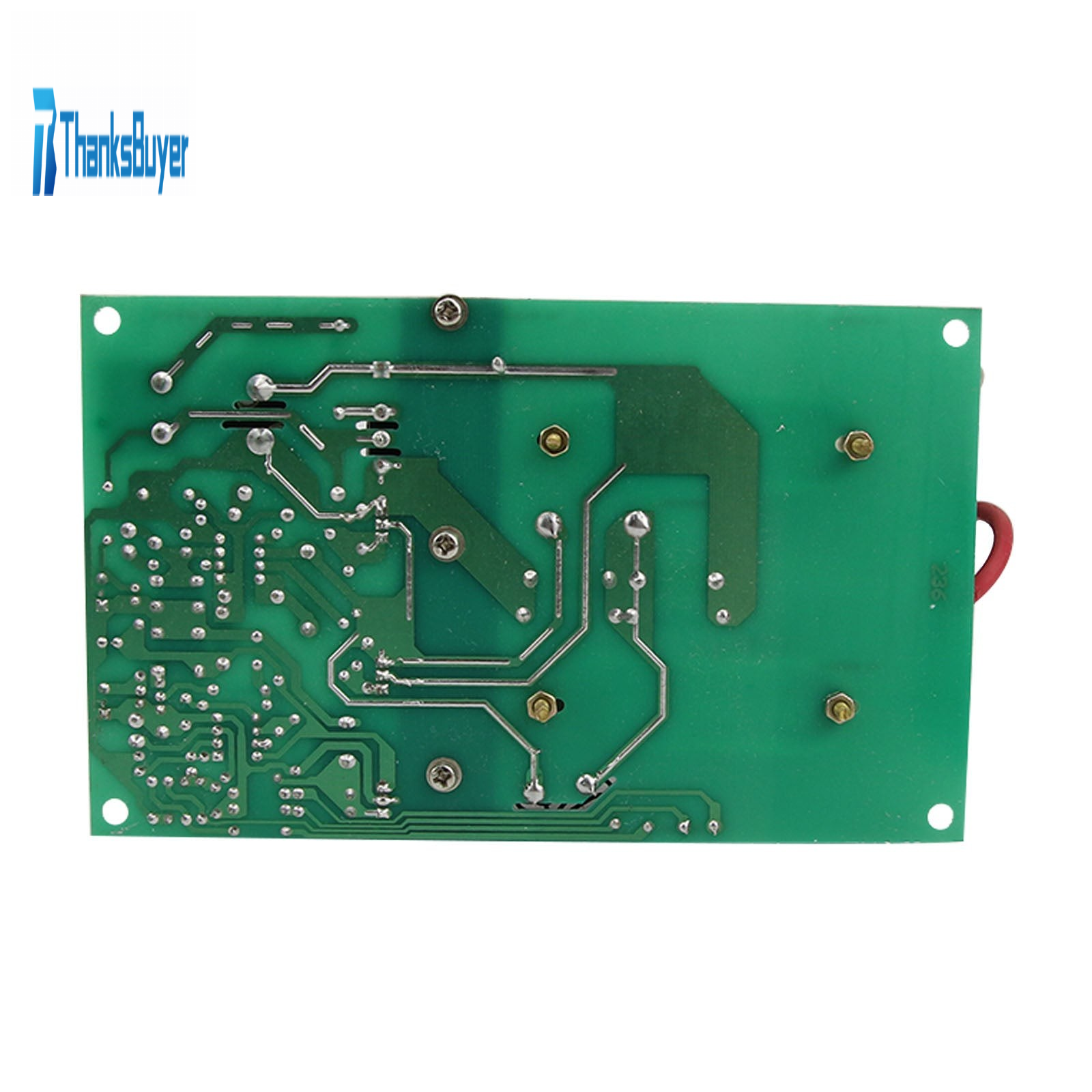

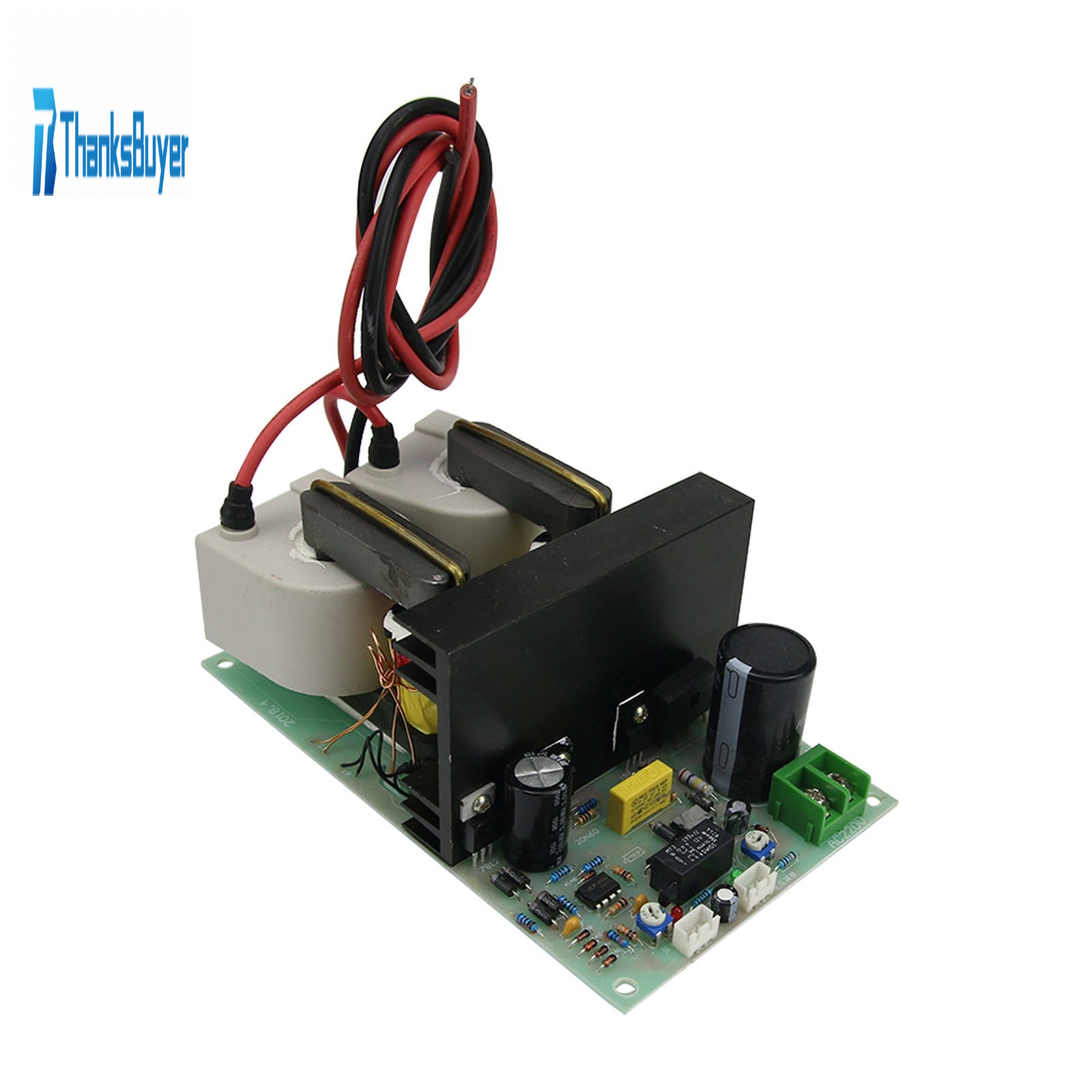

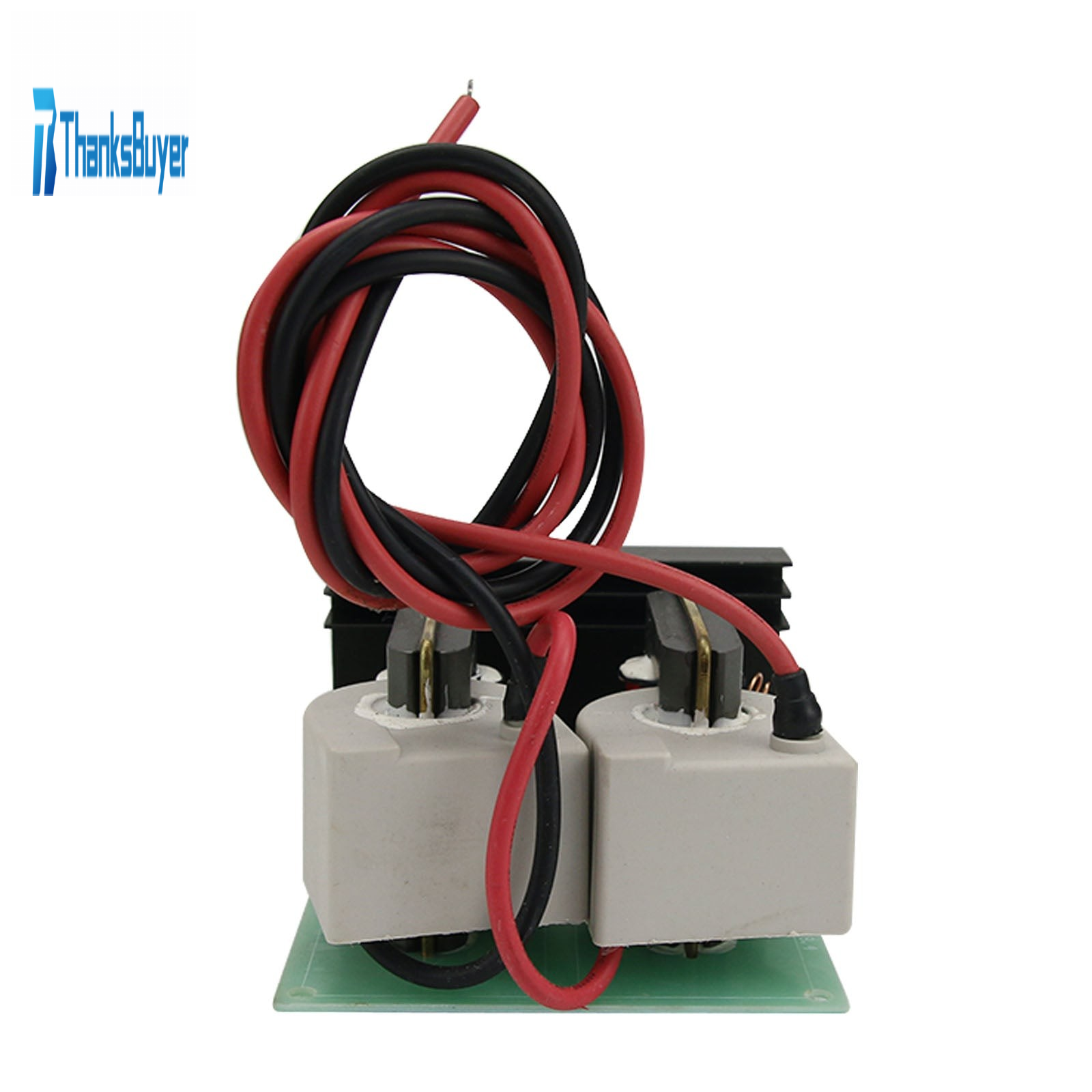

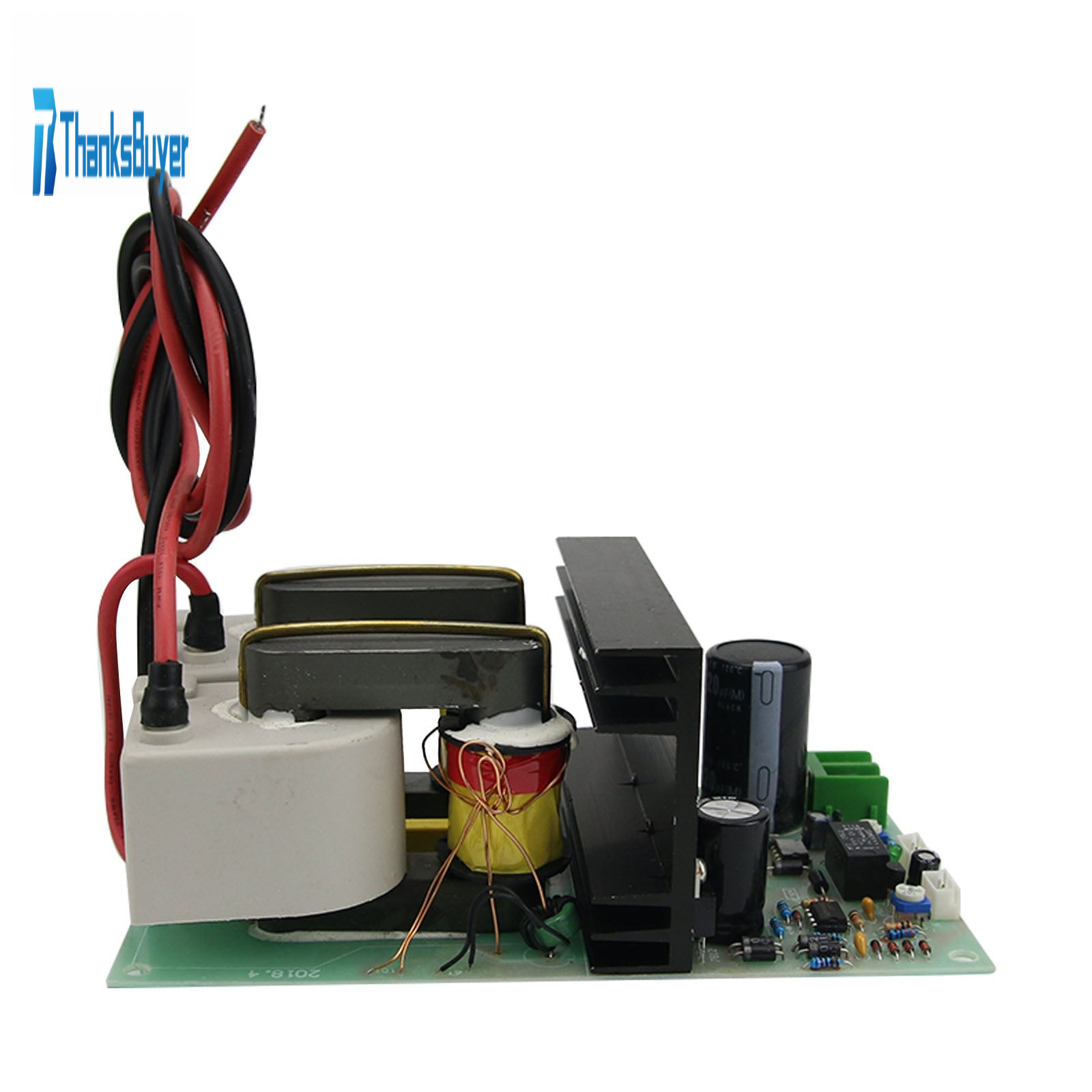

High Voltage Power Supply 30KV 200W for Electrostatic Precipitator
Protection Functions:
- Flashover Protection: When the power supply is flashing arc, it will automatically cut off the output, but restore the output within a few milliseconds.
- Short-Circuit Protection: When the load is short-circuited, it will cut off the output within a few seconds. After the short-circuit problem is solved, it will return to normal after restarting.
- Over-Current Protection: output high-voltage continuous flashover causes the load to be too heavy or the connection load is too heavy, automatically reducing the output voltage and current, so that the power supply is protected.
Application:
- High voltage electric field, electrostatic air cleaner, electrostatic field, clean smoke, air purifiers, air ionizer, etc
Specifications:
- Input Voltage: AC180V-250V (50Hz/60Hz)
- The output voltage: 5KV-30KV Adjustable
- Output current: 0-10mA
- Power: 200W
- Weight: 1KG
- Size: 165mm*105mm*65mm
Package Included:
- 1 x Power Supply
