Holybro H-RTK F9P Rover Lite GPS High-Precision Multi-Band GNSS Positioning System for Pixhawk H-RTK F9P Base 12022

Holybro H-RTK F9P Rover Lite GPS High-Precision Multi-Band GNSS Positioning System for Pixhawk H-RTK F9P Base 12022

Description:
- H-RTK F9P is the latest differential high-precision GNSS positioning system series for Holybro. This system provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo and BeiDou, and fast update rate for highly dynamic and high-volume applications with centimeter-accuracy. It uses a for UBLOX F9P module, a for IST8310 compass, and a tri-colored LED indicator. It also has an integrated safety switch for a simple and convenient operation.
- PX4 Autopilot users:
The GPS RGB LED Driver Chip has been updated. Ensure the PX4 firmware is Stable Release v1.12.2 or newer for proper LED driver Support.
- Ardupilot User:
If unable to preform normal compass calibration "compass dance" for any reason, set parameter COMPASS_ORIENT=6 (Yaw270) for proper compass orientation.

Feature:
- The board is the same as number 2 above, but it is equipped with a high-gain antenna. This model is best suited to use as base station. The search speed and positioning accuracy are the highest among the three models.

Package Included:
- 1 x H-RTK F9P

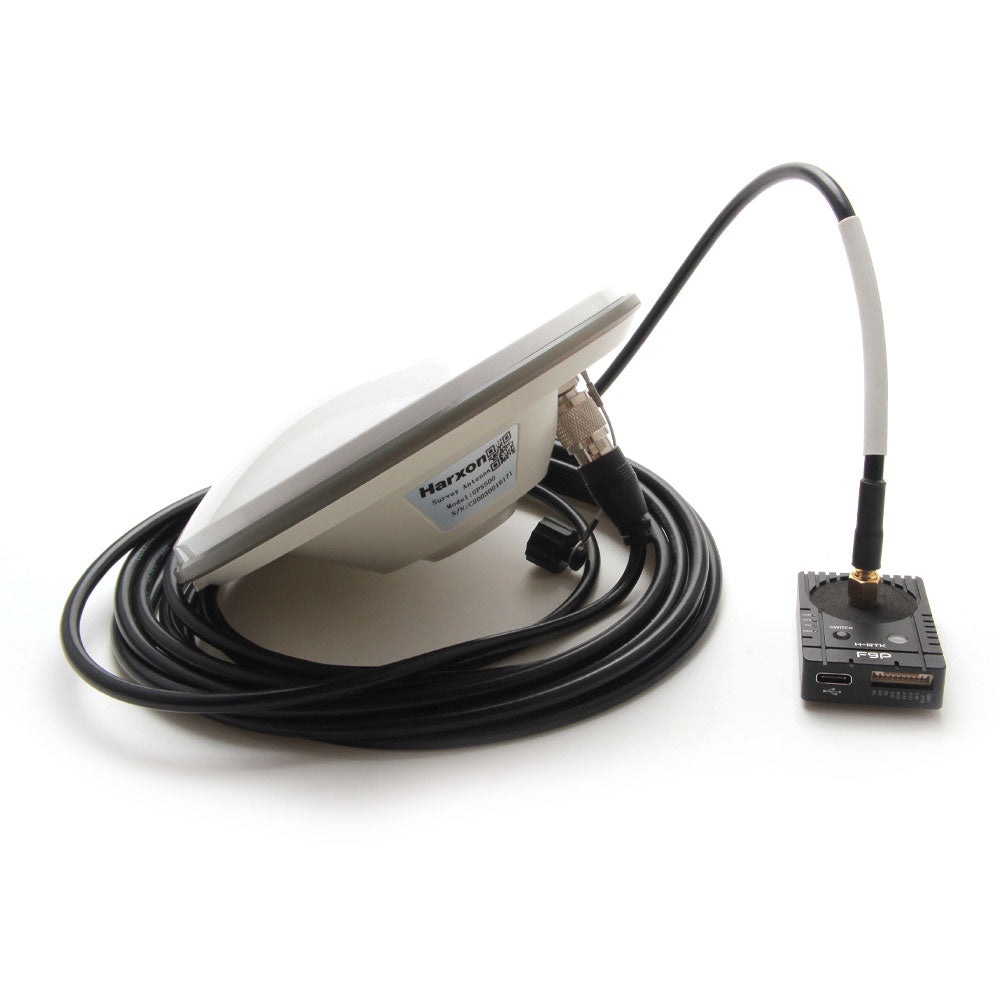

- 1 x High Precision GNSS Antenna (CS7624A)
- 1 x Male-male SMA-TNC cable (length: 5m)
- 1 x 1/4'' Female to 5/8'' -11 Male Adapter
- 1 x USB type-c cable

Note:

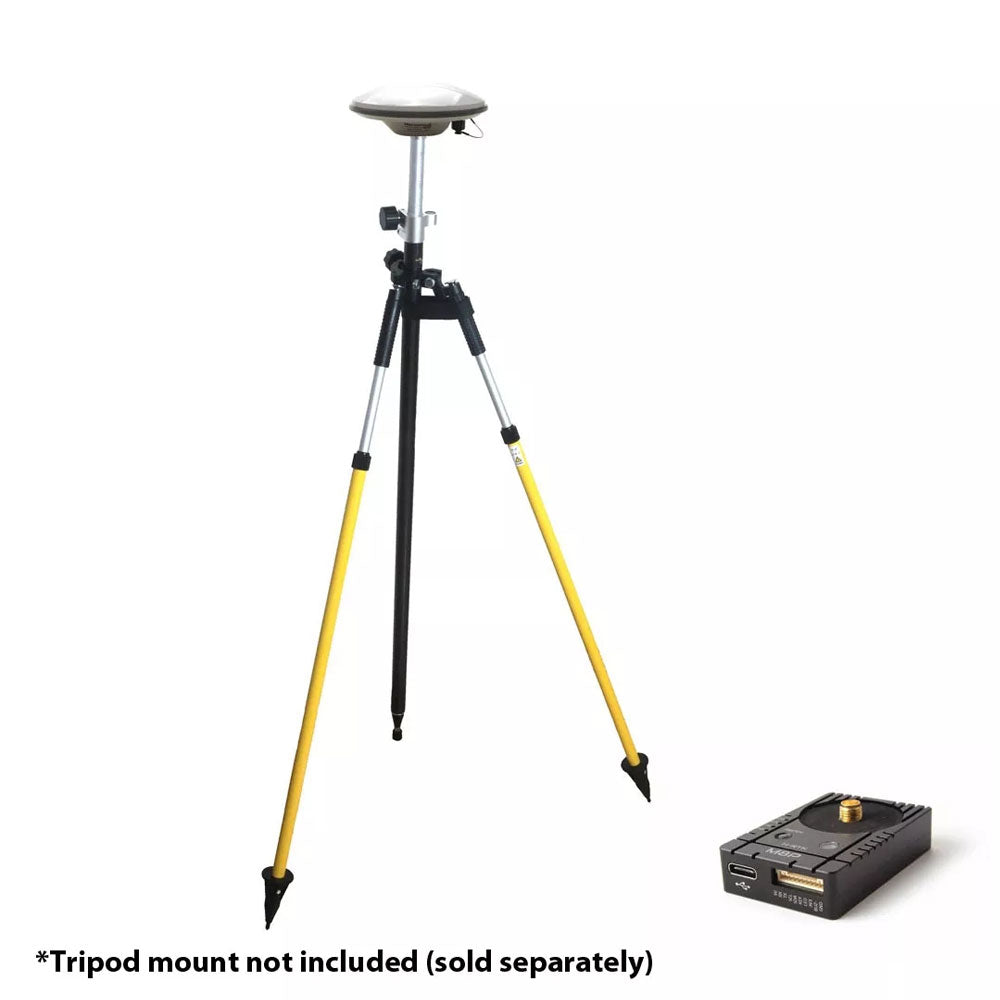

- Tripod mount not included.
