JW3229 PON Power Meter PON Network Tester 1310NM 1490NM Handheld PON Terminal Tester For PON Network

JW3229 PON Power Meter PON Network Tester 1310NM 1490NM Handheld PON Terminal Tester For PON Network

Description:

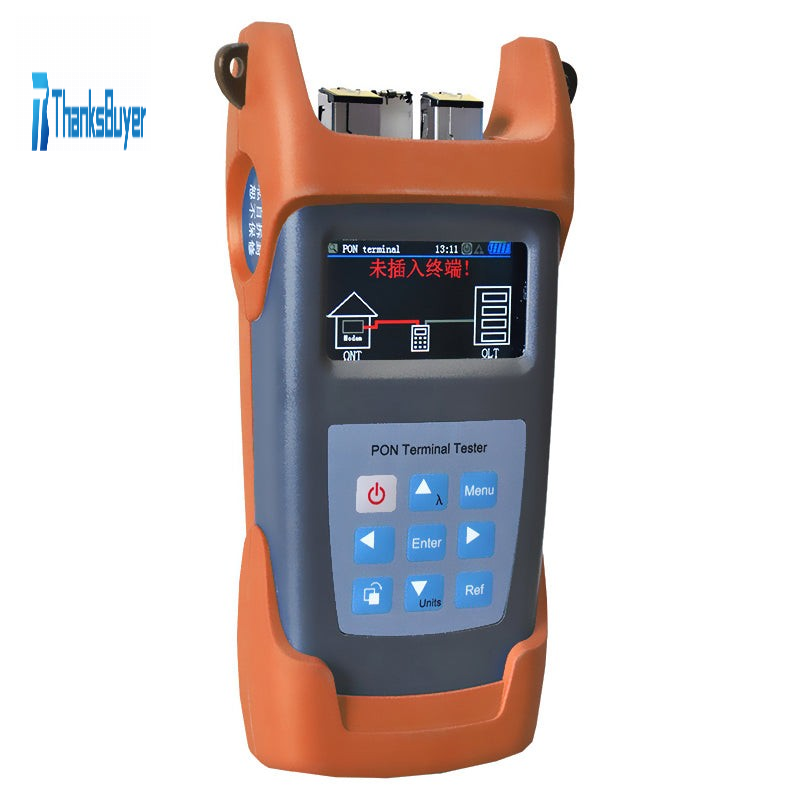

JW3229 PON Terminal Tester is newly designed fiber optic tester. It aims at PON network installation and PON network maintenance. It can show 6 states of ONT and OLT. It can find problem of PON network easily.

Features:
- Test 6 states of ONT and OLT
- Providing 1310nm and 1490nm wavelengths optical power test
- Used in burst mode measurement of 1310nm upstream
- 10 minutes automatic-off function can be activated or deactivated
- Support English and Chinese
- Threshold can be set
- Providing VFL function

Specifications:
- Model: JW3229
- Test mode: 6 states (1. On Line. 2. Break. 3. ONT Bad. 4. No Power. 5. Fall Off. 6. ONT Fatal)
- Insertion Loss: ≤1.5dB

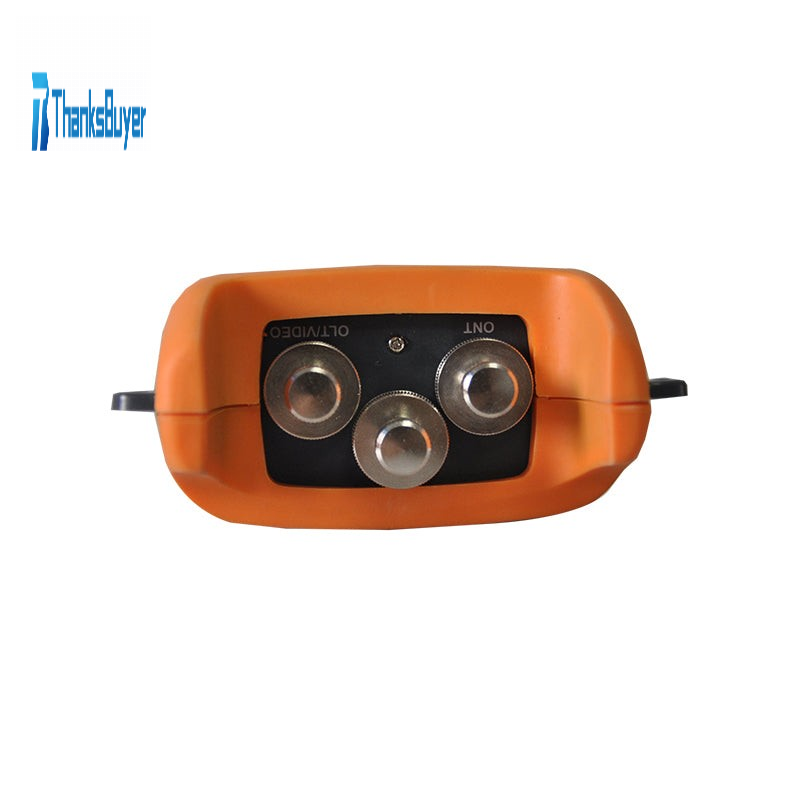

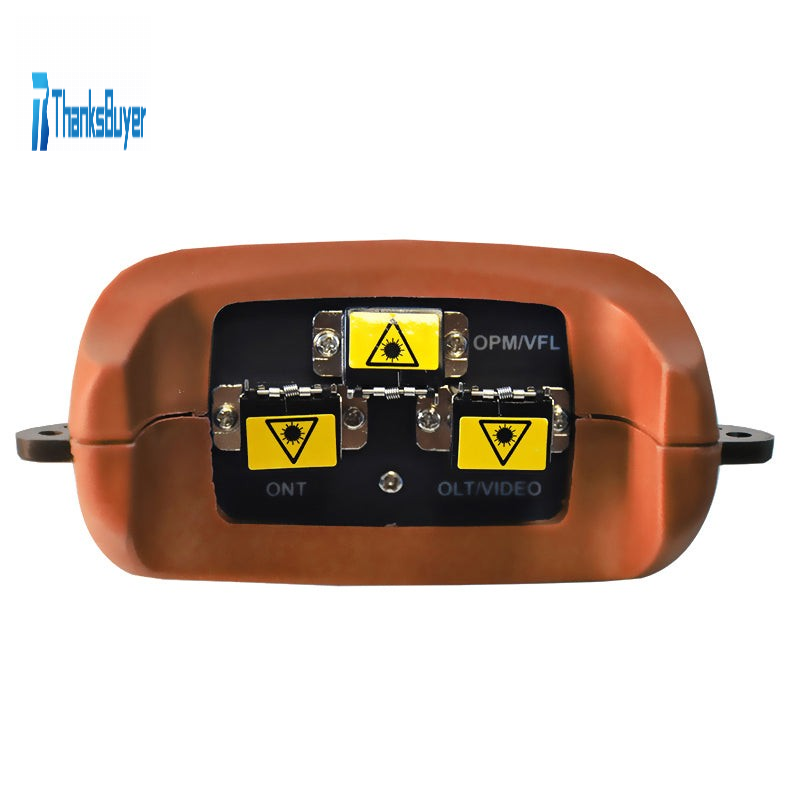

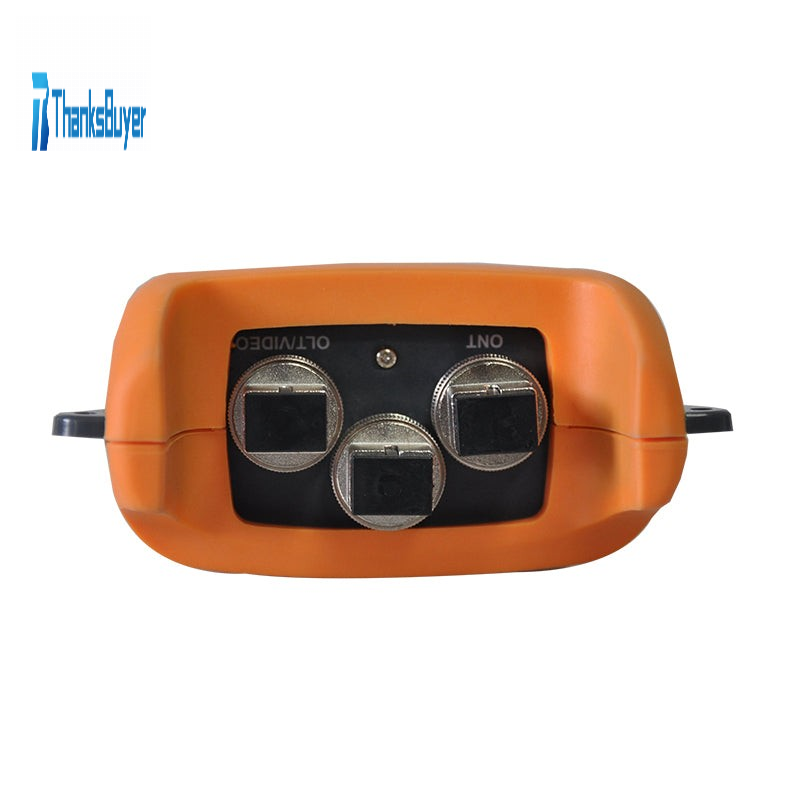

- Optical Connectors: SC/PC (FC, SC, ST available)
- PON test mode: 1310 upstream (+10 to -35dBm); 1490 downstream (+12 to -40dBm)
- OPM Uncertainty: ≤0.5dB
- Calibration Wavelength: 1310/1490/1550/1625nm
- Display resolution: 0.01dB
- Display type: Color TFT
- Communication Port: Mini USB
- Operation Temperature: -5 to +40℃
- Storage Temperature: -10 to +70℃
- Dimensions: 192 x 102 x 50mm/7.6 x 4 x 2"
- Weight: 423g/0.93 lb

Package Included:
- 1 x Set of Power Terminal Tester

Note:

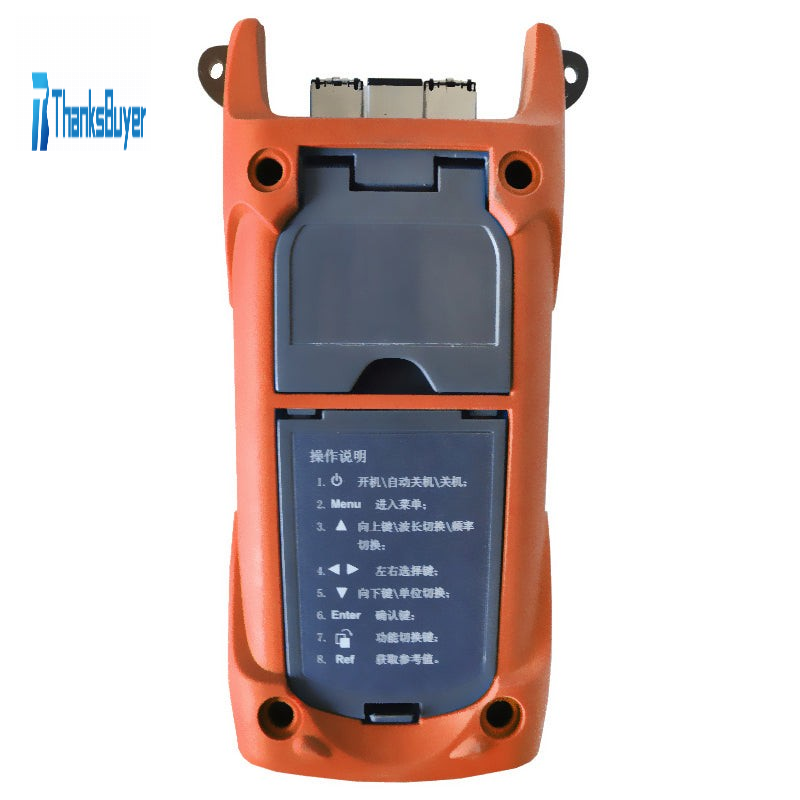

- It can be powered by 1.5V AA batteries (not included) or by AC adapter.
