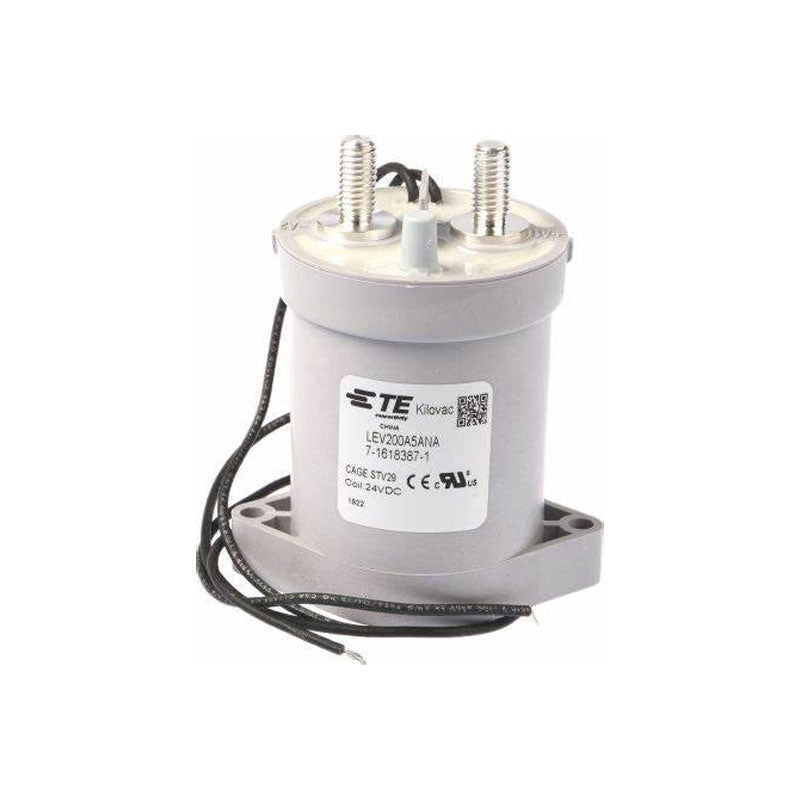

LEV200A5ANA 7-1618387-1 High Voltage DC Relay 24V DC Coil 1-Pole DC Voltage Power Control Accessory for TE Connectivity

LEV200A5ANA 7-1618387-1 High Voltage DC Relay 24V DC Coil 1-Pole DC Voltage Power Control Accessory for TE Connectivity

Features:
- Designed to be the lowest cost sealed contactor in the industry with its current rating (500+A carry, 2000A interrupt at 320VDC).
- Available with bottom or side mounting - not position sensitive.
- Optional auxiliary contact for easy monitoring of power contact position.
- Hermetically sealed - intrinsically safe, operates in explosive/harsh environments with no oxidation or contamination of coils or contacts, including long periods of non-operation.
- Typical applications include battery switching and backup, DC voltage power control, circuit protection and safety.
- Versatile coil/power connections.
- Designed and built in accordance to AIAG QS9000.

Specification:
- Coil voltage: 24V DC
- Number of poles: 1
- Contact voltage rating: 900 V DC
- Contact current rating: 500A
- Range: KILOVAC
- Series: LEV200
- Normal state configuration: 1NO
- Terminal type: Lug Ring Terminal
- Minimum operating temperature: -45°C
- Maximum operating temperature: +85°C

Package Included:
- 1 x DC Relay
