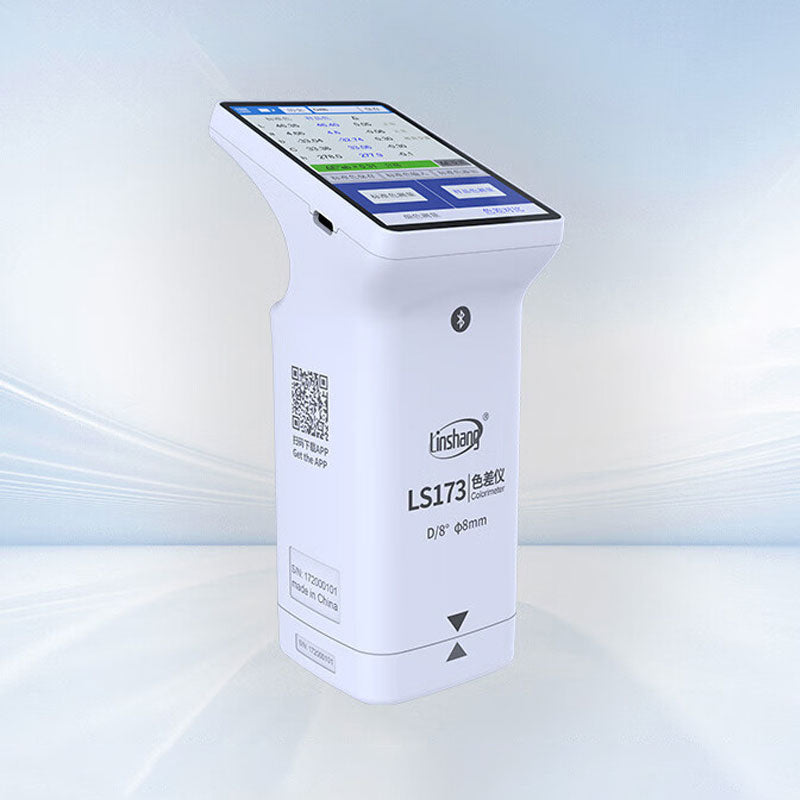

Linshang LS173 Portable Handheld Colorimeter High Precision Color Analyzer with 3.5-Inch Touch Screen for Paint Plastic Metal

Features:
- 3.5-inch ultra large touch screen, easy to operate, simple and easy to understand interface, with only two clicks and results in one second.
- Providing color bias prompts and assisting in color adjustment can eliminate the influence of human factors on color judgment.

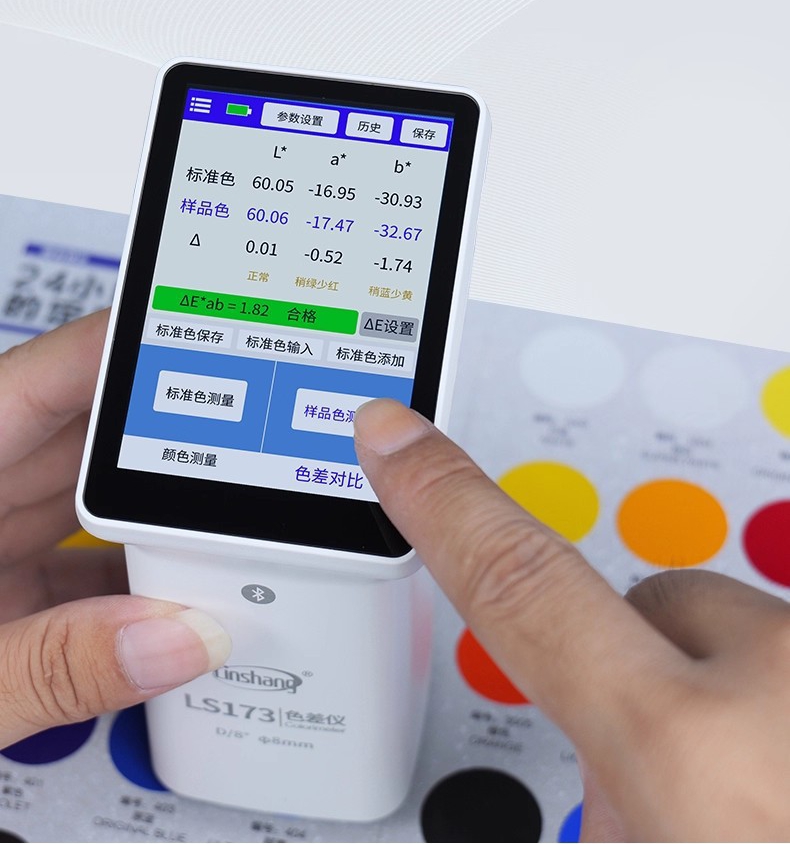

- Automatically determine whether the color difference is qualified, especially suitable for factory QC testing; Detect the deviation between the sample color and the standard color. After setting the color difference ΔE threshold (0.1-50 optional), it can automatically determine whether the color difference is qualified.

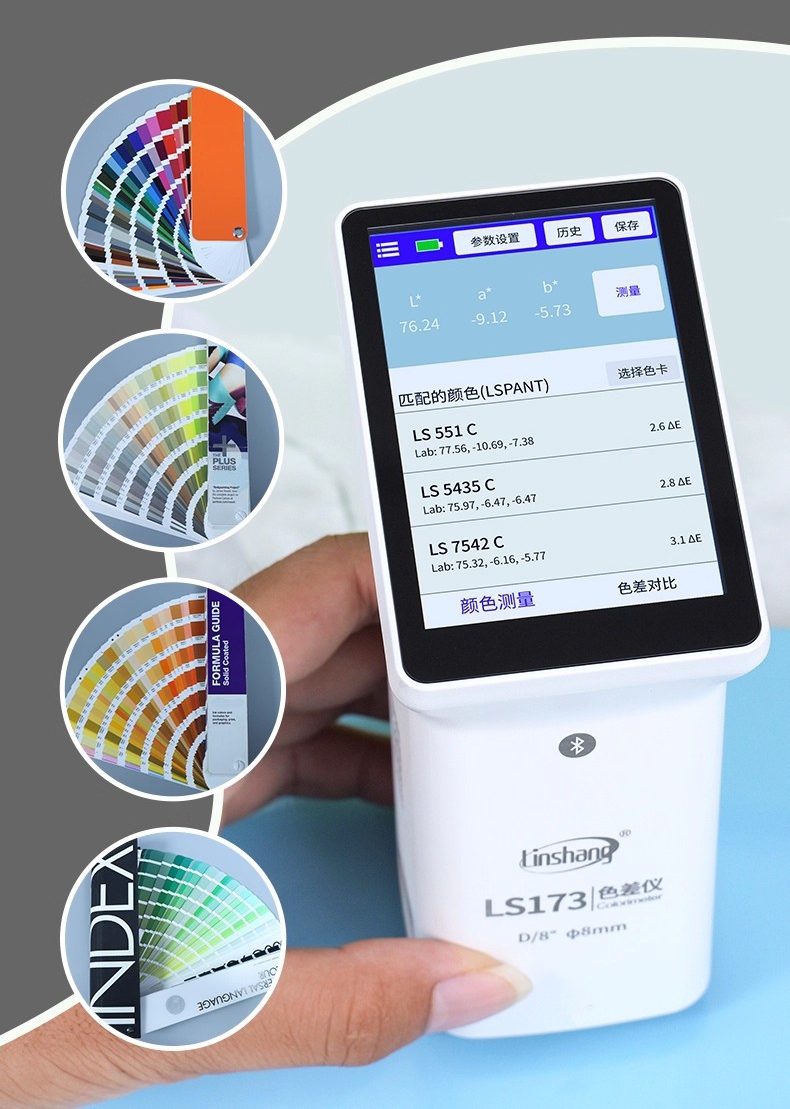

- Built in multiple electronic color cards, color measurement can quickly match the closest 3 color card numbers from multiple industry standard electronic color card libraries, making it convenient to quickly find colors.

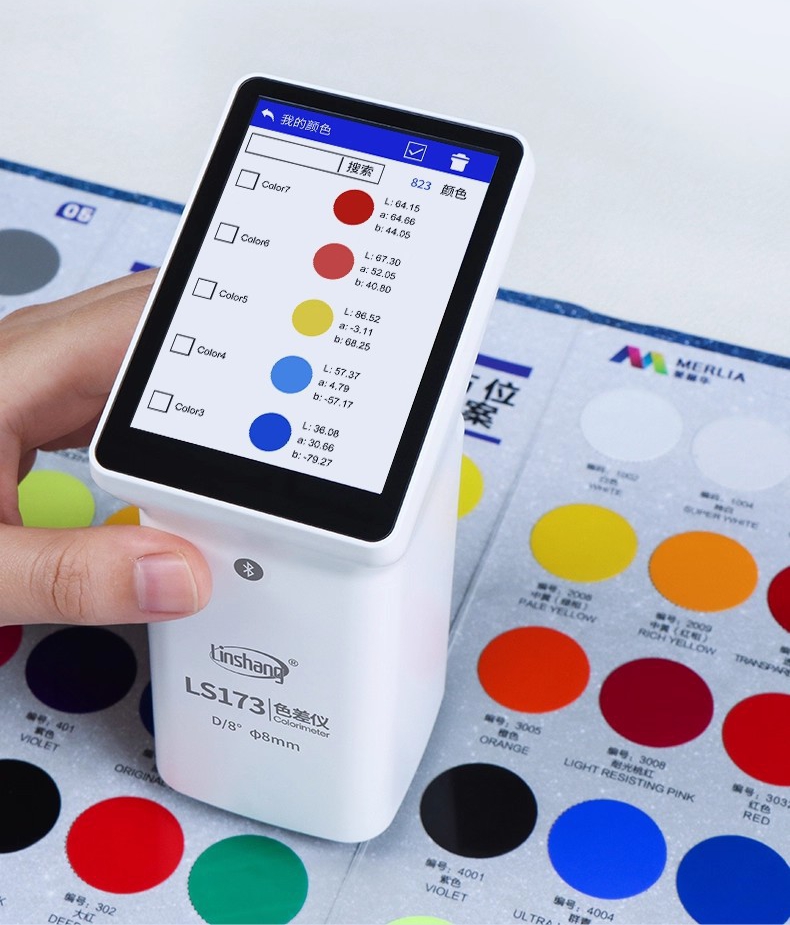

- Support the entry of industry-specific color cards and the establishment of one's own electronic sample library. It can store a massive amount of colors and input industry-specific color cards for paints, fabrics, coatings, etc., without the need to carry or browse paper color cards, avoiding aging and discoloration of standard samples.
- Professional spectral reflectance curve display: Based on the reflectance curve, the sample's hue, saturation, brightness, etc. can be determined to provide assistance for color matching, avoiding the phenomenon of same color but different spectra.
- Built in 4 industry wide whiteness/yellowness testing standards, easy to measure object whiteness/yellowness.
- High precision △E*ab≤0.03, in compliance with national first level metrology standards.
- Built-in lithium battery, capable of continuous testing up to 1000 times when fully charged.

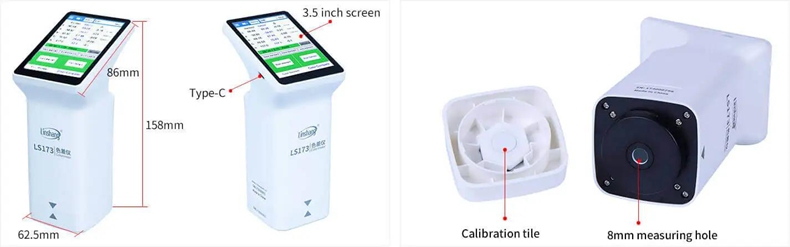

- The base comes with a calibration whiteboard for convenient design.
- Silicone buttons, comfortable grip, ergonomic.
- Equipped with LED white light source, the test is not affected by external light.
- Screen angle of 30° provides a perfect viewing angle for easy reading.
- Type-C universal charging interface, easy to charge.

Specification:
- Model: LS173
- Measuring aperture: 8mm
- Data interface: USB, Bluetooth
- Applicable material: It can be used in other general industries, such as plastics, paints and coatings, metal products, ceramics, etc.
- Illumination method: D/8, including specular reflection light
- Illumination light source: full spectrum LED light source
- Measuring condition: light source D65, FOV of 10°
- Measuring time: about 1s
- Color space: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, yellow degree -98, white degree -98, white degree -Gauz, white degree -Hunter, white degree -R457, HSL, HSV, ITA, spectrum reflectivity
- Color difference formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
- Repeatability: Standard deviation ΔE*ab≤0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration)
- Battery capacity: rechargeable lithium battery 3.7V at 4000mAH, a single full charge can measure continuously 10000 times.
- System language: Simplified Chinese, English
- Charging interface: USB (Type-C)
- Operating temperature range: 0 to 45℃, 0 to 85%RH (non-condensing)
- Storage temperature range: -25 to 55℃, 0 to 85%RH (non-condensing)

Package Included:
- 1 x Colorimeter
