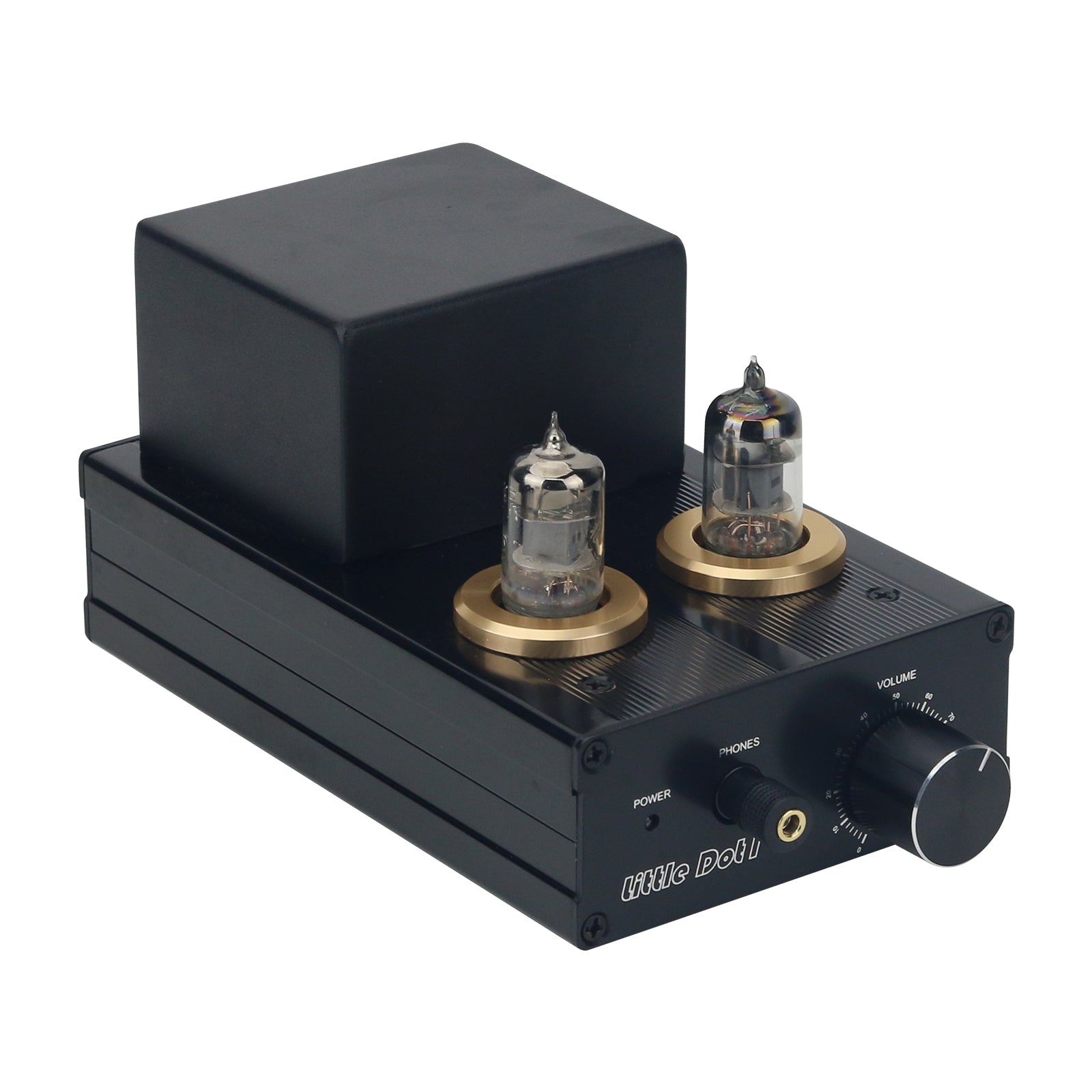

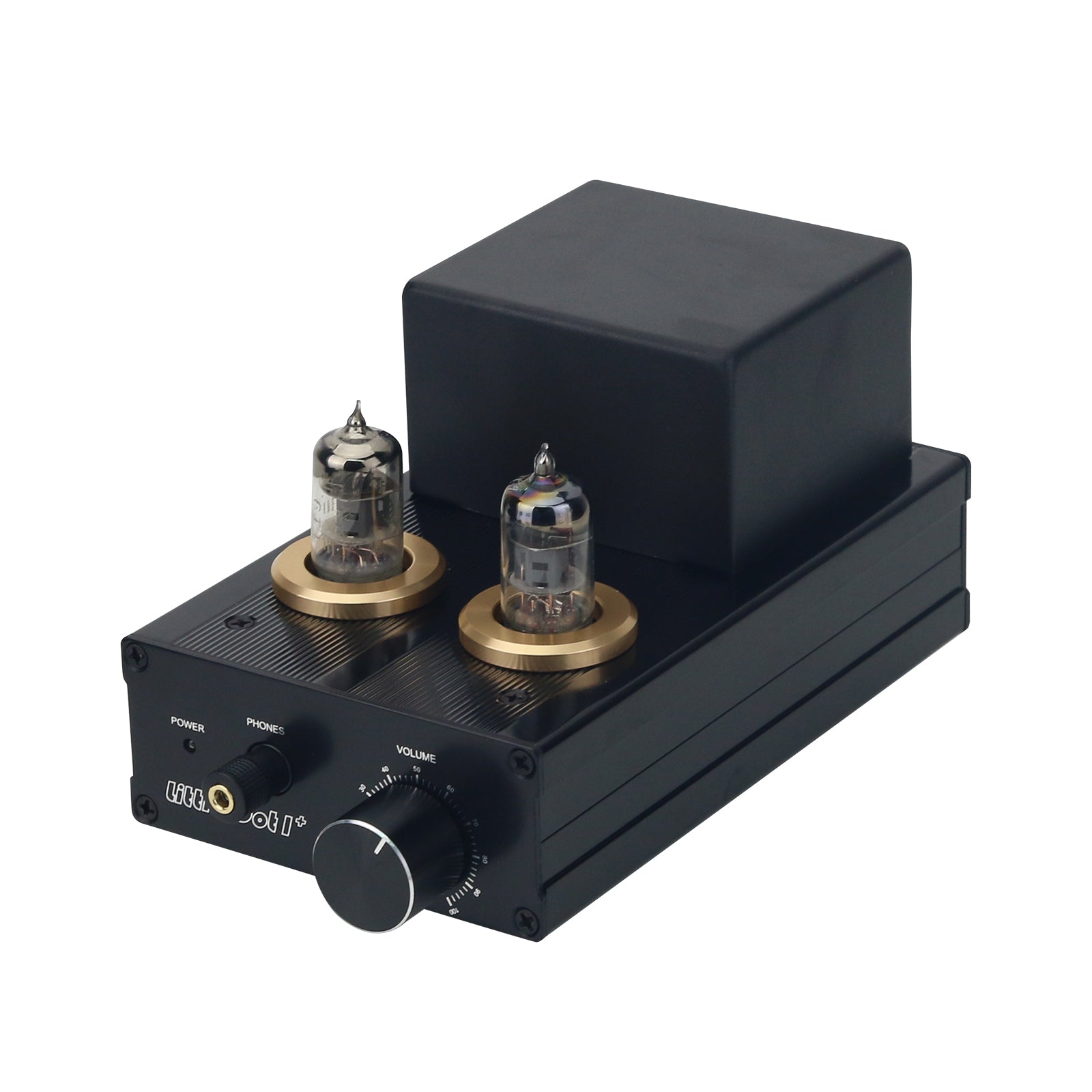

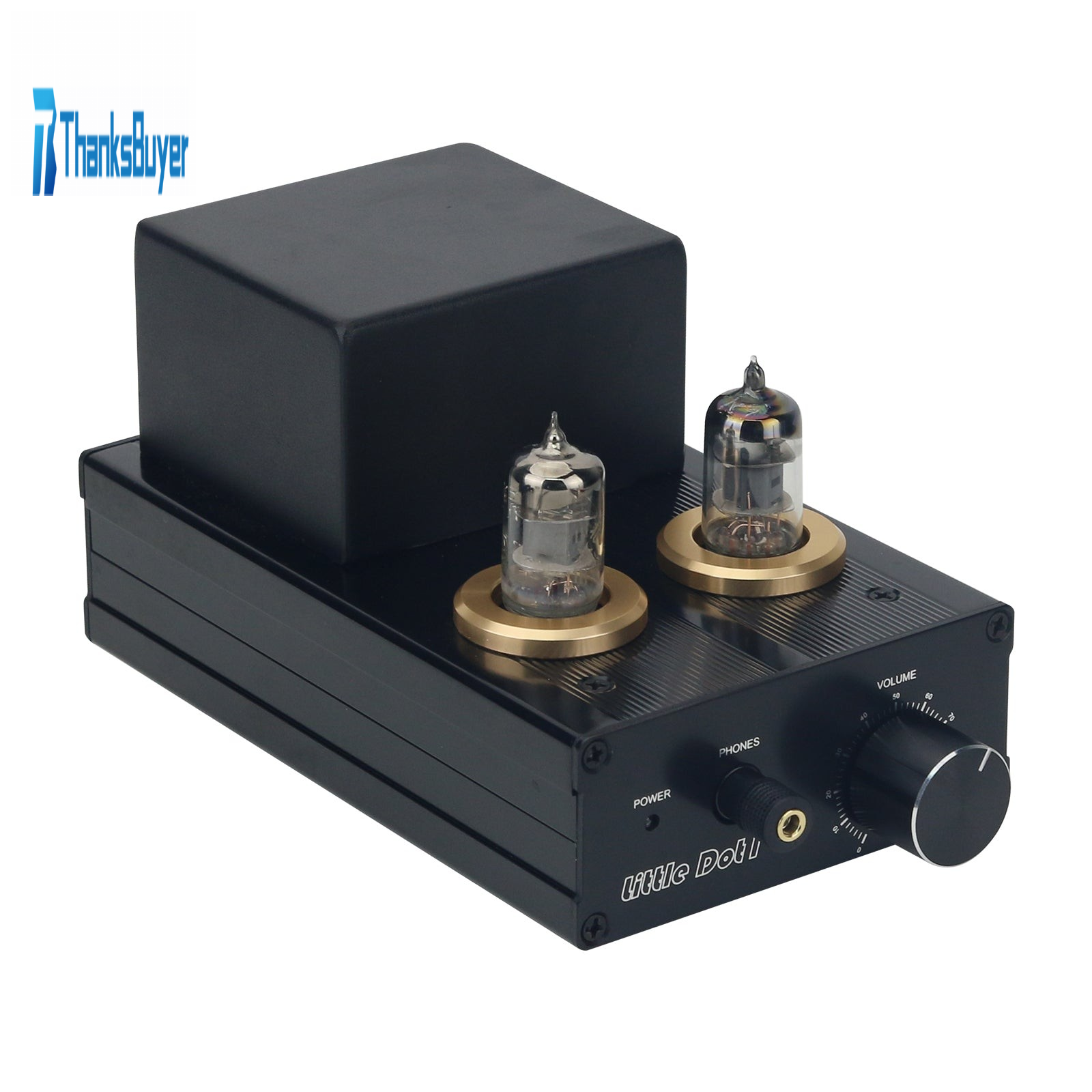

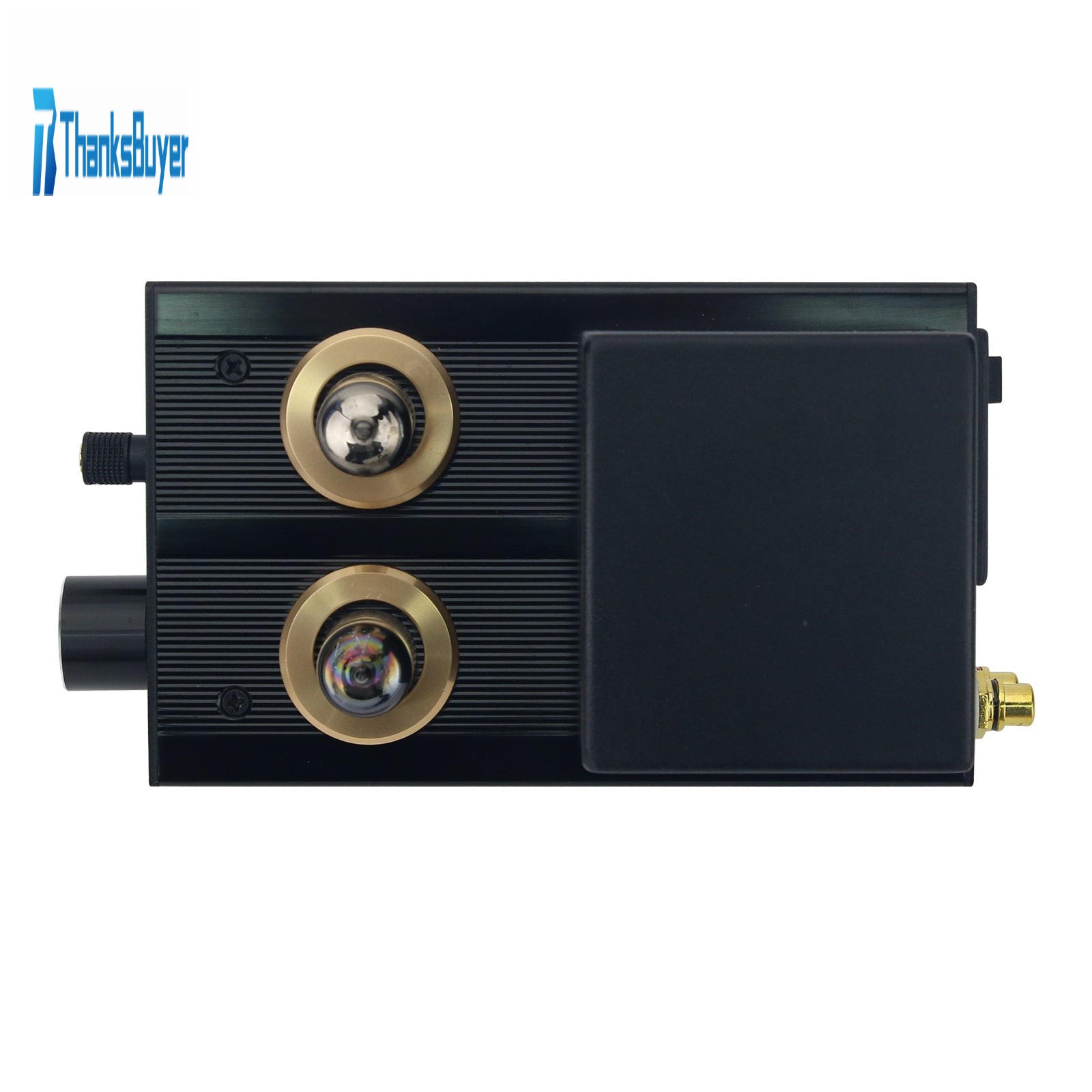

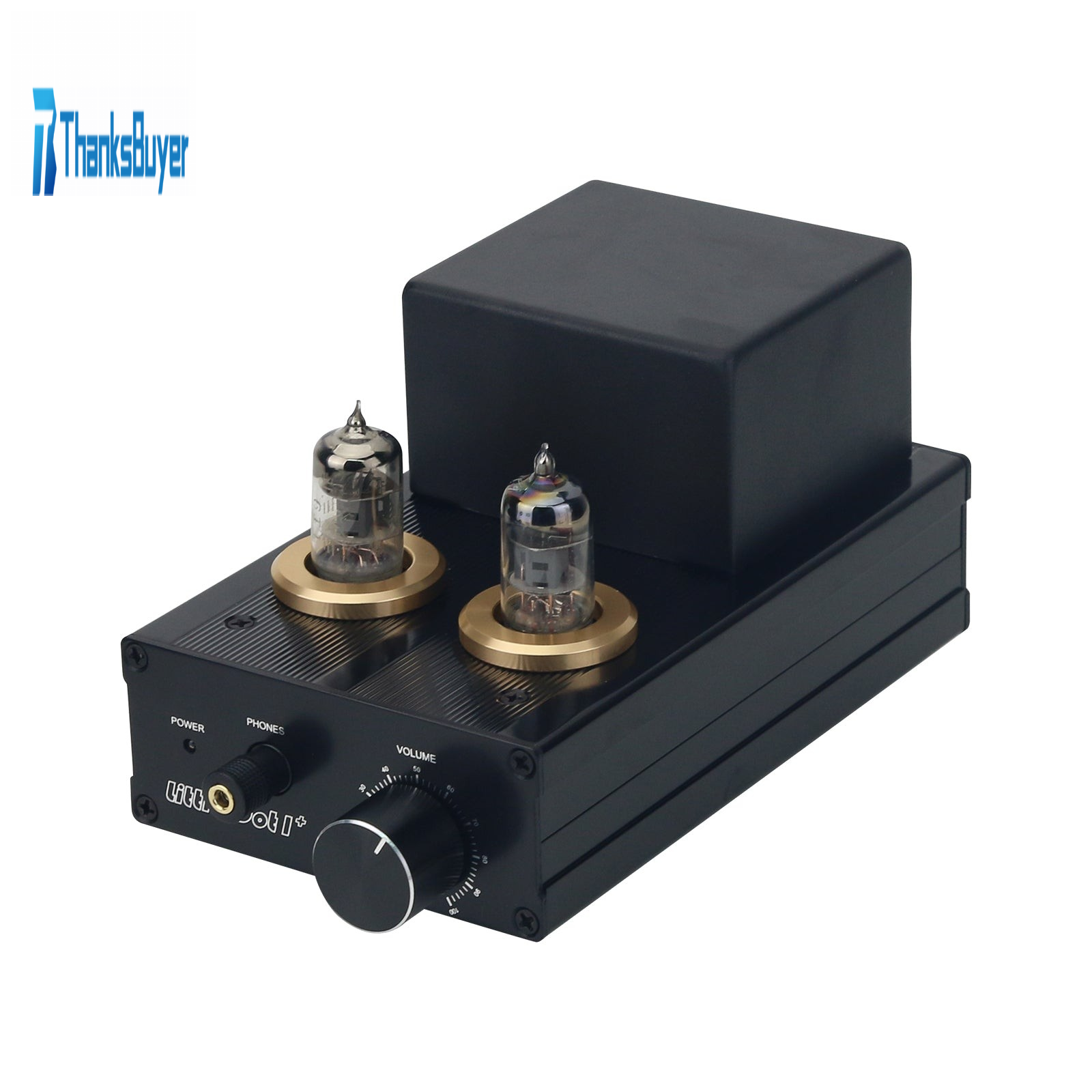

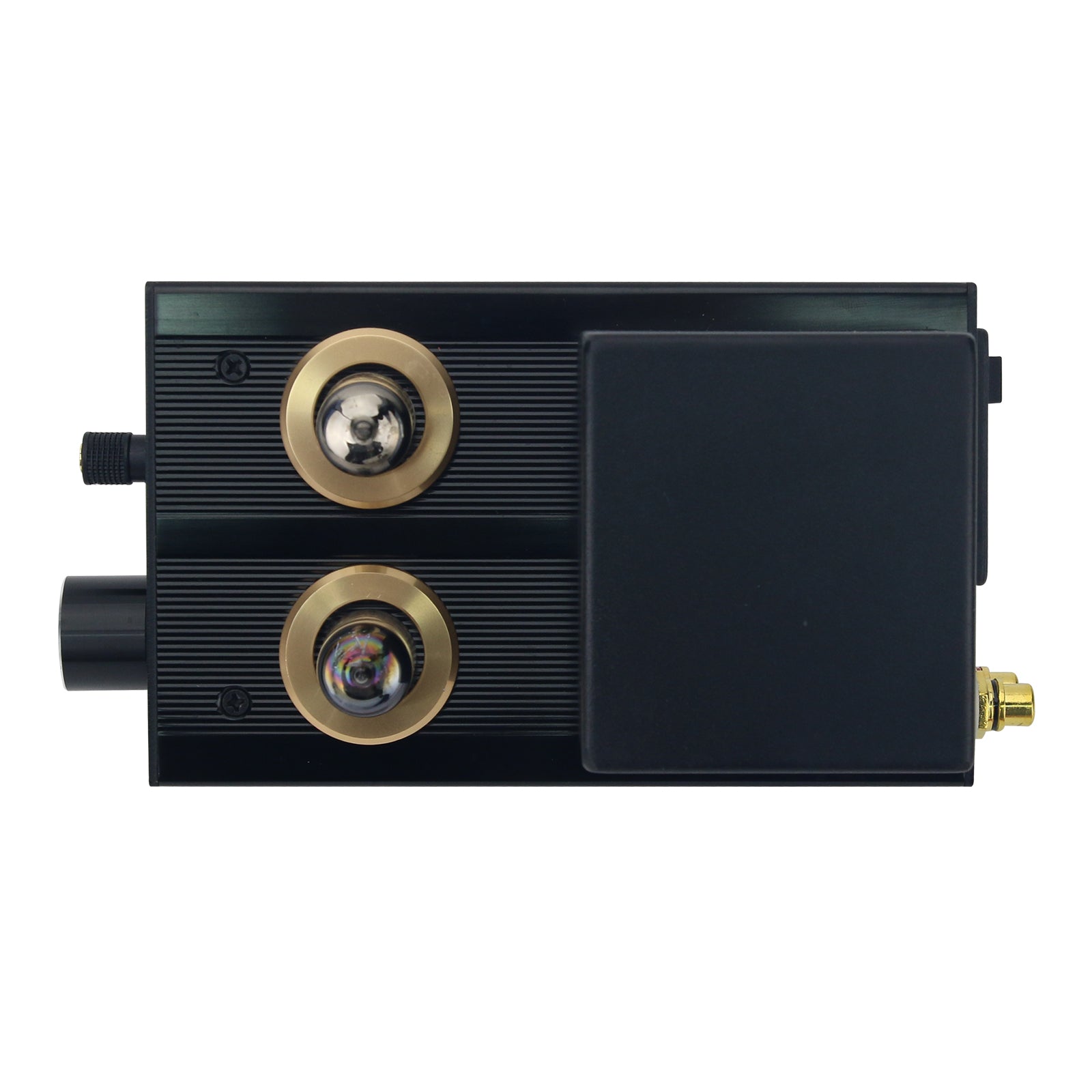

LittleDot 6J1 Basic LD1+ Mixed Type High Performance Headphone Amplifier Electronic Tube + Transistor Structure Amplifier

LittleDot 6J1 Basic LD1+ Mixed Type High Performance Headphone Amplifier Electronic Tube + Transistor Structure Amplifier

Description:
- In terms of circuit design, a hybrid structure called "front electronic tube and back transistor" is adopted, which not only has the sweetness of electronic tube but also the speed sensation of transistor.

Specification:

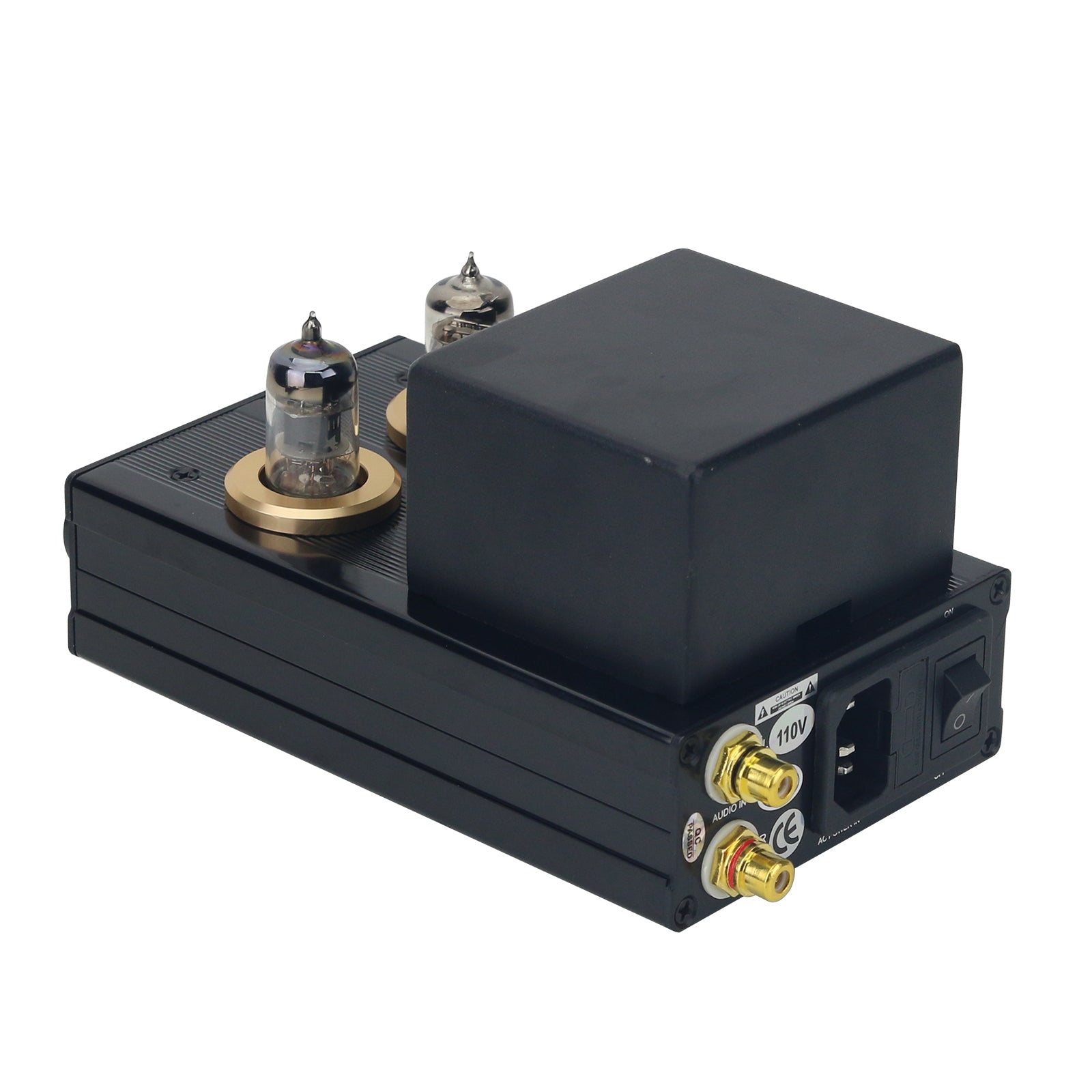

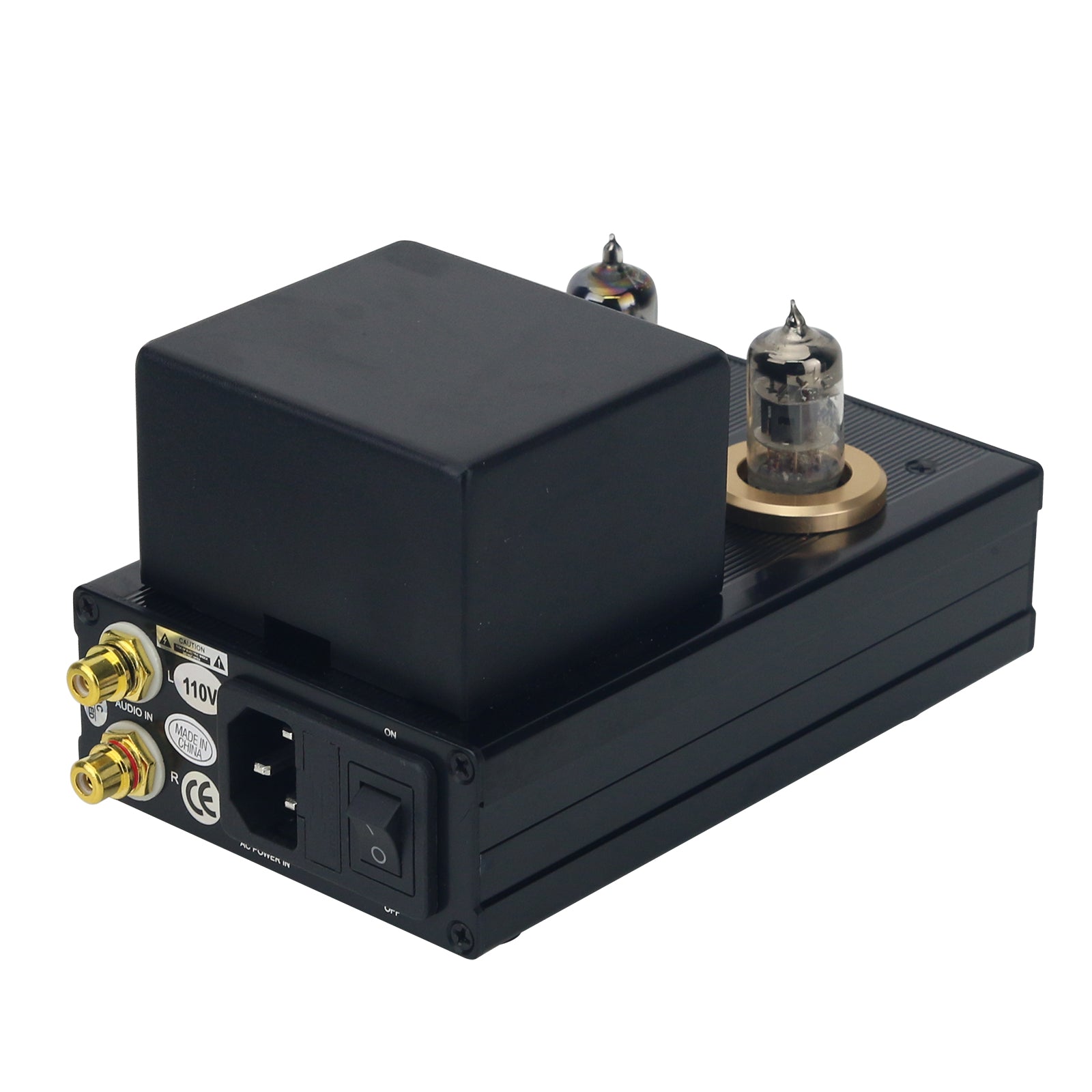

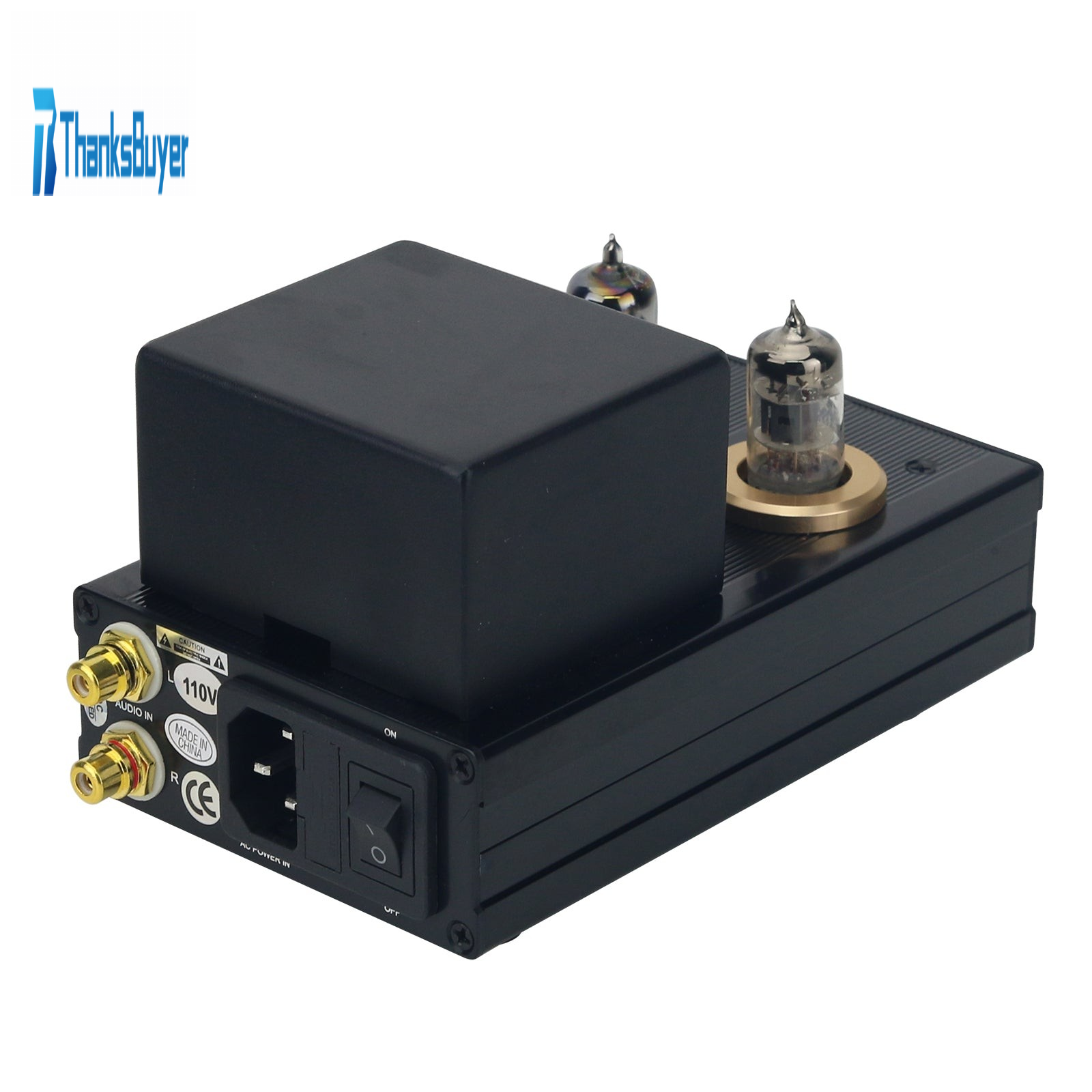

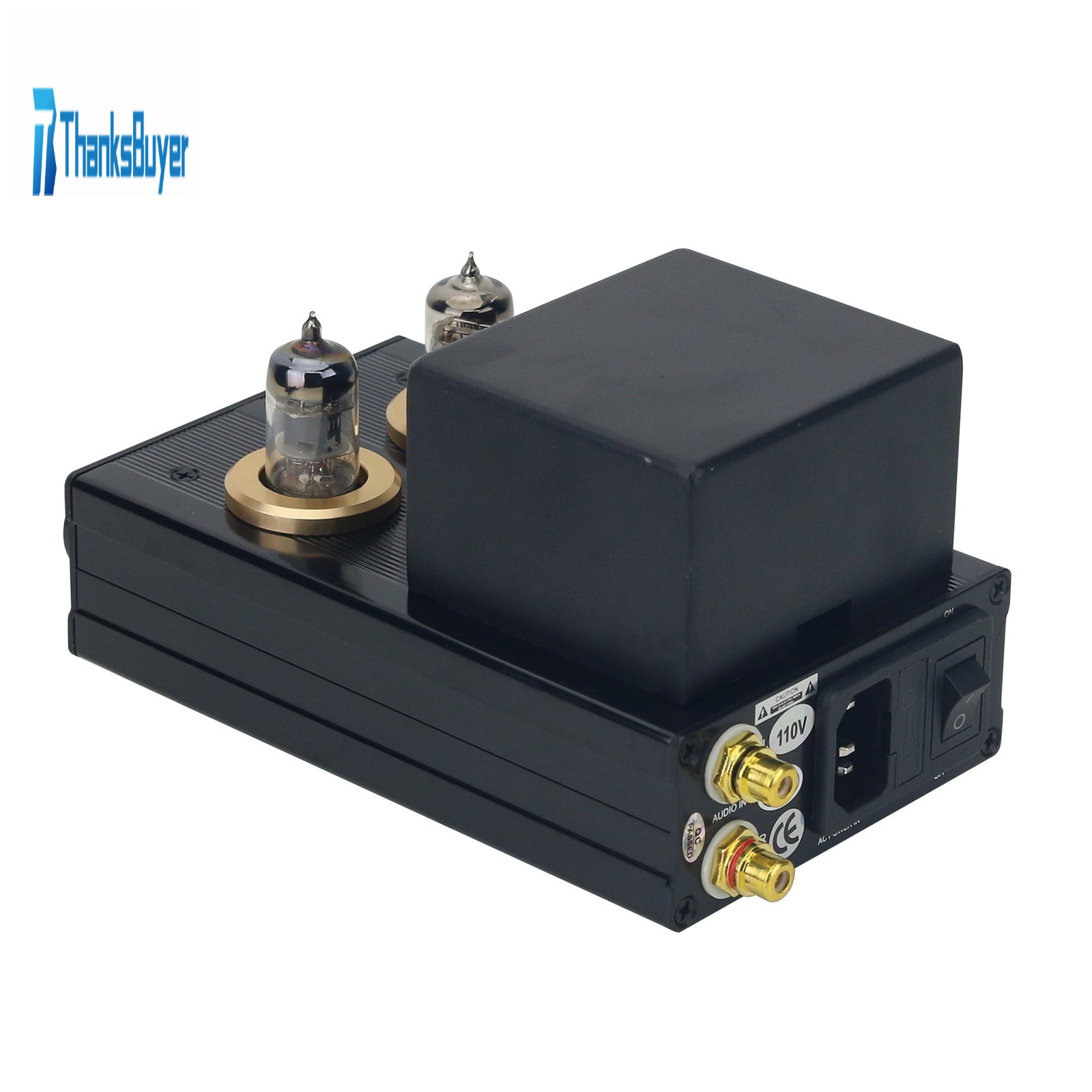

- Input: RCA x 2
- Output: 6.35mm
- Distortion: 0.2% (output: 1Vrms 1000Hz); 0.6% (output: 3Vrms 1000Hz); 1.0% (output: 5Vrms 1000Hz)
- SNR: 92dB
- Frequency response: 10Hz - 50KHz (-3dB)
- Output power: 800mW (32ohms); 300mW (120ohms); 150mW (300ohms)
- Amplification:
  GAIN = HIGH : 7
  GAIN = LOW : 3.5
- Applicable headphone impedance: 8ohm - 600ohm
- Power consumption: 15VA
- Size: 180 x 97 x 100mm
- Net weight: 1.5kg

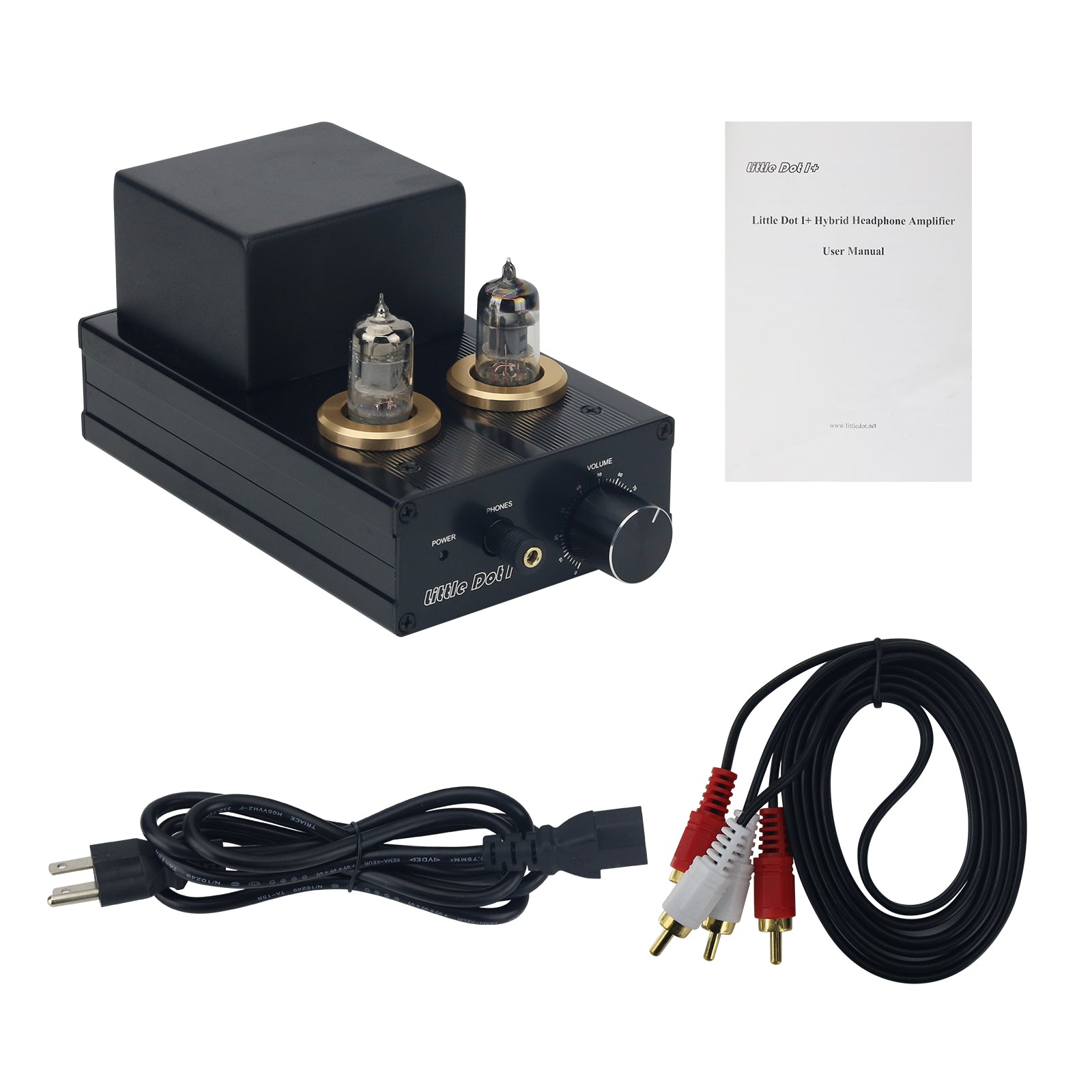

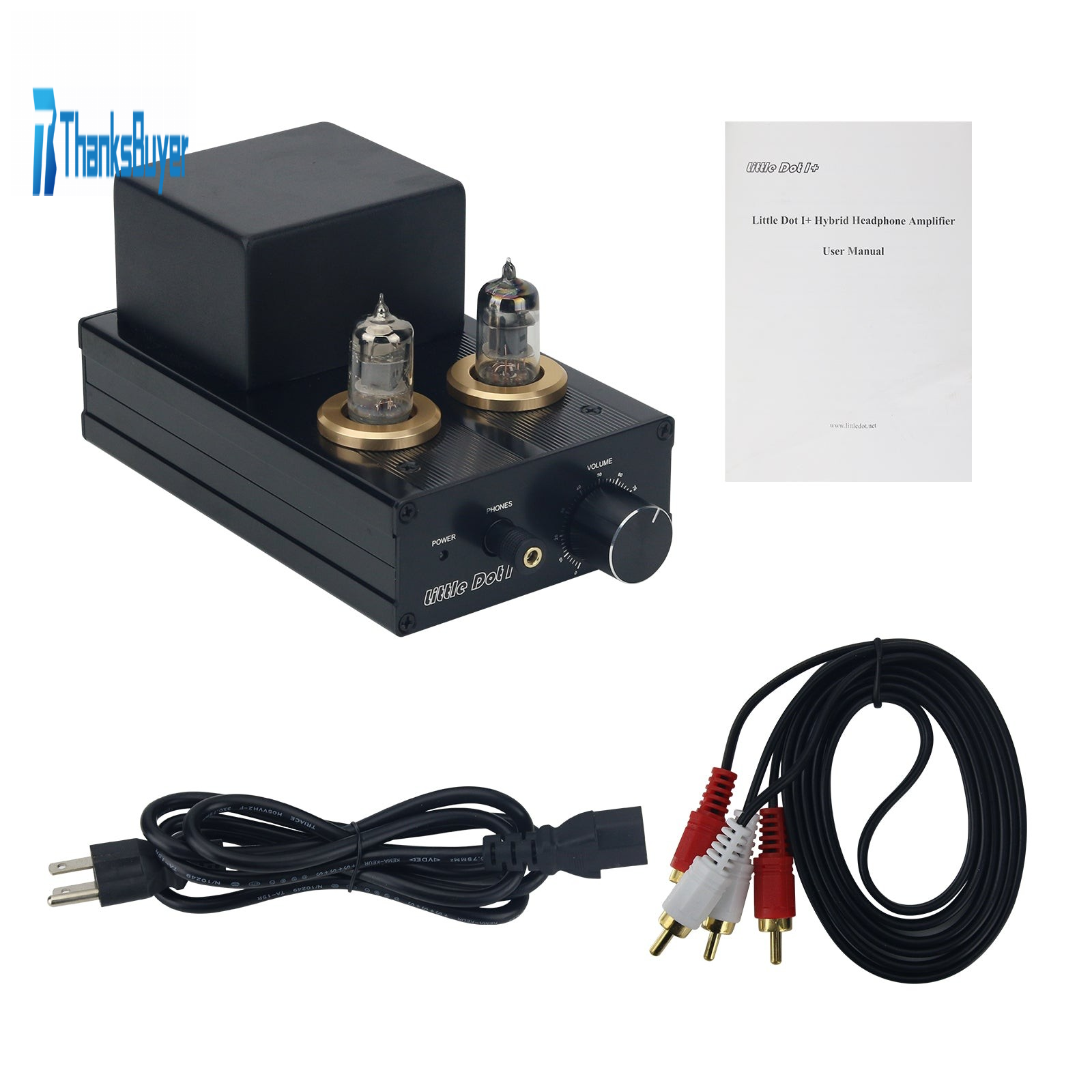

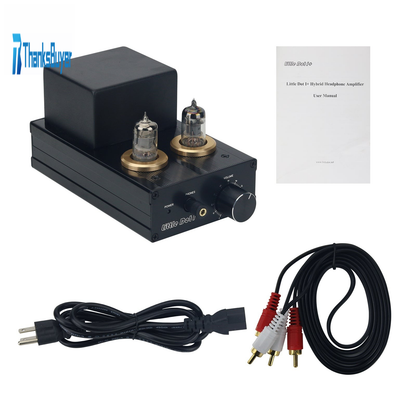

Package Included:
- 1 x Headphone Amplifier
