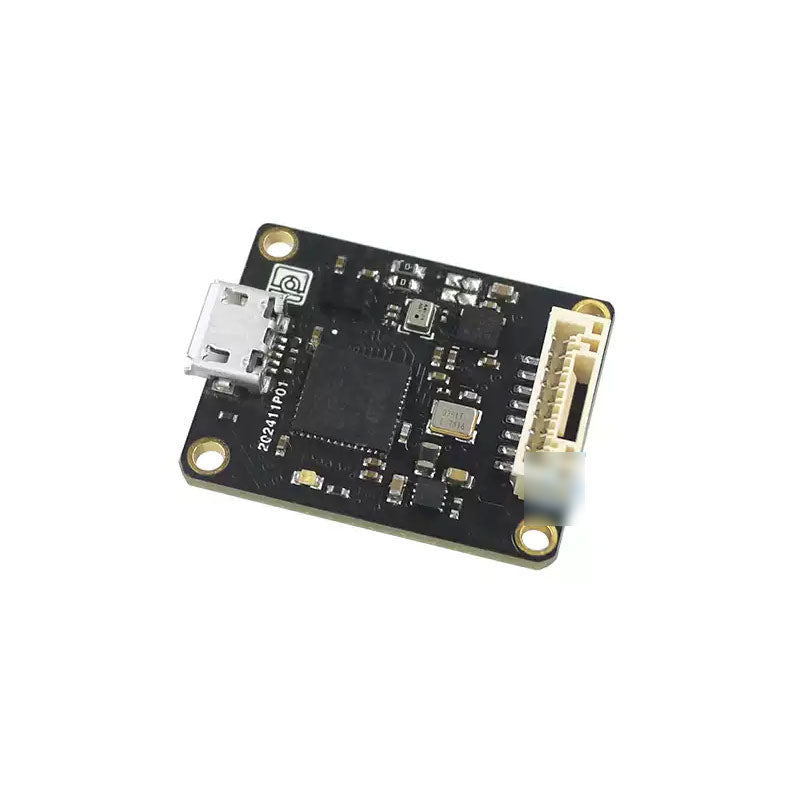

LPMS-CURS3 9-Axis IMU Module High Performance Miniature Inertial Measurement Unit

Introduction:
- LPMS-CURS3 is a high-performance miniature inertial measurement unit (IMU) with multiple communication interfaces. Integrating CAN Bus, USB and UART, the LPMS-CURS3 is a perfect fit for both machine and human motion measurement in size- and cost-sensitive applications. LPMS-CURS3 is shipped without housing and is ideal for integration with your own device.

Main Features:
- High precision, high stability.
- Integrated three-axis gyroscope, three-axis accelerometer, three-axis magnetometer and other sensors.
- Real time output: raw data, Euler angles, quaternions, linear acceleration, temperature, air pressure.
- Communication interface: USB+RS232, USB+CAN or USB+TTL (optional)

Applications:
- AGV navigation
- Mechanical monitoring

Specifications:
- Model: LPMS-CURS3
- Euler angle range:
  Roll: ±180°
  Pitch: ±90°
  Yaw: ±180°
- Resolution: 0.01°
- Accuracy: <0.5° (static), <2° RMS (dynamic)
- Output data type: Raw data/Euler/Quaternion/Linear acceleration/Air pressure/Temperature
- Internal sampling rate: 500Hz
- Communication interface: CAN Bus + USB/RS232 + USB / TTL + USB (optional)
- Maximum baud rate: 1Mbps for CAN+USB version; 921600bps for RS232+USB and TTL+USB version
- Communication protocol: CANOpen/SequentialCAN for CAN+USB version; LPBUS/ASCII for RS232+USB and TTL+USB version
- Maximum data update rate: 500Hz
- Accelerometer range: 3 axes, ±2/±4/±8/±16g, 16bits
- Gyroscope range: 3 axes, ±125/±250/±500/±1000/±2000/±4000°/s, 16bits
- Gyroscope noise density: 0.005dps/√Hz
- Magnetometer range: 3 axes, ±2/±8gauss, 16bits
- Pressure sensor: 300 - 1100hPa
- Power consumption: <135mW at 5V for CAN+USB version; <110mW at 5V for RS232+USB version; <90mW at 5V for TTL+USB version
- Working temperature: -20℃ to +80℃
- Product size: 22 x 28 x 7.65mm
- Net weight: 4g
- Power supply: 5V-18V DC
- Connector: BM08B 1.25mm, Micro USB-B

Package Included:
- 1 x IMU
