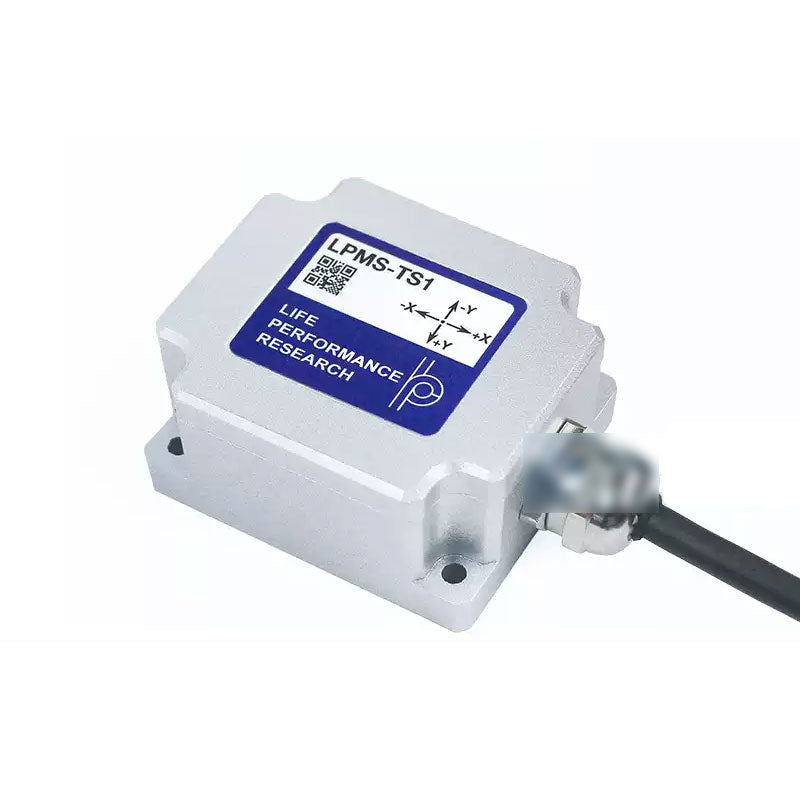

LPMS-TS1 RS485 High Precision Aluminum Alloy Dual Axis Tilt Sensor for Construction Machinery/Energy and Electricity

Introduction:
- LPMS-TS1 is a low-cost, high-precision dual axis tilt sensor with a measurement range of ±90°, a resolution of less than 0.01°, an accuracy of up to 0.05°, and a working temperature range of -40~85°C. The product integrates and processes the built-in accelerometer sensor data, combines filtering and calibration algorithms for correction and calculation, and finally provides various data outputs including sensor raw acceleration data, calibrated acceleration data, tilt data, and temperature in digital form.

Main Features:
- High precision and high stability dual axis tilt sensor based on MEMS sensors
- Measurement range: ±90 °
- Resolution: <0.01° (IEEE 32-bit single precision floating-point format)
- Accuracy: 0.05°
- Working temperature range: -40~85°C
- Supply voltage: 5-36V
- Real time output: raw acceleration data, calibrated acceleration data, inclination data, temperature data, etc.
- Communication interface: RS485

Applications:
- Construction machinery
- Energy and electricity
- Bridge construction

Specifications:
- Model: LPMS-TS1 RS485
- Communication interface: RS485
- Power consumption: 0.072W (0.006A@12V)
- Default baud rate: 115200bps
- Communication protocol: LPBUS Protocol/ASCII/Modbus
- Size: 50 x 42 x 25mm
- Net weight: 106.8g
- Tilt angle measurement range: X-axis: ± 90 °; Y-axis: ± 90 °
- Resolution: <0.01°(IEEE 32-bit single precision floating-point format)
- Angle accuracy: 0.05°RMS
- Zero bias error of accelerometer: ±10mg
- Static temperature drift of accelerometer: ±0.1mg
- Sensitivity of accelerometer: 0.061/0.122/0.244/0.488mg/LSB
- Sensitivity change of accelerometer/temperature: ± 0.01%/°C
- Accelerometer noise density: 60μg/√Hz
- Data output type: raw data/inclination data/temperature data
- Output frequency: 5~500Hz
- System voltage: 5V~36V DC
- Working temperature range: -40~+85 ° C

Package Included:
- 1 x Tilt Sensor
