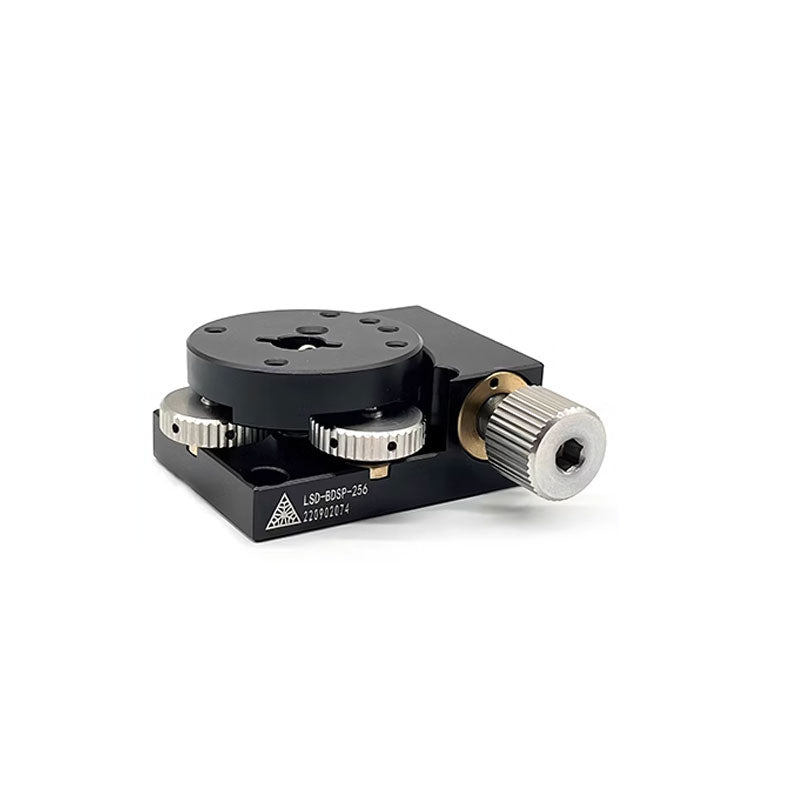

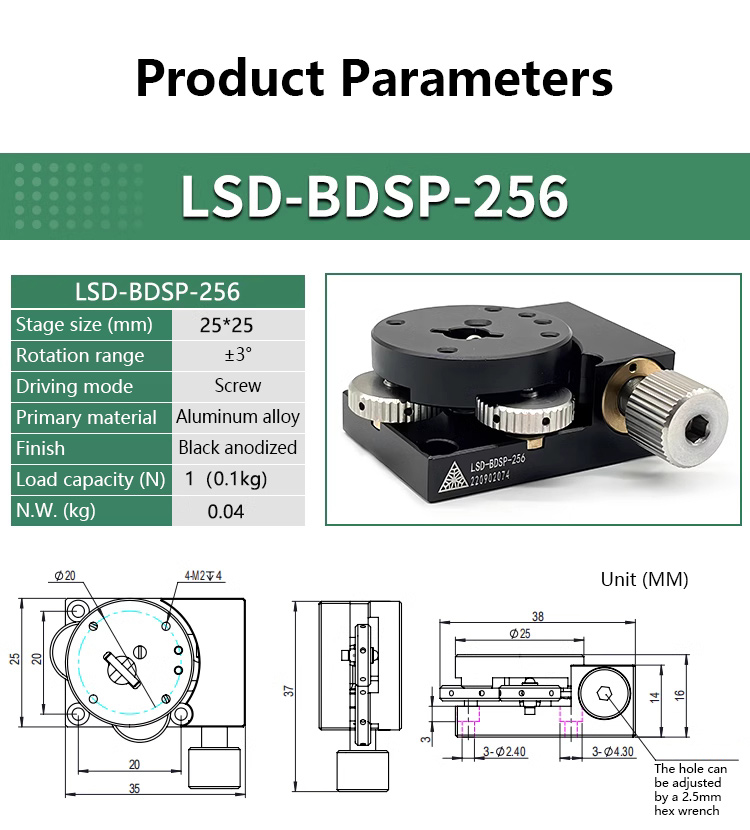

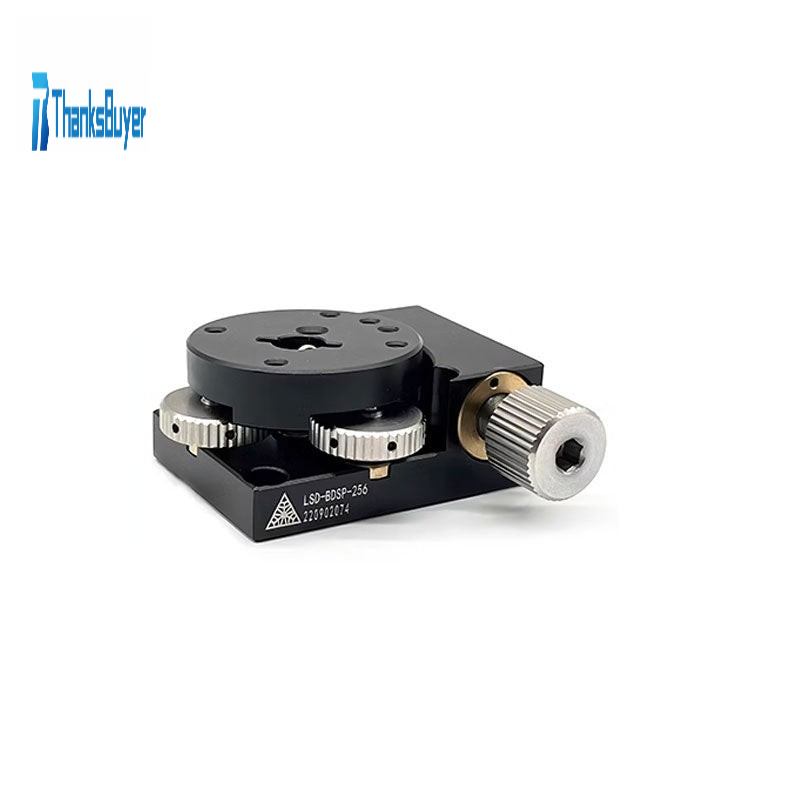

LSD-BDSP-256 25*25mm Three Axis Manual Rotation Stage Displacement Platform Supports Fine Adjustment

LSD-BDSP-256 25*25mm Three Axis Manual Rotation Stage Displacement Platform Supports Fine Adjustment

Features:
- The 3-axis rotation stage is driven by screws, with high precision
- Its main body is made of high-strength aluminum alloy, and its surface is black anodized
- It is very compact. It is suitable for use where space is constrained, and suitable for light loads
- 3-year warranty
- Premium material: The rotary stage is made of aluminum alloy. Its high density and light weight make it suitable for built-in installations
- Convenient operation: Small size makes it easy to install. It boasts low noise, high mechanical strength and long lifespan, enabling high operation frequency
- Internal structure: It is composed of multiple high-precision parts. Thanks to its high precision and a compact structure, it is suitable for light loads, enabling easy adjustment

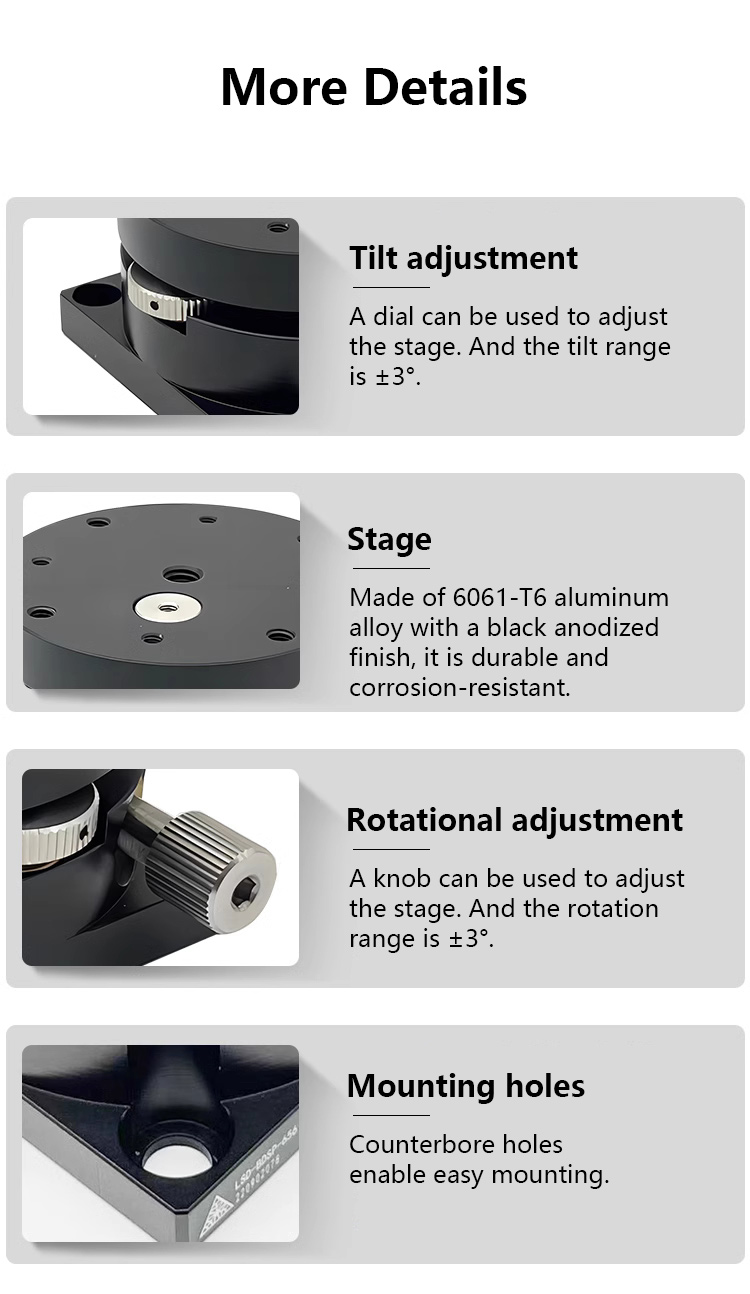

- Tilt adjustment: A dial can be used to adjust the stage. And the tilt range is ±3°
- Rotary stage: Made of 6061-T6 aluminum alloy with a black anodized finish, it is durable and corrosion-resistant
- Rotational adjustment: A knob can be used to adjust the stage. And the rotation range is ±3°
- Mounting holes: Counterbore holes enable easy mounting
- Applicable industries: widely used in electronics, electrical machinery, automation, science and medical and the like

Attention:
- If your load for the platform is too large, the accuracy of the platform will be reduced. It is recommended that the load should not exceed 1.5 times the size of the platform.

Package Included:
- 1 x Rotation Stage

Packaging Details:
- G.W.: 0.16kg
