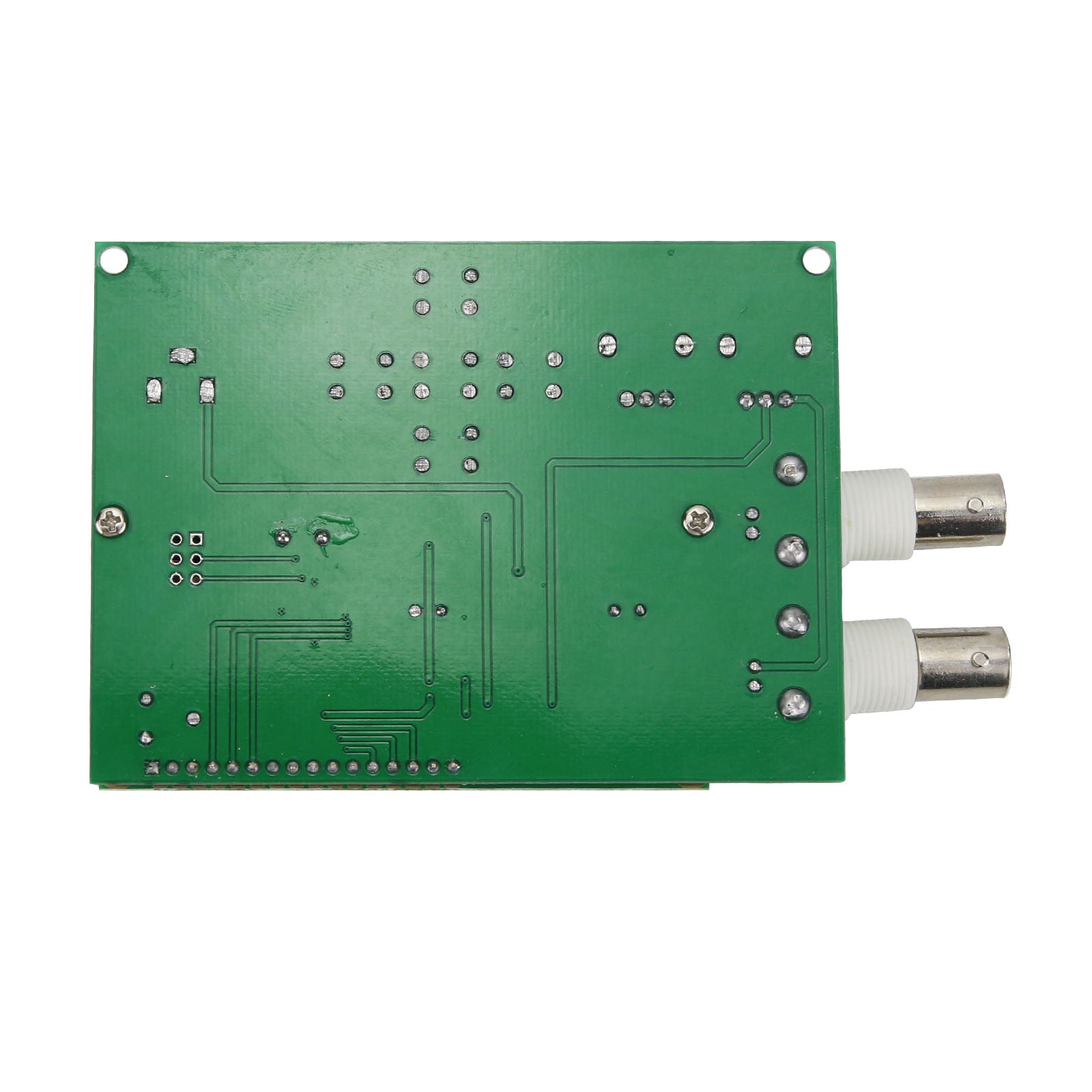

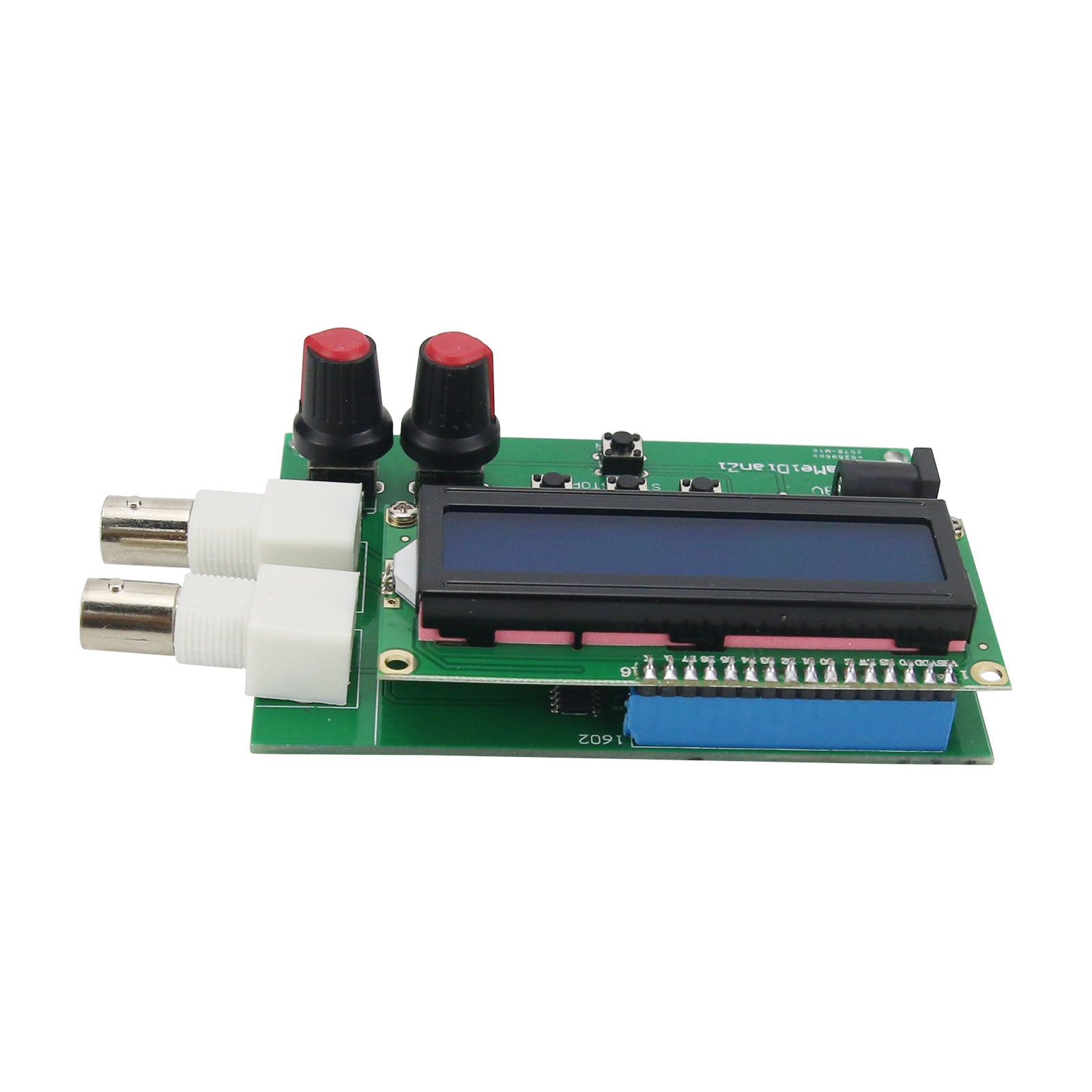

LTDZ_M16_1602 Low Frequency DDS Signal Generator Module with 1602 LCD Display

LTDZ_M16_1602 Low Frequency DDS Signal Generator Module with 1602 LCD Display

Specifications:
- Item Model: LTDZ_M16_1602
- Item Name: Low Frequency DDS Generator
- Product Size: 100 x 80 x 33mm
- Net Weight: 50g
- Display: 1602 LCD Display
- Working Voltage: 9V

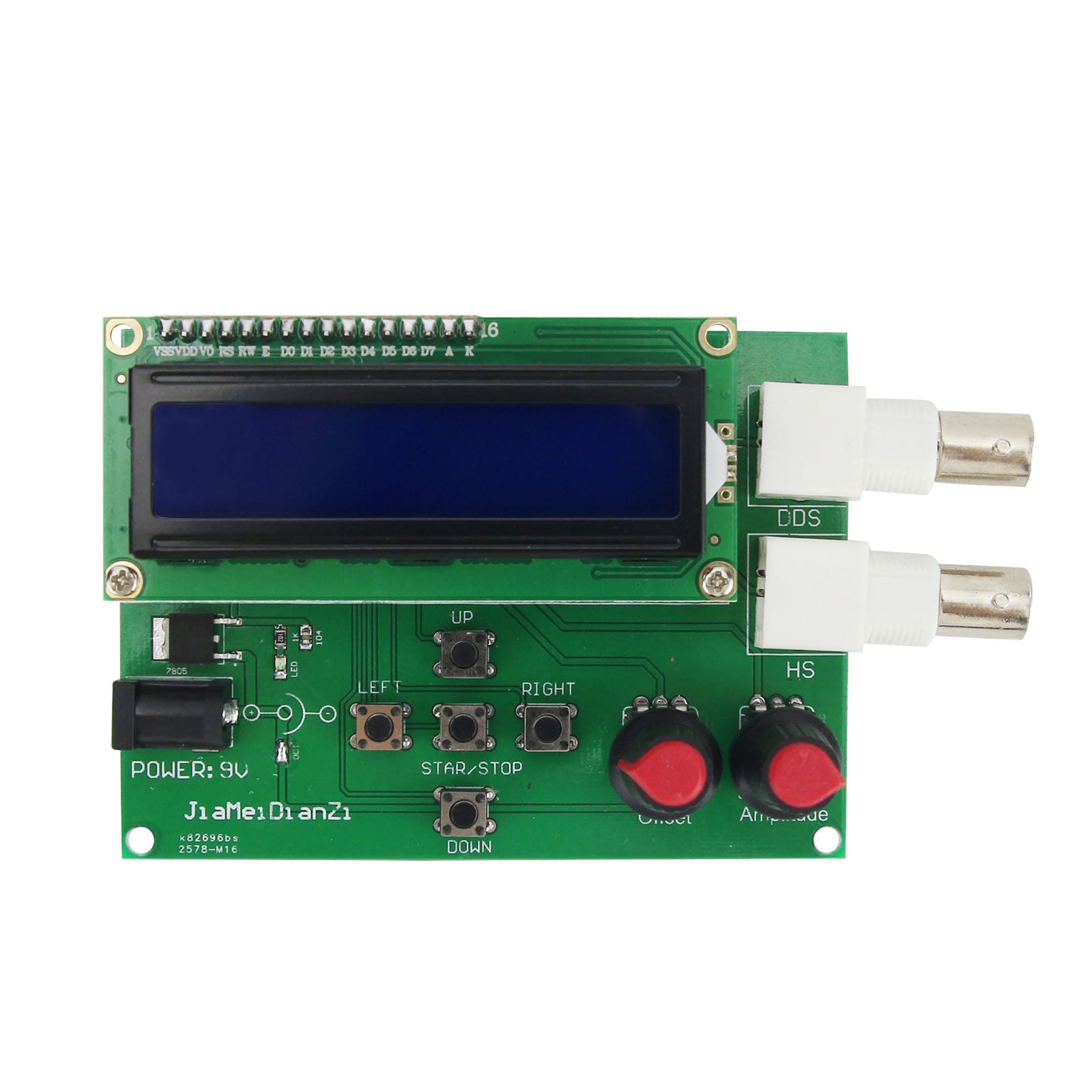

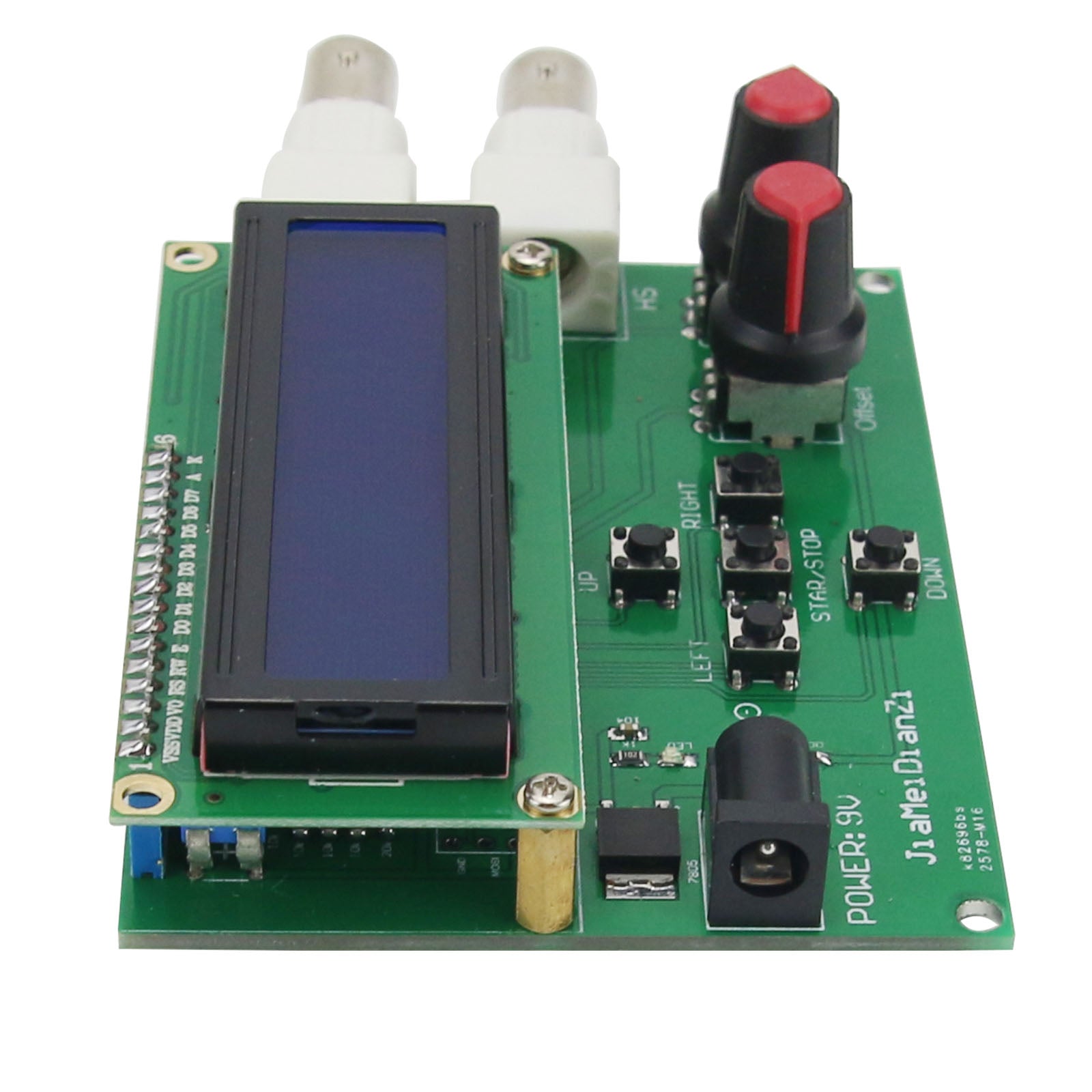

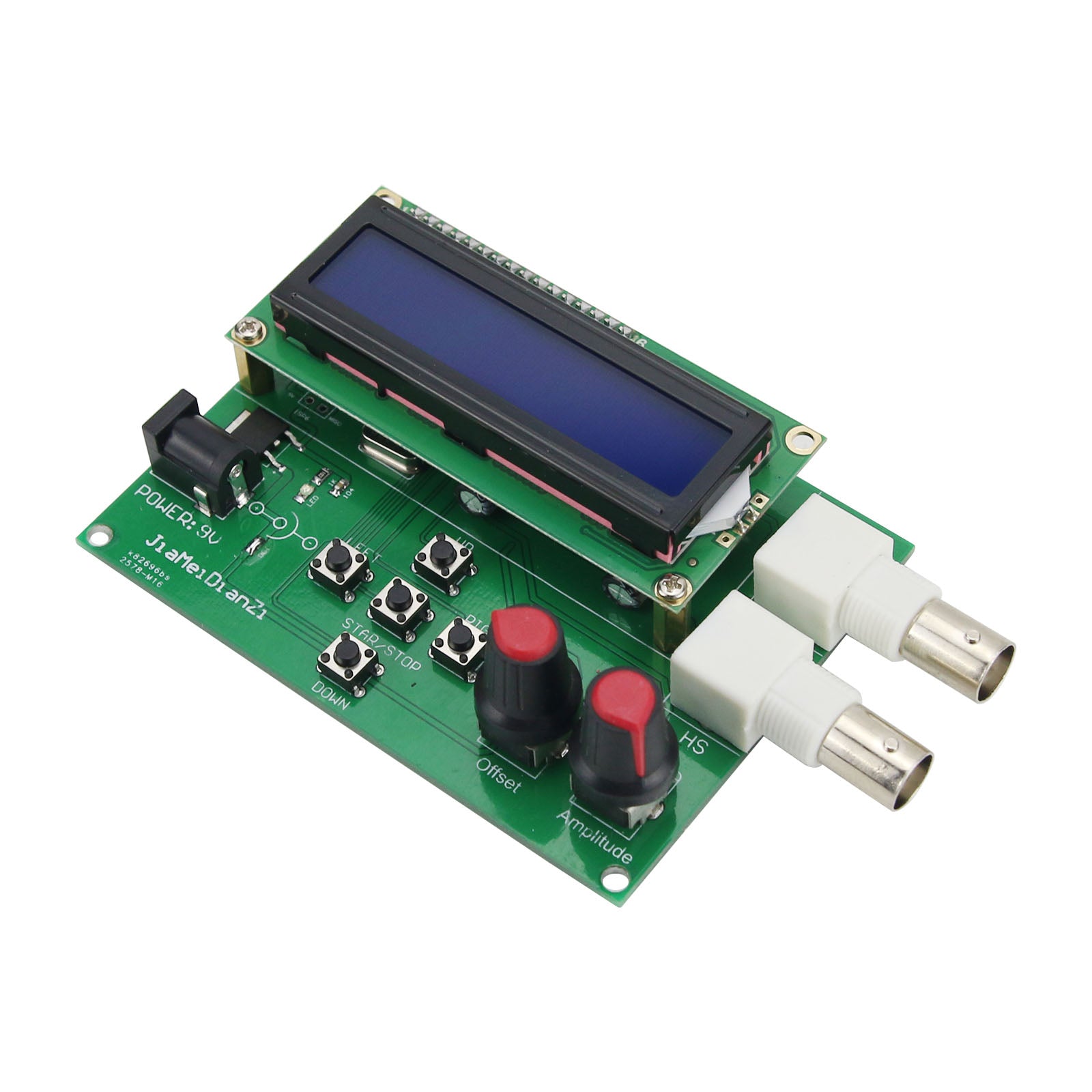

Buttons' Functions:
- UP: Select output waveform
- DOWN: Select output waveform
- LEFT: Output frequency-
- RIGHT: Output frequency +
- STOP / RUN: stop / start output

Functions Introduction:
- Signal output function
- Step frequency setting function
- High-speed square wave (HS) output function

How to Use It?
- Pressing UP and DOWN buttons, users can select DDS output signal (sine wave, square wave, sawtooth wave, reverse sawtooth wave, triangle wave, electrocardiogram wave, noise wave and high-speed square wave signal) or frequency setting step or high-speed square wave (HS).
- Set output frequency by LEFT and RIGHT buttons, and set step frequency by the internal step function. Step frequency value: 1, 10, 100, 1000, 10000Hz.
- High-speed frequency (HS) square wave: 1MHZ / 2MHZ / 4MHZ / 8MHZ signal.

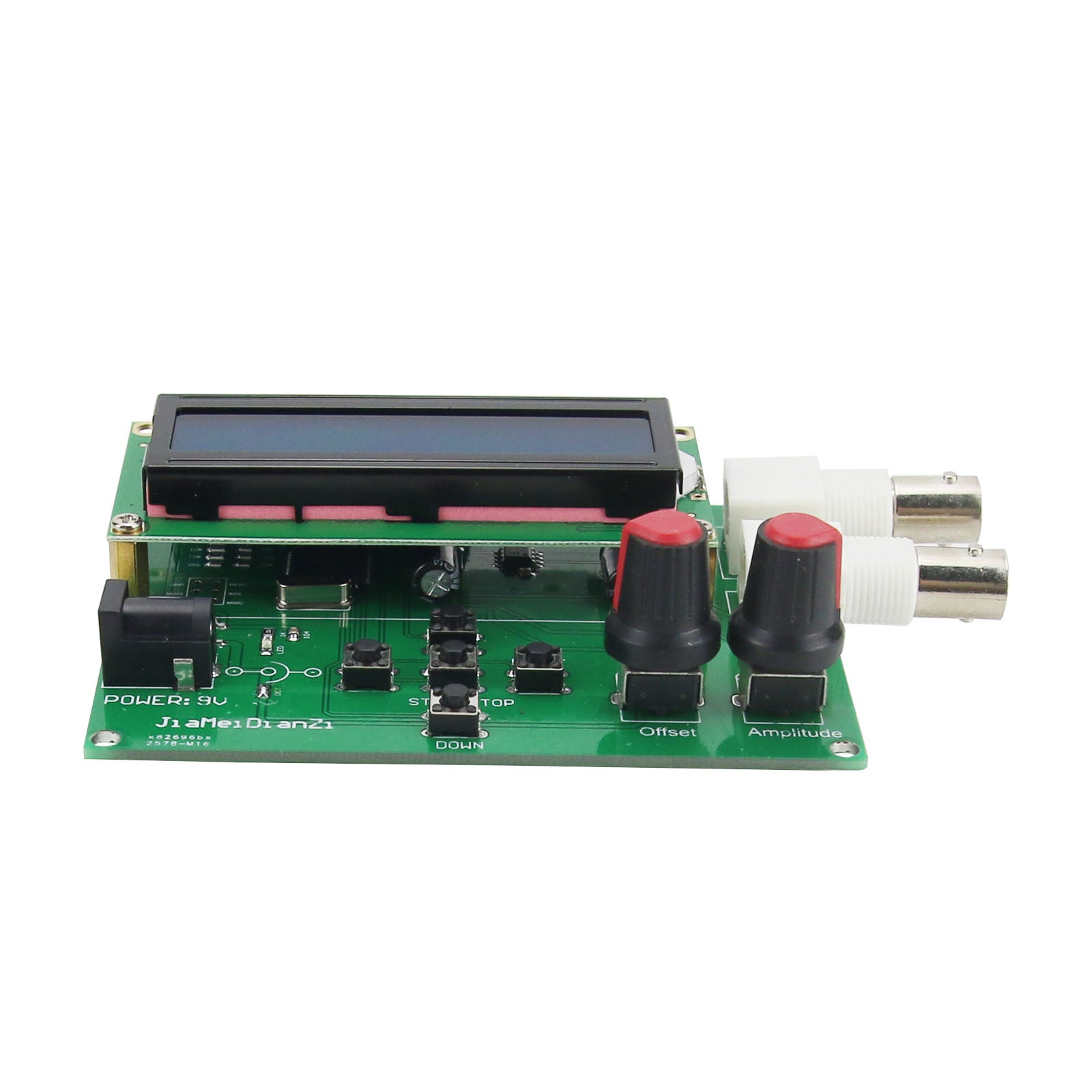

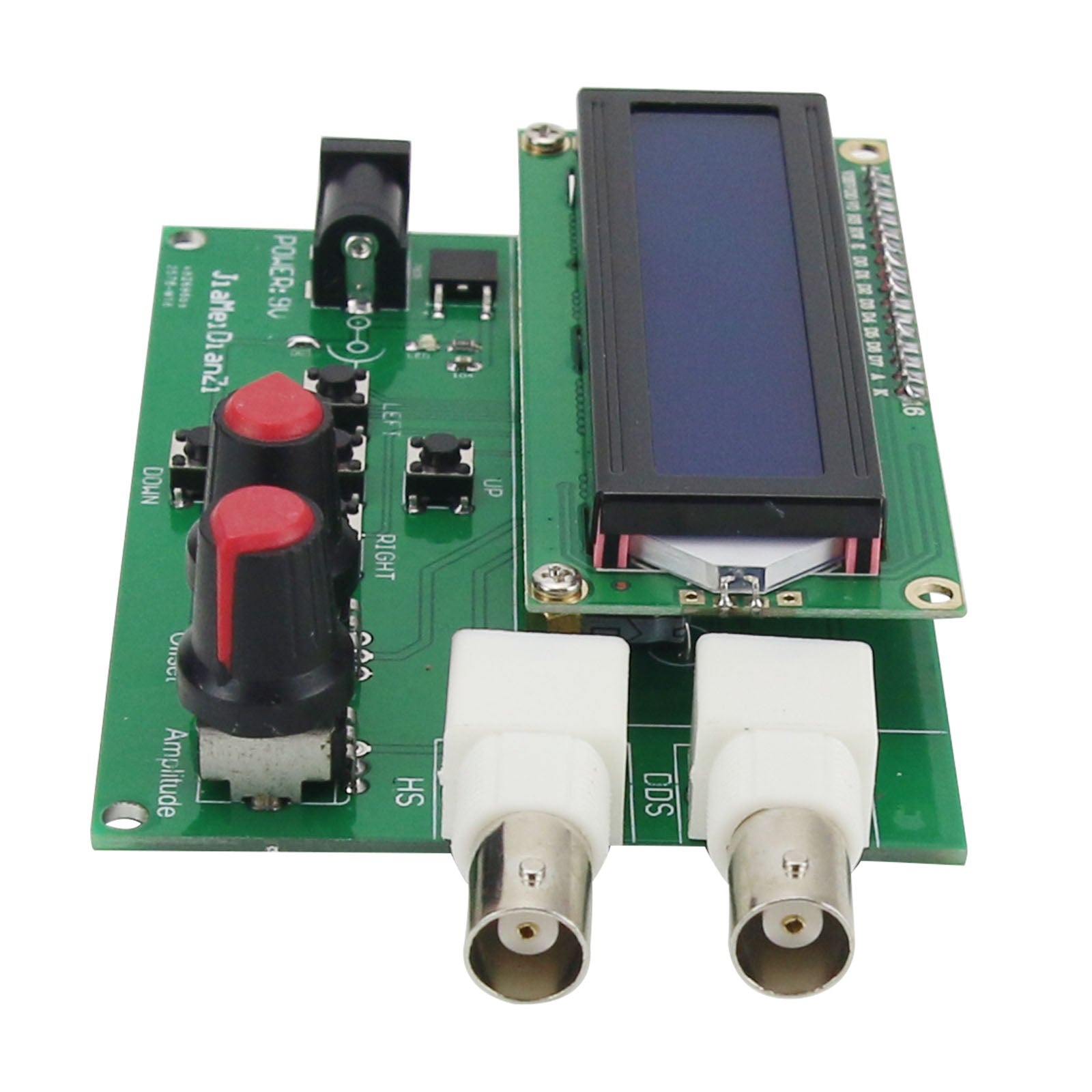

- Adjust the amount of amplitude and offset with knobs. The offset is: 0.5pp-5Vpp; the amplitude is: 0.5Vpp-14Vpp; output impedance: 20-200 ohms.
- Automatically restore the latest used configuration after power on.

Package Included:
- 1 x DDS Signal Generator Module

Note:
- 9V power supply is needed.
- HS output is a high-speed square wave output with a fixed duty cycle of 50%. If users has high requirements on the output waveform, an additional filter circuit can be added.
