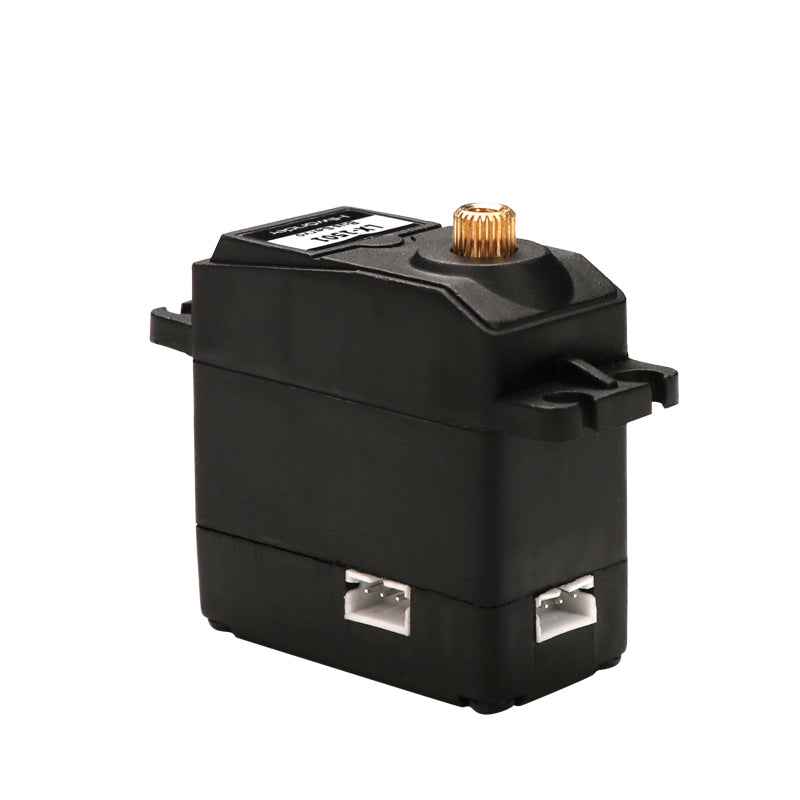

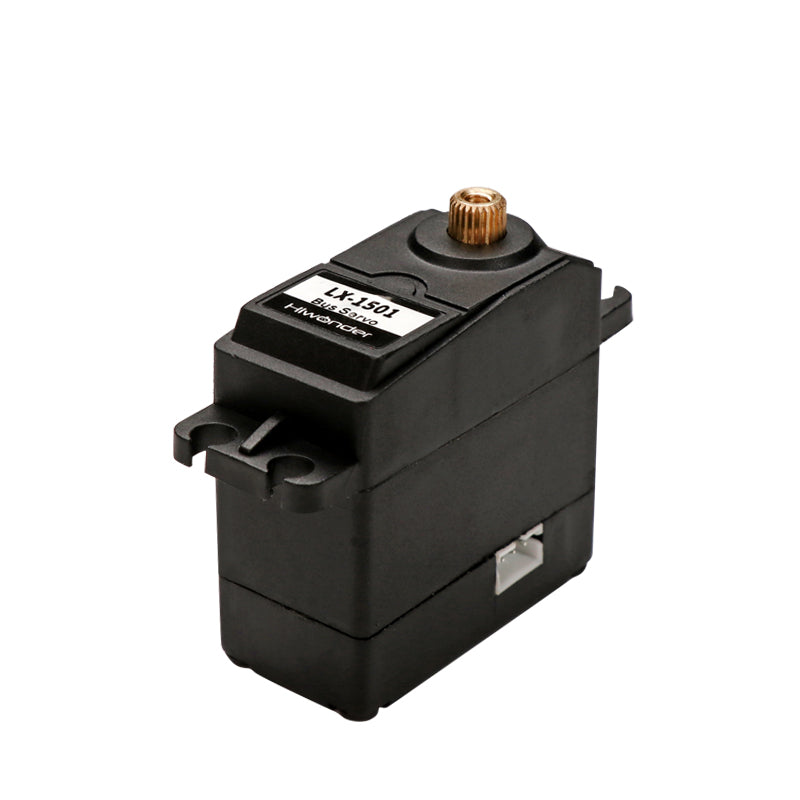

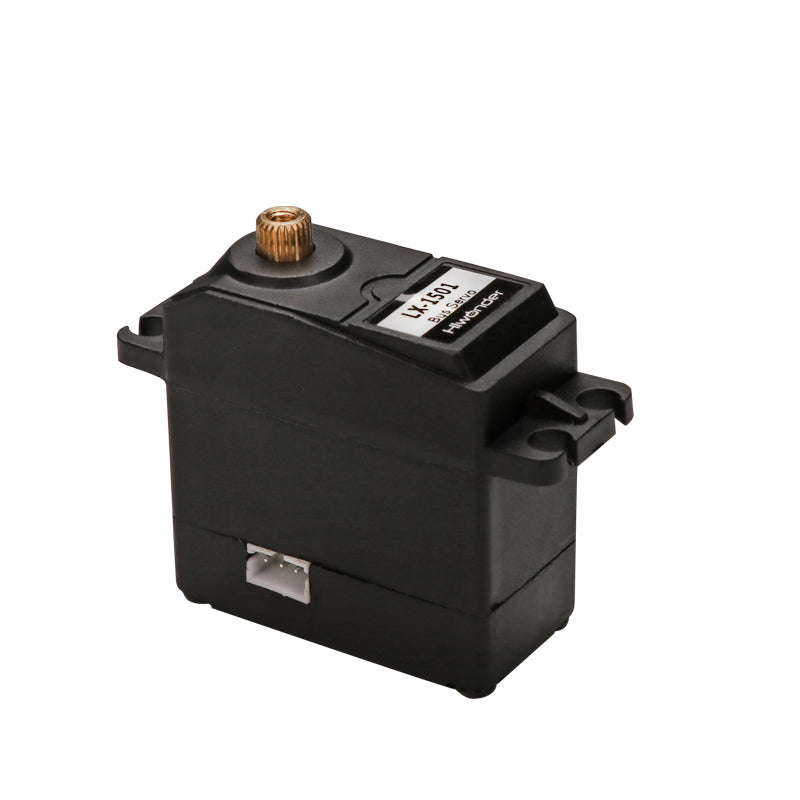

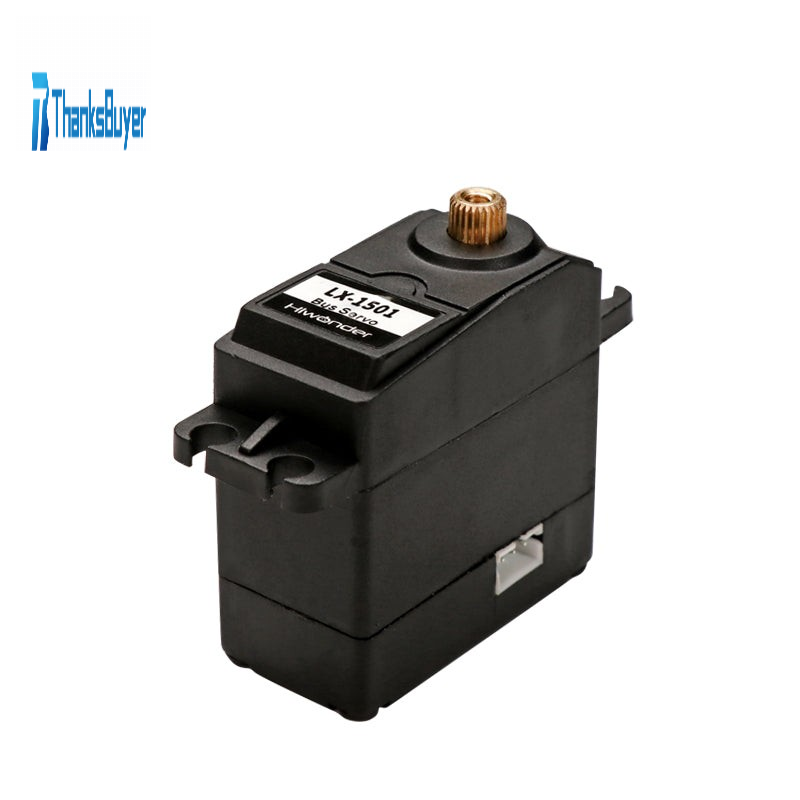

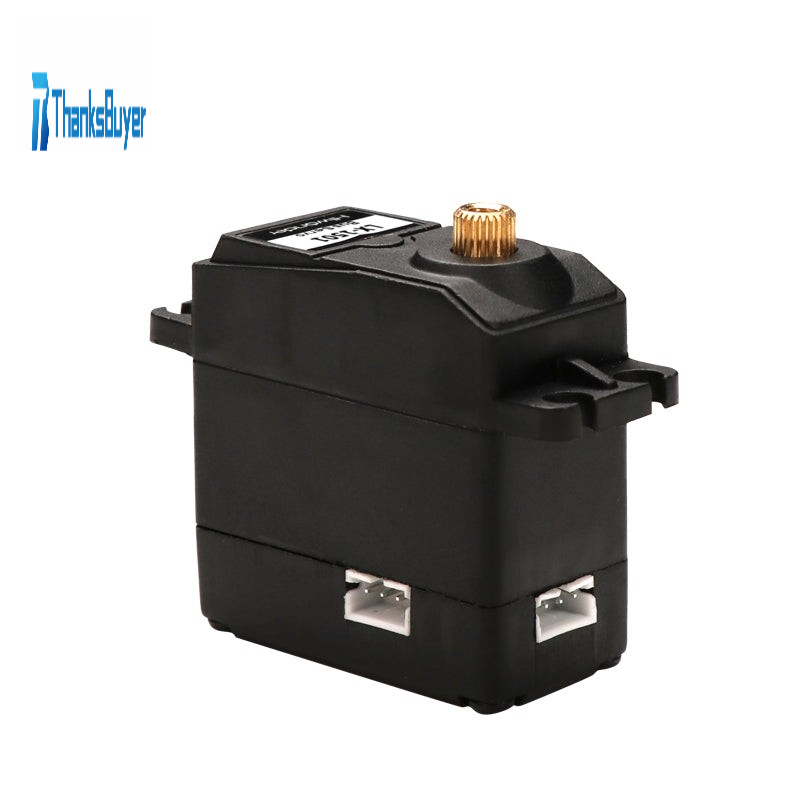

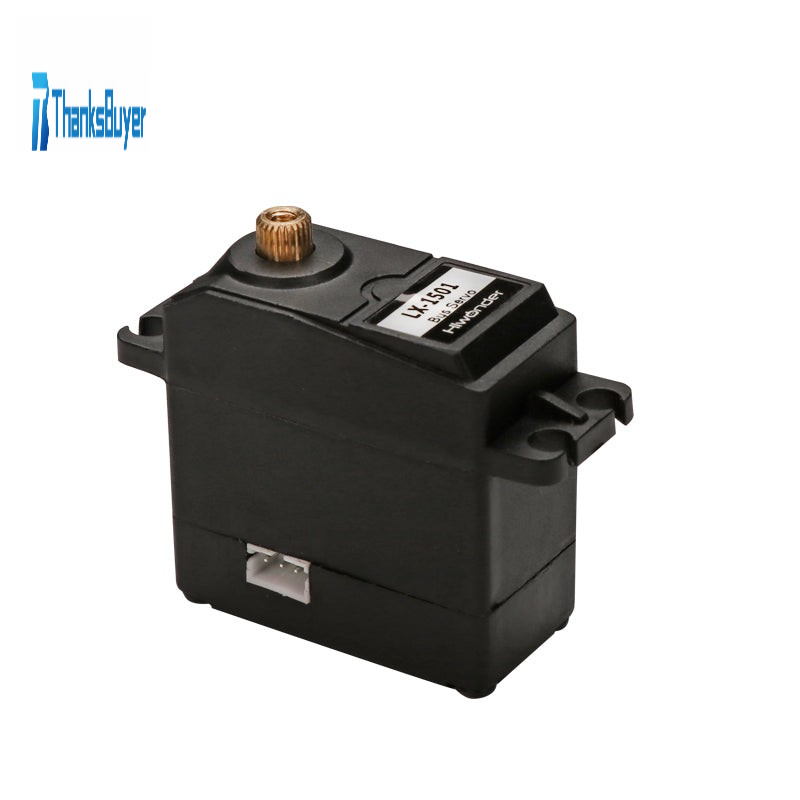

LX-1501 Serial Bus Servo 17kg.cm Robot Bus Servo 3-Port with Feedback Unfinished

LX-1501 Serial Bus Servo 17kg.cm Robot Bus Servo 3-Port with Feedback Unfinished

Specifications:
- Item Name: LX-1501 Serial Bus Servo
- Product Weight: 60g
- Product Size: 40 x 20 x 40.5mm
- Rotation Speed: 0.12sec/60degree (6.8V)
- Servo Accuracy: 0.24°
- Angle Range: 0°-240° (Plus Deviation ±30°. Actual 300°)
- Stall Torque: 17kg.cm (6.8V)
- Servo ID: 0-253 User Settings
- Application: Perfect for all kinds of bionic robot joints
- Storage: Save user settings when there is power failure
- Working Power Supply: 6-8.4V
- Cable Length: 20cm. Other lengths are optional
- Readback Function: Support
- Control Mode: Serial Command
- Communications Baud Rate: 115200
- Parameter Feedback: Temperature, voltage, power supply
- Gear Type: Metal
- Compatible Plug-in Model: PH2.0 3P
- Source code provided for 51, Arduino, STM32 MCU and Raspberry Pi
- Bus Servo Terminal (Debugging System): In this debugging interface, users can set ID number, working mode, rotation speed, position deviation of the servo, and can also set the servo over-temperature alarm, over-voltage alarm, and stall alarm. User-friendly interface makes operation and settings easier.

Package Included:

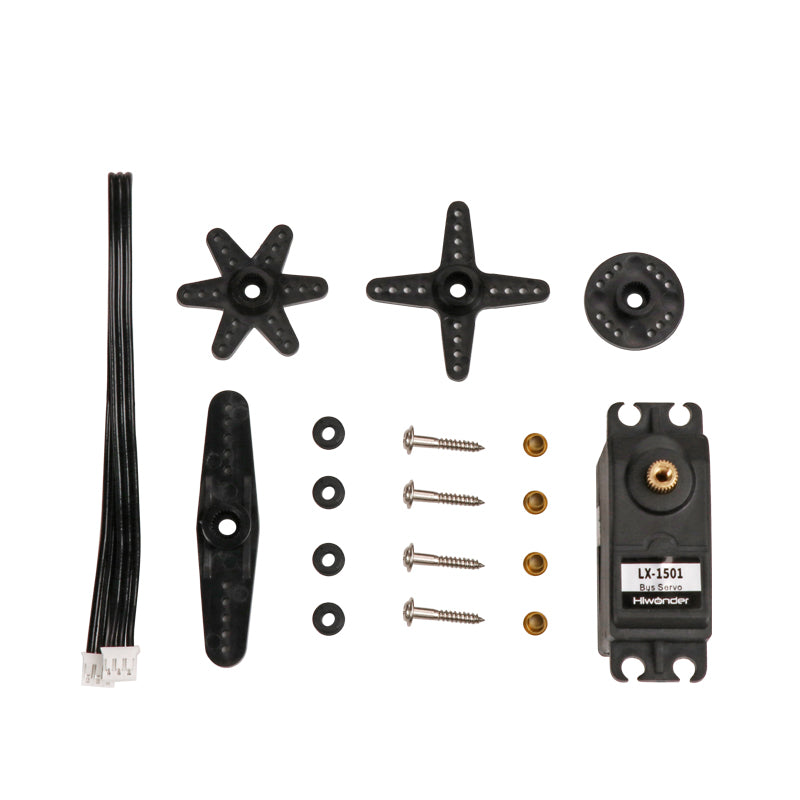

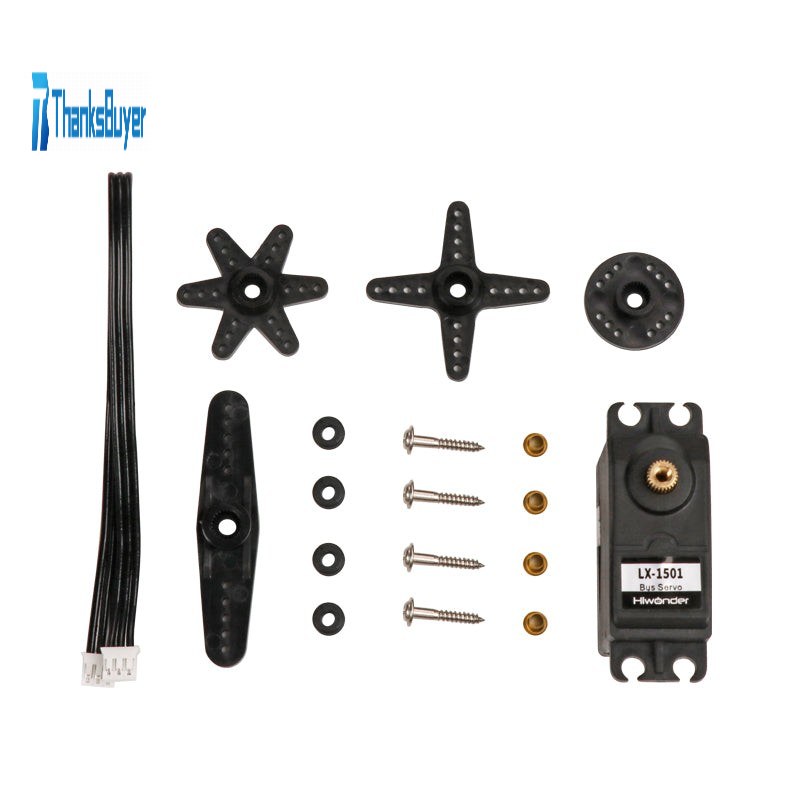

- 1 x Set of Bus Servo

Note:
- Please note that assembling is needed.
- If there is any question, please feel free to contact us.
