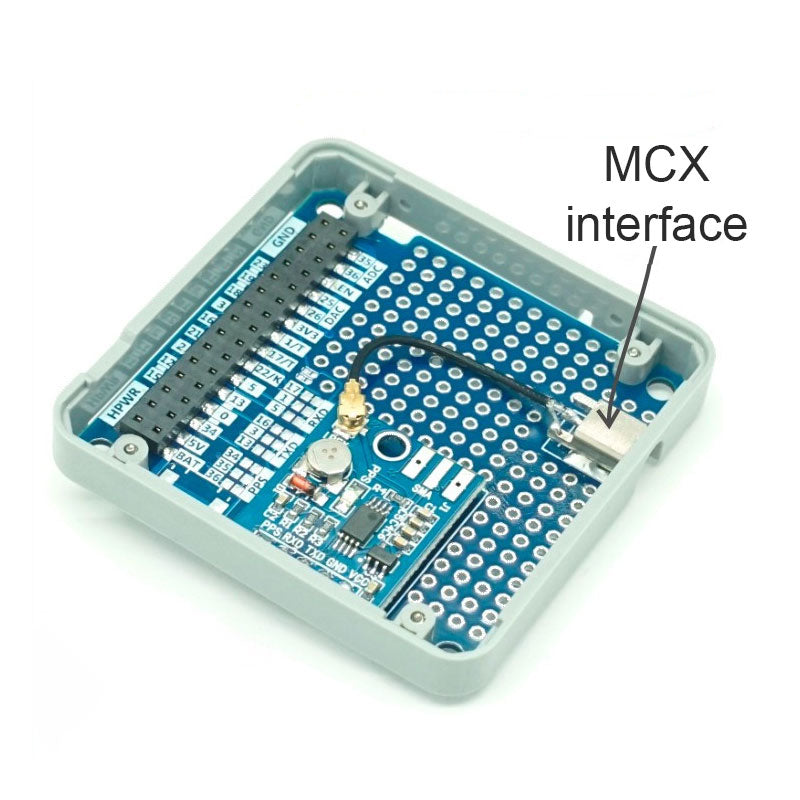

M5Stack GPS Module M8N ESP32 Support for NMEA & UBX & RTCM with MCX Interface and Built-in Antenna

M5Stack GPS Module M8N ESP32 Support for NMEA & UBX & RTCM with MCX Interface and Built-in Antenna

Description:
- GPS is a satellite positioning module in the M5Stack stack module series. It is developed based on NEO-M8N module and equipped with active antenna.
- NEO-M8 can spend a small amount of time to carry out high sensitivity acquisition and maintain low power consumption of the system.
- The NEO-M8N integrates a 72-channel u-blox M8 GNSS engine, supports multiple GNSS systems: BDS, Galileo, GLONASS, GPS/QZSS, and allows simultaneous reception of data from three GNSS systems.
- The UART communication protocol is used between the M5Core and the GPS module, and the communication is realized through the connection pin * * UART2 (GPIO16, GPIO17) * *.
- If you want to change the serial port baud rate, click (u-center-just-for-Windows) to view it
- Note: In order to get a good signal from the GPS module, please place the module outdoors when using it.
- UART protocol: baud rate (9600bps by default), data bit (8 bits), start bit (1 bit), stop bit (1 bit), check bit (none).
- More details: https://docs.m5stack.com/#/zh_CN/module/gps

Specification:
- Working temperature: -40~80℃
- Antenna type: Built-in ceramic antenna and external antenna
- External antenna interface: SMA
- Horizontal position accuracy: 2.5m minimum
- GPS module (NEO-M8N) built-in flash memory, firmware upgrade through u-center-just-for-Windows
- Support protocols: NMEA, UBX, RTCM
- Sensitivity: - 167dBm
- Size: 54 x 54 x 13mm

Package Included:
- 1 x M5Stack GPS Module
- 1 x External Antenna (length: 1m)
