MAT-TUNER mAT-SW600 Digital Display RF Power & SWR Meter 600W 1.8-30MHz HF Shortwave High Precision Measurement

Introduction:
- The mAT-SW600 is designed to measure RF power and Standing Wave Ratio (SWR) in HF amateur radio systems. It features a clear color display that shows Peak Envelope Power (PEP), Maximum Power, and SWR.
- It has two built-in high-capacity 18650 lithium batteries and charges through a standard USB Type-C charger. No external power supply is required.

Features:
- By using two RF dedicated measurement chips, the power and standing wave ratio of the RF system can be accurately measured.
- Specially designed for HF amateur radio, supporting a frequency range of 1.8-30MHz and a maximum measured power of 600W.
- Support for YAESU, ICOM, KENWOOD, and XIEGU shortwave radio stations.
- Clear color screen display: Real time display of the currently measured RF power and standing wave ratio in two ways: progress bar and numerical value, supporting manual switching between black or white background.
- Automatic switchover: The appropriate range can be automatically switched based on the current measured RF power, with a default of 15W and switchable to 150W and 600W. (The range can only be switched from a lower gear to a higher gear. To return to a lower gear, the standing wave meter needs to be turned off and wait for 5 seconds before restarting.)
- Built-in two high-capacity 18650 lithium batteries, which can be charged through the Type-C charging interface. (Note: 1. The charging voltage is 5V and does not support PD fast charging; 2. Do not turn on the device for measurement while charging. It is recommended to turn off the device for charging; 3. The charging indicator light stays on during charging and turns off when fully charged.)
- The shell of mAT-SW600 is manufactured using aluminum alloy milling technology, which has a delicate appearance and is sturdy and durable.

Specifications:
- Model: mAT-SW600
- Frequency range: 1.8 - 30MHz
- RF power range: 1 - 600W
- Power accuracy: ±5%(7MHz)
- Impedance: 50 ohms
- SWR range: 1.00 - 10
- SWR accuracy: better than 3%
- Interface: M female connector
- Display type: color LCD
- Power supply: USB 5V (Type-C), 1A
- Operating temperature: -10℃ to 60℃

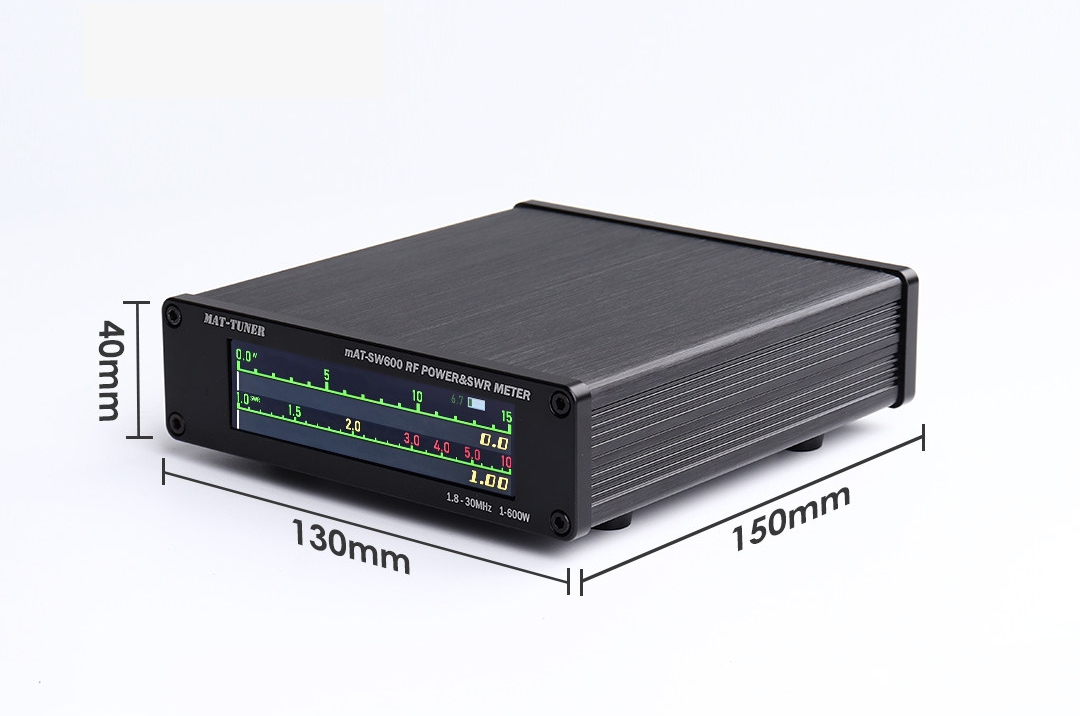

- Product size: 150 x 130 x 40mm
- Net weight: 717g

Package Included:
- 1 x Power & SWR Meter
- 1 x Charging Cable
