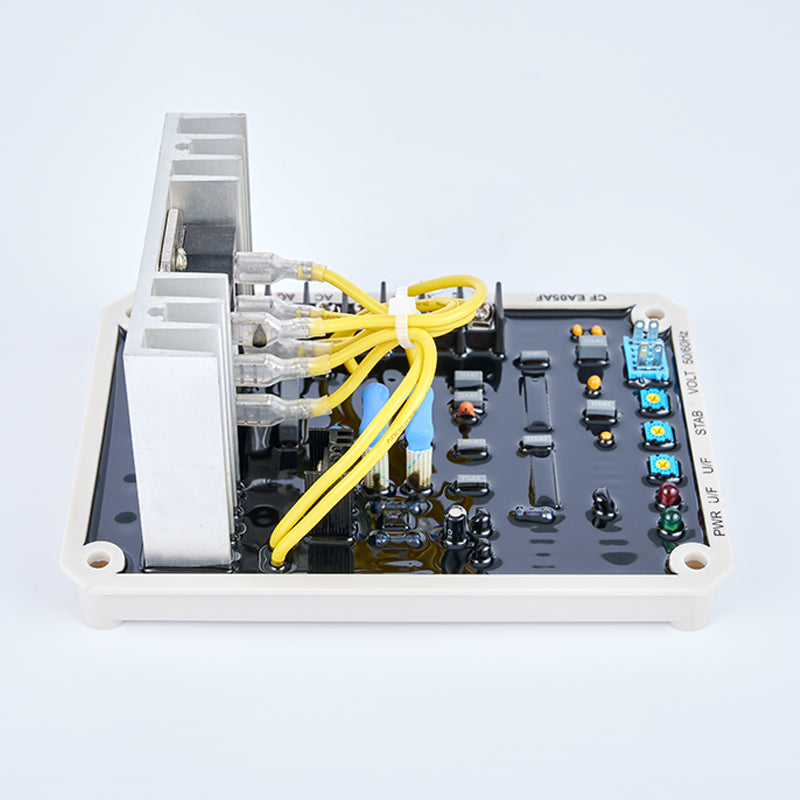

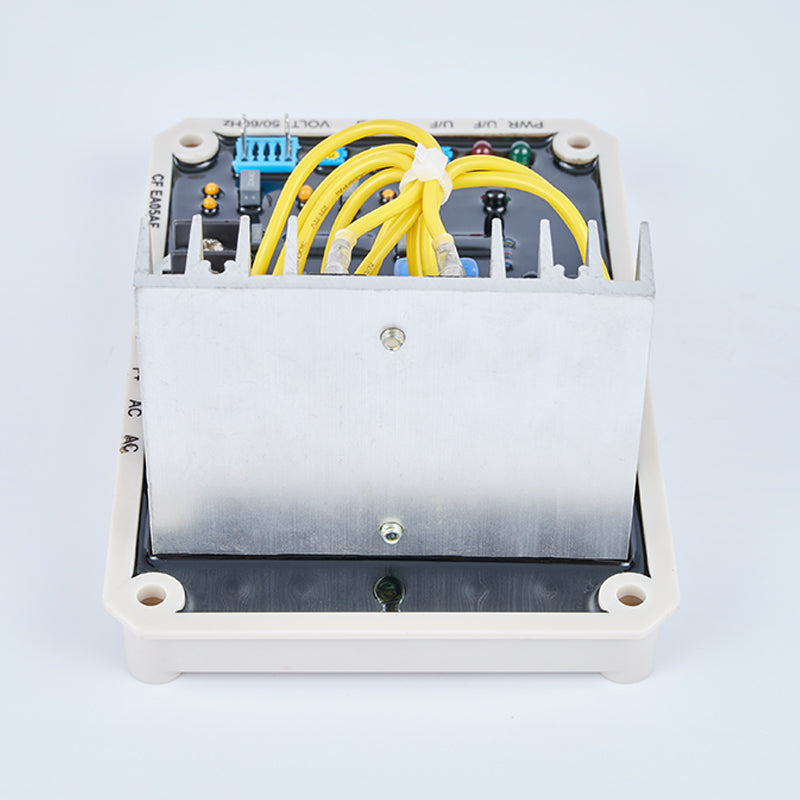

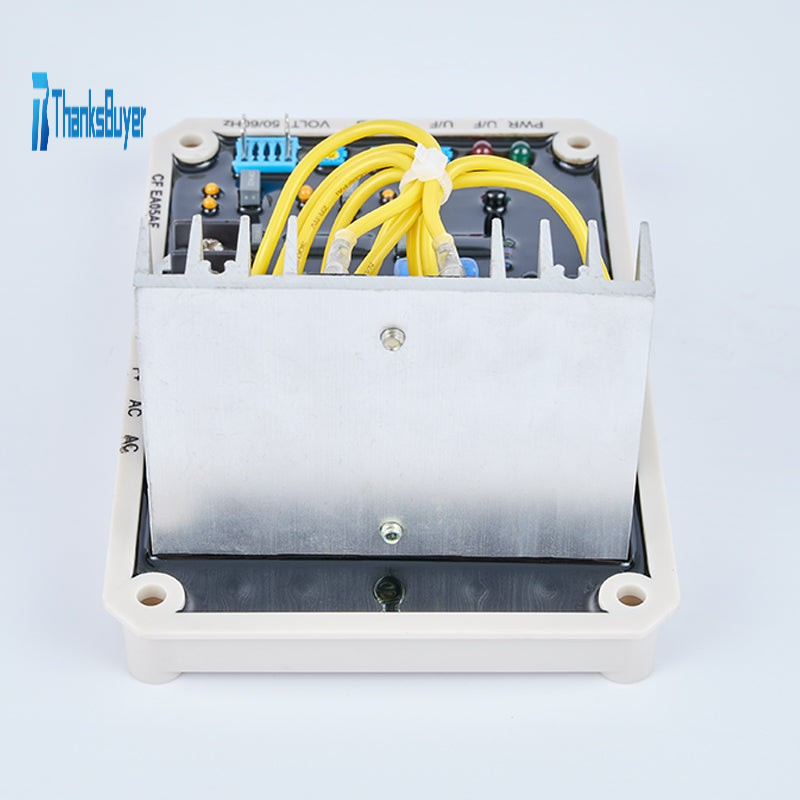

Maxgeek EA05AF Generator Set AVR Automatic Voltage Regulator Brushless Diesel Engine Voltage Stabilizer

Maxgeek EA05AF Generator Set AVR Automatic Voltage Regulator Brushless Diesel Engine Voltage Stabilizer

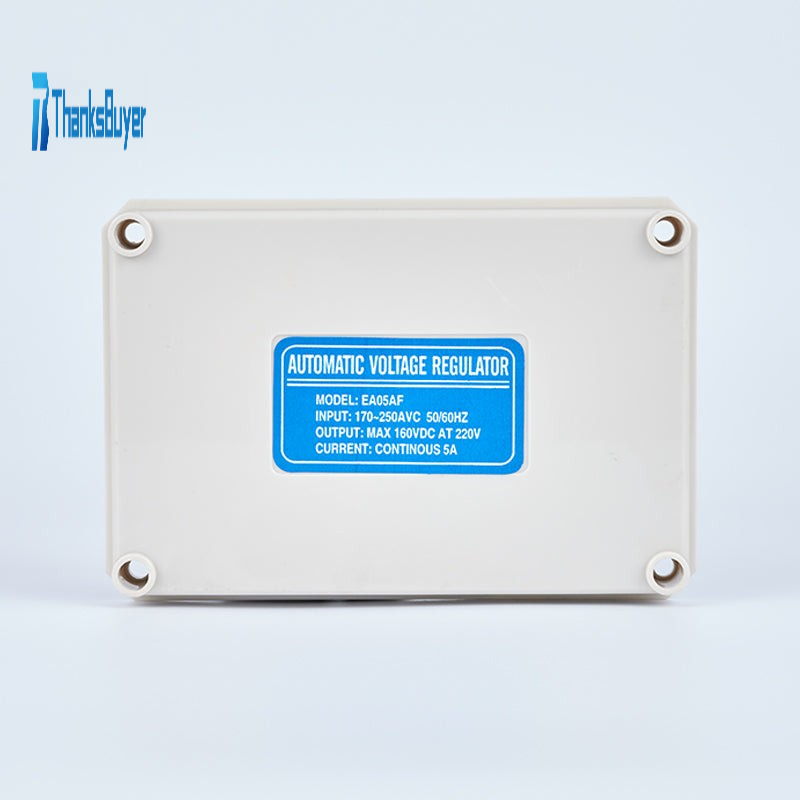

Specification:
Sensing&Power Input:
Voltage: 160-260 VAC 1 phase 2 wire
Frequency: 50/60Hz selectable

Output:
Voltage: Max 170 VDC @ 240 VAC input
Current: continuous 5A, intermittent 7A for 10 sec
Resistance: Min. 15 ohm, Max. 100ohm

Voltage Regulation: ＜±1% (with 4% engine governing)

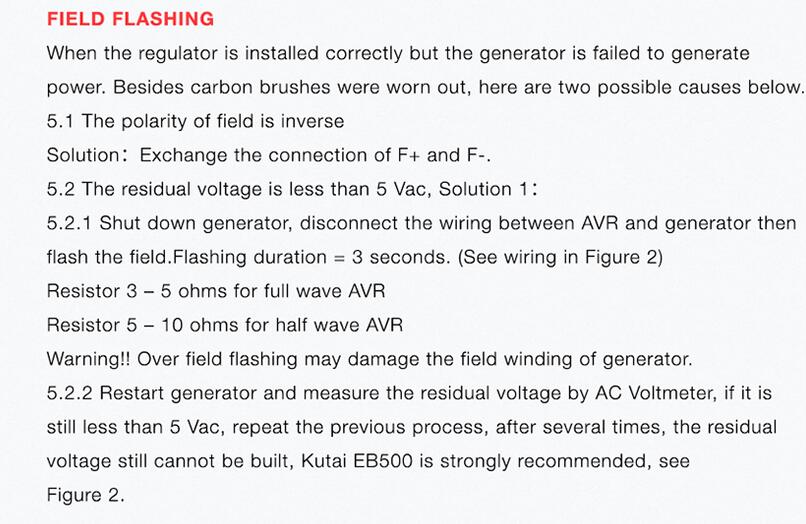

Build Up Voltage: residual volts at AVR terminal ＞5V AC
External Volts Adjustment: ±10% with 5K ohm 1 watt trimmer
Unit Power Dissipation: Max. 8 watts
Soft Start Ramp Time: 2 sec.
Thermal Drift: 0.03% per ℃ change in AVR ambient

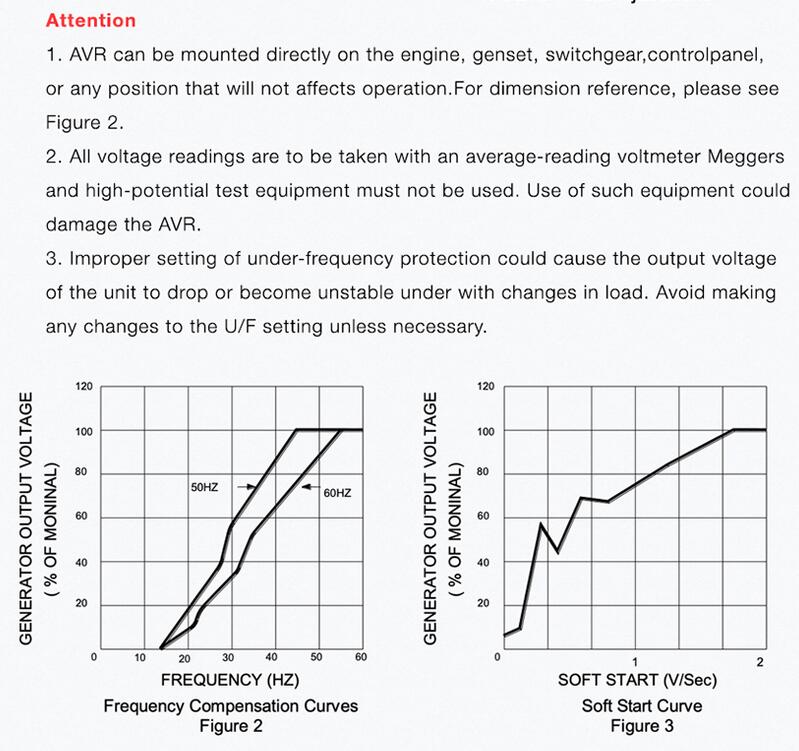

Under Frequency Protection: for 60Hz knee point set at 55Hz; for 50Hz knee point set at 45Hz

Environment:
Operation temperature: -40℃ to 65℃
Storage temperature: -40℃ to 80℃
Relative humidity: Max. 95%
Vibration: 3.3G @ 100~2KHz

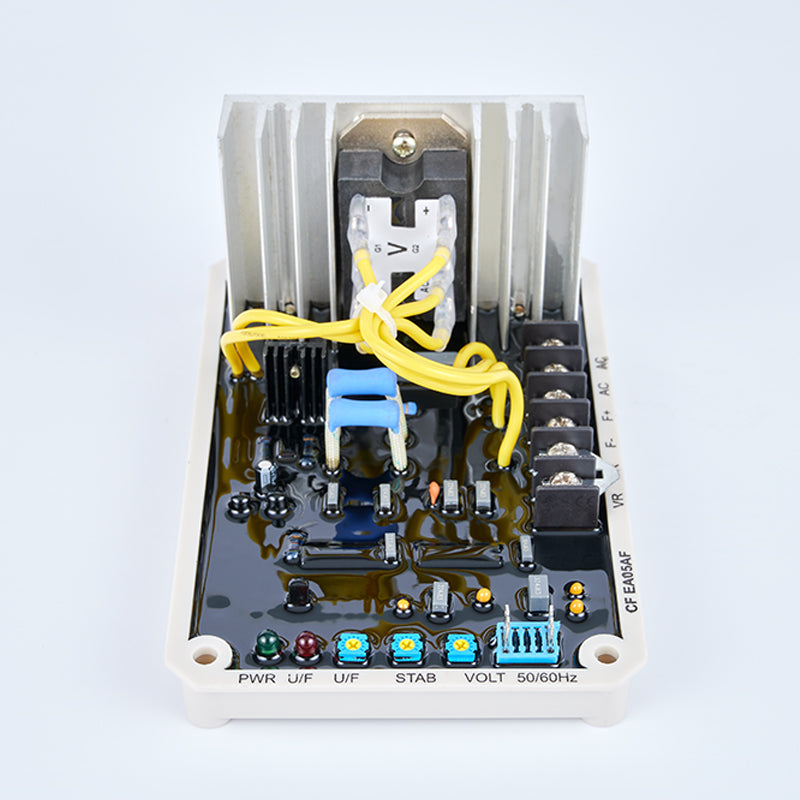

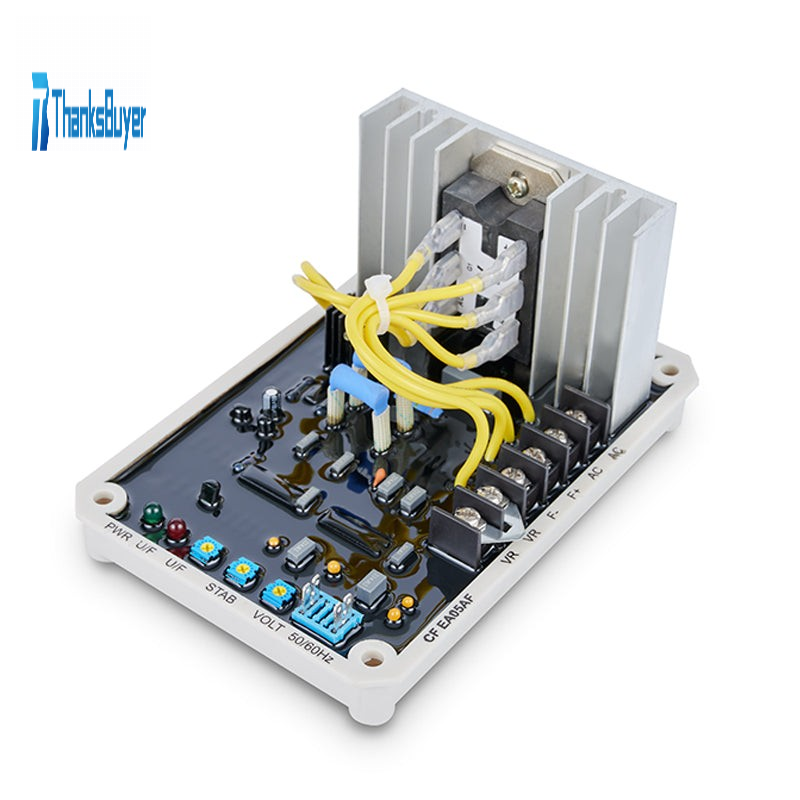

AVR Controls Function:
VOLTS: voltage adjustment
STAB: stability adjustment

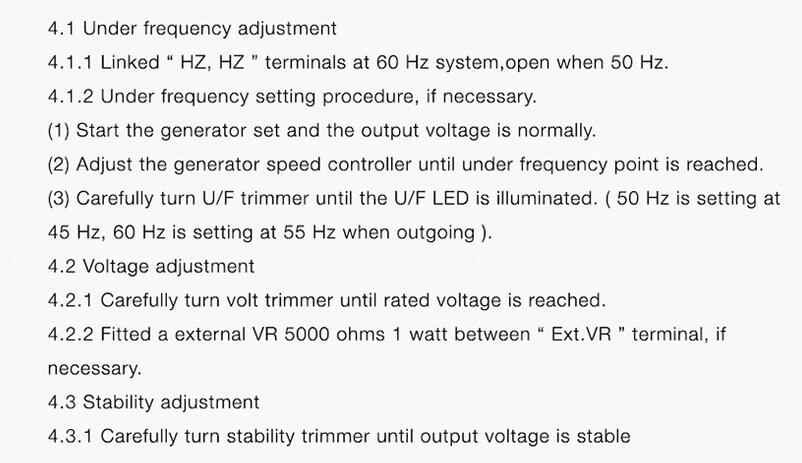

U/F: to set the U/F knee point (U/F: under frequency protection)

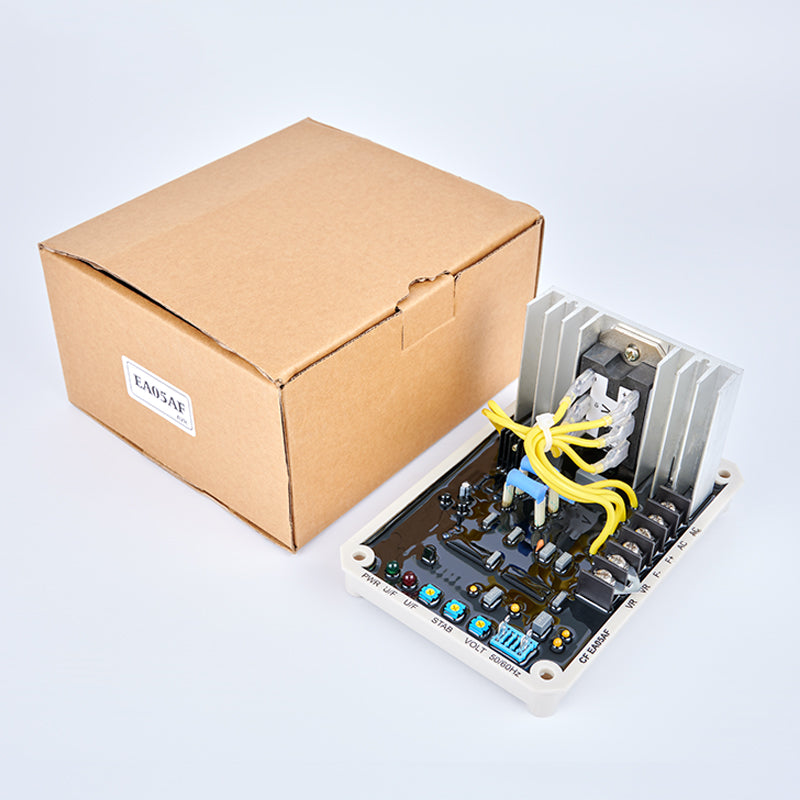

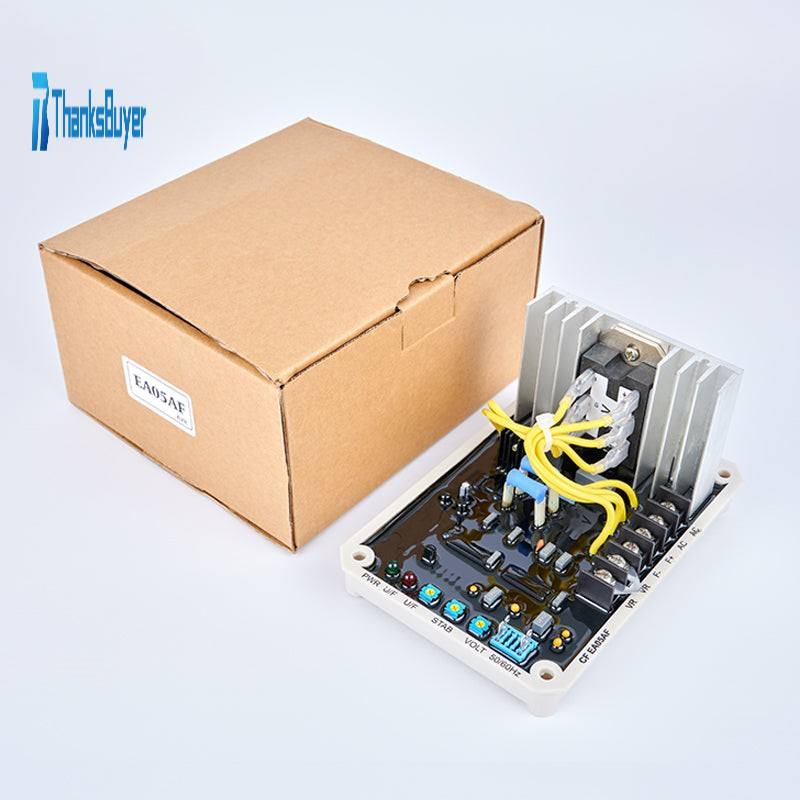

Package List:
1 x Generator Voltage Regulator
