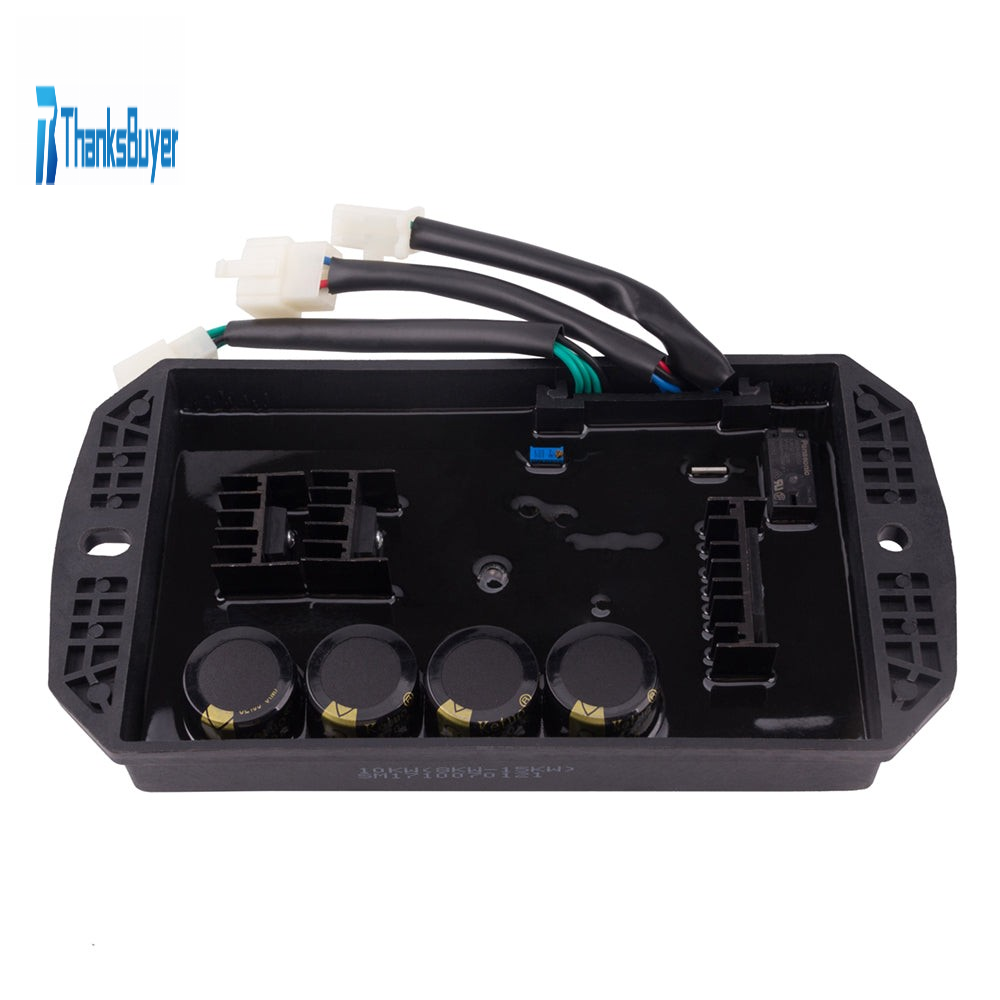

Maxgeek Gasoline Generator Automatic Voltage Regulator Genset AVR 10KW 15KW 8.5KW Three Phase 10 Wires

Maxgeek Gasoline Generator Automatic Voltage Regulator Genset AVR 10KW 15KW 8.5KW Three Phase 10 Wires

Specification:
Maximum load: 15kw
No-load output voltage: 225V
Output voltage with light load: 225 ±5V
Output voltage with heavy load: 225 ±5V
Function: excitation, output short circuit sampling, no output, and recovery after about 60s

Use Conditions:
-Temperature range: -20~105℃
-Starting voltage：>4V
-Motor requirements: under the condition of full load or no load of the output
-Line voltage 230V, excitation current <3A , secondary winding AC effective value voltage <220V, sampling AC effective value voltage is 18-19V

Package List:
1 x Generator Voltage Regulator
