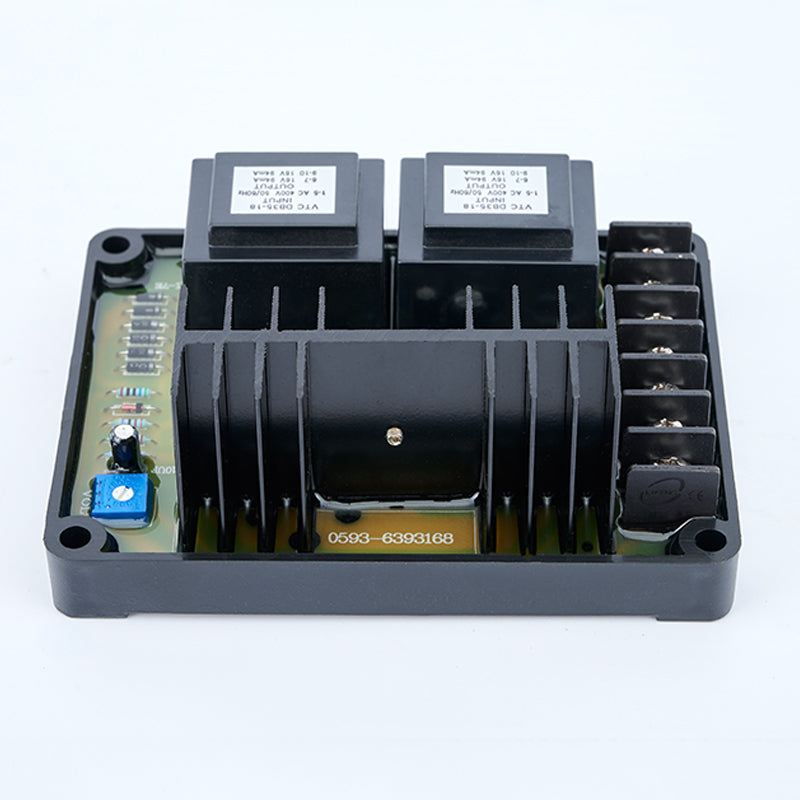

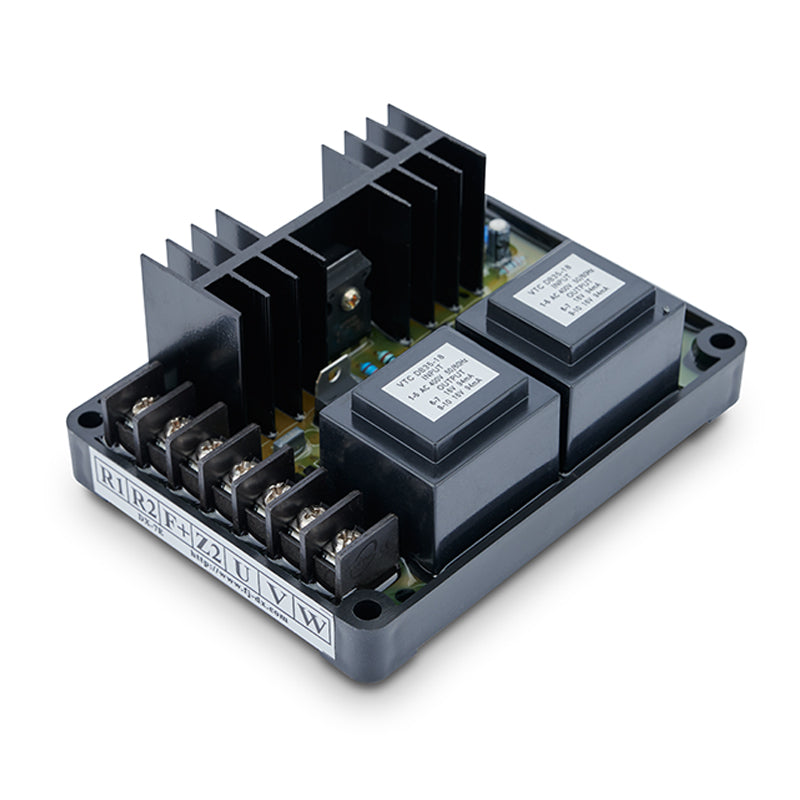

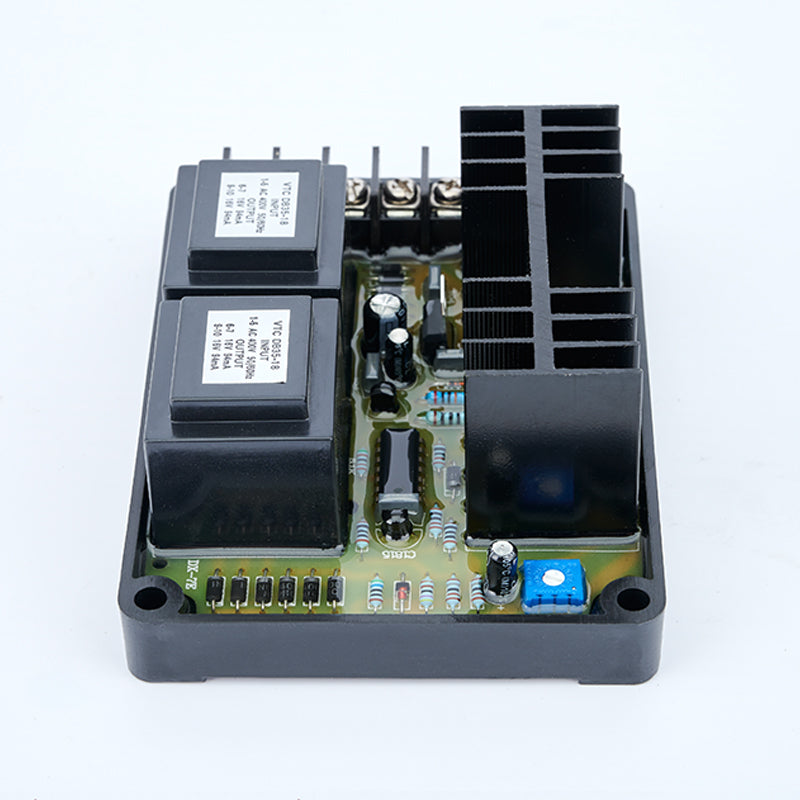

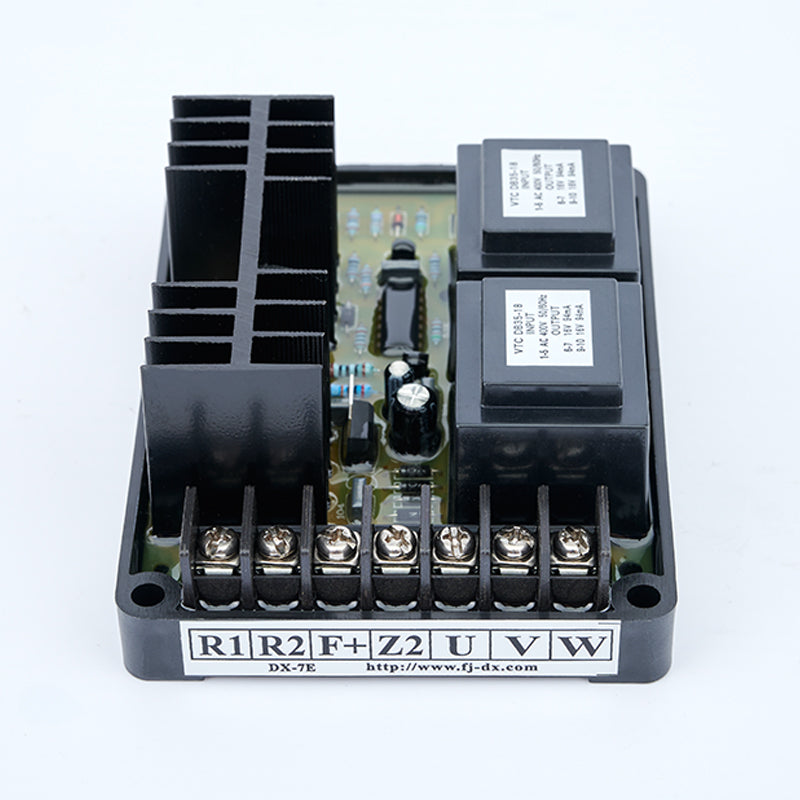

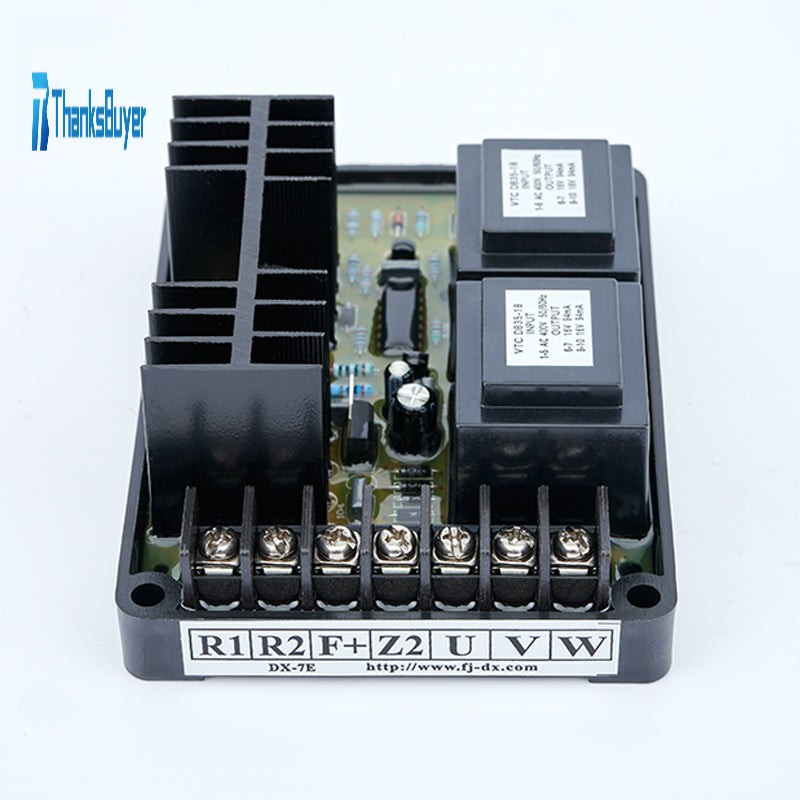

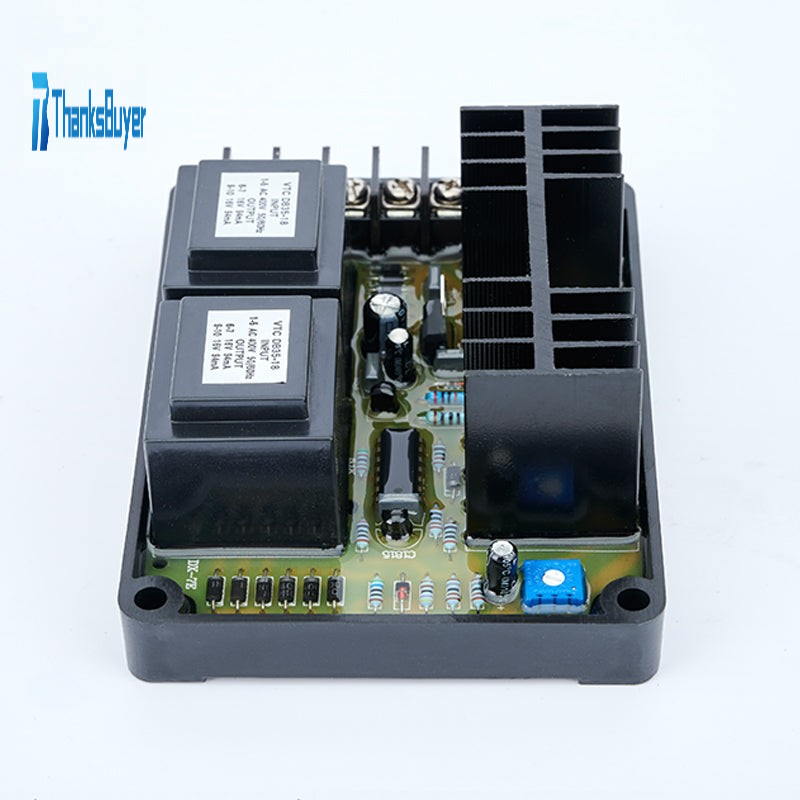

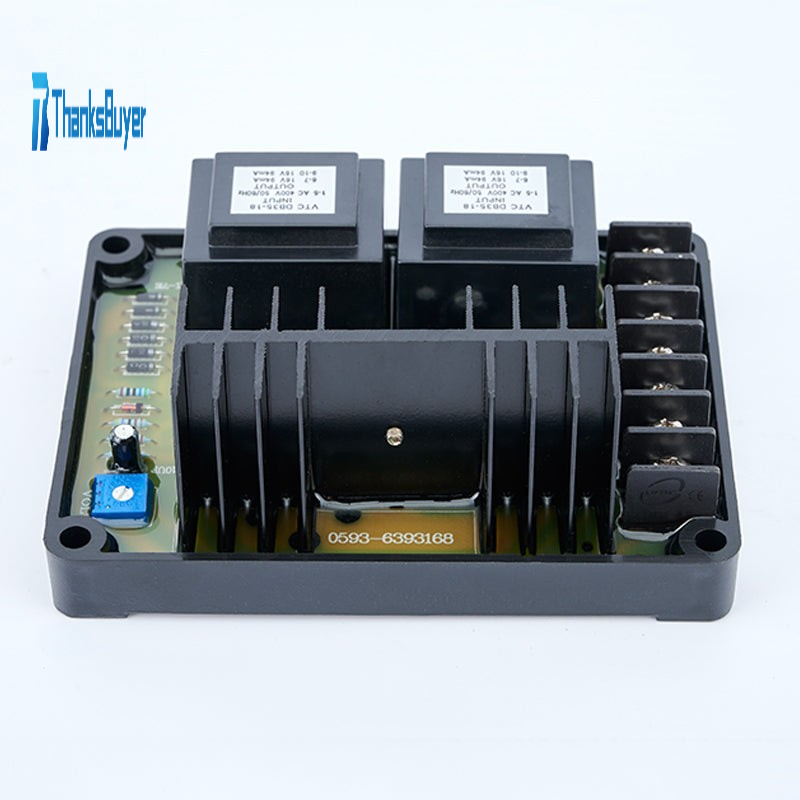

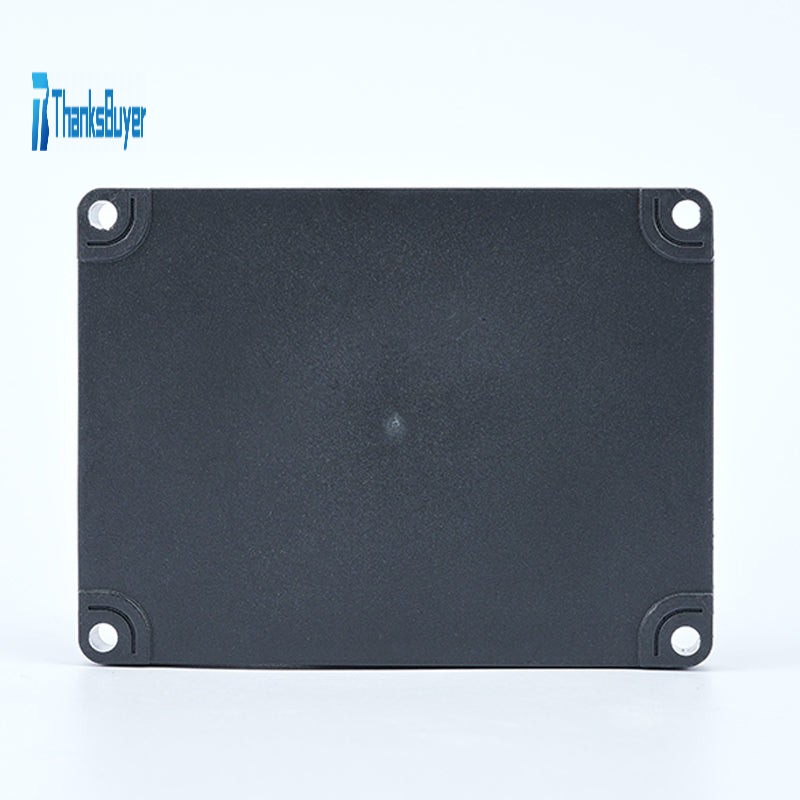

Maxgeek GB140 Generator AVR Automatic Voltage Regulator Diesel Genset Excitation Voltage Stabilizer Board
Specification:
Sensing/Power Input:
Voltage: 400VAC, 1 phase 2 wire
Frequency: 50/60Hz jumper selectable
Excitation Voltage Output:
Voltage: 20-100VDC
Shunt Current: 10A
Regulation: +/-1% RMS with 4% engine governing
Voltage Build-up: residual voltage at AVR terminal ≥5VAC
External Voltage Regulation: +/-10% with 1k ohm 1 watt trimmer
Package List:
1 x Generator Voltage Regulator
