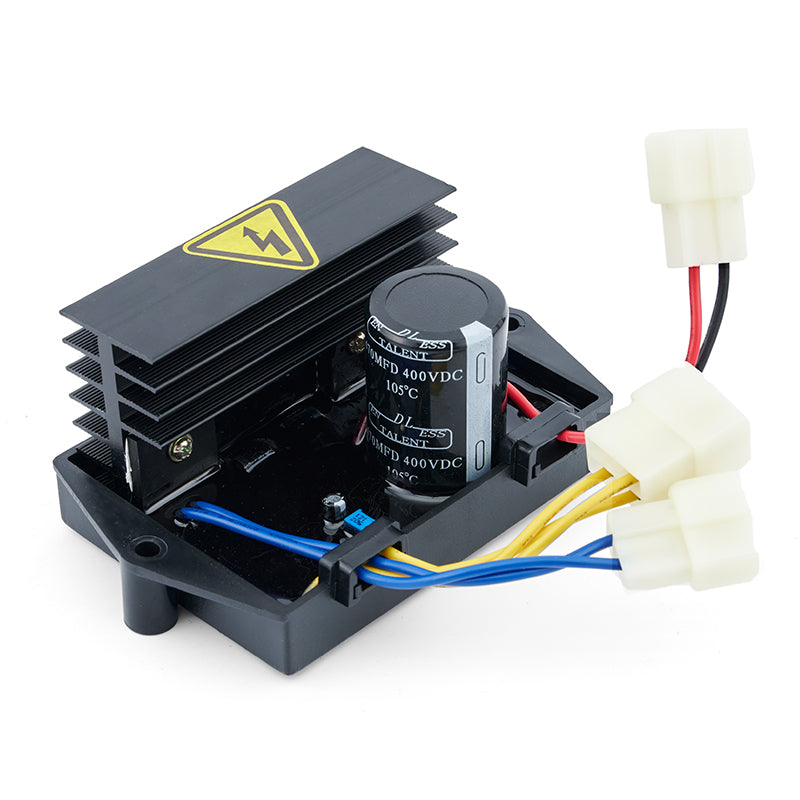

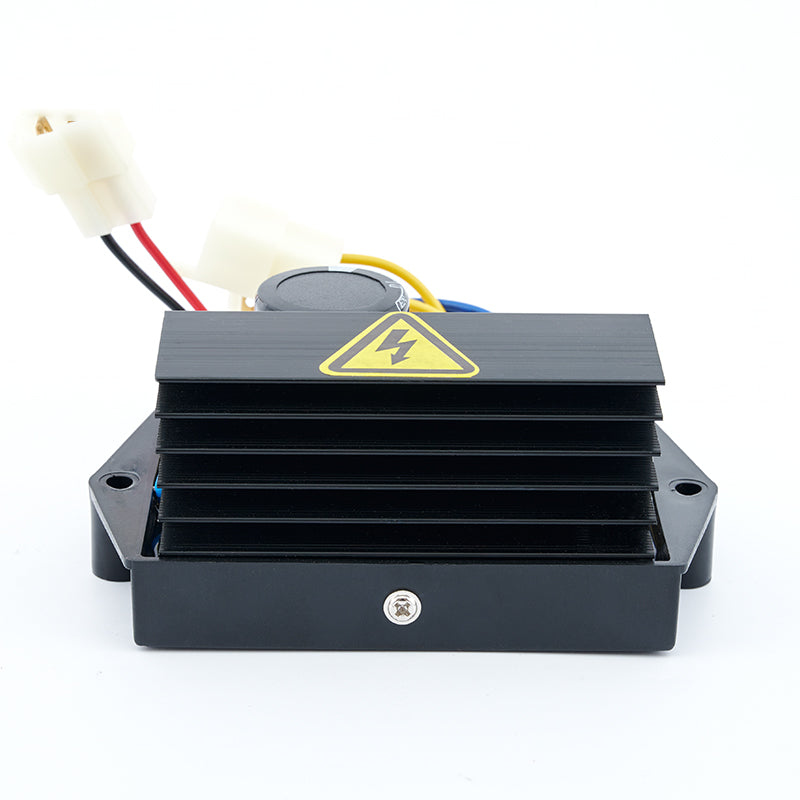

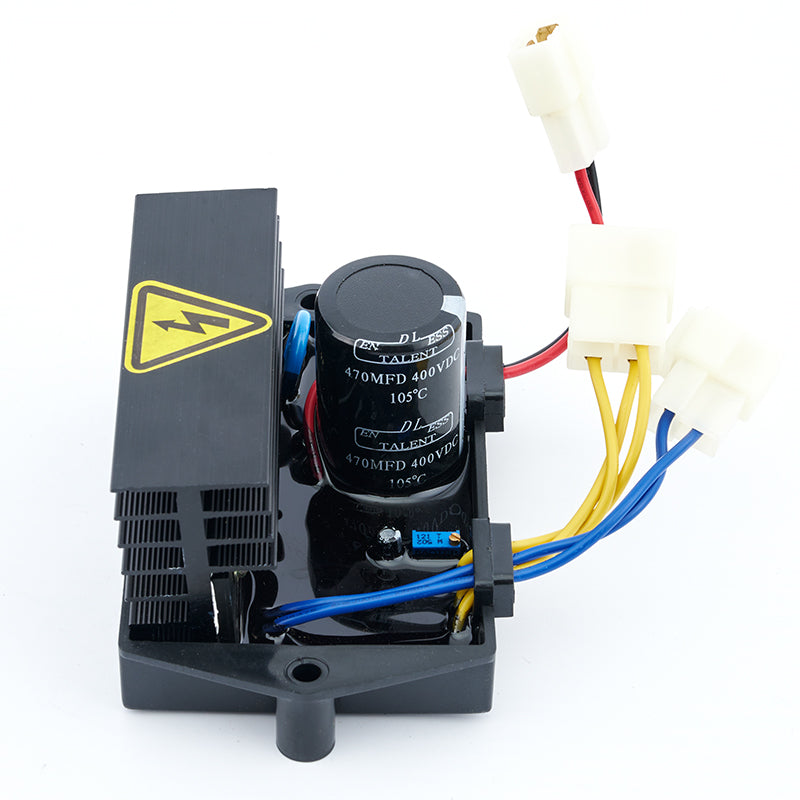

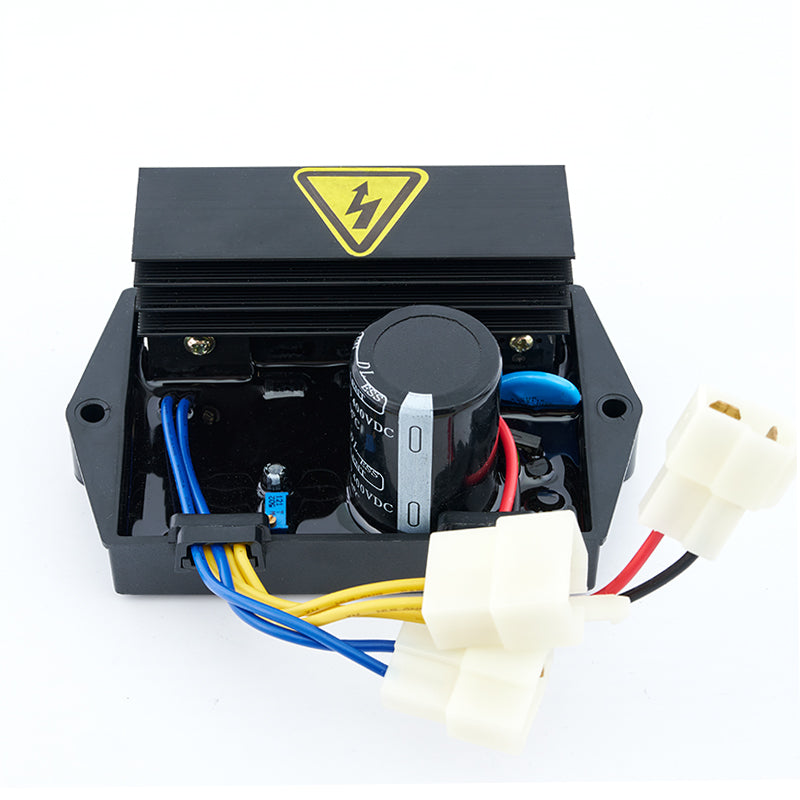

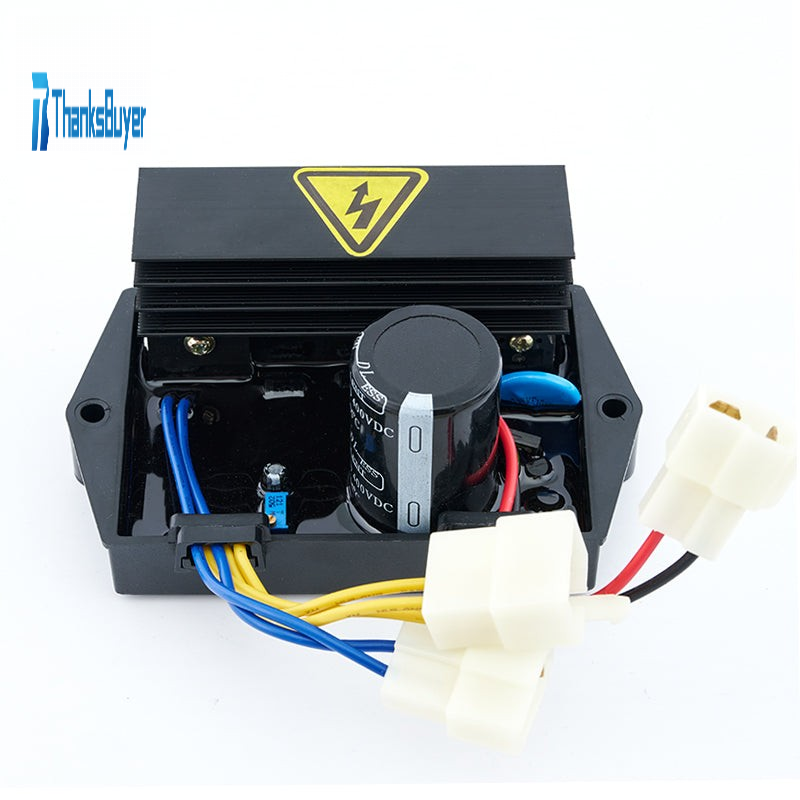

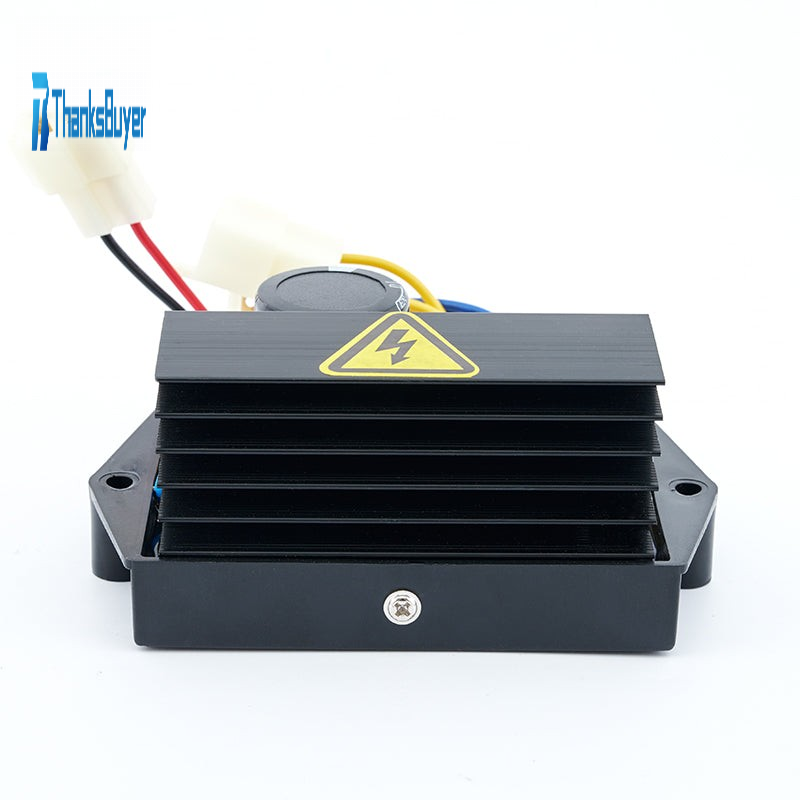

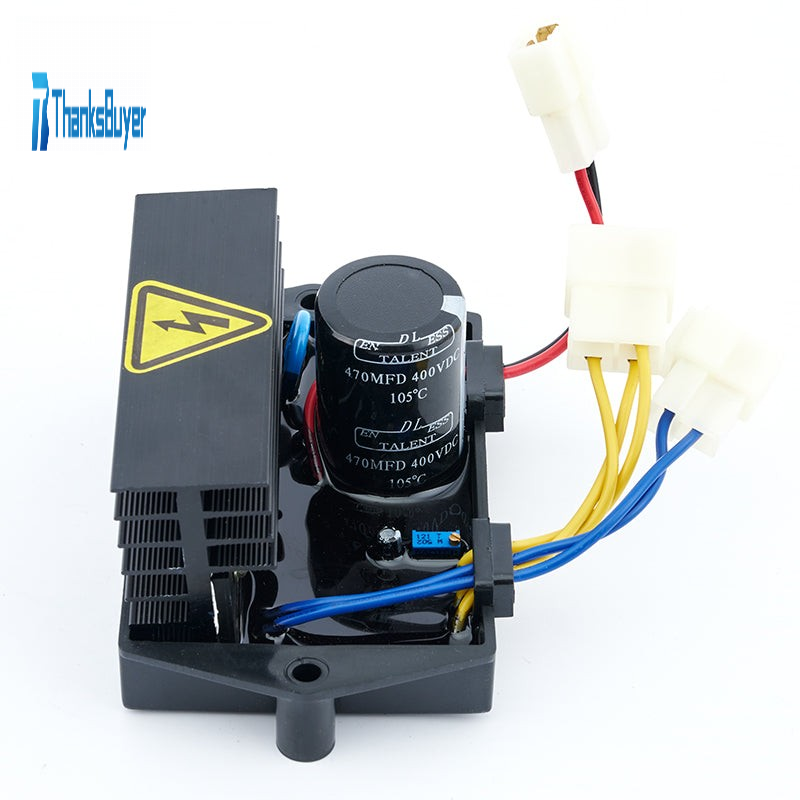

Maxgeek GF09-3A3G Gasoline Generator AVR Automatic Voltage Regulator 10-15KW Voltage Stabilizer

Maxgeek GF09-3A3G Gasoline Generator AVR Automatic Voltage Regulator 10-15KW Voltage Stabilizer

Specification:

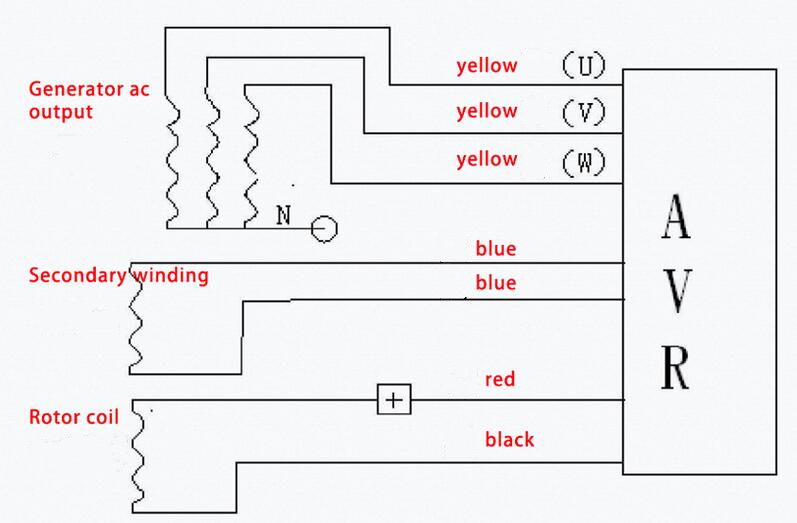

Detect input: three-phase yellow yellow yellow 400V, 50 (60Hz)
Power input: 100~200VAC single phase, blue, blue wire
Output voltage: 200VDC at 200VAC input, red wire is positive, black wire is negative
Output current: 5A continuous, 7A non-continuous in 10 secs
Voltage establishment: residual voltage above 3V
Voltage regulation rate: ≤2%
Temperature drift: 0.5% per ℃ change, voltage drift is less than 0.05%

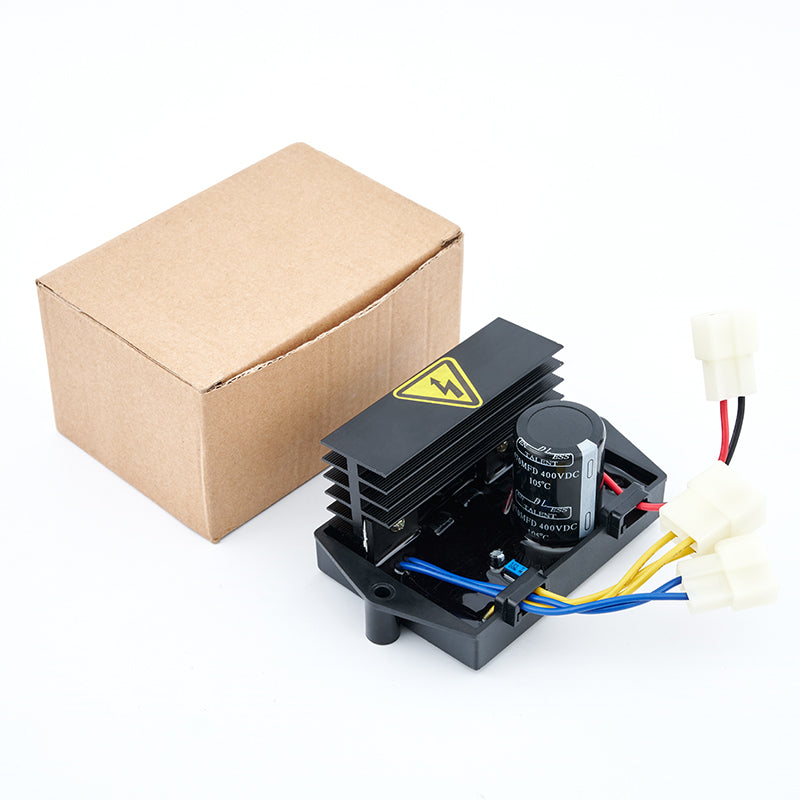

Package List:

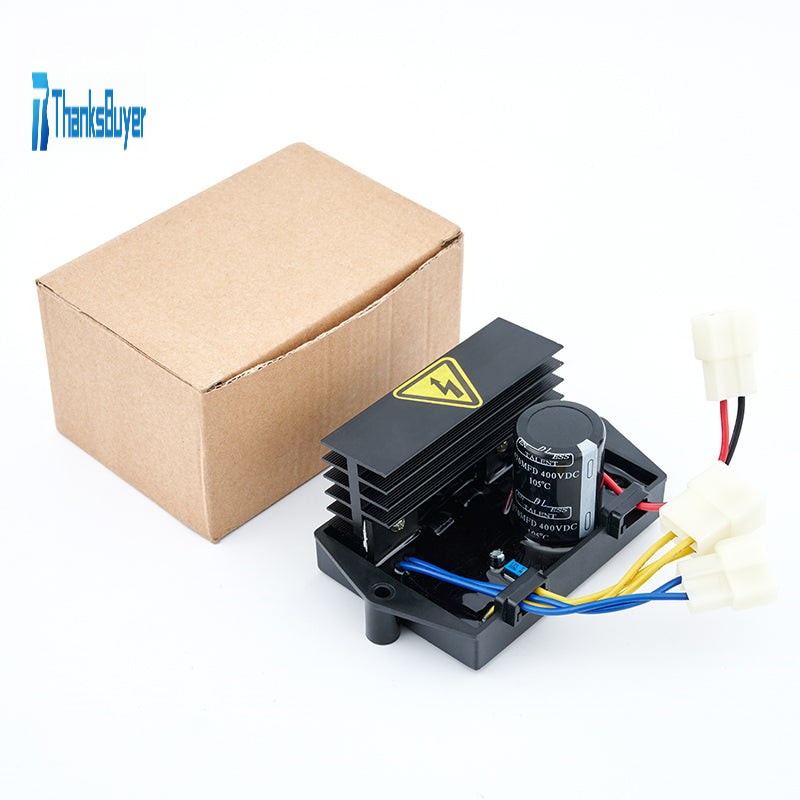

1 x Automatic Voltage Regulator
