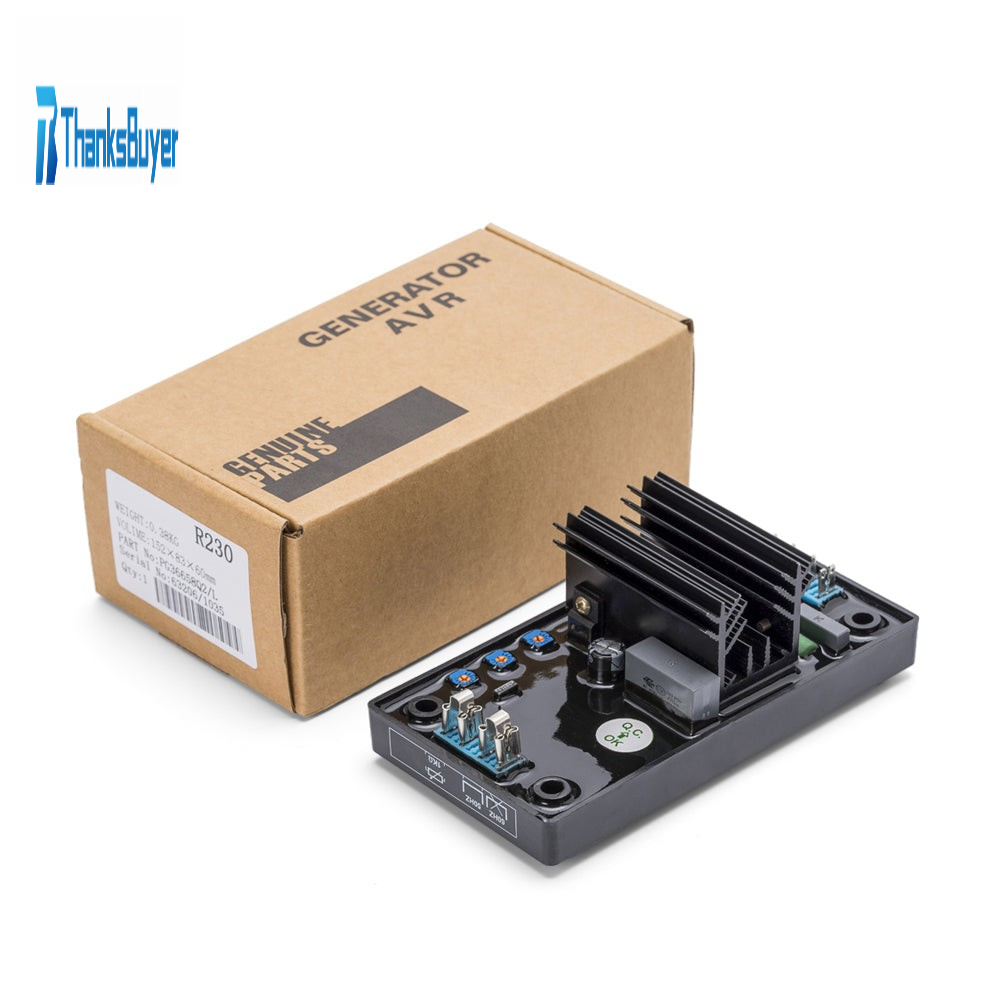

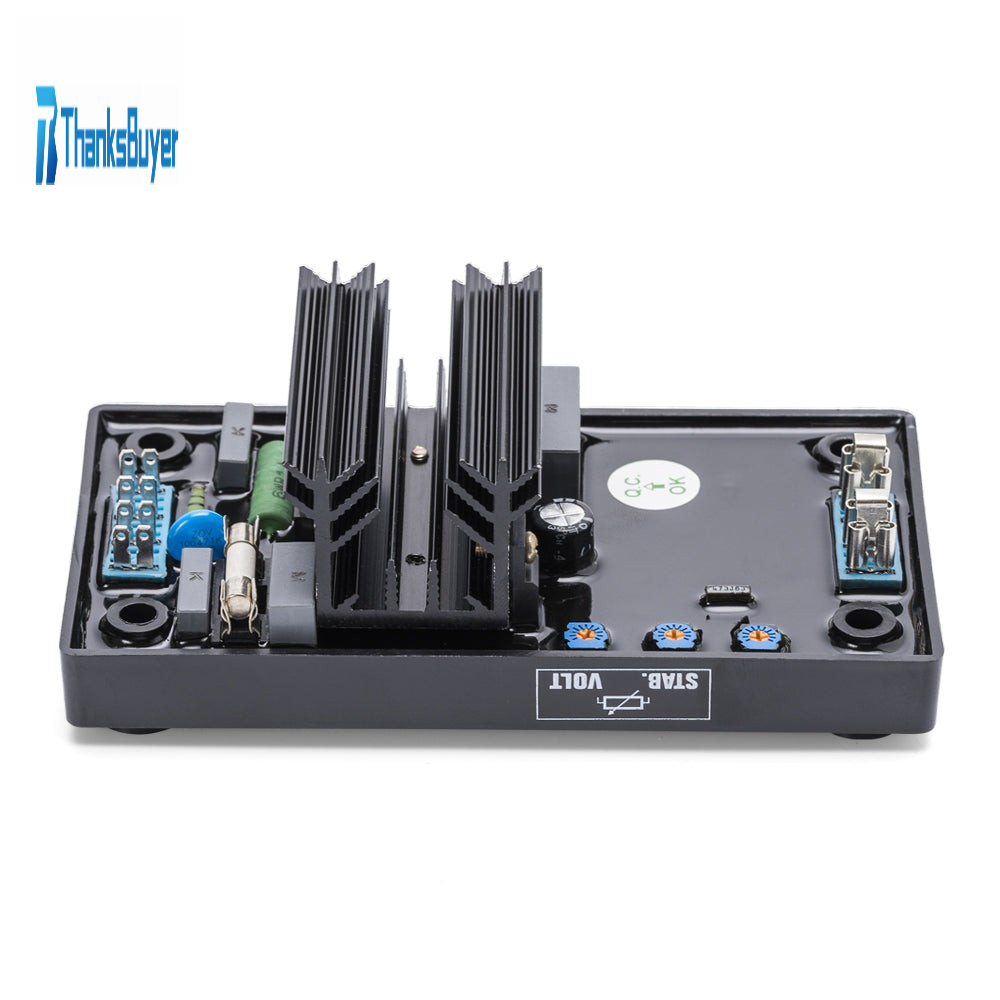

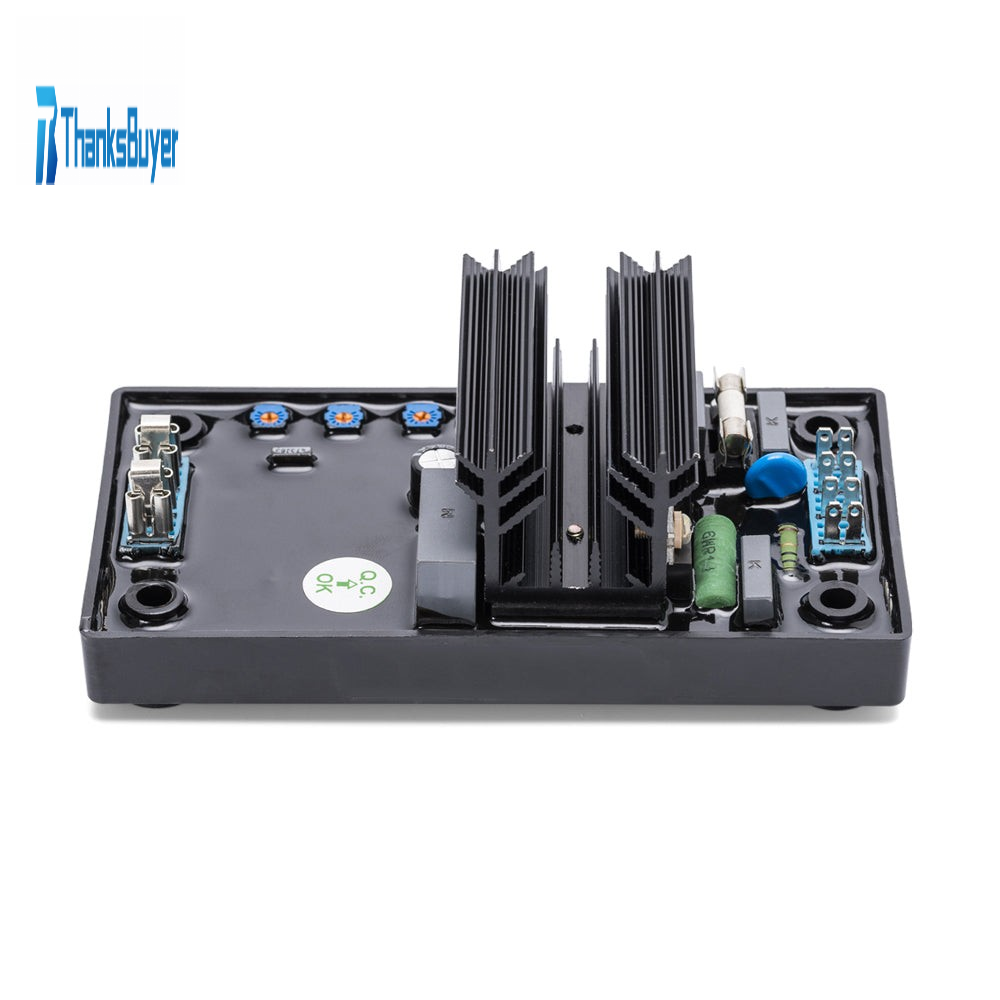

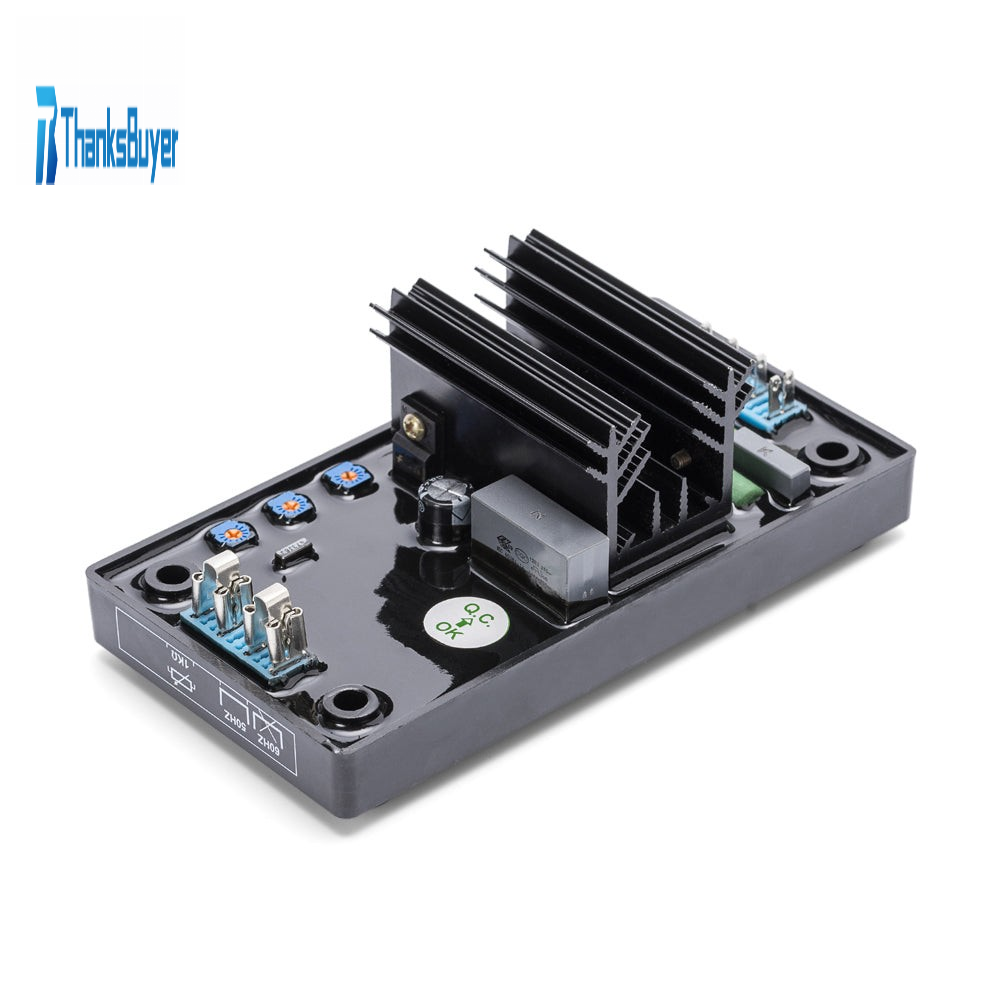

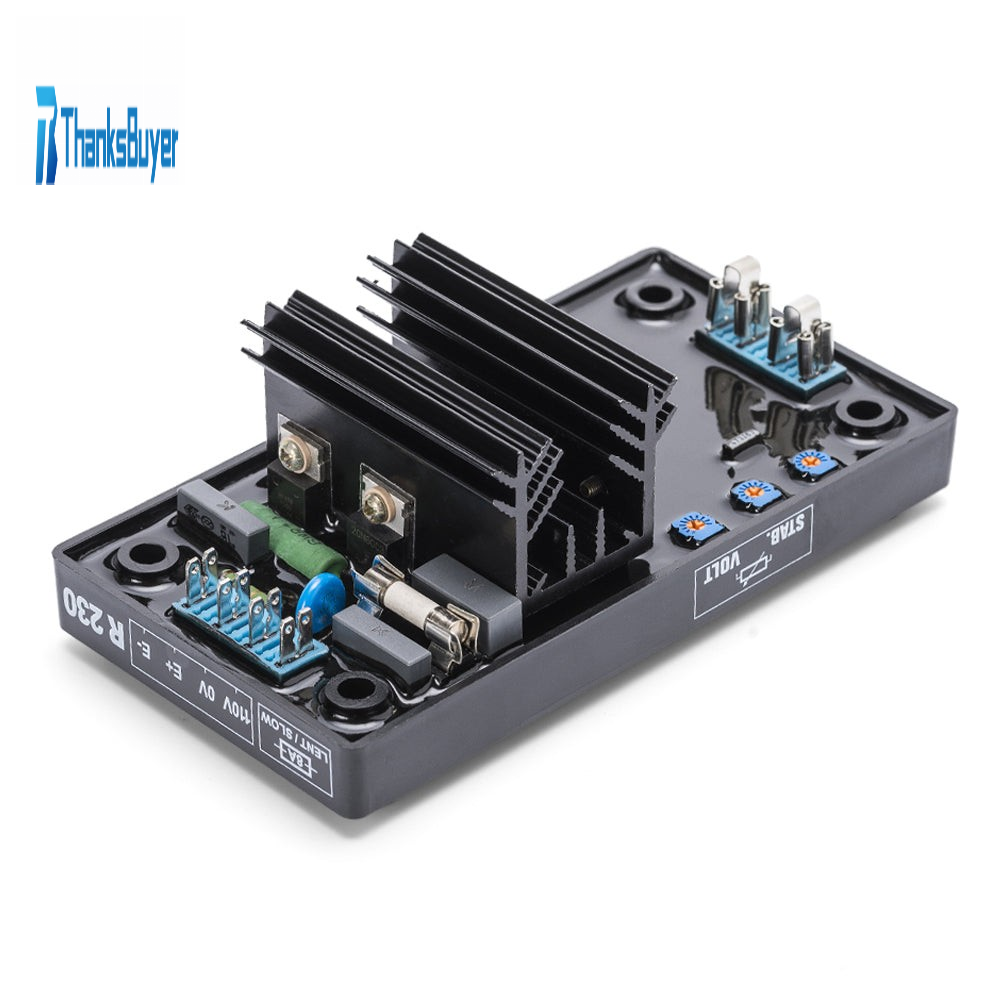

MaxGeek R230 Diesel Generator AVR Automatic Voltage Regulator Genset Voltage Stabilizer Board 220V

Specification:
Sensing Input:
Voltage: 85 to 139 V
Frequency: 50/60 Hz

Output:
Voltage: max. 75V DC at 100V AC input
Current: continuous 4A DC; intermittent 8A
Resistance: 15 ohms minimum

P1 potentiometer (AVR voltage adjustment): fully anti-clockwise
Remote voltage adjustment potentiometer: centre position
Voltage regulation: around +/-0.5%

Features:
-Rapid response time (500 ms) for a transient voltage variation amplitude of ± 20%.
-Very simple in design,the alternator with shunt excitation has no sustaining short-circuit capacity.
-The regulator monitors the exciter excitation current as a function of the alternator output voltage.
-Turn the AVR voltage adjustment potentiometer P1 slowly until the output voltage rated value is obtained.

Package List:
1 x Generator Voltage Regulator
