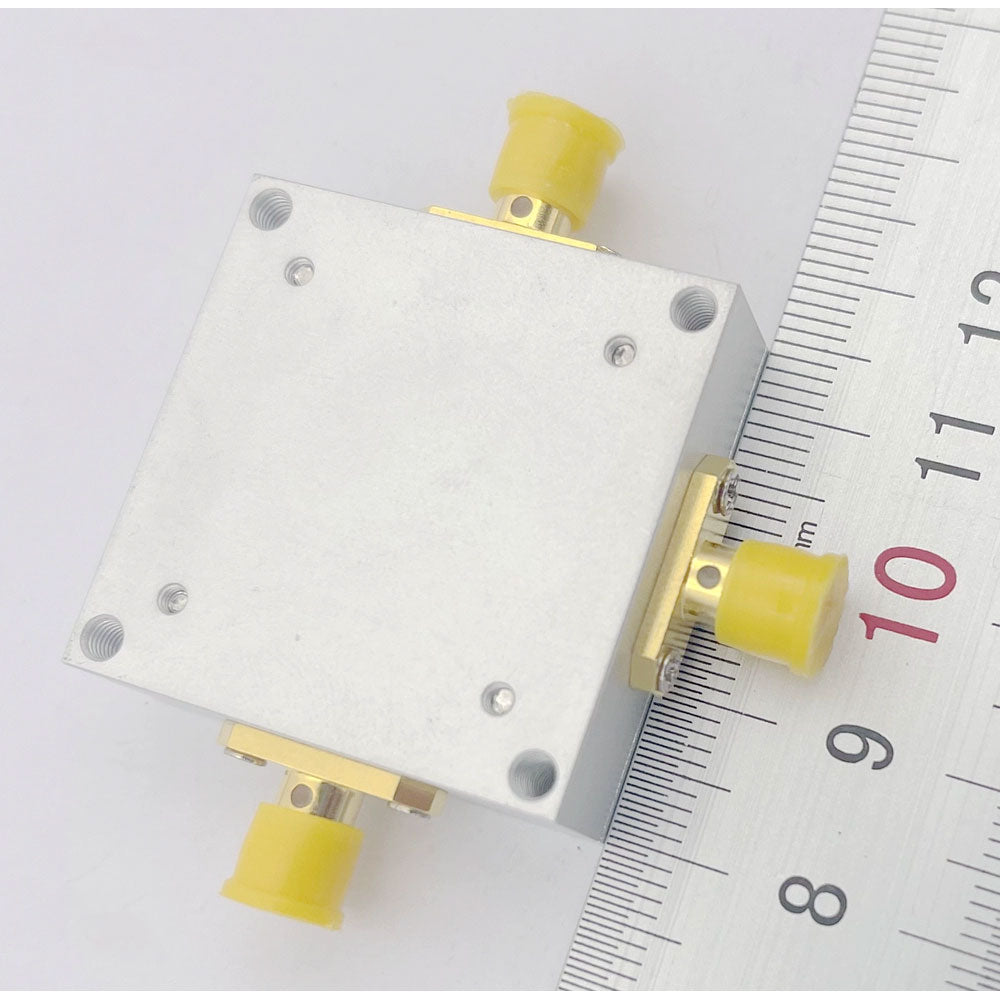

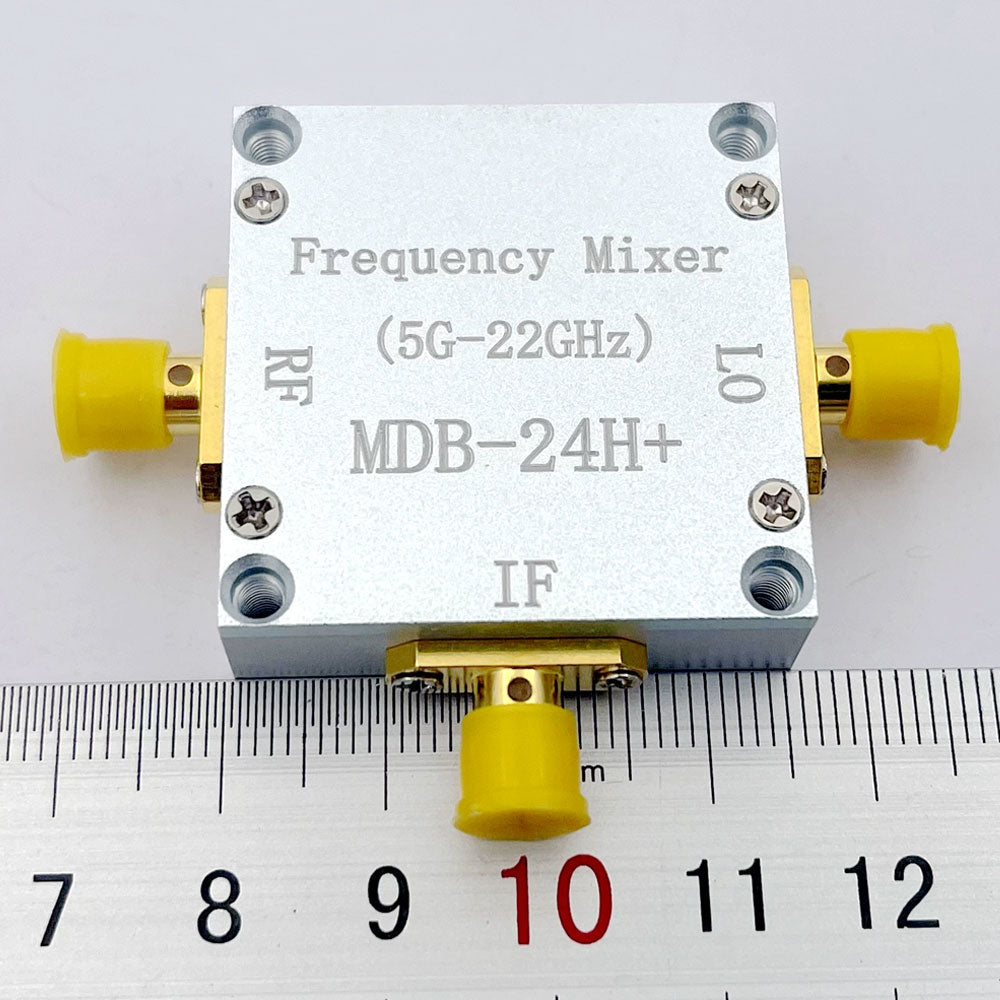

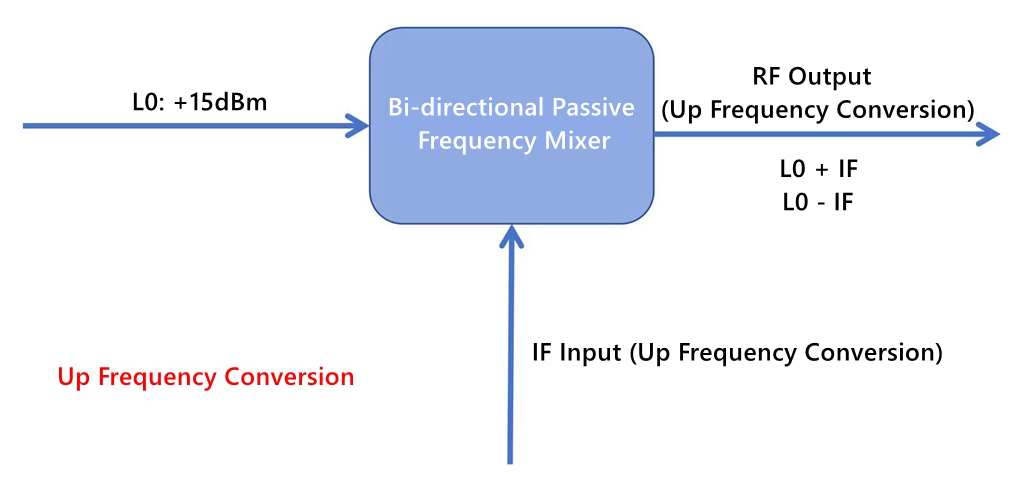

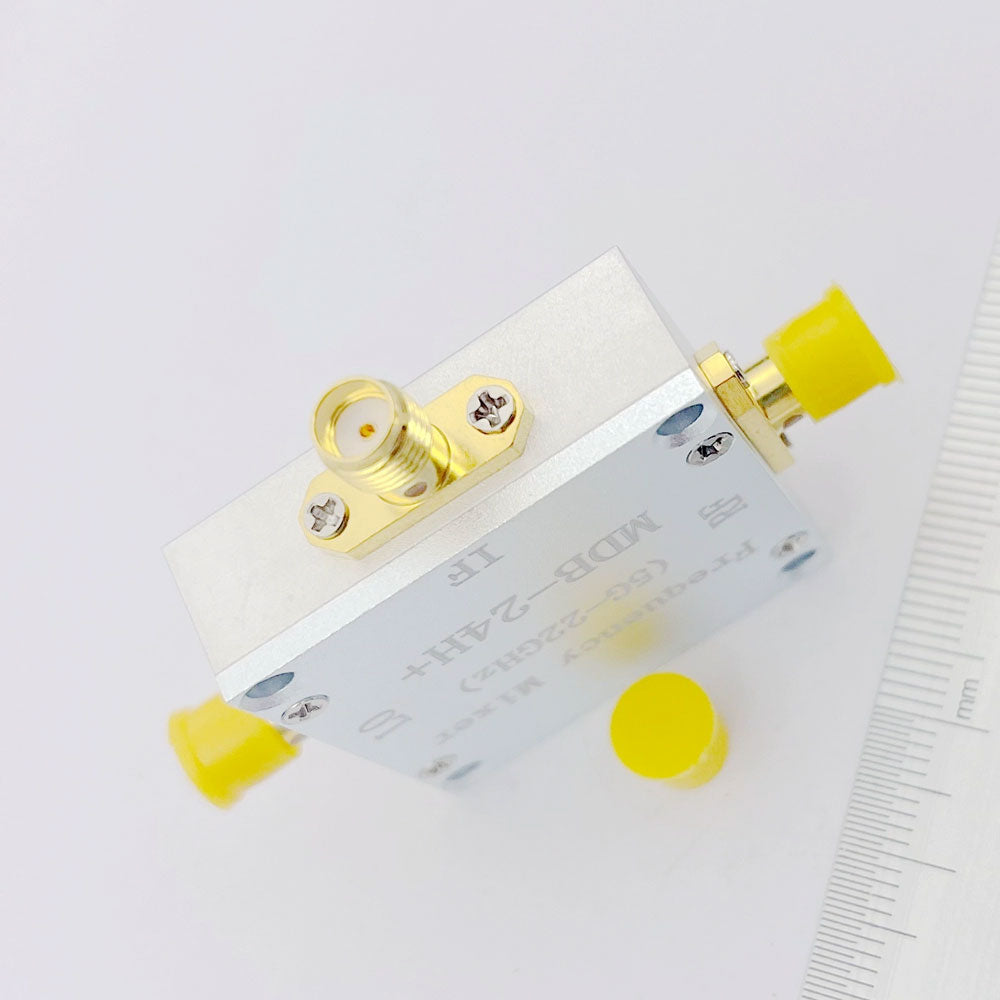

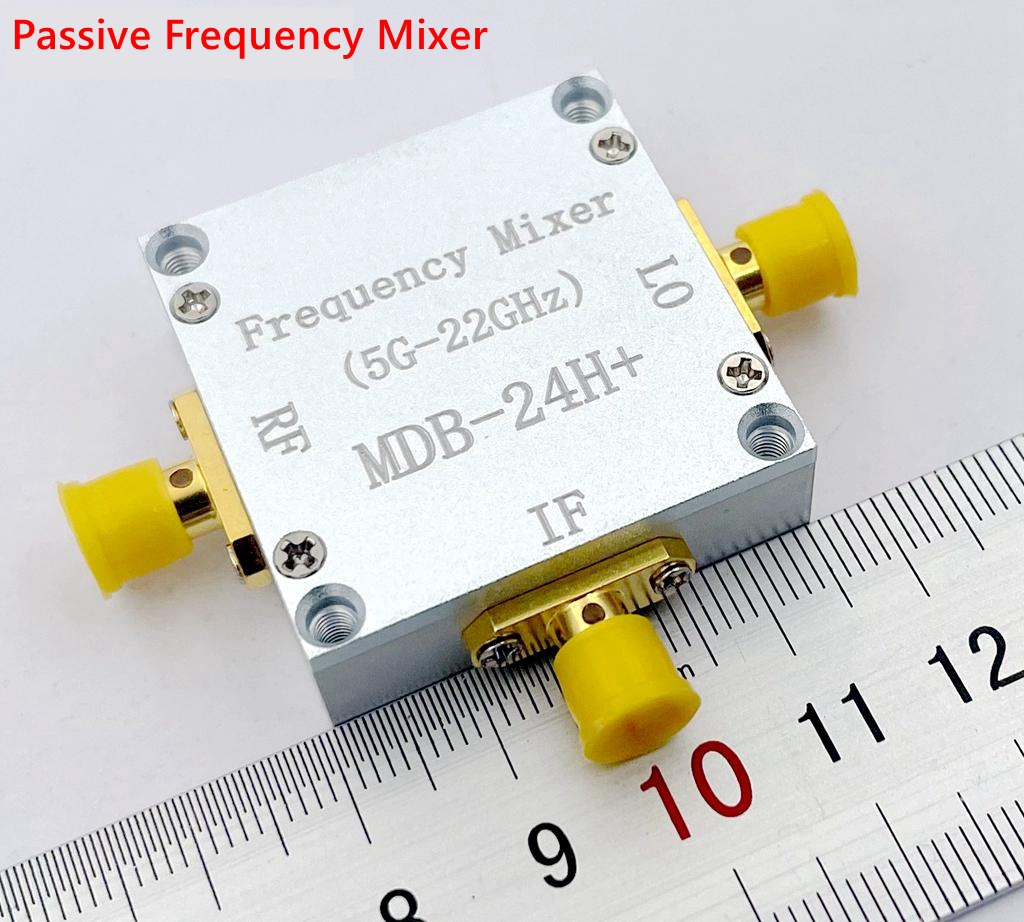

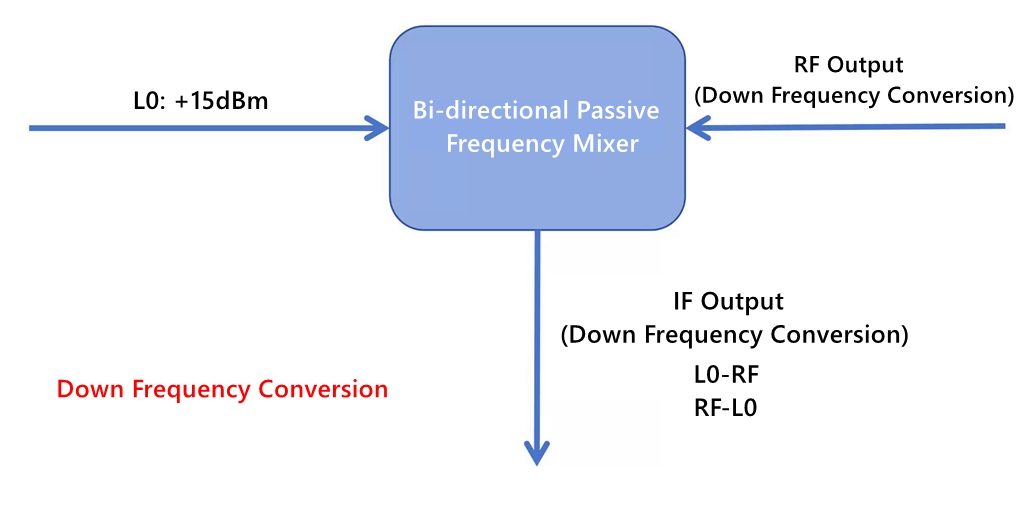

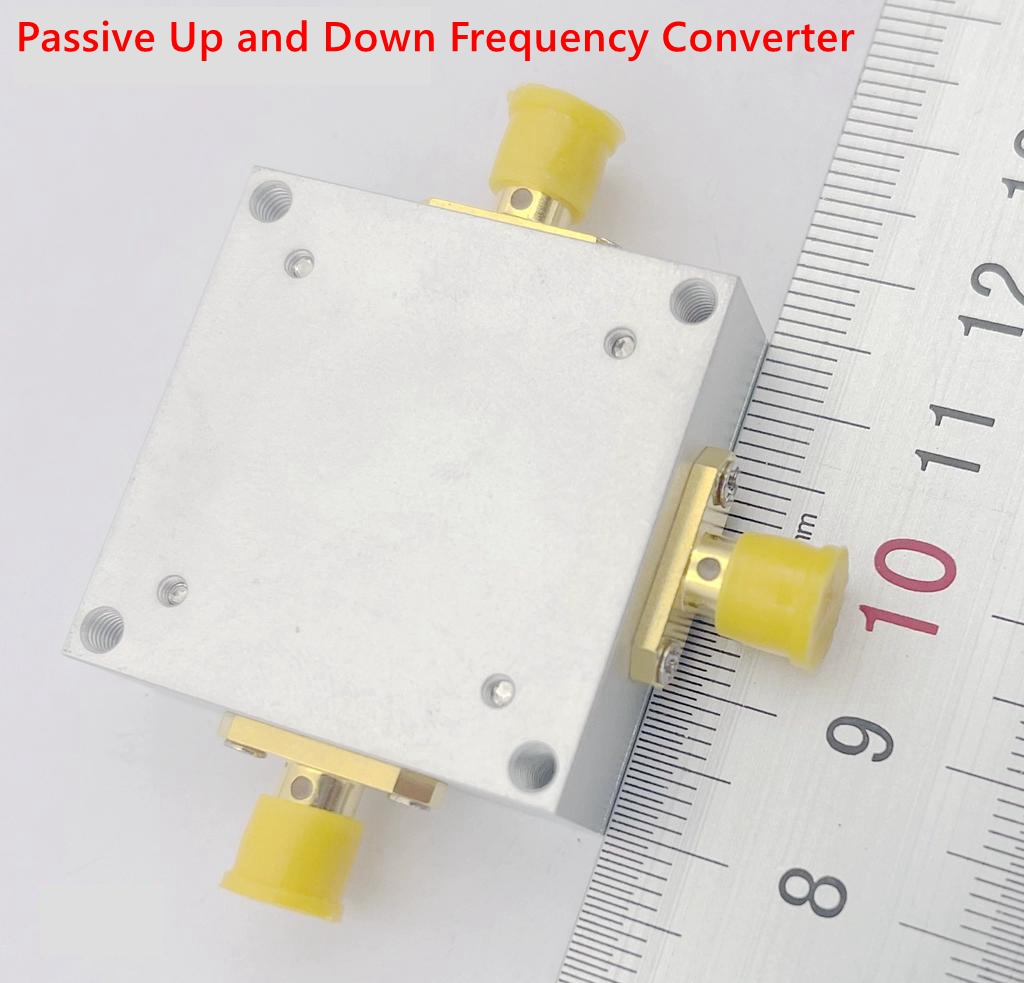

MDB-24H+ Frequency Mixer 5G-22GHz RF Up-and-down Frequency Converter with SMA Female Connector
Regular price
$76.58
Regular price
Sale price
$76.58
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Regular price
$76.58
Regular price
Sale price
$76.58
MDB-24H+ Frequency Mixer 5G-22GHz RF Up-and-down Frequency Converter with SMA Female Connector
Specification:
- RF working frequency: 5G - 22G
- Centre working frequency: DC-5G
- Driving power: 15dBm
- Insertion loss: 9dB - 12dB
- LO-IF isolation: > 40dB
- Input IP3: 14 - 23dB

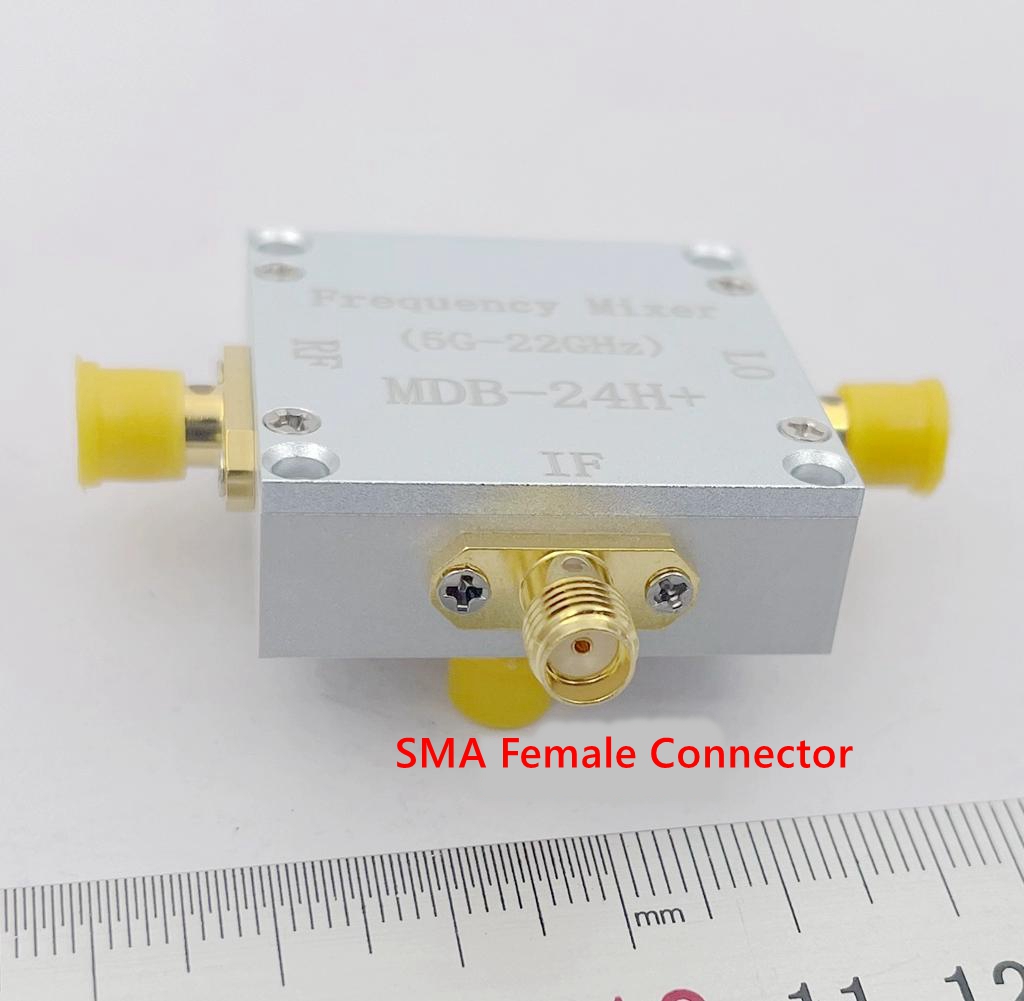

- Connector type: SMA female connector
Package Included:
- 1 x RF Frequency Mixer
