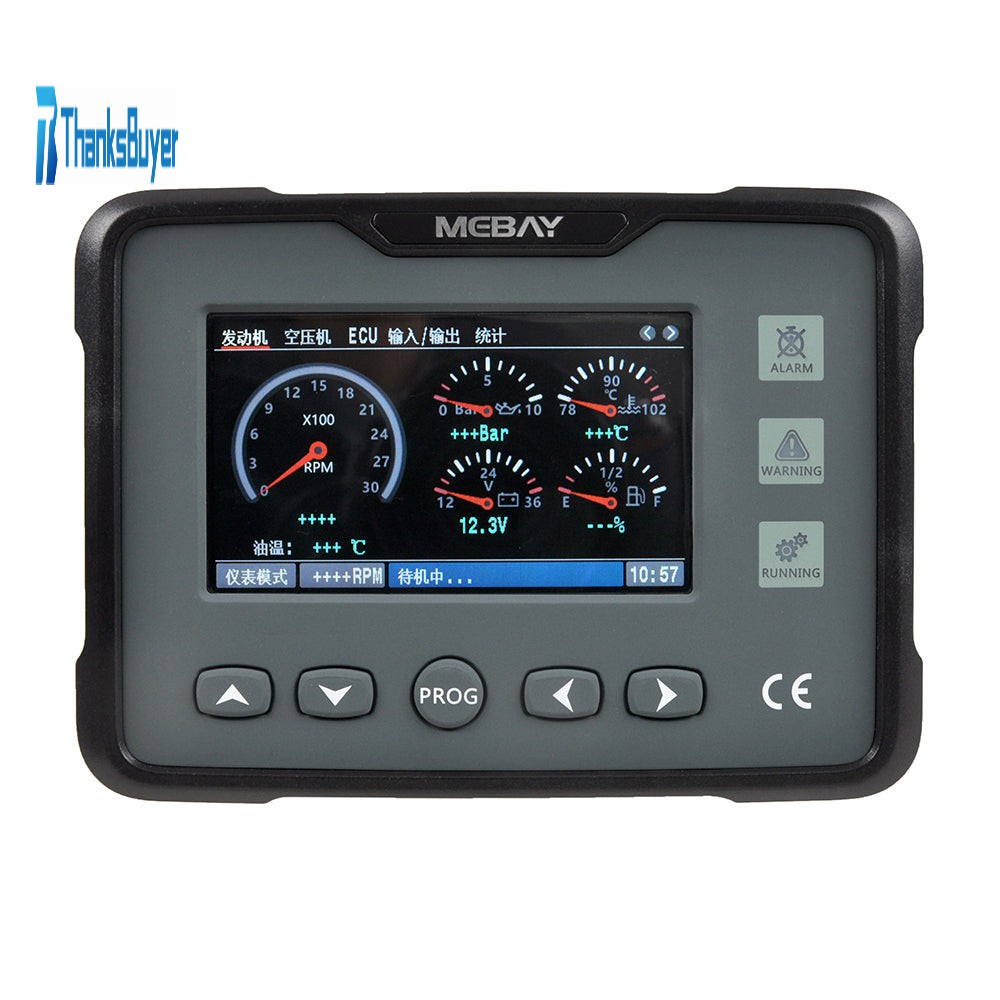

MEBAY Air Compressor Engine RPM Meter Gauge GM70CK Fuel Level Battery Voltage Gauge 4.3" TFT Display CAN Port
Regular price
$215.63
Regular price
Sale price
$215.63
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Availability:
2000 in stock
SKU:
76365
Tags:
Collections:
Regular price
$215.63
Regular price
Sale price
$215.63
Description:
- GM70CK is specially designed to monitor relevant parameters and fault of air compressor driven by diesel engine and gas engine. It is equipped with standard can communication port and built-in J1939 protocol. Relevant parameters can be read through CAN port of engine ECU. The backlight can be changed to white or black as you want.
|
Parameters Display
|
Protection
|
|
Engine RPM
|
Over speed
|
|
Engine oil pressure
|
Under speed
|
|
Engine water temperature
|
Low oil pressure
|
|
Engine oil temperature
|
High water temperature
|
|
Engine fuel level
|
High oil temperature
|
|
Engine battery voltage
|
Low oil level
|
|
ECU related parameters
|
Low water level alarm
|
|
Air Compressor related parameters(Special feature for GM70CK)
|
External instant alarm
|
|
4 switches input status display
|
Low coolant level switch warning
|
|
Output status display of 3 relays
|
Sensor Open
|
|
Cumulative number of startups
|
Maintenance expire
|
|
Total number of alarms
|
ECU alarm failure
|
|
Total Crank times
|
ECU communication Failure
|
|
Current running time
|
External shutdown alarm
|
|
Total running time
|
|
|
Maintenance notice
|
|
|
SPECIFICATION OF GM70C
|
|
|
Power supply
|
DC 8～36 V
|
|
Consumption power
|
Standby:24V:MAX1W
|
|
Working:24V:MAX3W
|
|
|
MAX Accumulating Time
|
99999.9Hours（Min Store time:6min）
|
|
Programmable Relay output 1
|
Max 5 Amp DC+VE Supply voltage
|
|
Programmable Relay output 2
|
250V/5 AMP Non-contact normally Open/Closed output
|
|
Programmable Relay output 3
|
|
|
Switch value input
|
Available if connecting with Battery
|
|
Working condition
|
-25-65℃
|
|
Storage condition
|
-40-85℃
|
|
Protection Level
|
IP54:when water proof rubber gasket is added between meter and its panel
|
|
Insulation strength
|
Apply AC 1.5 kV voltage between high voltage terminal Insulation strength and low voltage terminal; The leakage current is not
more than 3mA within 1min. |
|
Overall dimension
|
175mm*128mm*39mm
|
|
Panel cutout
|
152mm*112mm
|
|
Weight
|
0.5Kg
|
Diagram
