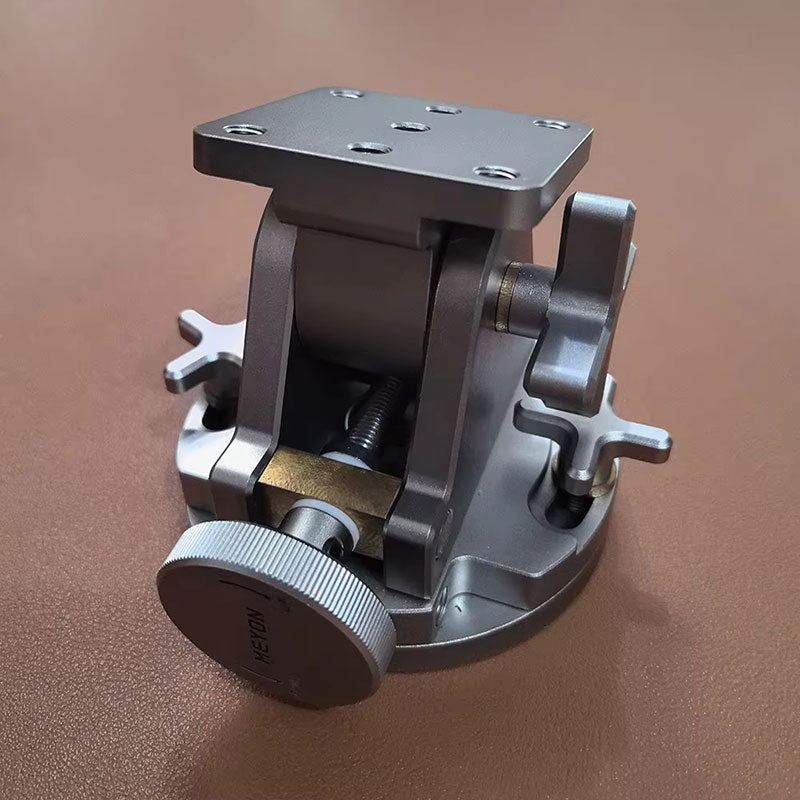

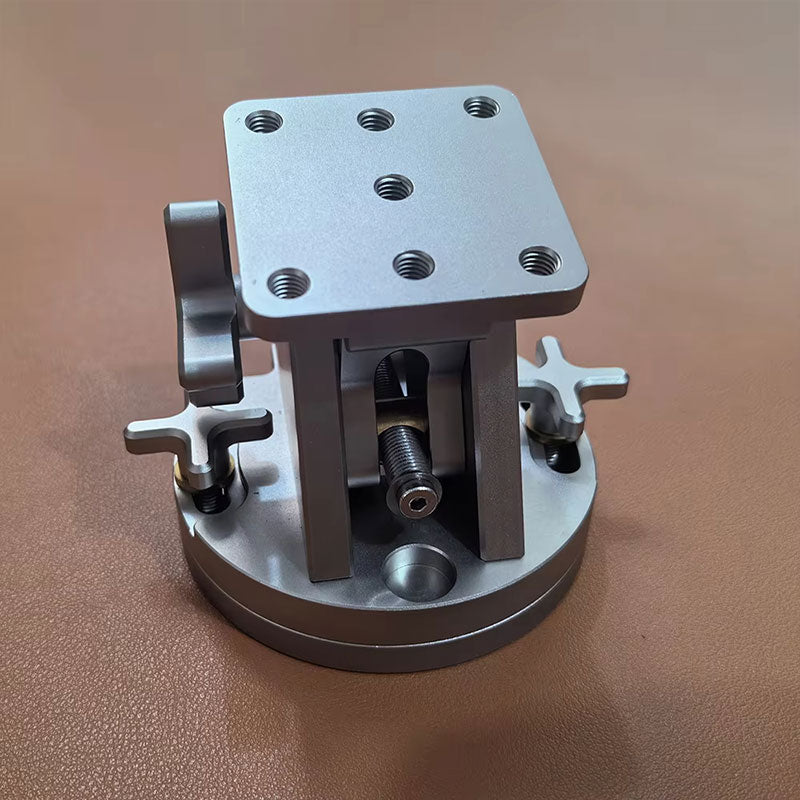

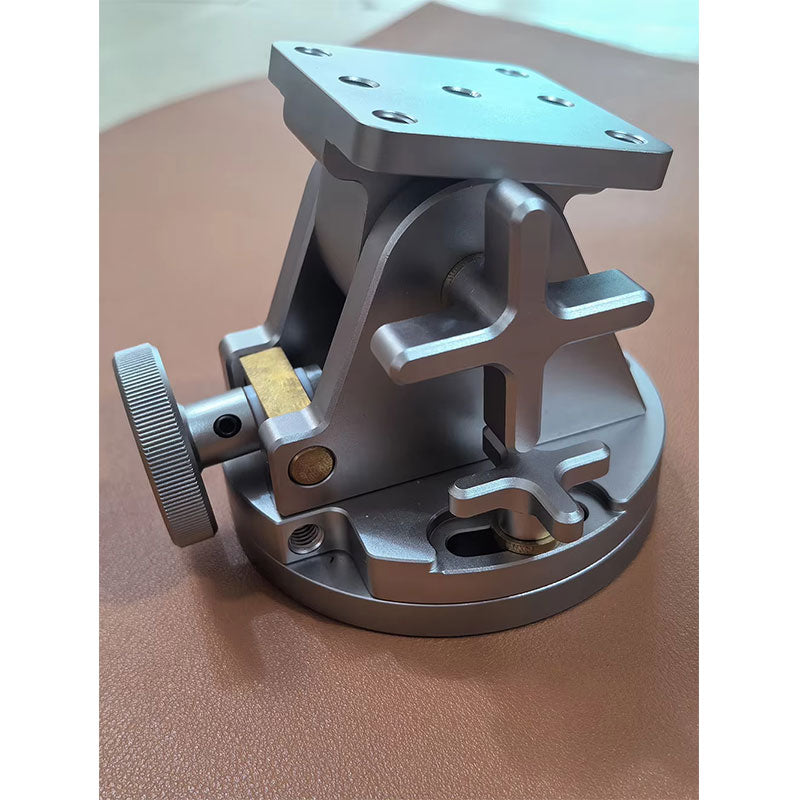

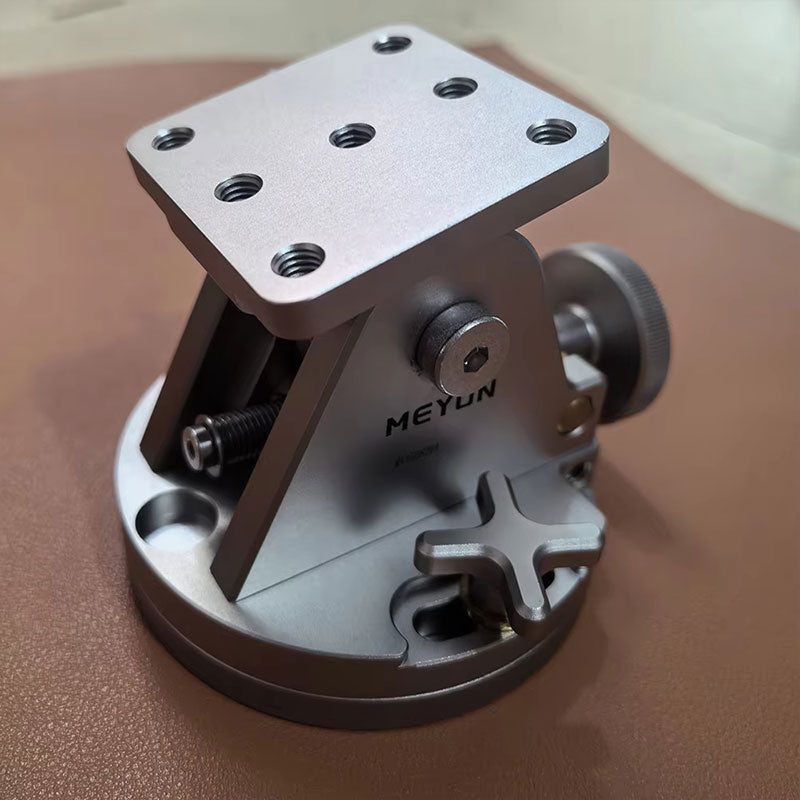

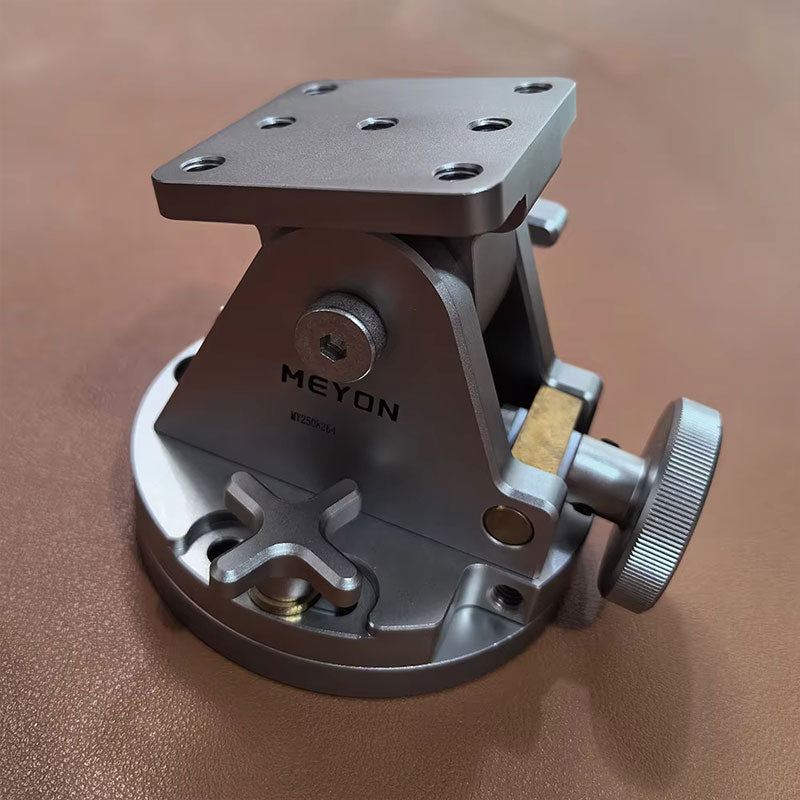

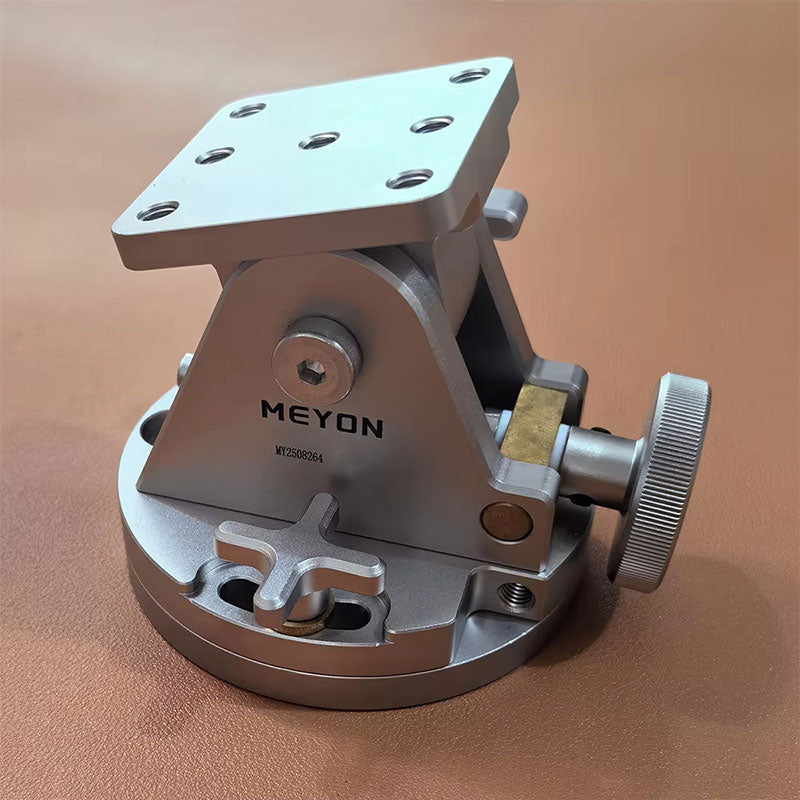

MEYON Astronomical Latitude Adjustment Base 22KG Precision Latitude Mount for Star Adventure Equatorial Mount

Introduction:
- Engineered for demanding astronomers and astrophotographers, this mount delivers exceptional stability and micro-adjustment capabilities.

Features:
- Heavy-Duty Performance: Real-world tested capacity, verified by users carrying 20KG & 22KG loads (more test data coming soon). Recommended Load: ≤15KG (includes mount, counterweights, telescope & accessories).
- Premium CNC Machining: Entire unit precision-milled from high-grade aerospace aluminum. Custom high-precision locking & adjustment screws for ultra-smooth operation.
- Universal Compatibility: Securely holds ALL standard dovetail bars. Directly compatible with DIY harmonic drive equatorial mounts.
- Precision Adjustment:
Latitude Range: 0° to 65° (covers most global observation sites)
Azimuth Fine-Tuning: ±10° horizontal adjustment for perfect polar alignment
- Robust Build: tripod mounting: standard 3/8"-16 UNC threaded socket. Engineered for long-term reliability under heavy loads.

Parameters:
- Material: high-strength aluminum alloy
- Latitude adjustment: 0° - 65°
- Horizontal adjustment: ±10°
- Max tested load: 22KG+ (user-verified)
- Recommended load: ≤15KG
- Mounting thread: 3/8"-16 UNC

Ideal For:
- High-payload telescope setups
- Harmonic drive EQ mount conversions
- Astrophotographers requiring micron-level alignment
- Observatories in latitudes 0°-65° N/S

Package Included:
- 1 x Latitude Base
