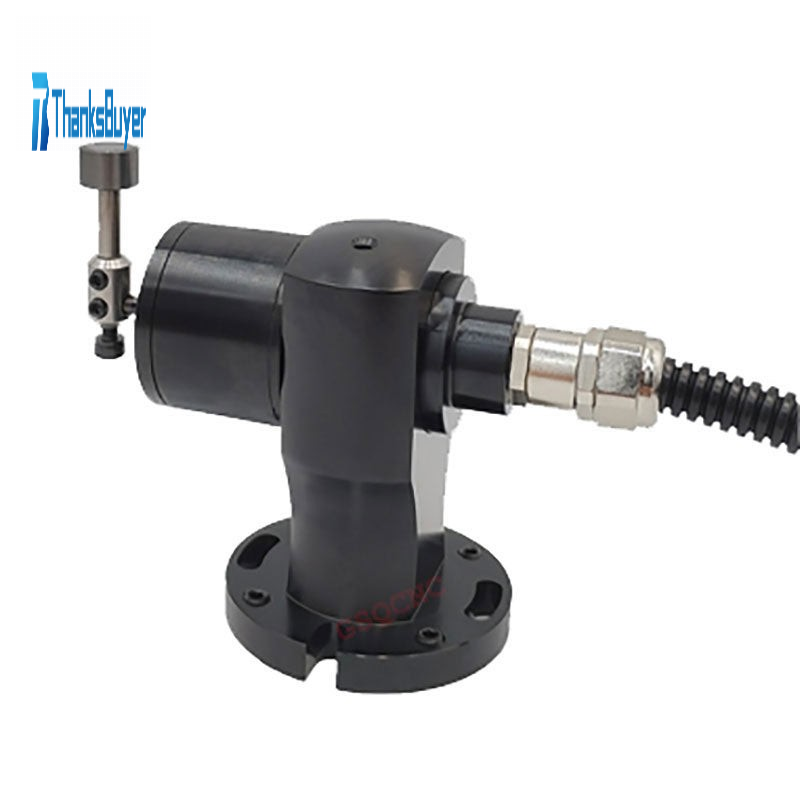

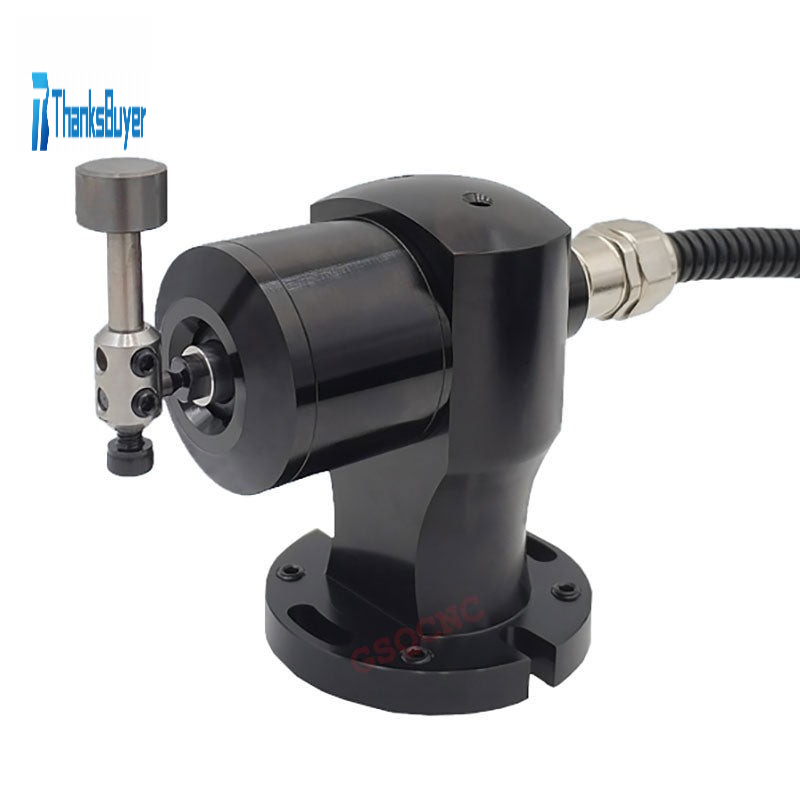

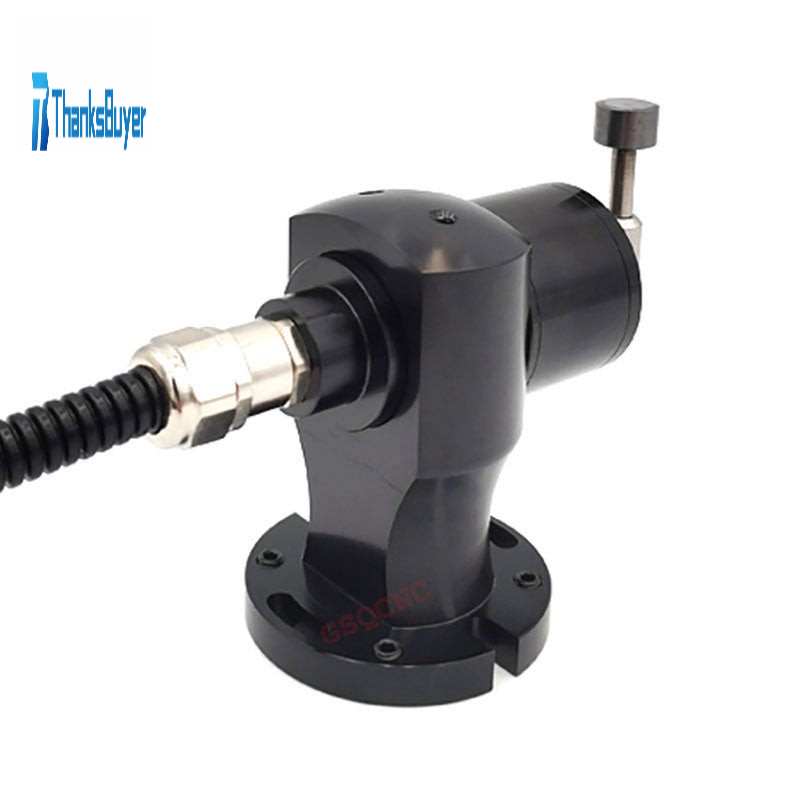

MS27R-3-1 Five-direction Ultra-mini 3D Trigger Type High Precision CNC Tool Detector for CNC Engraving Machine

Description:
- MS27R multi directional tool detector, a super small 3D triggered tool setter with hard wire connection transmission, is used for performing damage detection on various cutting tools and quickly measuring tool length and diameter. Used for tool measurement and tool breakage detection on various types of vertical and horizontal machining centers, as well as various gantry machining centers.

Specifications:
- Product model: MS27R-3-1
- Control output: PNP/NPN (normally open/normally closed)
- Contact diameter: 14-20m
- Measurement direction: Soil X, Soil Y,+Z
- Material: Alloy
- Surface treatment: Grinding the 4S mirror surface
- Repetitive accuracy: 0.001mm
- Contact life: 3 million times
- Contact force: 0.7N
- Travel: 3mm
- Power supply voltage: 12-24VDC
- Contact rated value: 15mA (MAX) Recommended value: 10mA Resistance load

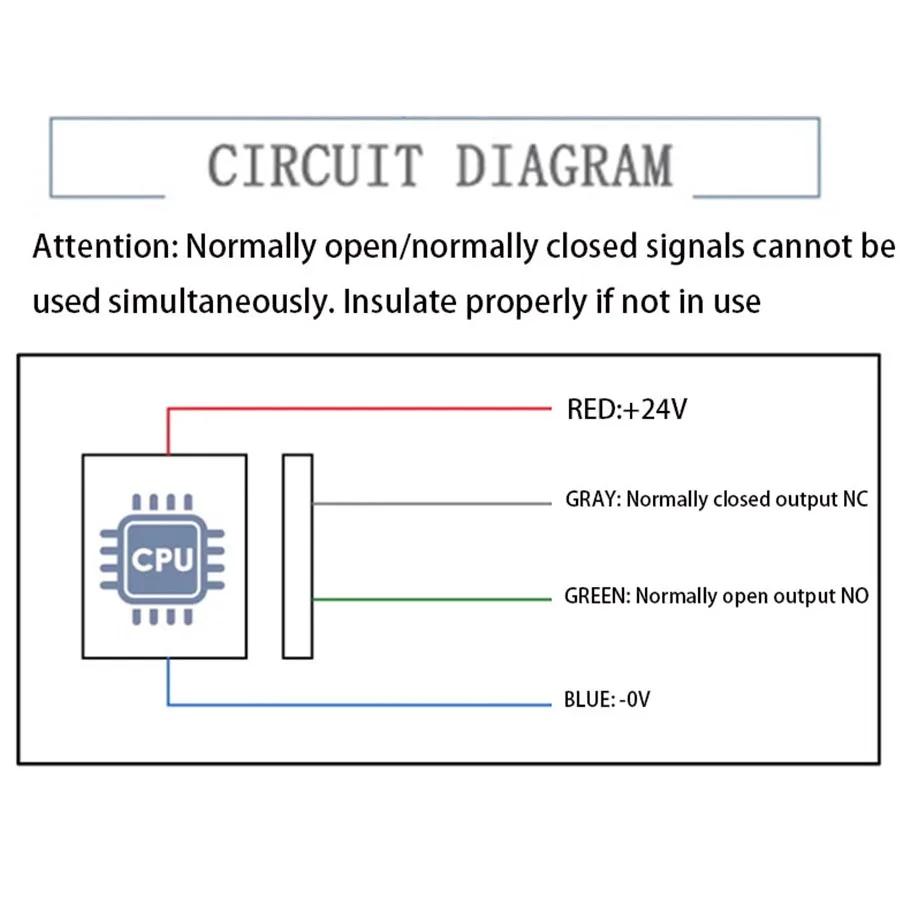

- Signal quantity: 4 wires, 2 sets of signal outputs

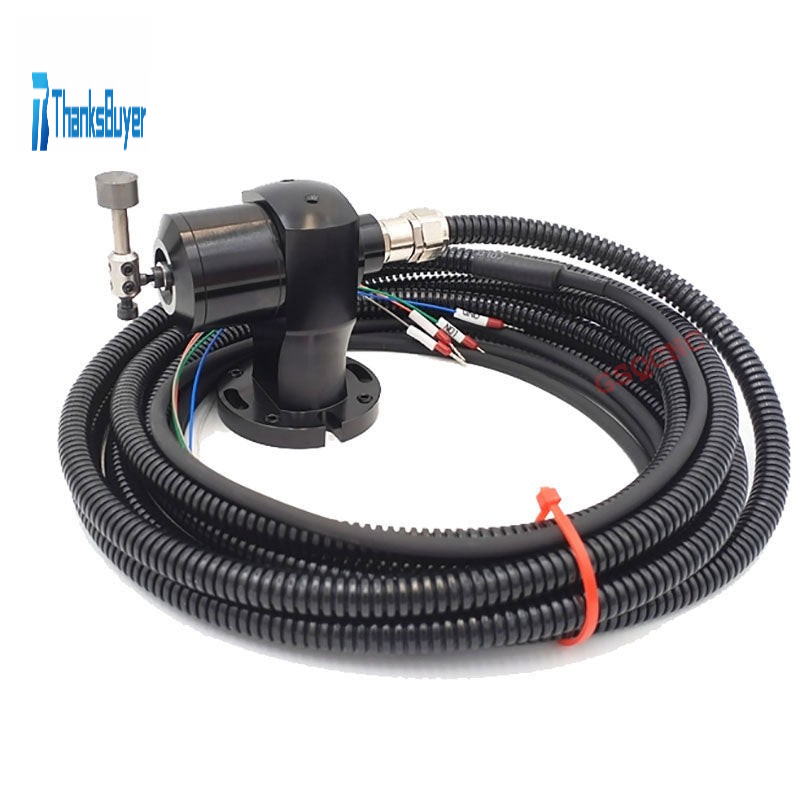

- Cable specification: 5m high flexible and oil resistant drag chain cable
- Protective structure: IP67
- Environmental temperature: -20℃ to +40℃
- Relative humidity: 25% to 95% without condensation

Package Included:
- 1 x CNC Tool Detector

Notes:
- Please make sure to use it within the rated power range (12-24VDC).
- Installing the base requires grounding protection or shielding.
