N515 Metal Case with Antenna and Type-C 5V 4A Power Adapter (US/EU Plug) for Orange Pi 5 Pro/Max/Ultra

Features:
N515 Metal Case
* The N515 metal case supports Orange Pi 5 Pro, Orange Pi 5 Max, and Orange Pi 5 Ultra.

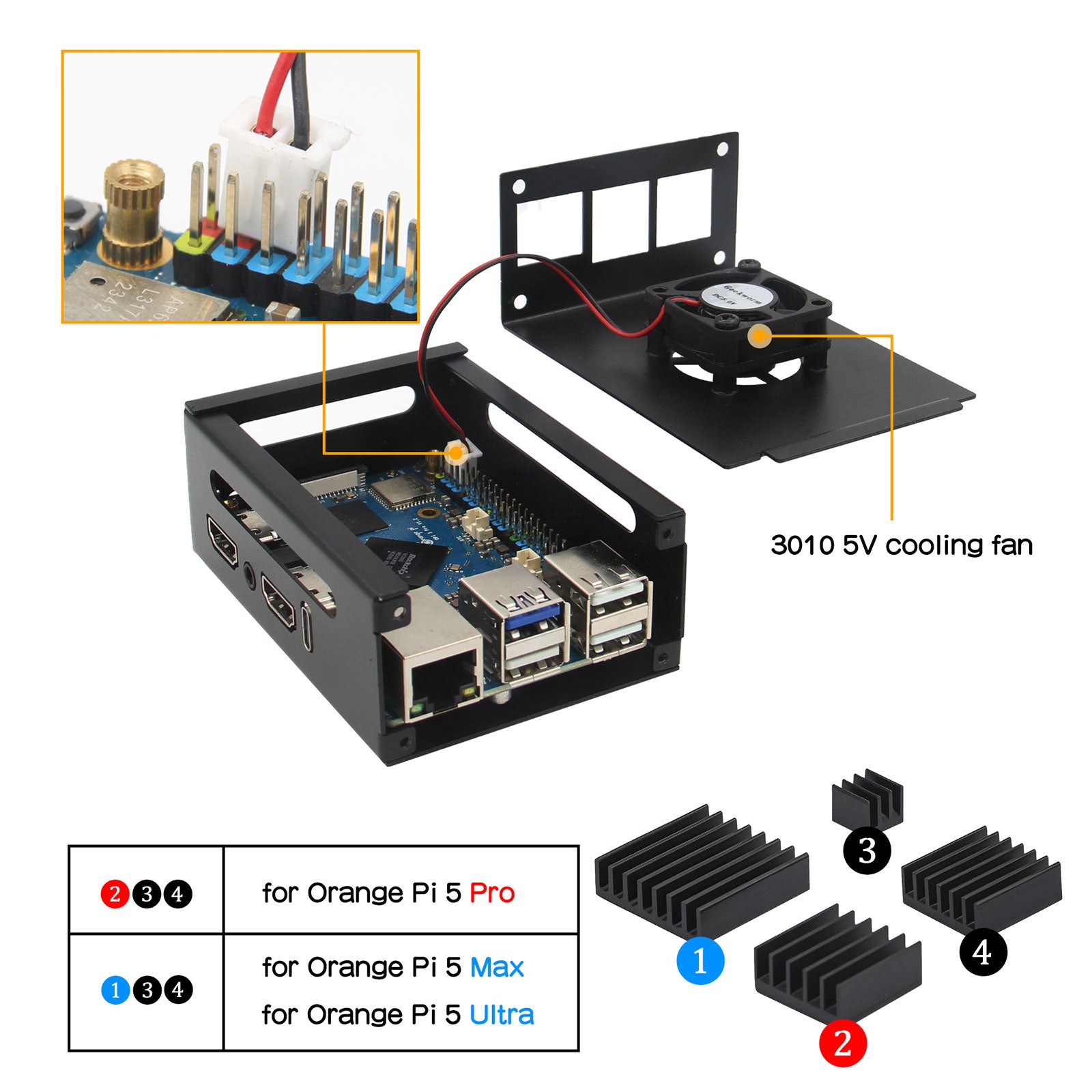

Active Cooling & Passive Cooling
* Active Cooling: Pre-drilled fan mounting holes allow you to install a cooling fan for efficient airflow, helping to quickly dissipate heat during operation.
* Passive Cooling: There are four heatsinks of different sizes, specially designed to fit Orange Pi 5 Pro/Max/Ultra development boards.

Supports External Antenna
* Pre-cut antenna holes make it easy to install the external antenna.
* The elongated slot design allows flexible antenna placement and supports additional accessory expansion.

Wall-Mountable & Anti-Slip Design
* The case includes mounting holes spaced 65mm apart, allowing you to hang it on a wall or other surfaces.
* Equipped with four anti-slip rubber feet for stable placement.

Precision Cutouts
* All ports and slots are precisely aligned to perfectly fit the Orange Pi 5 Pro or Orange Pi 5 Max.
* The case includes cutouts for the GPIO ribbon cable and TF card slot for convenient expansion.

Specifications:
* Model: N515
* Material: High-quality galvanized metal
* Compatible with: Orange Pi 5 Pro/Max/Ultra
* Cooling: Dual cooling system with fan + aluminum heatsinks
* Expansion: Supports GPIO ribbon cable for external antenna installation

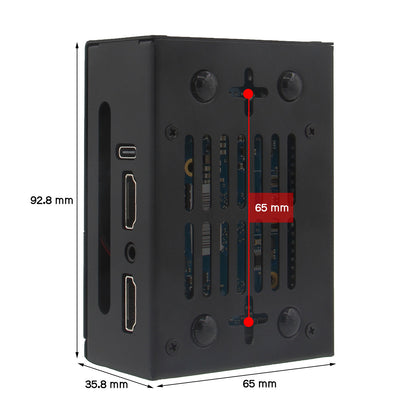

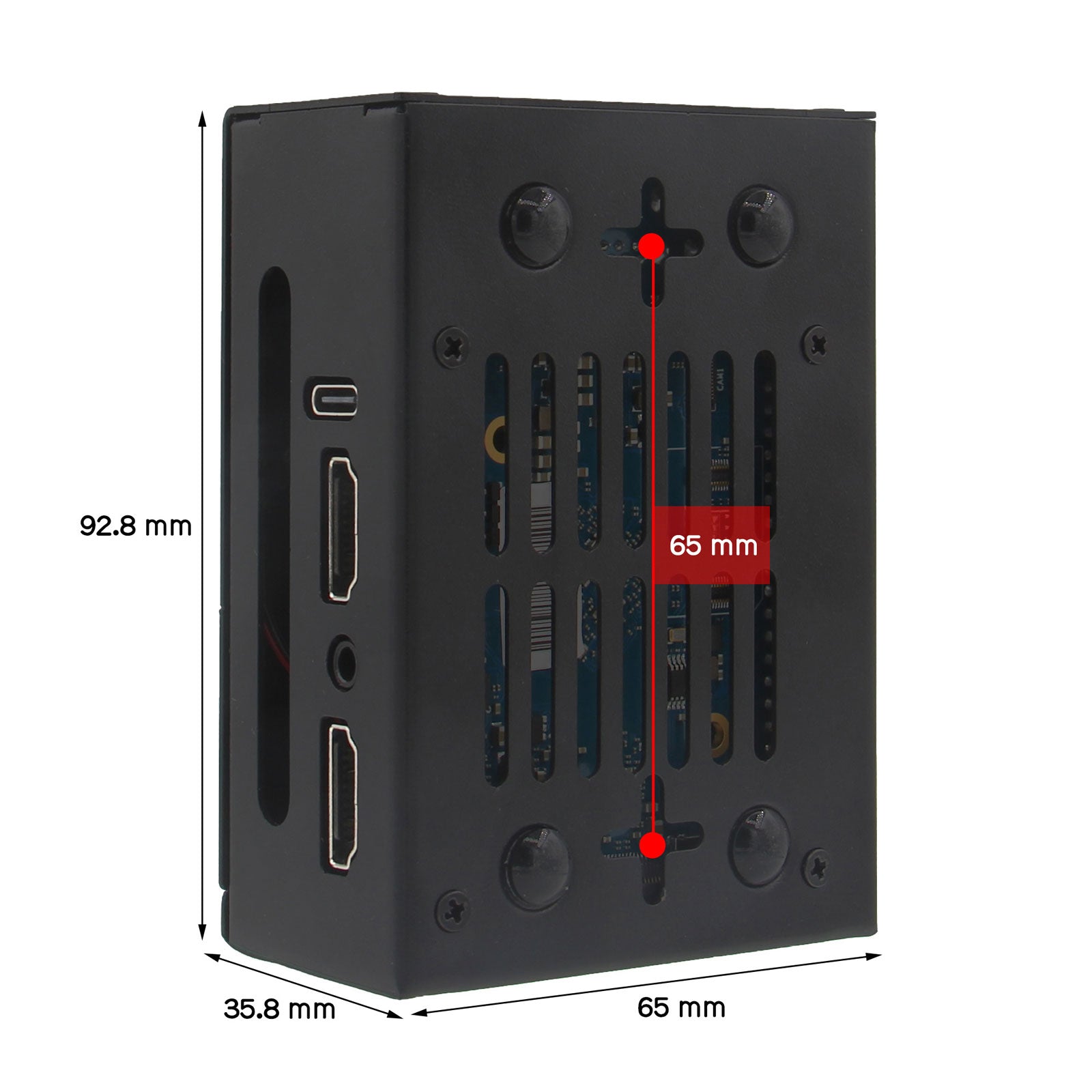

* Dimensions: 92.8mm × 65mm × 35.8mm

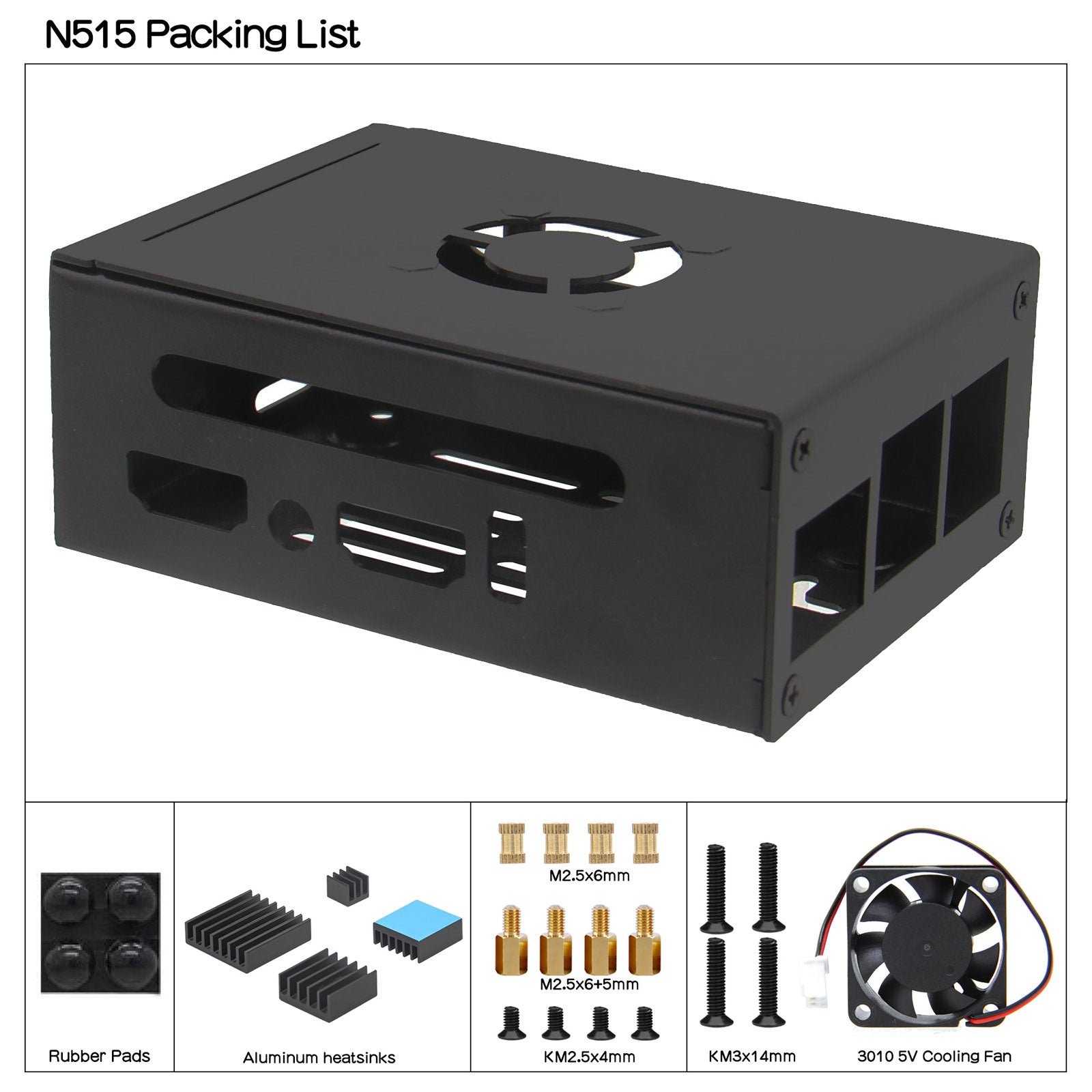

Packing List:
* 1 x Metal Case
* 4 x Rubber Pads
* 4 x Aluminum Heatsinks
* 1 x Screw Pack
* 1 x 3010 5V Cooling Fan
* 1 x IPEX Gen 4 Antenna
* 1 x Type-C 5V 4A Power Adapter

Packaging Details:
* Weight: 0.24kg

Note:
* Orange Pi development boards are not included.

User Manual:
https://wiki.geekworm.com/N515
