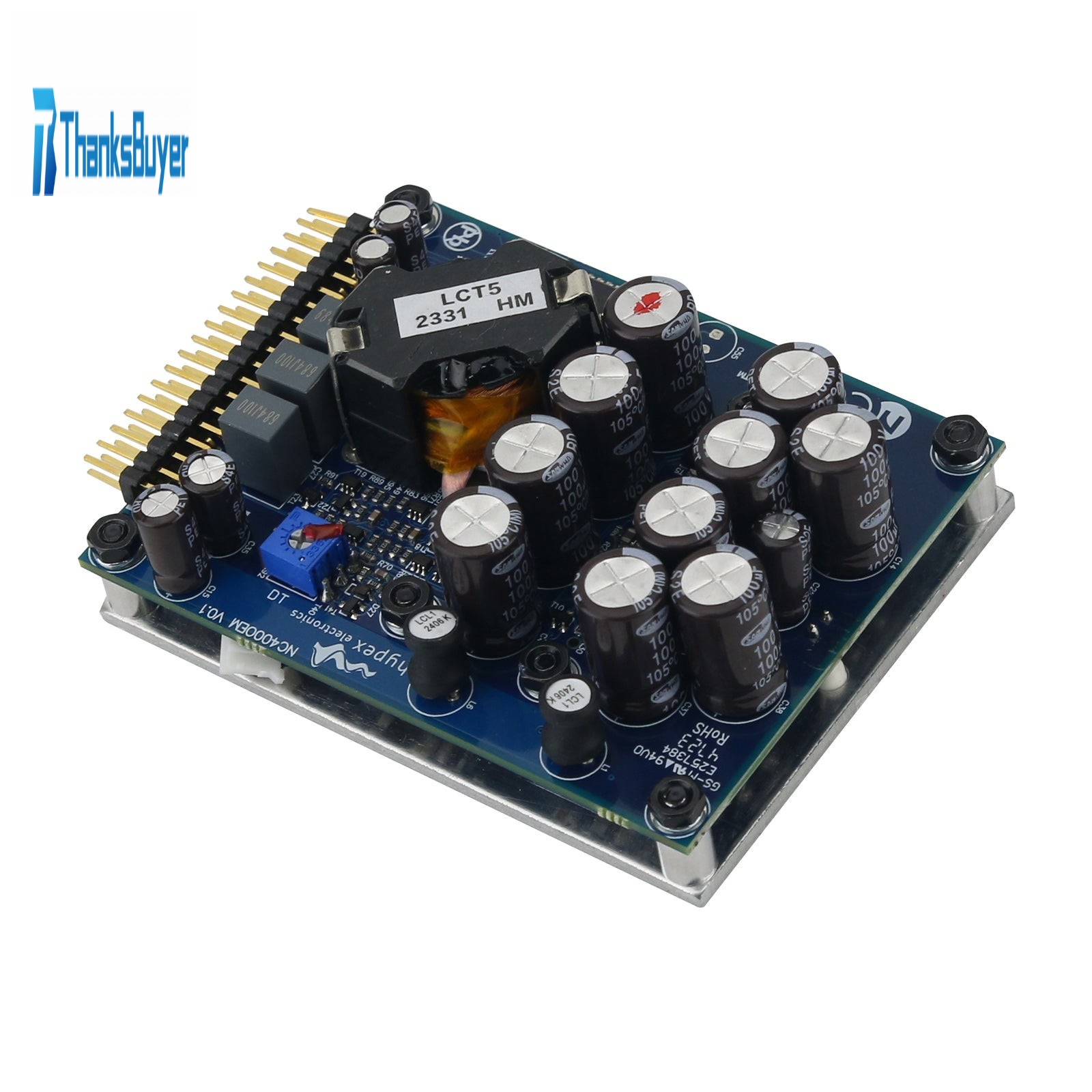

New NC400 High-end Audio Power Amplifier Module 580W Ultra-low Distortion Amplifier for HYPEX

New NC400 High-end Audio Power Amplifier Module 580W Ultra-low Distortion Amplifier for HYPEX

Description:
- The NC400 packs a feature set never seen before in a modular amplifier product. The NC400 module's audio performance sets new standards, regardless of operating class or circuit technology. Distortion (THD and IMD) over the full audio and power range is negligible, typically below 0.0007%. Distortion at listening levels (1W) is unmeasurable. This amp adds neither dirt nor fairy dust.
- Applications: high-end active loudspeakers High-end stand-alone power amplifiers.

Features:
- Transparent, fully discrete input circuitry
- HxR style regulators on board
- Differential inputs with high common-mode impedance
- Overcurrent protection
- Supply overvoltage/undervoltage protection on all rails

Specification:
- Output Power (2Ω): 580W
- Output Power (4Ω): 400W
- Output Power (8Ω): 200W
- Channels: 1
- HxR Ready: on-board
- Op Amp: discrete
- Over voltage protection at: 72V
- SMPS voltage +/-: 64V
- Under voltage protection: 35V
- Compatible SMPS: SMPS600
- Technology: for NCORE

Package Included:
- 1 x Power Amplifier Module
