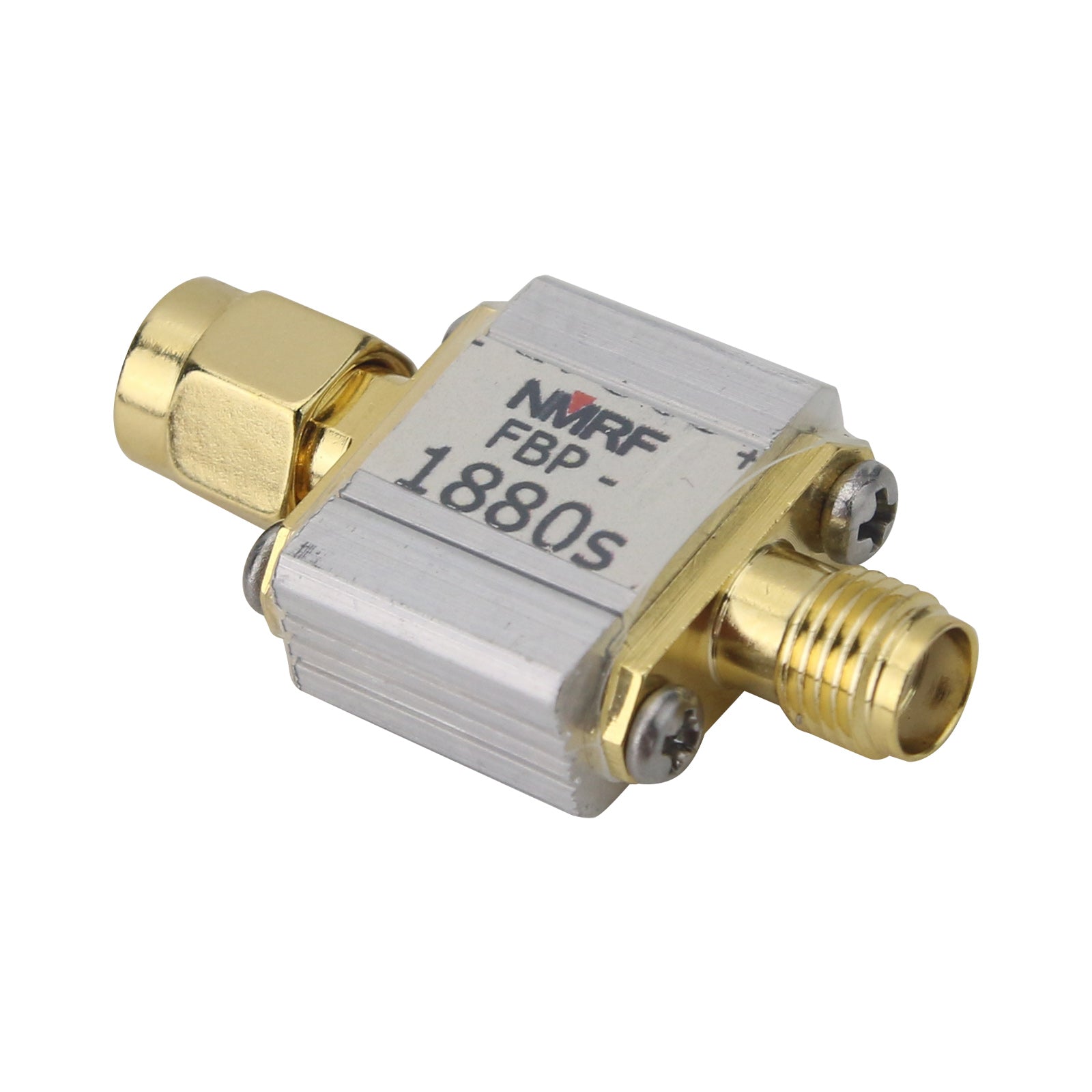

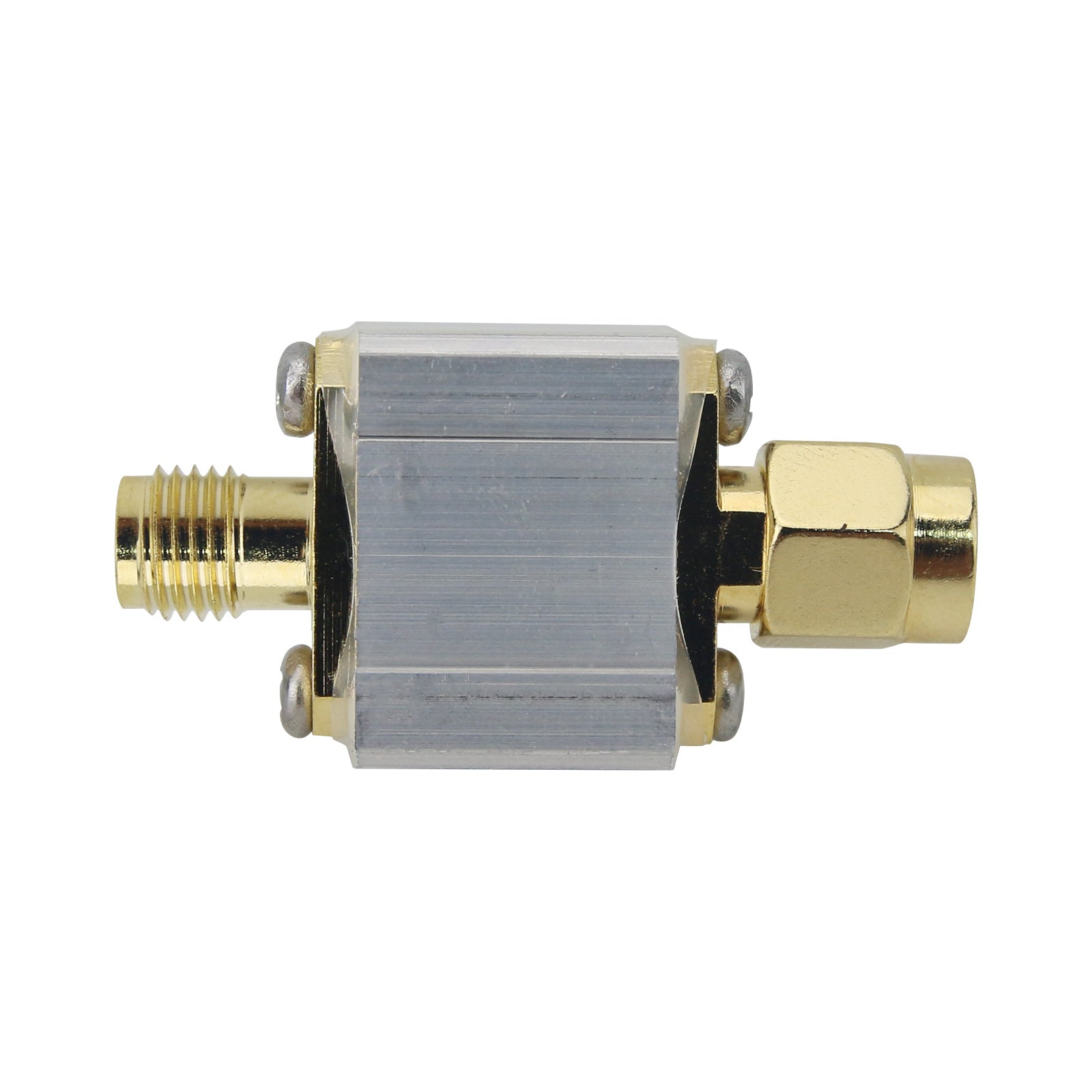

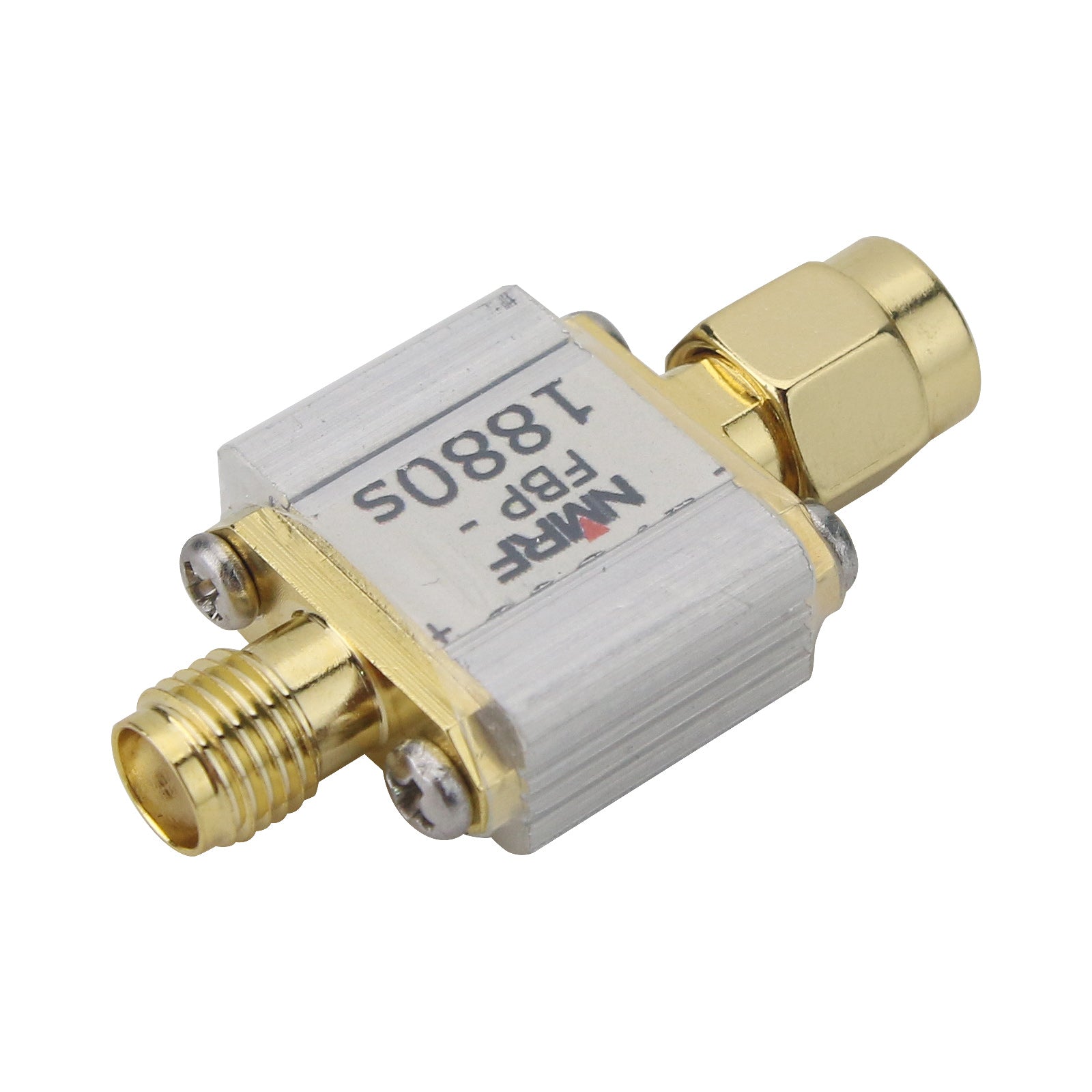

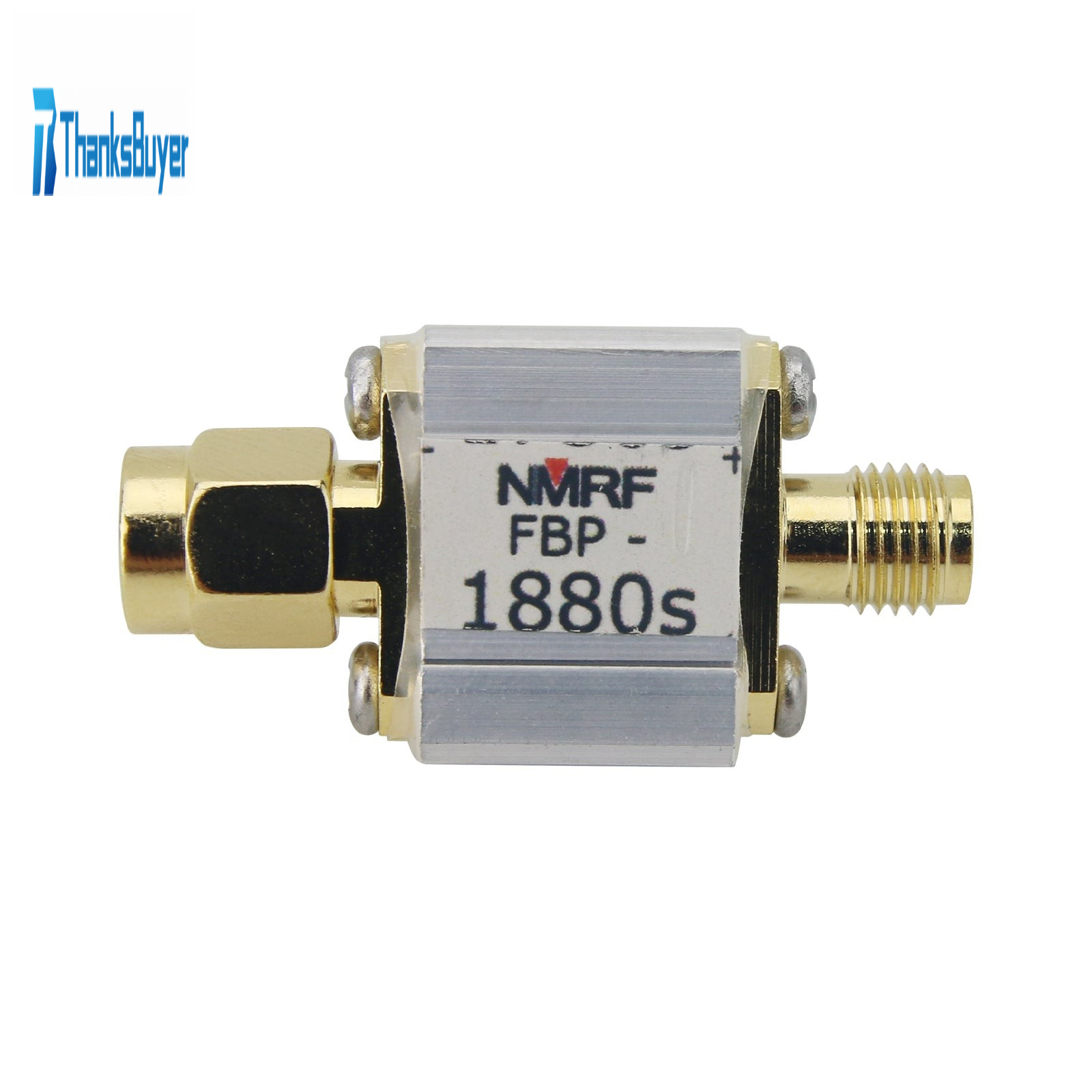

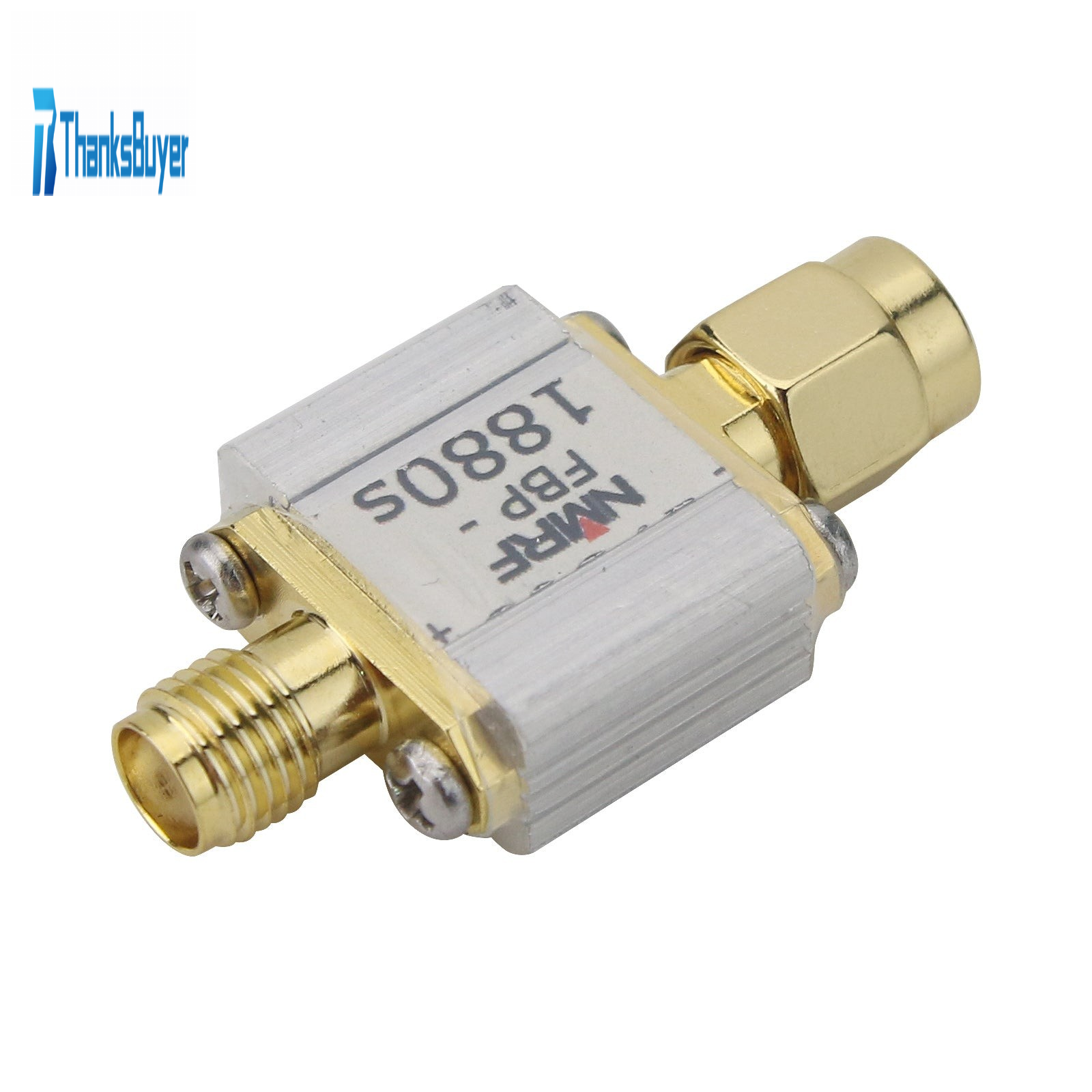

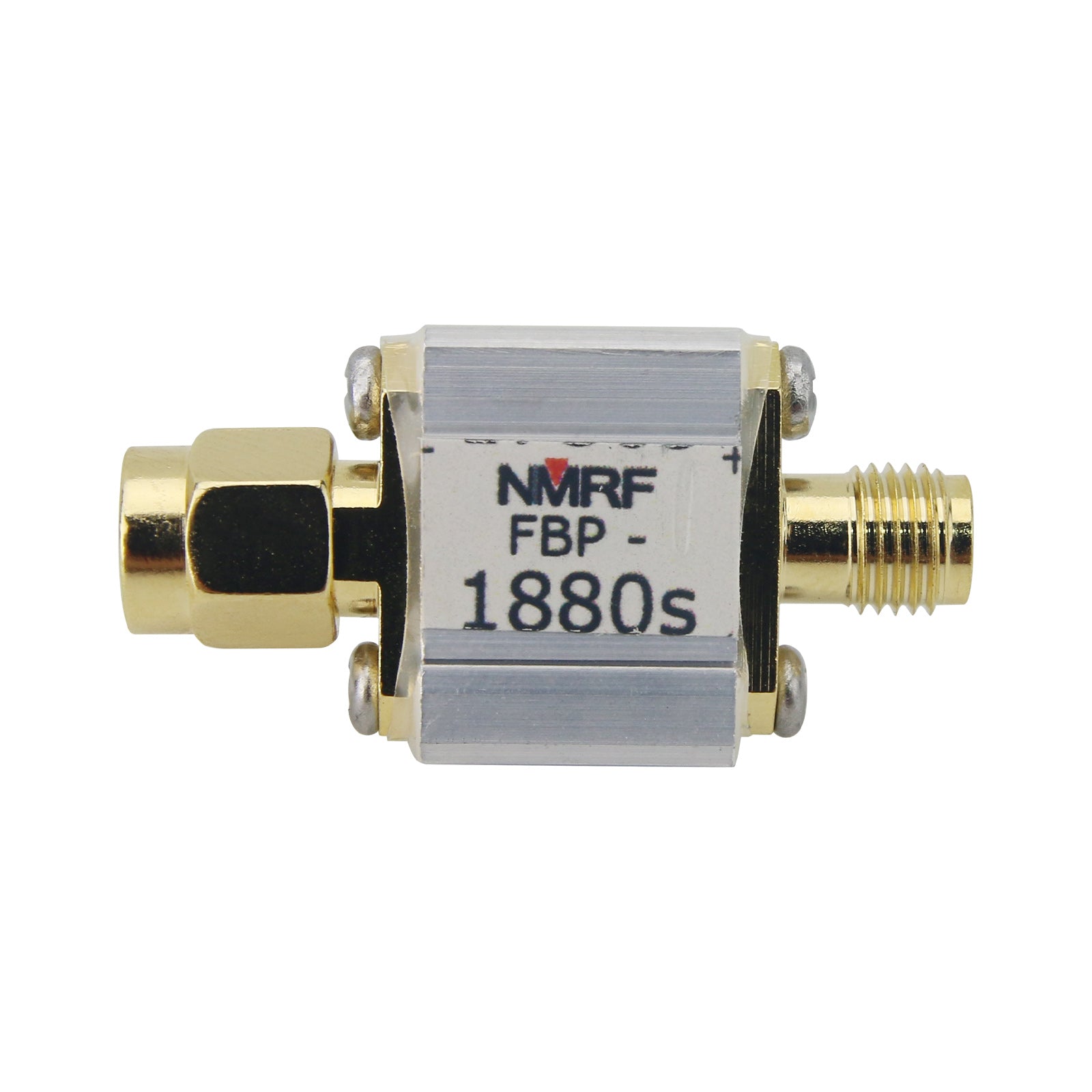

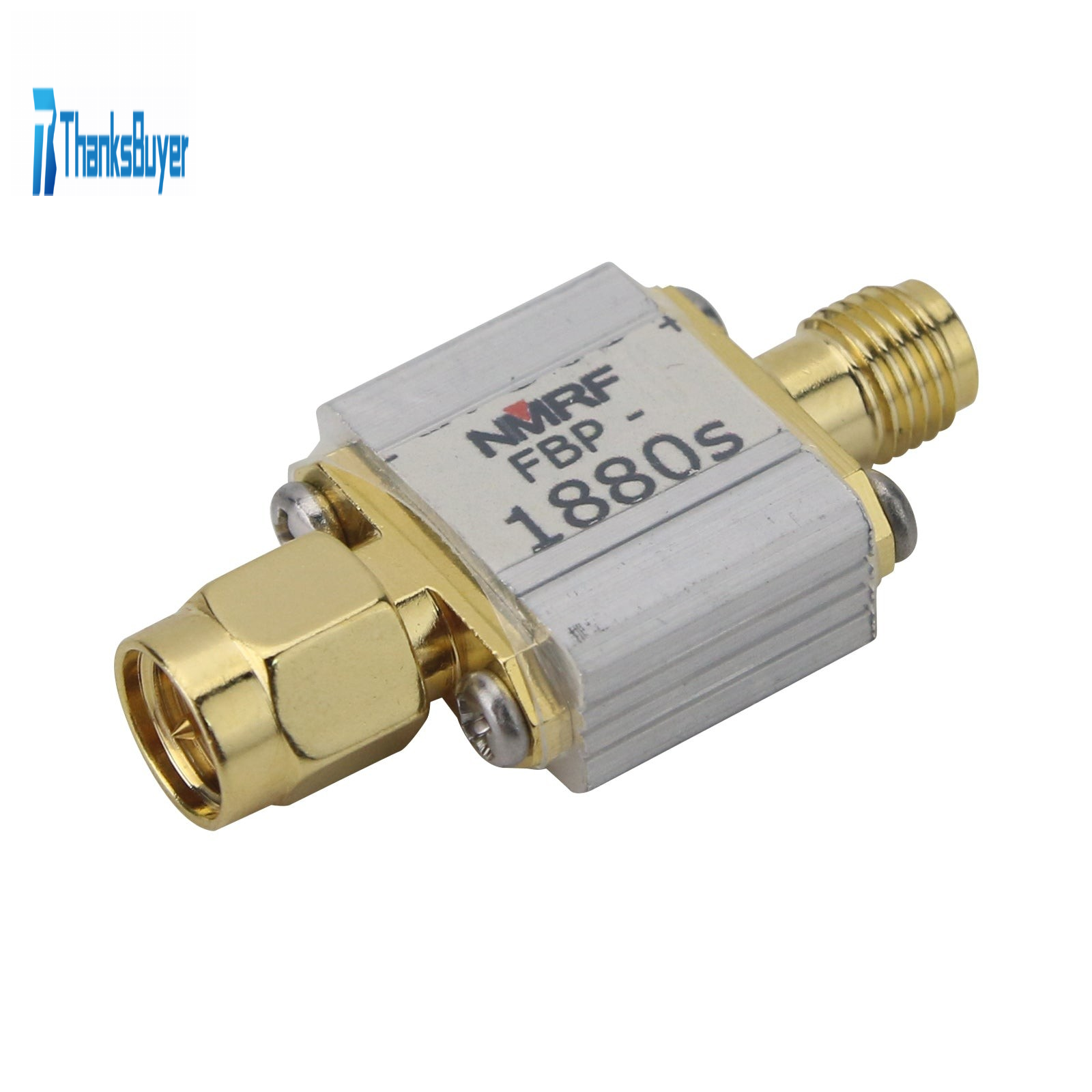

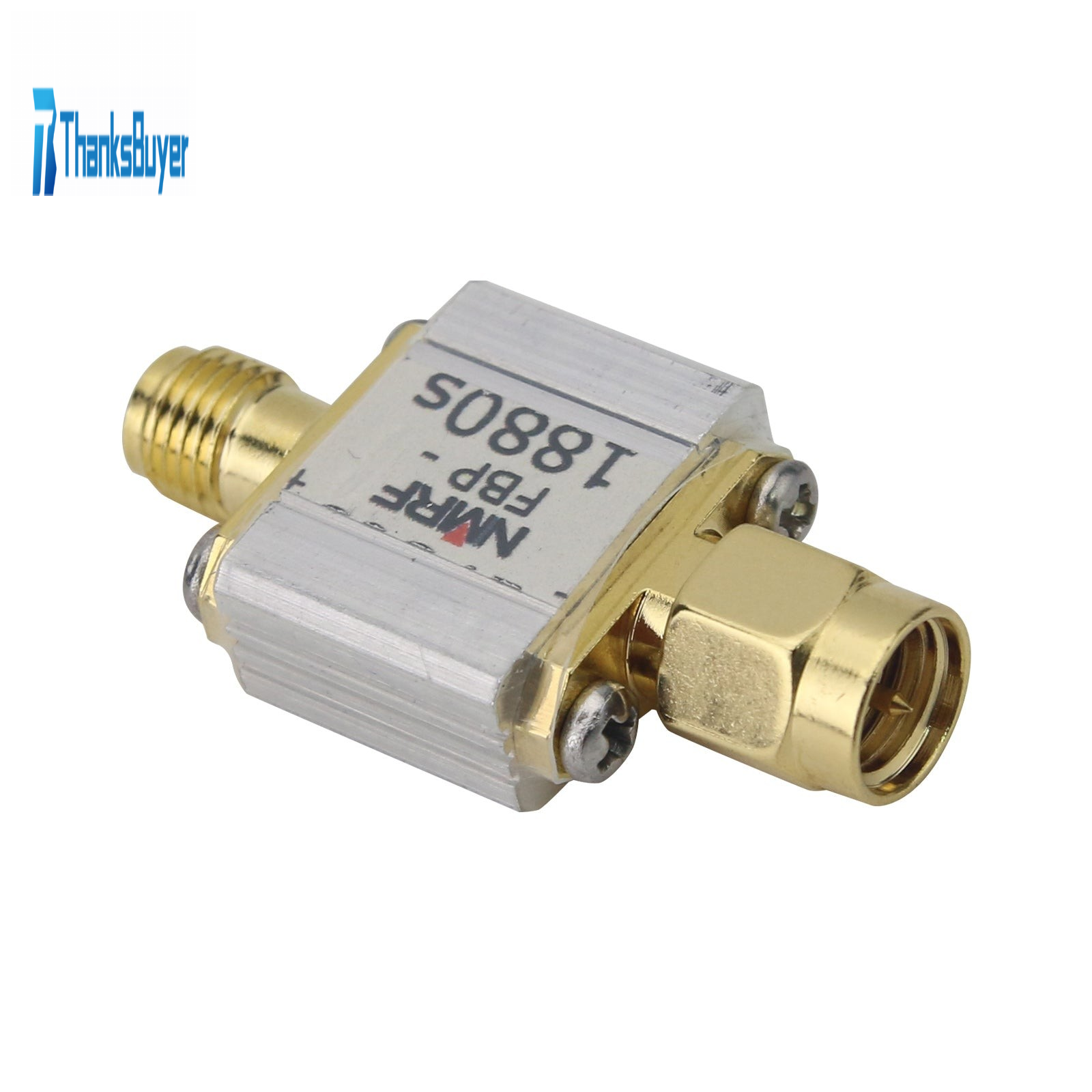

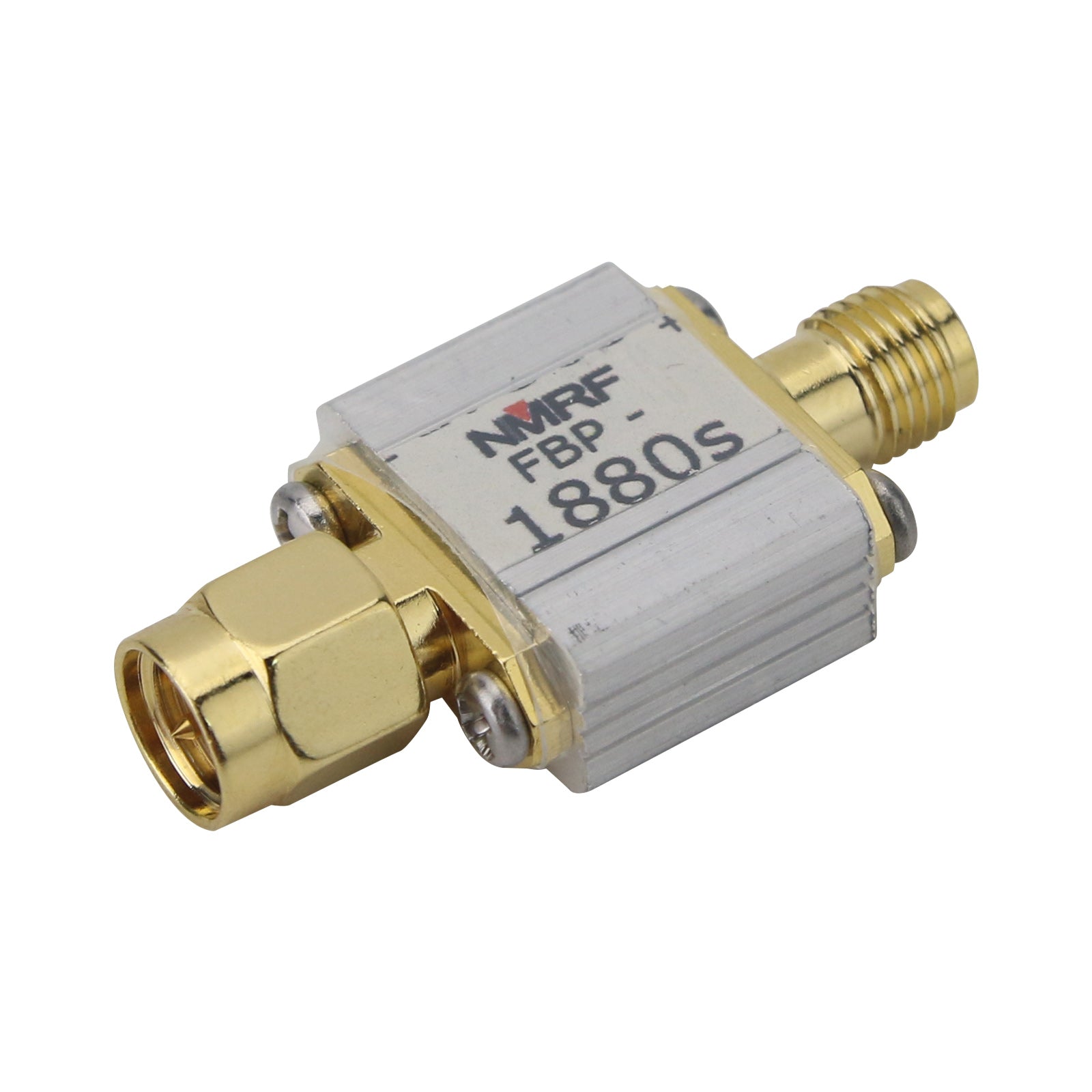

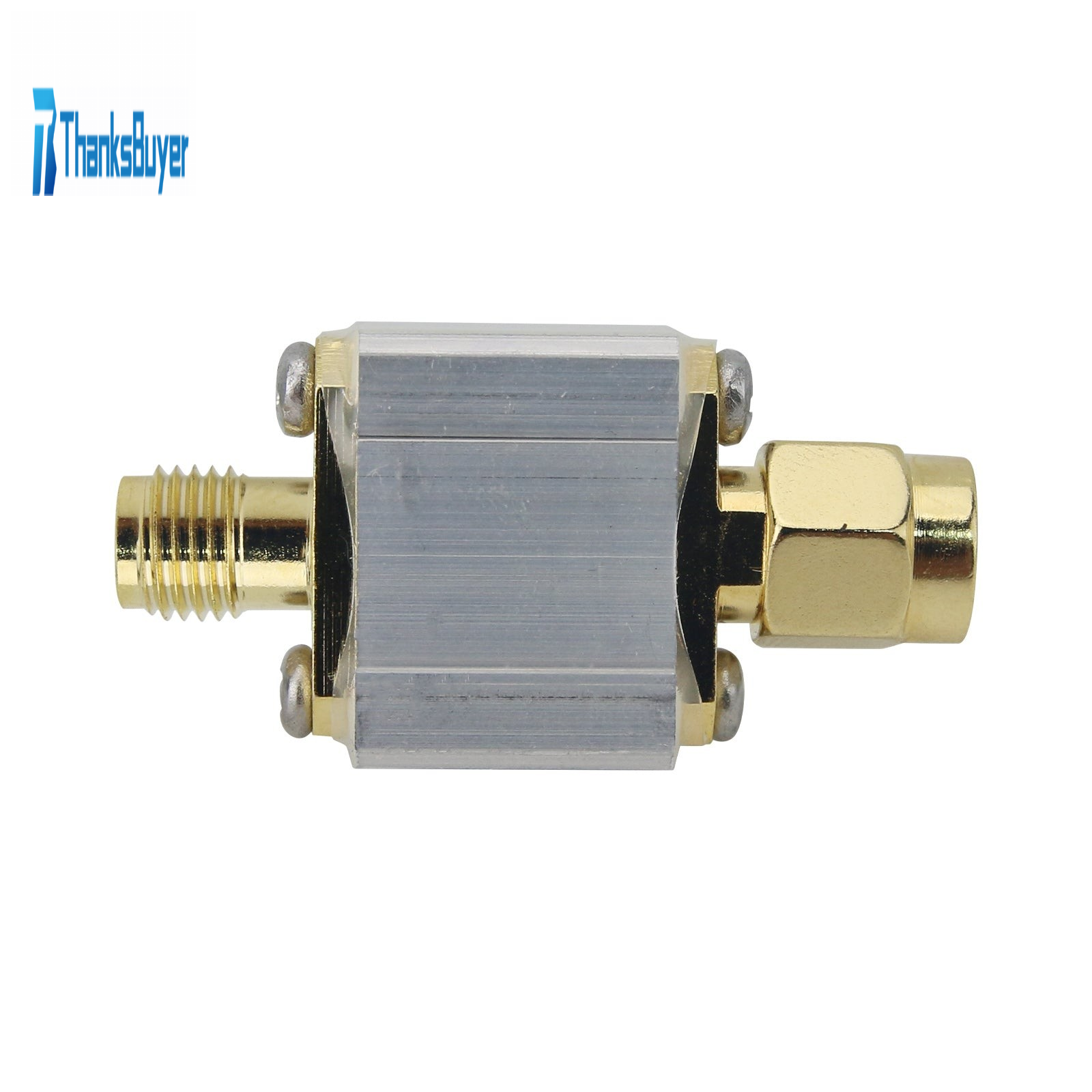

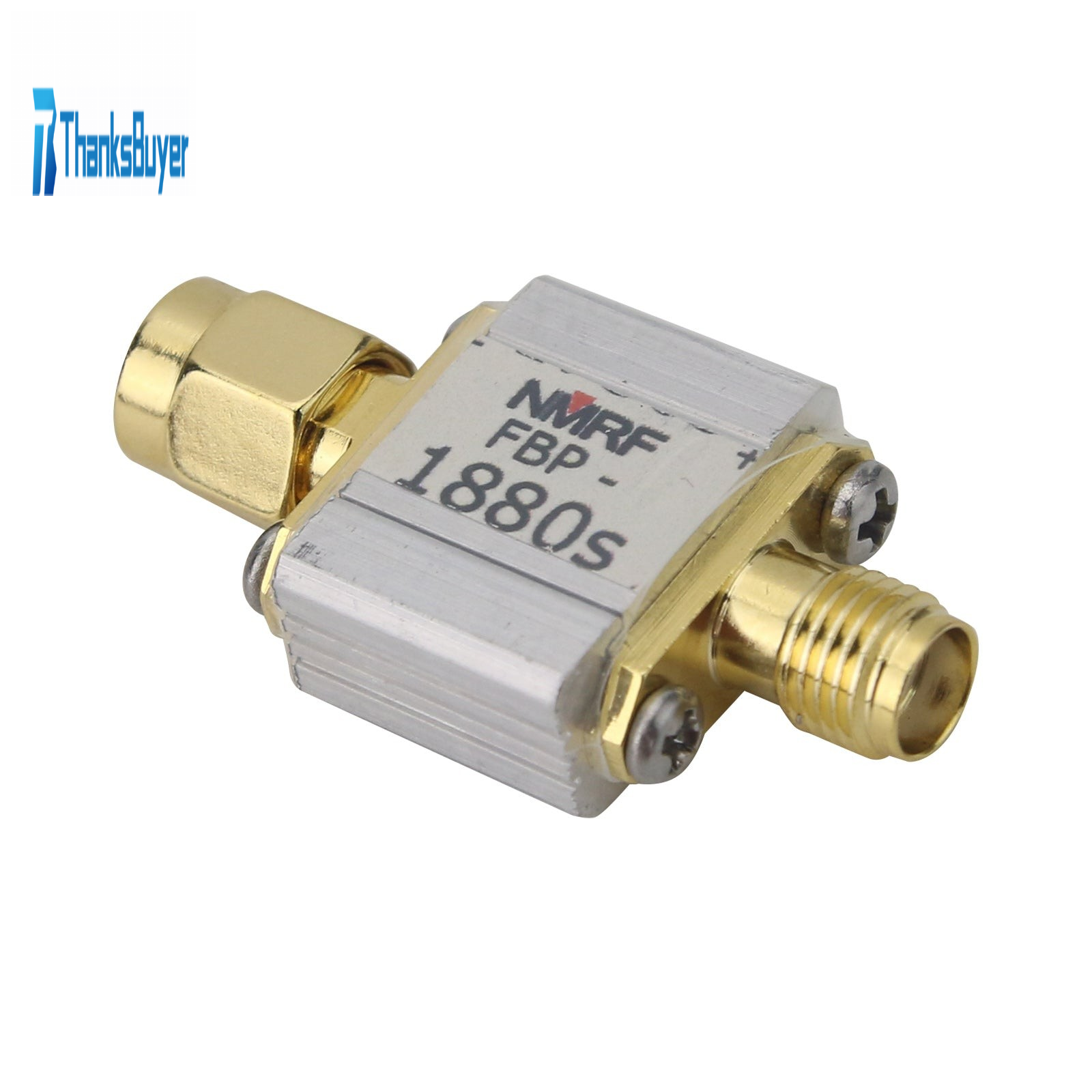

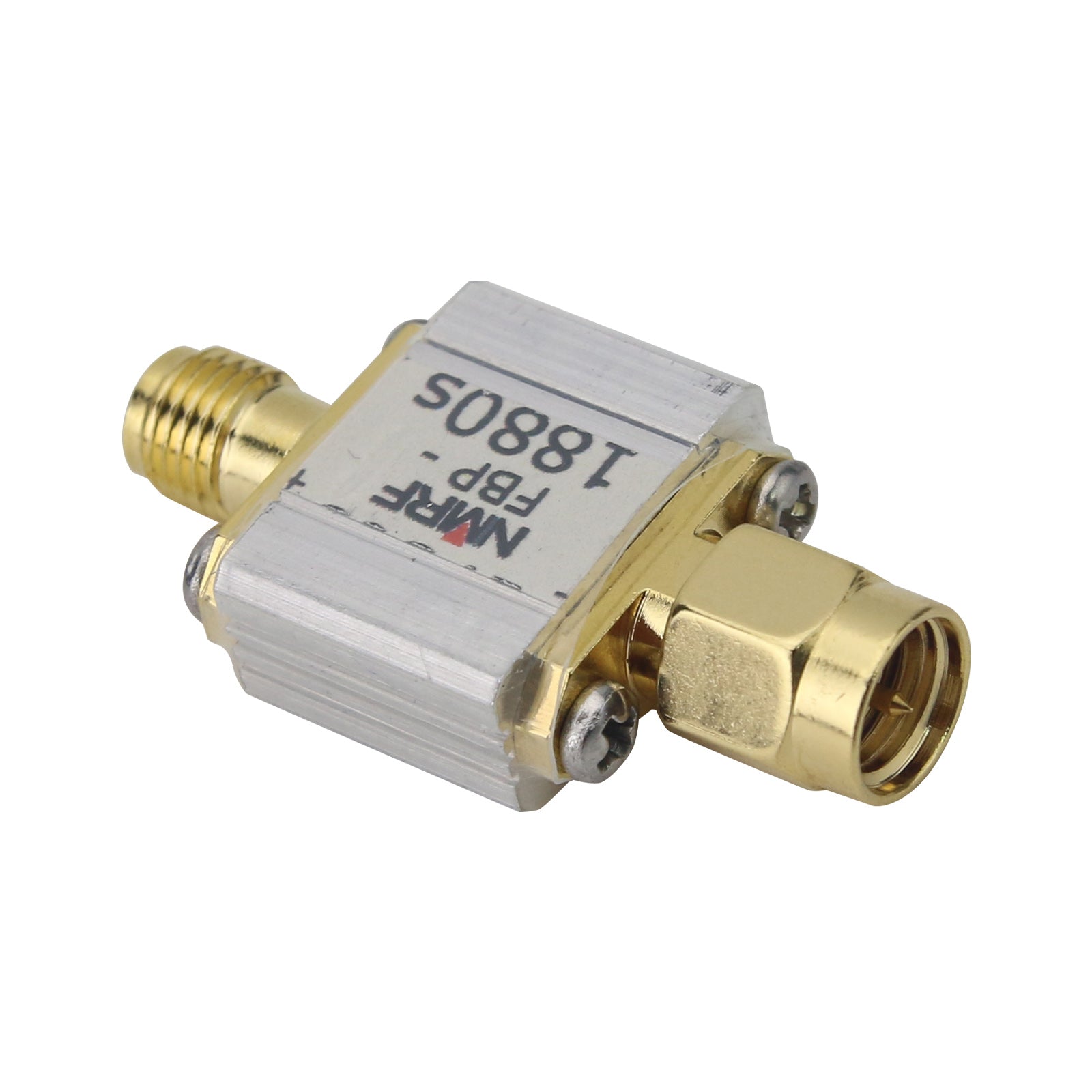

NMRF FBP-1880s 1850-1910MHz SAW Band Pass Filter 1dB Passband with SMA Connector for PCS Signal Testing

NMRF FBP-1880s 1850-1910MHz SAW Band Pass Filter 1dB Passband with SMA Connector for PCS Signal Testing

Description:
- This filter has a 1dB bandwidth of approximately 60MHz and a steep cutoff characteristic. Used for PCS signal testing in the 1850-1910 MHz frequency range, it can effectively filter out out of band signals, reduce noise, and increase dynamic range.

Specification:
- Model: FBP-1880s
- Impedance: 50ohms
- Center frequency: 1880MHz
- Pass band (1dB bandwidth): 1850 ~ 1910 MHz
- Band insertion loss: 1.5 ~ 2.0 dB (typical value: ~1.7 dB)
- Maximum bearing power: 100mW (20dBm)

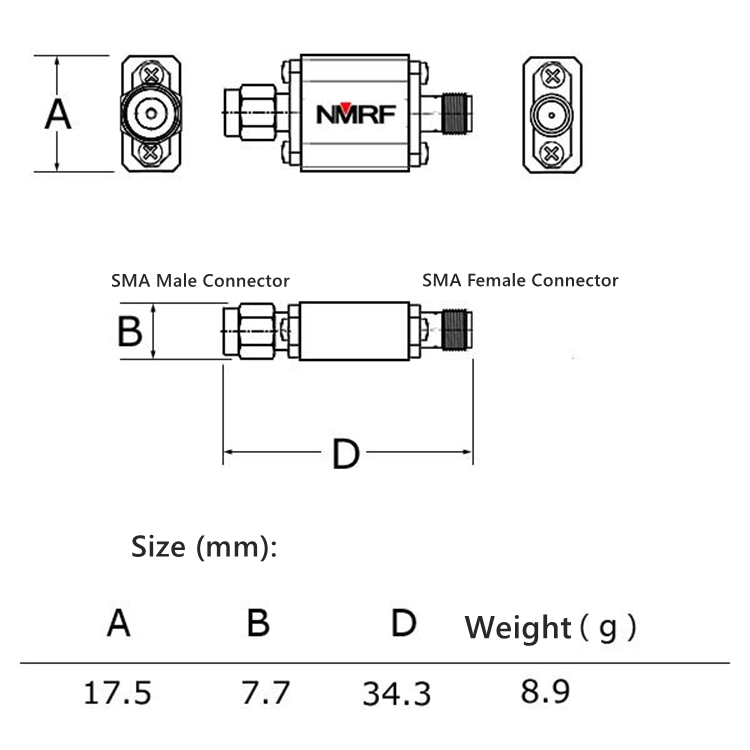

- Interface: SMA male connector, SMA female connector (RF characteristics have no directionality and can be input/output at both ends)

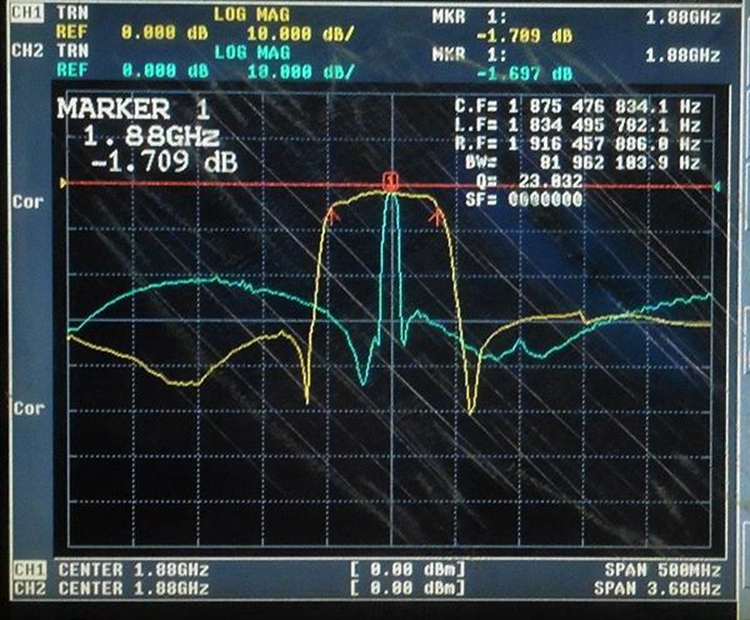

- Frequency response diagram (shown as 3dB bandwidth):


Package Included:
- 1 x Band Pass Filter
