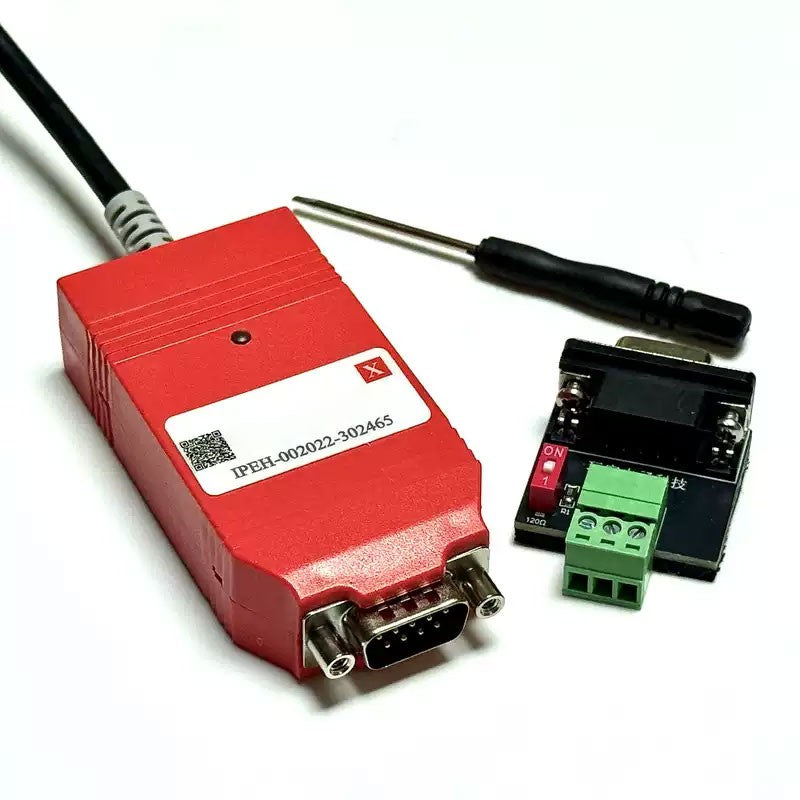

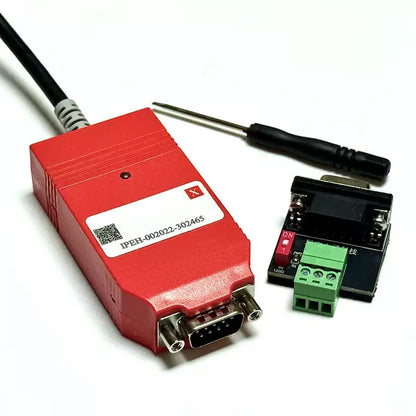

PCAN-USB Red PCAN USB CAN Bus Adapter IPEH-002022 Isolated USB 2.0 Interface for Automotive Diagnostics

* PCAN-USB (IPEH-002022, Isolated, Cost-Effective Domestic Version) – Red

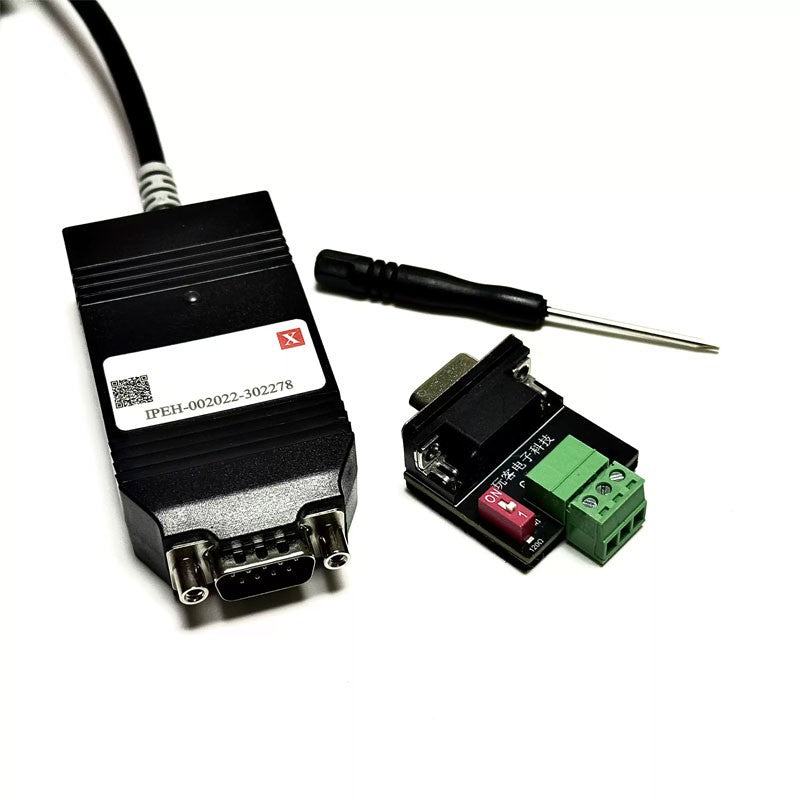

* PCAN-USB (IPEH-002022, Isolated, Cost-Effective Domestic Version) – Black

* PCAN-SJA (IPEH-002022, Original Imported Firmware, Isolated Solution) – Red

* PCAN-FD 12Mbps (IPEH-004022, Single-Channel CAN FD Isolation) – Red

* PCAN-FD 12Mbps (IPEH-004022, Single-Channel CAN FD Isolation) – Black

* PCAN PRO-FD 12Mbps (Dual-Channel CAN FD, Supports VN1610 Firmware) – Red

* PCAN PRO-FD 12Mbps (Dual-Channel CAN FD, Supports VN1610 Firmware) – Black

* Automotive-grade CAN communication chip with ESD and surge protection to ensure stable and reliable communication.

* 3000V RMS electrical isolation, suitable for testing, firmware upgrades, and diagnostics of new energy vehicle battery packs operating at voltages above 1000V.

* Supports protocols including J1939, XCP, and J2534.

* Solid gold-plated DB9 male connector ensures reliable communication and stable operation in vibrating and humid environments.

* Supports CAN bus load monitoring and error status monitoring.

* Built-in 120Ω programmable resistor with non-volatile settings. The 120Ω termination resistor can be enabled or disabled via software, eliminating the need for an external resistor.

* PCAN (IPEH-002022) supports communication speeds of up to 1Mbps. PCANFD supports CAN communication speeds of up to 12Mbps.

1. Compatible with PCAN Explorer 5/6, PCAN View, INCA, OH6, Cummins software, LabVIEW, and new energy vehicle systems from manufacturers such as BAIC and BYD.

2. Provides CAN monitoring software such as BUSMASTER and TSMASTER for message analysis, graph monitoring, and DBC file parsing.

3. Provides API interfaces for secondary development, supporting software development in C#, C++, WFC, Delphi, and other languages or frameworks.

4. Provides driver support for Windows 7, Windows 10, Windows 11, and Linux.

5. Supports SocketCAN connectivity under Linux.

6. Suitable for UDS diagnostics and reliable firmware flashing for VCU, BMS, MCU, and other systems. Reliable flashing!

1. Product drivers, professional software, and user instructions.

2. BUSMASTER software.

3. TSMASTER software.

4. Host computer development library, including API interfaces and development libraries for secondary development. Supports C++, C#, .NET, LabVIEW, and other development environments.

* Note: PCAN drivers and development documentation can be provided by contacting customer service after delivery.

* For professional software such as Cummins, INCA, CANoe, and new energy vehicle applications, this store provides drivers only. The software itself and technical support are not included. If you need to use any of these software packages, please contact customer service to confirm compatibility and support before placing your order.

* The products sold by this store are branded PCANFD or XYYXCAN, both of which are registered trademarks of our manufacturer. Product names such as PCAN-SJA and PCAN-USB are product names or specifications, not trademarks. They should not be confused with German-registered trademarks. This statement is hereby made for clarification.

* Processor Architecture: For ARM

* Expansion Slot Type: USB

* Operating System Support: Windows

* Typical Applications: Education, Building and Building Automation, etc.

* Network Interface: USB 2.0

* Expansion Module Compatibility: Good

* SDK Support: Supported

* 1 x CAN Bus Adapter

* Package weight: 0.45kg
