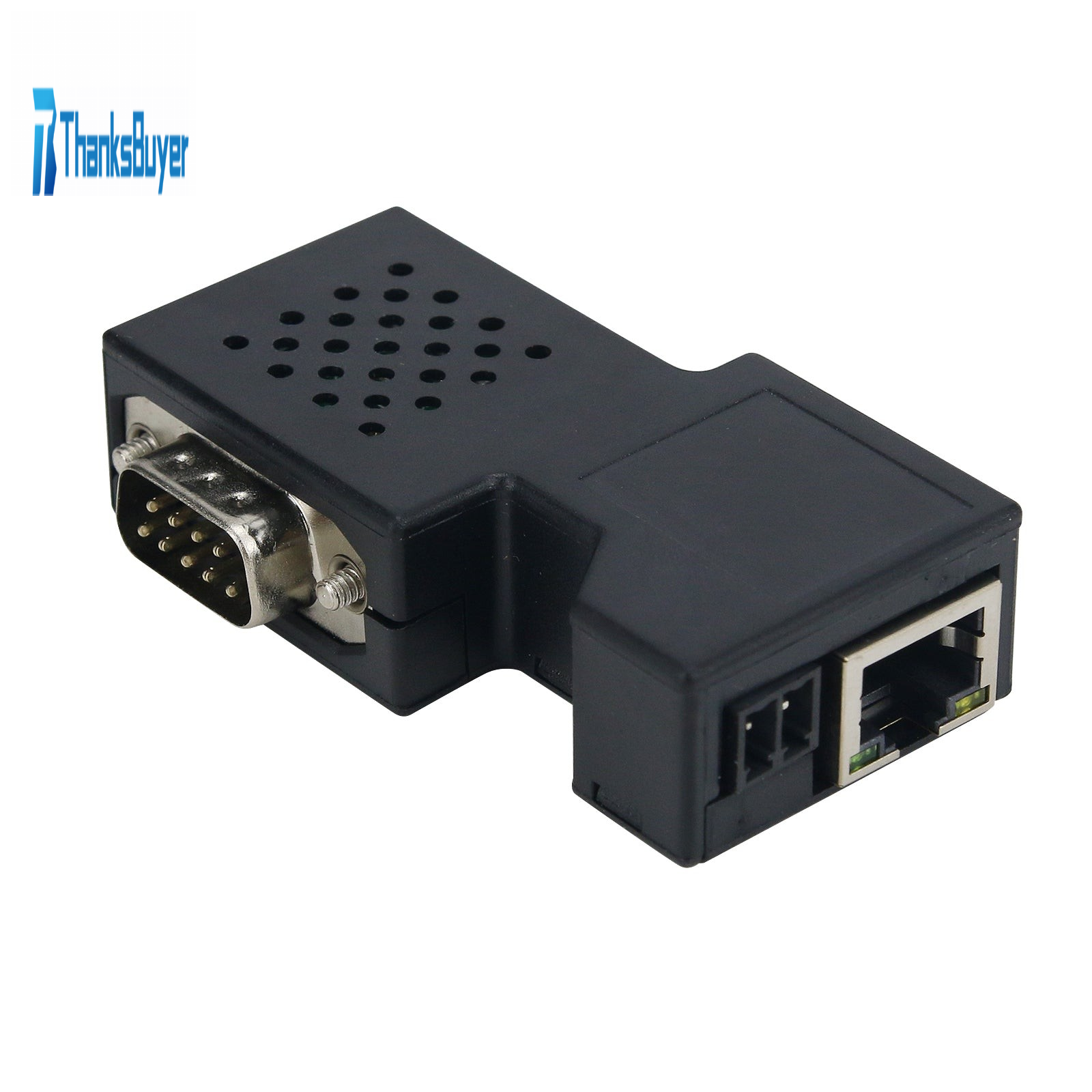

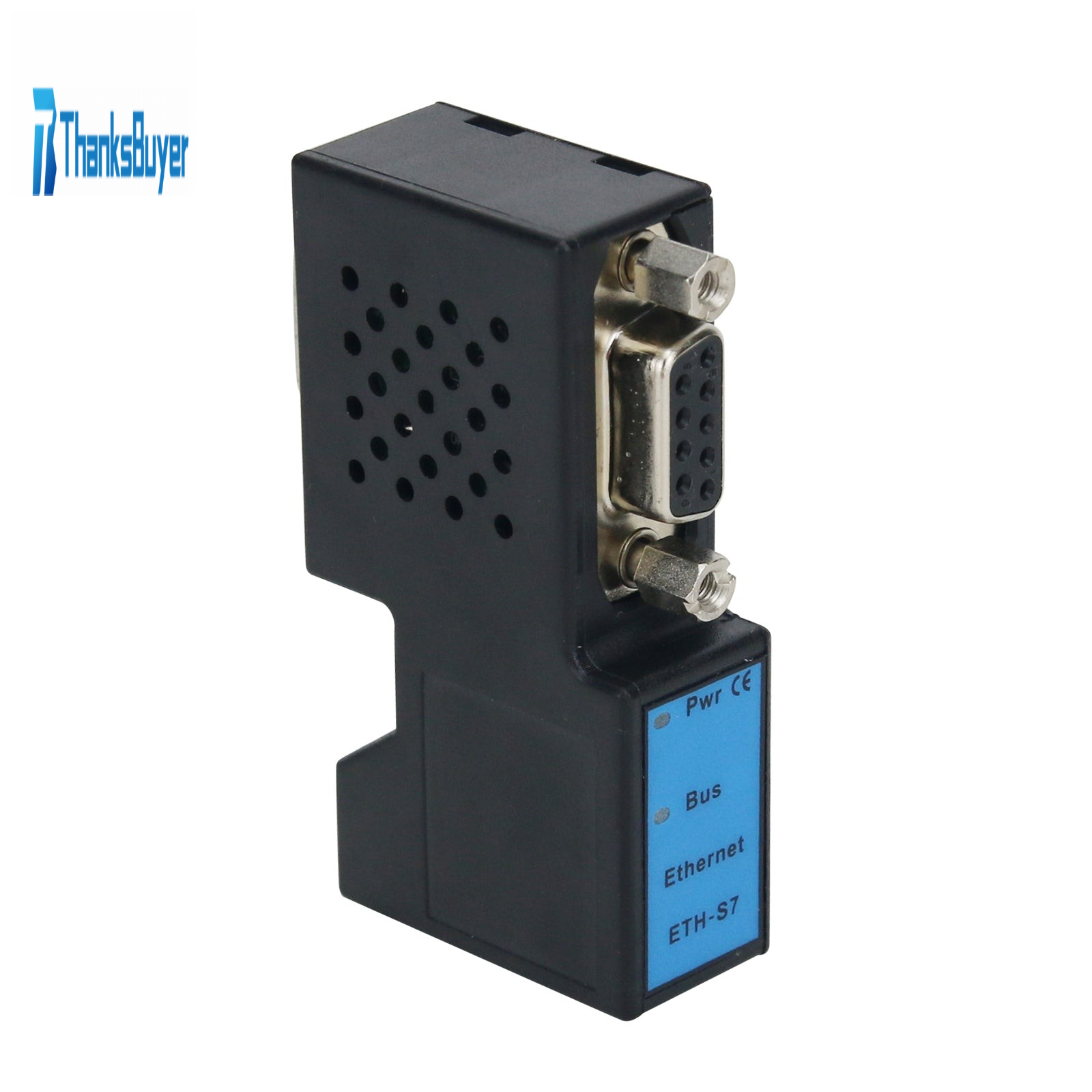

PPI To Ethernet Converter Replaces CP243-1 and Supports S7-200 Micro Programmable Logic Controller

PPI To Ethernet Converter Replaces CP243-1 and Supports S7-200 Micro Programmable Logic Controller

Features:
- PPI To Ethernet converter supports S7-200
- It supports SCADA host computer software, such as for SP9 STEP7 TIA Portal, Wincc (direction connection), Kingview, MSGS, FORCECON, Intouch and KEPServerEX ifix
- It can be used to replace CP243-1
- Systems for XP, WIN7, WIN8 and WIN10 are supported
- Communication between 2 host computers is supported
- 192.168.1.222 the web page modifies module parameters
- The PPI module does not require a driver and does not support products which is not original ones for Siemens, such as Cotrust and UniMAT
- There is no need to add programs in the host computer and PLC. No configuration is required.
- It converts the PPI protocol of S7-200 for Siemens into Profinet protocol (TCP/IP protocol) for Siemens, so that it can achieve long-distance, high-speed (up to 1.5M) communication with various higher-level software (such as for Wincc, Kingview, MSGS, FORCECON, Intouch and KEPServerEX). It can be connected to programming software at the same time to program S7-200 for Siemens.
- It can detect the baud rate automatically

Package Included:
- 1 x PPI To Ethernet Converter
