By Thanksbuyer

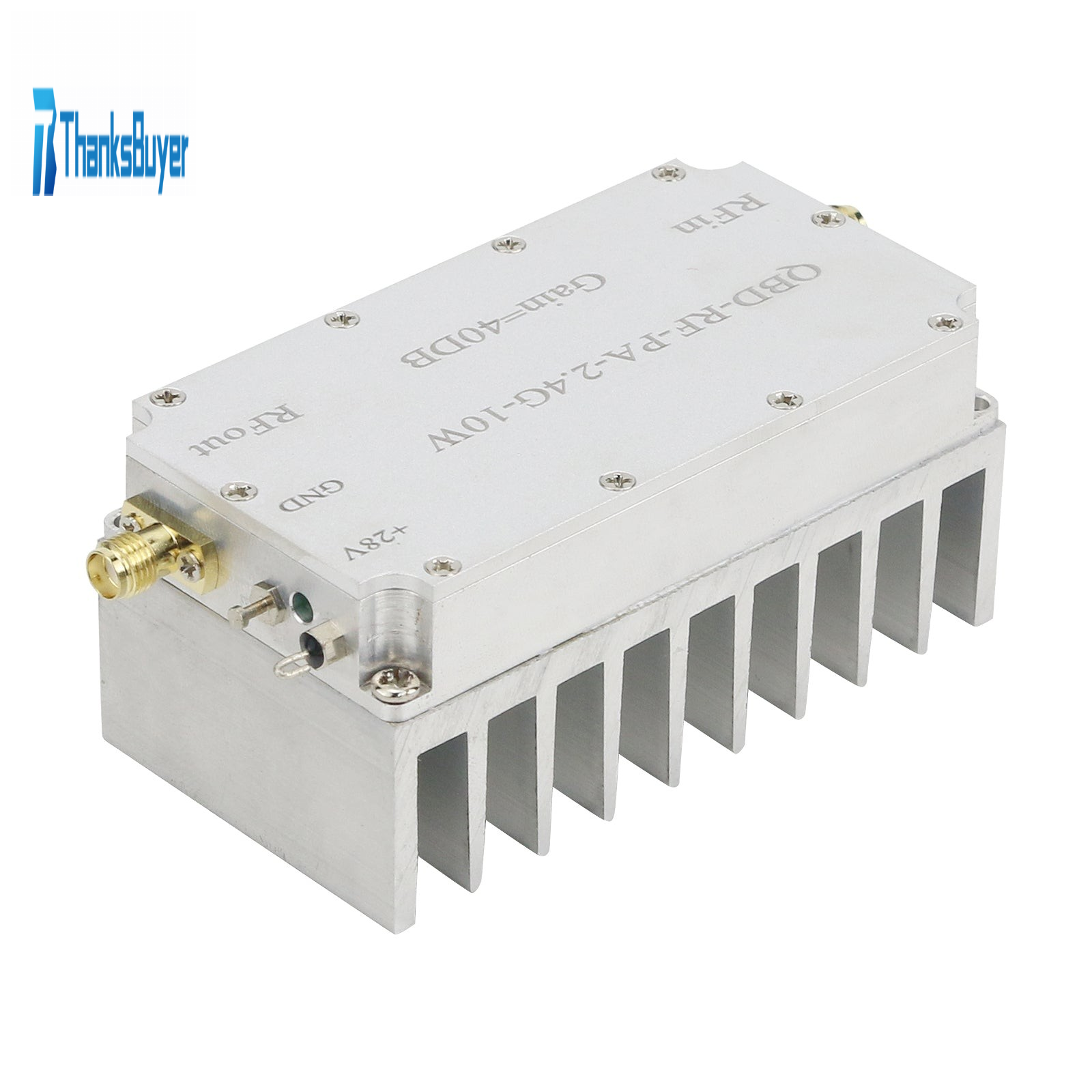

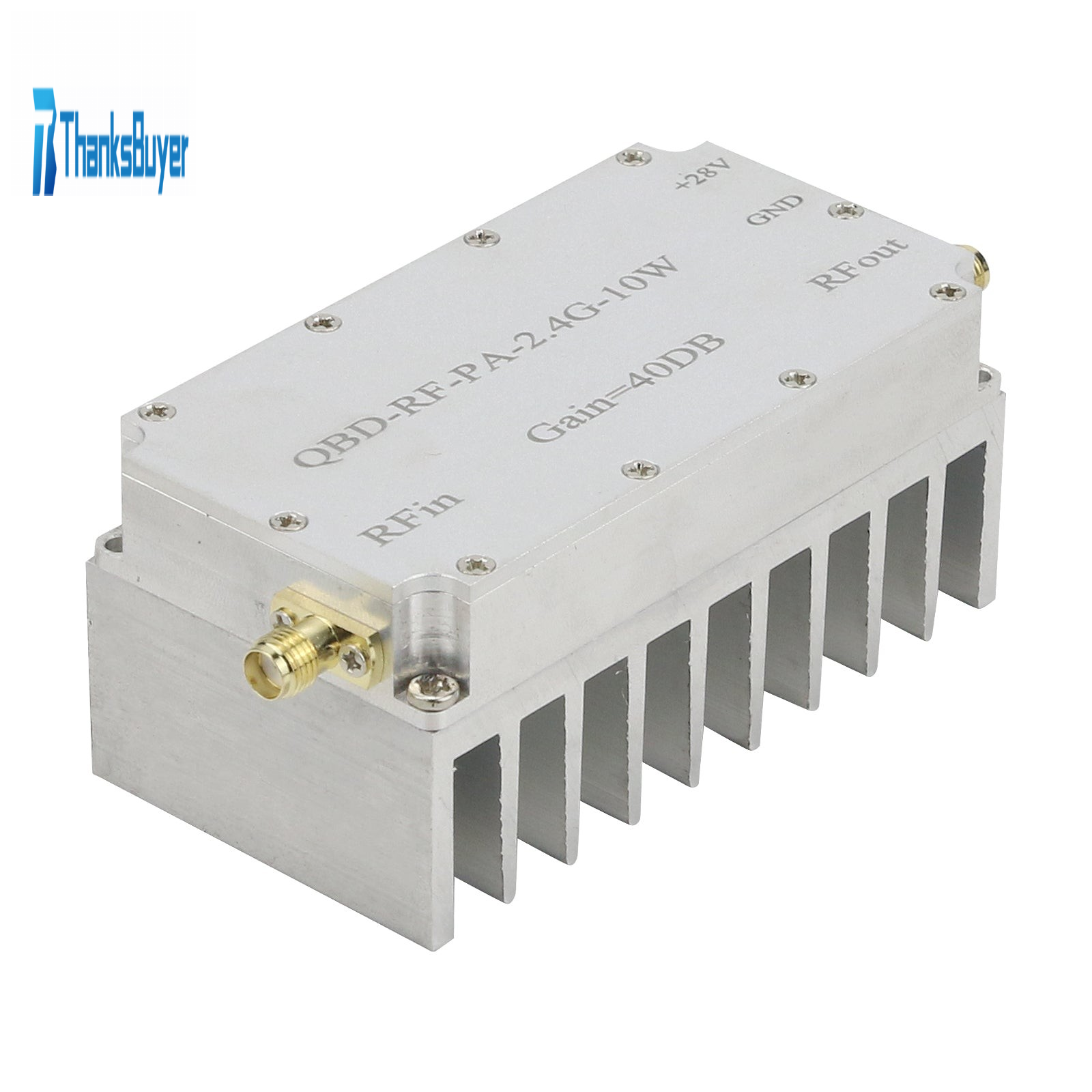

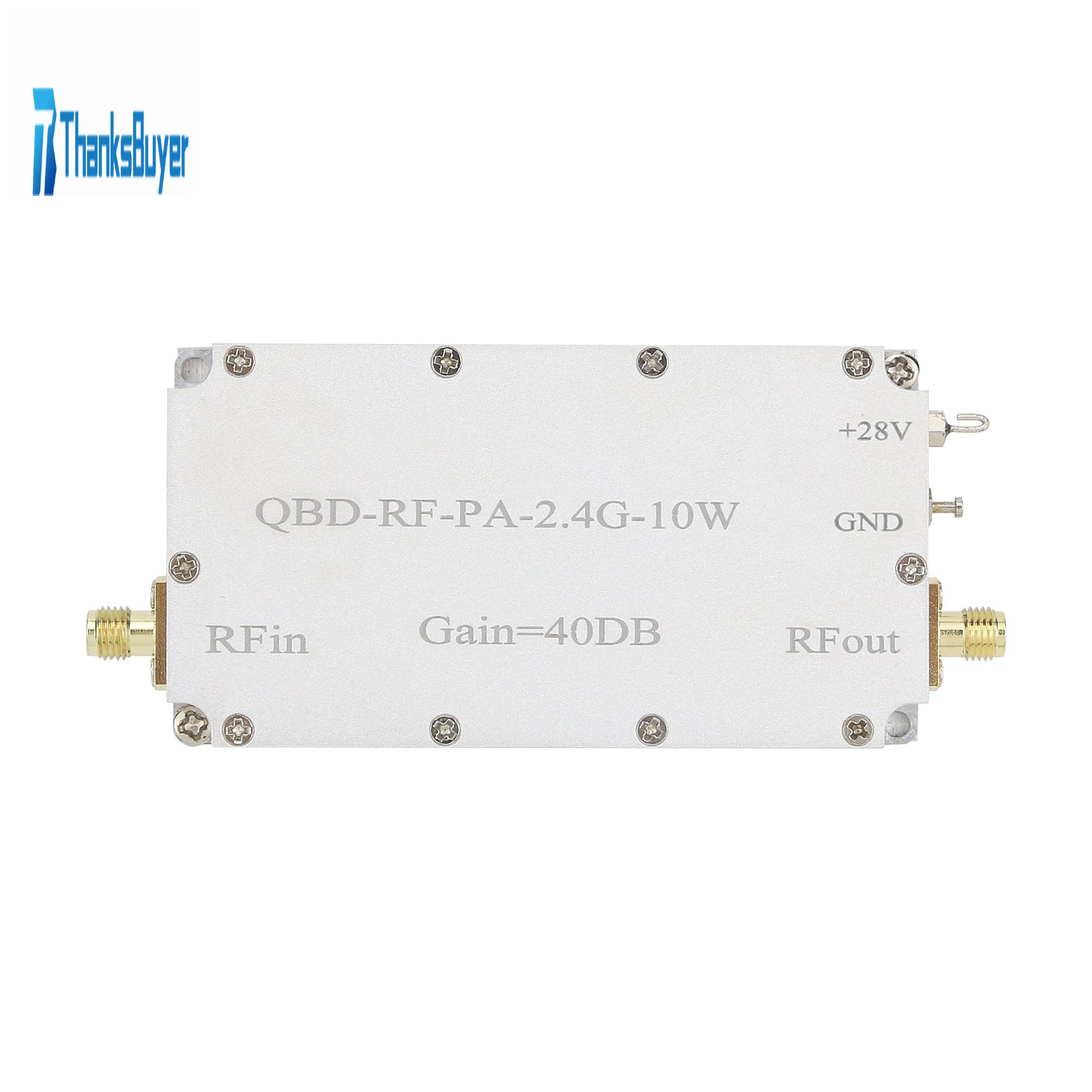

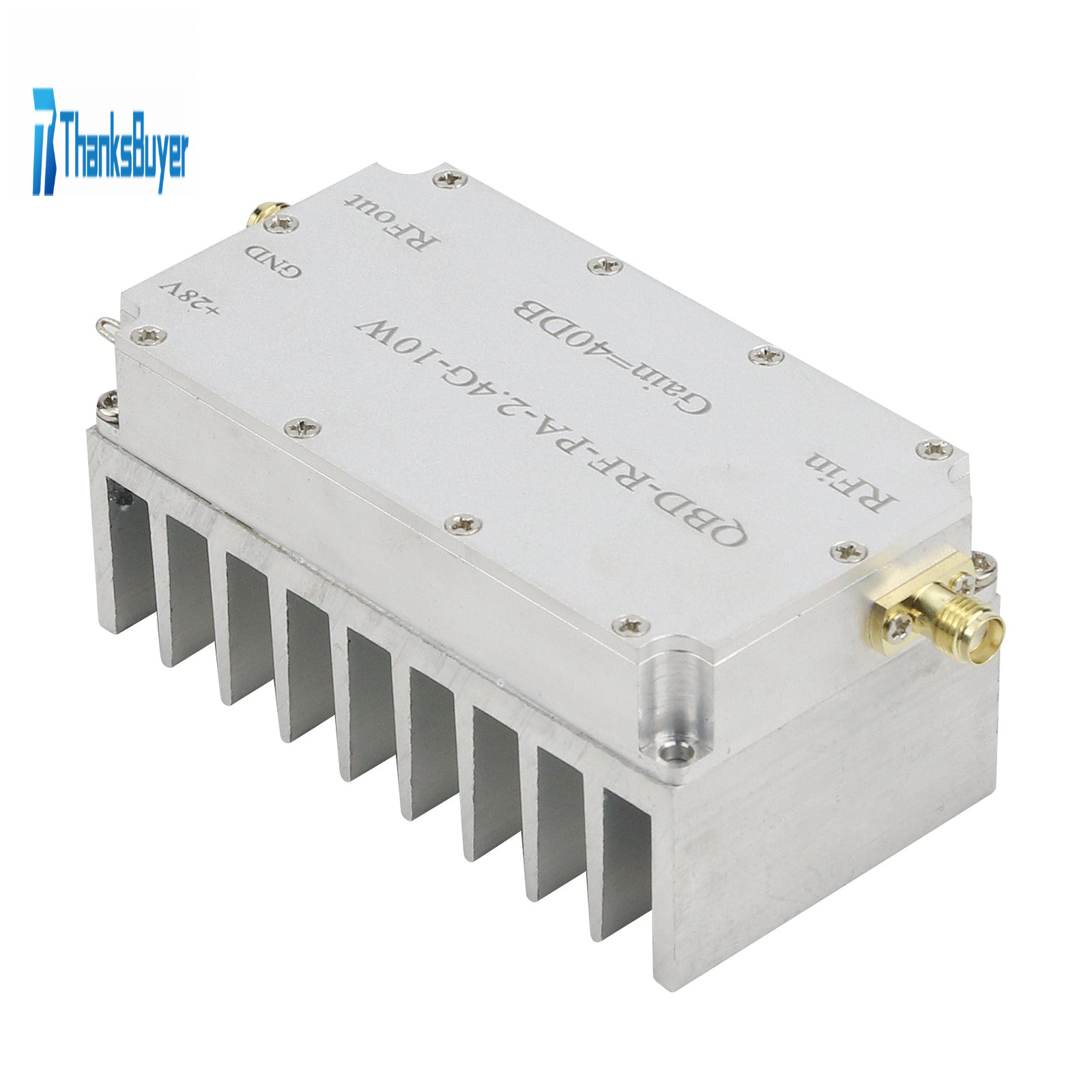

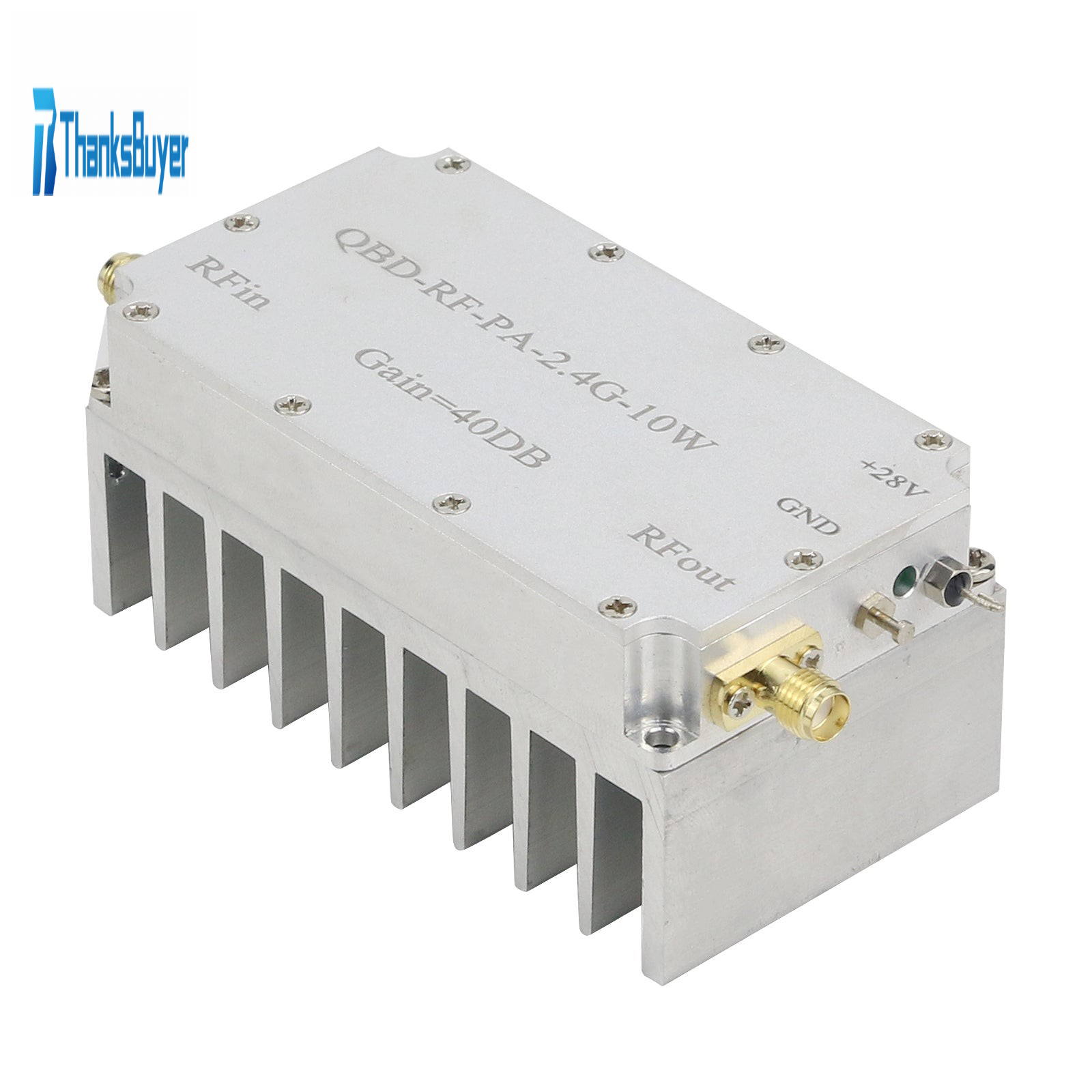

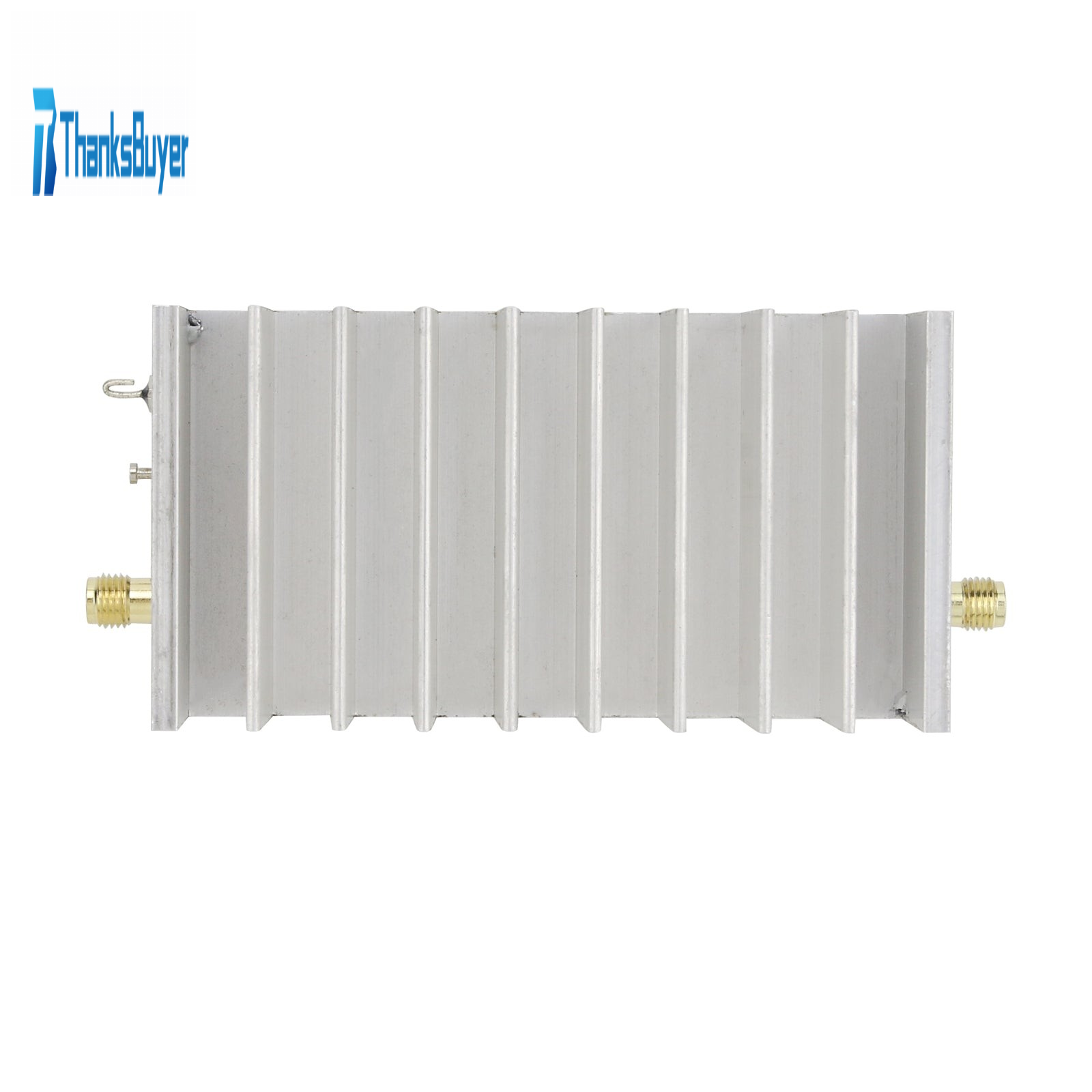

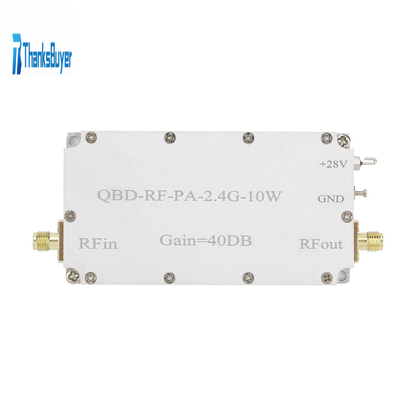

QBF-RF-PA-2.4G-10W RF Power Amplifier One-Way RF Power Amp Featuring 40DB Gain
Regular price
$138.14
Regular price
Sale price
$138.14
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Regular price
$138.14
Regular price
Sale price
$138.14
QBF-RF-PA-2.4G-10W RF Power Amplifier One-Way RF Power Amp Featuring 40DB Gain
Parameters:
1. Frequency range: 2.4-2.5GHz
2. Input and output interface: 50Ω; SMA connector (female)
3. Power supply: +28V (1A)
4. Maximum output power: 40dBm (10W)
5. Gain: 40DB
6. Maximum input signal amplitude: 0dBm
7. Size: 85 x 45 x 41mm/3.3 x 1.8 x 1.6" (excluding protruding SMA and feed-through capacitors)
8. Net weight: 250G/0.6LB
Package Included:
- 1 x RF Power Amplifier
