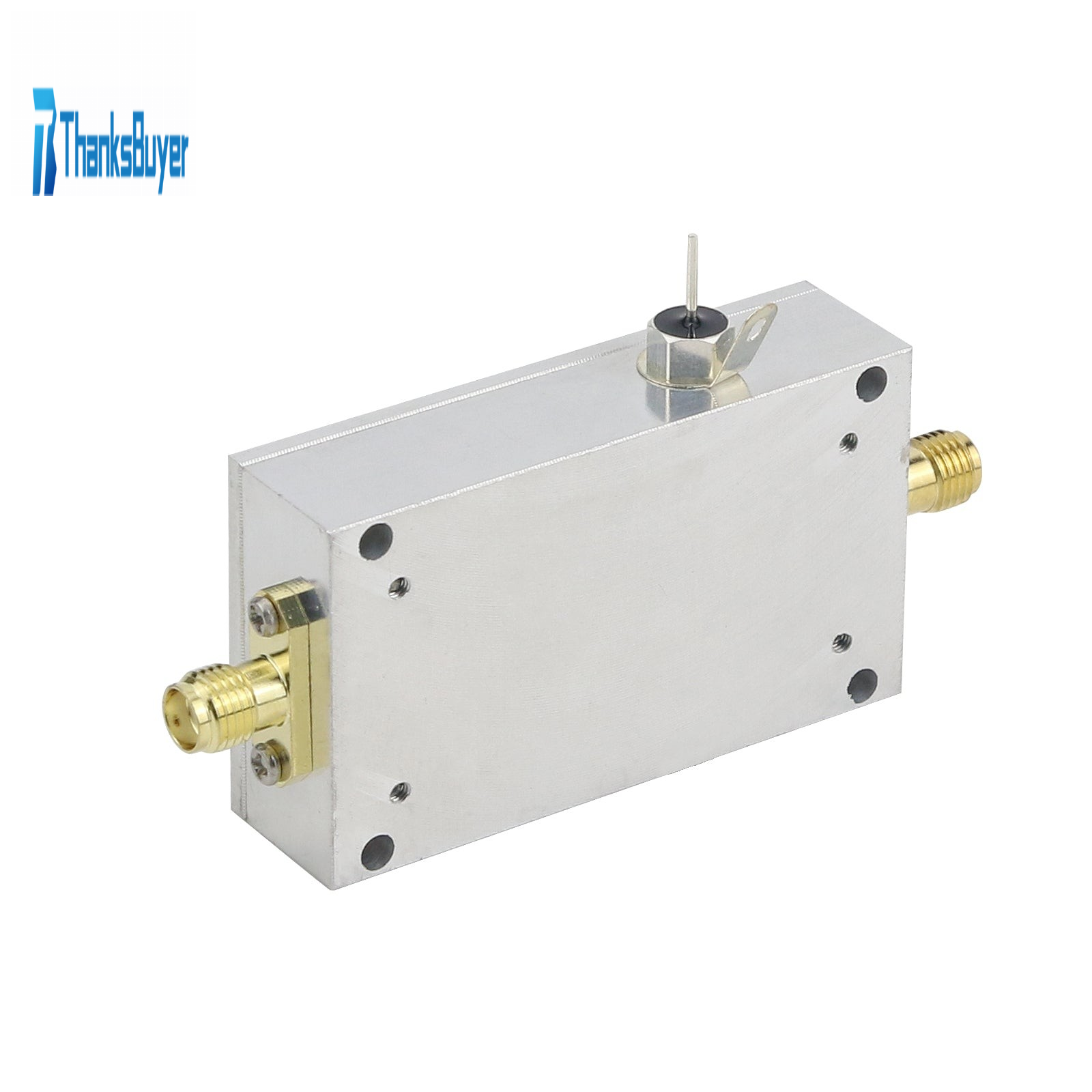

QM-FD2H 200MHz-8.5GHz Frequency Prescaler RF Frequency Divider Clock Divider (Frequency Divided by 2)
Couldn't load pickup availability
QM-FD2H 200MHz-8.5GHz Frequency Prescaler RF Frequency Divider Clock Divider (Frequency Divided by 2)
Description:
The module covers 200MHz-8.5GHz frequency range and its input signal in this range can be divided by 2. In frequency measurement systems, this module can be used to convert high-frequency signals into low-frequency signals, which is convenient for subsequent processing. At the same time, it can also be applied to other signal frequency division occasions (point-to-point communication), which needs to be converted from high-frequency signals to low-frequency signals. Additionally, thanks to its CNC structure shell, the module has excellent electromagnetic shielding performance.
Technical Parameters:
- Module model: QM-FD2H
- Module power supply: +5V power supply
- Input frequency range: 200MHz-8.5GHz
- Input level requirements: -12 to +12dBm (200M-7GHz); -4 to +10dBm (7-8.5GHz)
- SSB phase noise (100KHz offset): -148dBc/Hz
- Maximum input power: +15dBm
- Input and output interface: SMA female connector
- Input and output impedance: 50Ω
Package Included:
- 1 x RF Frequency Divider
