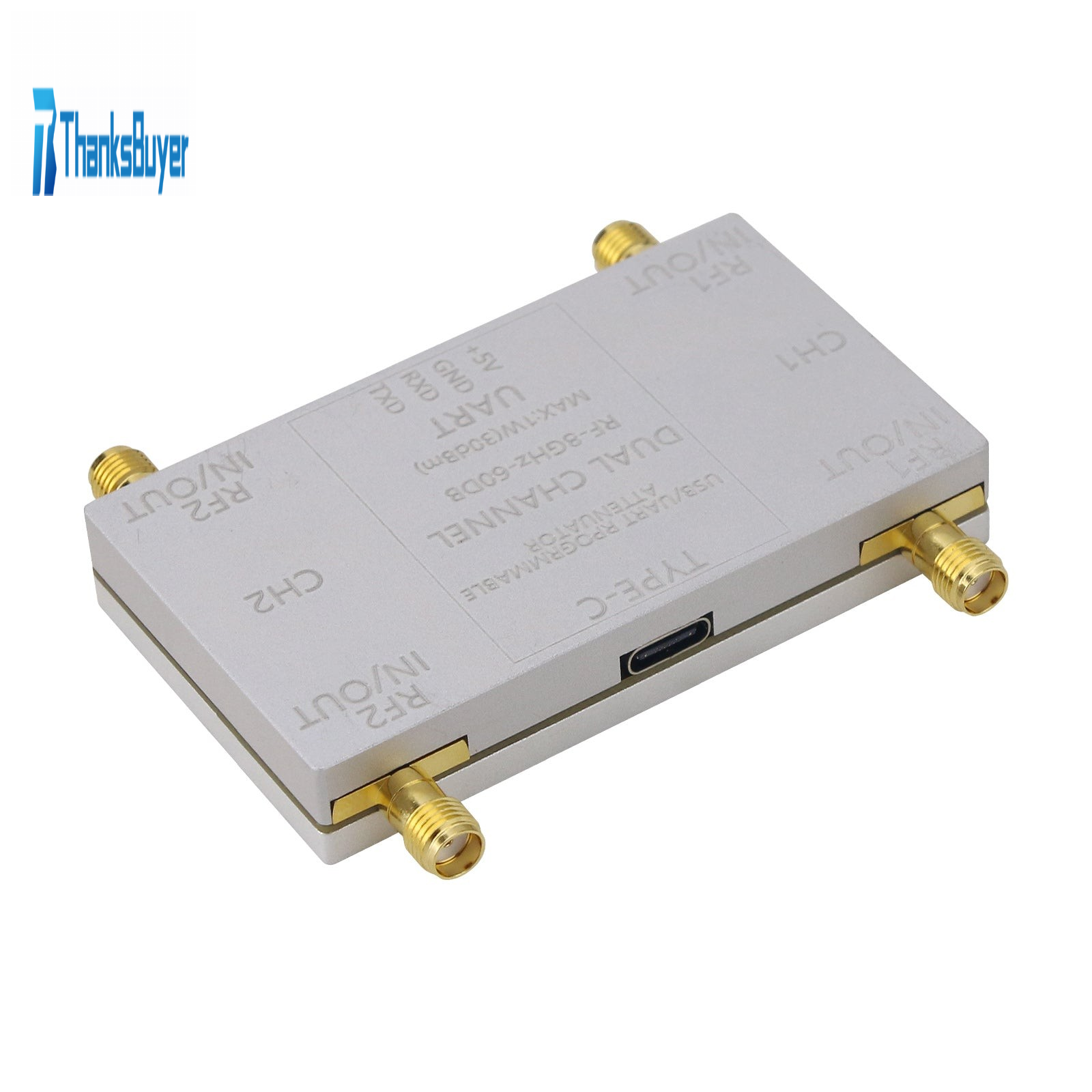

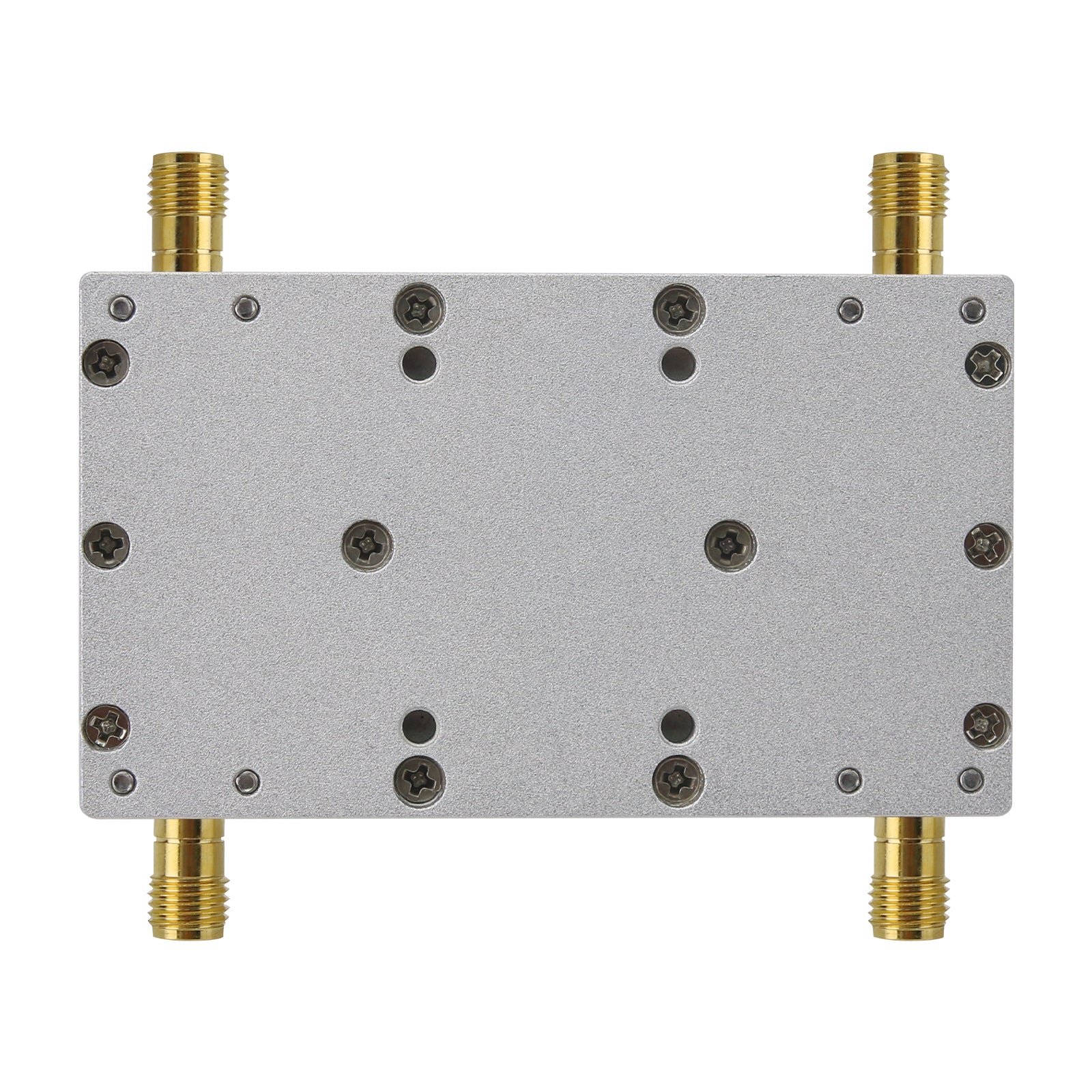

RF-8GHz-60DB Programmable Attenuator + Type-C Cable + Offline Main Control Board + Serial Port Adapter Cable

RF-8GHz-60DB Programmable Attenuator + Type-C Cable + Offline Main Control Board + Serial Port Adapter Cable

Description:
The RF programmable attenuator comes with a offline main control board and a serial communication cable. Thus, it supports offline operation and can be used for industrial control.

Parameters:
1. Number of ports: dual channels
2. Single-channel attenuation: 60DB dynamic range

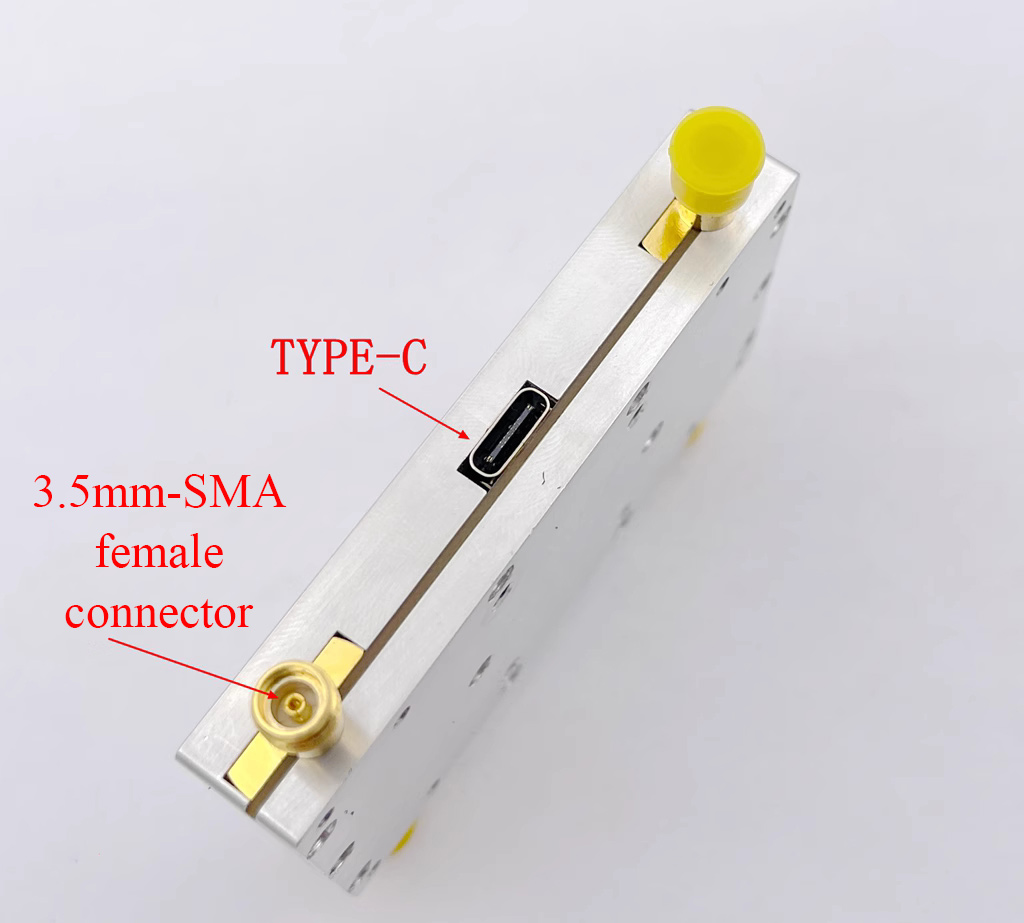

3. Input and output interfaces: 26.5G SMA female connectors
4. Input and output impedance: 50 ohms
5. Frequency range: 10K to 8GHz (do not add DC to RF port)
6. Dimensions: 72mm x 42mm x 12mm/2.8" x 1.7" x 0.5" (excluding protruding SMA)
7. Insertion loss: refer to the 0DB attenuator to set the S-curve
8. Error: refer to the measured S-curve

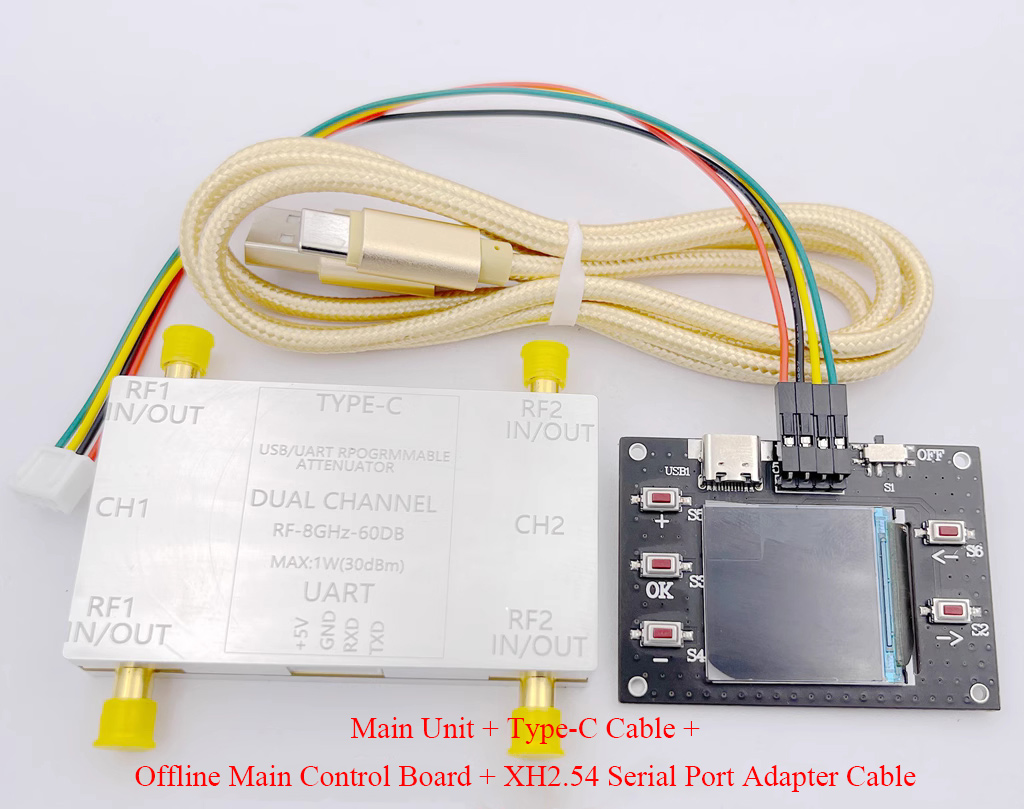

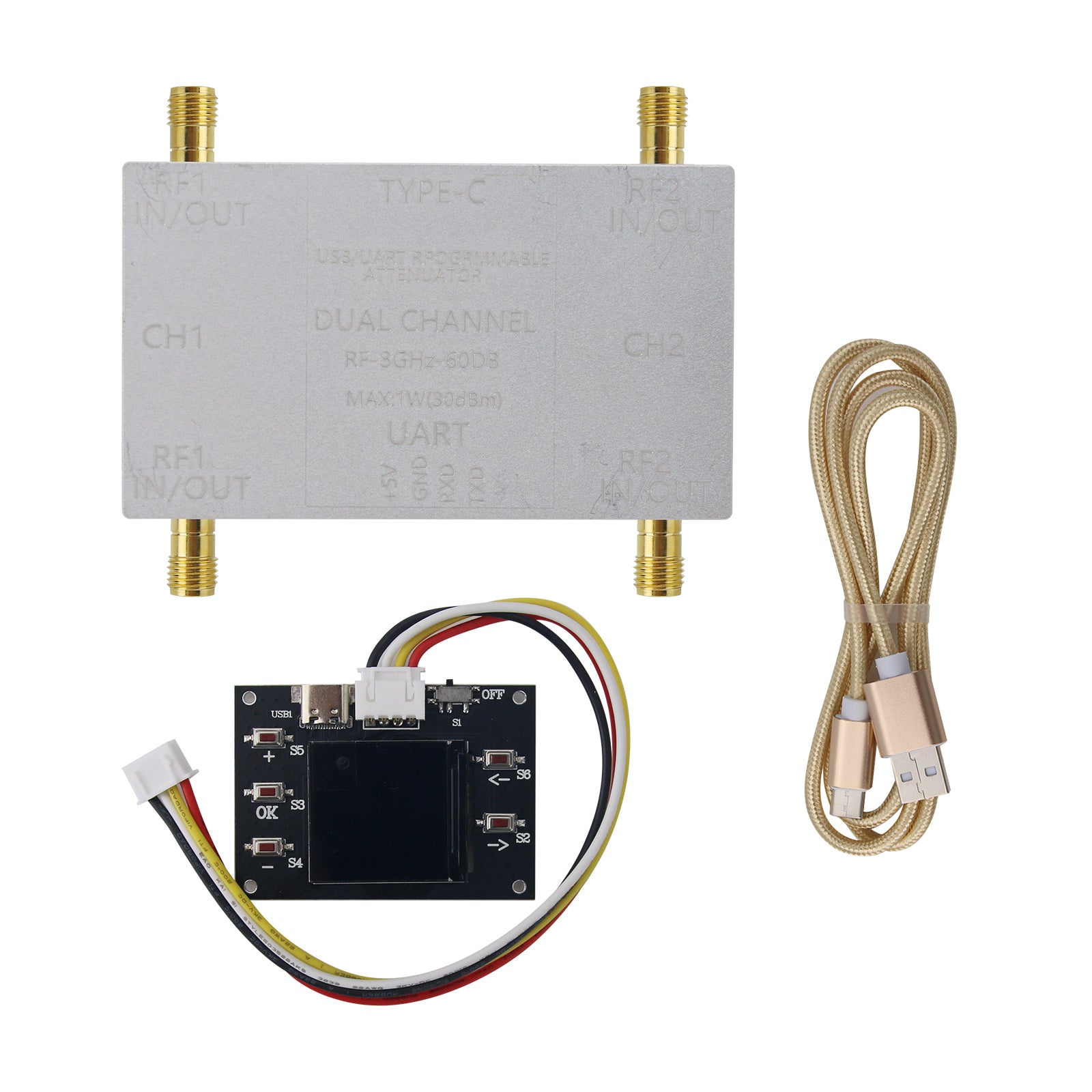

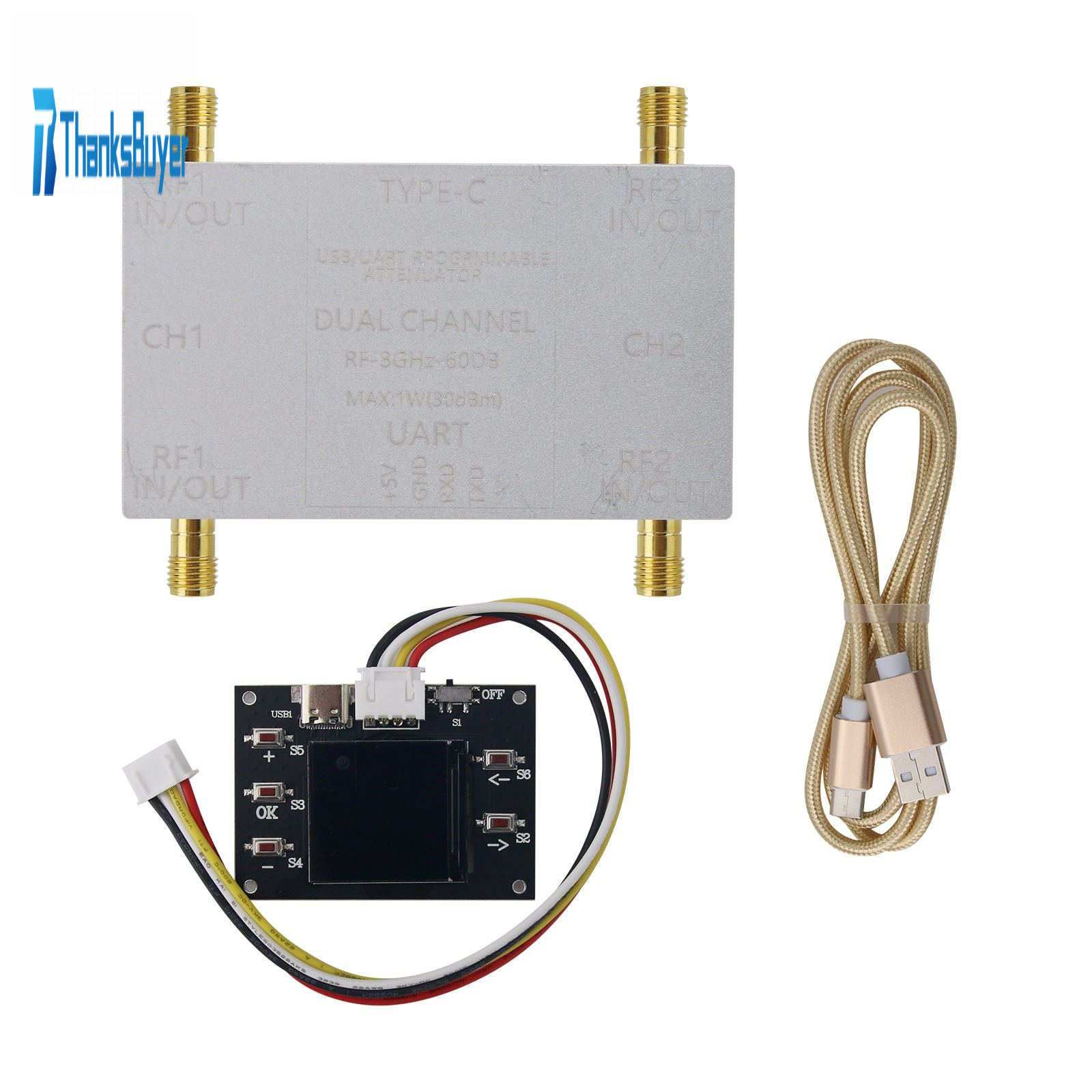

Package Included:

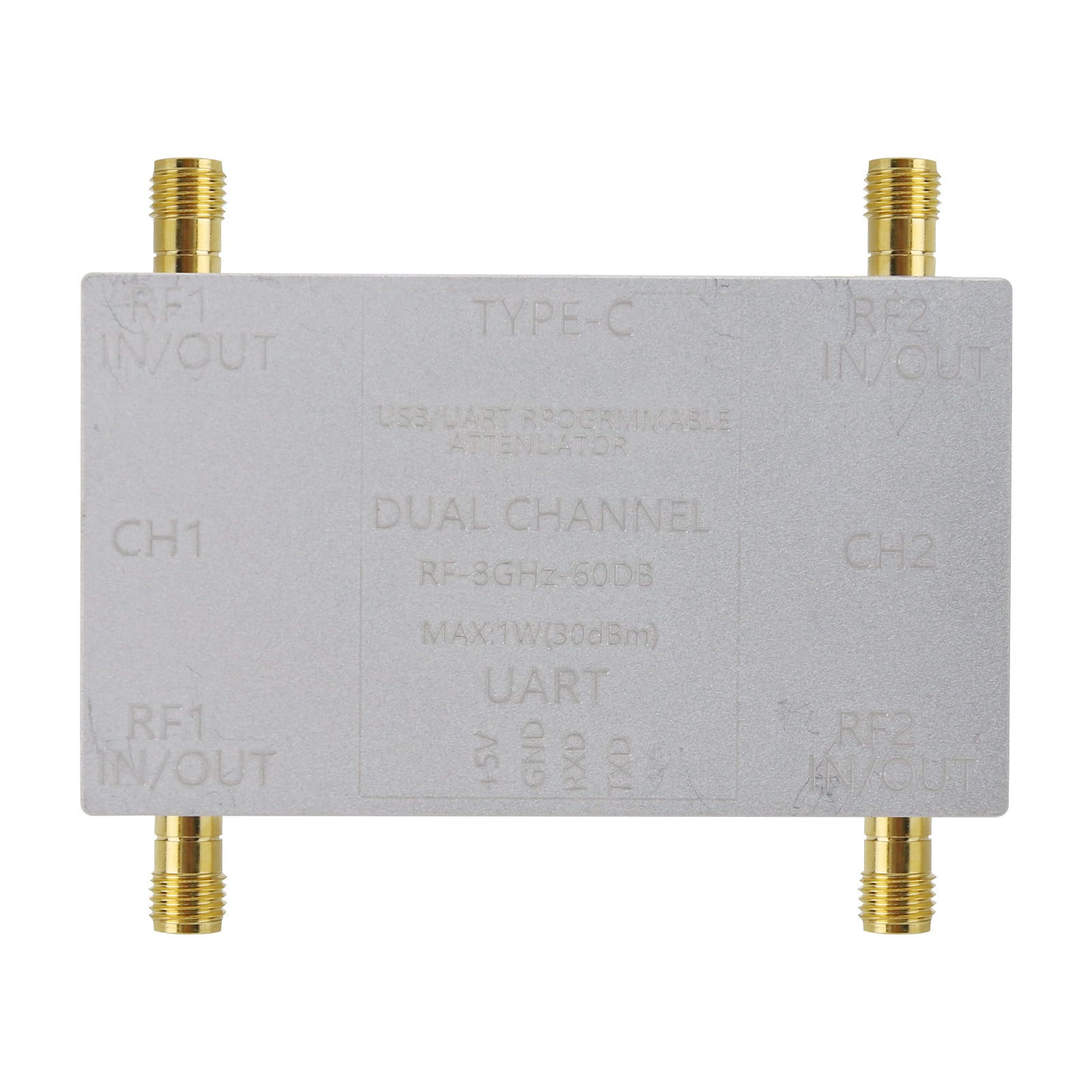

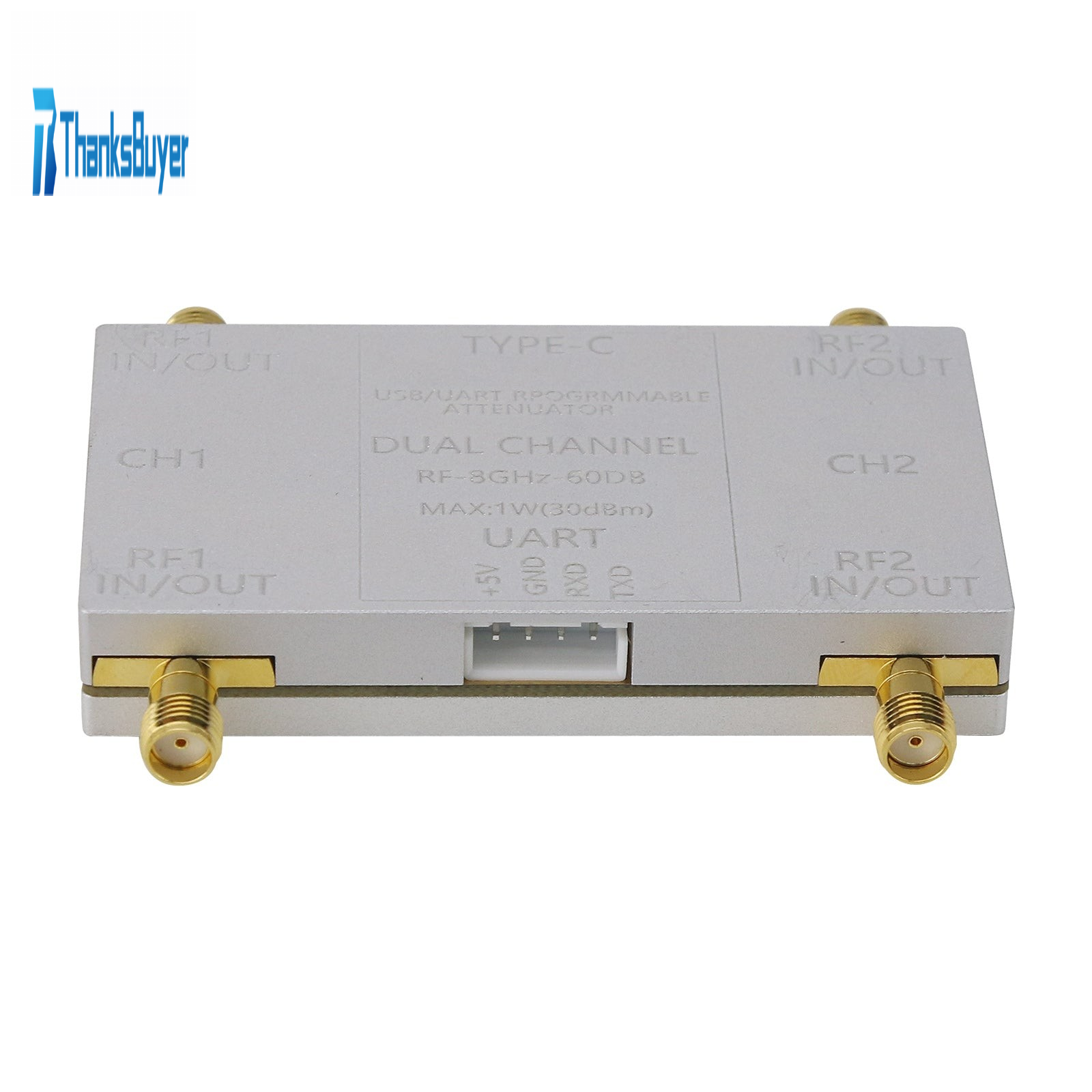

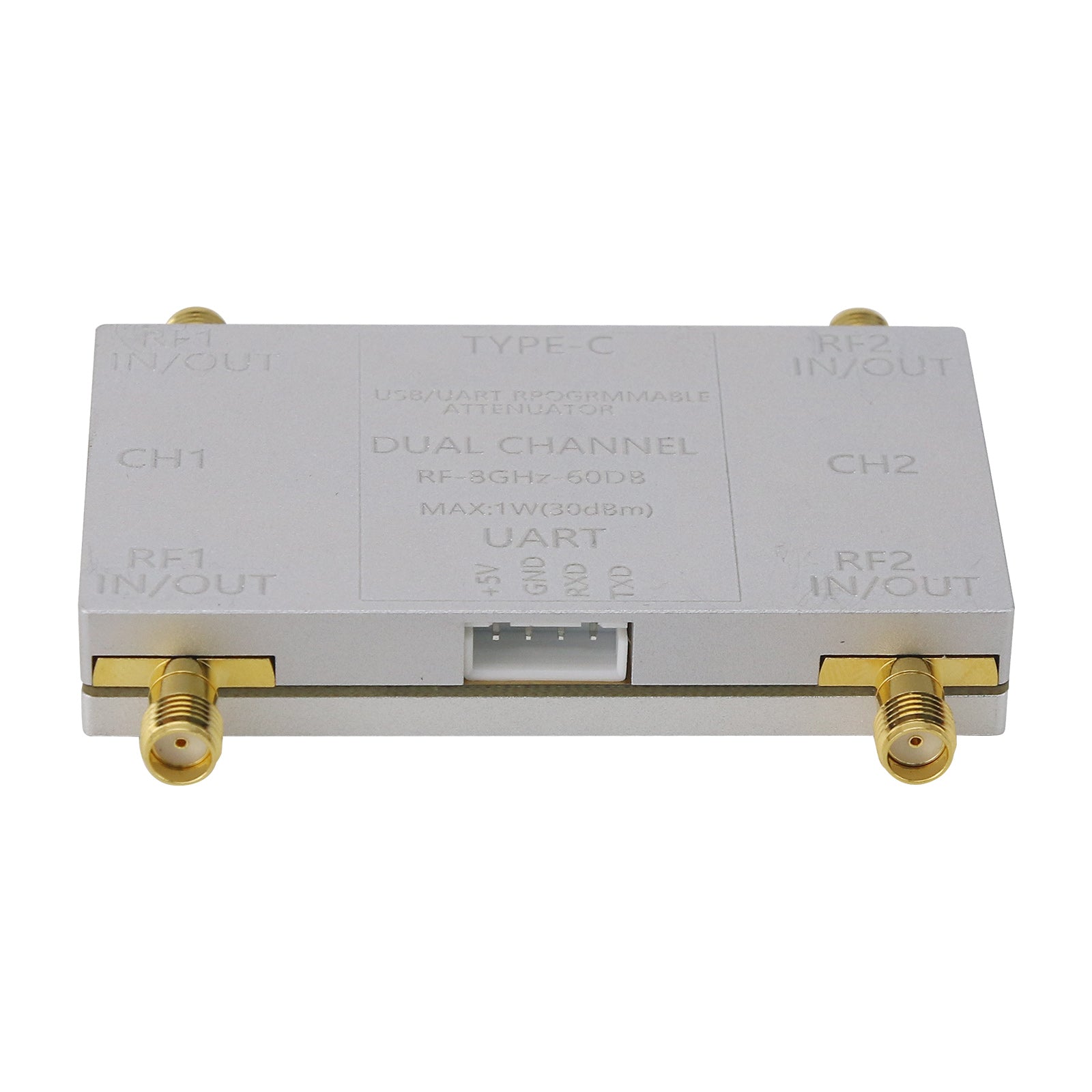

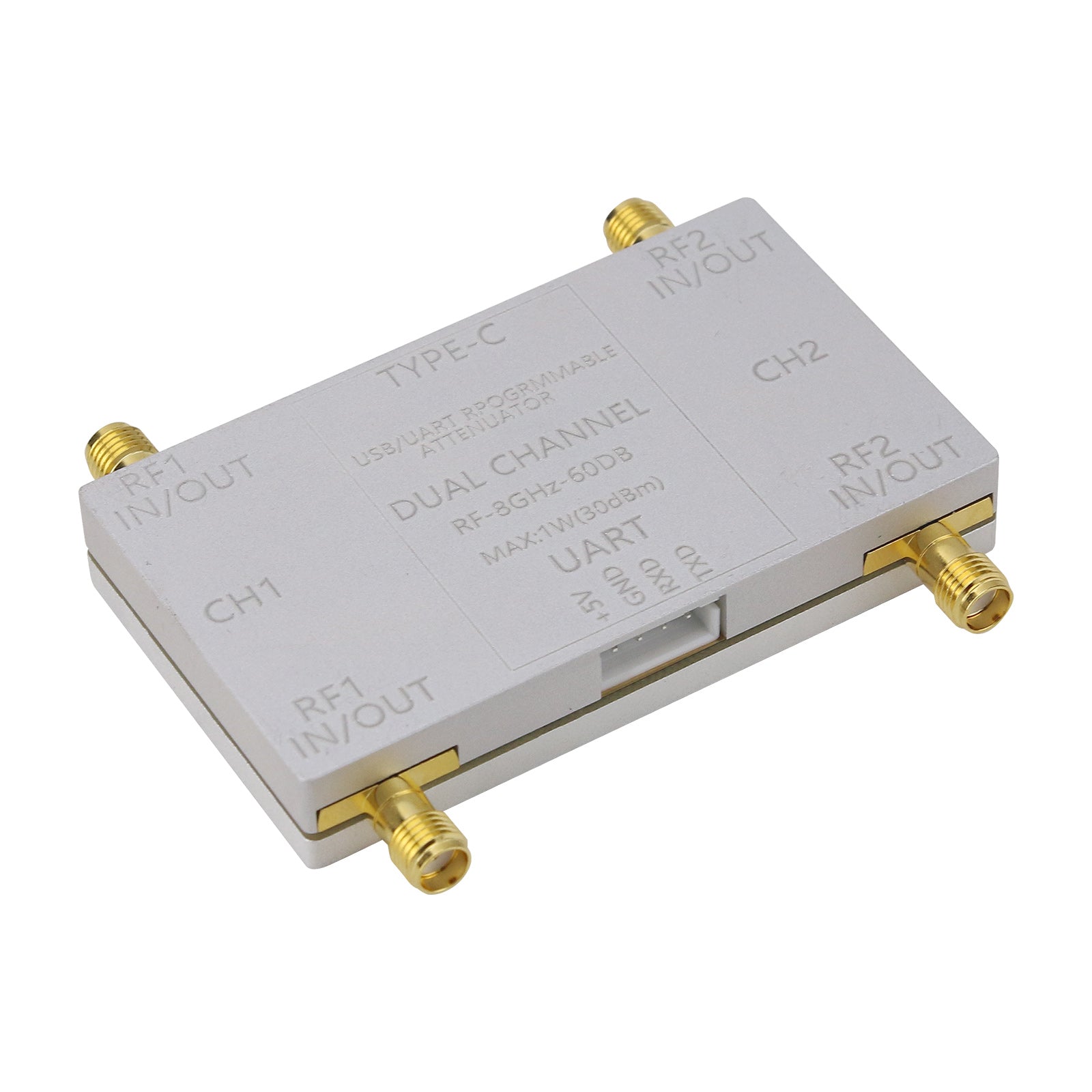

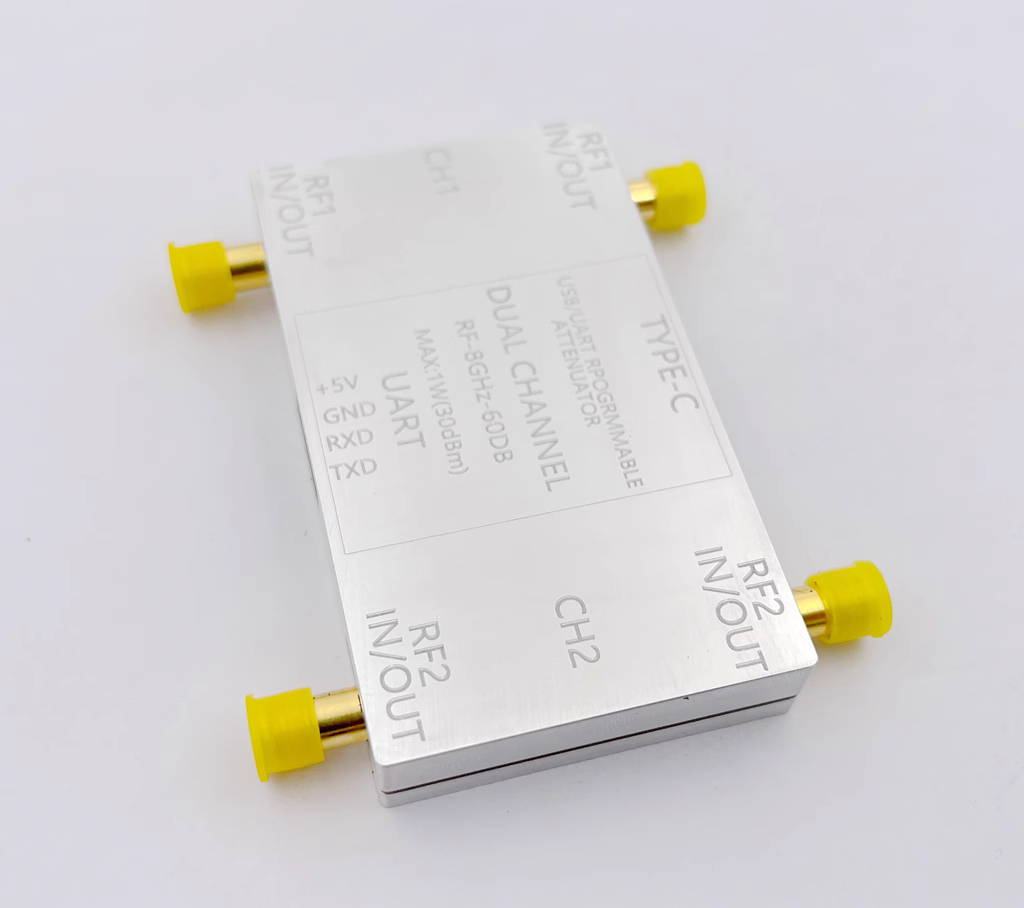

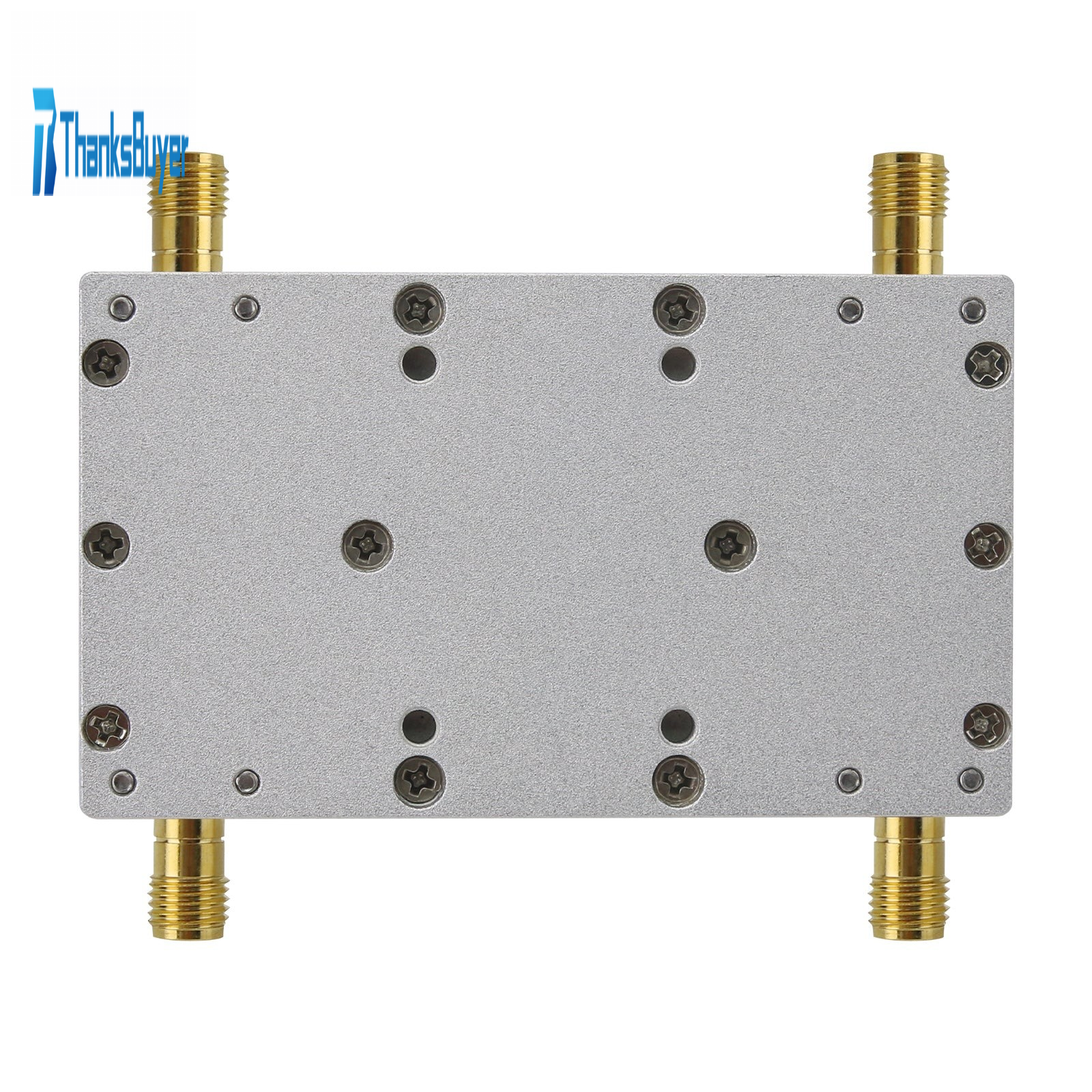

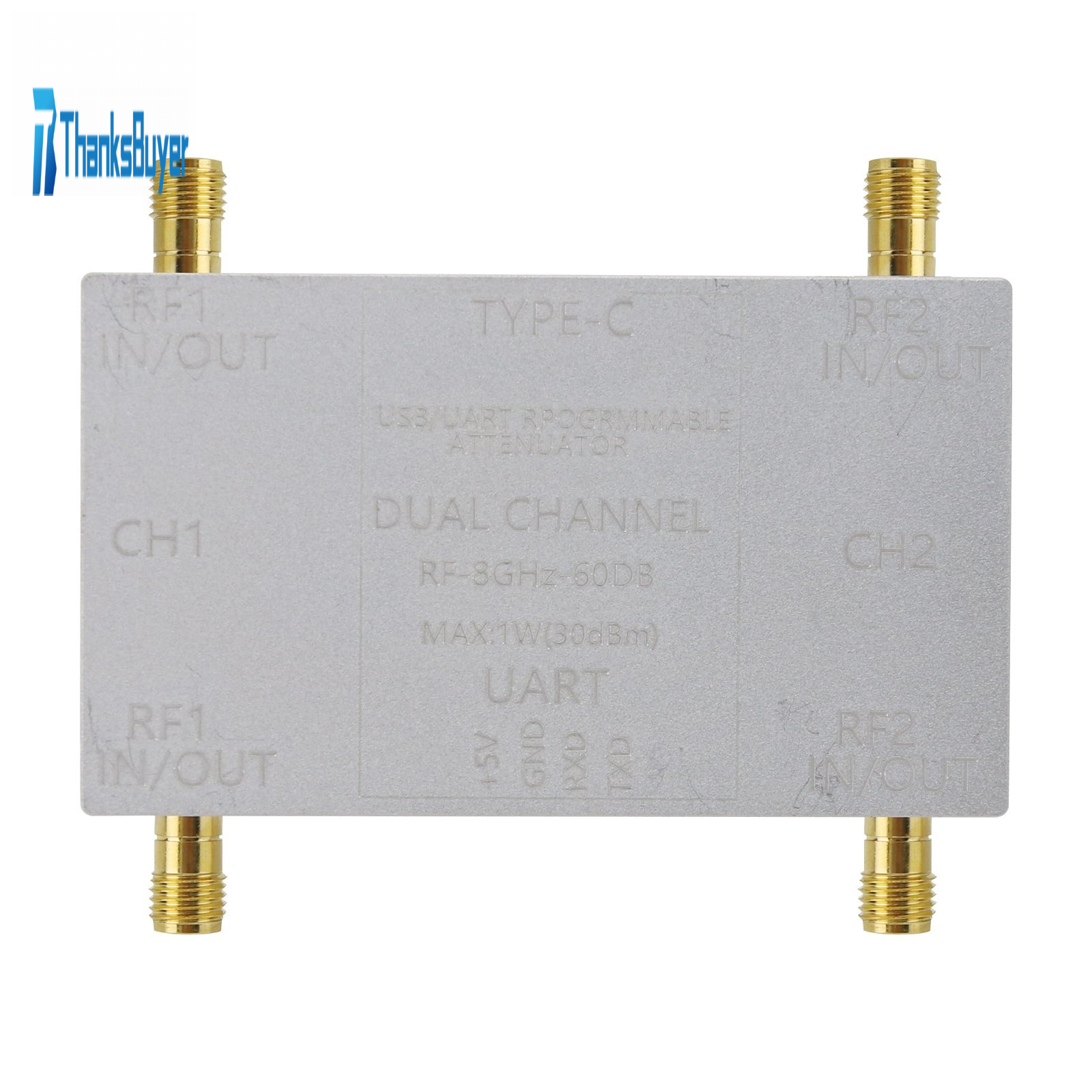

- 1 x Programmable Attenuator Main Unit

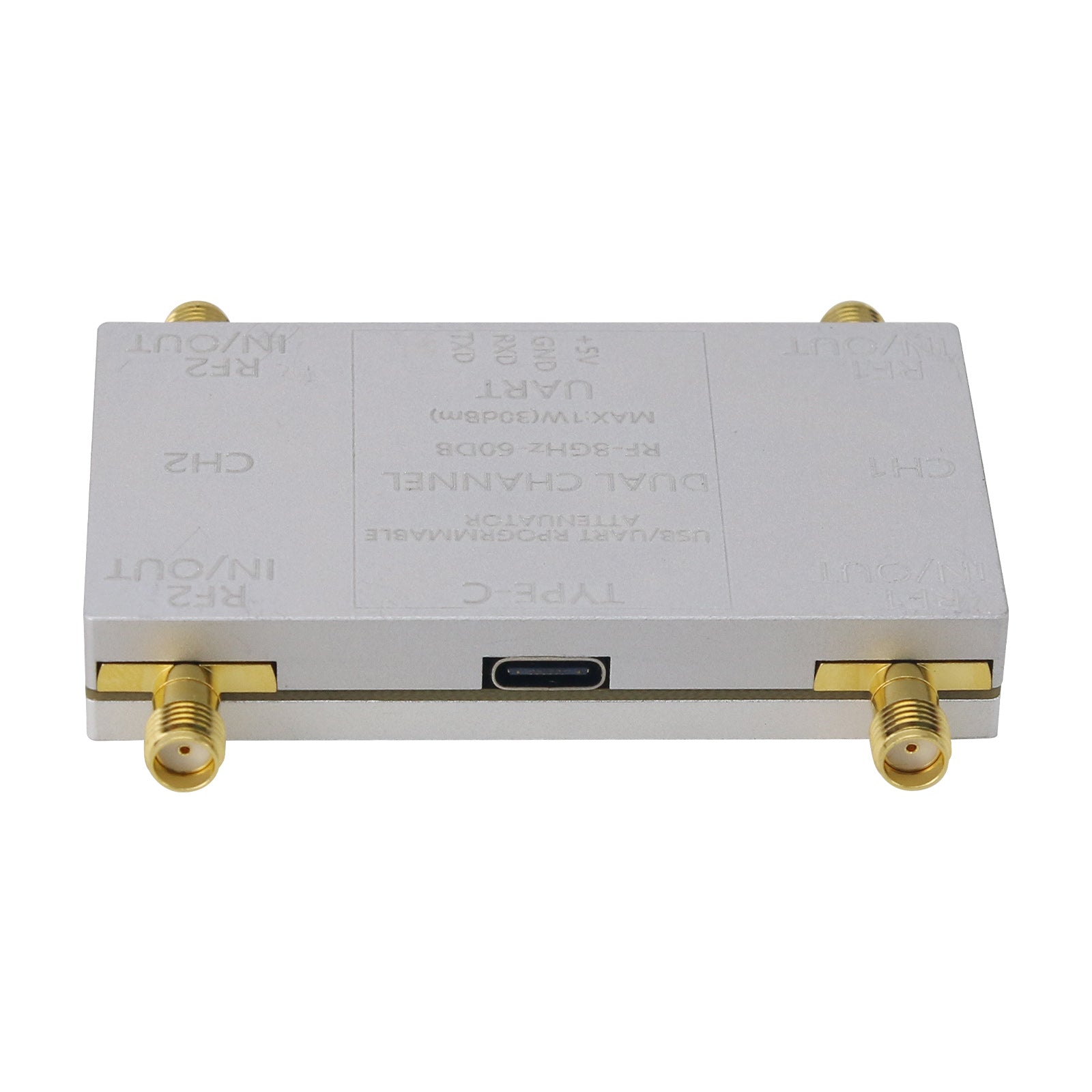

- 1 x Type-C Cable

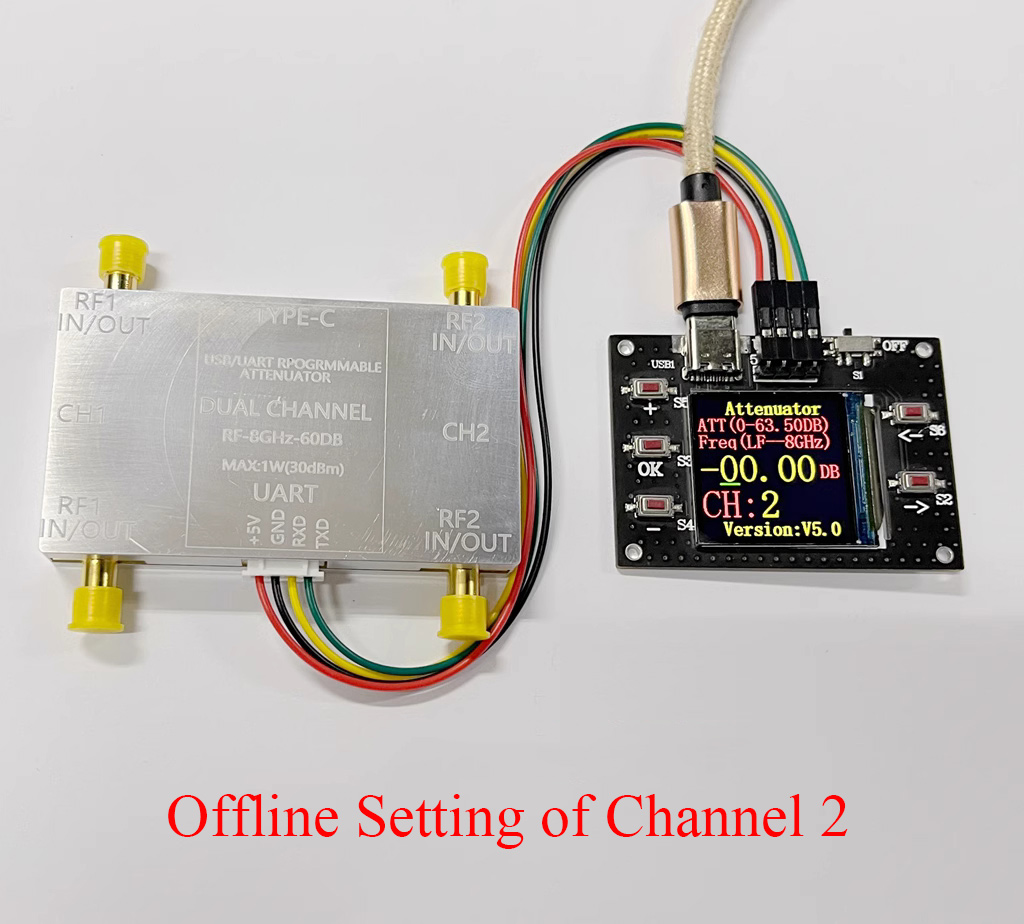

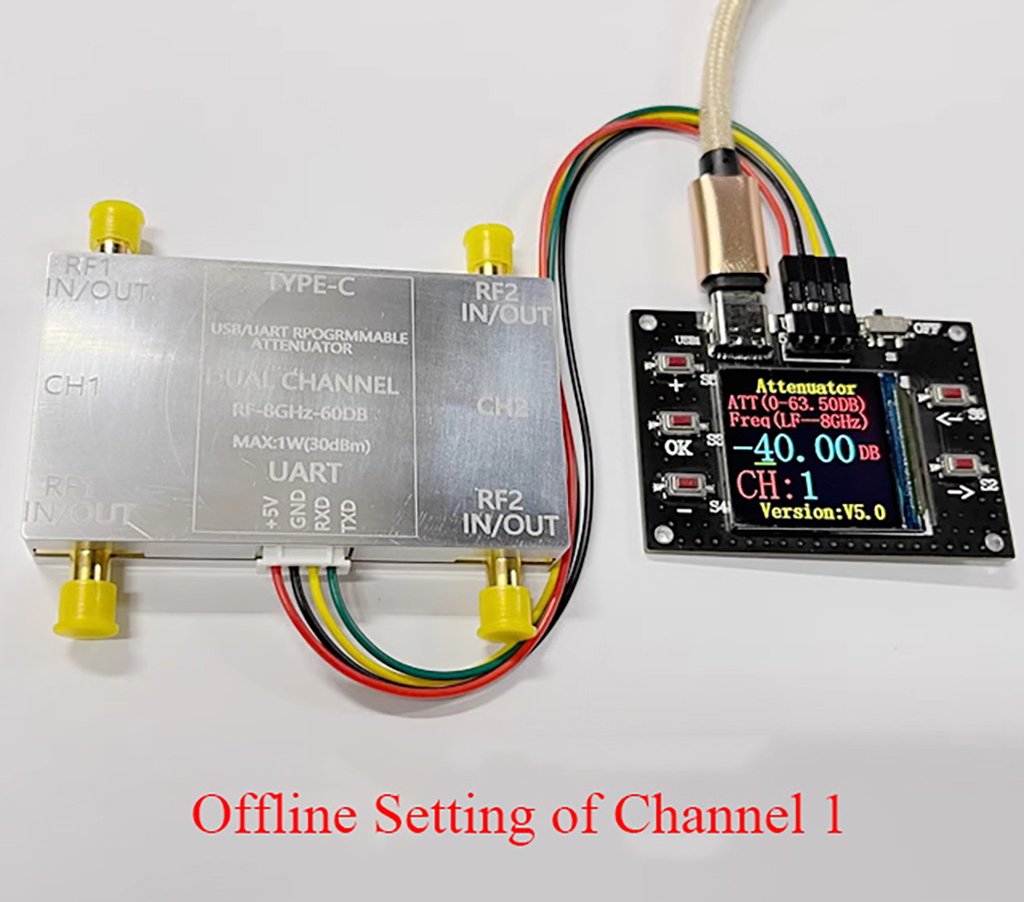

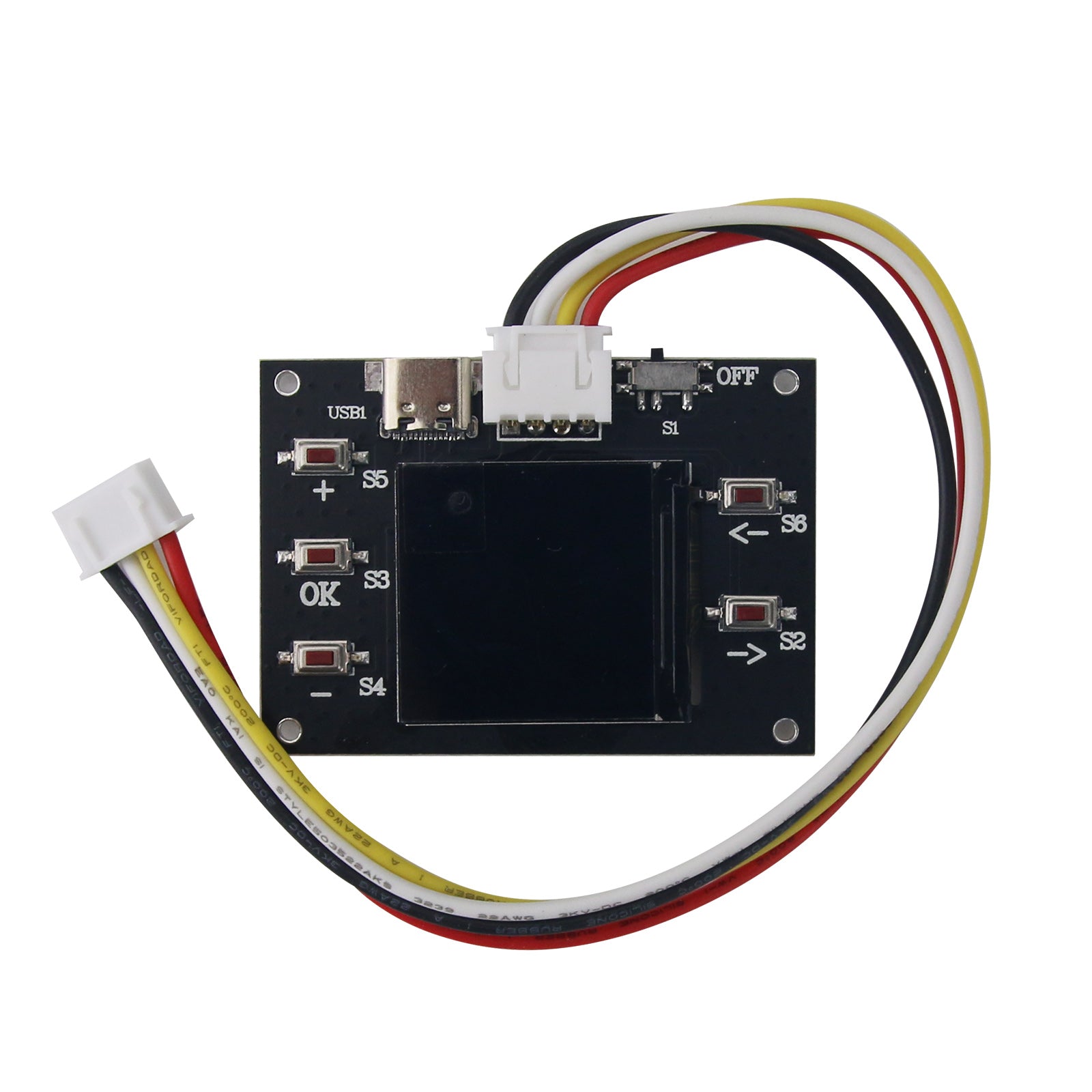

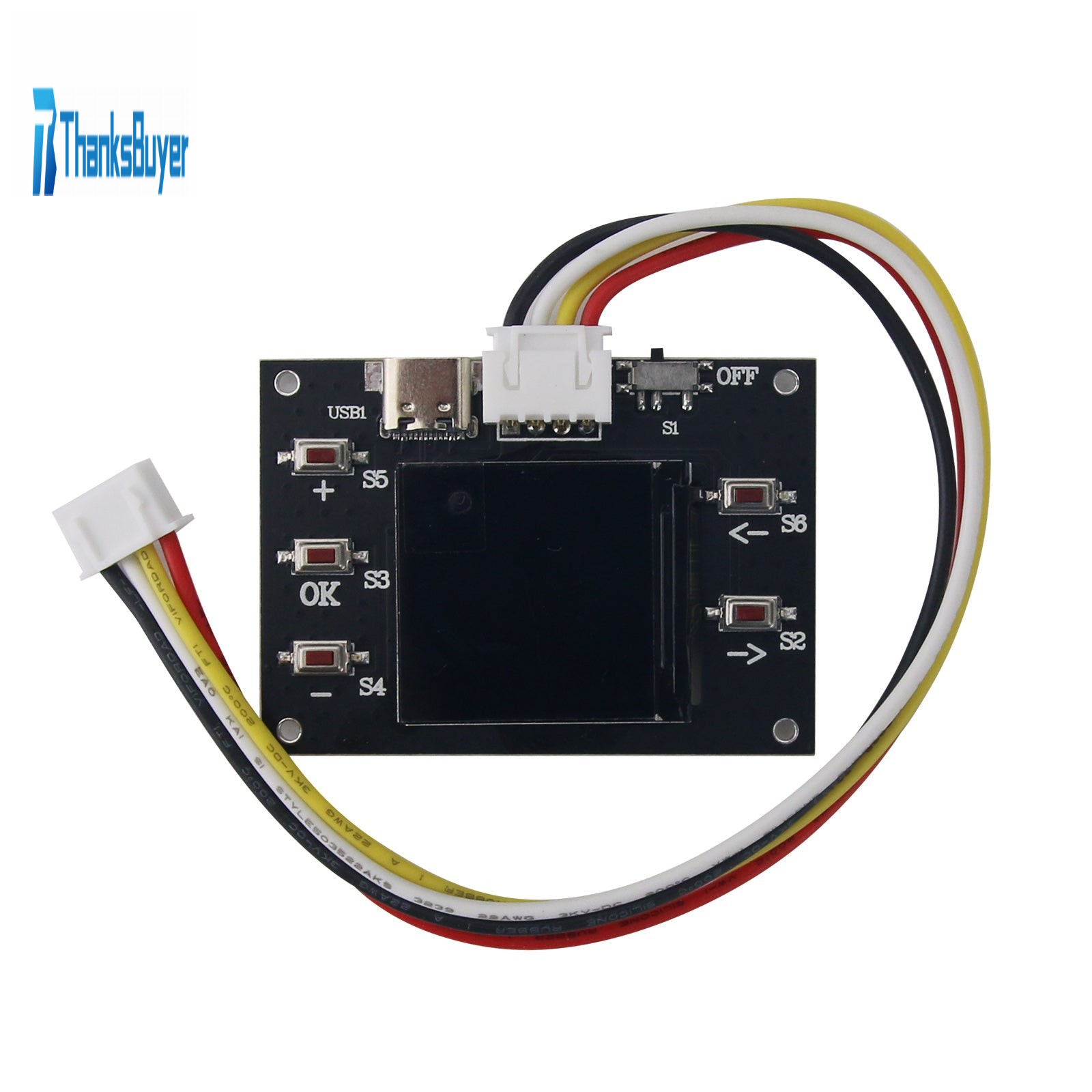

- 1 x Offline Main Control Board

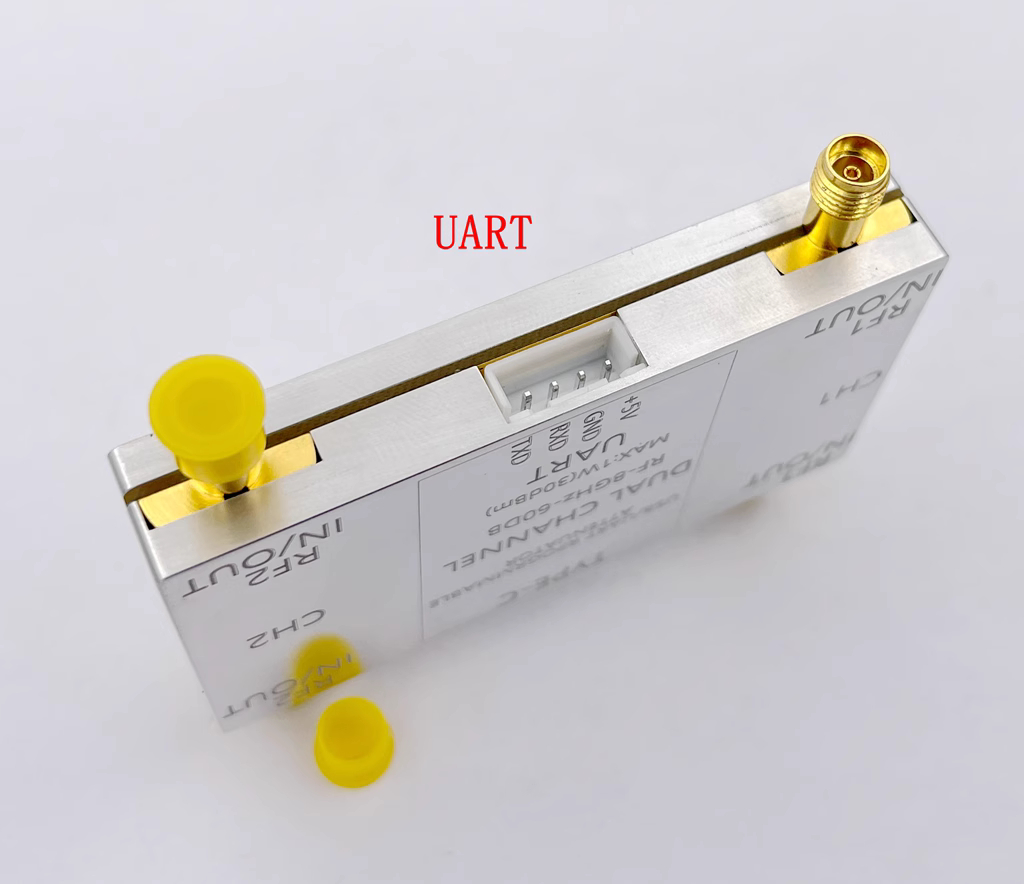

- 1 x XH2.54 Serial Port Adapter Cable

Packaging Details:
- Weight: 0.3kg

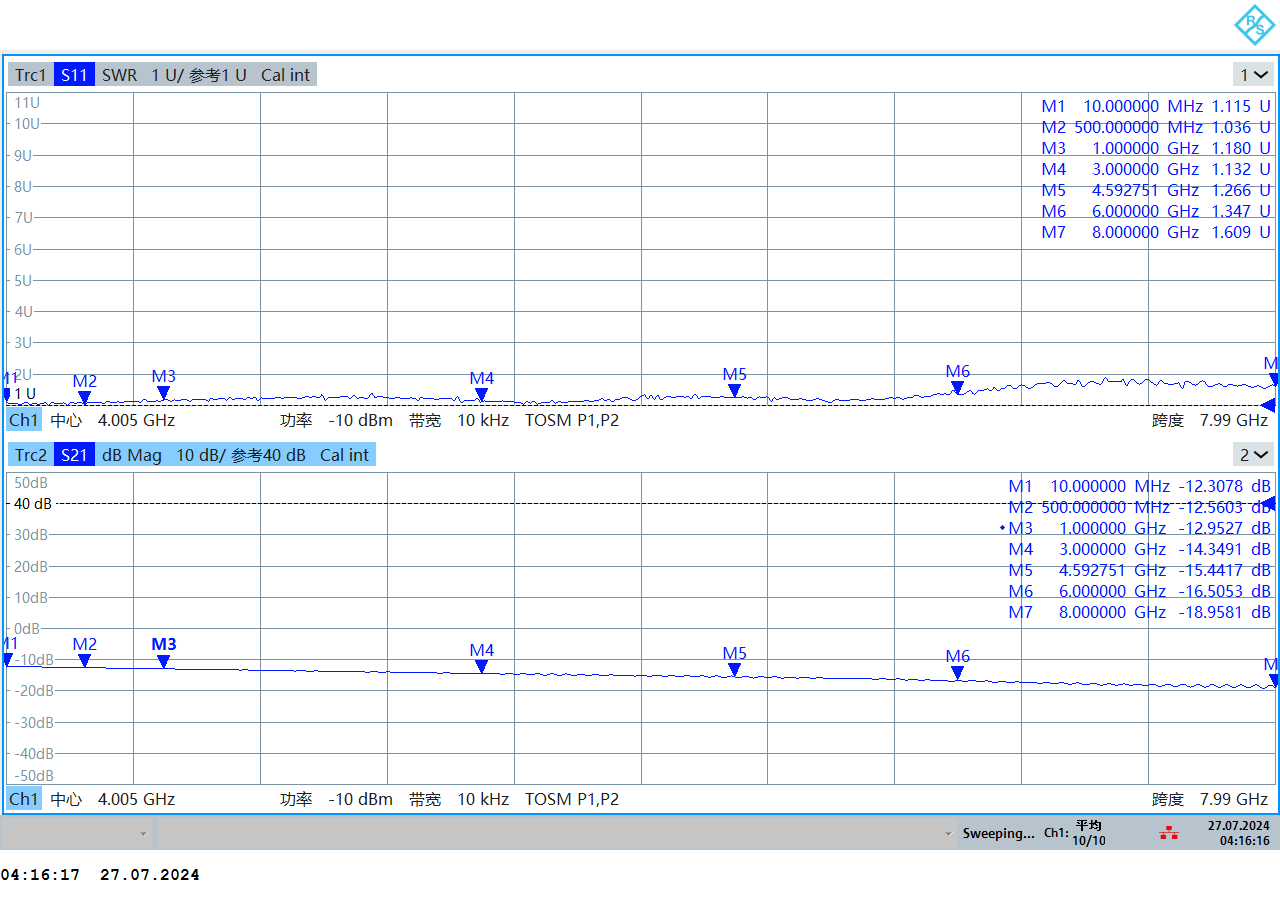

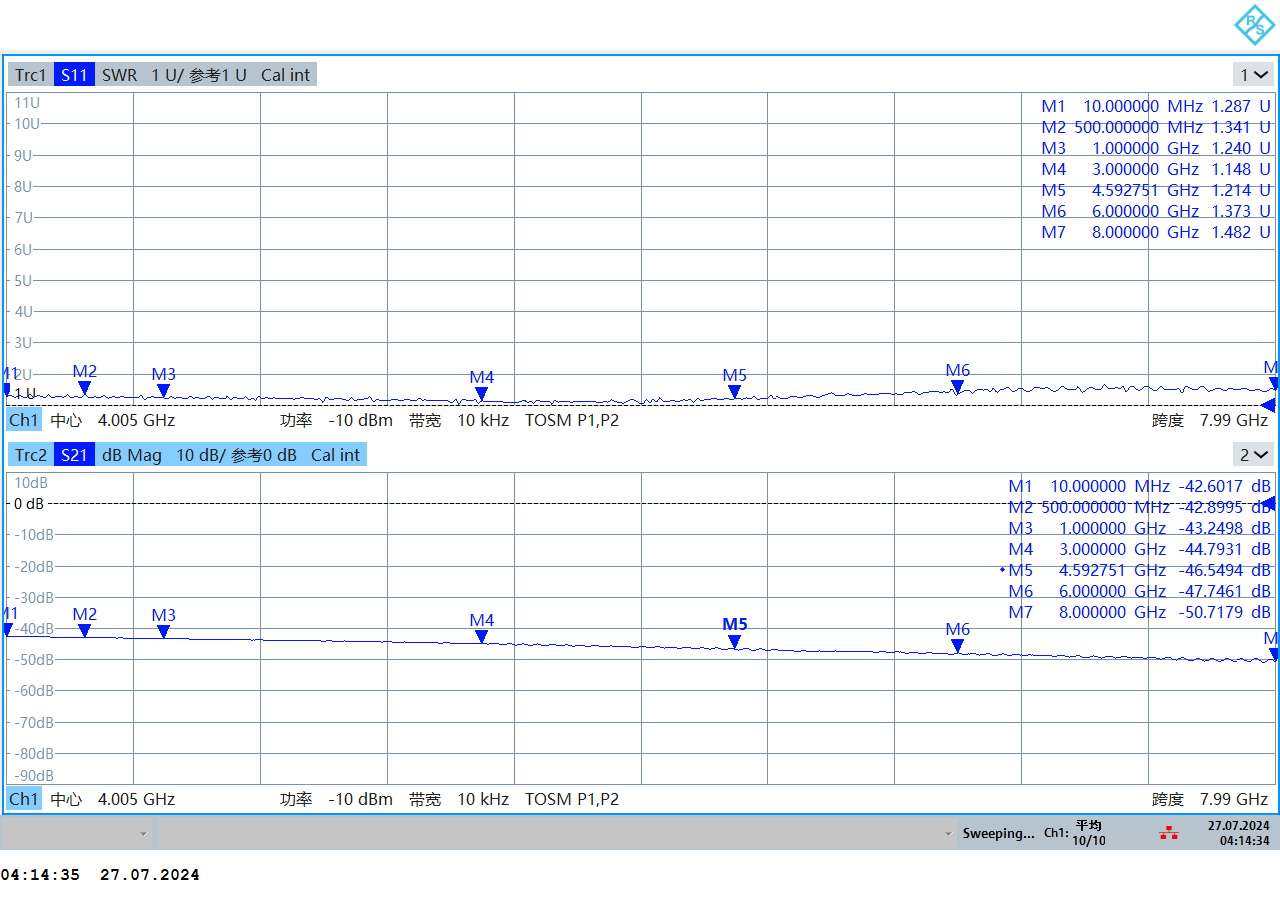

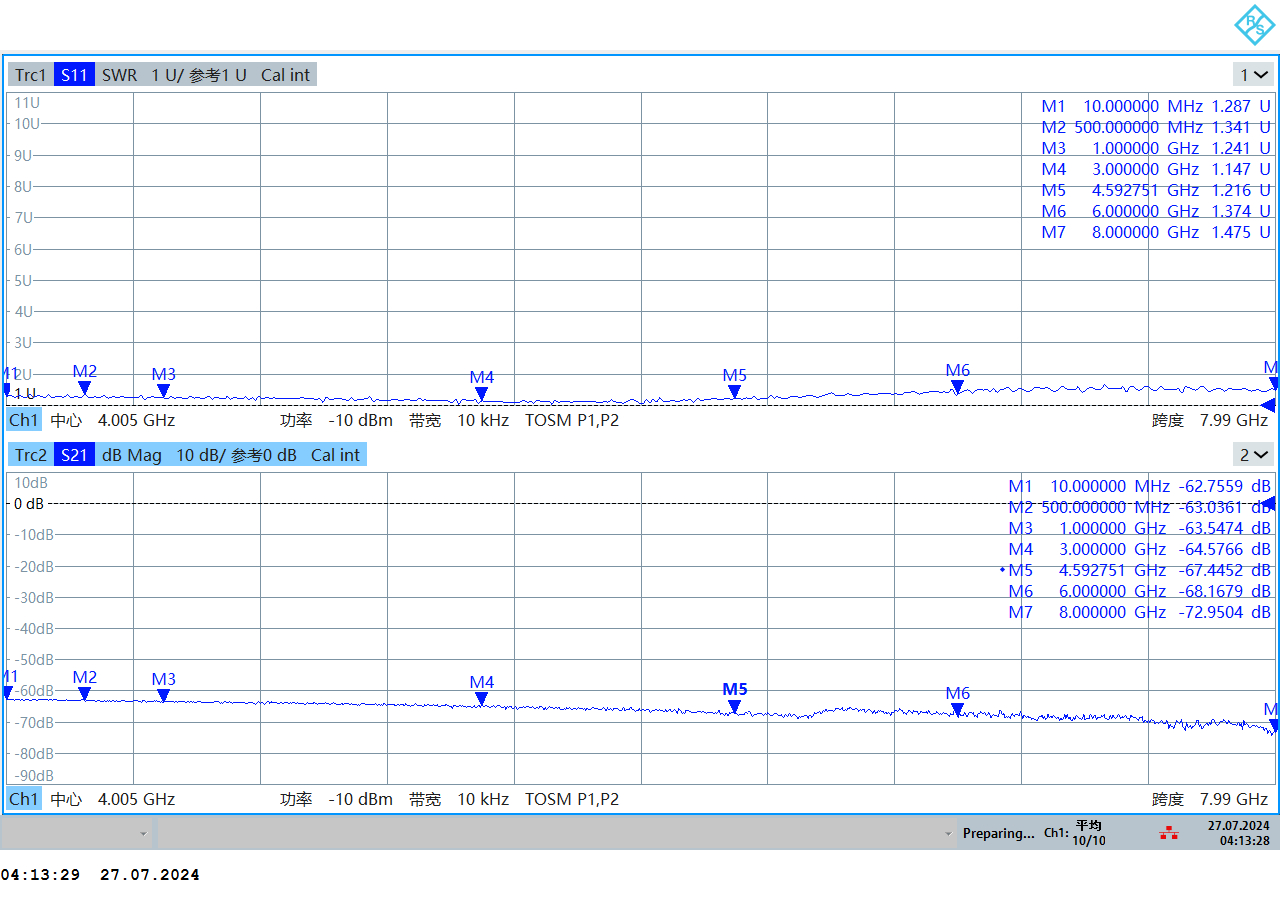

Measured S-Curve for 8G Version:

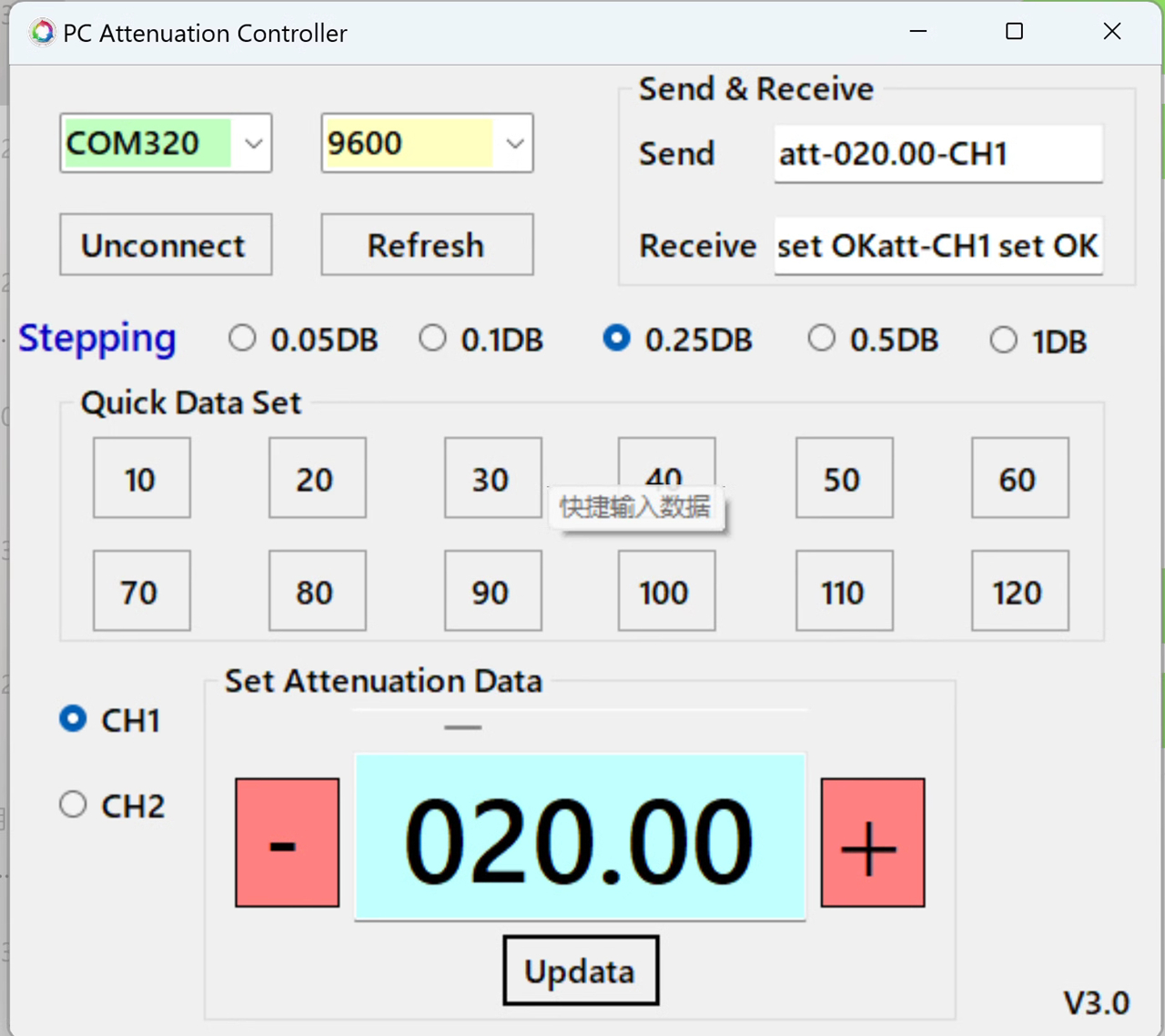

Supports Serial Communication at the Host Computer Level:
