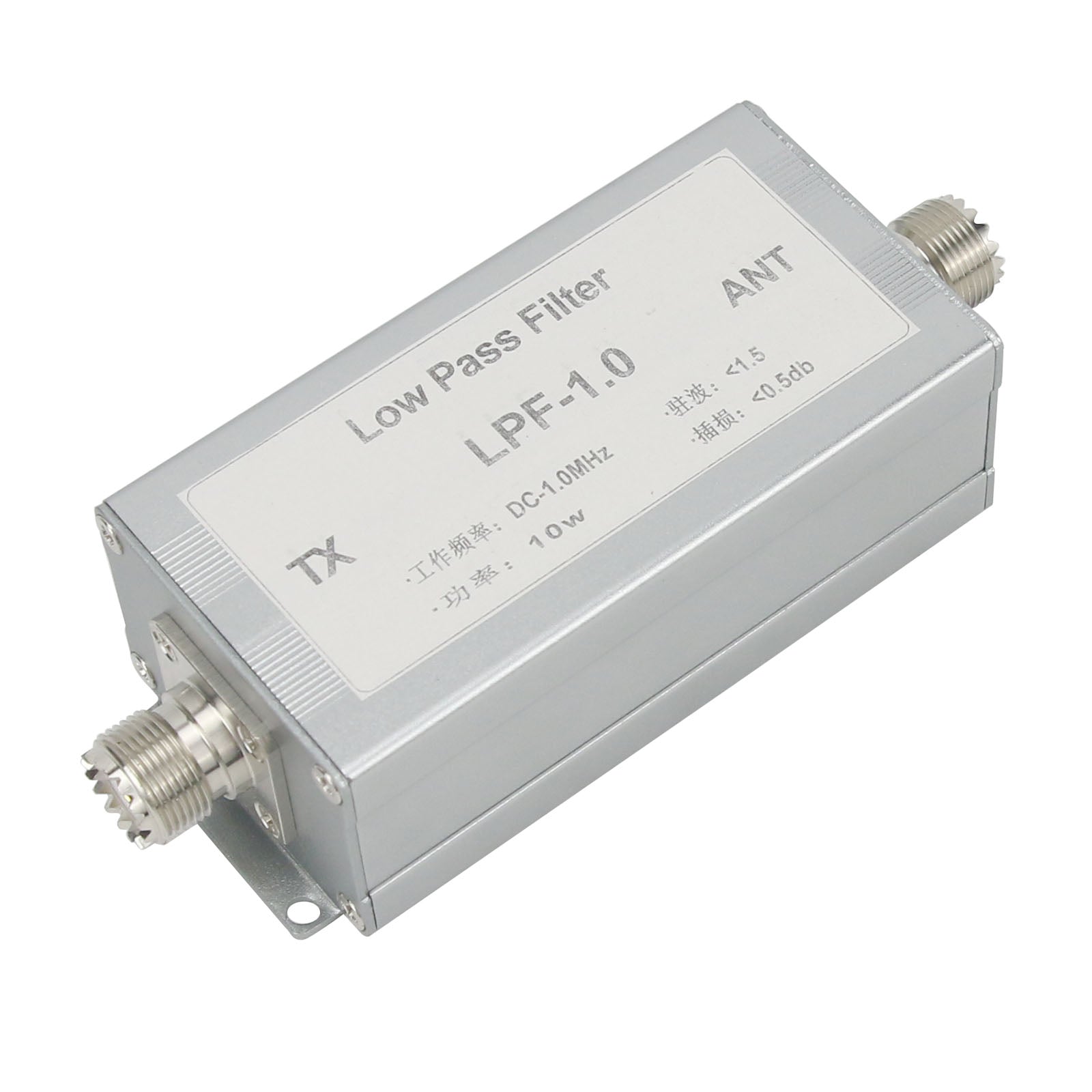

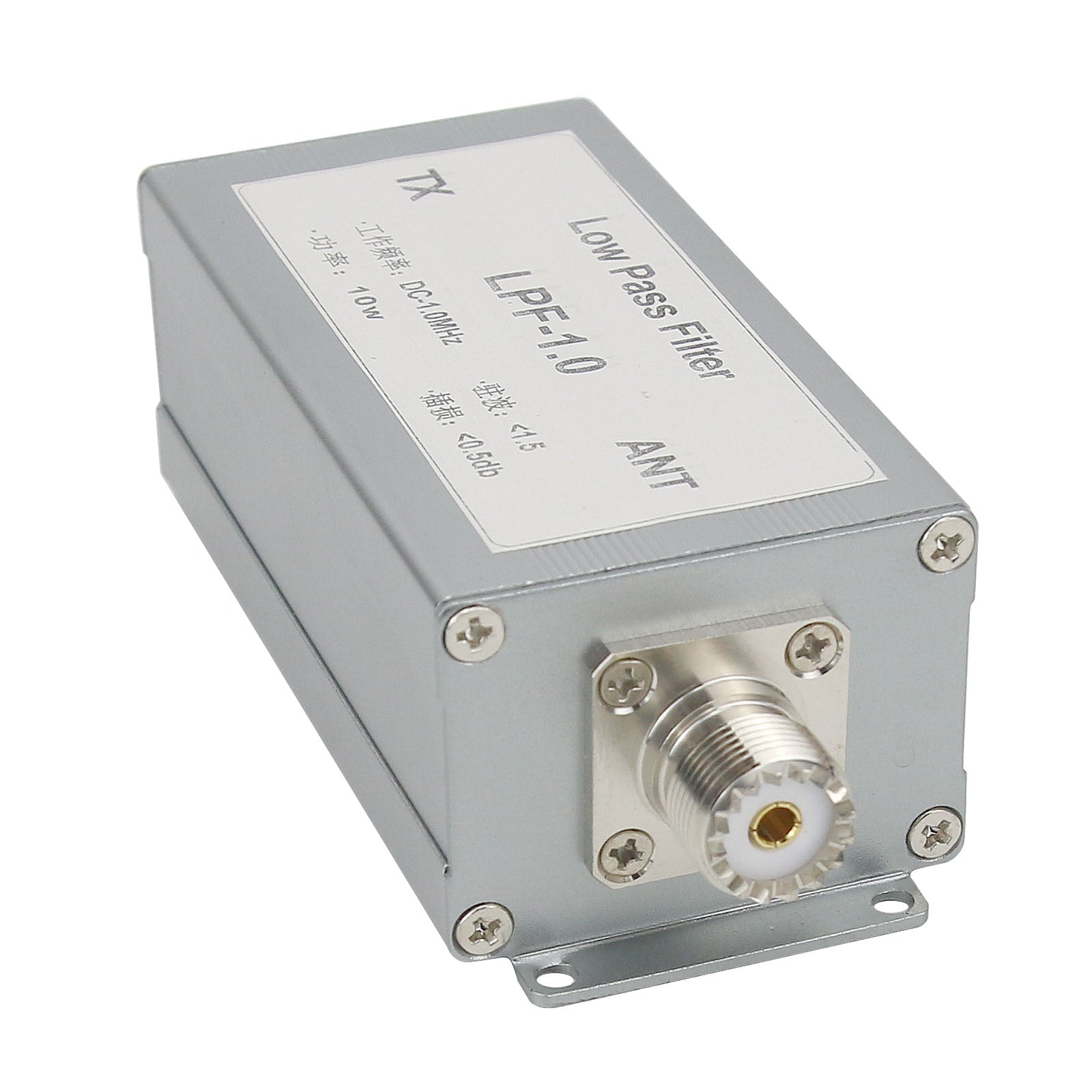

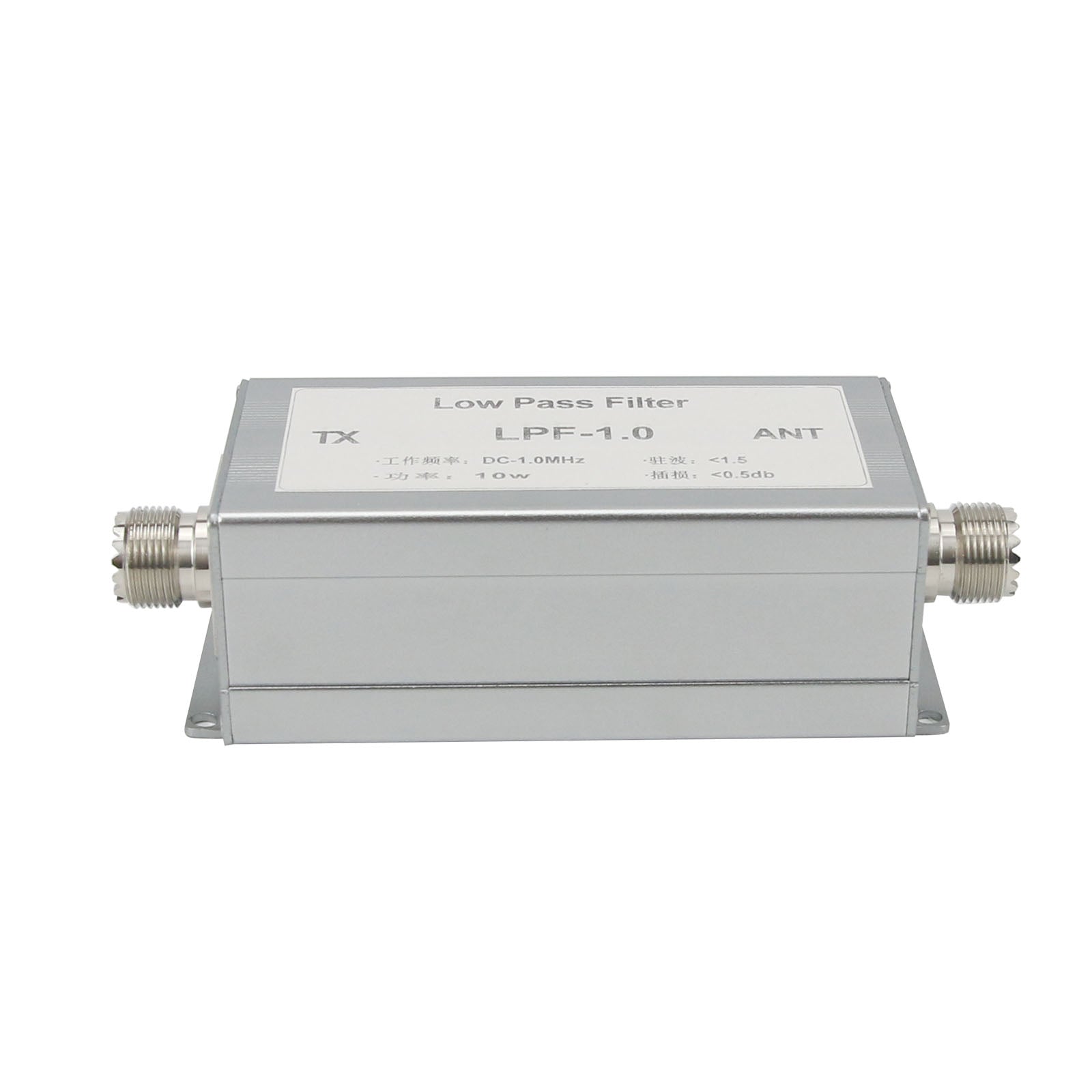

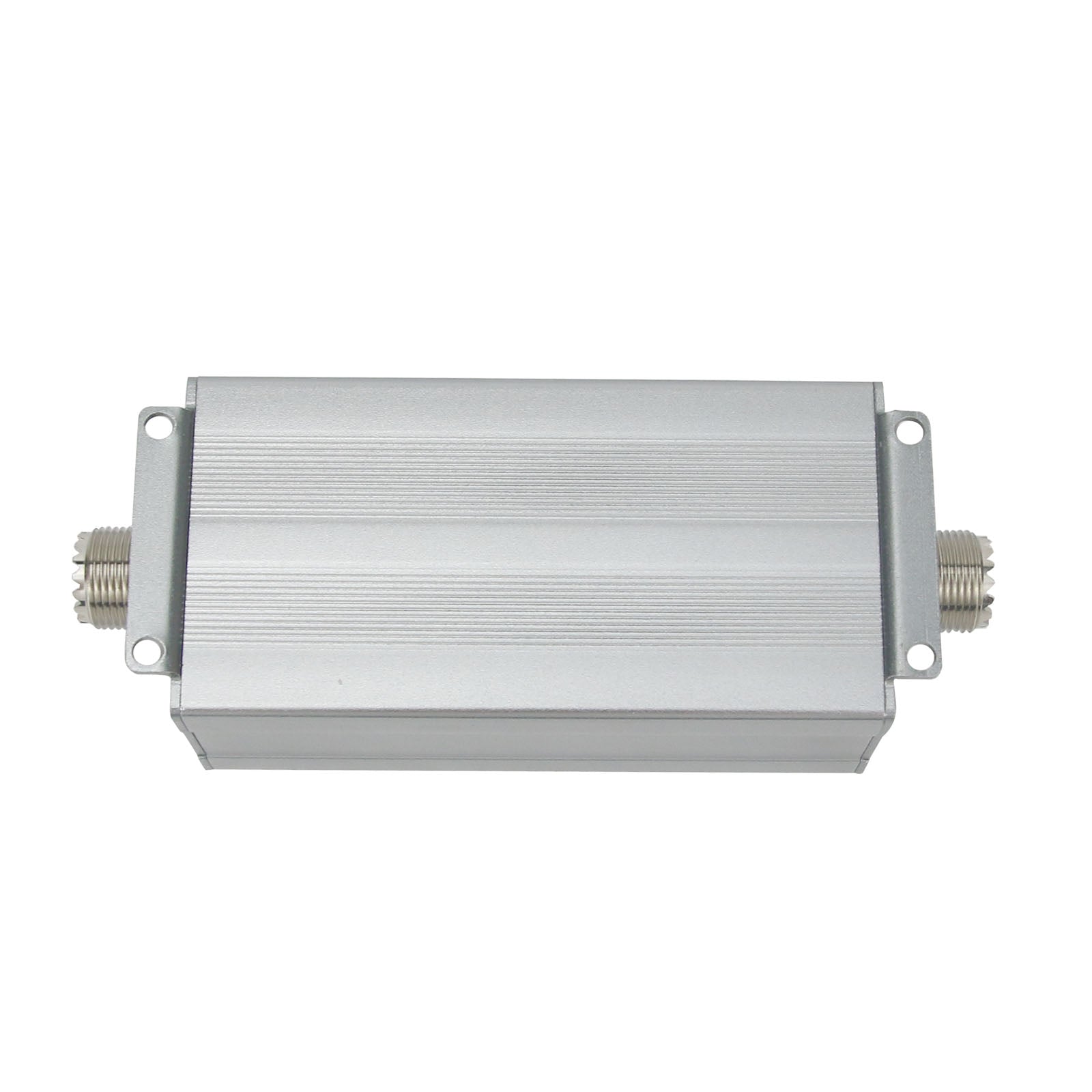

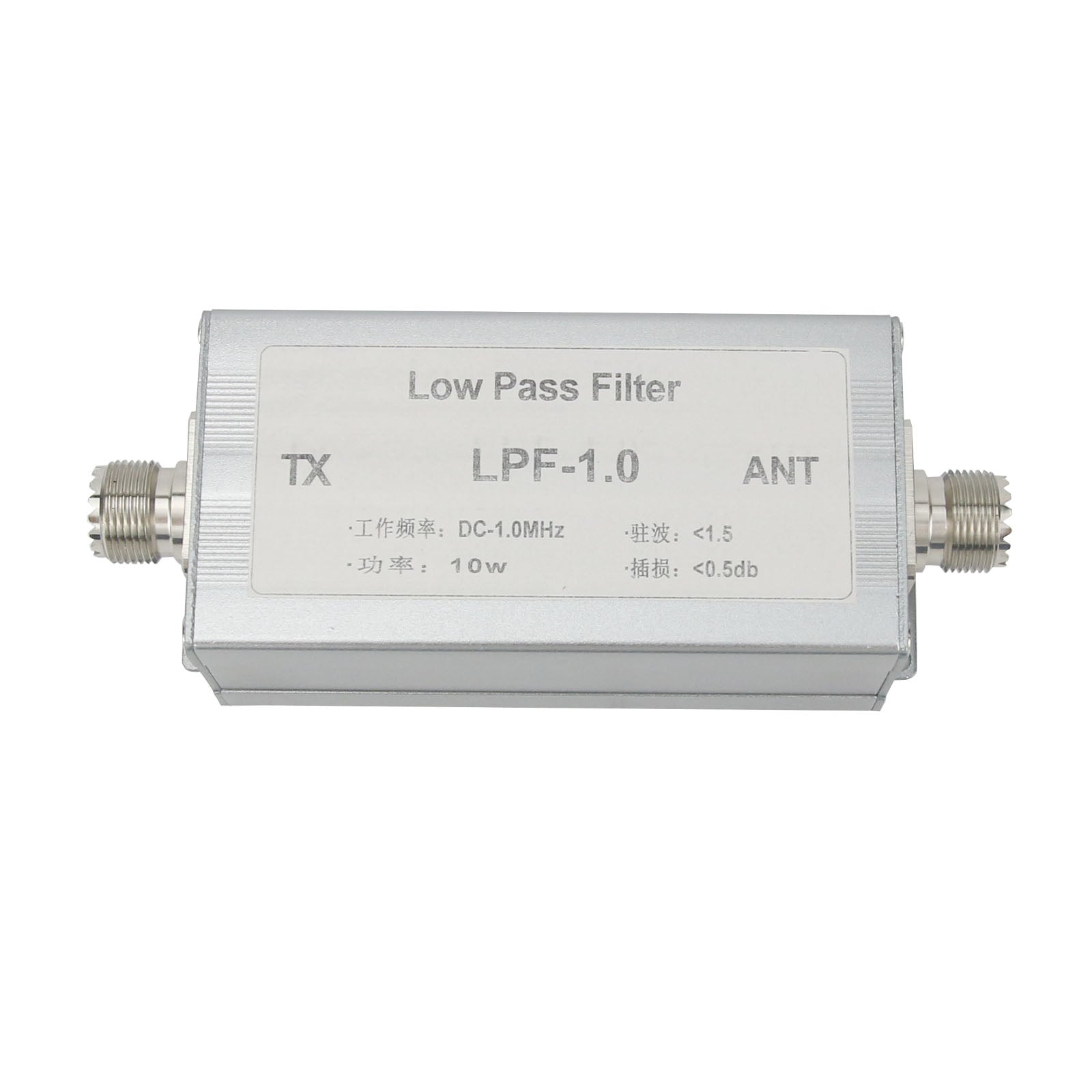

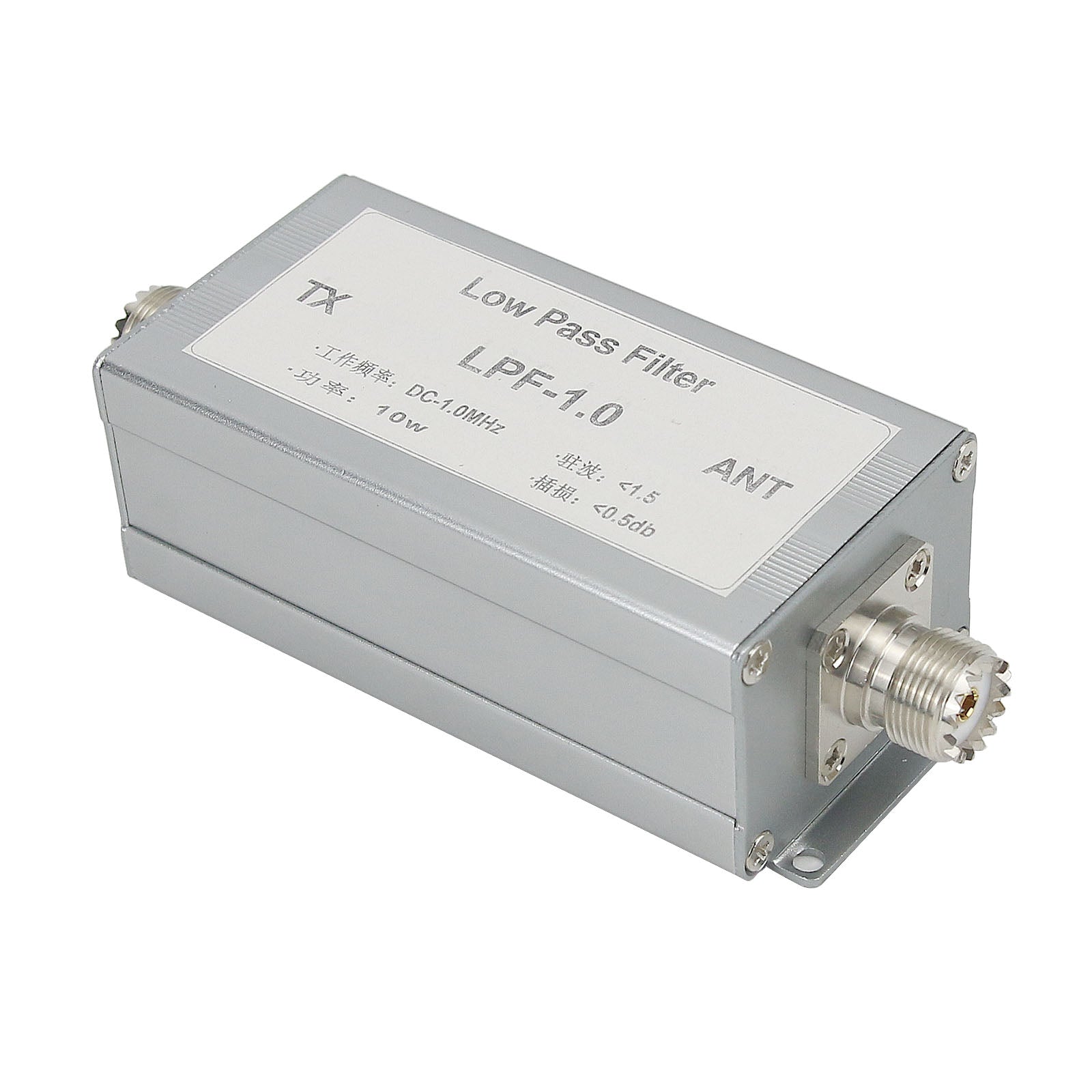

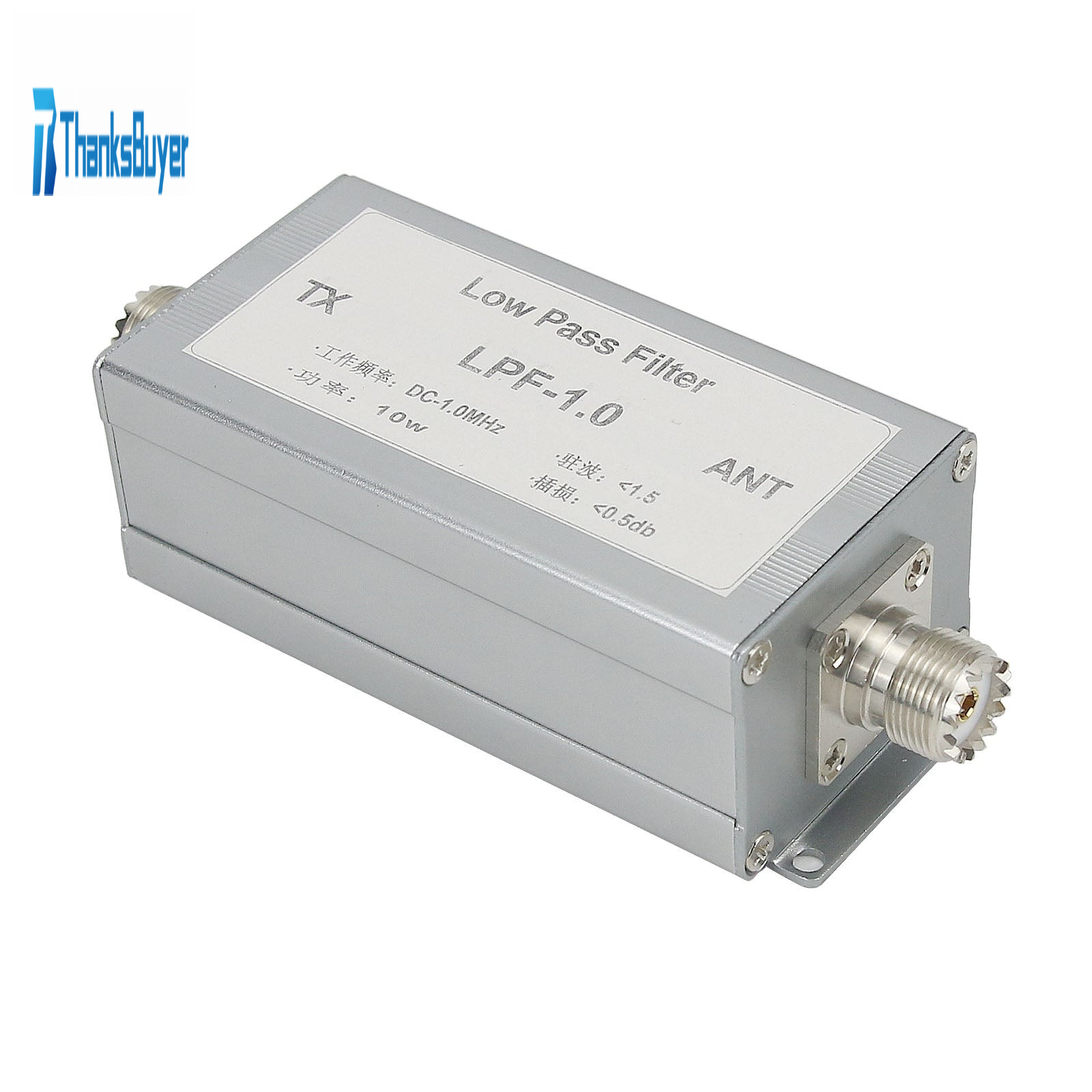

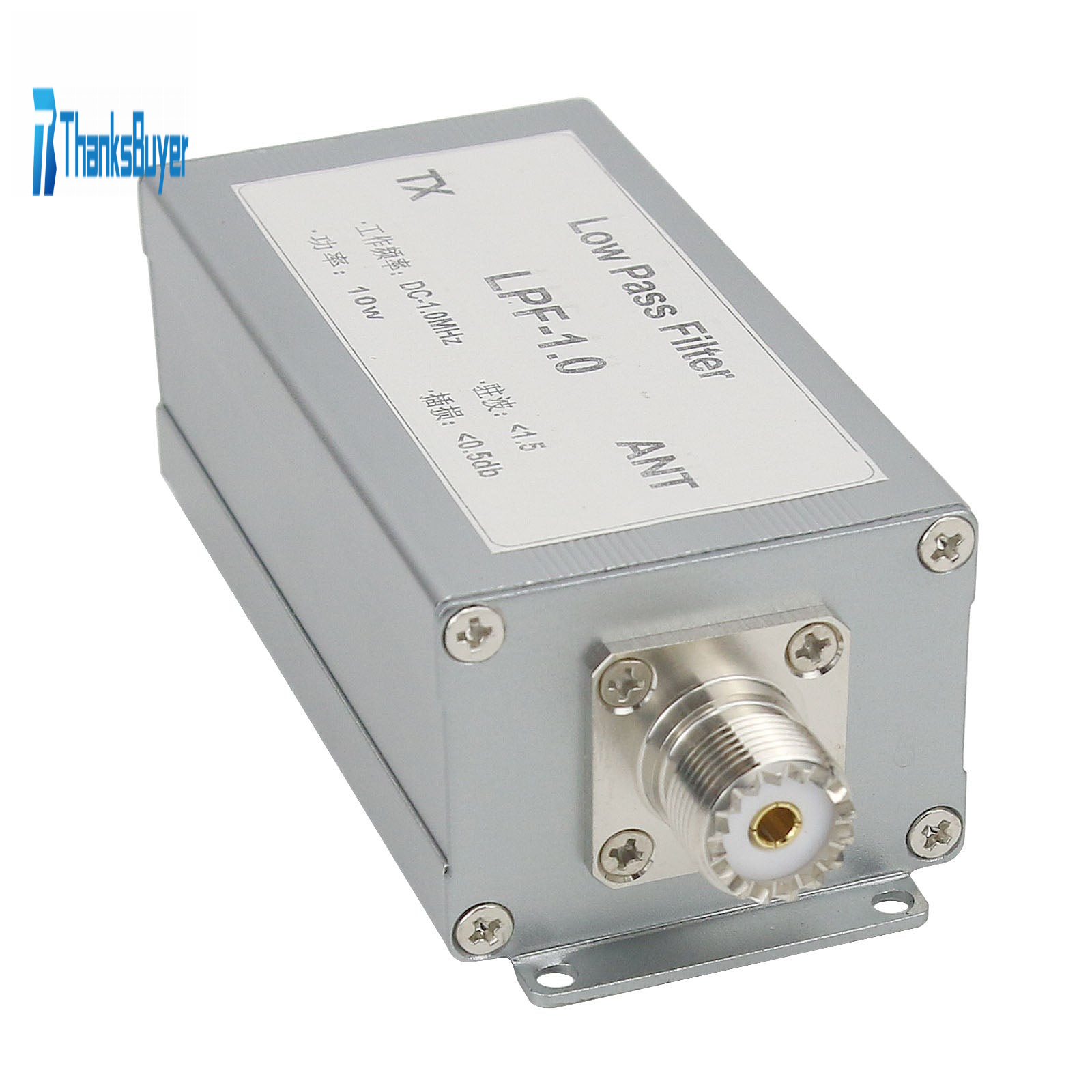

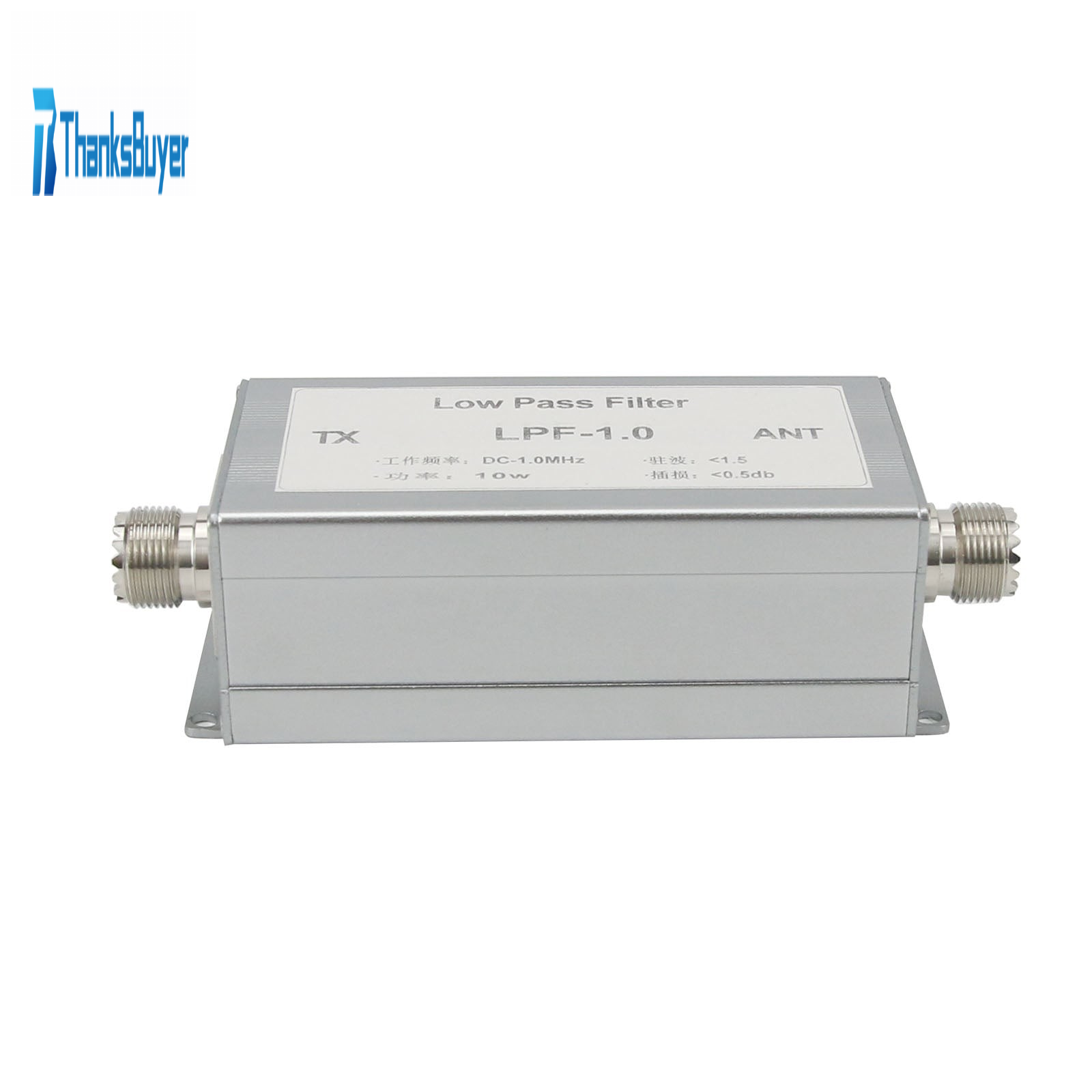

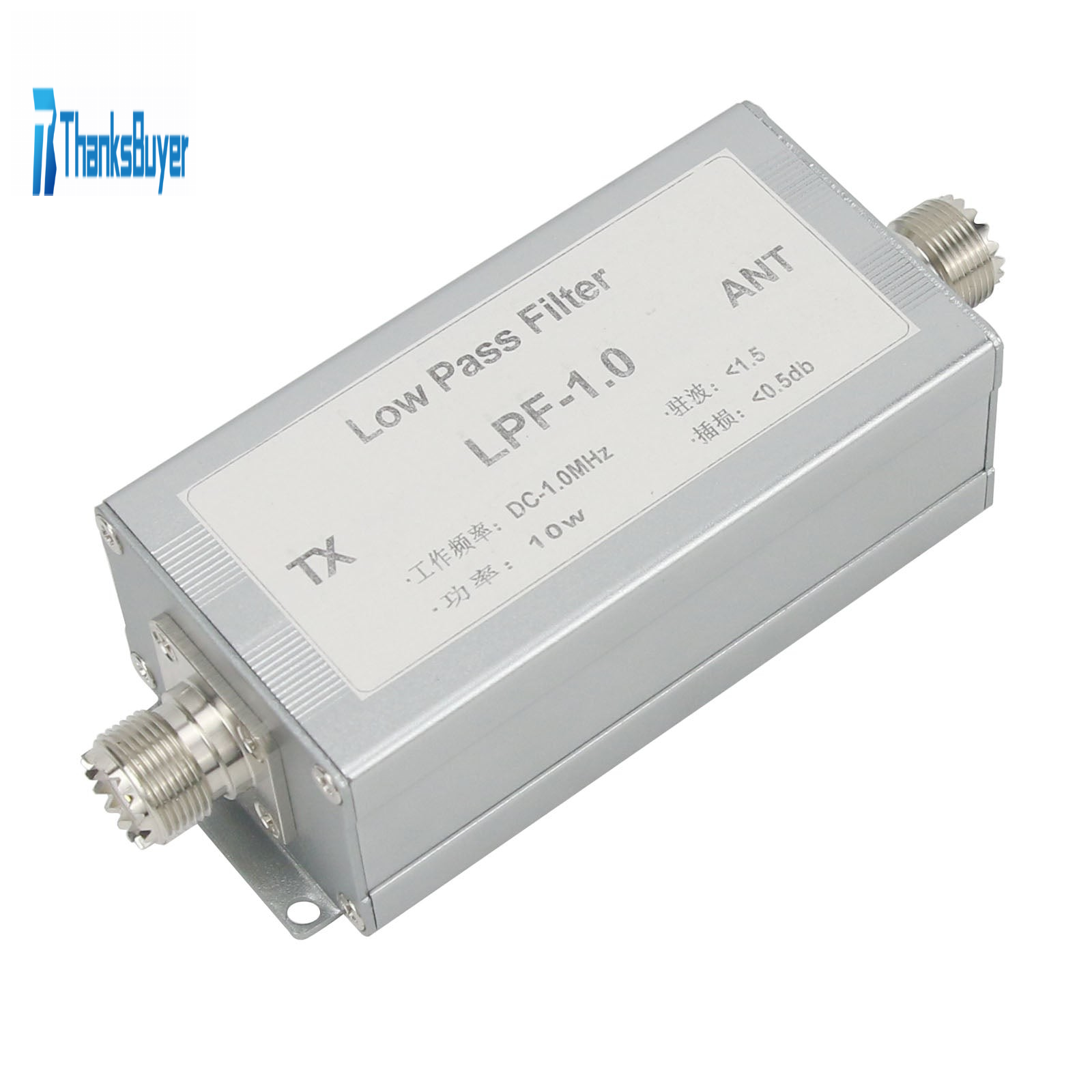

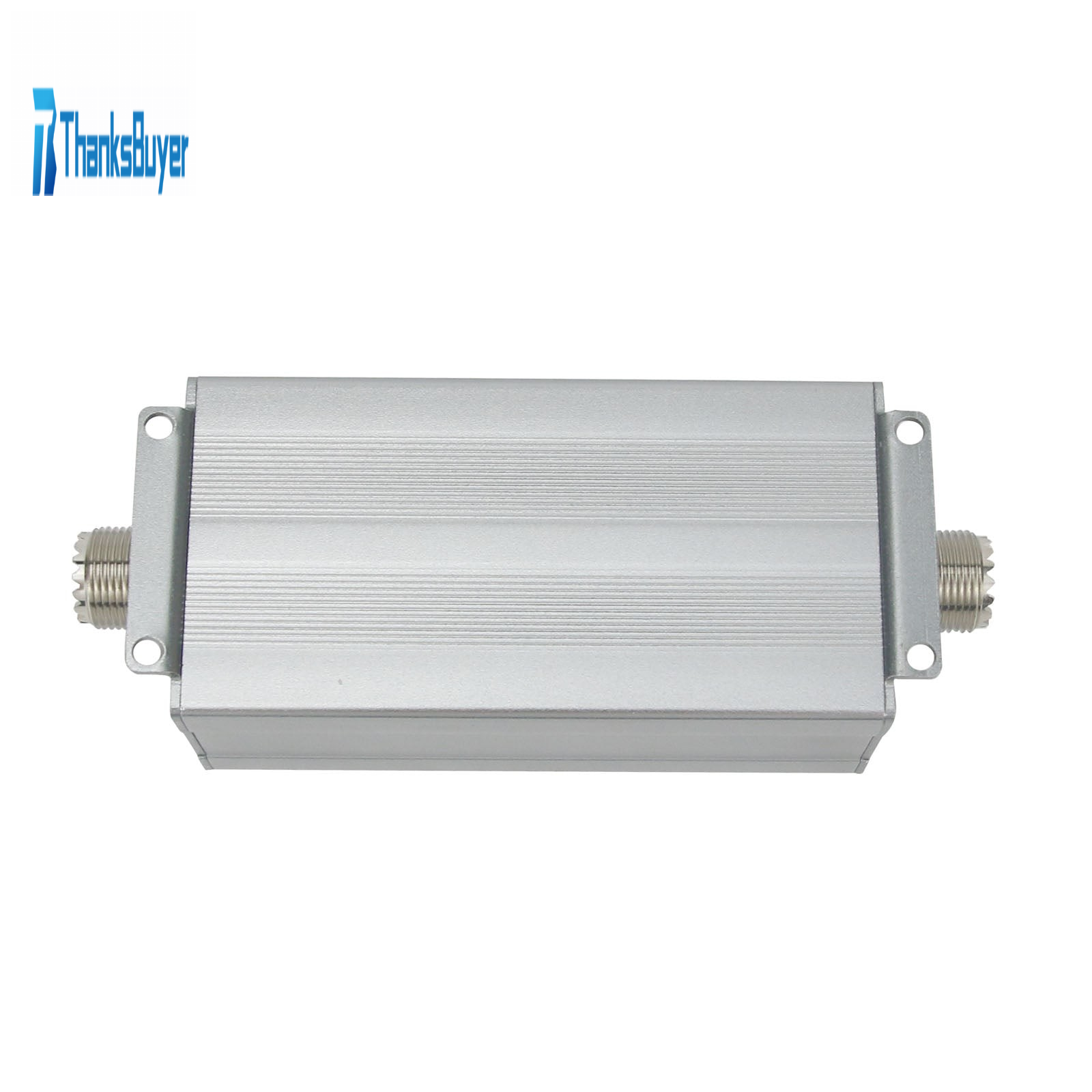

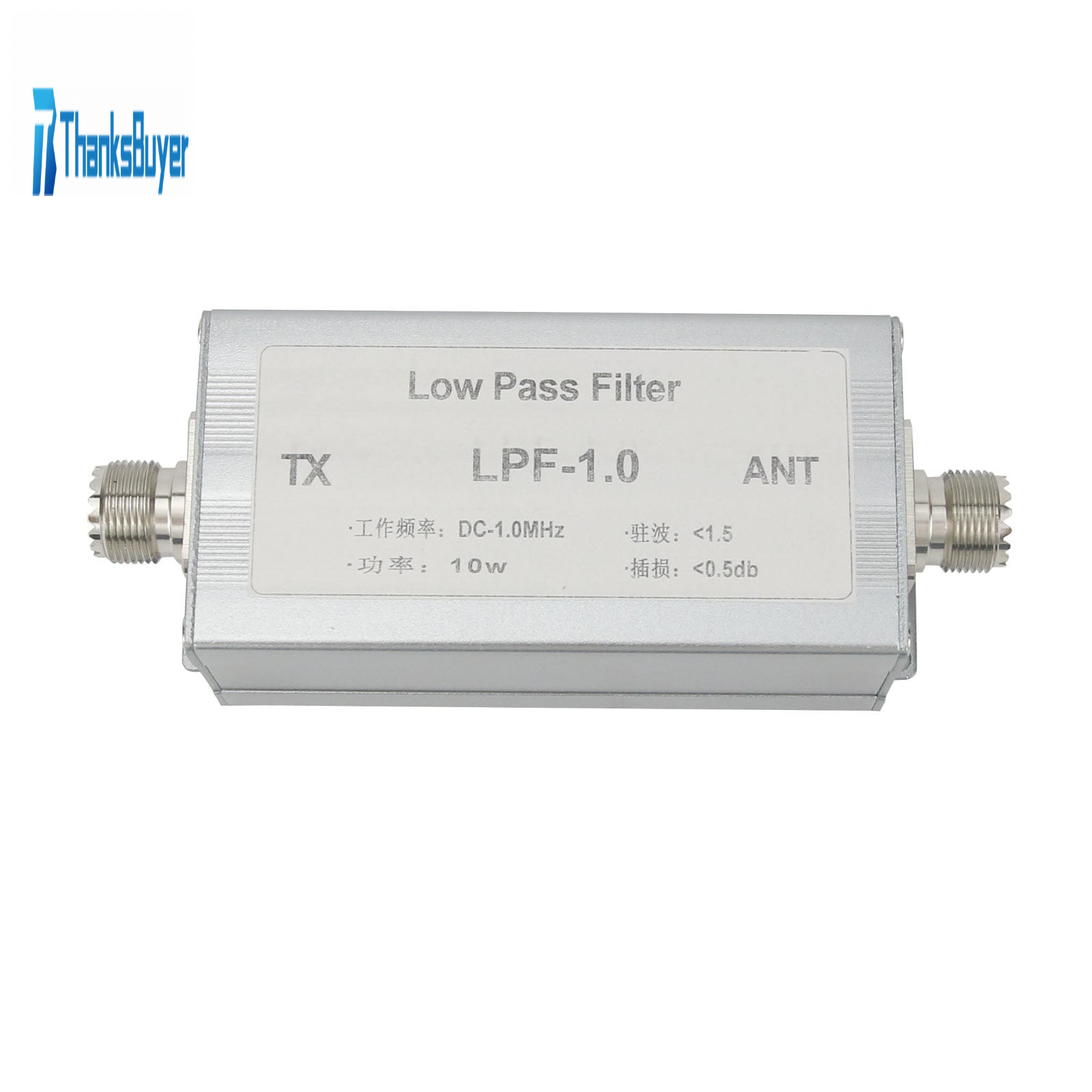

RF Low Pass Filter LPF 10W For Shortwave Radios SSB CW AM FM LPF-1.0

RF Low Pass Filter LPF 10W For Shortwave Radios SSB CW AM FM LPF-1.0

Advantages:
It is not difficult to see from the above figure that the frequency of 1.0MHz is almost passed without attenuation, DC-1.0MHz can pass, and the attenuation at 2MHz is as high as 43db.

Specifications:
- Model: LPF-1.0
- Frequency Range: DC-1.0MHz (DC-56MHz can also be customized)
- In-band Attenuation: 0.5db
- Power: 10w (SSB CW AM FM). Higher power can be customized.
- Input Impedance: 50 ohms; output impedance: 50 ohms
- Standing Wave: less than 1.5
- Interface: SL16-F (M seat)

Package Included:
- 1 x Low Pass Filter
