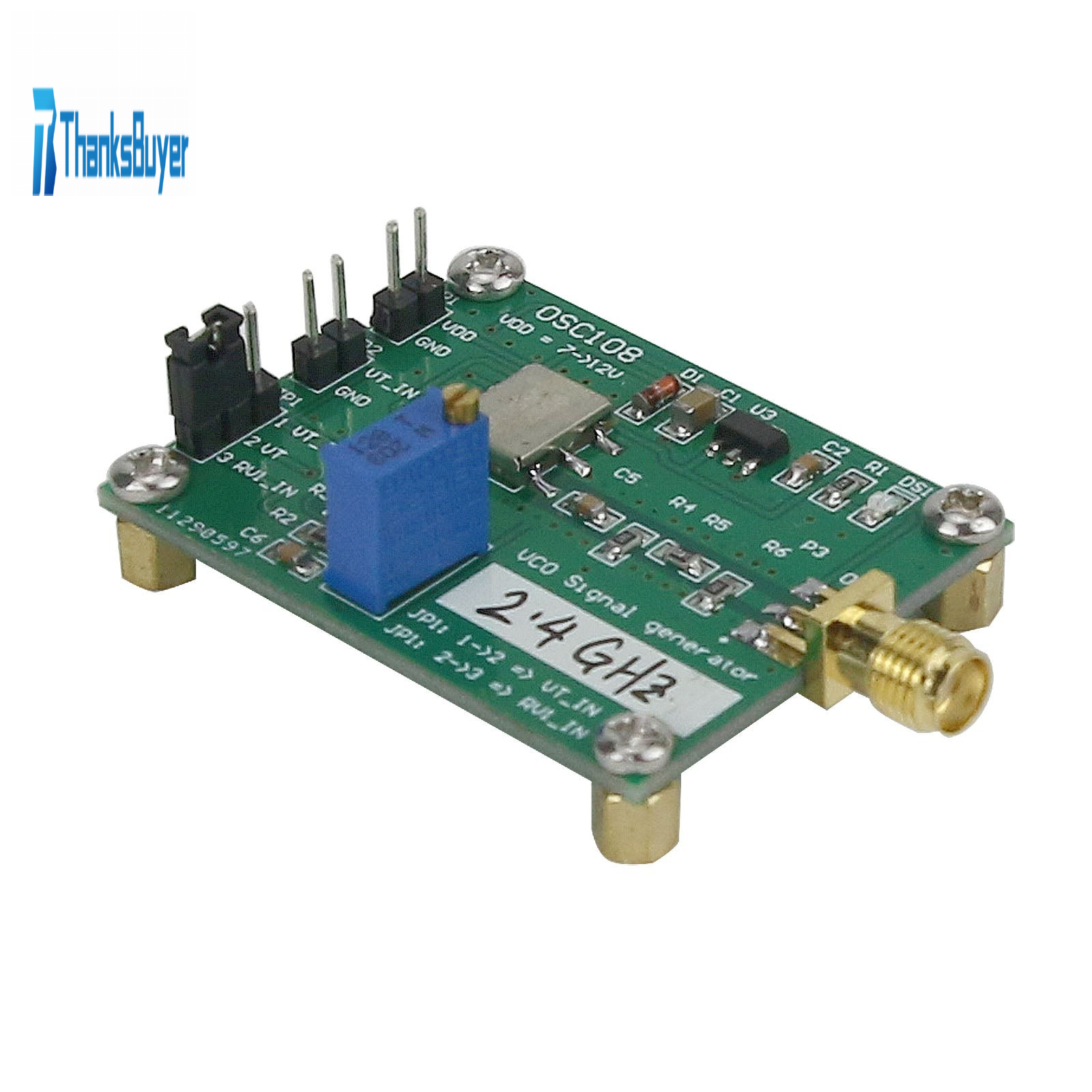

RF VCO Signal Source Microwave Voltage Controlled Oscillator Signal Generator 2.4G 2300-2485MHz

RF VCO Signal Source Microwave Voltage Controlled Oscillator Signal Generator 2.4G 2300-2485MHz

Specification:
Output frequency range: 2300~2485MHz
Maximum output amplitude: <5dBm
Working voltage: 7~12V
Size: 45*35mm
Weight: 12g

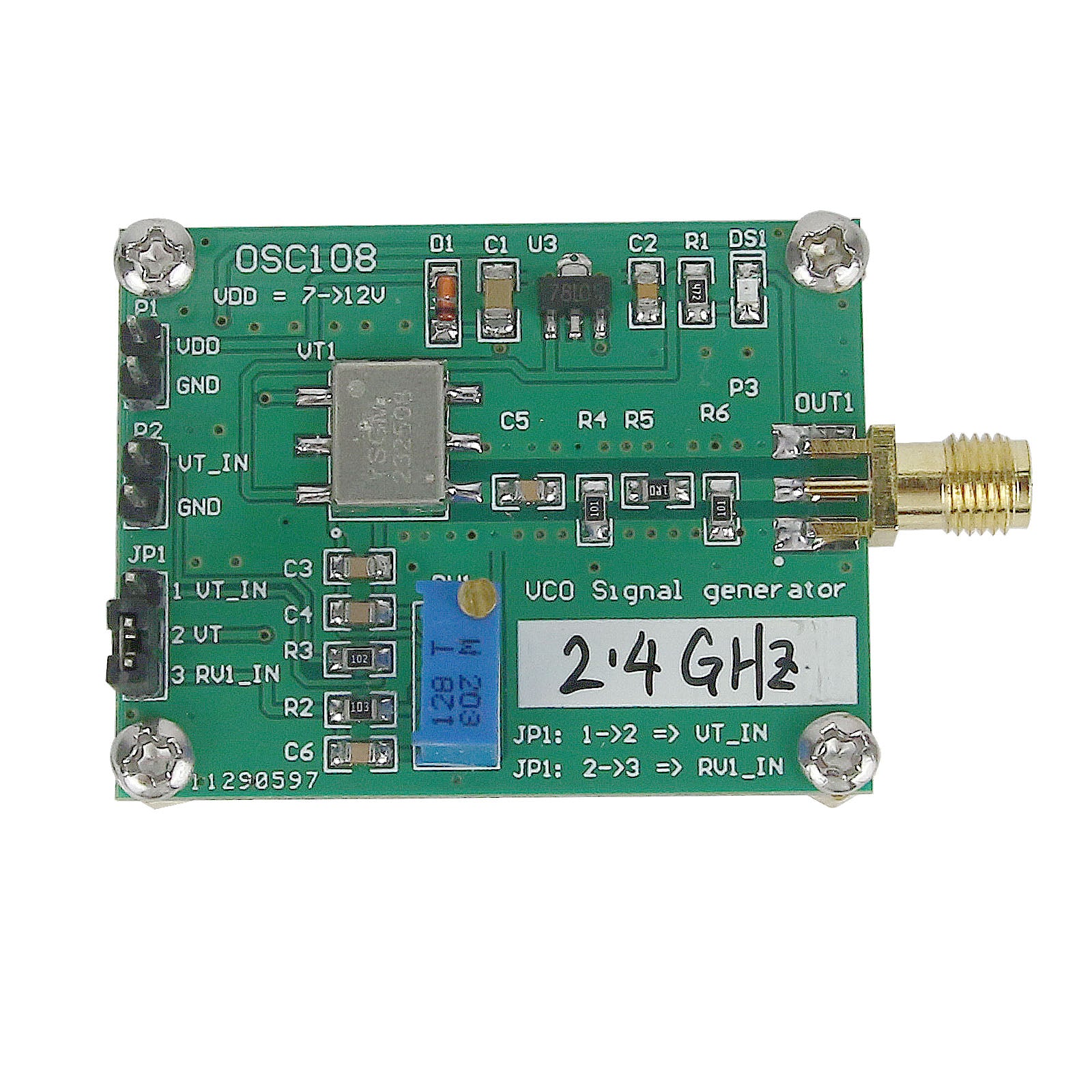

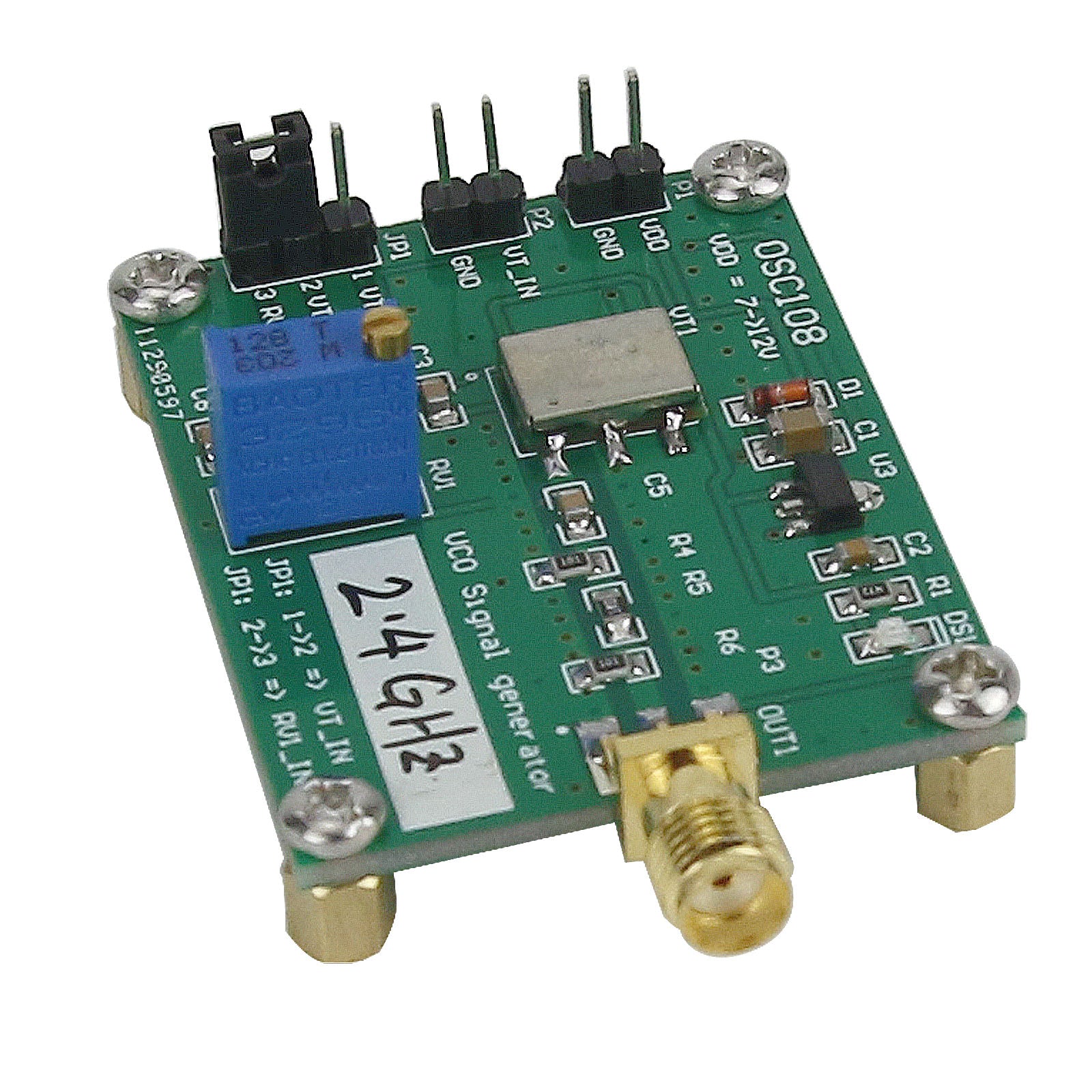

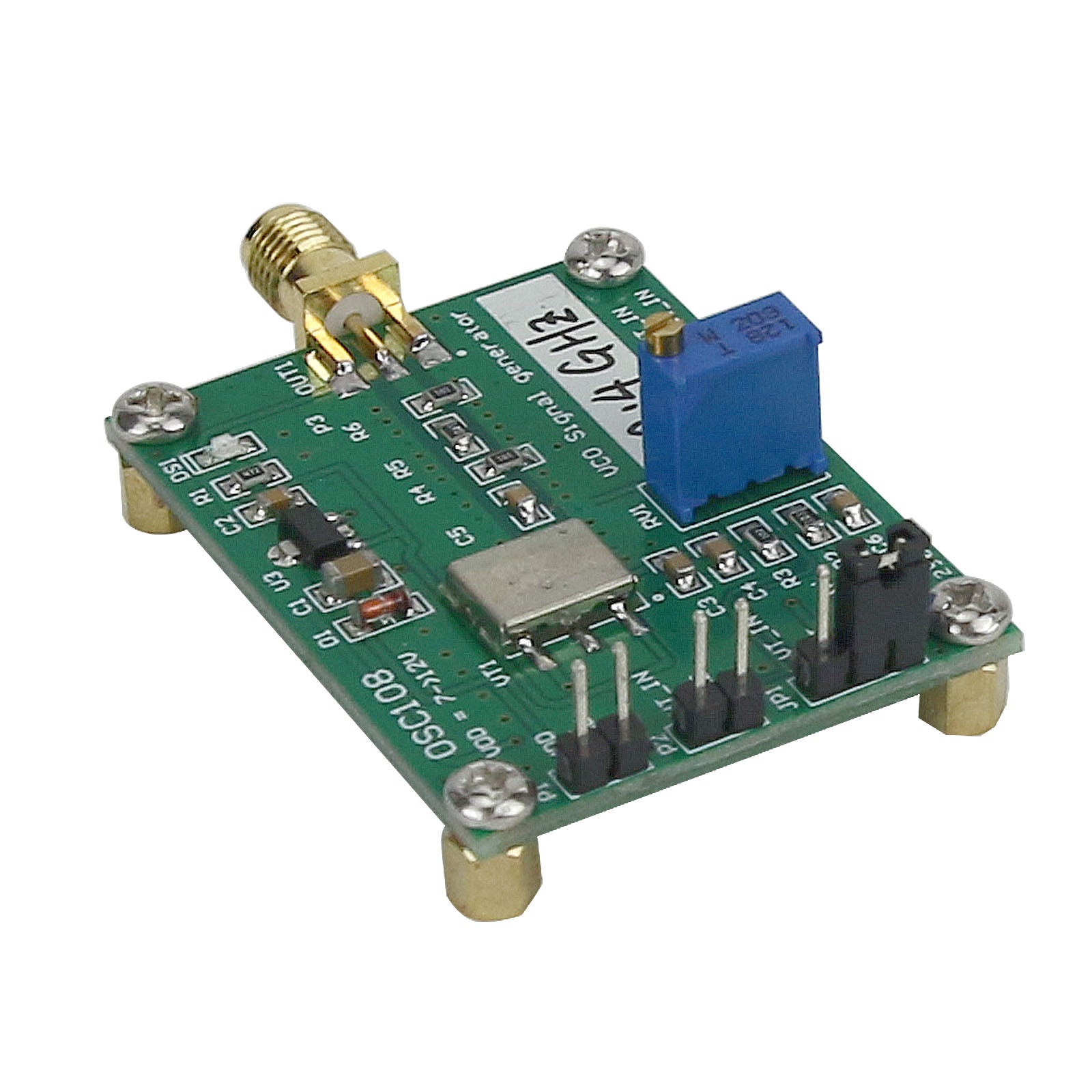

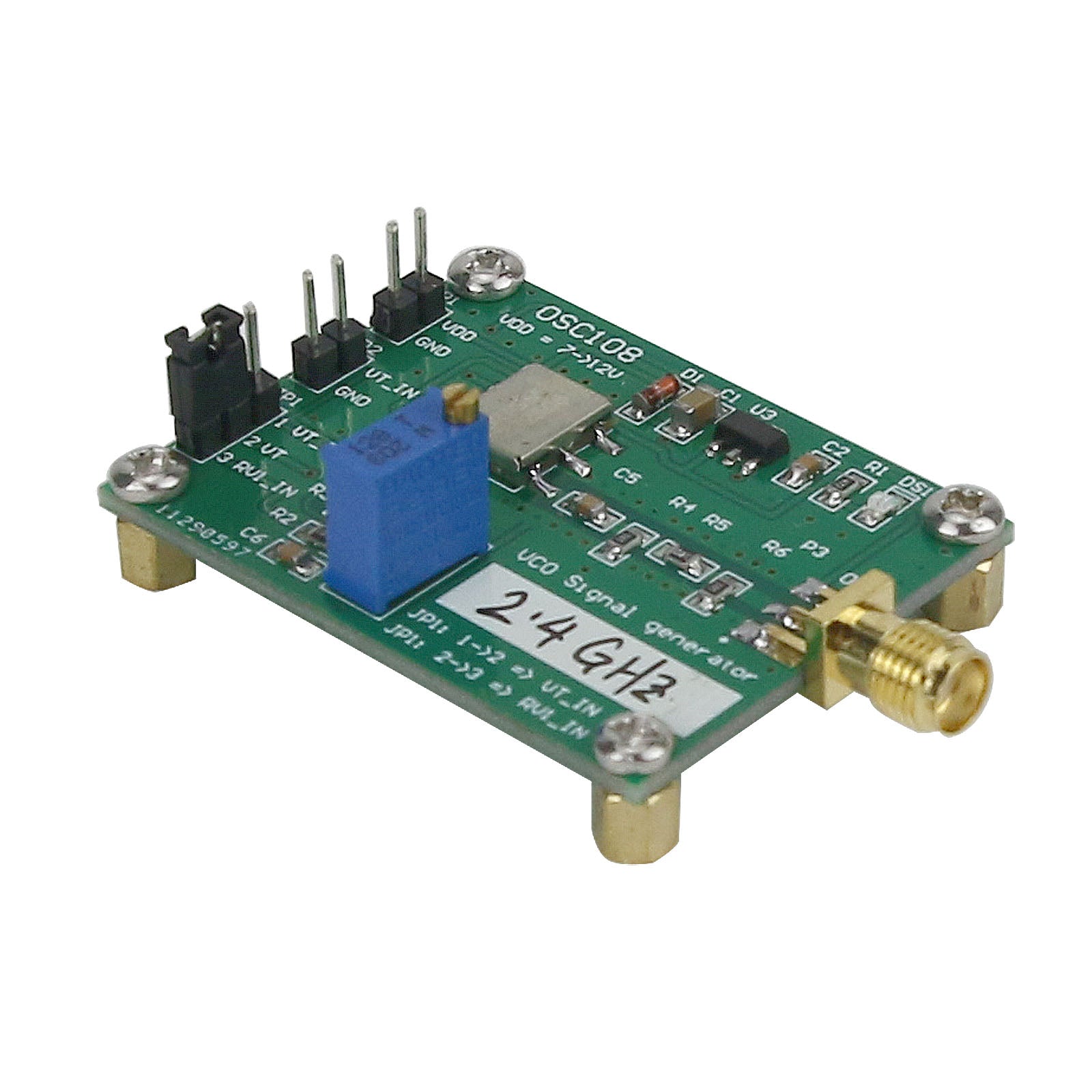

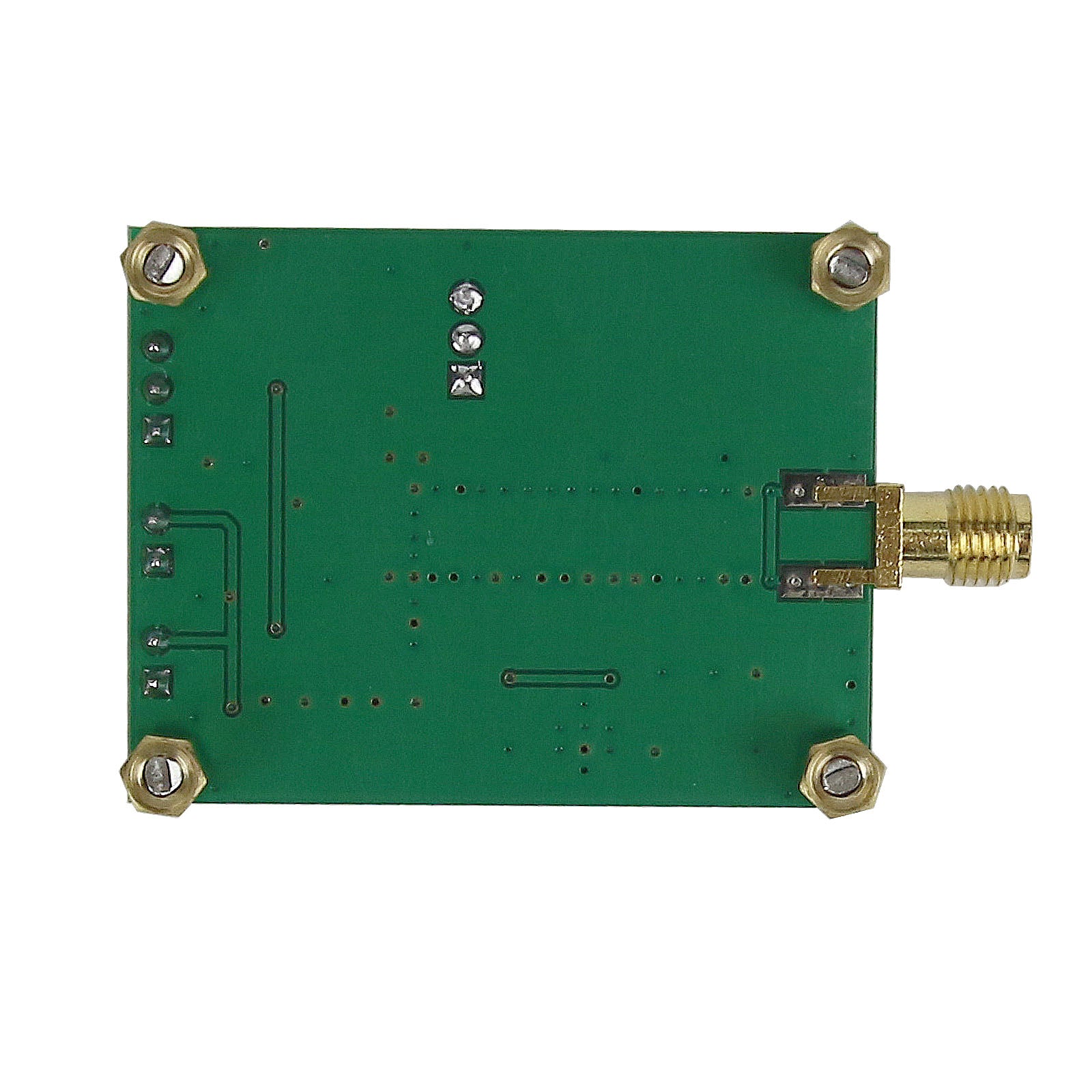

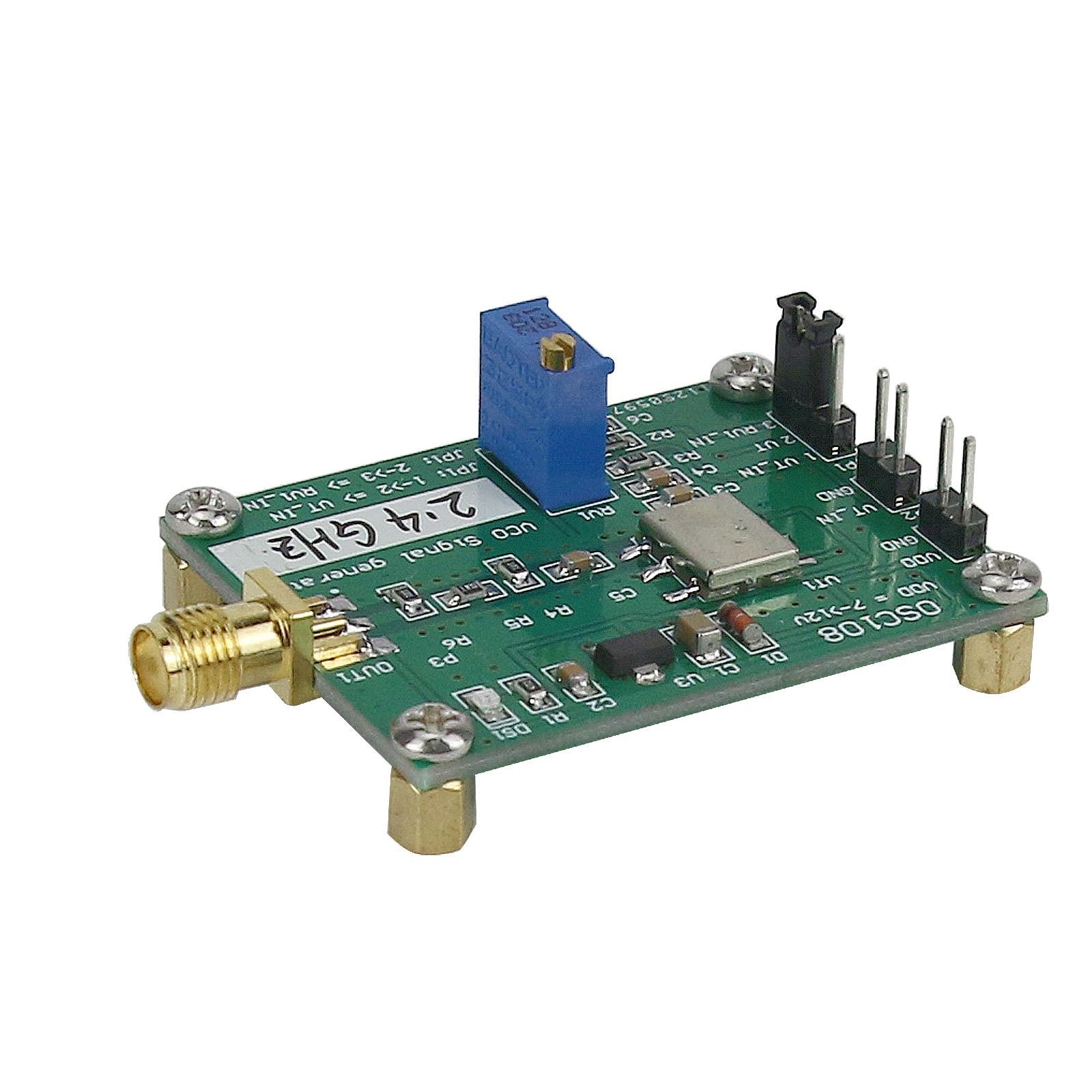

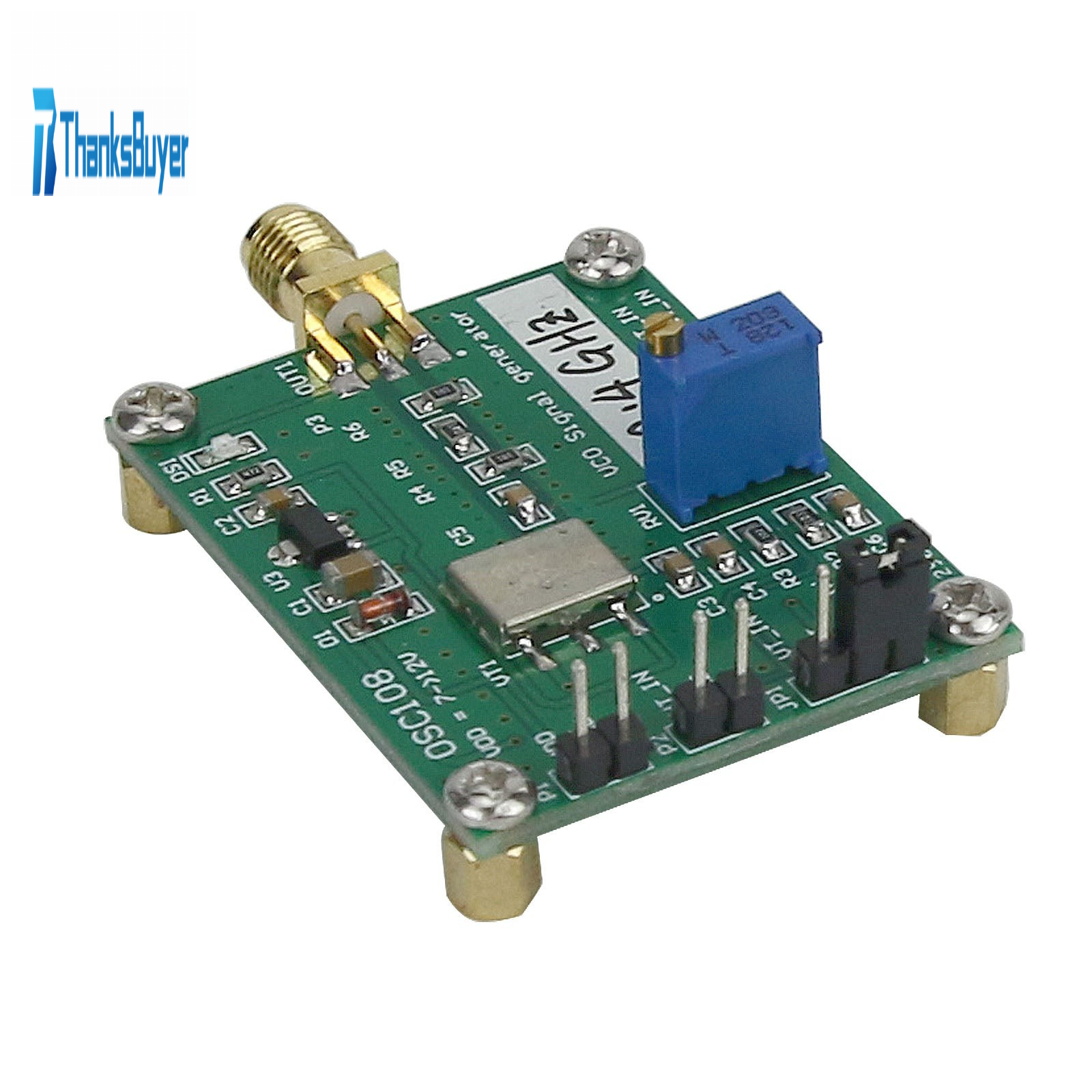

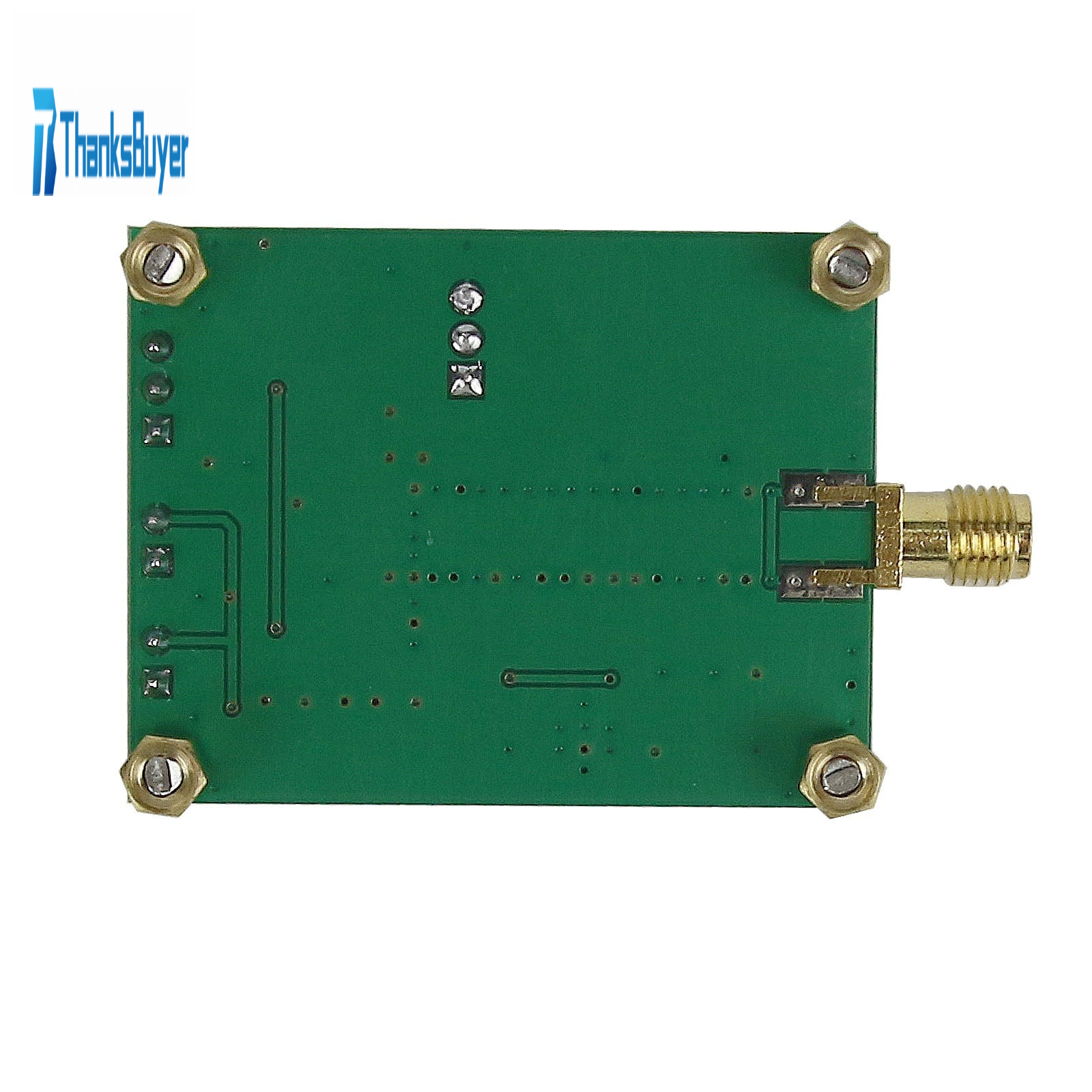

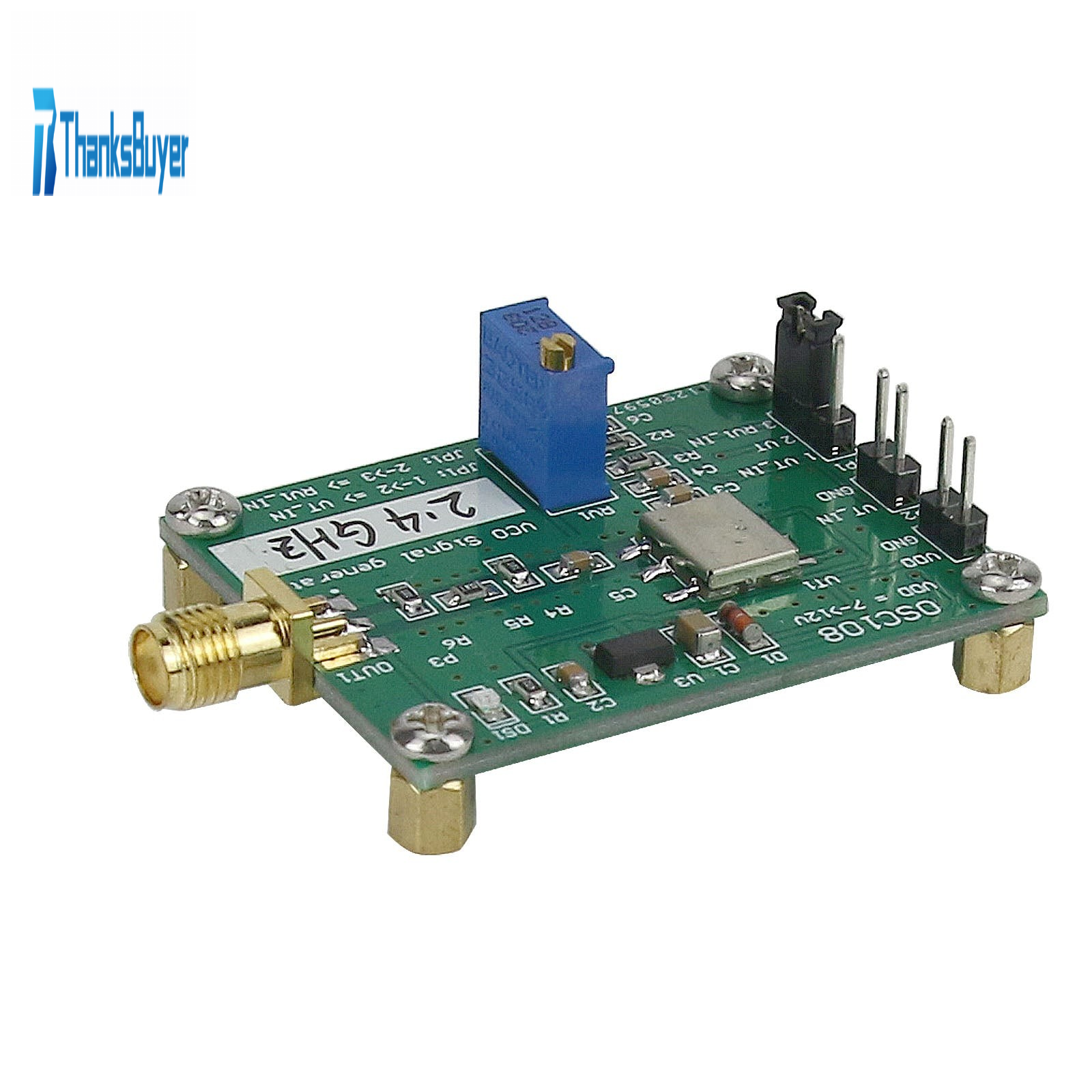

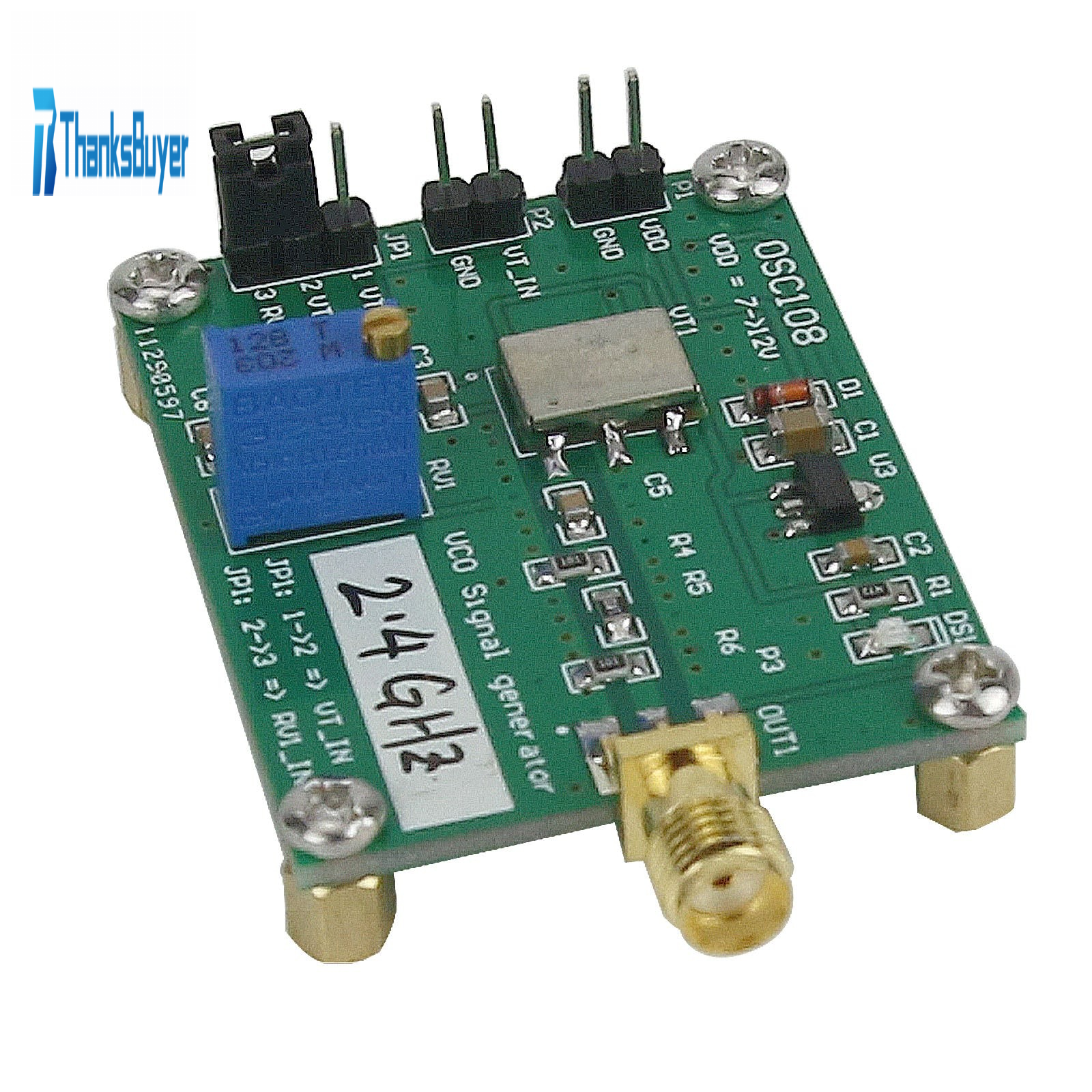

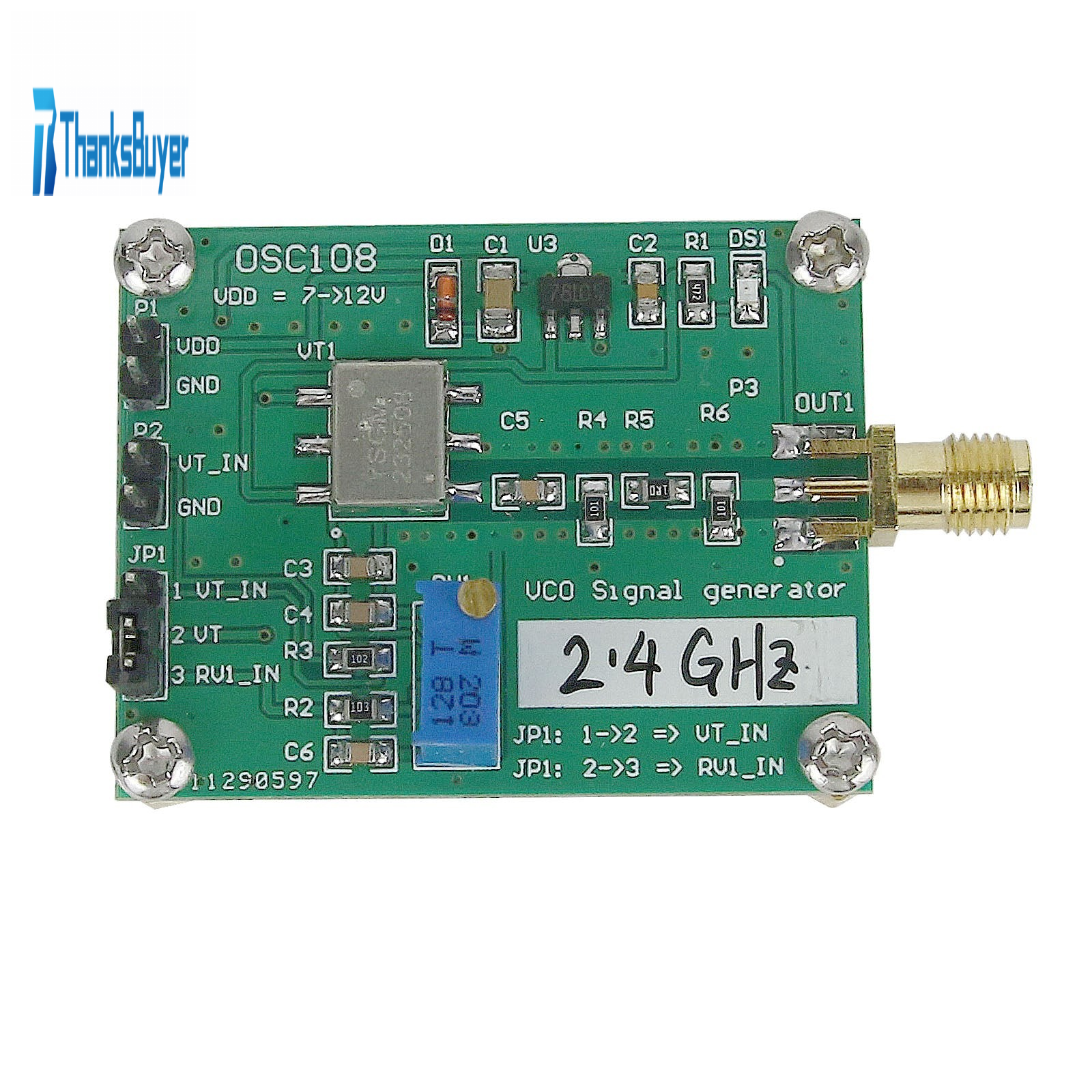

2.0 P1 interface: VDD: positive power supply; GND: negative power supply
P2 interface: VT_IN: input tuning voltage (VCO) signal (0~9V); GND: negative power supply.
P3 interface: output signal (RP SMA KE KHD outer screw inner hole)
JP1 jumper: select external or internal (potentiometer) input tuning voltage; JP1: 1->2 => VT_IN; JP1: 2->3 => RV1_IN
RV1: internal (potentiometer) input tuning voltage

Package List:
1 x Voltage Controlled Oscillator
