RunCam WiFiLink HD VTX 160° FOV IMX415 Sensor FPV Racing Drone VTX Module Based on OpenIPC

RunCam WiFiLink HD VTX 160° FOV IMX415 Sensor FPV Racing Drone VTX Module Based on OpenIPC

Features:
- Strong scalability and wide application. Support one transmitting to multiple receiving, and support multiple platforms.
- Can be used for: fixed wing FPV, robot vision, outdoor game live streaming.

Specification:
- Model: WiFiLink
- Sensor: IMX415
- FOV: 160°
- Resolution: 1080P at 60FPS; 1080P at 90FPS; 720P at 120FPS
- Power supply: 9 - 30V (3S - 6S)
- Lens module: 19 x 19mm/M12 lens
- MIPI cable length: 200mm
- Hole spacing: 25.5 x 25.5mm
- PCB size: 30 x 30mm (338 motherboard); 32 x 32mm (WiFi board)
- Net weight: 30g
- Antenna: IPEX1 (5G)
- Power amplifier: 29dBm

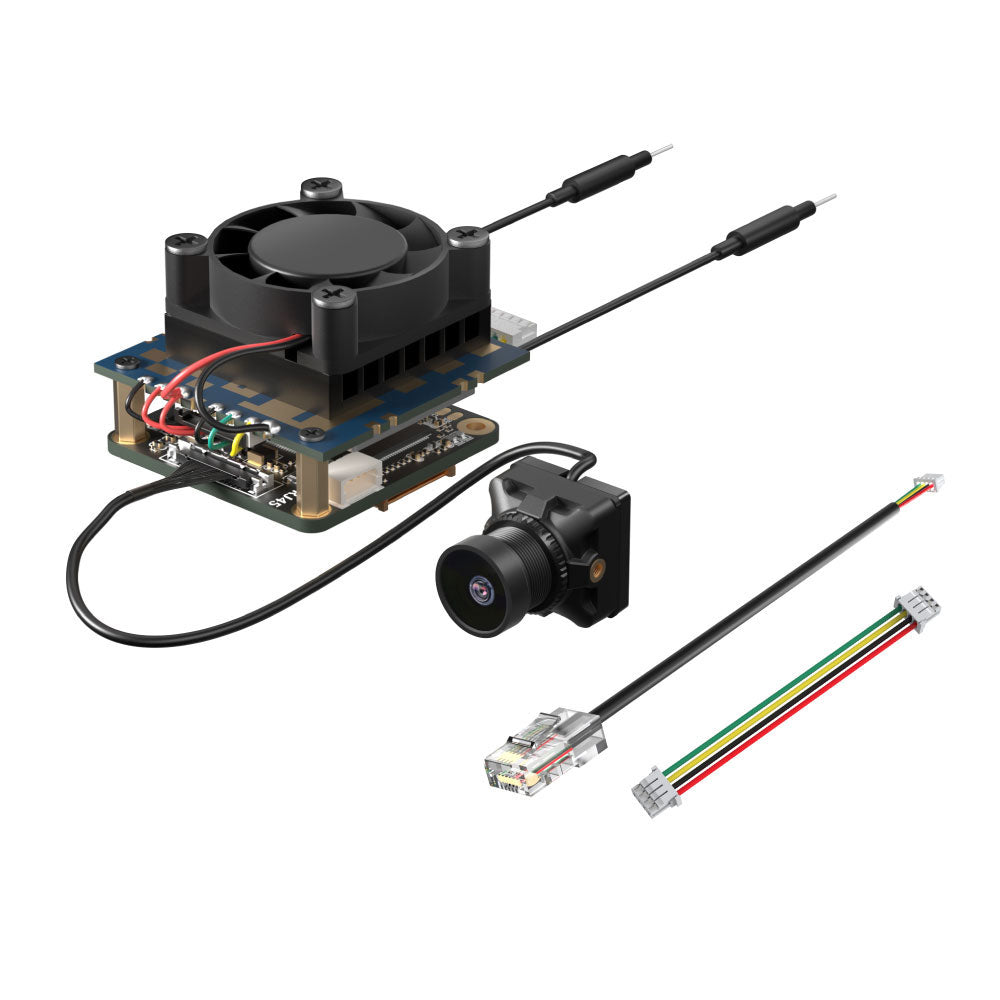

Package Included:
- 1 x VTX Module
- 1 x 4Pin Cable
- 1 x RJ45 to 4Pin Cable
