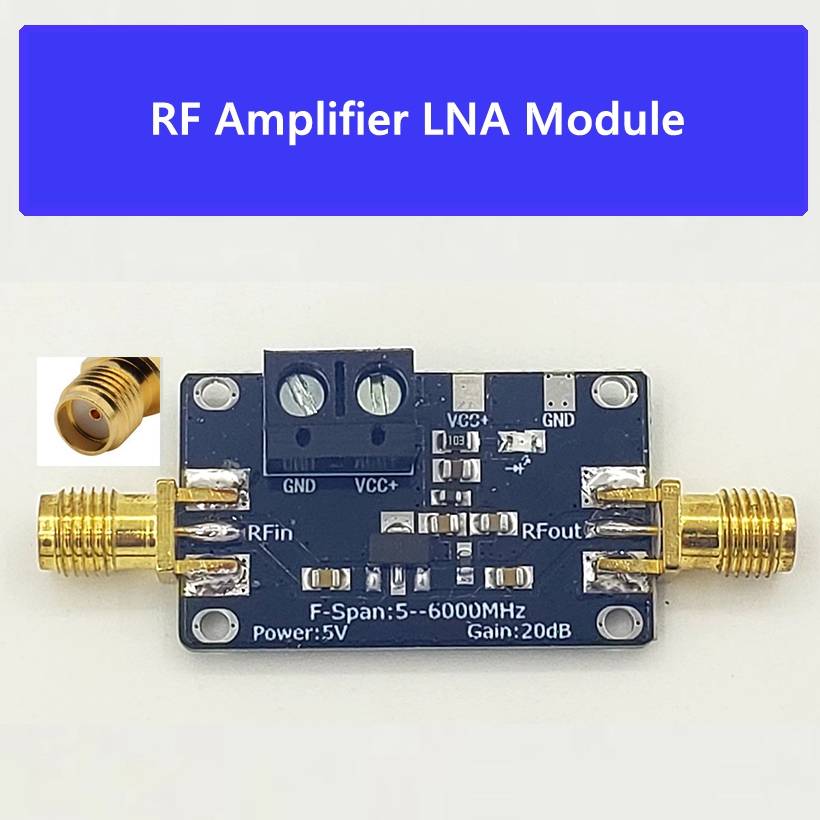

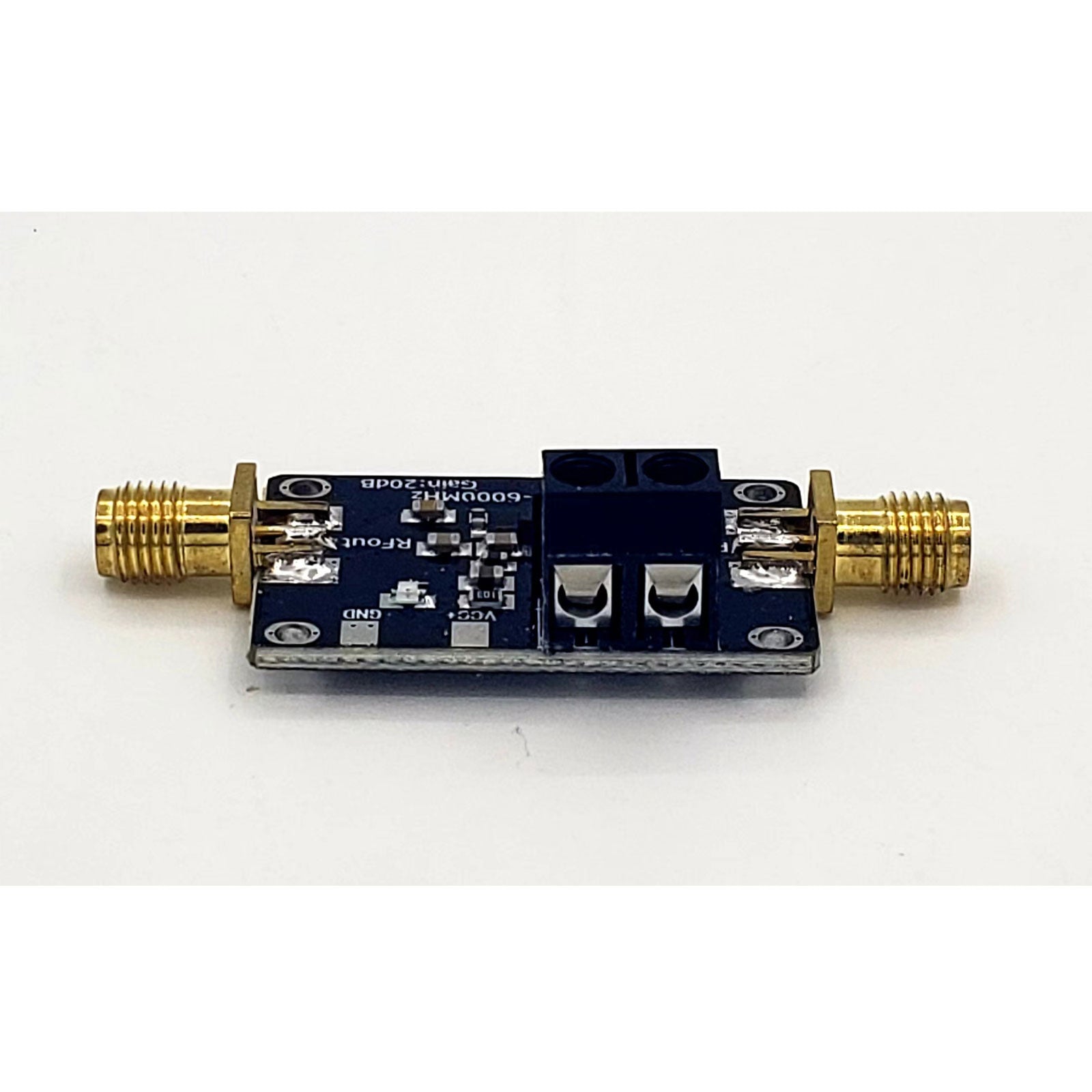

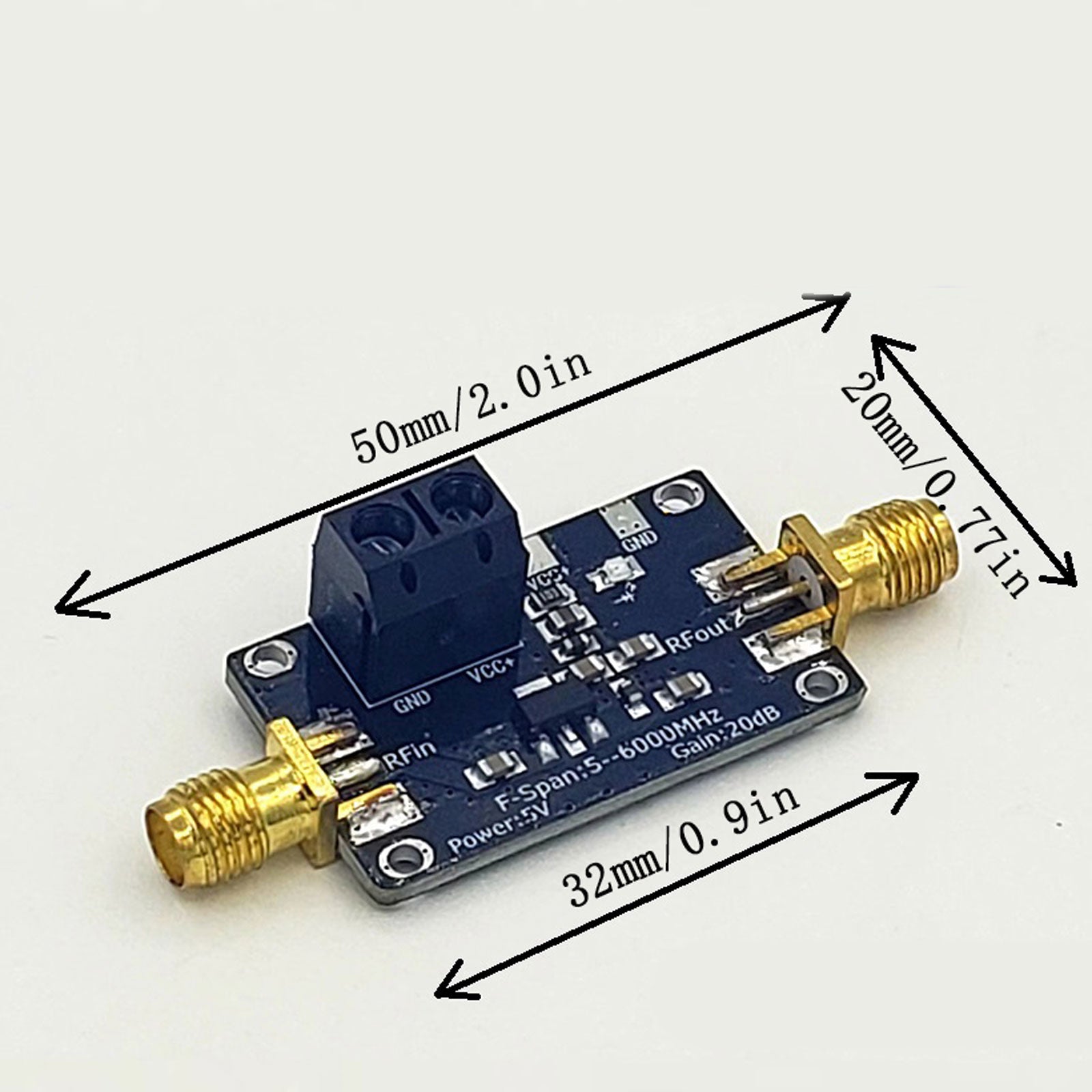

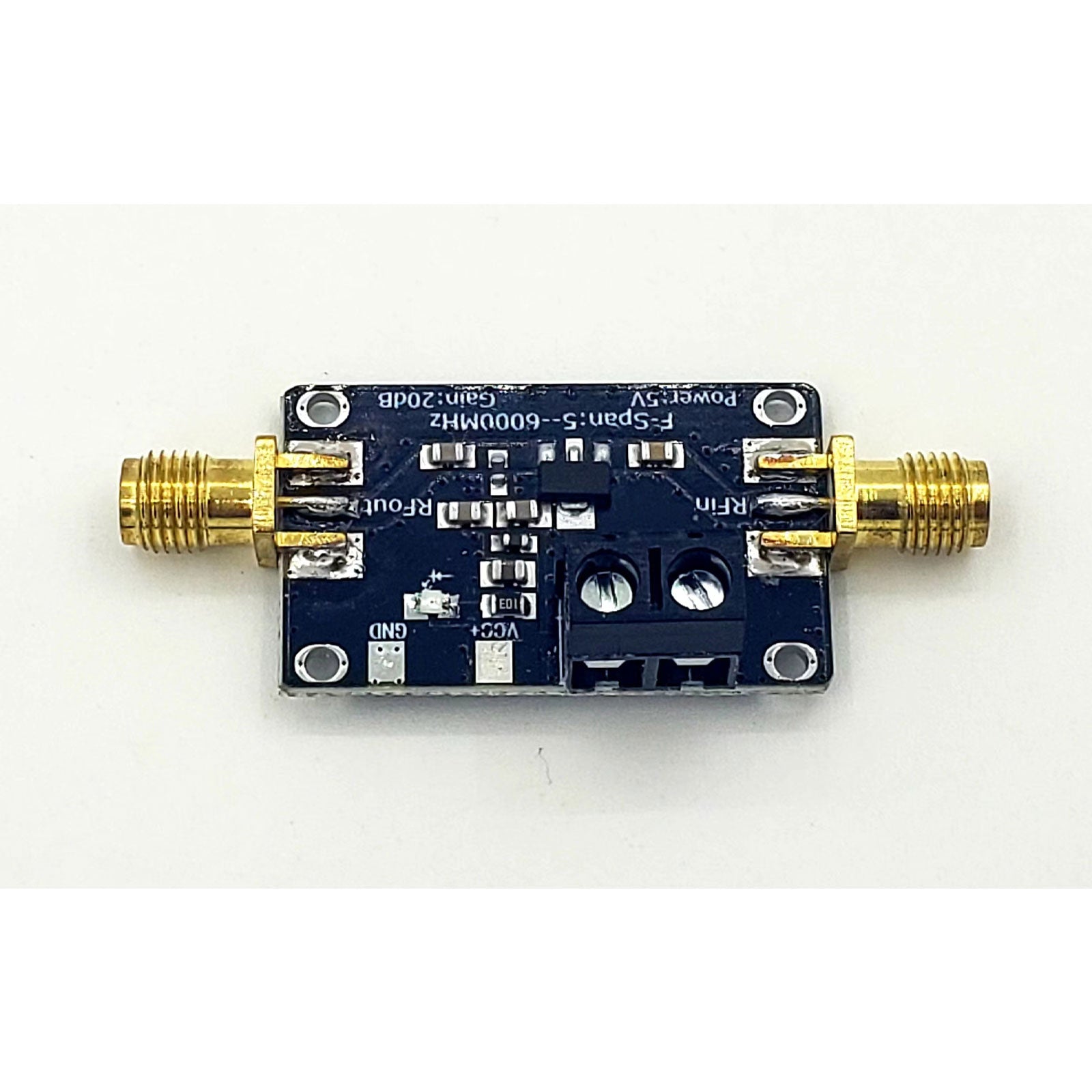

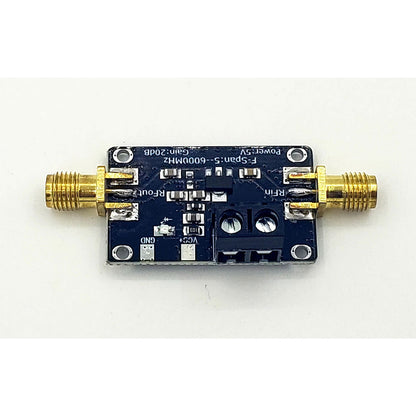

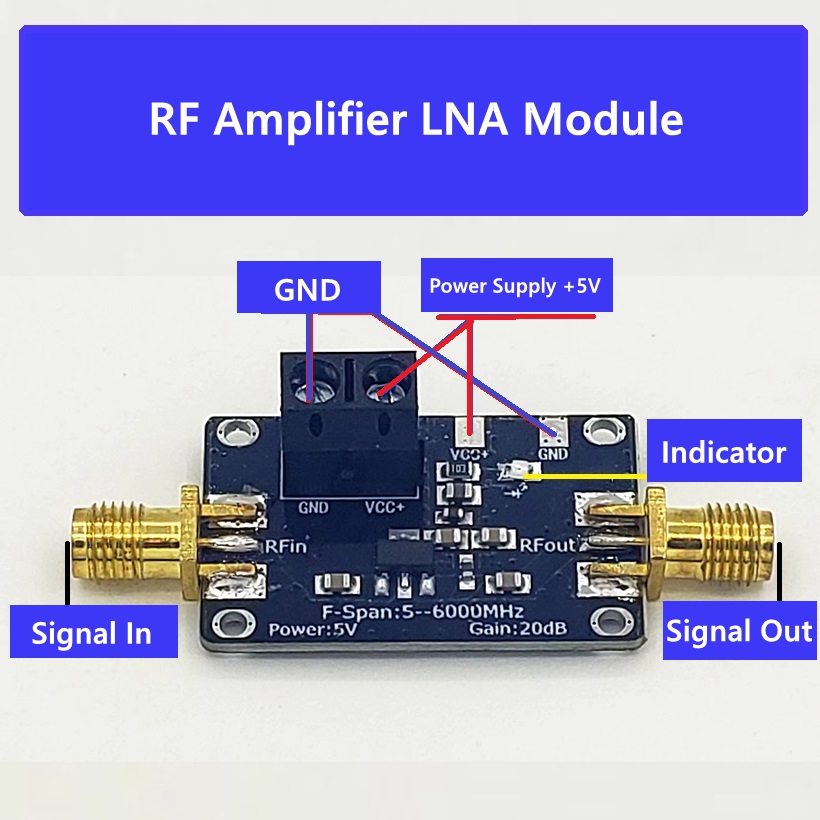

SBB5089 Module RF Amplifier High Performance Low Noise Amplifier LNA Module 50M-6GHz 20dB Gain

SBB5089 Module RF Amplifier High Performance Low Noise Amplifier LNA Module 50M-6GHz 20dB Gain

Application:

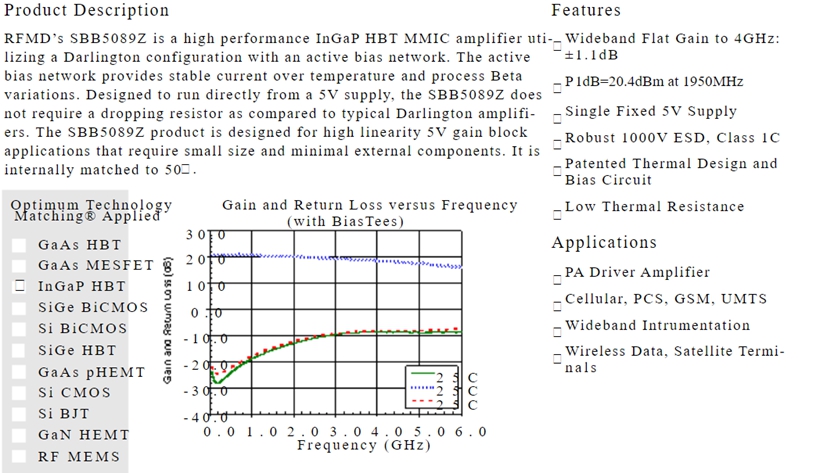

- The amplifier has a working frequency range of 5-6000MHz, a power gain of 20dB, a wide frequency range, stable gain, small noise figure, and a large dynamic range (+20dBm at 1dBP). It is suitable for fixed gain amplification of various RF signals

Precautions:
- Do not reverse the connection when connecting the power supply;
- When working with high power signals, do a good job of shielding to avoid distortion shock;
- Signal input and output shall be connected with 50 coaxial lines;
- During engineering application, the load shall be connected first, otherwise the module will be easily burnt out if the no-load power cannot be delivered.

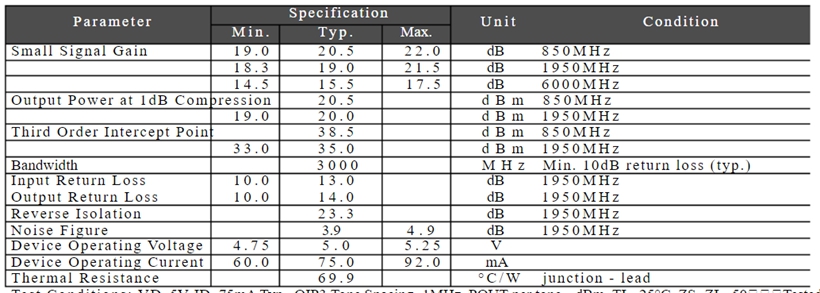

Specification:
- Working frequency: 5~6000MHz
- Enlarged gain: 20dB
- Output power: +21dBm (100mW) at 1 dB compression point
- Working current: 85mA (5V)
- Power supply voltage: 5VDC
- System impedance: 50ohm

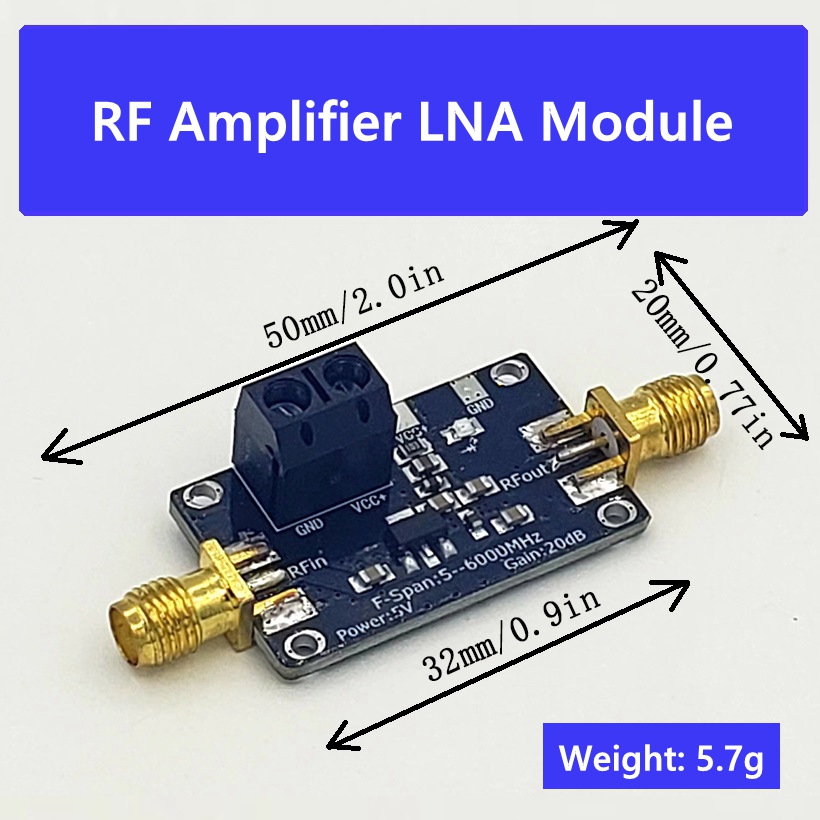

- Weight: 5.7g

Package Included:
- 1 x RF Amplifier Module
