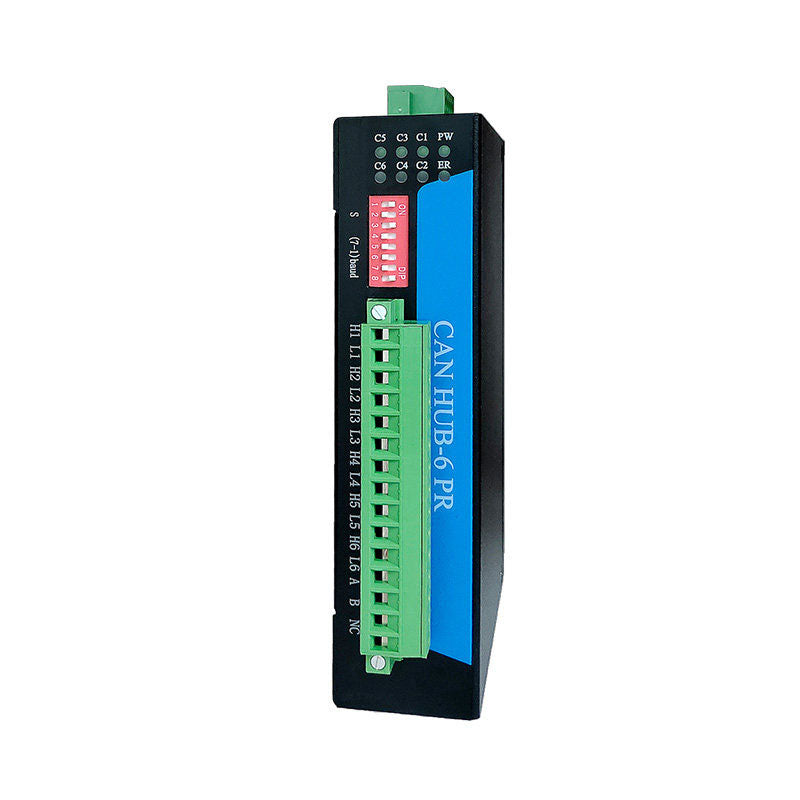

SG-CanHub-600 6-Channel CAN Hub Industrial Intelligent CAN Digital Isolation Relay Hub for Communication Distance Extension

Description:
- SG-CanHub-600 is an industrial grade intelligent CAN digital isolation relay hub with six channels. It can achieve signal regeneration, extend communication distance, improve bus load capacity, match CAN networks with different speeds, and powerful ID filtering function can greatly reduce CAN bus load. It also has fault indication and intelligent disconnection function. It has been widely used in automotive electronic networks, power communication networks, industrial control networks, and high-speed large data communication.

Specifications and Characteristics:
- Standard: Supports CAN2.0A and CAN2.0B protocols, compliant with ISO/DIS 11898 specification:
- Interface mode: CAN Bus

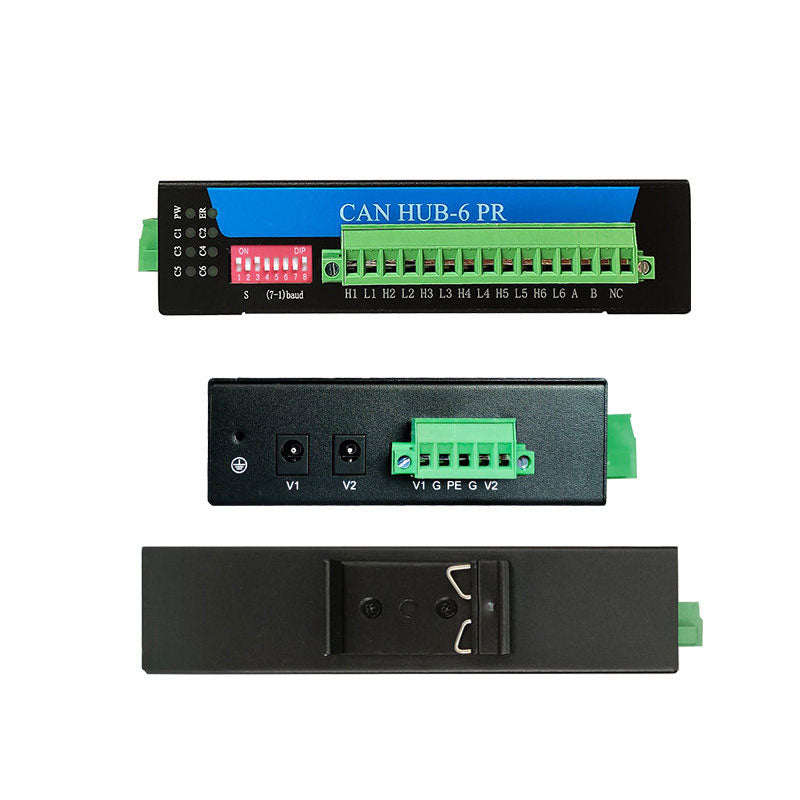

- Interface protection: Power interface anti reverse connection and over-voltage protection. CAN Bus interface digital isolation protection and surge protection.
- Configuration method: dip switch or software configuration.
- Performance parameters: Equipped with a 32-bit high-speed ARM processor, the data throughput can reach up to 2000fps (500Kbps, standard frames), and the internal 48K data buffer ensures that a large amount of burst data is not lost.
- Power supply: DC9-24V, curve value 12V 50mA (crimping terminal power supply)
- Physical dimensions: 100mm x 70mm x 25mm (excluding the height of the guide rail mounting bracket)

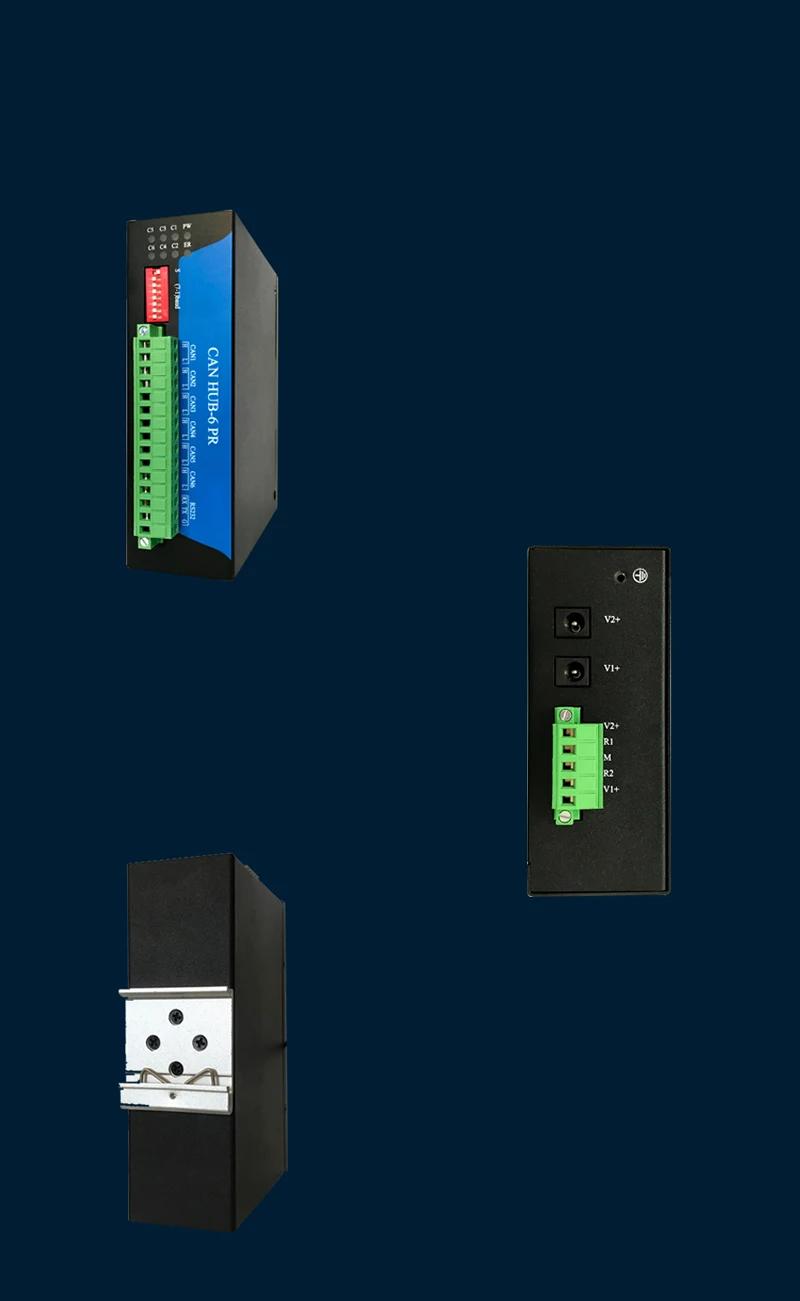

- Installation method: standard DIN rail installation
- Working temperature: -40 ~ 60℃
- Storage temperature: -40 ~ 80℃
- Storage humidity: 5% ~ 90%RH

CAN interface:
- Protocol: CAN2.0A/2.0B
- Number of ports: 6
- Communication speed: can be set through software/dip switch
- Communication method: CAN
- Features: Extended communication distance, each CAN port can be configured with different speeds
- Isolation protection: digital isolation and surge protection

Main Technical Parameters:
- Processor: 32-bit high-speed ARM processor
- Buffer: 48K
- Configuration method: dip switch or software configuration
- Communication distance: The communication distance of each CAN port is doubled
- Installation method: Standard DIN rail installation

Package Included:
- 1 x CAN Hub
