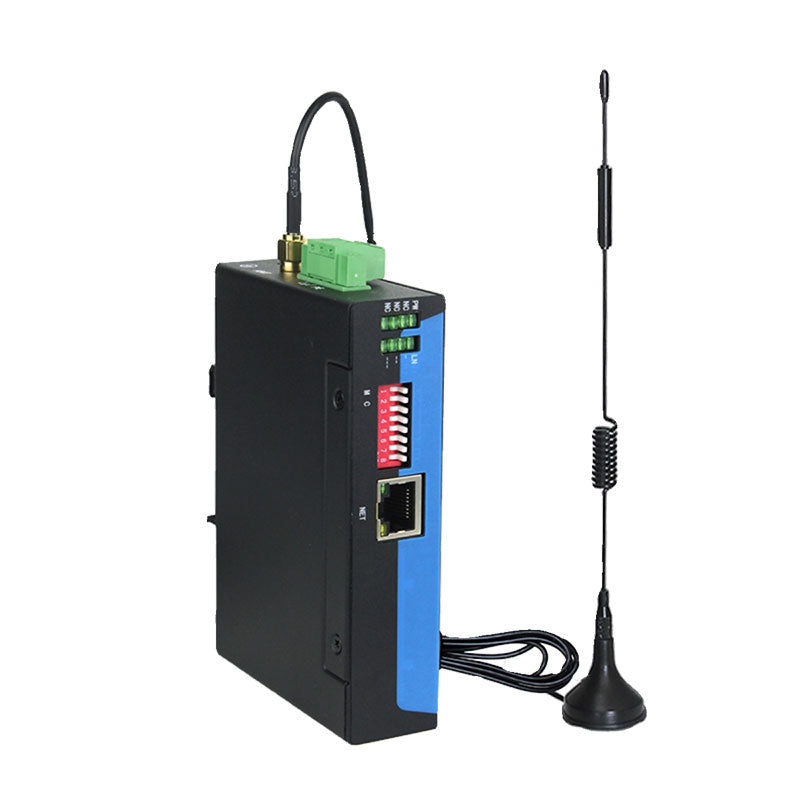

SG-WX-Bridge Industrial PLC Wireless Repeater Profinet/Ethernet/IP/Modbus TCP to Wireless Bridge

Description:

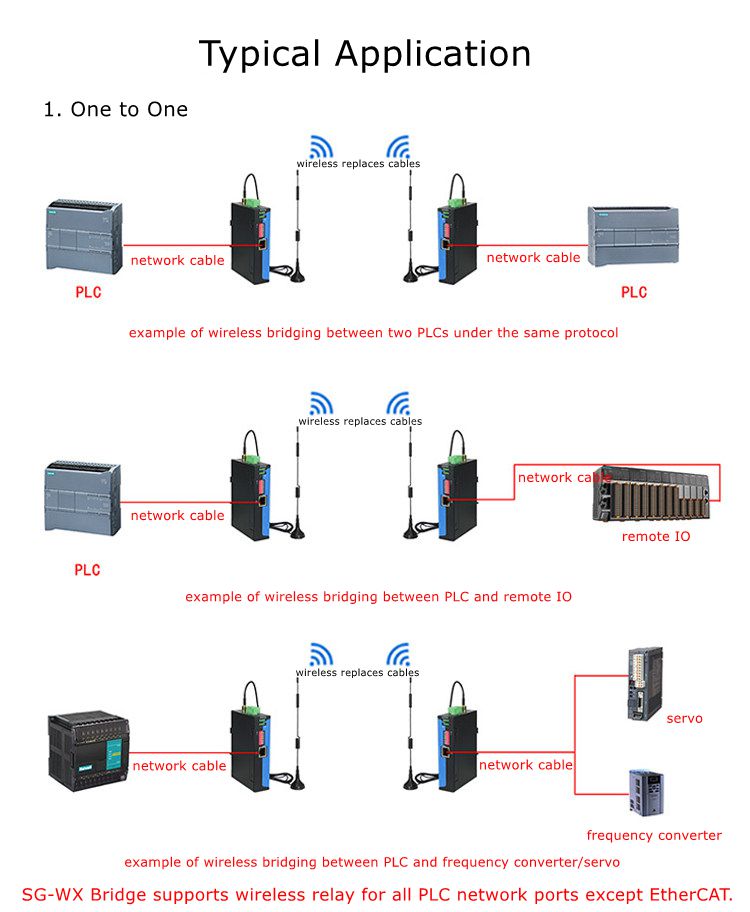

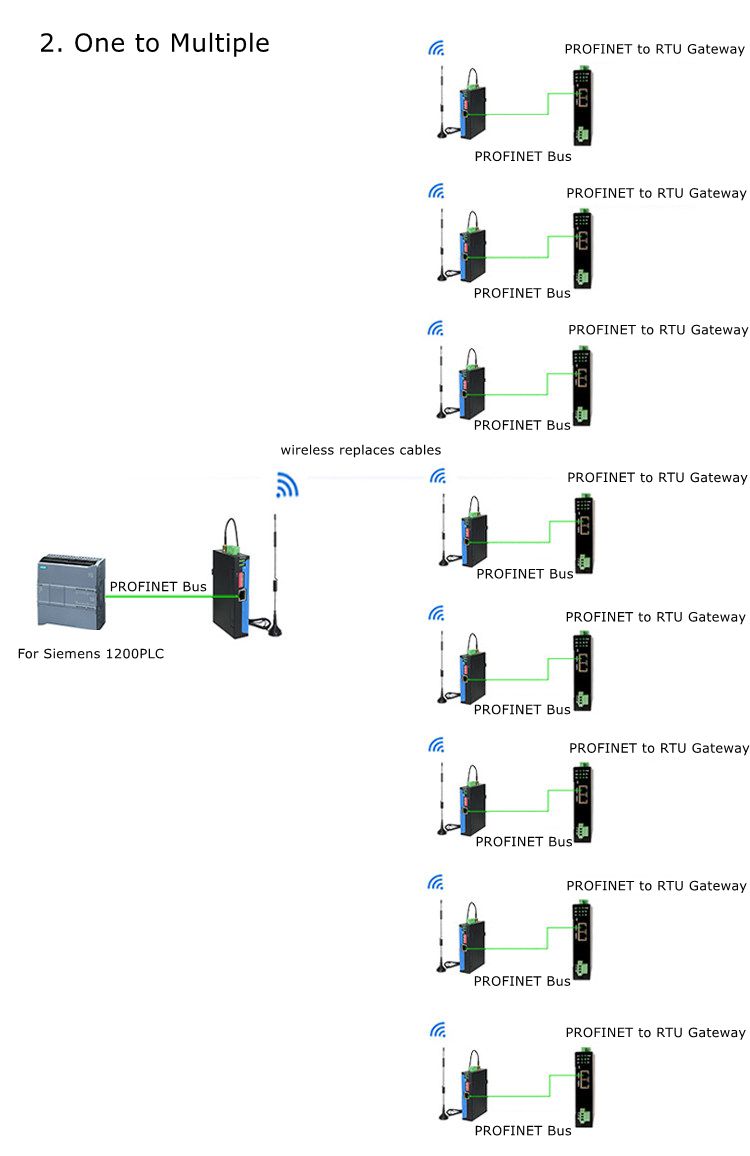

- This product is an industrial Ethernet (Profinet, EtherNet/IP, Modbus TCP, etc.) to wireless device that can be used in pairs (one-to-one). It has already been paired before leaving the factory, and users do not need to pair it again. It is plug and play. Suitable for scenarios where wiring is inconvenient for users. It is easy to use, just set the dip switch and power it on to work, without the need for any other settings. Supports communication protocols such as Profinet, EtherNet/IP, Modbus TCP, for Siemens S7, and all upper layer TCP/IP protocols.

Specification:
- Power supply: 9V - 36V (typ. 12V/100mA), the power supply is not polarized (there is a rectifier bridge inside), with over-voltage/over-current protection
- Working temperature: -30℃ to 75℃
- Working humidity: 5% - 95% non-condensing
- Ethernet port: 1 x RJ45 Ethernet interface, support 100BASE-TX/RX, MDI/MDIX self-detection
- Wireless: maximum transmission speed rate 15Mbps (below 300m), maximum transmission distance of 600m

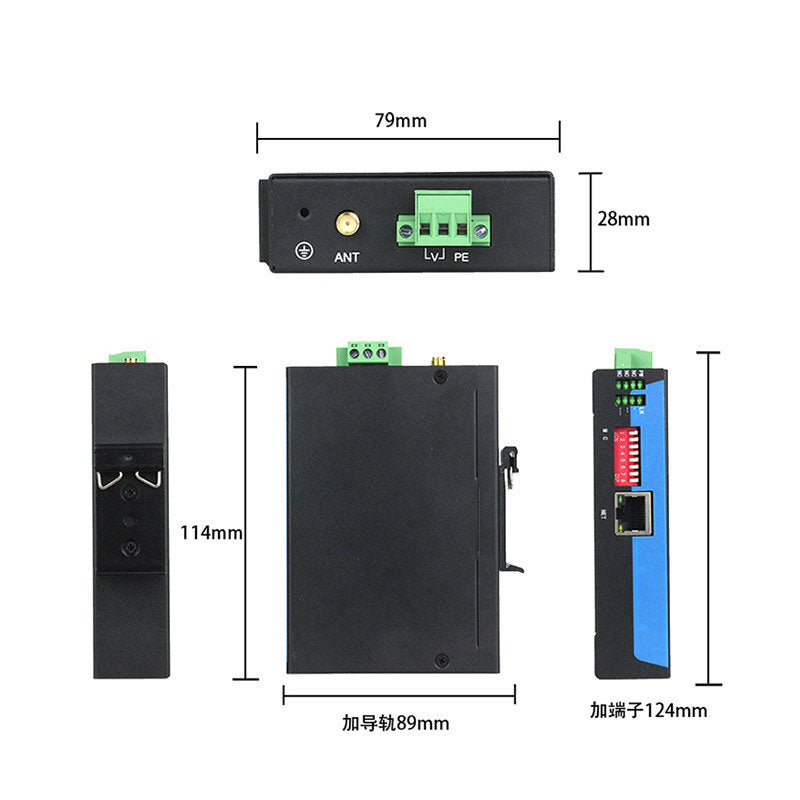

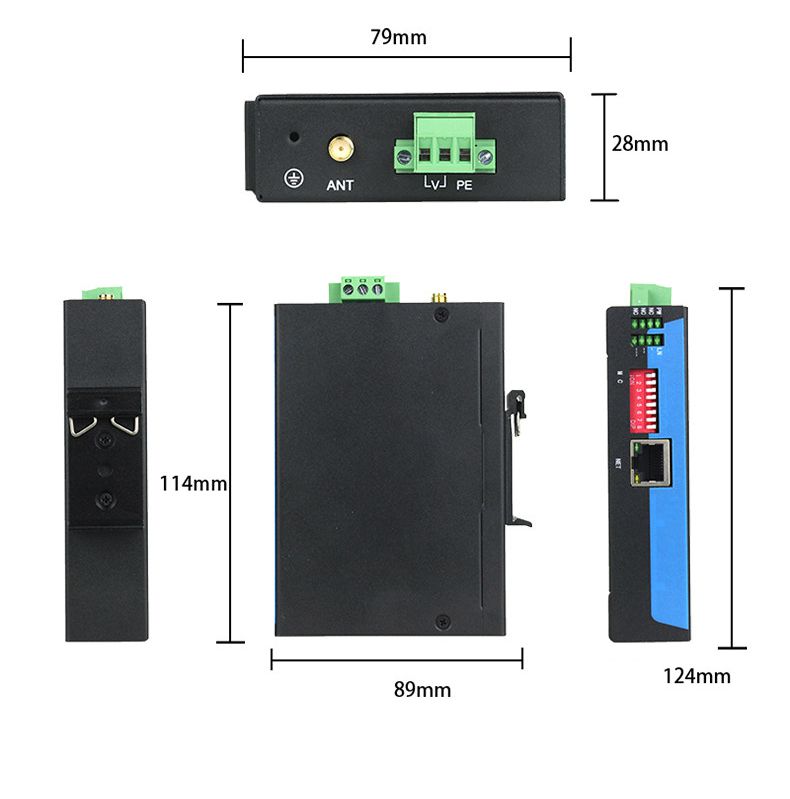

Power Interface:
- Support crimping terminal connection, regardless of positive and negative, support 9V-36V input.
- V Interface: 9-36V, regardless of positive and negative
- PE: grounding

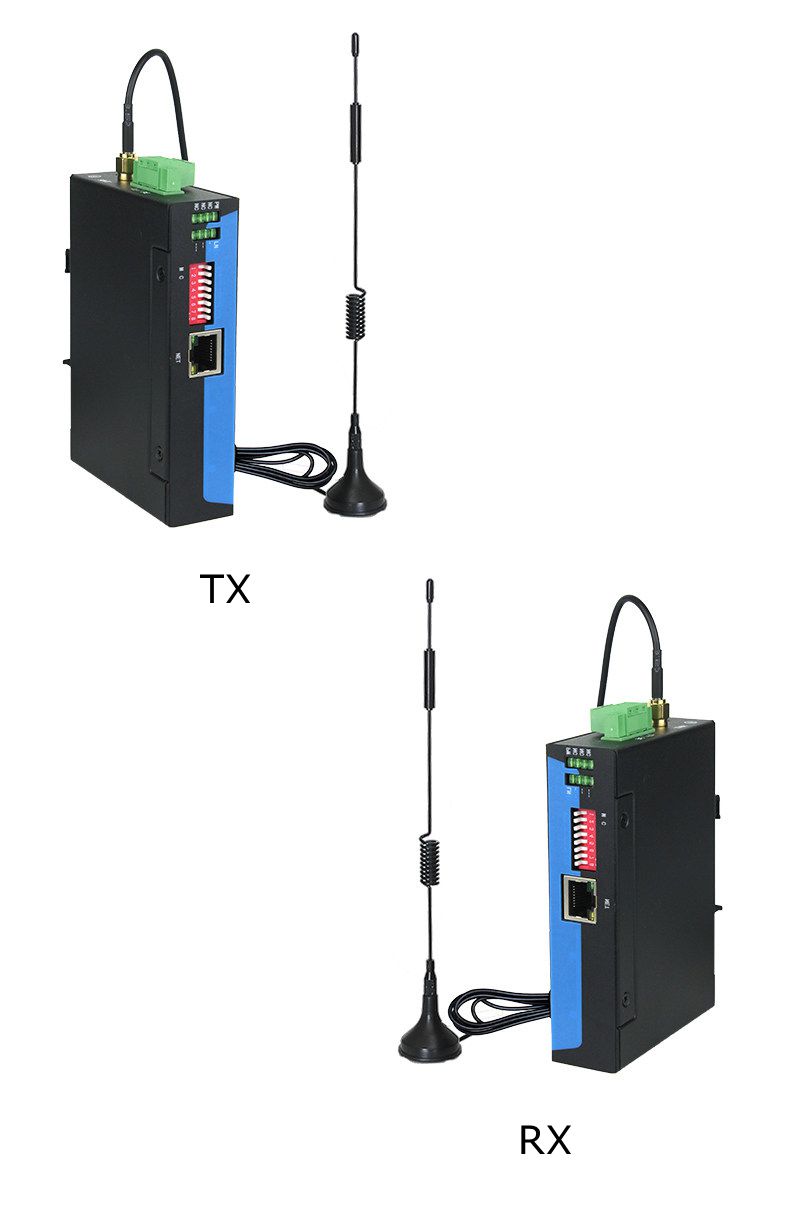

Antenna Installation Reminder:
- Please make sure to tighten the antenna when using it.
- It is recommended to use brackets to raise the bridge to at least 1.5 meters to eliminate interference from personnel walking on the antenna propagation path.
- Do not place the bridge too close to the wall, as it will affect the performance of the antenna.
- Some antennas do not support bending themselves. If there is a "non bendable" label on the antenna, please do not bend it.
- Do not place two devices too close, it is recommended to maintain a distance of at least 1 meter to prevent signal strength from reducing reception sensitivity.

Package Included:
- 1 x Wireless Bridge
