Introduction:
- Integrated latitude adjustment base, no additional installation required, more compact storage.
- Unique pitch adjustment structure, supporting quick adjustment (0-65°) and fine adjustment (+5°). From rapid setup to precise positioning, making polar axis calibration more efficient.
- Built-in laser pointer, no need to carry additional devices. After completing the installation of the equatorial mount, it can quickly assist in polar axis positioning. Simplify outdoor processes and improve shooting preparation efficiency.
- Built-in battery, independently powered. Supports Type-C charging and power supply, without relying on a fixed power environment. In the external power mode, the device's carrying capacity is further enhanced to meet more shooting needs. Built-in large capacity lithium battery, capable of up to 6 hours of battery life (10℃ - 40℃ environment).
- Fully CNC aviation aluminum body.
Specifications:

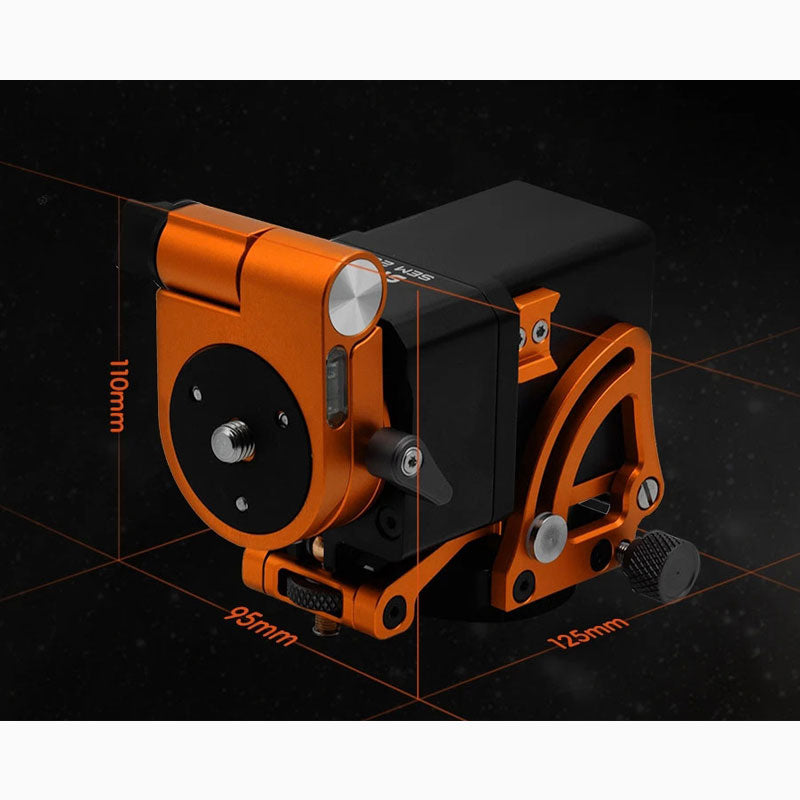

- Storage size: 125 x 95 x 110mm
- Net weight: 1186g
- Recommended shooting focal length: ≤280mm (precise polar axis stable tracking for 2 minutes)
- Recommended load capacity: ≤5kg
- Power supply method: built-in battery, support Type-C charging
- Duration: about 6 hours (10℃ - 40℃ environment)
- Tracking speed: stellar velocity
- Latitude angle limitation: coarse adjustment of latitude 0° - 65° (fine adjustment +5°)
- V-shaped gimbal adjustment range: 0°- 90°
- External interface: USB Type-C x2
Package Included:
- 1 x Equatorial Mount
- 1 x Polar Scope
- 1 x Balancing Kit
