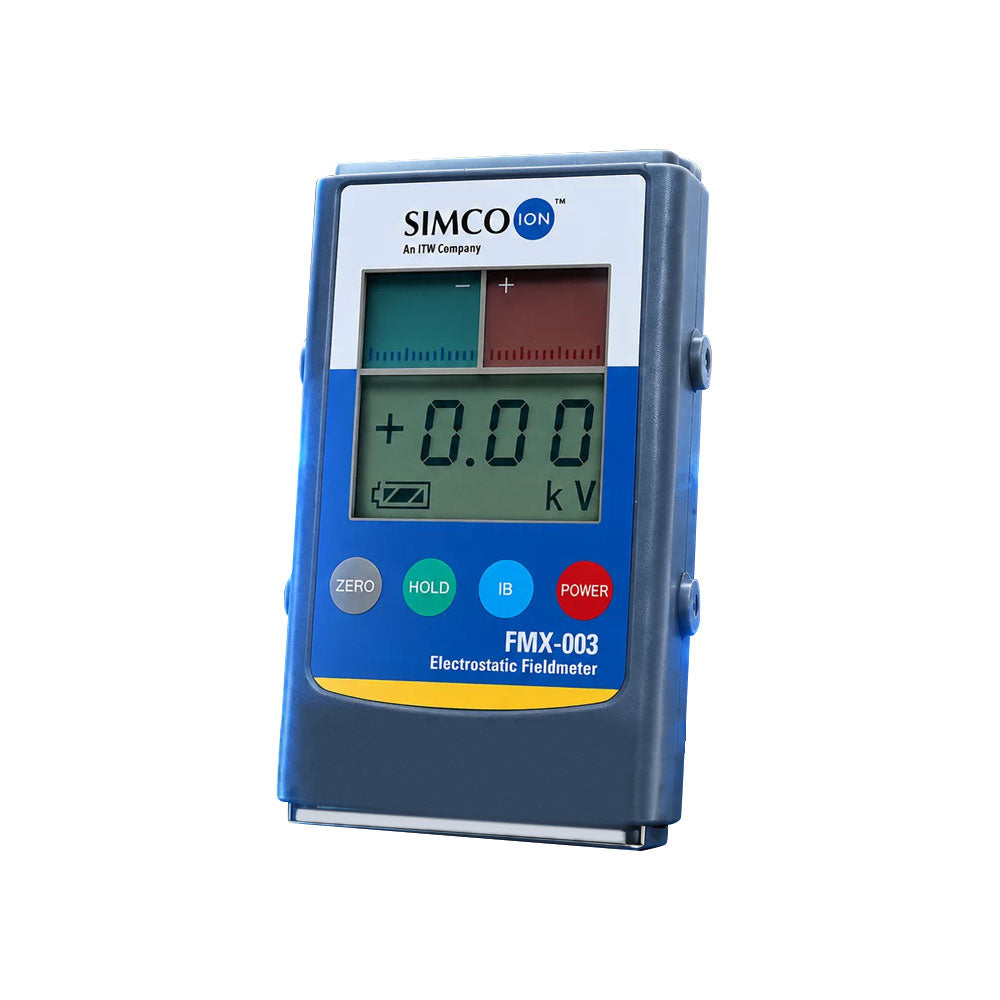

SIMCO FMX-003 0-20KV Portable Handheld Electrostatic Field Meter Non-contact Electrostatic Sensing Tester

Functions:
- Detecting static electricity in printed packaging; Friction generates static electricity that adsorbs dust, affecting printing quality.
- Detecting static electricity in semiconductor chips; Static discharge can penetrate sensitive components, resulting in a decrease in yield rate.
- Detecting static electricity in pharmaceutical production; Electrostatic adsorption of fine particles pollutes the clean room environment.
- Determine the quality of electrostatic equipment; Quickly detect ion balance and electrostatic voltage to evaluate equipment performance.

Features:
- The numerical values are displayed intuitively, with clear signs of positive and negative. The mode can be switched with one click, and the switch can be turned on and off with one click.
- Non contact electrostatic induction sensor, no need to touch the sample, fast detection.
- Four key layout, avoid tedious multi-level menus.
- High precision testing, fast response, stable and reliable.

Usage of Ion Balance Test Board:
- First, install the ion balance measurement board on the front end of the instrument, press the red POWER button, and there will be a beep sound. Then press the blue IB button, and the unit in the bottom right corner of the screen will be V. The red LED lights on the front two covers will turn off, and then press the orange ZERO button to reset the initial value to zero. Rub the metal plate with a regular plastic bag to generate a static electricity value exceeding 300V, and then align the ion balance measuring plate with the static eliminator at a distance of about 30cm. The static electricity dissipates and the ion balance does not exceed 35V. In this case, the static eliminator is normal.

Specifications:
- Model: FMX-003
- Measuring range: 0 - 20KV
- Precision error: ±10%
- Detection distance: 25mm±1mm
- Operating environment: 10 - 40℃, 0 - 60%RH (non-condensing)

Package Included:
- 1 x Electrostatic Field Meter
- 1 x Grounding Wire
- 1 x User Manual
