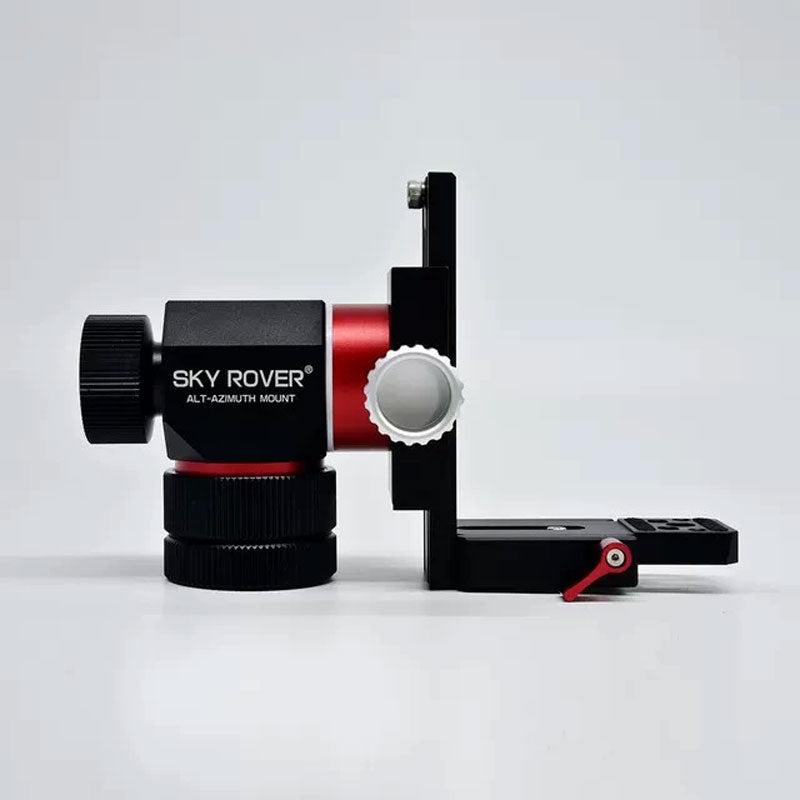

SKY ROVER 2-inch ALT-AZIMUTH Portable Mount with L Plate Follow-up Gimbal for Astronomical Telescope

SKY ROVER 2-inch ALT-AZIMUTH Portable Mount with L Plate Follow-up Gimbal for Astronomical Telescope

Specification:
- Product name: 2-inch mount
- Horizontal interface: 3/8" thread
- Pitch interface: M6 threads, one every 90 degrees
- Carrying capacity: 5 - 10kg (performance will decrease under high loads.)
- Net weight: 1314g (mount: 1080g, L plate: 234g)

Structure:
(1)Pitch locking knob
(2) Clamp
(3) L plate
(4) Horizontal locking knob
(5) Clamp locking screw
(6) L plate locking screw
(7) M6 screw hole
(8) 3/8 screw hole

Package Included:
- 1 x Mount
- 1 x Clamp
- 1 x L Plate
- 2 x M6 Screw
- 1 x 3/8" Screw
- 1 x 1/4" Screw
- 1 x Allen Wrench

Note:
- The telescope displayed in the pictures is not included.
