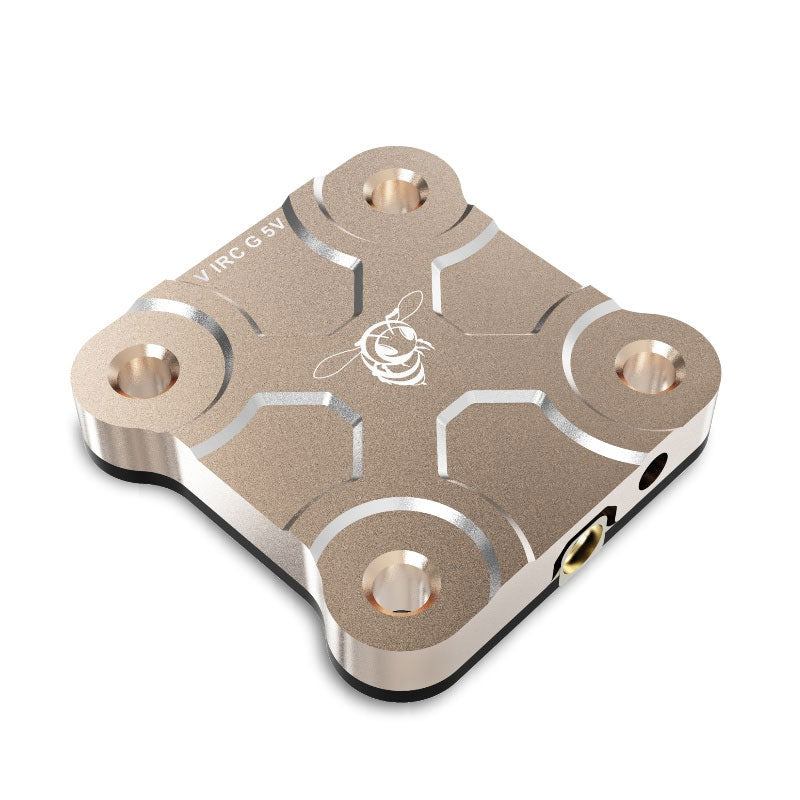

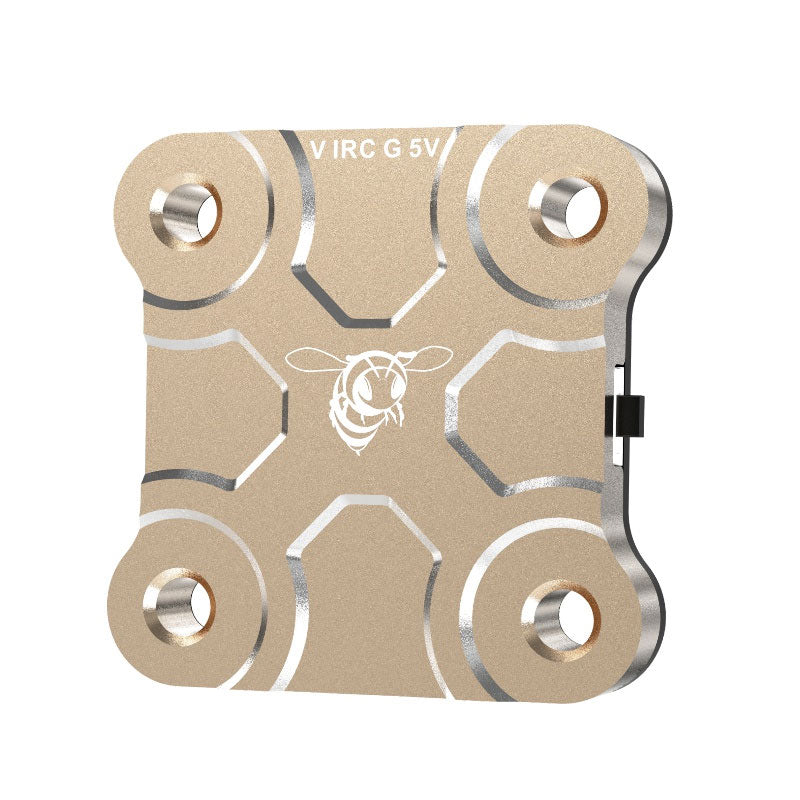

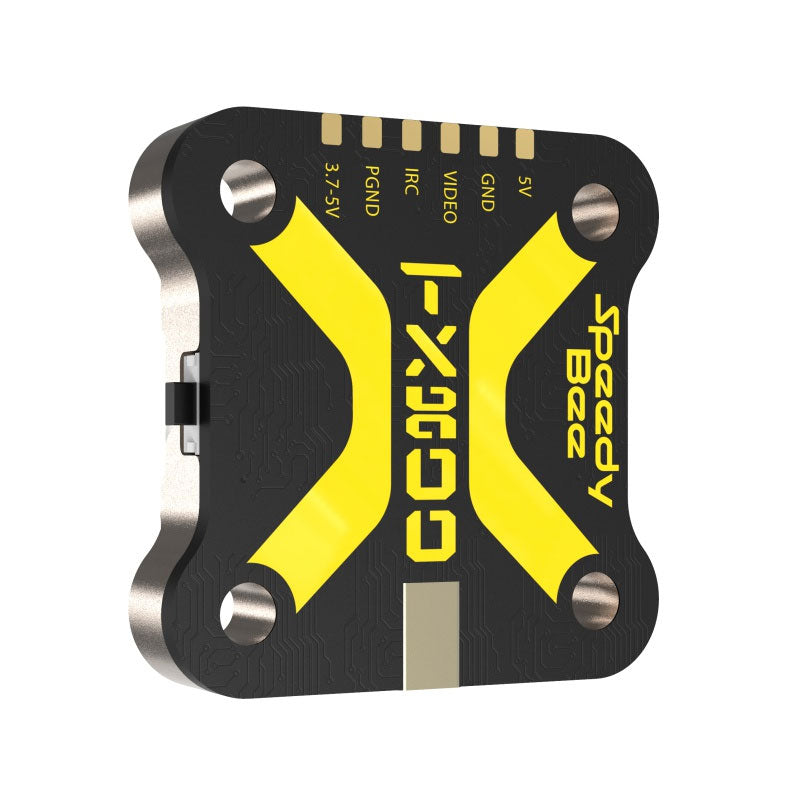

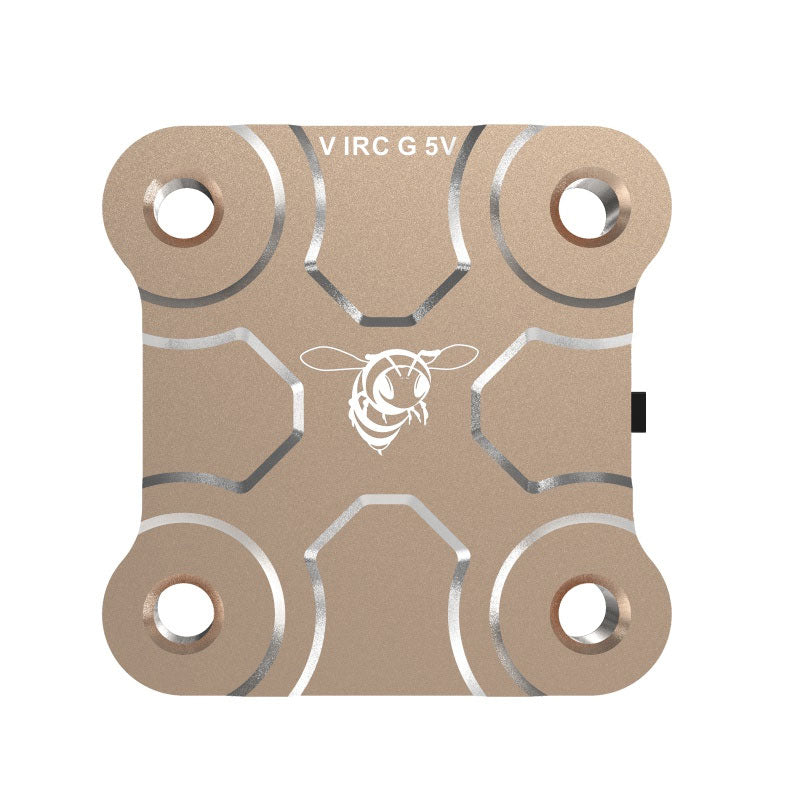

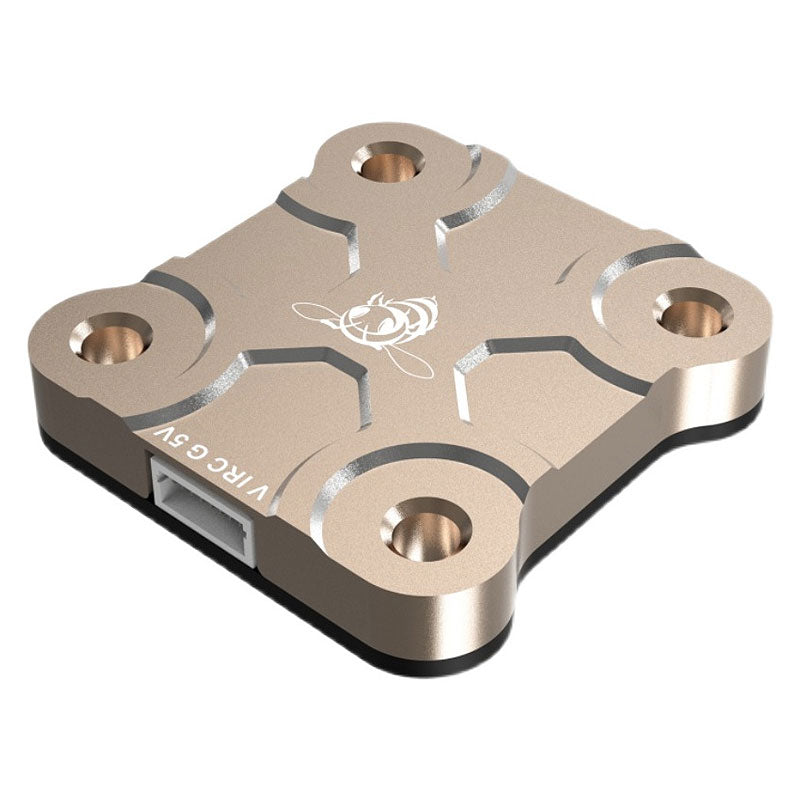

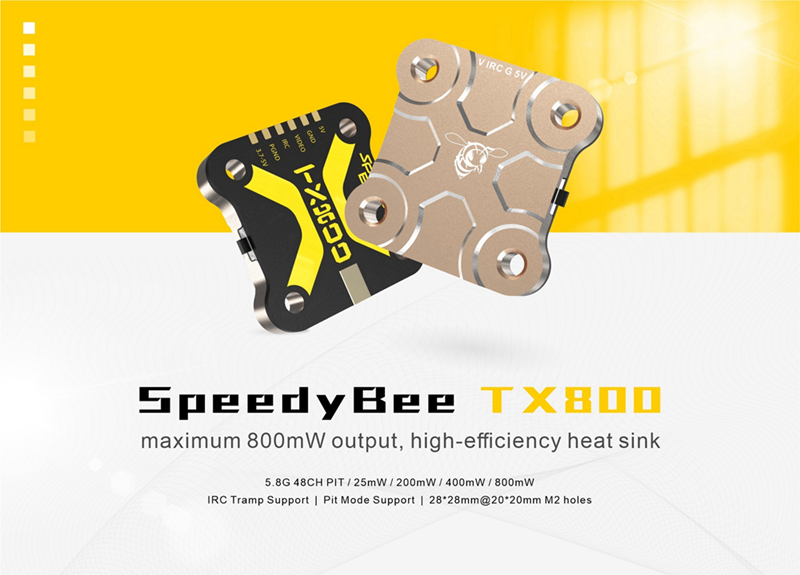

SpeedyBee TX800 5.8G VTX Video Transmitter 800MW Maximum Output Power for RC Drones

SpeedyBee TX800 5.8G VTX Video Transmitter 800MW Maximum Output Power for RC Drones

Specifications:
- Frequency Channel: 5.8G 48CH

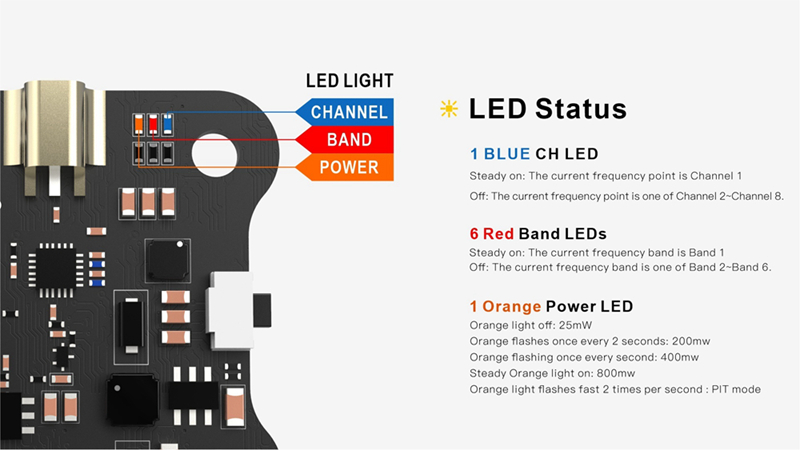

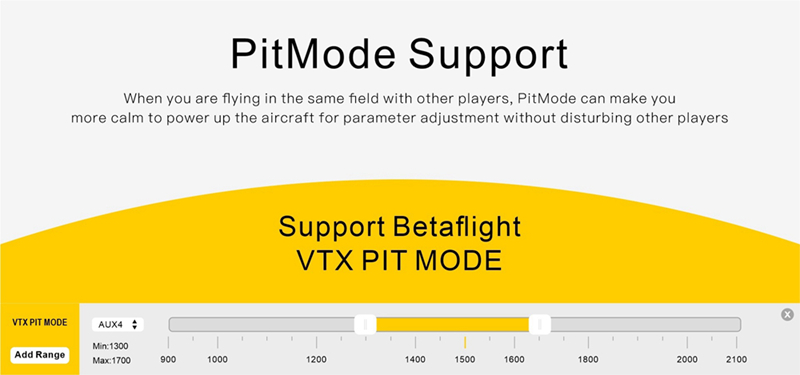

- Output Power: PIT/25mW/200mW/400mW/800mW
- Working Current: 150-550mA 5V
- Voltage out: 5V at max 250mA
- Voltage in: 3.7-5.5V
- Video input impedance: 75 Ohm
- Antenna connector: MMCX
- Weight: 5.6g (without the weight of antenna)
- PCB Size: 28mm*28mm at 20*20 M2

Package Included:
- 1 x TX800
- 1 x MMCX Antenna
- 1 x MMCX to SMA Cable

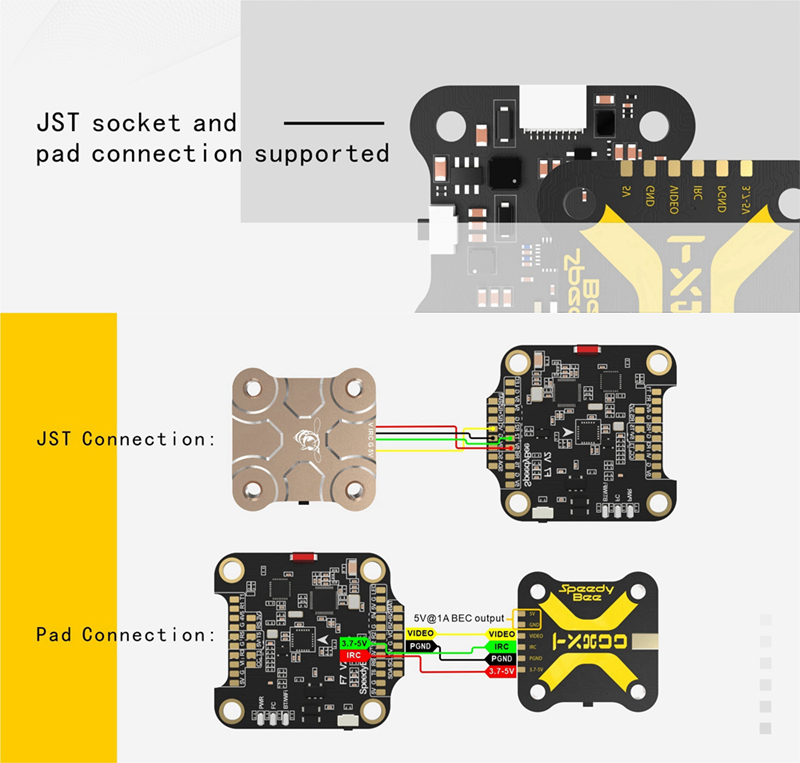

- 1 x 1.0mm 4pin Cable
