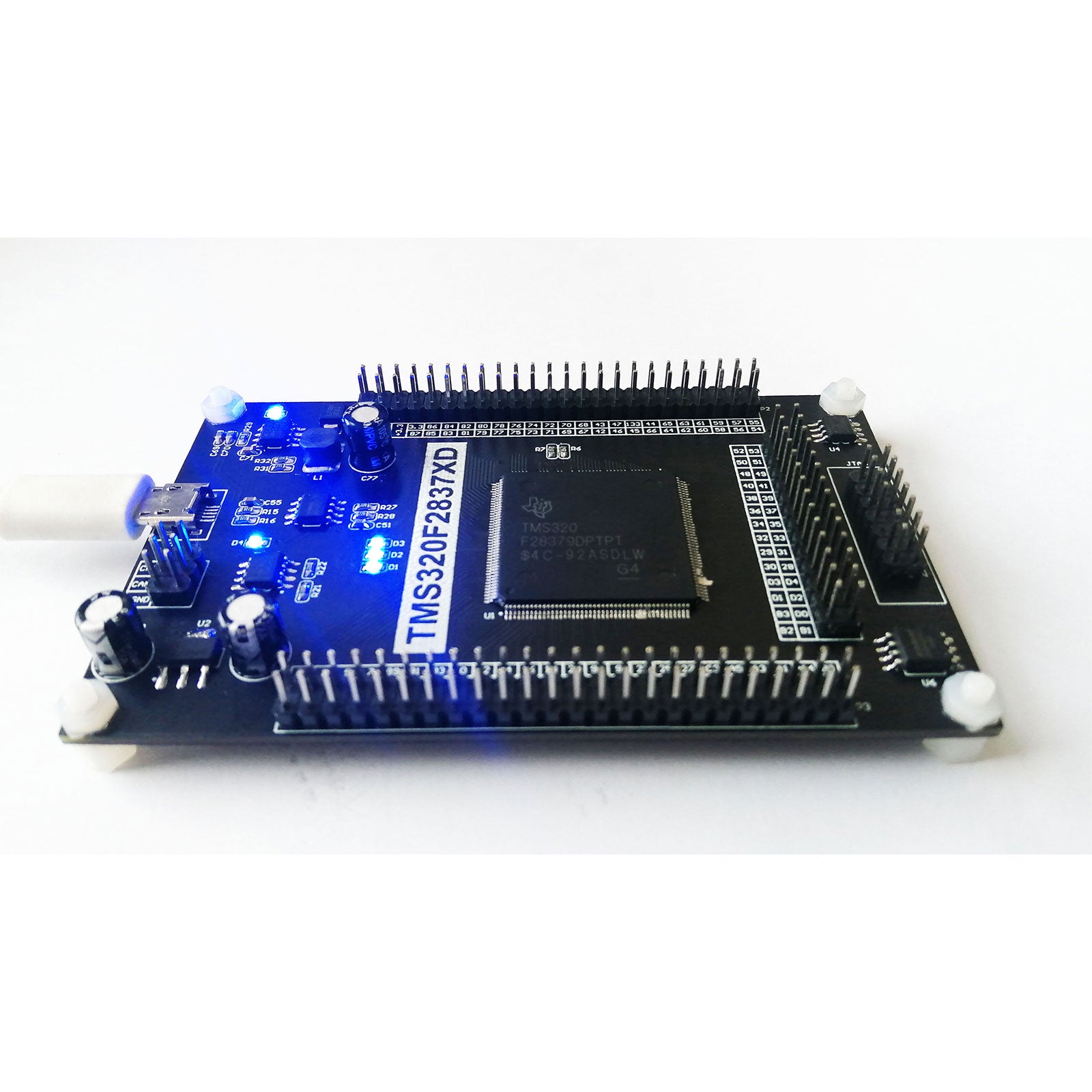

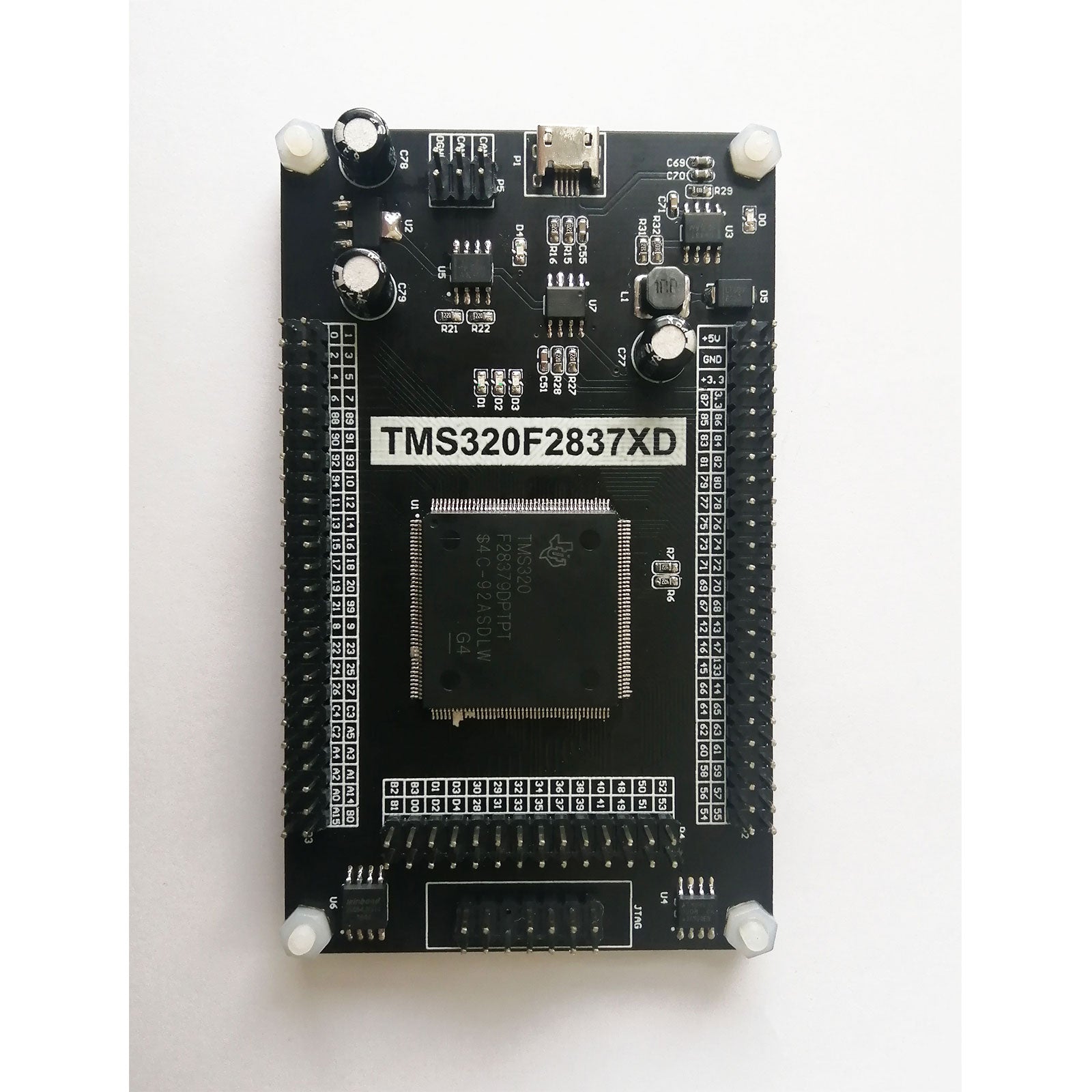

TMS320F28379DPTPS 176-Pin Dual Core DSP Development Board SCI IIC SPI CAN Communication TMS320F2837XD

* TMS320F28379DPTPS 176-Pin Dual-Core Floating-Point DSP Development Board featuring a 200MHz main frequency, 4 serial interfaces, 3 SPI interfaces, 2 I2C interfaces, 2 CAN interfaces, and 20 ADC channels. It integrates a CLA (Control Law Accelerator), TMU (Trigonometric Math Unit) for trigonometric calculations, and VCU (Viterbi, Complex Math Unit) for advanced mathematical operations.

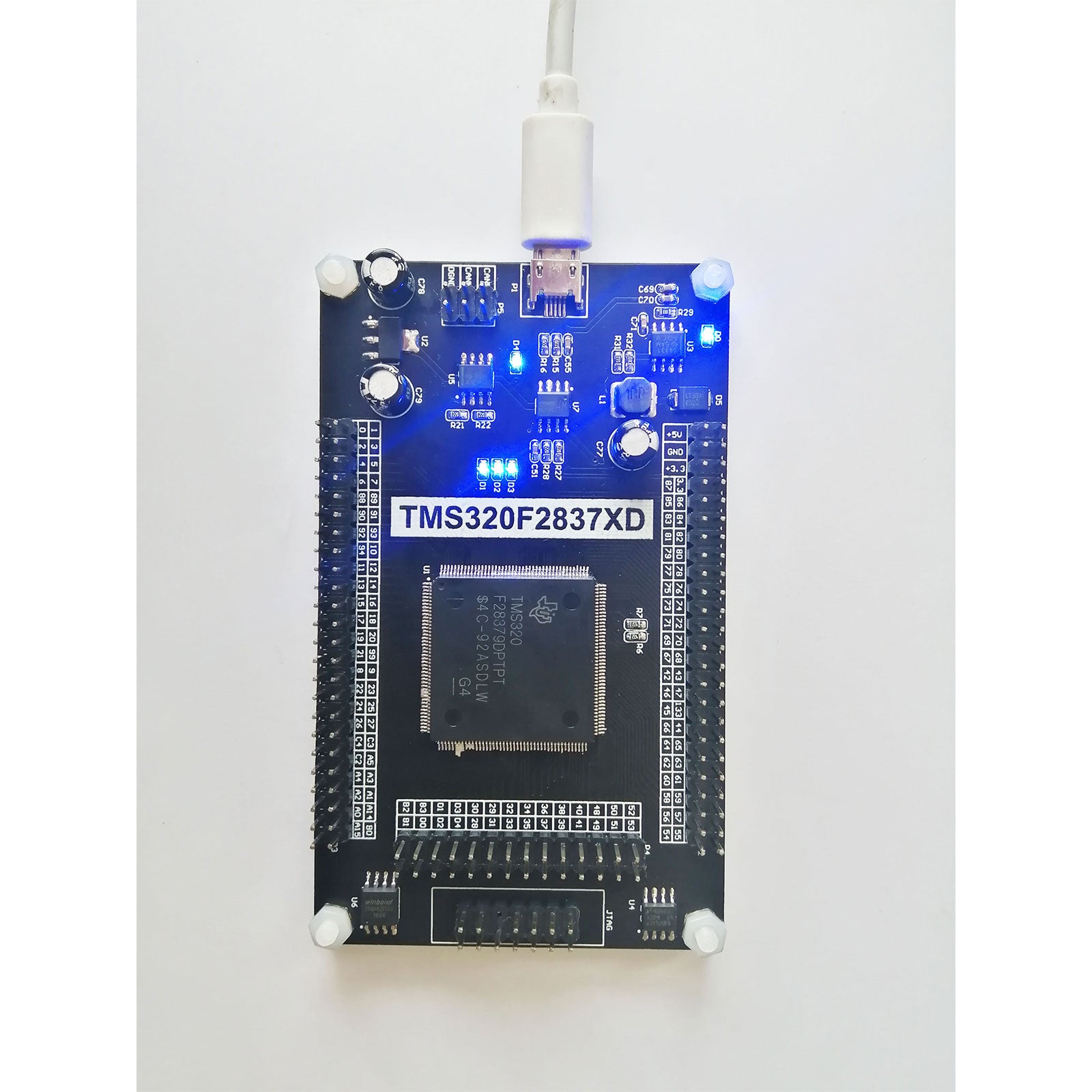

* Powered via Micro USB, allowing direct power supply and communication through a standard mobile phone USB cable.

* Onboard CP2102 USB-to-serial converter for USB serial communication, supporting a maximum baud rate of 1Mbps.

* Onboard SN65HVD232 CAN transceiver for CAN communication, supporting a maximum baud rate of 1Mbps.

* Onboard 3-channel LEDs for running light effects or system status indication.

* Onboard I2C interface EEPROM (AT24C32).

* Onboard SPI interface FLASH memory (W25Q64).

* All interfaces are fully expanded and accessible, including interfaces occupied by onboard peripherals.

* Supports the official open-source development environment CCS v10 and provides official example programs for all peripherals.

* 1 x Development Board

* Package weight: 0.15kg
