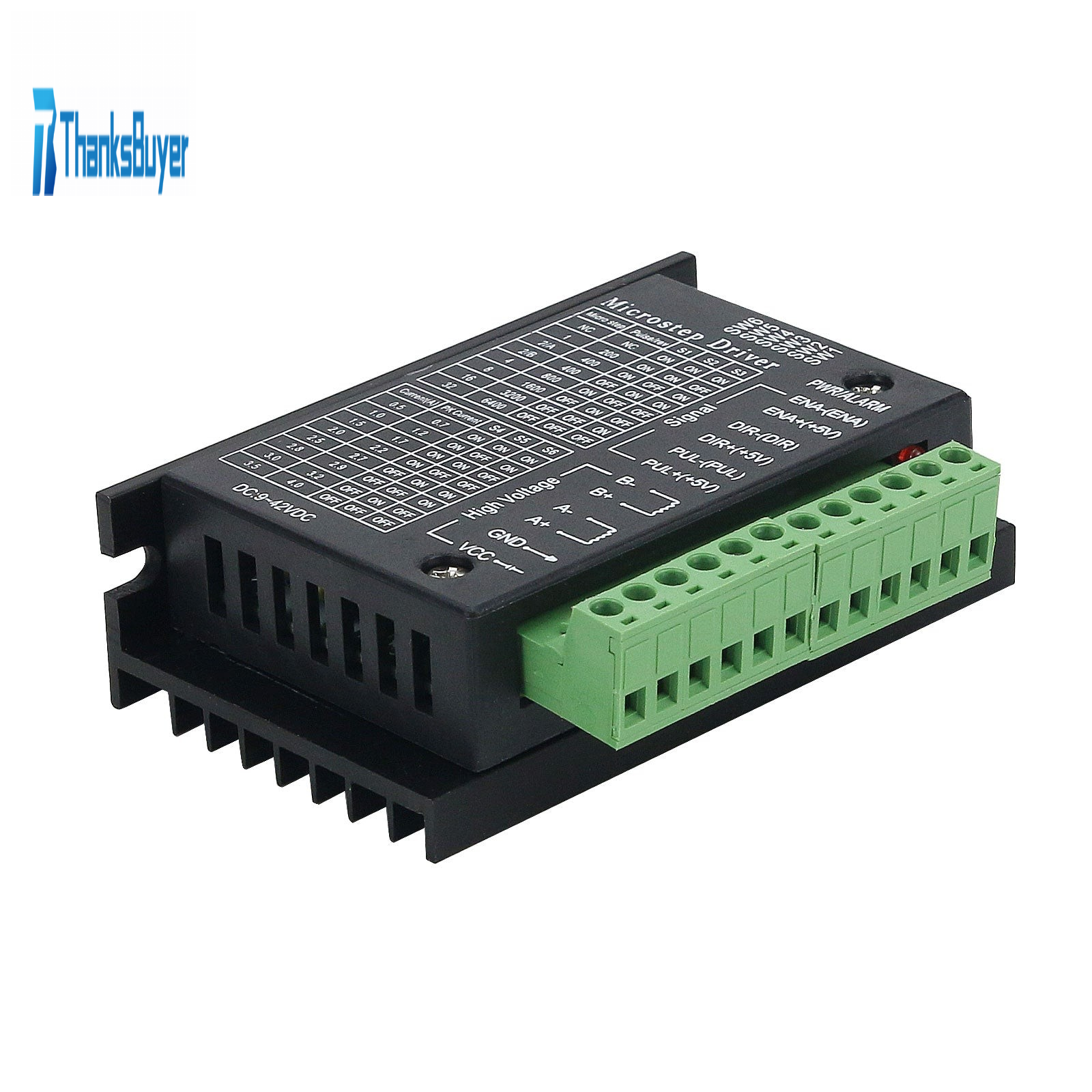

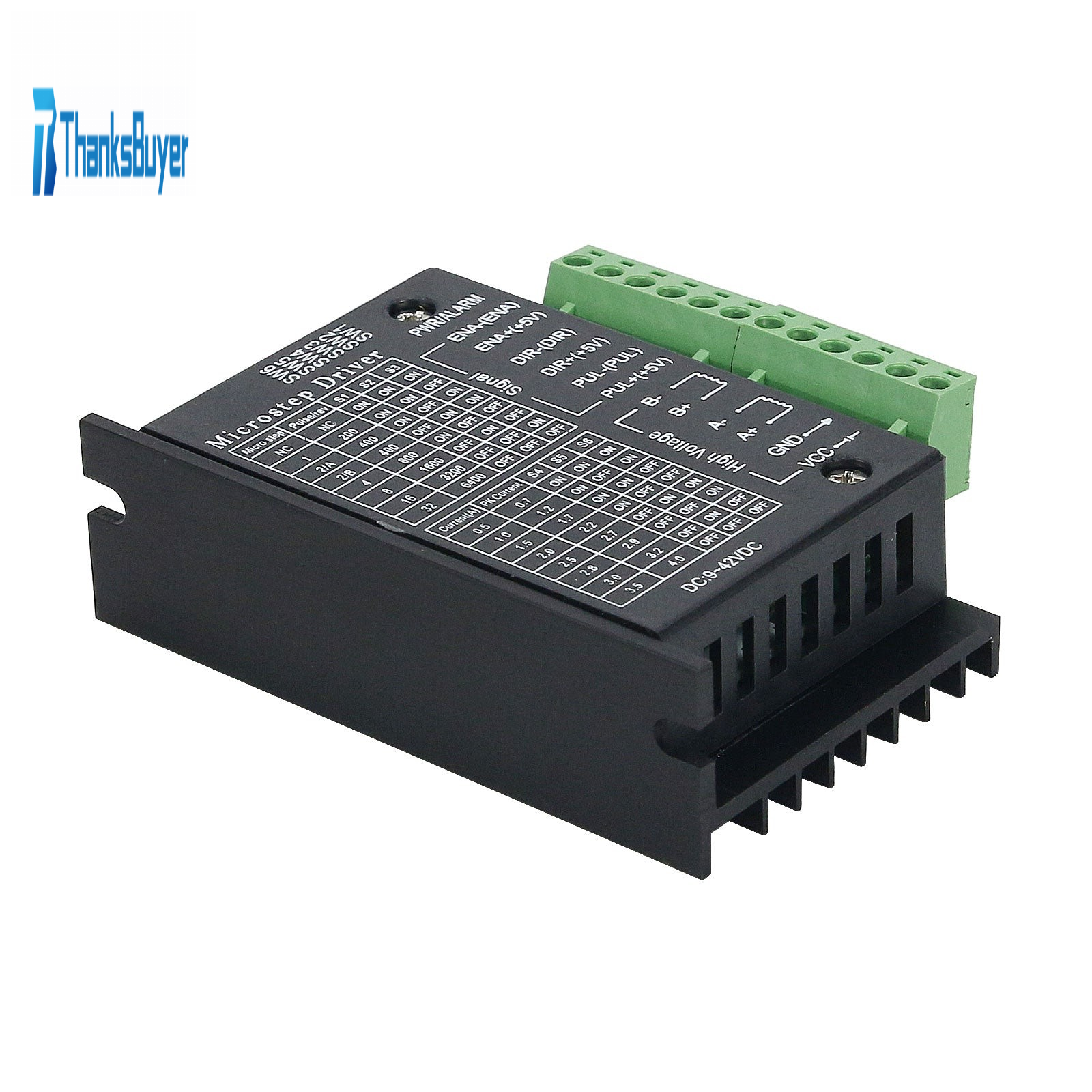

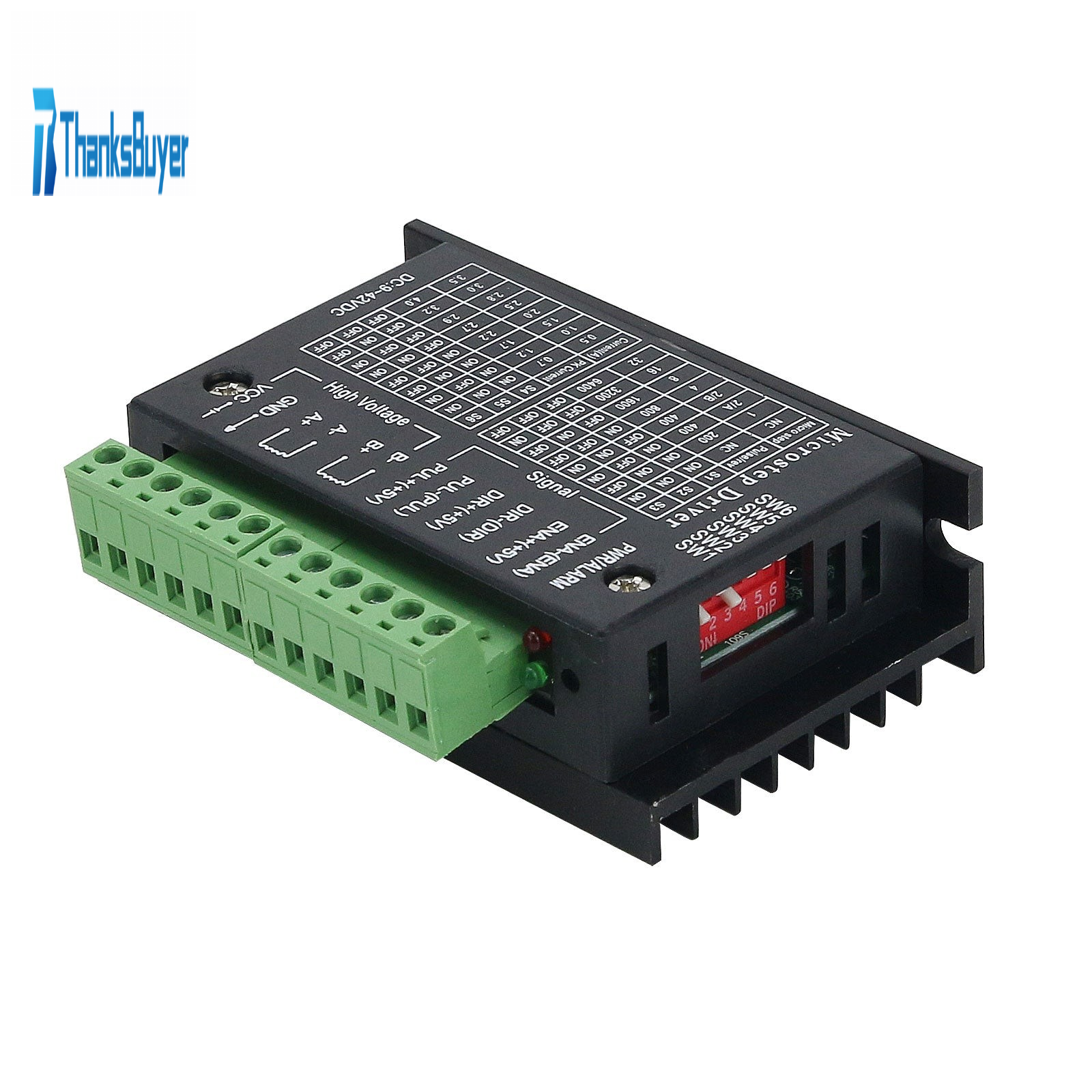

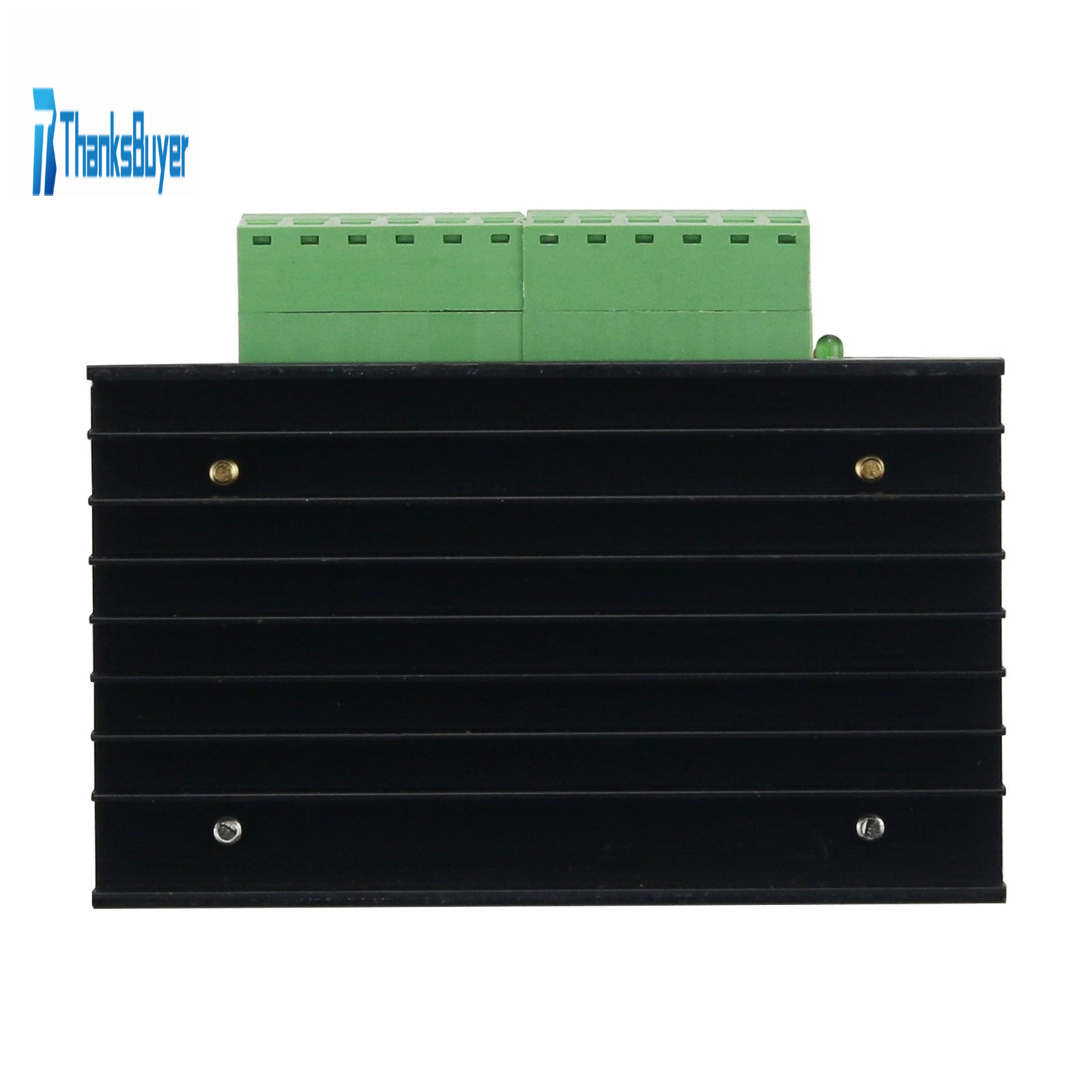

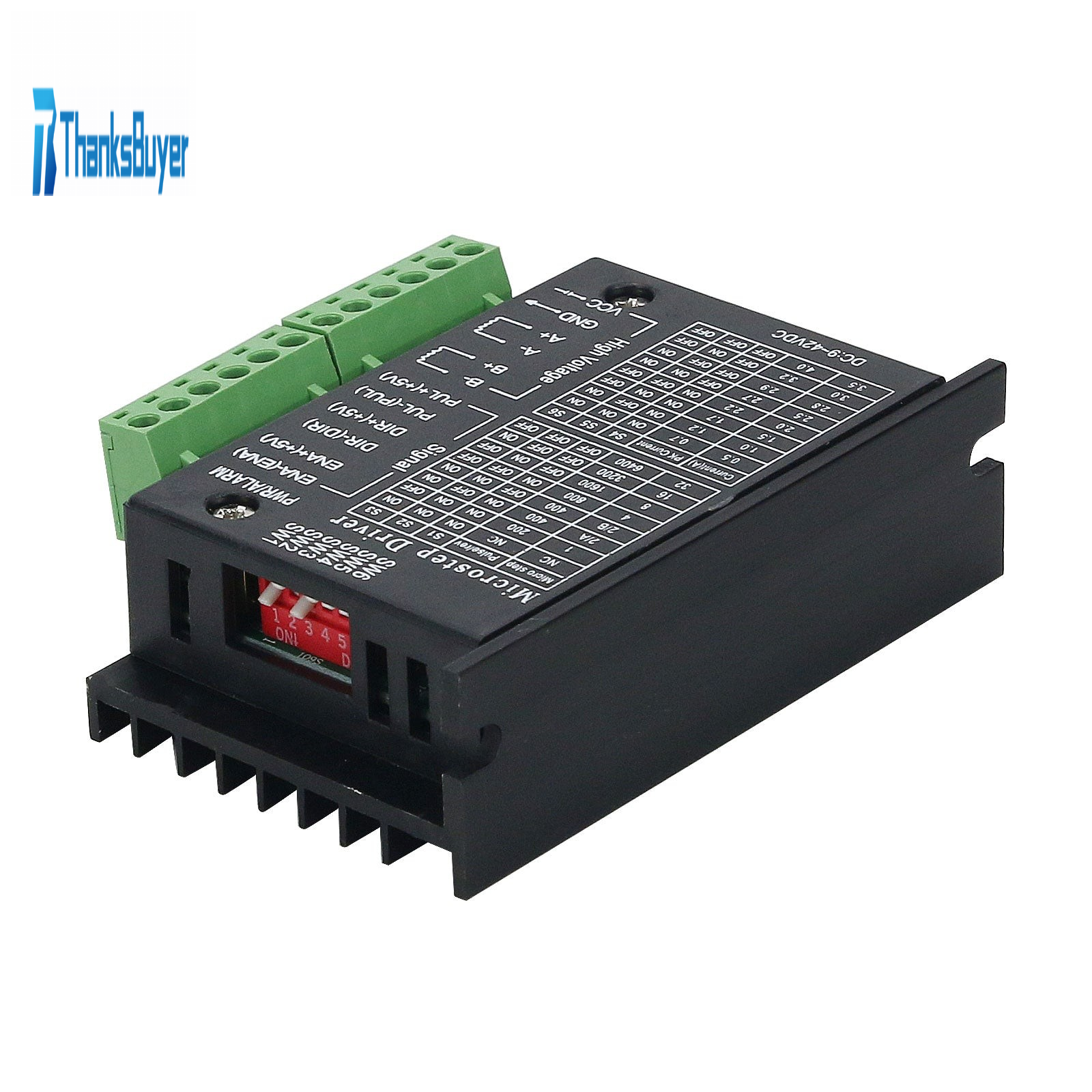

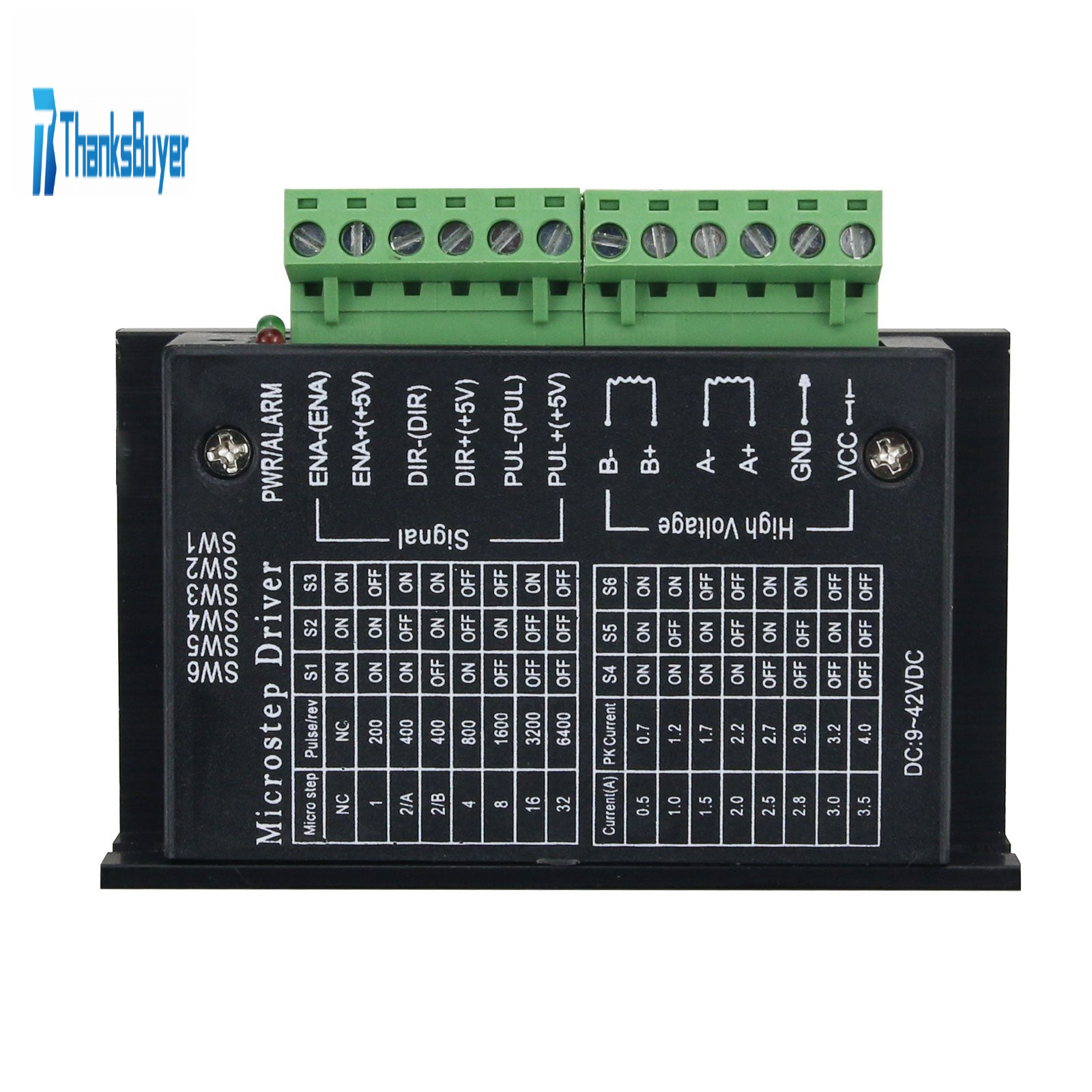

TB6600 4A 9-42V Stepper Motor Driver 32 Segments for 42/57/86 Stepper Motor B6600 Upgraded Version

Description:
This drive is an upgraded version of TB6600, featuring 32 segments. It is suitable for 2-phase, 4-phase 42, 57, 86 stepper motors (4-wire, 6-wire, 8-wire).

Features:
- Power Supply: DC 9V-42V
- H-bridge bipolar constant phase flow drive
- Eight optional output currents, max. Output current 4.0A
- 32 Subdivisions with 6 optional subdivision modes
- High-speed photoelectric isolation of input signals
- Standard common anode single pulse interface
- Offline holding function
- Semi-enclosed housing can adapt to more demanding environment
- Provides energy-saving semi-automatic current locking function
- Built-in over-temperature protection and over-current protection

Package Included:
- 1 x Stepper Motor Driver
